Isuzu WW
▶
TRUCKS
▶
FRR
▶
11475 - FRR-L EURO5 EXC.SPAC
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#111585) — 57 parça
◀
[110A] NO.2 (25 parça)
[110A] NO.3 (7 parça)
[110A] NO.1 (25 parça)
▶

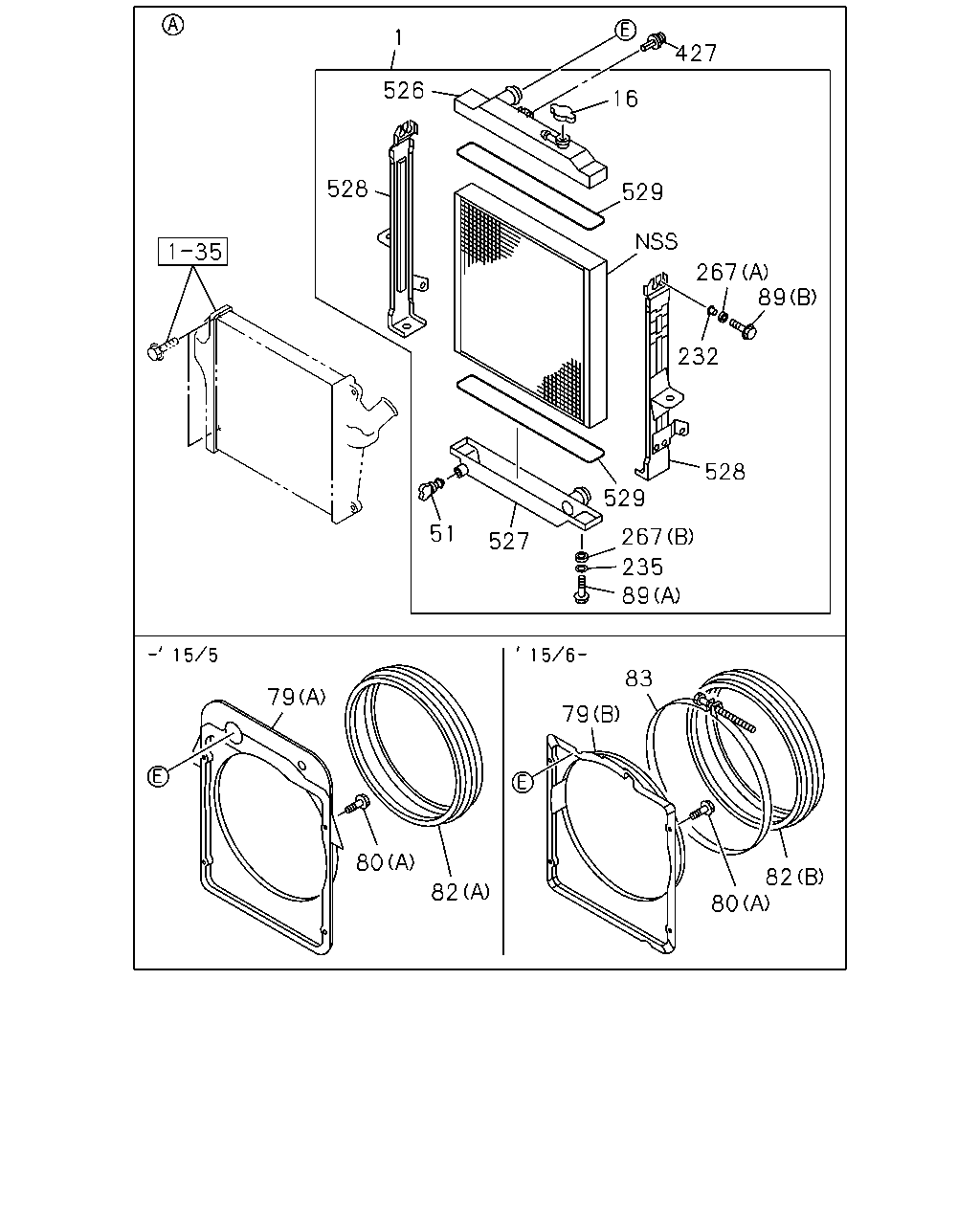

526
427
16
529
267
89
232
528
529
267
235
89
527
51
528
79
80
82
80
82
83
79
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98139-309-0
01
1
1212-
1
RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98139-308-0
01
1
1212-
16
CAP; RAD
8-98096-226-0
01
1
1212-
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1212-
79
GUIDE; FAN,RAD
(A)
8-98004-207-0
01
1
1212-1505
79
GUIDE; FAN,RAD
(B)
8-98286-937-0
01
1
1506-
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1212-
80
BOLT; FAN GUIDE
(A) M8X14
8-98046-222-0
04
1
1212-1505
80
BOLT; FAN GUIDE
(A) M8X12 FLANGE
0-28050-812-0
04
1
1506-
82
COVER; FAN,RAD
(A)
8-98004-211-0
01
1
1212-1505
82
COVER; FAN,RAD
(B)
8-98293-253-0
01
1
1506-
83
CLIP; FAN COVER
1-09707-177-2
01
1
1506-
89
BOLT
(A) M6X12 FLANGE
0-28050-612-0
02
1
1212-
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
04
1
1212-
232
COLLAR; DIST,CUSHION RUBBER
8-98141-232-0
04
1
1212-
235
WASHER; CUSHION RUBBER
1-21469-133-0
02
1
1212-
267
RUBBER; CUSHION
(A)
1-21469-130-0
04
1
1212-
267
RUBBER; CUSHION
(B)
1-21469-131-0
02
1
1212-
427
CLIP; FAN GUIDE
1-09470-009-0
01
1
1212-1505
526
TANK; UPR,RADIATOR CORE
8-98004-202-2
01
1
1212-
527
TANK; LWR,RADIATOR CORE
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98010-365-0
01
1
1212-
527
TANK; LWR,RADIATOR CORE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98004-203-0
01
1
1212-
528
PLATE; SIDE,RADIATOR CORE
8-98035-117-3
01
1
1212-
528
PLATE; SIDE,RADIATOR CORE
8-98043-029-1
01
1
1212-
529
GASKET; CORE,RADIATOR
8-98004-206-0
02
1
1212-
87
96
96
87
96
100
87
486
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
87
STAY; FAN GUIDE
(B)
8-94393-776-1
01
1
1212-
87
STAY; FAN GUIDE
(C)
8-94393-778-2
01
1
1212-
87
STAY; FAN GUIDE
(A)
8-97602-988-0
01
1
1212-
96
BOLT; STAY FIX
(B) M8X16 FLANGE
0-28050-816-0
02
1
1212-
96
BOLT; STAY FIX
(A) M10X16 FLANGE
0-28151-016-0
02
1
1212-
100
RUBBER; MTG
8-98148-109-0
01
1
1212-
486
NUT; MTG RUBBER
M8 FLANGE
0-91180-108-0
01
1
1212-

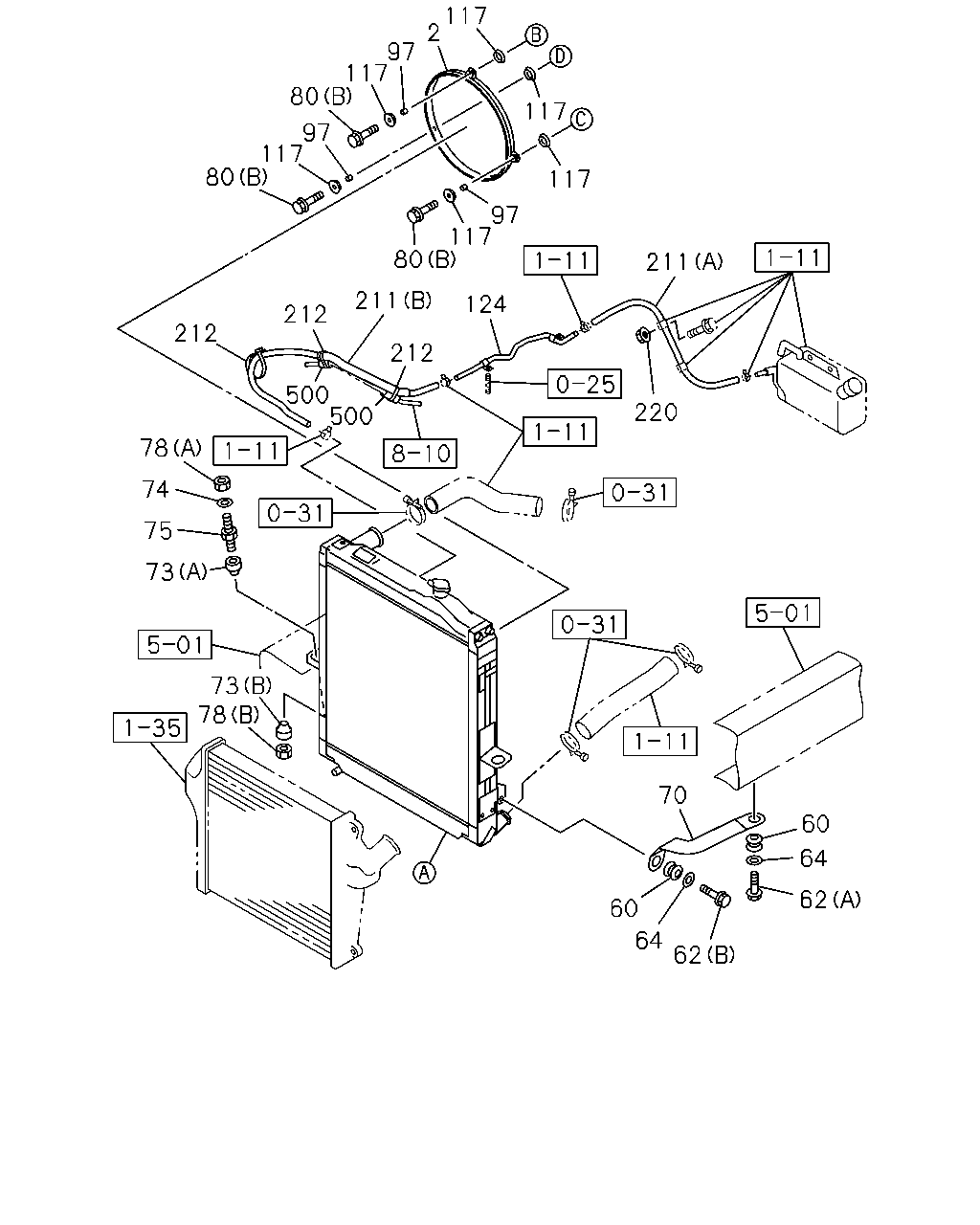

117
2
97
117
80
97
117
80
117
117
97
117
80
211
220
124
212
211
212
212
500
500
78
74
75
73
73
78
60
70
64
62
62
64
60
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GUIDE; FAN
8-94393-779-1
01
1
1212-
60
GROMMET
1-09332-117-0
04
1
1212-
62
BOLT; STAY
(A) M8X30
1-09009-020-1
02
1
1212-
62
BOLT; STAY
(B) M8X26
1-09009-175-0
02
1
1212-
64
WASHER; STAY TO RAD
ID=12.5 OD=26
0-91610-612-0
04
1
1212-
70
STAY; RAD
8-98078-897-0
01
1
1212-
70
STAY; RAD
8-98078-896-0
01
1
1212-
73
RUBBER; CUSHION,RAD MTG
(A) T=14
1-21467-004-0
02
1
1212-
73
RUBBER; CUSHION,RAD MTG
(B) T=24
1-21467-011-1
02
1
1212-
74
WASHER; PL,CUSHION RUBBER
ID=11 OD=54
1-09503-154-2
02
1
1212-
75
BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5
1-21466-007-3
02
1
1212-
78
NUT; CUSHION RUBBER
(A) M10 FLANGE
0-91180-210-0
02
1
1212-
78
NUT; CUSHION RUBBER
(B) M12 FLANGE
0-91180-212-0
02
1
1212-
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1212-
80
BOLT; FAN GUIDE
(A) M8X14
8-98046-222-0
04
1
1212-1505
80
BOLT; FAN GUIDE
(A) M8X12 FLANGE
0-28050-812-0
04
1
1506-
97
TUBE; DIST,FAN GUIDE
9-09651-072-0
03
1
1212-
117
RUBBER; MTG,FAN GUIDE
OD=32
8-94395-766-0
06
1
1212-
124
PIPE; WATER,TANK TO RAD
8-97611-022-1
01
1
1212-
211
HOSE; RAD TO PIPE
(B) L=940
8-98073-544-0
01
1
1212-
211
HOSE; RAD TO PIPE
(A) L=560
8-98119-375-0
01
1
1212-
212
CLIP; HOSE
L=250
5-09707-030-1
01
1
1212-
212
CLIP; HOSE
L=140
5-09707-031-1
02
1
1212-
220
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
1212-
500
SLEEVE; RUBBER
ID=17 OD=21 L=40
1-09337-012-0
02
1
1212-
