0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#111575) — 72 parça

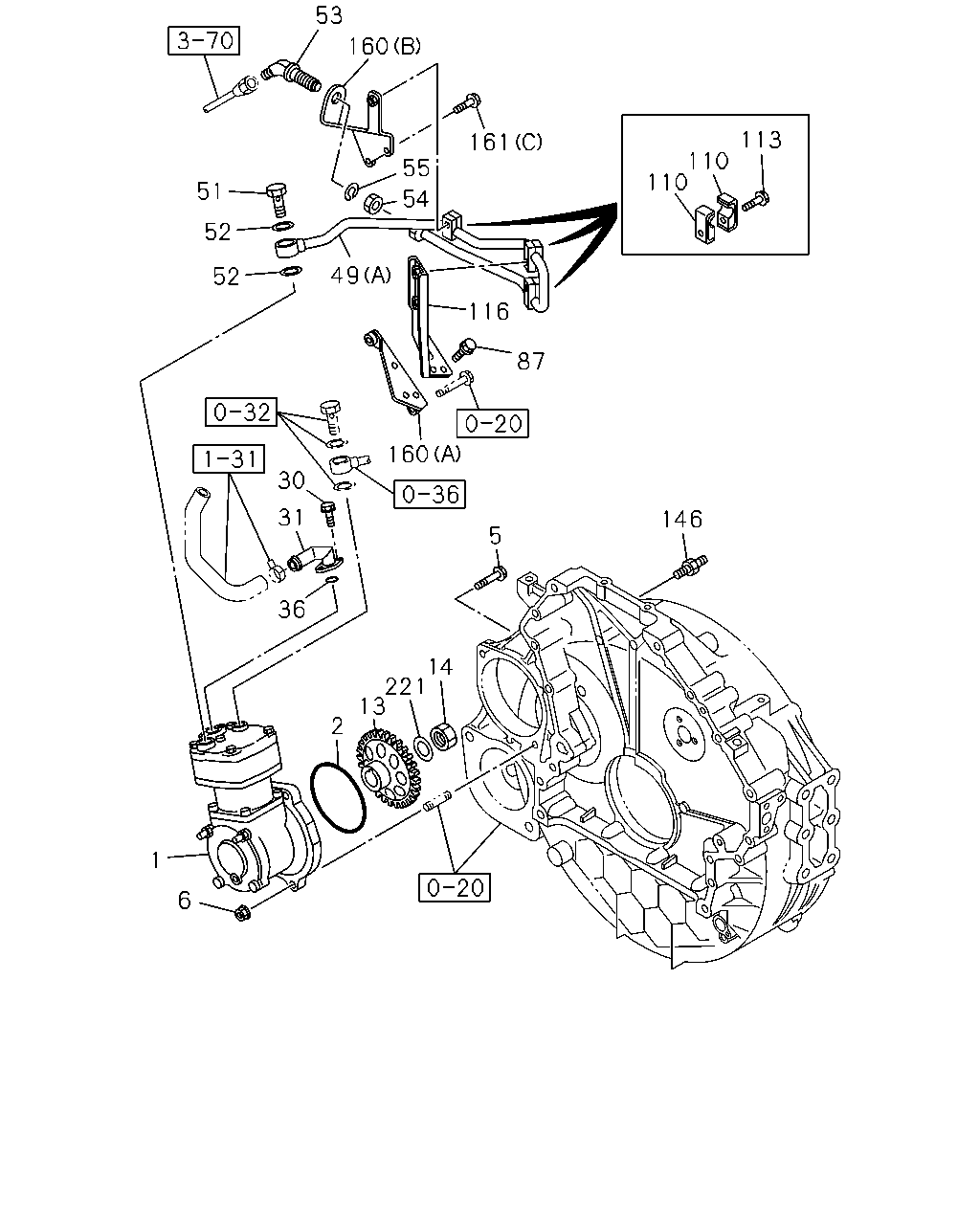

6 1 2 13 36 221 14 5 146 160 31 30 87 116 49 52 52 51 53 160 161 55 54 110 110 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-304-1	01	1	1212-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	1212-
5	BOLT; AIR CMPR FIX M12X70 FLANGE	0-28151-270-0	02	1	1212-
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	1212-
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	1212-
14	NUT; GEAR M20	0-91110-520-0	01	1	1212-
30	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	02	1	1212-
31	PIPE; AIR,AIR CMPR SUCTION	8-97620-948-0	01	1	1212-
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	1212-
49	PIPE; AIR,CHARGE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-98052-017-0	01	1	1212-
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	8-98052-612-0	01	1	1212-
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1212-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1212-
53	UNION; CHARGE PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M22 & M26 ELBOW	8-98008-887-2	01	1	1212-
53	UNION; CHARGE PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	1212-
54	NUT; PIPE UNION ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M26	8-98049-390-0	01	1	1212-
54	NUT; PIPE UNION EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M22	0-91111-522-0	01	1	1212-
55	WASHER; LK,PIPE UNION ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ID=27.5	0-91510-527-0	01	1	1212-
55	WASHER; LK,PIPE UNION EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ID=22.5	0-91510-522-0	01	1	1212-
87	BOLT; BRKT FIX EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M8X20 FLANGE	0-28050-820-0	03	1	1212-
110	CLIP; AIR PIPE ID=17 L=17	1-09701-284-0	06	1	1212-
113	BOLT; CLIP,AIR PIPE M8X45 FLANGE	0-28050-845-0	03	1	1212-
116	BRACKET; AIR PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	8-97614-183-1	01	1	1212-
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	1212-
160	BRACKET; AIR PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (D)	8-98047-336-2	01	1	1212-
160	BRACKET; AIR PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (E)	8-98052-613-1	01	1	1212-
160	BRACKET; AIR PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C)	8-98052-614-0	01	1	1212-
160	BRACKET; AIR PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	8-97614-182-2	01	1	1212-
160	BRACKET; AIR PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-98042-844-1	01	1	1212-
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) M10X30 FLANGE	0-28151-030-0	02	1	1212-
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) M12X185	8-94393-483-0	01	1	1212-
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) M12X128	8-94399-252-0	01	1	1212-
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C) M8X16 FLANGE	0-28050-816-0	02	1	1212-
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	1212-

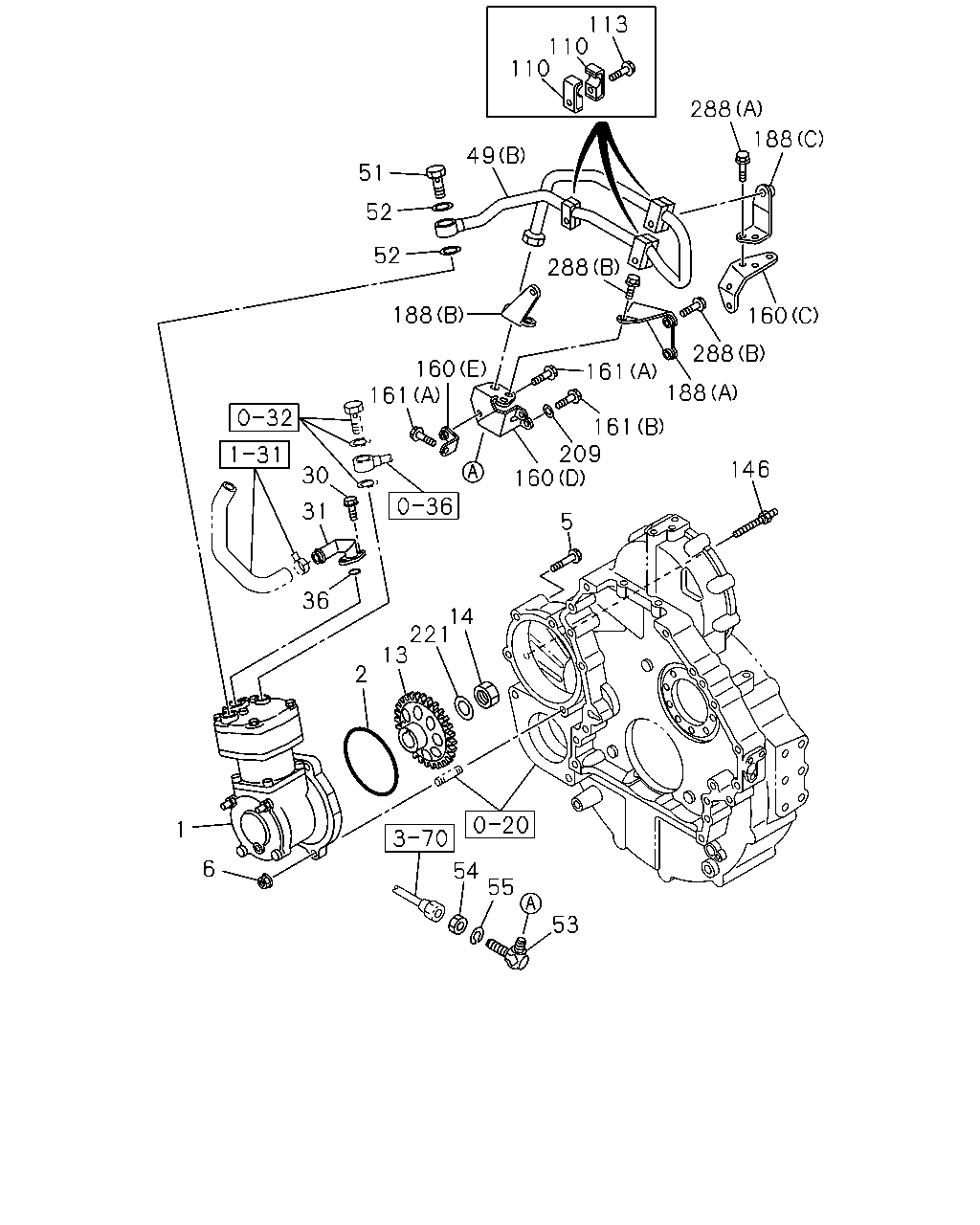

53 55 54 6 1 2 13 221 14 36 31 30 161 160 160 5 209 161 161 188 288 160 146 188 288 113 110 110 49 51 52 52 188 288

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-304-1	01	1	1212-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	1212-
5	BOLT; AIR CMPR FIX M12X70 FLANGE	0-28151-270-0	02	1	1212-
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	1212-
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	1212-
14	NUT; GEAR M20	0-91110-520-0	01	1	1212-
30	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	02	1	1212-
31	PIPE; AIR,AIR CMPR SUCTION	8-97620-948-0	01	1	1212-
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	1212-
49	PIPE; AIR,CHARGE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-98052-017-0	01	1	1212-
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	8-98052-612-0	01	1	1212-
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1212-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1212-
53	UNION; CHARGE PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M22 & M26 ELBOW	8-98008-887-2	01	1	1212-
53	UNION; CHARGE PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	1212-
54	NUT; PIPE UNION ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M26	8-98049-390-0	01	1	1212-
54	NUT; PIPE UNION EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M22	0-91111-522-0	01	1	1212-
55	WASHER; LK,PIPE UNION ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ID=27.5	0-91510-527-0	01	1	1212-
55	WASHER; LK,PIPE UNION EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ID=22.5	0-91510-522-0	01	1	1212-
110	CLIP; AIR PIPE ID=17 L=17	1-09701-284-0	06	1	1212-
113	BOLT; CLIP,AIR PIPE M8X45 FLANGE	0-28050-845-0	03	1	1212-
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	1212-
160	BRACKET; AIR PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (D)	8-98047-336-2	01	1	1212-
160	BRACKET; AIR PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (E)	8-98052-613-1	01	1	1212-
160	BRACKET; AIR PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C)	8-98052-614-0	01	1	1212-
160	BRACKET; AIR PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	8-97614-182-2	01	1	1212-
160	BRACKET; AIR PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-98042-844-1	01	1	1212-
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) M10X30 FLANGE	0-28151-030-0	02	1	1212-
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) M12X185	8-94393-483-0	01	1	1212-
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) M12X128	8-94399-252-0	01	1	1212-
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C) M8X16 FLANGE	0-28050-816-0	02	1	1212-
188	STAY; AIR PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	8-98052-615-1	01	1	1212-
188	STAY; AIR PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-98053-882-0	01	1	1212-
188	STAY; AIR PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C)	8-98053-883-0	01	1	1212-
209	WASHER; PL ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ID=12.5 OD=22	8-94393-140-1	02	1	1212-
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	1212-
288	BOLT; STAY FIX ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) M8X20 FLANGE	0-28050-820-0	03	1	1212-
288	BOLT; STAY FIX ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) M10X45 FLANGE	0-28151-045-0	02	1	1212-
