Isuzu WW
▶
TRUCKS
▶
FYH
▶
11499 - FYH(AUST)EURO5
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶

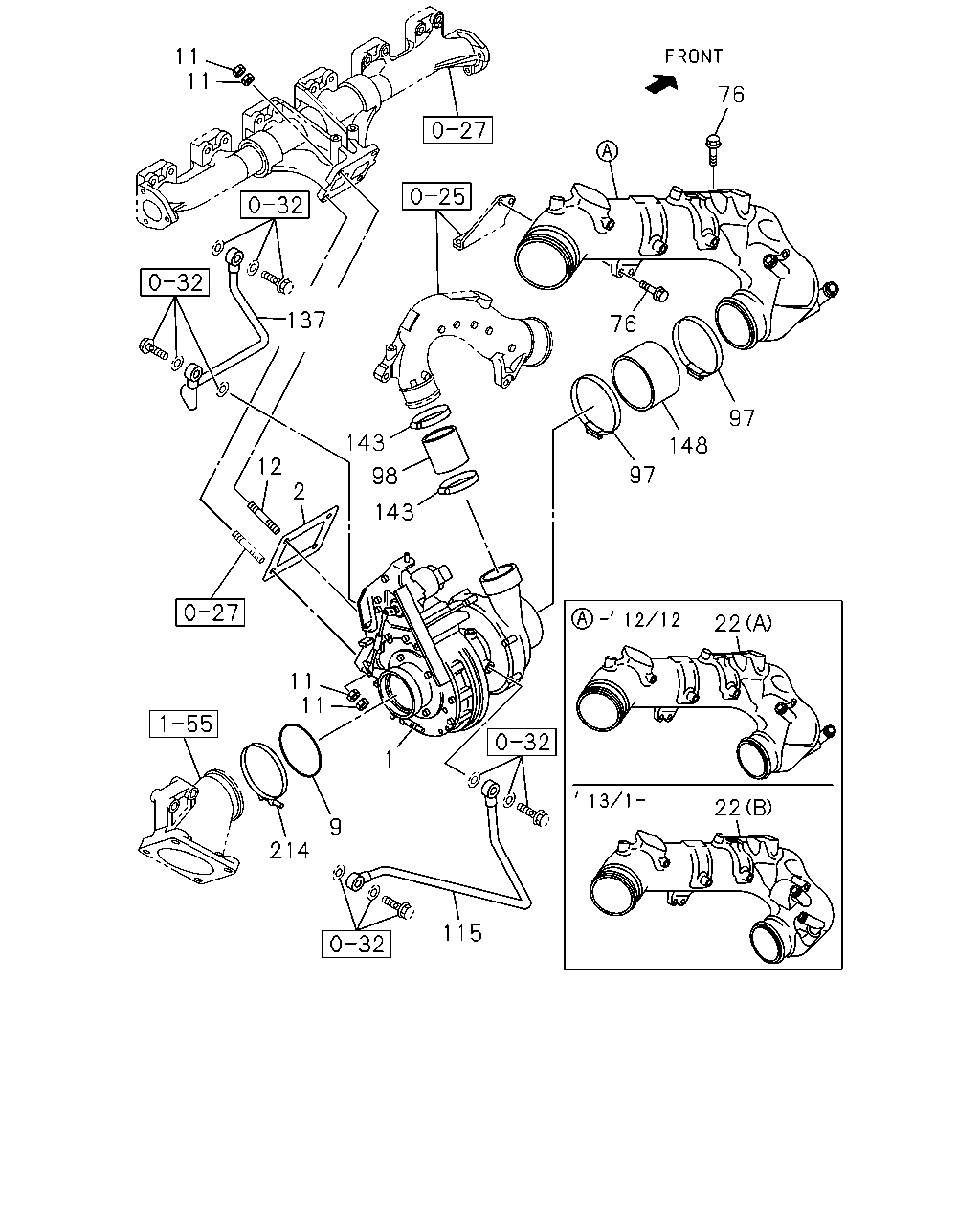

0-36 — TURBOCHARGER SYSTEM
(#111574) — 16 parça
◀
[036A] TURBOCHARGER ASM (15 parça)
[036A] FIXING; CONTROL UNIT (1 parça)
▶
11
76
11
137
143
143
98
76
97
148
97
12
214
115
1
11
11
9
22
22
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
1-14400-461-7
01
1
1212-
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98162-161-0
01
1
1212-
9
GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=80 OD=84
8-97618-761-1
01
1
1212-
11
NUT; TURBOCHARGER
M10
1-09420-005-0
08
1
1212-
12
STUD; TURBOCHARGER
M10X25 L=47
8-97378-071-0
02
1
1212-
22
DUCT; INL,ACL TO TURBOCHARGER
(A)
8-98121-701-3
01
1
1212-1212
22
DUCT; INL,ACL TO TURBOCHARGER
(B)
8-98231-860-0
01
1
1301-
76
BOLT; AIR DUCT
M10X45 FLANGE
0-28151-045-0
03
1
1212-
97
CLIP; HOSE,TURBOCHARGER,INL
ID=87-116
1-09707-138-0
02
1
1212-
98
HOSE; RUBBER,TURBOCHARGER OUTLET
ID=63.6 L=64
8-98169-677-0
01
1
1212-
115
PIPE; WATER,TURBOCHARGER OUT
8-97605-217-0
01
1
1212-
137
PIPE; WATER,TURBOCHARGER IN
8-97607-435-0
01
1
1212-
143
CLIP; HOSE,TURBOCHARGER OUTLET
ID=68-85
8-98096-592-0
02
1
1212-
148
HOSE; TURBOCHARGER,INL
ID=101.6 OD=111.6 L=70
1-09360-913-0
01
1
1212-
214
BAND; "V",TURBOCHARGER TO EXH PIPE
8-98006-007-1
01
1
1212-
309
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
309
BOLT; TURBOCHARGER
M6X20 FLANGE
0-28650-620-0
02
1
1212-
