Isuzu WW
▶
TRUCKS
▶
FYH
▶
11499 - FYH(AUST)EURO5
▶
0 - Engine, Emission, Engine Electrical
▶
0-41 - FUEL FILTER AND BRACKET
▶

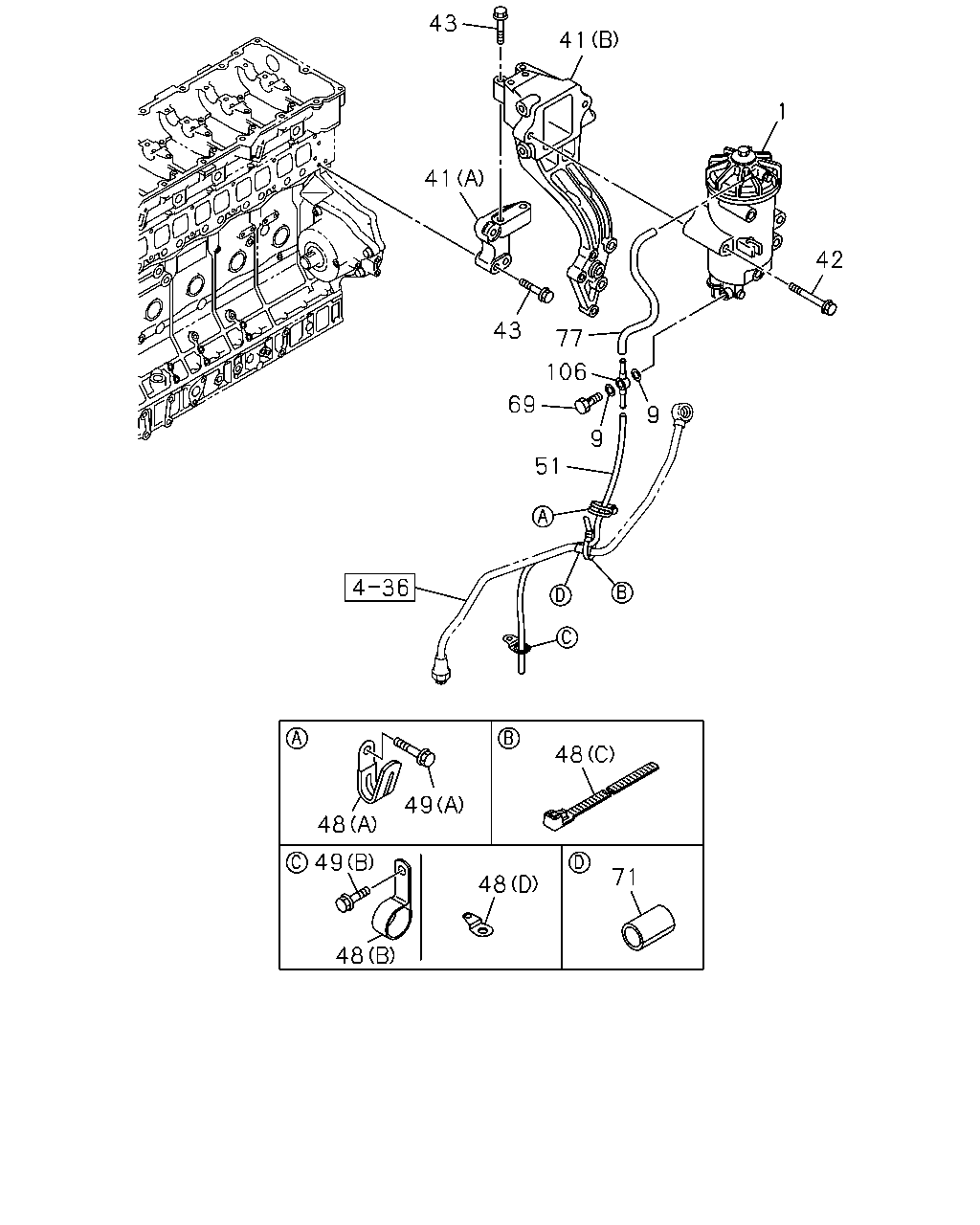

0-41 — FUEL FILTER AND BRACKET
(#111568) — 41 parça
◀
[041A] FIXING AND BRACKET (28 parça)
[041A] COMPONENT (13 parça)
▶
43
41
41
43
77
106
69
9
51
9
42
1
48
49
49
48
48
71
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FILTER ASM; FUEL
8-98167-975-1
01
1
1212-1402
1
FILTER ASM; FUEL
8-98258-016-0
01
1
1403-
9
GASKET; EYE JOINT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2
1-09630-083-0
02
1
1212-
41
BRACKET; FUEL FILTER
(A)
8-97603-935-1
01
1
1212-
41
BRACKET; FUEL FILTER
(B)
8-97619-260-0
01
1
1212-
42
BOLT; FUEL FILTER
M12X100 FLANGE
0-28151-200-0
02
1
1212-
43
BOLT; BRKT
M10X45 FLANGE
0-28151-045-0
07
1
1212-
48
CLIP; VINYL PIPE
17INCH CLUTCH(RF3) (D)
9-11229-070-0
01
1
1306-
48
CLIP; VINYL PIPE
(A) ID=21 L=47.5
8-94178-108-0
01
1
1212-
48
CLIP; VINYL PIPE
(C) L=250
8-98216-430-0
01
1
1212-
48
CLIP; VINYL PIPE
ENGINE REAR PTO(SV1) (B) ID=11 H=20 L=25
1-09700-848-0
01
1
1212-
48
CLIP; VINYL PIPE
17INCH CLUTCH(RF3) (B) ID=11 L=20
0-95235-035-0
02
1
1212-1305
48
CLIP; VINYL PIPE
A/T ALLISON 4430(Y5V) (B) ID=11 L=20
0-95235-035-0
02
1
1212-1305
48
CLIP; VINYL PIPE
A/T ALLISON 4430(Y5V) (B) ID=11 L=20
0-95235-035-0
02
1
1306-
49
BOLT; CLIP
(A) M6X12 FLANGE
0-28050-612-0
01
1
1212-
49
BOLT; CLIP
ENGINE REAR PTO(SV1) (B) M8X20 FLANGE
0-28050-820-0
01
1
1212-
49
BOLT; CLIP
17INCH CLUTCH(RF3) (B) M8X16 FLANGE
0-28050-816-0
02
1
1212-1305
49
BOLT; CLIP
A/T ALLISON 4430(Y5V) (B) M8X16 FLANGE
0-28050-816-0
02
1
1212-1305
49
BOLT; CLIP
A/T ALLISON 4430(Y5V) (B) M8X16 FLANGE
0-28050-816-0
02
1
1306-
51
PIPE; VINYL
17INCH CLUTCH(RF3) L=600 SERVICED BY L=10000
9-09914-909-0
01
1
1306-
51
PIPE; VINYL
ENGINE REAR PTO(SV1) L=650 SERVICED BY L=10000
9-09914-909-0
01
1
1212-
51
PIPE; VINYL
17INCH CLUTCH(RF3) L=700 SERVICED BY L=10000
9-09914-909-0
01
1
1212-1305
51
PIPE; VINYL
A/T ALLISON 4430(Y5V) L=700 SERVICED BY L=10000
9-09914-909-0
01
1
1212-1305
51
PIPE; VINYL
A/T ALLISON 4430(Y5V) L=700 SERVICED BY L=10000
9-09914-909-0
01
1
1306-
69
BOLT; EYE,FUEL FILTER
M10X21 FLANGE
8-97372-239-0
01
1
1212-
71
SLEEVE; RUBBER,PIPE
ID=10 OD=14 L=30
9-09956-682-0
01
1
1212-
77
HOSE; FUEL FILTER
8-98118-453-0
01
1
1212-
106
PIPE; FUEL
8-98081-827-0
01
1
1212-
21
23
26
14
61
144
32
146
1
2
24
26
22
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FILTER ASM; FUEL
8-98167-975-1
01
1
1212-1402
1
FILTER ASM; FUEL
8-98258-016-0
01
1
1403-
2
ELEMENT KIT; FUEL FILTER
8-98116-662-0
01
1
1212-
14
SPRING; ELEMENT SUPPORT,FUEL FILTER
8-98116-657-0
01
1
1212-
21
COVER; UPR,FUEL FILTER
8-98116-653-0
01
1
1212-
22
BOLT; CENTER TUBE,COVER
8-98117-014-0
01
1
1212-
23
PLUG; COVER
8-98116-652-0
01
1
1212-
24
GASKET; CENTER TUBE BOLT
8-98116-655-0
01
1
1212-
26
GASKET; COVER TO BODY
8-98116-661-0
01
1
1212-
32
BOLT; DRAIN,FUEL FILTER
8-98116-652-0
01
1
1212-
61
SEAT; SPR ELEMENT
8-98116-658-0
01
1
1212-
144
PLUG; BODY
8-98153-286-0
01
1
1212-
146
PLUG KIT; BODY
8-98195-093-0
01
1
1212-
