Isuzu WW
▶
TRUCKS
▶
FVR
▶
11496 - FVR(LHD) EURO5
▶
2 - Clutch, Transmission, Trans Axle
▶
2-20C - MANUAL TRANSMISSION ASM AND CASE
▶
2-20C — MANUAL TRANSMISSION ASM AND CASE
(#111548) — 53 parça
◀

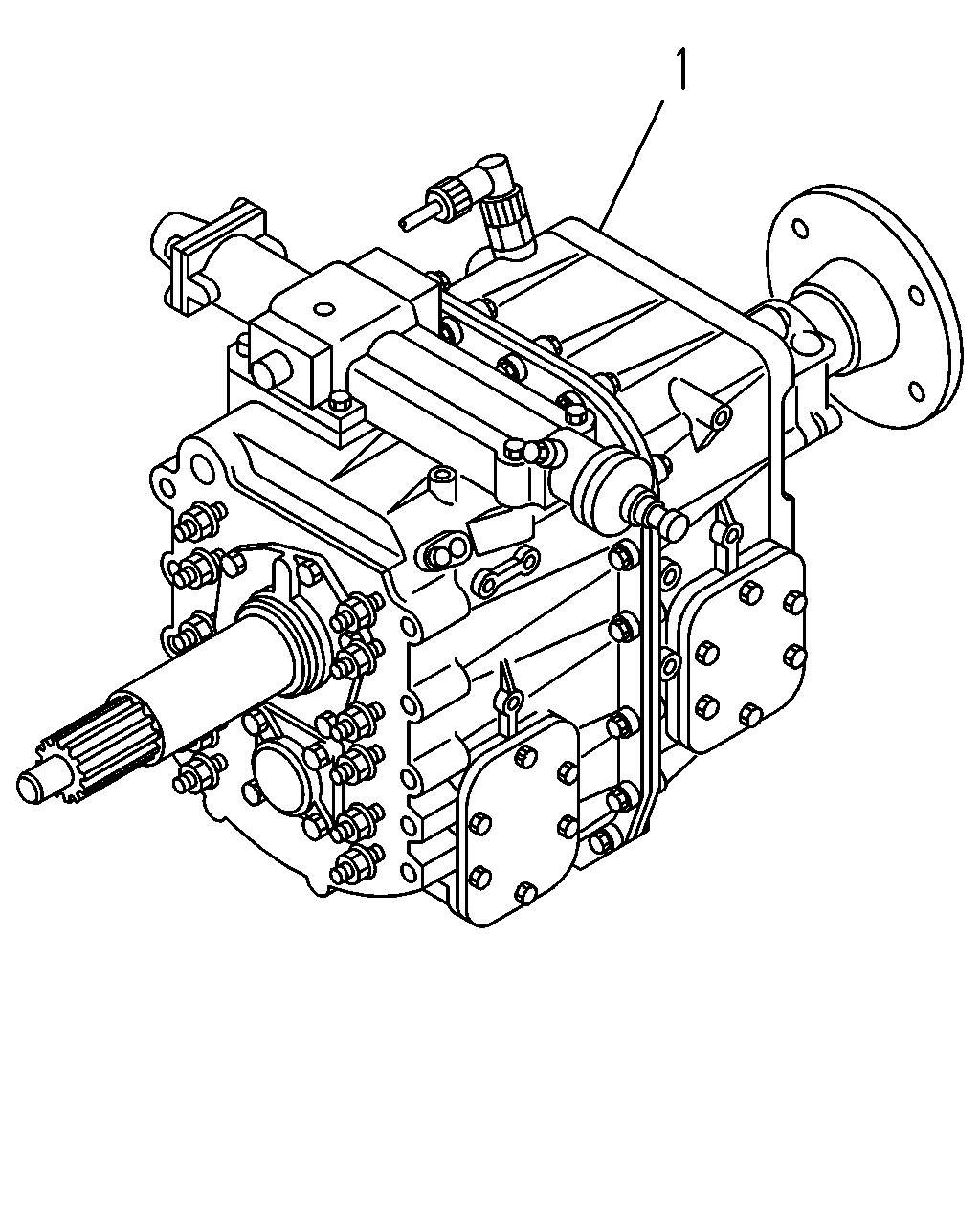

[220C] ASM (1 parça)

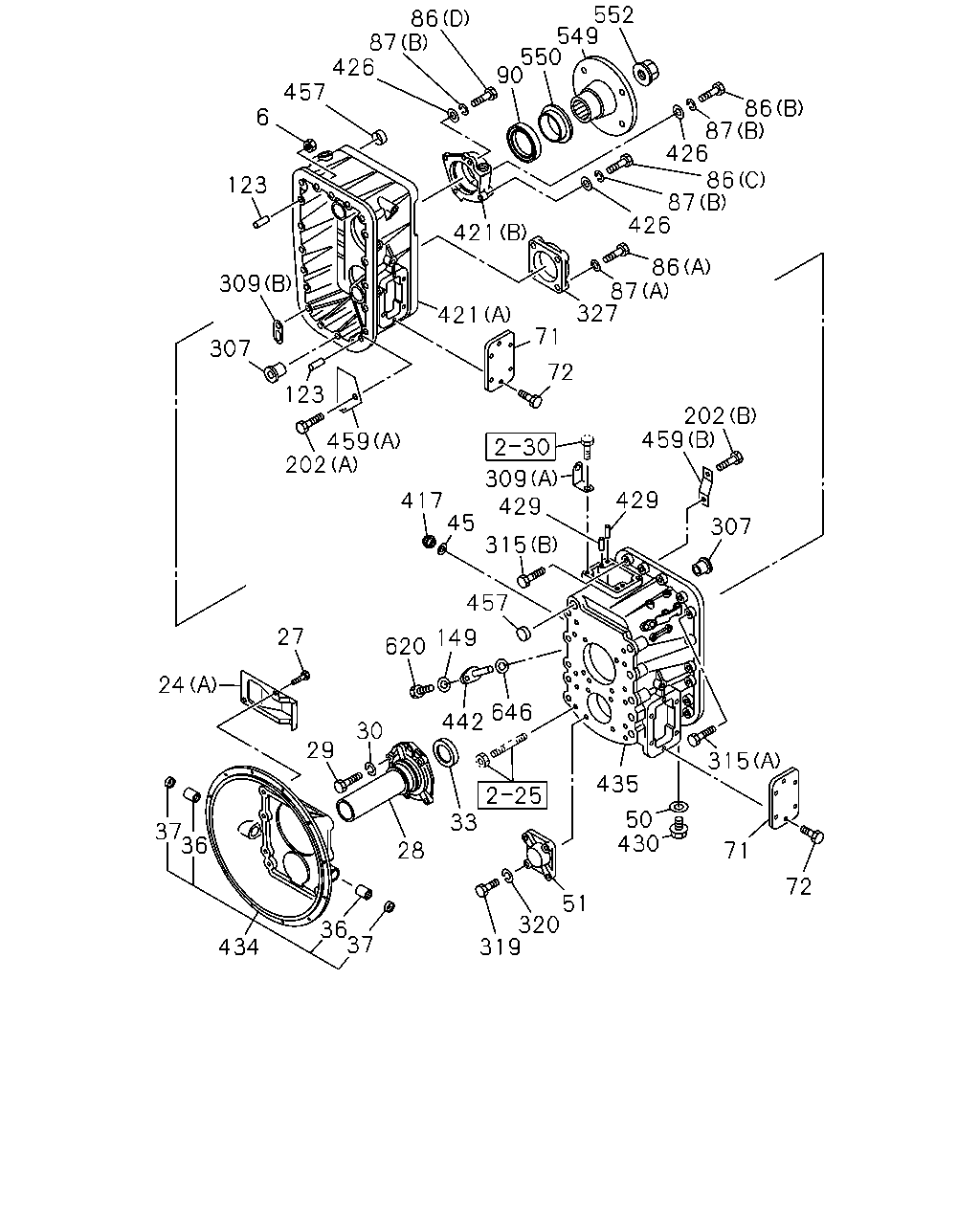

[220C] CASE AND OTHER PARTS (52 parça)
▶
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TRANSMISSION ASM; MANUAL
1-33043-644-3
01
1
1212-
27
24
29
37
36
434
37
36
28
319
72
71
430
435
50
320
51
33
30
620
149
442
315
646
457
45
417
307
429
315
429
309
459
202
202
459
123
307
309
123
6
457
426
87
86
552
549
550
90
86
87
426
87
426
421
421
72
71
327
87
86
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
NUT; CASE,TRANS
1-33119-571-0
15
1
1212-
24
COVER; CHECK HOLE,DUST
(A)
8-98284-107-0
01
1
1411-
24
COVER; CHECK HOLE,DUST
(A)
1-31131-041-0
01
1
1212-1410
27
BOLT; COVER TO CLU HSG
M8X16 FLANGE
0-28050-816-0
02
1
1212-1410
27
BOLT; COVER TO CLU HSG
M8X16 FLANGE
0-28050-816-0
02
1
1411-
28
COVER; FRT,TRANS CASE
1-33111-345-0
01
1
1212-
29
BOLT; FRT COVER
1-33129-017-0
05
1
1212-
30
WASHER; LK,FRT COVER
1-33119-568-0
05
1
1212-
33
SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T).
1-33219-194-0
01
1
1212-
36
BEARING; NEEDLE,CLU HSG
NTN
1-09811-002-1
02
1
1212-
37
SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T).
1-09625-002-0
02
1
1212-
45
GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T).
1-33119-459-0
01
1
1212-
50
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T).
1-33119-459-0
01
1
1212-
51
COVER; SEAL,COUNTER,FRT
1-33131-267-0
01
1
1212-
71
COVER; SIDE,TRANS CASE
1-33141-073-0
02
1
1212-
72
BOLT; SIDE COVER
1-33119-589-0
12
1
1212-
86
BOLT; RR COVER
(D)
1-33119-569-0
02
1
1212-
86
BOLT; RR COVER
(A)
1-33119-583-0
04
1
1212-
86
BOLT; RR COVER
(C)
1-33139-221-0
01
1
1212-
86
BOLT; RR COVER
(B)
1-33139-222-0
01
1
1212-
87
WASHER; LK,RR COVER
(B)
1-33119-568-0
04
1
1212-
87
WASHER; LK,RR COVER
(A)
1-33159-079-0
04
1
1212-
90
SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T).
1-33139-121-0
01
1
1212-
123
DOWEL; TRANS CASE
1-33119-305-0
02
1
1212-
149
WASHER; LK
1-33119-564-0
02
1
1212-
202
BOLT; PLATE
(A)
1-33119-480-0
02
1
1212-
202
BOLT; PLATE
(B)
1-33119-485-0
02
1
1212-
307
BUSHING; SHIFT FORK SHAFT
1-33119-562-0
02
1
1212-
309
EYE; LIFTING
(A)
1-33119-566-0
01
1
1212-
309
EYE; LIFTING
(B)
1-33119-584-0
01
1
1212-
315
BOLT; CASE
(A) M10X40
1-33119-572-0
03
1
1212-
315
BOLT; CASE
(B) M10X58
1-33119-573-0
15
1
1212-
319
BOLT; COVER
1-33119-579-0
04
1
1212-
320
WASHER; COVER
1-33159-079-0
04
1
1212-
327
COVER; RR,COUNTER
1-33131-267-0
01
1
1212-
417
PLUG; OIL FILLER,TRANS
1-33119-576-0
01
1
1212-
421
COVER; RR,TRANS
(A)
1-33131-251-0
01
1
1212-
421
COVER; RR,TRANS
(B)
1-33131-253-0
01
1
1212-
426
WASHER; PL,RR COVER
1-33119-567-0
04
1
1212-
429
PIN; STRAIGHT
1-33119-311-0
02
1
1212-
430
PLUG; OIL DRAIN
1-33119-577-0
01
1
1212-
434
HOUSING; CLU
1-31110-188-2
01
1
1212-
435
CASE; TRANS
1-33111-377-0
01
1
1212-
442
PIN; SHIFT FORK
1-33119-563-0
02
1
1212-
457
CUP; SEALING,CASE
1-33119-578-0
02
1
1212-
459
PLATE; OIL
(A)
1-33119-479-0
01
1
1212-
459
PLATE; OIL
(B)
1-33119-484-0
01
1
1212-
549
FLANGE; COUPLING
1-37243-433-0
01
1
1212-
550
COVER; DUST,FLANGE
1-33139-124-0
01
1
1212-
552
NUT; FLANGE
1-33239-371-0
01
1
1212-
620
BOLT; CASE
1-33119-565-0
02
1
1212-
646
GASKET; PIN
1-33119-483-0
02
1
1212-
