2-20A — MANUAL TRANSMISSION ASM AND CASE (#111540) — 130 parça

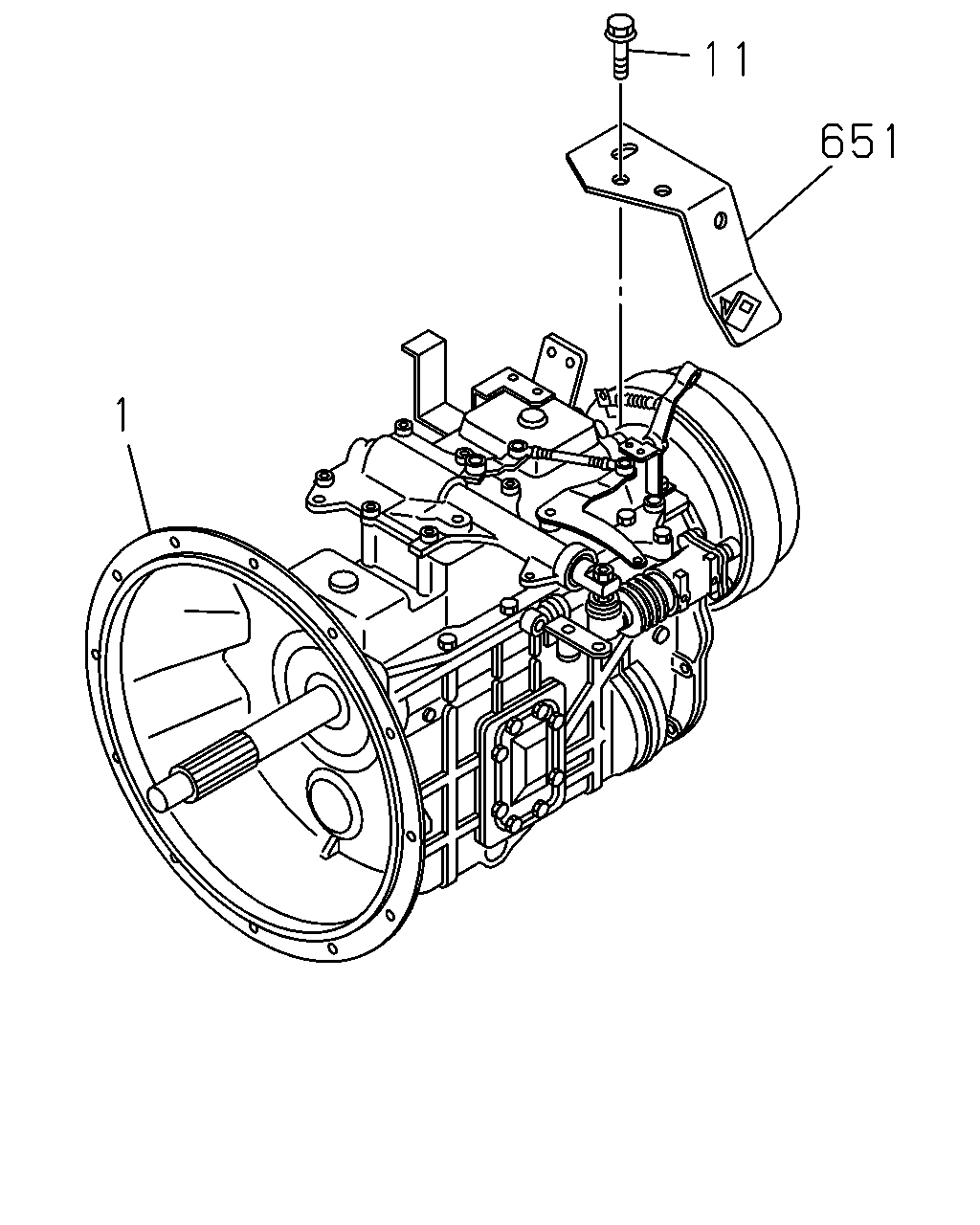

651 11 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-299-0	01	1	1212-	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-299-0	01	1	1212-	●
1	TRANSMISSION ASM; MANUAL P46 PROP SHAFT(C4Z) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-520-0	01	1	1212-		●
1	TRANSMISSION ASM; MANUAL P46 PROP SHAFT(C4Z) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98134-520-0	01	1	1212-		●
1	TRANSMISSION ASM; MANUAL P46 PROP SHAFT(C4Z) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	1212-		●
1	TRANSMISSION ASM; MANUAL P46 PROP SHAFT(C4Z) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	1212-		●
1	TRANSMISSION ASM; MANUAL P60 PROP SHAFT(C2M) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98173-555-0	01	1	1212-		●
1	TRANSMISSION ASM; MANUAL P60 PROP SHAFT(C2M) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98173-555-0	01	1	1212-		●
1	TRANSMISSION ASM; MANUAL P60 PROP SHAFT(C2M) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98173-553-0	01	1	1212-		●
1	TRANSMISSION ASM; MANUAL P60 PROP SHAFT(C2M) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98173-553-0	01	1	1212-		●
11	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	1212-	●
651	BRACKET; T/M HARNESS	8-97627-300-0	01	1	1212-	●

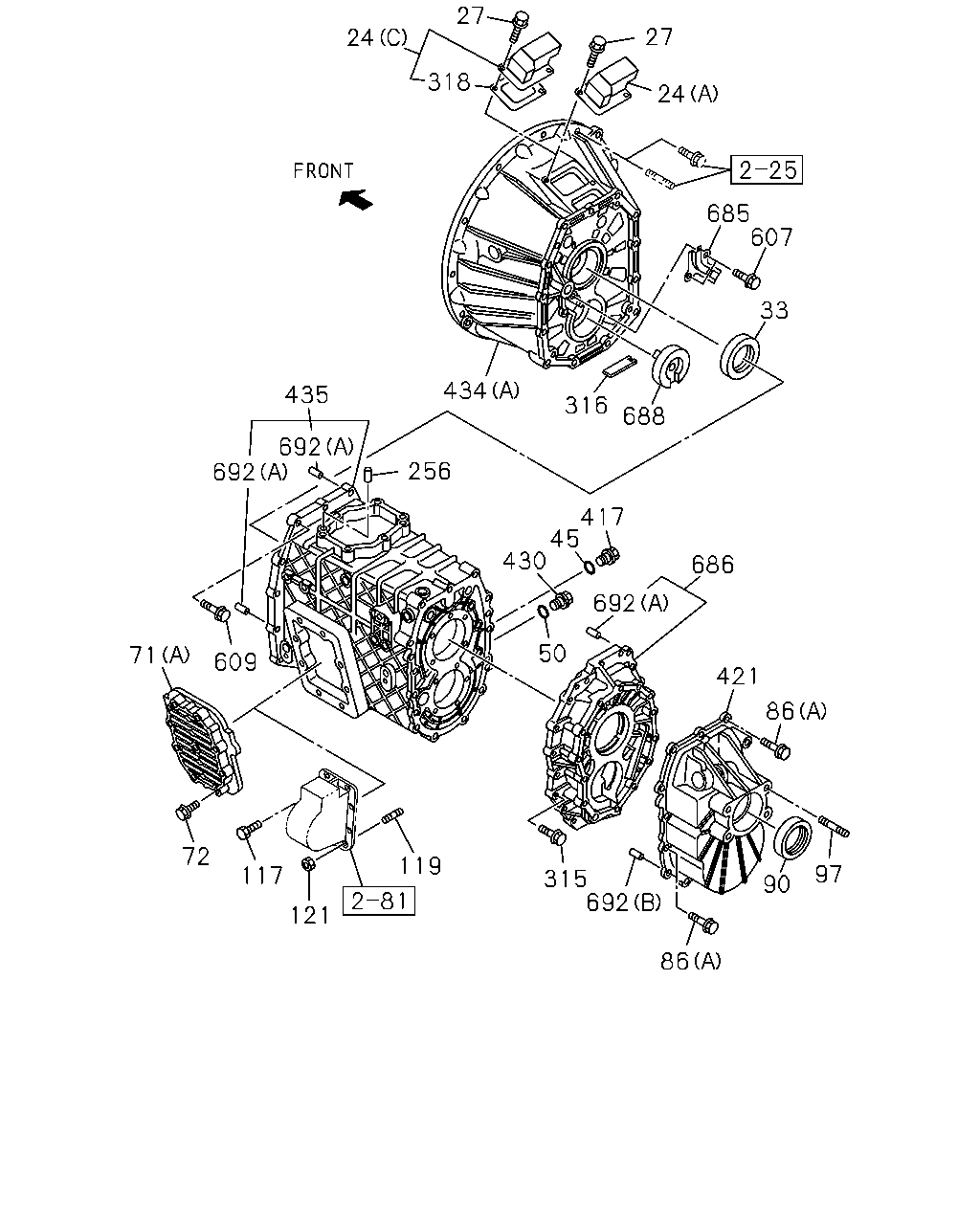

86 90 97 692 315 86 421 686 692 50 430 417 45 119 121 117 72 71 609 692 256 692 435 434 316 688 33 607 685 24 27 27 318 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	COVER; CHECK HOLE,DUST (A)	8-98284-107-0	01	1	1411-	●
24	COVER; CHECK HOLE,DUST (A)	1-31131-041-0	01	1	1212-1410	●	●
24	COVER; CHECK HOLE,DUST (C)	8-98283-062-0	01	1	1411-		●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1212-1410	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1411-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	1212-1410		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	1212-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	1212-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1212-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1212-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1212-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1212-1404		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-033-0	01	1	1212-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-98122-318-0	01	1	1212-1408		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-98270-265-1	01	1	1409-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	1212-	●
72	BOLT; SIDE COVER EXC. PTO CONTROL<SV6> M10X50 FLANGE	1-09044-081-0	08	1	1212-		●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	1212-	●
86	BOLT; RR COVER (B) M12X60	1-09044-084-0	01	1	1212-	●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	1212-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1212-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1212-		●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1212-	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	1212-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	1212-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 L=45	0-44011-030-0	02	1	1212-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	1212-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	1212-	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	1212-		●
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	1212-		●
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	1212-		●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1212-		●
318	GASKET; COVER	1-31139-023-0	01	1	1411-		●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	1212-	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1212-		●
421	COVER; RR,TRANS	1-33131-177-1	01	1	1212-	●
421	COVER; RR,TRANS	8-98004-790-1	01	1	1212-		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	1212-	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1212-1404		●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-		●
434	HOUSING; CLU (B)	1-31110-169-0	01	1	1212-	●
434	HOUSING; CLU (A)	8-98004-506-2	01	1	1212-		●
435	CASE; TRANS	1-33111-355-0	01	1	1212-	●
435	CASE; TRANS	8-98186-449-0	01	1	1212-1404		●
435	CASE; TRANS	8-98236-421-1	01	1	1405-		●
607	BOLT; COVER M8X16 FLANGE	0-28050-816-0	02	1	1212-		●
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	1212-		●
685	COVER; OIL PORT	8-98018-864-1	01	1	1212-		●
686	CASE; RR,TRANS	8-97388-873-1	01	1	1212-		●
688	NOZZLE; OIL,COUNTER	8-98202-402-0	01	1	1212-1508		●
688	NOZZLE; OIL,COUNTER	8-98309-860-0	01	1	1509-		●
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	1212-		●
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	1212-		●

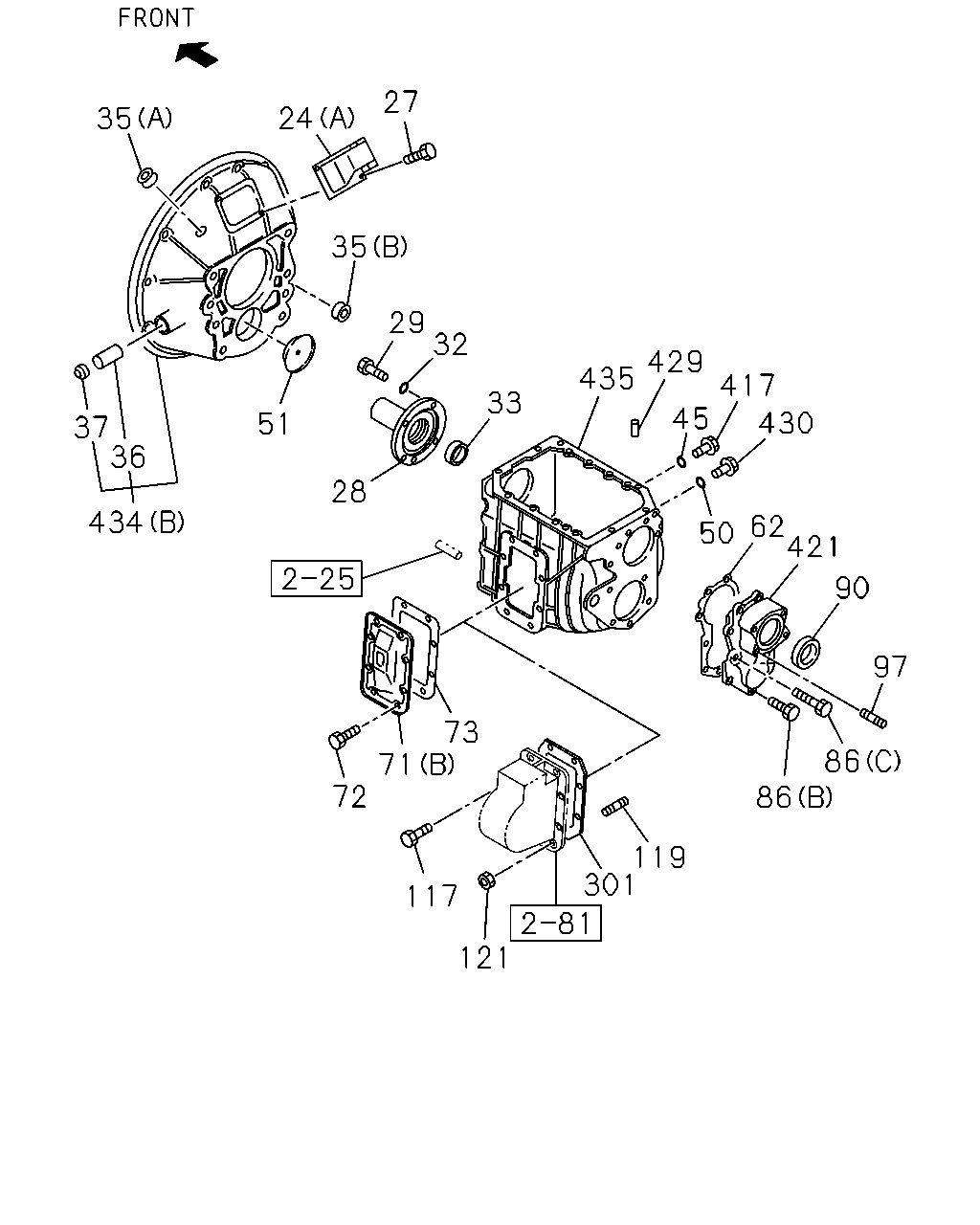

35 24 27 35 29 32 33 28 51 36 434 37 72 71 73 117 121 301 119 86 86 97 90 421 62 50 430 417 45 429 435

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	COVER; CHECK HOLE,DUST (A)	8-98284-107-0	01	1	1411-	●
24	COVER; CHECK HOLE,DUST (A)	1-31131-041-0	01	1	1212-1410	●	●
24	COVER; CHECK HOLE,DUST (C)	8-98283-062-0	01	1	1411-		●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1212-1410	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1411-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	1212-1410		●
28	COVER; FRT,TRANS CASE	1-33121-108-1	01	1	1212-	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	04	1	1212-	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	1212-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	1212-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	1212-		●
35	GROMMET; CLU HSG (B) OD=15 T=6.6	8-97037-246-0	01	1	1212-	●
35	GROMMET; CLU HSG (A) OD=31	9-09575-796-0	01	1	1212-	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	1212-	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	1212-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1212-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1212-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1212-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1212-1404		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-		●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	1212-	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	1212-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-033-0	01	1	1212-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-98122-318-0	01	1	1212-1408		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-98270-265-1	01	1	1409-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	1212-	●
72	BOLT; SIDE COVER EXC. PTO CONTROL<SV6> M10X50 FLANGE	1-09044-081-0	08	1	1212-		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	1212-	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	1212-	●
86	BOLT; RR COVER (B) M12X60	1-09044-084-0	01	1	1212-	●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	1212-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1212-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1212-		●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1212-	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	1212-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	1212-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 L=45	0-44011-030-0	02	1	1212-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	1212-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	1212-	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	1212-		●
301	PLATE; DIST,PTO TO TRANS TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38119-037-0	01	1	1212-	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	1212-	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1212-		●
421	COVER; RR,TRANS	1-33131-177-1	01	1	1212-	●
421	COVER; RR,TRANS	8-98004-790-1	01	1	1212-		●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	1212-	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	1212-	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1212-1404		●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-		●
434	HOUSING; CLU (B)	1-31110-169-0	01	1	1212-	●
434	HOUSING; CLU (A)	8-98004-506-2	01	1	1212-		●
435	CASE; TRANS	1-33111-355-0	01	1	1212-	●
435	CASE; TRANS	8-98186-449-0	01	1	1212-1404		●
435	CASE; TRANS	8-98236-421-1	01	1	1405-		●

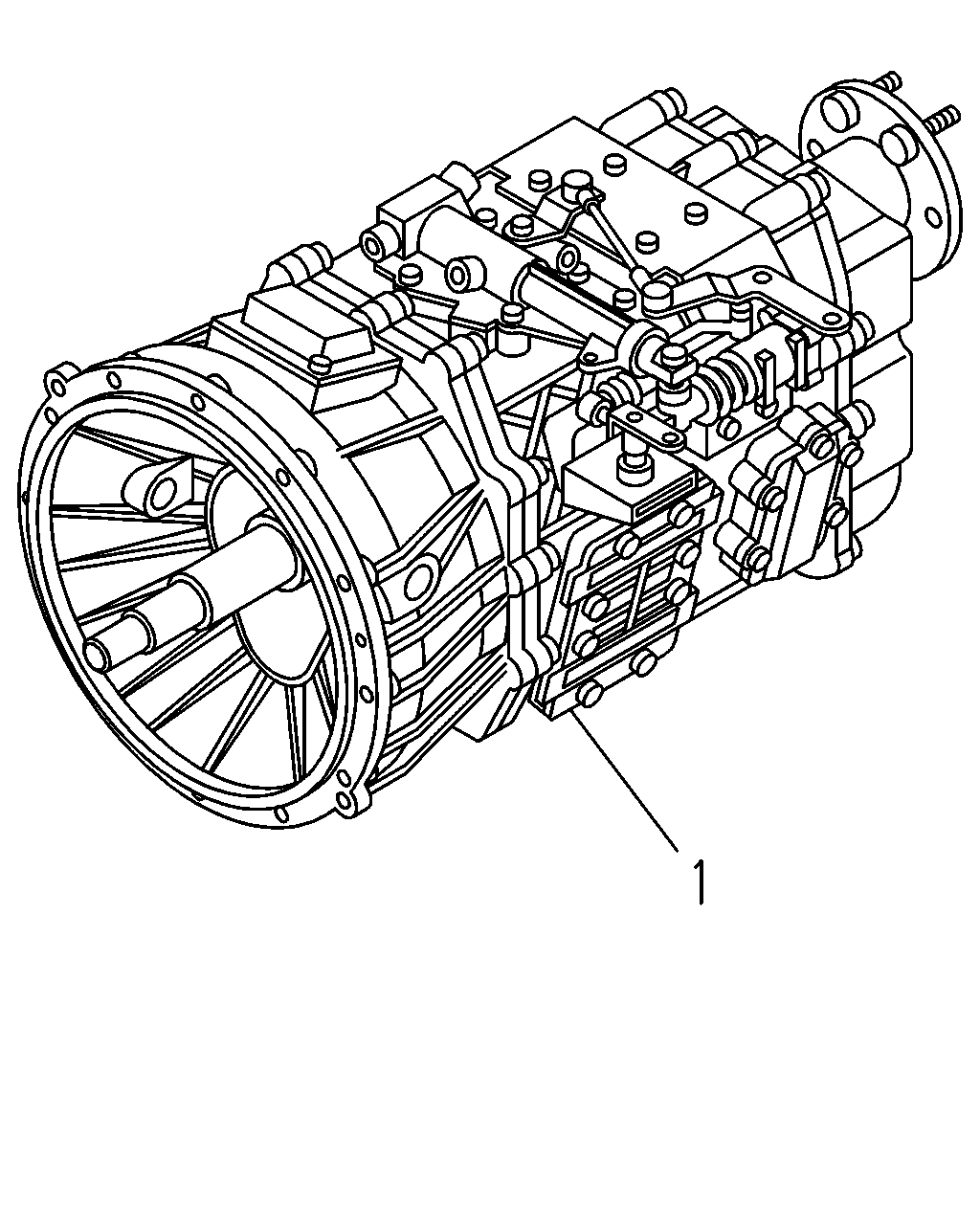

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-299-0	01	1	1212-	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-299-0	01	1	1212-	●
1	TRANSMISSION ASM; MANUAL P46 PROP SHAFT(C4Z) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-520-0	01	1	1212-		●
1	TRANSMISSION ASM; MANUAL P46 PROP SHAFT(C4Z) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98134-520-0	01	1	1212-		●
1	TRANSMISSION ASM; MANUAL P46 PROP SHAFT(C4Z) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	1212-		●
1	TRANSMISSION ASM; MANUAL P46 PROP SHAFT(C4Z) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	1212-		●
1	TRANSMISSION ASM; MANUAL P60 PROP SHAFT(C2M) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98173-555-0	01	1	1212-		●
1	TRANSMISSION ASM; MANUAL P60 PROP SHAFT(C2M) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98173-555-0	01	1	1212-		●
1	TRANSMISSION ASM; MANUAL P60 PROP SHAFT(C2M) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98173-553-0	01	1	1212-		●
1	TRANSMISSION ASM; MANUAL P60 PROP SHAFT(C2M) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98173-553-0	01	1	1212-		●
