◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11499 - FYH(AUST)EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-20B - MANUAL TRANSMISSION ASM AND CASE ▶
2-20B — MANUAL TRANSMISSION ASM AND CASE (#111539) — 150 parça

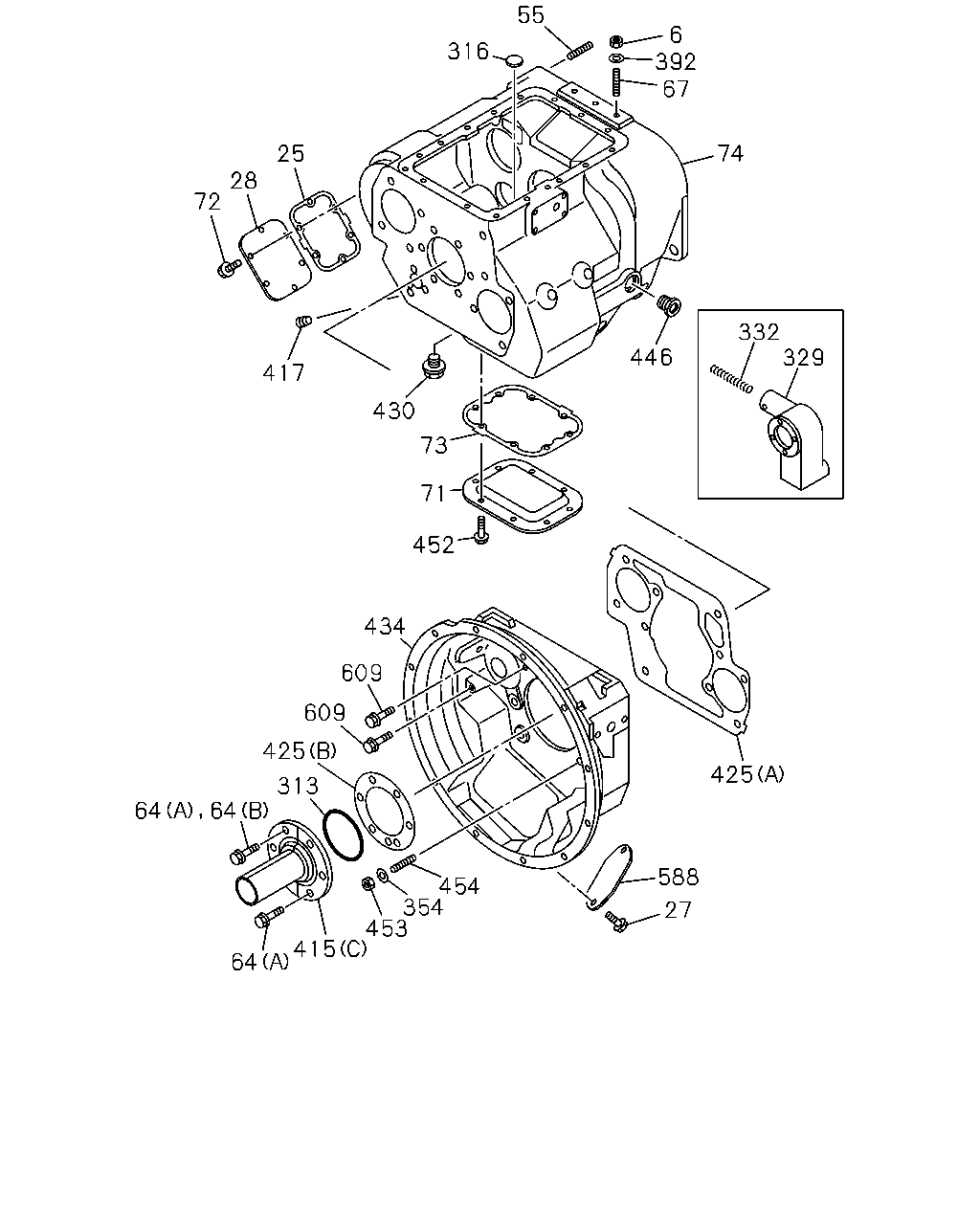

çizim 321285
55 6 74 67 392 316 25 28 72 417 73 71 430 452 434 609 609 425 313 64 64 64 453 415 354 454 588 27 425 329 332 446
BalonParca AdiParca NoAdetTipApplied Date A B
6 NUT; CASE,TRANS 1-31119-063-0 02 1 1312-1508 ●
6 NUT; CASE,TRANS 1-31119-063-0 02 1 1509- ● ●
6 NUT; CASE,TRANS 1-87060-765-0 02 1 1212-1508 ●
25 GASKET; COVER 1-33549-542-0 01 1 1212-1311 ●
25 GASKET; COVER 1-33549-542-0 01 1 1312- ● ●
27 BOLT; COVER TO CLU HSG 1-33549-540-0 02 1 1212-1311 ●
27 BOLT; COVER TO CLU HSG 1-33549-540-0 02 1 1312- ● ●
28 COVER; FRT,TRANS CASE 1-87060-698-0 01 1 1212-1311 ●
28 COVER; FRT,TRANS CASE 1-87060-698-0 01 1 1312- ● ●
55 PIN; KNOCK,CASE,TRANS 1-87061-165-0 02 1 1212-1311 ●
55 PIN; KNOCK,CASE,TRANS 1-87061-165-0 02 1 1312- ● ●
64 BOLT; COVER,TRANSFER CASE
(A) 		1-87060-778-0 04 1 1312-1508 ●
64 BOLT; COVER,TRANSFER CASE
(B) 		1-87061-784-0 02 1 1312-1508 ●
64 BOLT; COVER,TRANSFER CASE
(B) 		1-87061-784-0 02 1 1509- ● ●
64 BOLT; COVER,TRANSFER CASE
(A) 		1-87060-778-0 06 1 1212-1508 ●
64 BOLT; COVER,TRANSFER CASE
(A) 		1-87060-778-0 04 1 1509- ● ●
67 STUD; CASE TRANS 1-33119-560-0 02 1 1212-1311 ●
67 STUD; CASE TRANS 1-33119-560-0 02 1 1312- ● ●
71 COVER; SIDE,TRANS CASE 1-33142-048-0 01 1 1212-1311 ●
71 COVER; SIDE,TRANS CASE 1-33142-048-0 01 1 1312- ● ●
72 BOLT; SIDE COVER 1-87060-775-0 06 1 1212-1311 ●
72 BOLT; SIDE COVER 1-87060-775-0 06 1 1312- ● ●
73 GASKET; SIDE COVER TO TRANS CASE 1-33142-052-0 01 1 1212-1311 ●
73 GASKET; SIDE COVER TO TRANS CASE 1-33142-052-0 01 1 1312- ● ●
74 CASE ASM; TRANSFER 1-33111-381-0 01 1 1312-1508 ●
74 CASE ASM; TRANSFER 1-33111-381-0 01 1 1509- ● ●
74 CASE ASM; TRANSFER 1-87061-086-0 01 1 1212-1508 ●
313 SEAL; OIL 1-33119-634-0 01 1 1312-1508 ●
313 SEAL; OIL 1-33119-634-0 01 1 1509- ● ●
316 MAGNET; TRANS CASE 1-87060-696-0 03 1 1212-1311 ●
316 MAGNET; TRANS CASE 1-87060-696-0 03 1 1312- ● ●
329 PUMP ASM; OIL 1-33159-077-0 01 1 1212-1508 ●
332 FILTER; OIL 1-33159-078-0 01 1 1212-1508 ●
354 WASHER; LK,STUD BOLT 1-33119-558-0 06 1 1212-1311 ●
354 WASHER; LK,STUD BOLT 1-33119-558-0 06 1 1312- ● ●
392 WASHER; PL,CASE 1-33119-558-0 02 1 1212-1311 ●
392 WASHER; PL,CASE 1-33119-558-0 02 1 1312- ● ●
415 COVER; BRG
(C) 		1-33121-168-0 01 1 1212-1311 ●
415 COVER; BRG
(C) 		1-33121-168-0 01 1 1312- ● ●
415 COVER; BRG
(B) 		1-33159-058-0 02 1 1212-1311 ●
415 COVER; BRG
(B) 		1-33159-058-0 02 1 1312- ● ●
415 COVER; BRG
(A) 		1-33159-075-0 01 1 1212-1311 ●
415 COVER; BRG
(A) 		1-33159-075-0 01 1 1312- ● ●
417 PLUG; OIL FILLER,TRANS 1-87061-522-0 01 1 1212-1311 ●
417 PLUG; OIL FILLER,TRANS 1-87061-522-0 01 1 1312- ● ●
425 GASKET; CLU HSG TO TRANS CASE
(A) 		1-31121-013-0 01 1 1312-1508 ●
425 GASKET; CLU HSG TO TRANS CASE
(A) 		1-31121-013-0 01 1 1509- ● ●
425 GASKET; CLU HSG TO TRANS CASE
(A) 		1-33142-054-0 01 1 1212-1508 ●
425 GASKET; CLU HSG TO TRANS CASE
(B) 		1-87060-695-0 01 1 1212-1311 ●
425 GASKET; CLU HSG TO TRANS CASE
(B) 		1-87060-695-0 01 1 1312- ● ●
430 PLUG; OIL DRAIN 1-33119-415-0 01 1 1212-1311 ●
430 PLUG; OIL DRAIN 1-33119-415-0 01 1 1312- ● ●
434 HOUSING; CLU 1-31111-234-0 01 1 1312-1508 ●
434 HOUSING; CLU 1-31111-234-0 01 1 1509- ● ●
434 HOUSING; CLU 1-31111-226-0 01 1 1212-1508 ●
446 PLUG; CASE,TRANS 1-33119-559-0 01 1 1212-1311 ●
446 PLUG; CASE,TRANS 1-33119-559-0 01 1 1312- ● ●
452 SCREW; PLATE 1-87060-776-0 08 1 1212-1311 ●
452 SCREW; PLATE 1-87060-776-0 08 1 1312- ● ●
453 NUT; CLU HSG 1-31119-063-0 06 1 1312-1508 ●
453 NUT; CLU HSG 1-31119-063-0 06 1 1509- ● ●
453 NUT; CLU HSG 1-87060-765-0 06 1 1212-1508 ●
454 STUD; CLU HSG 1-33119-631-0 06 1 1312-1508 ●
454 STUD; CLU HSG 1-33119-631-0 06 1 1509- ● ●
454 STUD; CLU HSG 1-33119-446-0 06 1 1212-1508 ●
588 COVER ASM; TRANS 1-33119-557-0 01 1 1212-1311 ●
588 COVER ASM; TRANS 1-33119-557-0 01 1 1312- ● ●
609 BOLT; HSG TO CASE
.500-13X3.460 		1-33119-632-0 02 1 1312-1508 ●
609 BOLT; HSG TO CASE
.500-13X3.460 		1-33119-632-0 02 1 1509- ● ●
609 BOLT; HSG TO CASE
.500-13X1.490 		1-33119-633-0 02 1 1312-1508 ●
609 BOLT; HSG TO CASE
.500-13X1.490 		1-33119-633-0 02 1 1509- ● ●
609 BOLT; HSG TO CASE
1/2-13X3-1/2 		1-33119-496-0 02 1 1212-1508 ●
609 BOLT; HSG TO CASE
1/2-13X1-7/16 		1-33549-541-0 02 1 1212-1508 ●

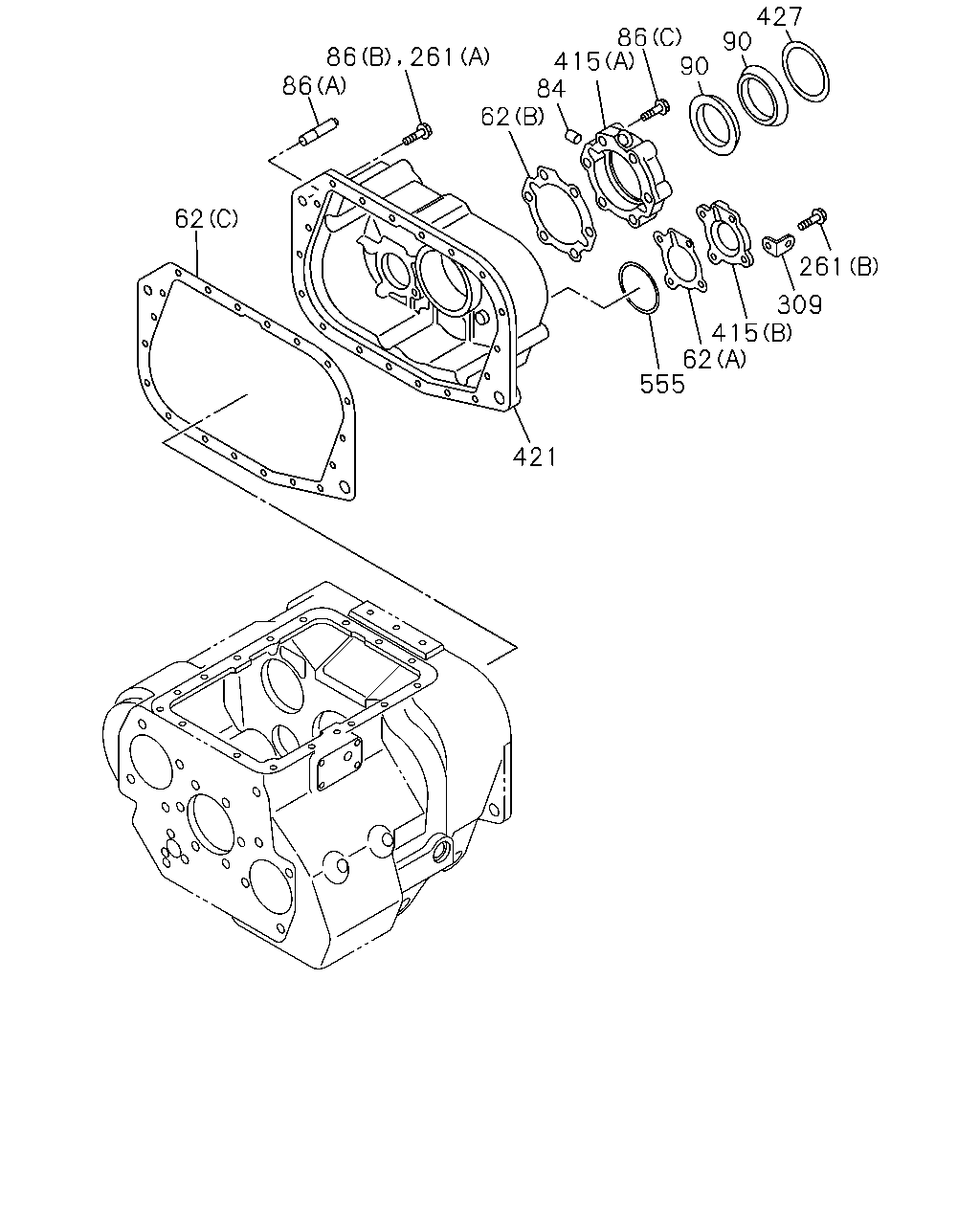

çizim 321290
62 86 86 261 62 84 415 86 90 90 427 261 309 415 62 555 421
BalonParca AdiParca NoAdetTipApplied Date A B
62 GASKET; RR COVER
(A) ALSO INCLUDED IN GASKET SET(M/T). 		1-33132-089-0 02 1 1312-1508 ●
62 GASKET; RR COVER
(A) ALSO INCLUDED IN GASKET SET(M/T). 		1-33132-089-0 02 1 1509- ● ●
62 GASKET; RR COVER
(B) 		1-33152-011-0 01 1 1212-1311 ●
62 GASKET; RR COVER
(B) ALSO INCLUDED IN GASKET SET(M/T). 		1-33152-011-0 01 1 1312- ● ●
62 GASKET; RR COVER
(A) 		1-33159-074-0 02 1 1212-1508 ●
62 GASKET; RR COVER
(C) 		1-87061-120-0 01 1 1212-1311 ●
62 GASKET; RR COVER
(C) ALSO INCLUDED IN GASKET SET(M/T). 		1-87061-120-0 01 1 1312- ● ●
84 SPACER; COVER,TRANS 1-87060-757-0 01 1 1212-1311 ●
84 SPACER; COVER,TRANS 1-87060-757-0 01 1 1312- ● ●
86 BOLT; RR COVER
(B) 		1-87061-229-0 17 1 1212-1311 ●
86 BOLT; RR COVER
(B) 		1-87061-229-0 17 1 1312- ● ●
86 BOLT; RR COVER
(A) 		1-87061-230-0 02 1 1212-1311 ●
86 BOLT; RR COVER
(A) 		1-87061-230-0 02 1 1312- ● ●
86 BOLT; RR COVER
(C) 		1-87061-592-0 06 1 1212-1311 ●
86 BOLT; RR COVER
(C) 		1-87061-592-0 06 1 1312- ● ●
90 SEAL; OIL,RR COVER 1-33153-003-0 01 1 1312-1508 ●
90 SEAL; OIL,RR COVER 1-33153-003-0 02 1 1212-1508 ●
90 SEAL; OIL,RR COVER 1-33153-003-0 01 1 1509- ● ●
261 BOLT; COVER
(A) M8X12 FLANGE 		0-28050-812-0 02 1 1212-1311 ●
261 BOLT; COVER
(A) M8X12 FLANGE 		0-28050-812-0 02 1 1312- ● ●
261 BOLT; COVER
(B) 		1-87060-778-0 08 1 1212-1311 ●
261 BOLT; COVER
(B) 		1-87060-778-0 08 1 1312- ● ●
309 EYE; LIFTING 1-87060-783-0 02 1 1212-1311 ●
309 EYE; LIFTING 1-87060-783-0 02 1 1312- ● ●
415 COVER; BRG
(C) 		1-33121-168-0 01 1 1212-1311 ●
415 COVER; BRG
(C) 		1-33121-168-0 01 1 1312- ● ●
415 COVER; BRG
(B) 		1-33159-058-0 02 1 1212-1311 ●
415 COVER; BRG
(B) 		1-33159-058-0 02 1 1312- ● ●
415 COVER; BRG
(A) 		1-33159-075-0 01 1 1212-1311 ●
415 COVER; BRG
(A) 		1-33159-075-0 01 1 1312- ● ●
421 COVER; RR,TRANS 1-33131-265-0 01 1 1212-1311 ●
421 COVER; RR,TRANS 1-33131-265-0 01 1 1312- ● ●
427 GASKET; RR COVER 1-33152-008-0 01 1 1212-1311 ●
427 GASKET; RR COVER 1-33152-008-0 01 1 1312- ● ●
555 SHIM; RR COVER 1-33159-060-0 01 1 1312-1508 ●
555 SHIM; RR COVER 1-33159-060-0 02 1 1212-1508 ●
555 SHIM; RR COVER 1-33159-060-0 01 1 1509- ● ●

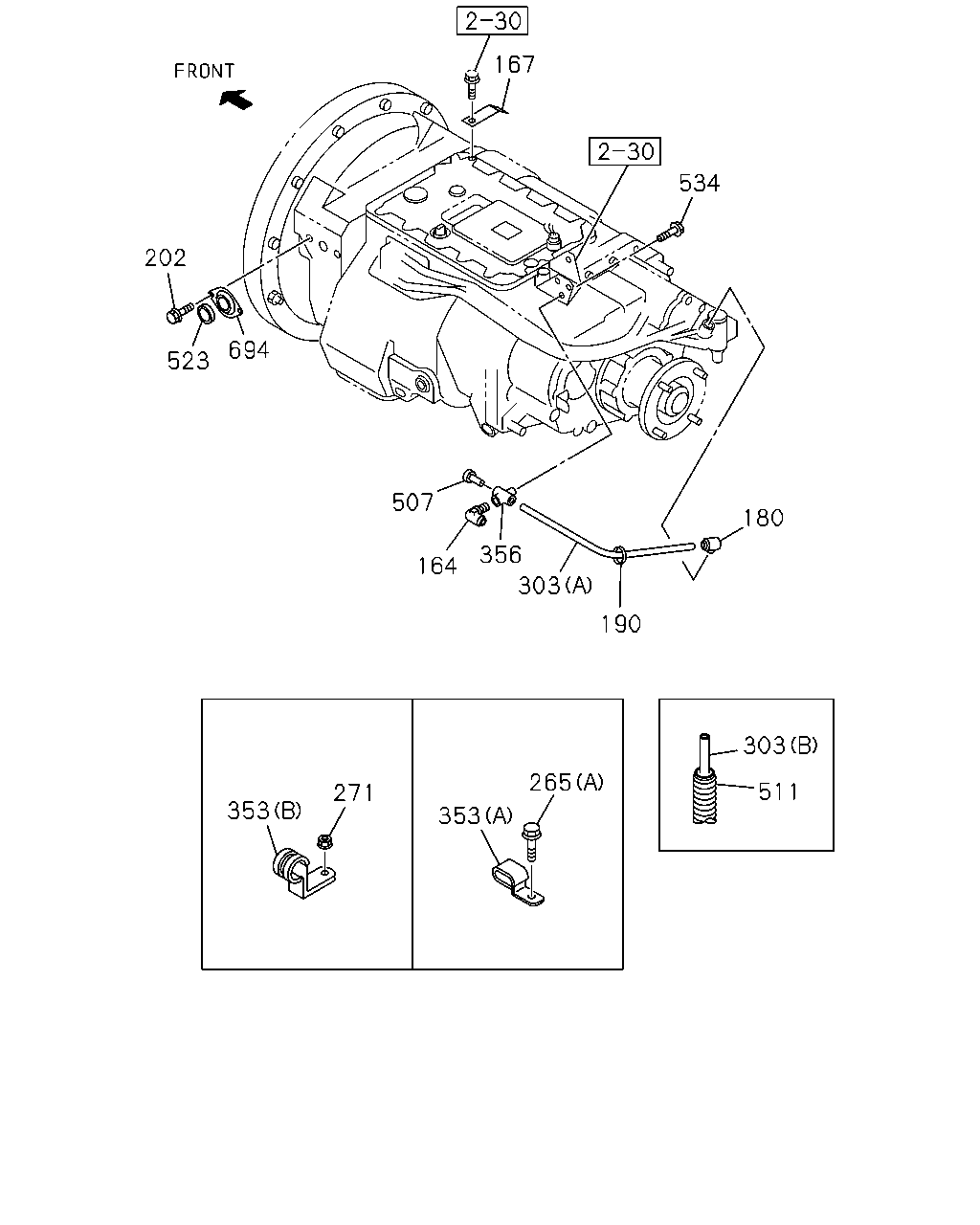

çizim 321292
167 534 694 523 202 356 303 190 164 507 180 303 511 265 353 271 353
BalonParca AdiParca NoAdetTipApplied Date A B
164 CONNECTOR; ELBOW
DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1212-1311 ●
164 CONNECTOR; ELBOW
DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1312- ● ●
167 BRACKET; CLIP,AIR TUBE 1-82699-123-1 01 1 1212-1311 ●
167 BRACKET; CLIP,AIR TUBE 1-82699-123-1 01 1 1312- ● ●
180 CONNECTOR; NYLON TUBE 1-09660-961-0 01 1 1212-1311 ●
180 CONNECTOR; NYLON TUBE 1-09660-961-0 01 1 1312- ● ●
190 CLIP; BAND,CONT TUBE
L=350 		1-09707-183-0 01 1 1212-1311 ●
190 CLIP; BAND,CONT TUBE
L=350 		1-09707-183-0 01 1 1312- ● ●
202 BOLT; PLATE
M8X20 FLANGE 		0-28050-820-0 02 1 1212-1311 ●
202 BOLT; PLATE
M8X20 FLANGE 		0-28050-820-0 02 1 1312- ● ●
265 BOLT; CLIP
(A) M8X20 FLANGE 		0-28050-820-0 01 1 1212-1311 ●
265 BOLT; CLIP
(A) M8X20 FLANGE 		0-28050-820-0 01 1 1312- ● ●
271 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1212-1311 ●
271 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1312- ● ●
303 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1212-1311 ●
303 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1312- ● ●
303 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 1212-1311 ●
303 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 1312- ● ●
303 TUBE; NYLON
ENGINE REAR PTO(SV1) (B) SERVICED BY L=4000 OD=8 		1-87411-007-0 02 1 1212-1311 ●
303 TUBE; NYLON
ENGINE REAR PTO(SV1) (B) SERVICED BY L=4000 OD=8 		1-87411-007-0 02 1 1312- ● ●
353 CLIP; NYLON TUBE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 1212-1311 ●
353 CLIP; NYLON TUBE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 1312- ● ●
353 CLIP; NYLON TUBE
(B) ID=18 H=23 L=28 		1-09701-070-0 01 1 1212-1311 ●
353 CLIP; NYLON TUBE
(B) ID=18 H=23 L=28 		1-09701-070-0 01 1 1312- ● ●
356 UNION
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1212-1311 ●
356 UNION
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1312- ● ●
507 PLUG; UNION
OD=8 PLASTIC 		1-09661-616-0 01 1 1212-1311 ●
507 PLUG; UNION
OD=8 PLASTIC 		1-09661-616-0 01 1 1312- ● ●
511 TUBE; CORRUGATE
ENGINE REAR PTO(SV1) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1212-1311 ●
511 TUBE; CORRUGATE
ENGINE REAR PTO(SV1) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1312- ● ●
523 GROMMET
OD=45 		9-31139-007-0 01 1 1212-1311 ●
523 GROMMET
OD=45 		9-31139-007-0 01 1 1312- ● ●
534 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 01 1 1212-1311 ●
534 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 01 1 1312- ● ●
694 PLATE; GROMMET 8-98088-362-0 01 1 1212-1311 ●
694 PLATE; GROMMET 8-98088-362-0 01 1 1312- ● ●

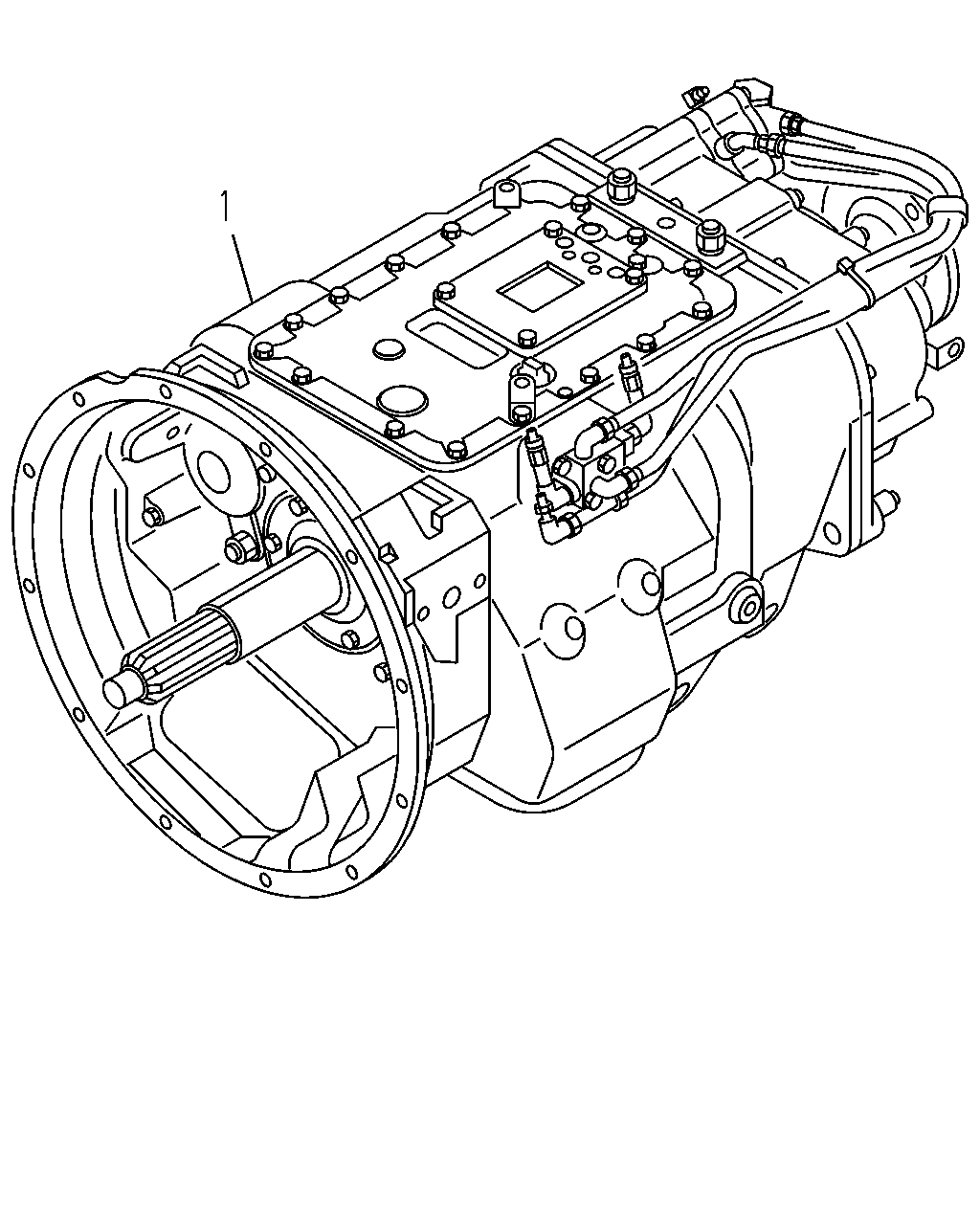

çizim 322669
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 TRANSMISSION ASM; MANUAL 8-98246-060-0 01 1 1312-1508 ●
1 TRANSMISSION ASM; MANUAL 8-98282-952-0 01 1 1509- ●
1 TRANSMISSION ASM; MANUAL 8-98120-340-0 01 1 1212-1508 ●
1 TRANSMISSION ASM; MANUAL 8-98282-951-0 01 1 1509- ●
