2-30A — GEAR SHIFTER AND QUADRANT BOX (#111538) — 191 parça

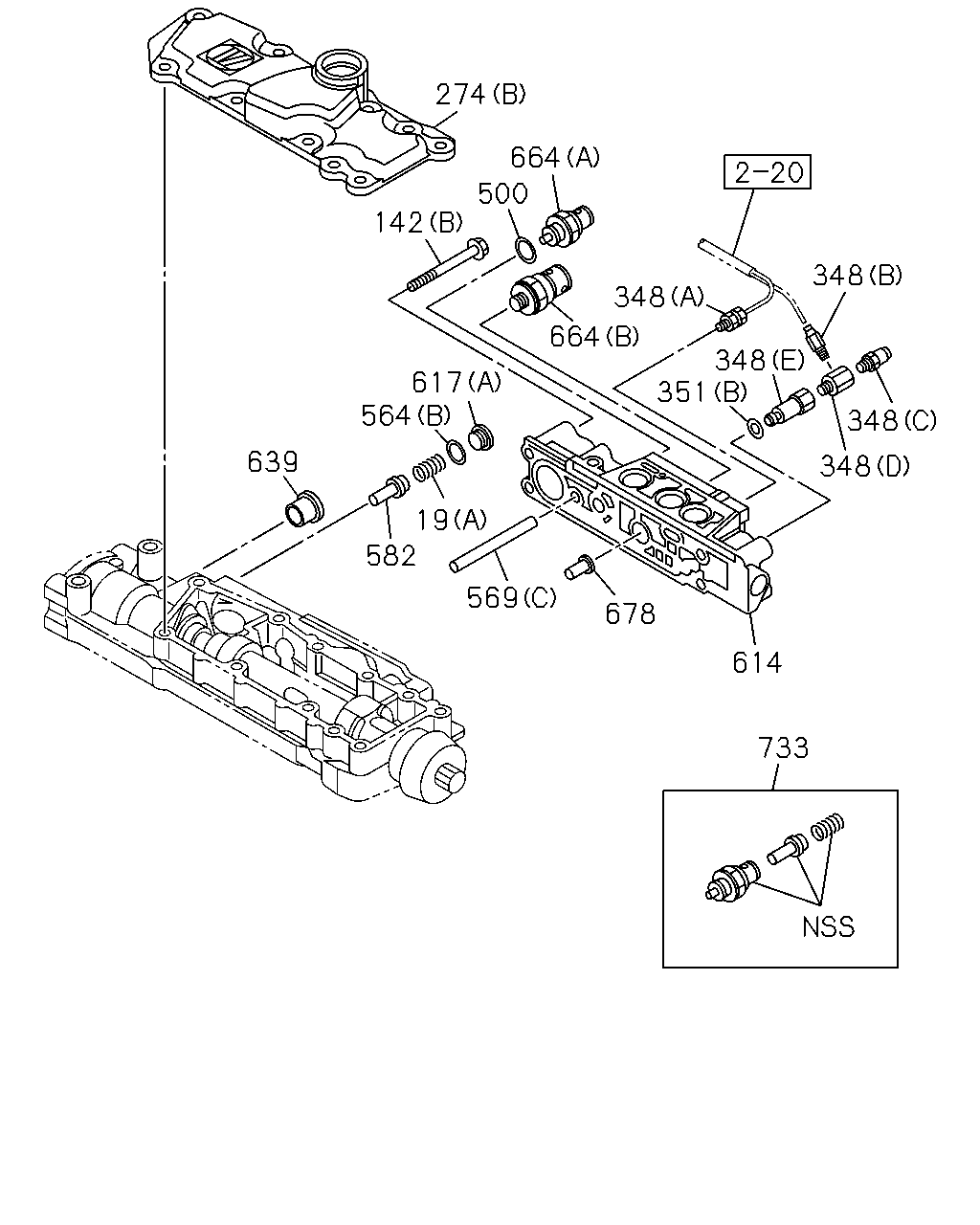

çizim 321321
274 500 664 142 348 664 617 564 582 639 19 569 678 614 733 348 348 348 348 351
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
(A) 		1-33539-022-0 01 1 1212-
19 SPRING; COIL COMP
(B) 		1-33539-027-0 01 1 1212-
19 SPRING; COIL COMP
(C) 		1-33539-098-0 01 1 1212-
25 ARM; SHIFT,2ND & 3RD 1-33511-642-0 01 1 1212-
142 BOLT; QUAD BOX
(B) 		1-33549-467-0 05 1 1212-1305
142 BOLT; QUAD BOX
(B) M8X70 		1-33549-616-0 05 1 1306-
142 BOLT; QUAD BOX
(A) 		1-33549-476-0 17 1 1212-1305
142 BOLT; QUAD BOX
(A) M8X80 		1-33549-614-0 17 1 1306-
274 COVER; SHAFT,QUAD BOX
(A) 		1-33549-531-0 01 1 1212-
274 COVER; SHAFT,QUAD BOX
(B) 		1-33549-535-0 01 1 1212-
348 CONNECTOR; AIR HOSE
(A) 		1-09660-466-0 01 1 1212-
348 CONNECTOR; AIR HOSE
(B) 		1-09661-174-0 01 1 1212-
348 CONNECTOR; AIR HOSE
(C) 		1-09661-481-0 01 1 1212-
348 CONNECTOR; AIR HOSE
(D) 		8-94338-417-0 01 1 1212-
348 CONNECTOR; AIR HOSE
(E) 		8-98068-125-0 01 1 1212-
351 GASKET; CONNECTOR
(C) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1212-
351 GASKET; CONNECTOR
(B) ID=12.2 		1-09630-084-0 01 1 1212-1312
351 GASKET; CONNECTOR
(B) ID=12.2 		8-98251-344-0 01 1 1401-
351 GASKET; CONNECTOR
(A) 		1-33549-578-0 04 1 1212-
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 1212-
564 SEAL; RING
(A) 		1-33549-578-0 01 1 1212-
564 SEAL; RING
(B) T=2.0 		1-82449-010-0 01 1 1212-
569 PIN; QUADRANT BOX
(A) 		1-33529-106-0 01 1 1212-
569 PIN; QUADRANT BOX
(B) 		1-33549-452-0 01 1 1212-
569 PIN; QUADRANT BOX
(C) 		1-33549-468-0 01 1 1212-
582 BOLT; SPRING GUIDE 1-33549-471-0 01 1 1212-
614 VALVE ASM 1-33549-549-0 01 1 1212-
617 PLUG
(A) 		1-33119-171-0 01 1 1212-1305
617 PLUG
(A) 		1-33119-619-0 01 1 1306-
617 PLUG
(B) 		1-34129-061-0 01 1 1212-1305
617 PLUG
(B) 		1-33539-109-0 01 1 1306-
639 CAP 1-33549-576-0 01 1 1212-
664 SWITCH
(A) 		1-33119-587-0 01 1 1212-
664 SWITCH
(B) 		1-33549-470-0 01 1 1212-
678 TAPPET 1-33549-466-0 01 1 1212-
733 REPAIR KIT 1-33549-617-0 01 1 1306-

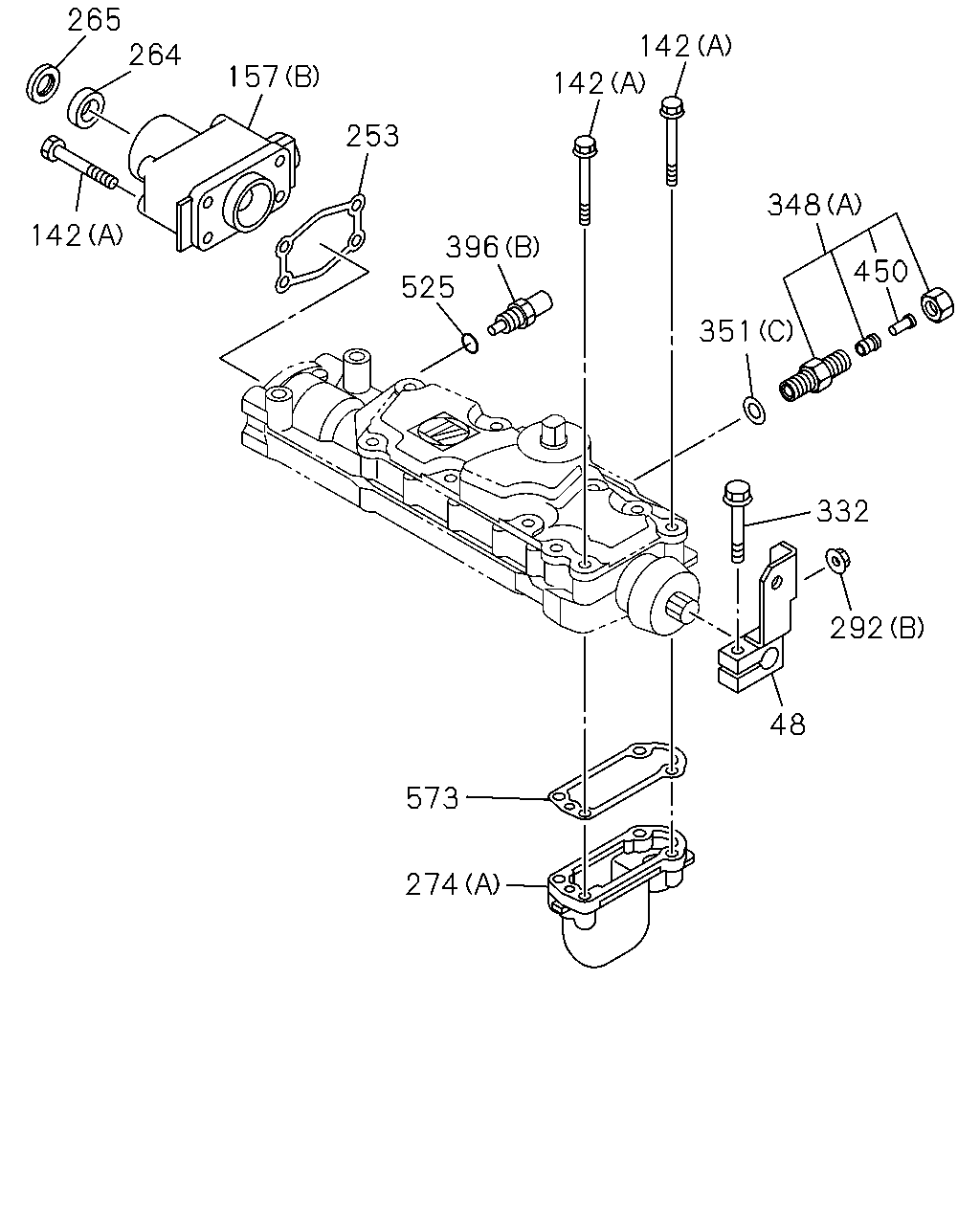

çizim 321322
292 48 274 573 332 351 348 450 142 142 396 525 253 157 264 265 142
BalonParca AdiParca NoAdetTipApplied Date
25 ARM; SHIFT,2ND & 3RD 1-33511-642-0 01 1 1212-
48 LEVER; 4TH,SHIFT 8-98081-185-1 01 1 1212-
142 BOLT; QUAD BOX
(B) 		1-33549-467-0 05 1 1212-1305
142 BOLT; QUAD BOX
(B) M8X70 		1-33549-616-0 05 1 1306-
142 BOLT; QUAD BOX
(A) 		1-33549-476-0 17 1 1212-1305
142 BOLT; QUAD BOX
(A) M8X80 		1-33549-614-0 17 1 1306-
157 BOX; QUAD,TRANS
(A) 		1-33549-445-0 01 1 1212-
157 BOX; QUAD,TRANS
(B) 		1-33549-568-0 01 1 1212-1305
157 BOX; QUAD,TRANS
(B) 		1-33549-612-0 01 1 1306-
253 GASKET; SIDE COVER 1-33544-054-0 01 1 1212-
264 SEAL; DUST,SHAFT 1-33549-119-0 01 1 1212-
265 SEAL; OIL,SHIFT 1-33549-118-0 01 1 1212-
274 COVER; SHAFT,QUAD BOX
(A) 		1-33549-531-0 01 1 1212-
274 COVER; SHAFT,QUAD BOX
(B) 		1-33549-535-0 01 1 1212-
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 1212-1311
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 1312-
332 BOLT; 4TH,SHIFT LEVER
M10X45 W/PL WASHER 		8-98038-710-0 01 1 1212-
348 CONNECTOR; AIR HOSE
(A) 		1-09660-466-0 01 1 1212-
348 CONNECTOR; AIR HOSE
(B) 		1-09661-174-0 01 1 1212-
348 CONNECTOR; AIR HOSE
(C) 		1-09661-481-0 01 1 1212-
348 CONNECTOR; AIR HOSE
(D) 		8-94338-417-0 01 1 1212-
348 CONNECTOR; AIR HOSE
(E) 		8-98068-125-0 01 1 1212-
351 GASKET; CONNECTOR
(C) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1212-
351 GASKET; CONNECTOR
(B) ID=12.2 		1-09630-084-0 01 1 1212-1312
351 GASKET; CONNECTOR
(B) ID=12.2 		8-98251-344-0 01 1 1401-
351 GASKET; CONNECTOR
(A) 		1-33549-578-0 04 1 1212-
396 PLUNGER; SHIFT ROD
(A) 		1-33519-073-0 01 1 1212-1305
396 PLUNGER; SHIFT ROD
(A) 		1-33519-189-0 01 1 1306-
396 PLUNGER; SHIFT ROD
(B) 		1-33529-067-0 01 1 1212-1305
396 PLUNGER; SHIFT ROD
(B) 		1-33529-132-0 01 1 1306-
450 INSERT; SHIFT ARM
ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 1212-
525 RING; DETENT 1-33549-497-0 01 1 1212-
573 GASKET; SERVO UNIT 1-33549-332-0 01 1 1212-

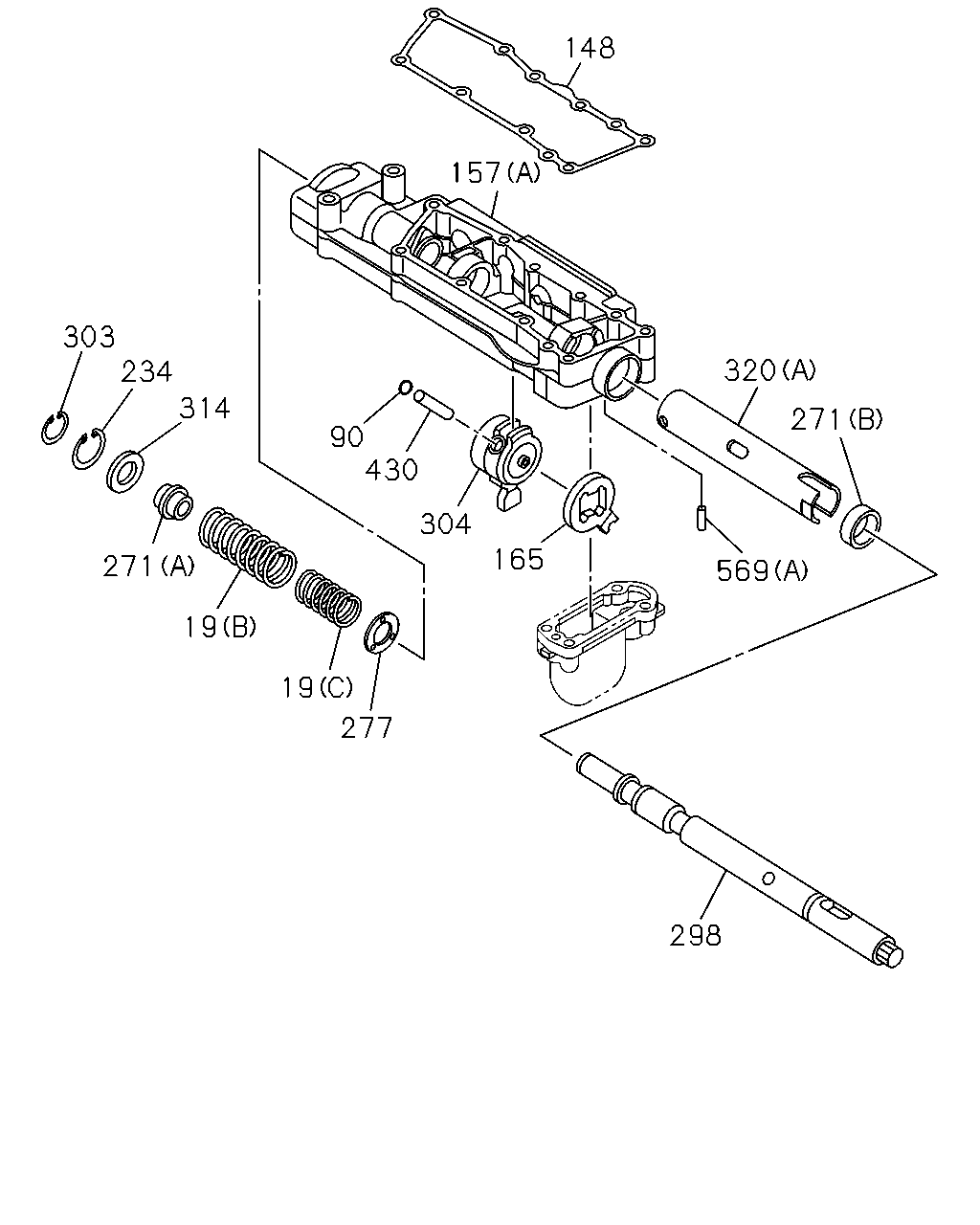

çizim 321325
148 157 90 303 314 234 271 19 19 277 298 569 165 304 430 271 320
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
(A) 		1-33539-022-0 01 1 1212-
19 SPRING; COIL COMP
(B) 		1-33539-027-0 01 1 1212-
19 SPRING; COIL COMP
(C) 		1-33539-098-0 01 1 1212-
25 ARM; SHIFT,2ND & 3RD 1-33511-642-0 01 1 1212-
90 RING; SNAP,SHIFT ROD 1-33529-109-0 01 1 1212-
148 GASKET; QUAD BOX 1-33544-056-0 01 1 1212-
157 BOX; QUAD,TRANS
(A) 		1-33549-445-0 01 1 1212-
157 BOX; QUAD,TRANS
(B) 		1-33549-568-0 01 1 1212-1305
157 BOX; QUAD,TRANS
(B) 		1-33549-612-0 01 1 1306-
165 LEVER; SHIFT 1-33549-533-0 01 1 1212-
234 RING; SNAP 1-44519-224-0 01 1 1212-
271 BUSHING; QUAD BOX
(A) 		1-33539-099-0 01 1 1212-
271 BUSHING; QUAD BOX
(B) 		1-33549-318-0 01 1 1212-
277 PLATE; SPRING SEAT 1-33539-026-0 01 1 1212-1305
277 PLATE; SPRING SEAT 1-33539-112-0 01 1 1306-
298 SHAFT; SHIFT LEVER 1-33522-207-0 01 1 1212-
303 RING; SNAP,SHAFT 1-33539-101-0 01 1 1212-
304 BLOCK; SHIFT SHAFT 1-33549-532-0 01 1 1212-
314 WASHER; SHAFT 1-33539-100-0 01 1 1212-
320 SHAFT; LEVER
(A) 		1-33549-447-0 01 1 1212-
320 SHAFT; LEVER
(B) 		1-33619-524-0 01 1 1212-
430 PIN; SPR,SHIFT ROD 1-33549-449-0 01 1 1212-
569 PIN; QUADRANT BOX
(A) 		1-33529-106-0 01 1 1212-
569 PIN; QUADRANT BOX
(B) 		1-33549-452-0 01 1 1212-
569 PIN; QUADRANT BOX
(C) 		1-33549-468-0 01 1 1212-

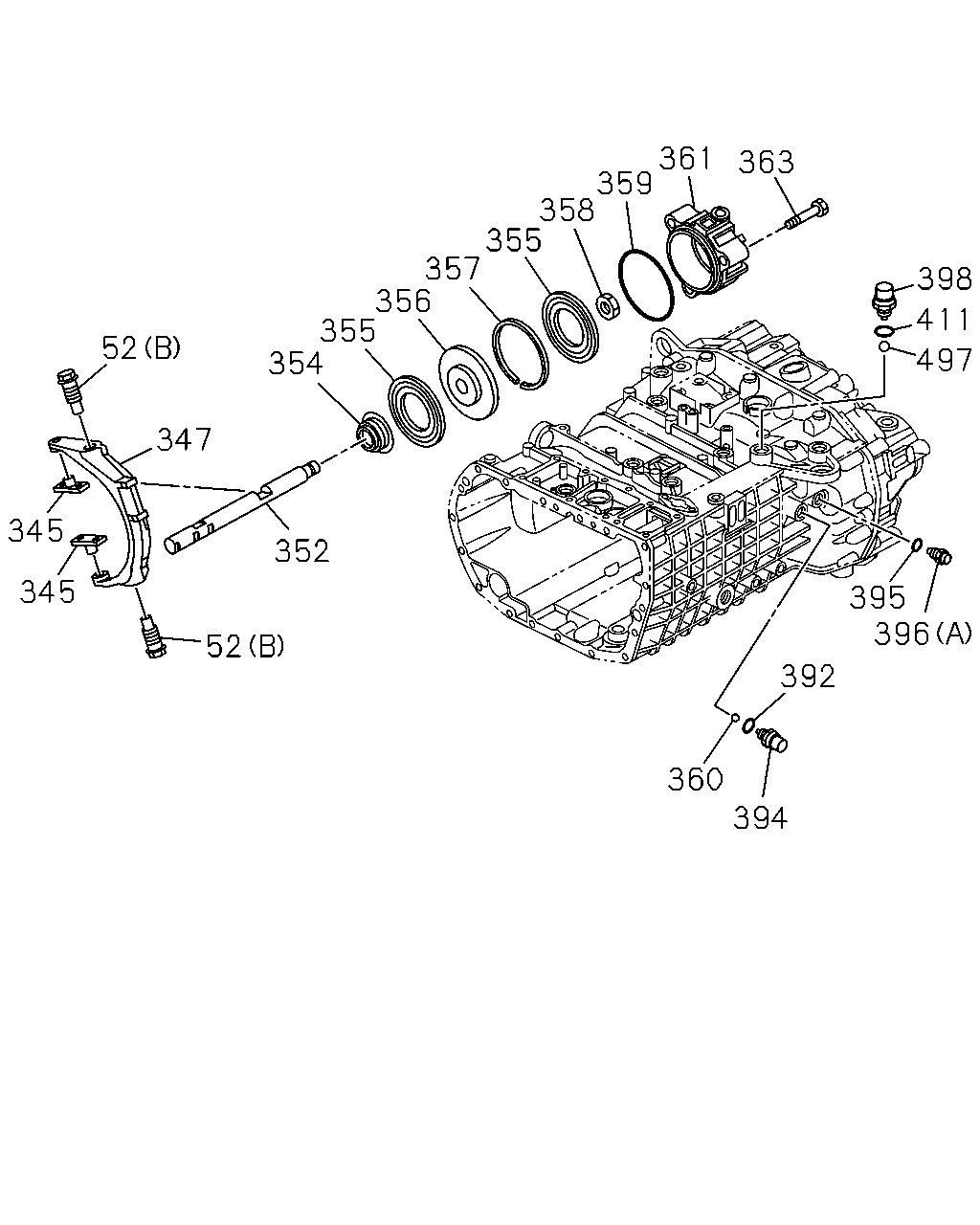

çizim 321328
345 345 52 347 352 52 354 355 356 357 355 358 359 361 363 398 411 497 395 396 392 360 394
BalonParca AdiParca NoAdetTipApplied Date
25 ARM; SHIFT,2ND & 3RD 1-33511-642-0 01 1 1212-
52 BOLT; SHIFT ARM
(A) 		1-33519-084-0 07 1 1212-1305
52 BOLT; SHIFT ARM
(A) 		1-33519-190-0 07 1 1306-
52 BOLT; SHIFT ARM
(B) 		1-33519-187-0 02 1 1212-1305
52 BOLT; SHIFT ARM
(B) 		1-33519-196-0 02 1 1306-
345 BLOCK; SHIFT,RANGE CHANGE 1-33519-095-0 02 1 1212-
347 ARM; SHIFT,RANGE CHANGE 1-33511-529-0 01 1 1212-
352 ROD; SHIFT,RANGE CHANGE 1-33531-495-0 01 1 1212-1305
352 ROD; SHIFT,RANGE CHANGE 1-33531-497-0 01 1 1306-
354 SEAL; AIR CYL 1-33519-045-0 01 1 1212-
355 CUP; PISTON,AIR CYL 1-33519-088-0 02 1 1212-1305
356 PISTON; AIR CYL 1-33519-087-0 01 1 1212-1305
356 PISTON; AIR CYL 1-33519-197-0 01 1 1306-
357 RING; GUIDE,AIR CYL 1-33519-090-0 01 1 1212-1305
358 NUT; SHIFT ROD 1-33519-049-0 01 1 1212-1305
358 NUT; SHIFT ROD 1-33519-188-0 01 1 1306-
359 GASKET; AIR CYL 1-33519-093-0 01 1 1212-
360 BALL; AIR CYL 1-33119-252-0 01 1 1212-
361 CYLINDER; AIR,SHIFT 1-33519-092-0 01 1 1212-
363 BOLT; AIR CYL
M10X70 		1-33119-522-0 03 1 1212-1305
363 BOLT; AIR CYL
M10X70 		1-33119-616-0 03 1 1306-
392 GASKET; PLUG & SW 1-33119-249-0 01 1 1212-
394 SWITCH; RANGE CHANGE 1-33119-587-0 01 1 1212-
395 GASKET; PLUNGER 1-33549-497-0 01 1 1212-
396 PLUNGER; SHIFT ROD
(A) 		1-33519-073-0 01 1 1212-1305
396 PLUNGER; SHIFT ROD
(A) 		1-33519-189-0 01 1 1306-
396 PLUNGER; SHIFT ROD
(B) 		1-33529-067-0 01 1 1212-1305
396 PLUNGER; SHIFT ROD
(B) 		1-33529-132-0 01 1 1306-
398 SWITCH; REV LAMP 1-38119-062-0 01 1 1212-
411 GASKET; REV LAMP SW 1-33119-249-0 01 1 1212-
497 BALL; SWITCH 1-33119-252-0 01 1 1212-

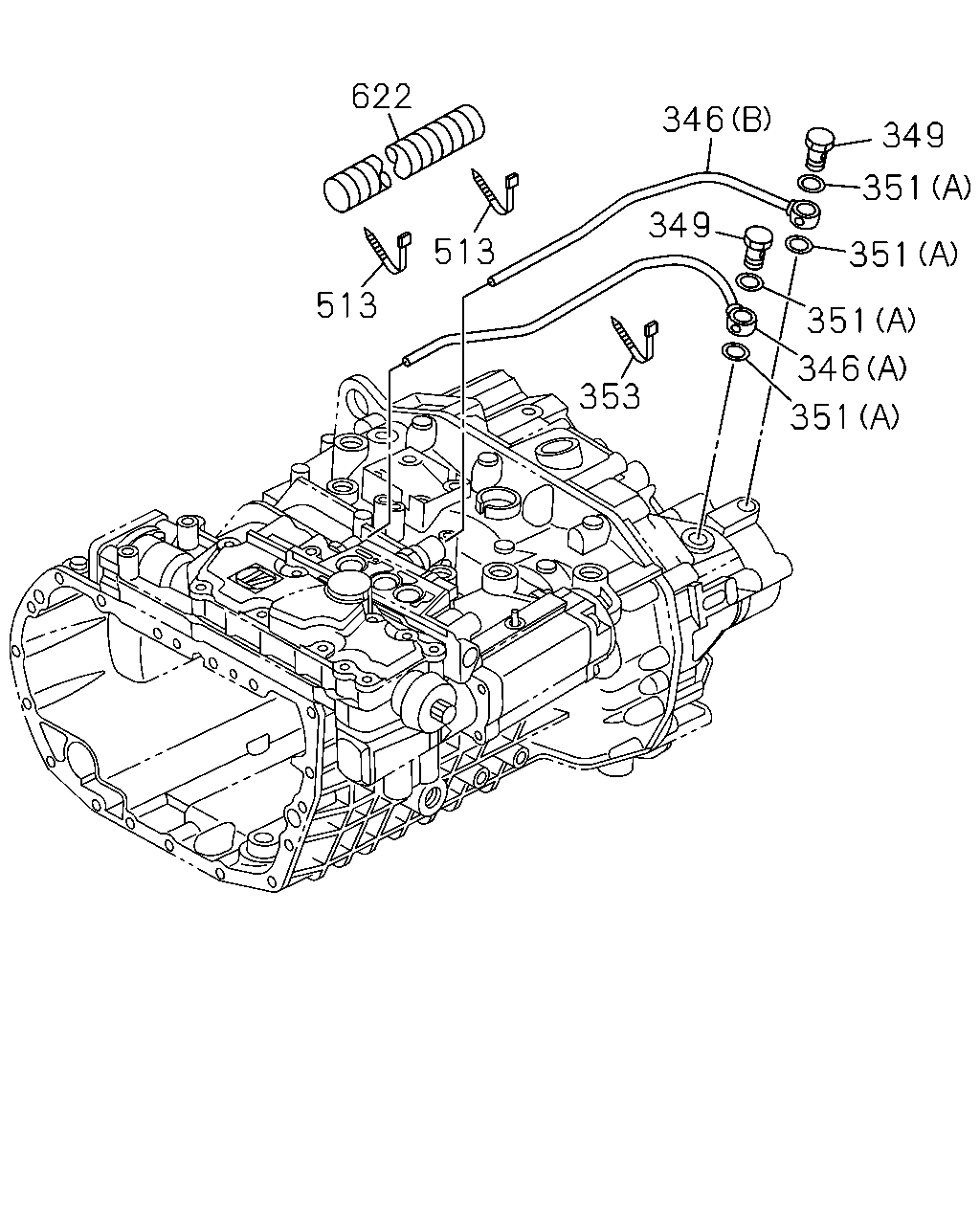

çizim 321330
622 513 513 346 349 351 351 351 346 351 353 349
BalonParca AdiParca NoAdetTipApplied Date
25 ARM; SHIFT,2ND & 3RD 1-33511-642-0 01 1 1212-
346 HOSE; AIR
(A) 		1-33549-473-0 01 1 1212-
346 HOSE; AIR
(B) 		1-33549-474-0 01 1 1212-
349 BOLT; EYE,AIR HOSE 1-33549-573-0 02 1 1212-1305
349 BOLT; EYE,AIR HOSE
M14 		1-33549-592-0 02 1 1306-
351 GASKET; CONNECTOR
(C) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1212-
351 GASKET; CONNECTOR
(B) ID=12.2 		1-09630-084-0 01 1 1212-1312
351 GASKET; CONNECTOR
(B) ID=12.2 		8-98251-344-0 01 1 1401-
351 GASKET; CONNECTOR
(A) 		1-33549-578-0 04 1 1212-
353 CLIP; AIR HOSE 1-33549-530-0 02 1 1212-
513 CLIP; BAND
L=250 		5-09707-030-1 05 1 1212-
622 TUBE; CORRUGATE
L=100 ID=22 L=350 		1-83129-017-0 01 1 1212-
çizim 321332
321 320 433 317 315 317 433 319 323 505
BalonParca AdiParca NoAdetTipApplied Date
25 ARM; SHIFT,2ND & 3RD 1-33511-642-0 01 1 1212-
315 LEVER; SELECT 8-98087-673-0 01 1 1212-
317 BUSHING; LEVER 1-09330-119-0 02 1 1212-1311
317 BUSHING; LEVER 1-09330-119-0 02 1 1312-
319 BRACKET; SELECT LEVER 1-33657-612-0 01 1 1212-
320 SHAFT; LEVER
(A) 		1-33549-447-0 01 1 1212-
320 SHAFT; LEVER
(B) 		1-33619-524-0 01 1 1212-
321 BOLT; BRKT,RELAY LEVER
M8X110 FLANGE 		0-28055-811-0 02 1 1212-
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91180-110-0 01 1 1212-
433 GASKET; BUSHING 1-09623-594-0 02 1 1212-
505 SPACER; BRKT 1-11349-149-0 02 1 1212-

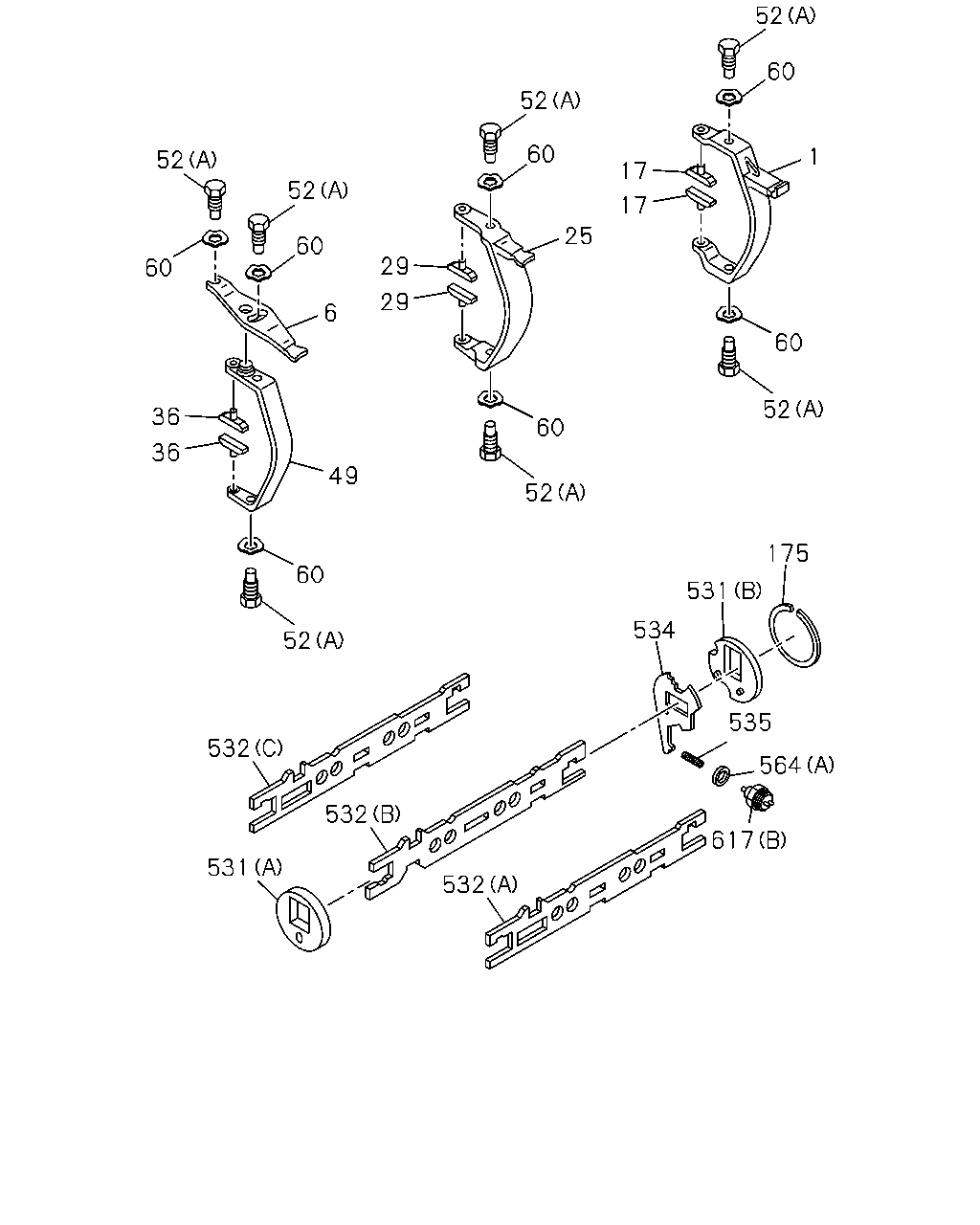

çizim 322580
52 60 52 52 29 6 60 36 36 49 60 52 60 5 17 17 52 60 1 60 52 60 52 175 531 534 535 564 617 532 531 532 532 29
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV 1-33511-657-0 01 1 1212-
6 LEVER; RELAY 1-33511-658-0 01 1 1212-
17 BLOCK; SHIFT,1ST & REV 1-33519-172-0 02 1 1212-
25 ARM; SHIFT,2ND & 3RD 1-33511-642-0 01 1 1212-
29 BLOCK; SHIFT,2ND & 3RD 1-33519-081-0 02 1 1212-
36 BLOCK; SHIFT,4TH & 5TH 1-33519-170-0 02 1 1212-
49 ARM; SHIFT,4TH & 5TH 1-33511-640-0 01 1 1212-
52 BOLT; SHIFT ARM
(A) 		1-33519-084-0 07 1 1212-1305
52 BOLT; SHIFT ARM
(A) 		1-33519-190-0 07 1 1306-
52 BOLT; SHIFT ARM
(B) 		1-33519-187-0 02 1 1212-1305
52 BOLT; SHIFT ARM
(B) 		1-33519-196-0 02 1 1306-
60 WASHER; LK 1-33519-085-0 07 1 1212-1305
175 RING; STOPPER,SHIFT LEVER 1-33539-103-0 01 1 1212-
531 PLATE; BEARING
(A) 		1-33539-044-0 01 1 1212-
531 PLATE; BEARING
(B) 		1-33539-047-0 01 1 1212-
532 PLATE; SHIFT FORK
(A) 		1-33531-492-0 01 1 1212-
532 PLATE; SHIFT FORK
(B) 		1-33531-493-0 01 1 1212-
532 PLATE; SHIFT FORK
(C) 		1-33531-494-0 01 1 1212-
534 LEVER; LOCK,SHIFT PLATE 1-33539-087-0 01 1 1212-
535 SPRING; LEVER 1-33539-049-0 01 1 1212-
564 SEAL; RING
(A) 		1-33549-578-0 01 1 1212-
564 SEAL; RING
(B) T=2.0 		1-82449-010-0 01 1 1212-
617 PLUG
(A) 		1-33119-171-0 01 1 1212-1305
617 PLUG
(A) 		1-33119-619-0 01 1 1306-
617 PLUG
(B) 		1-34129-061-0 01 1 1212-1305
617 PLUG
(B) 		1-33539-109-0 01 1 1306-

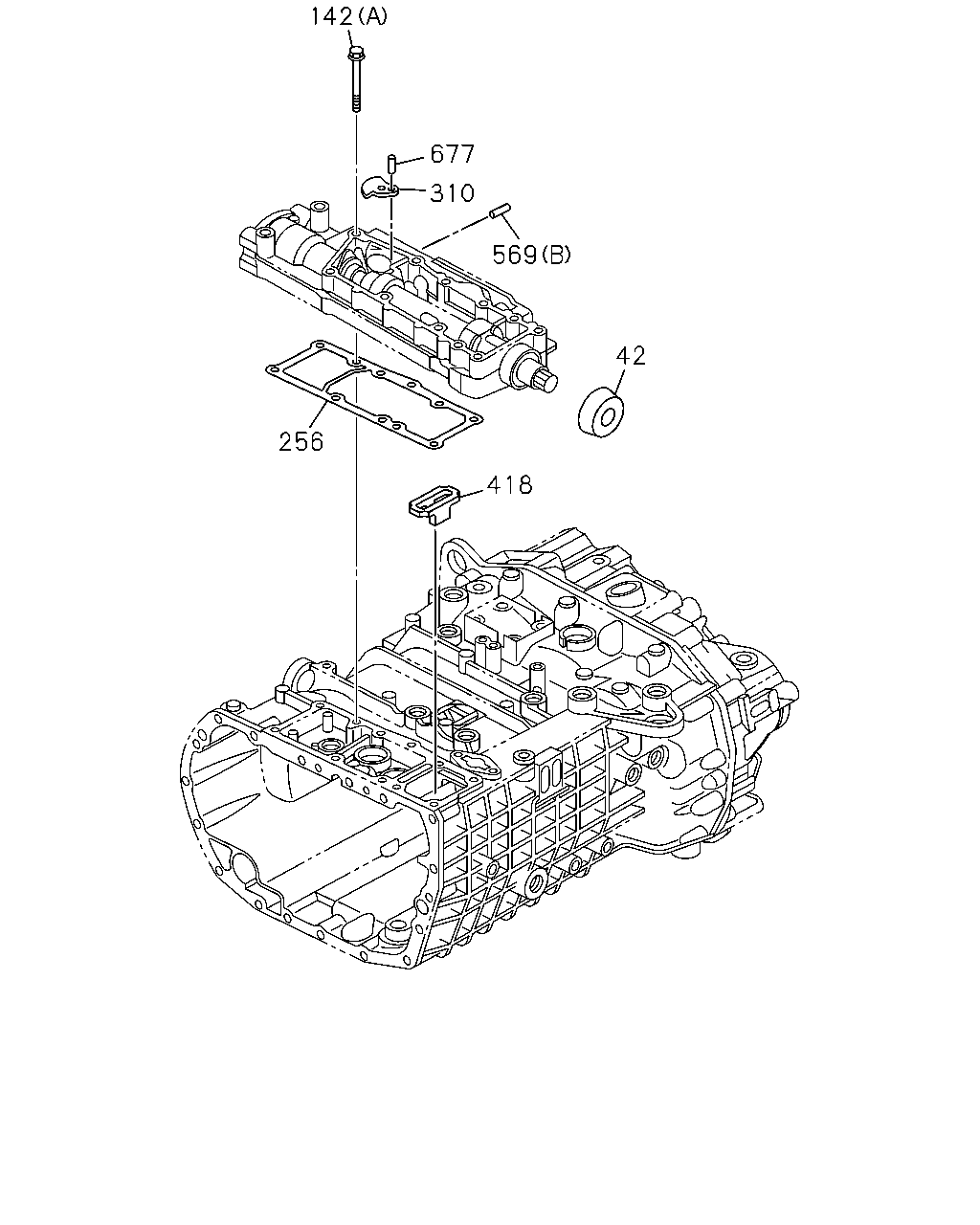

çizim 322678
256 418 42 569 310 677 142
BalonParca AdiParca NoAdetTipApplied Date
25 ARM; SHIFT,2ND & 3RD 1-33511-642-0 01 1 1212-
42 CAP; QUAD BOX 1-33549-548-0 01 1 1212-
142 BOLT; QUAD BOX
(B) 		1-33549-467-0 05 1 1212-1305
142 BOLT; QUAD BOX
(B) M8X70 		1-33549-616-0 05 1 1306-
142 BOLT; QUAD BOX
(A) 		1-33549-476-0 17 1 1212-1305
142 BOLT; QUAD BOX
(A) M8X80 		1-33549-614-0 17 1 1306-
256 GASKET; QUAD BOX TO TRANS CASE 1-33542-062-0 01 1 1212-
310 PLATE; LOCK,SHIFT LEVER 1-33549-453-0 01 1 1212-
418 PIECE; DIST,QUAD BOX 1-33549-454-0 01 1 1212-
569 PIN; QUADRANT BOX
(A) 		1-33529-106-0 01 1 1212-
569 PIN; QUADRANT BOX
(B) 		1-33549-452-0 01 1 1212-
569 PIN; QUADRANT BOX
(C) 		1-33549-468-0 01 1 1212-
677 PIN; PLATE 1-33549-452-0 01 1 1212-

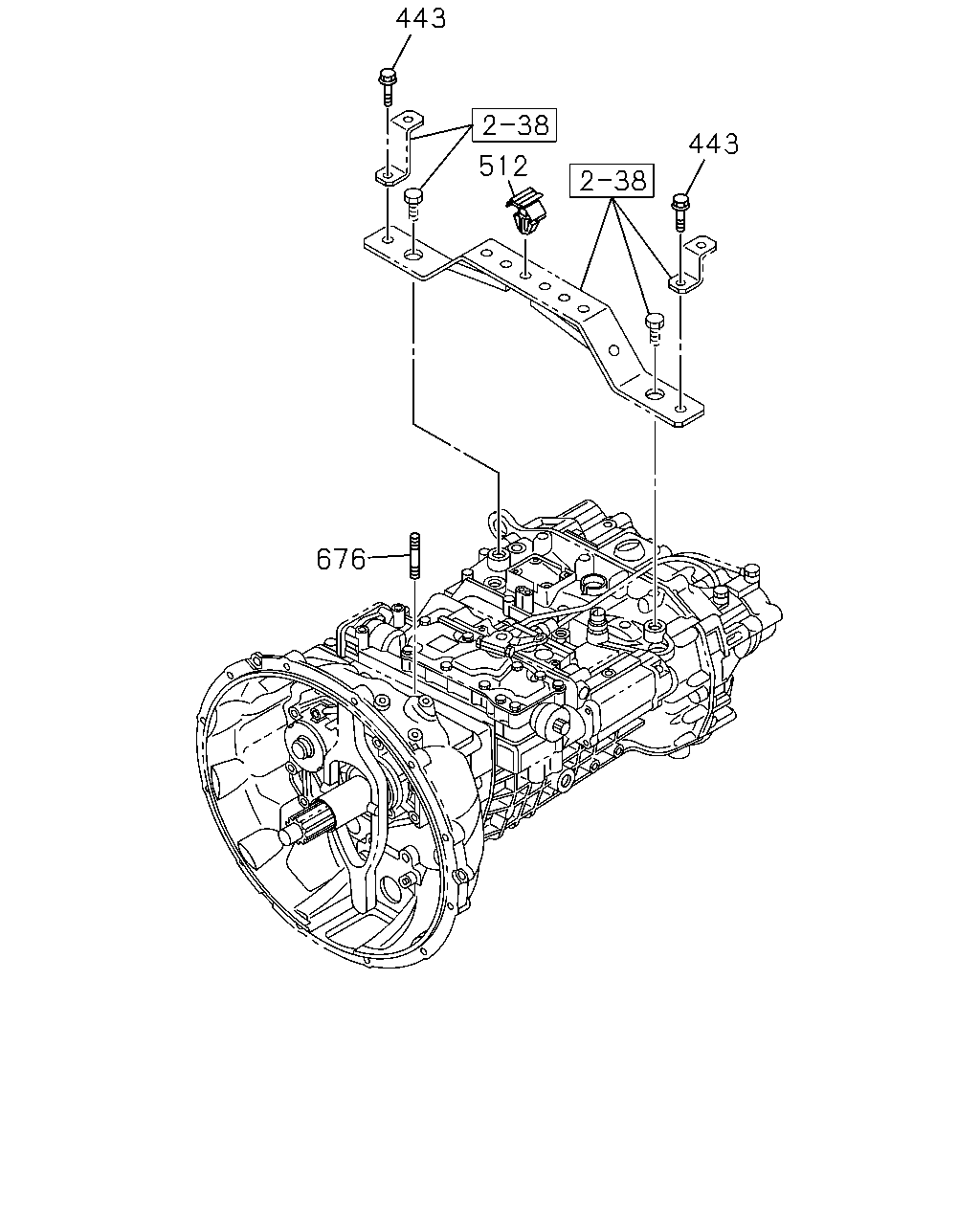

çizim 322685
443 512 443 676
BalonParca AdiParca NoAdetTipApplied Date
25 ARM; SHIFT,2ND & 3RD 1-33511-642-0 01 1 1212-
443 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1212-
512 CLIP; PIPE
OD=9 H=6 		1-09709-178-0 05 1 1212-
676 STUD
M8X14,M8X14 L=33 		1-09300-058-1 01 1 1212-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
