2-20 — MANUAL TRANSMISSION ASM AND CASE (#111534) — 191 parça

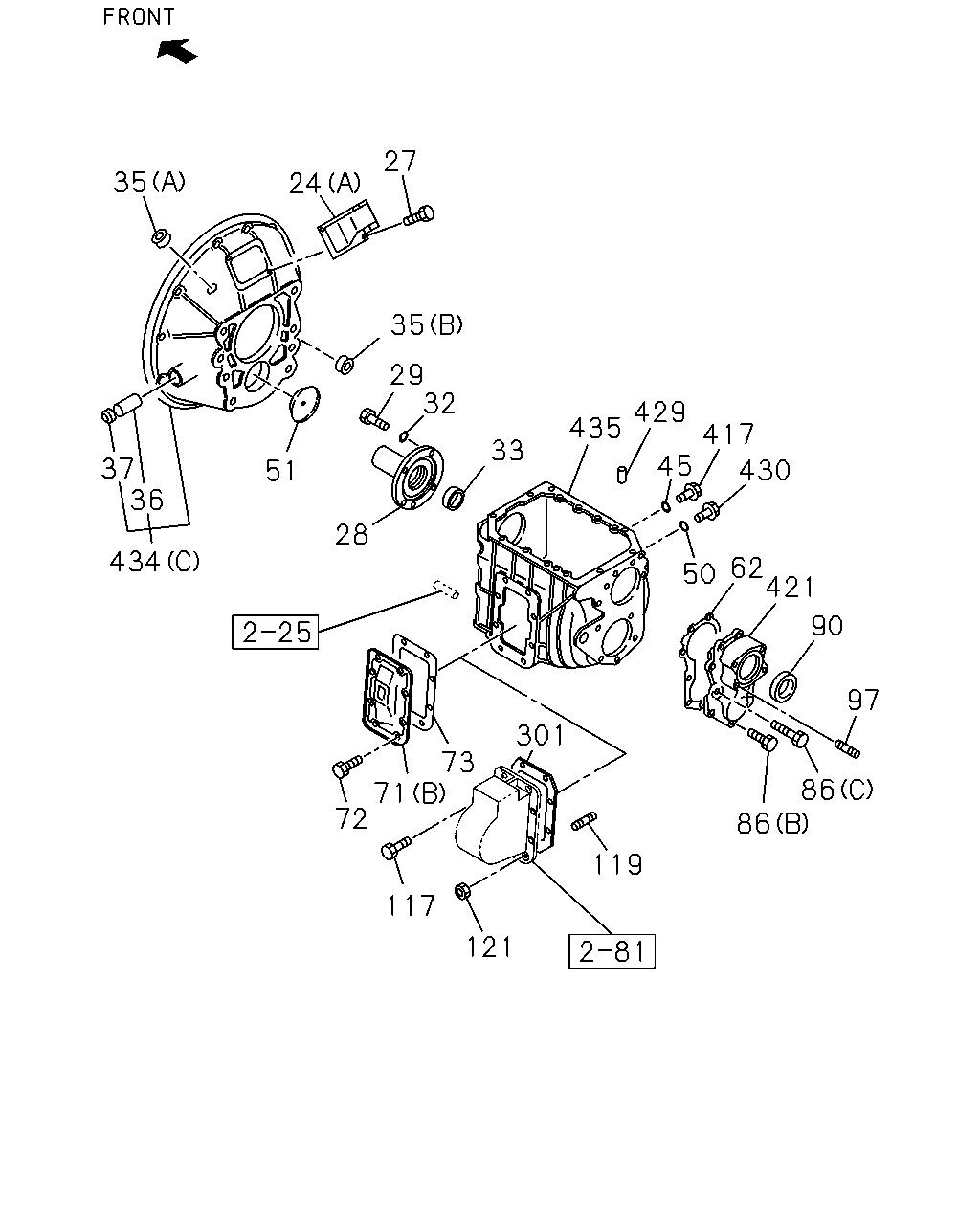

35 24 27 37 434 36 51 35 29 28 32 33 435 429 72 73 71 117 121 119 301 86 45 417 430 50 62 86 421 90 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	COVER; CHECK HOLE,DUST (A)	8-98284-107-0	01	1	1411-	●
24	COVER; CHECK HOLE,DUST 15" CLUTCH(RE9) (A)	1-31131-041-0	01	1	1212-1410	●	●
24	COVER; CHECK HOLE,DUST TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98283-062-0	01	1	1411-		●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1212-1410	●
27	BOLT; COVER TO CLU HSG 15" CLUTCH(RE9) M8X16 FLANGE	0-28050-816-0	02	1	1411-	●	●
27	BOLT; COVER TO CLU HSG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X12 FLANGE	0-28050-812-0	02	1	1212-1410		●
28	COVER; FRT,TRANS CASE	1-33121-108-1	01	1	1212-	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	04	1	1212-	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	1212-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	1212-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-187-0	02	1	1212-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97377-947-0	01	1	1212-		●
35	GROMMET; CLU HSG (B) OD=15 T=6.6	8-97037-246-0	01	1	1212-	●
35	GROMMET; CLU HSG (A) OD=31	9-09575-796-0	01	1	1212-	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	1212-	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	1212-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1212-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1212-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1212-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1212-1404		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-		●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	1212-	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	1212-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-033-0	01	1	1212-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-98122-318-0	01	1	1212-1408		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-98270-265-1	01	1	1409-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	1212-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	1212-	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	1212-	●
86	BOLT; RR COVER (B) M12X60	1-09044-084-0	01	1	1212-	●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	1212-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1212-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1212-		●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1212-	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	1212-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	1212-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 L=45	0-44011-030-0	02	1	1212-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	1212-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	1212-	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	1212-		●
301	PLATE; DIST,PTO TO TRANS TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38119-037-0	01	1	1212-	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	1212-	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1212-		●
421	COVER; RR,TRANS	1-33131-177-1	01	1	1212-	●
421	COVER; RR,TRANS	8-98004-790-1	01	1	1212-		●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	1212-	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	1212-	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1212-1404		●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-		●
434	HOUSING; CLU (C)	1-31110-169-0	01	1	1212-	●
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98100-982-1	01	1	1212-		●
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98004-506-2	01	1	1212-		●
435	CASE; TRANS	1-33111-355-0	01	1	1212-	●
435	CASE; TRANS	8-98186-449-0	01	1	1212-1404		●
435	CASE; TRANS	8-98236-421-1	01	1	1405-		●

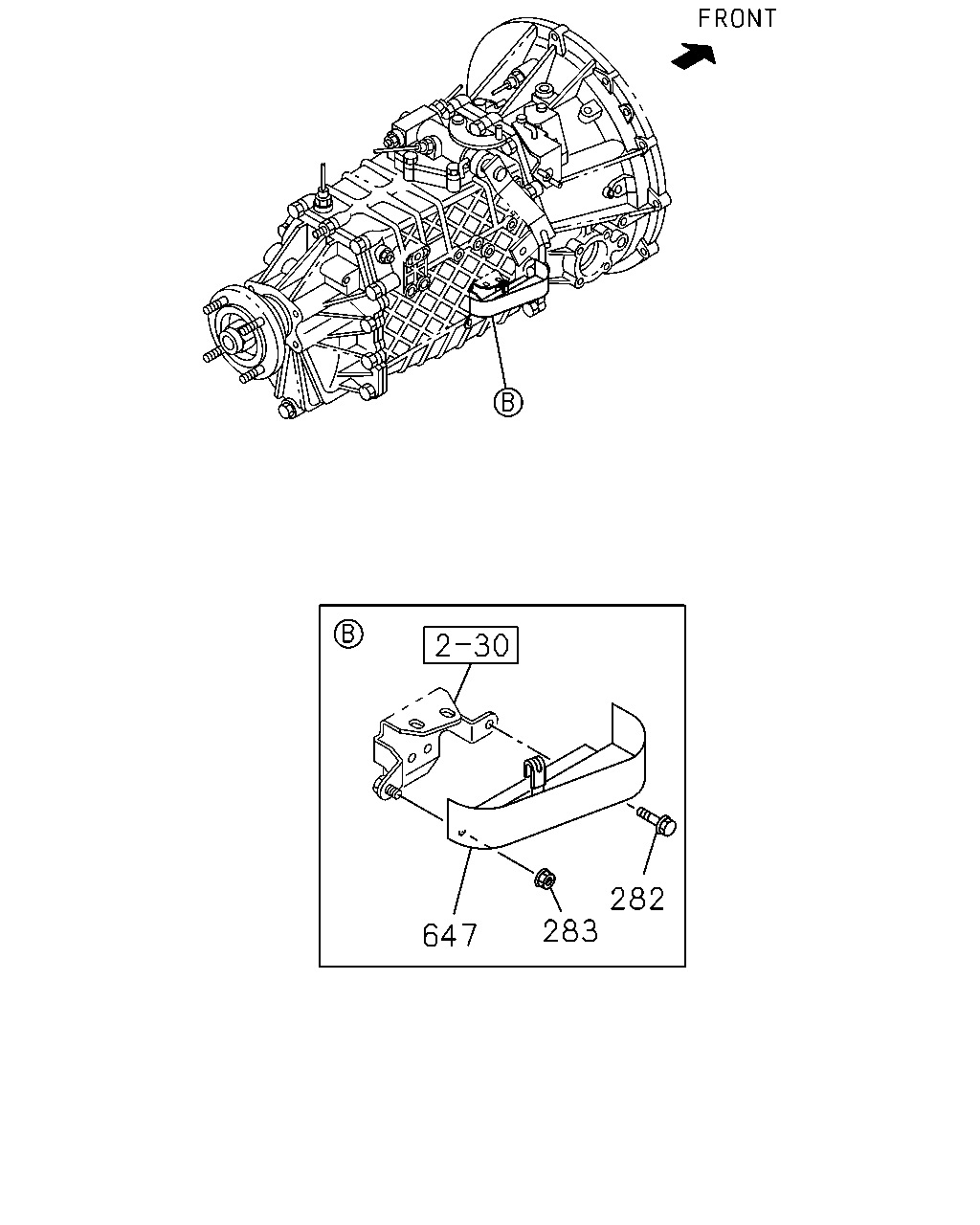

647 283 282

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
282	BOLT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1212-	●
283	NUT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	1212-	●
647	PROTECTOR; HEAT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97329-465-0	01	1	1212-	●

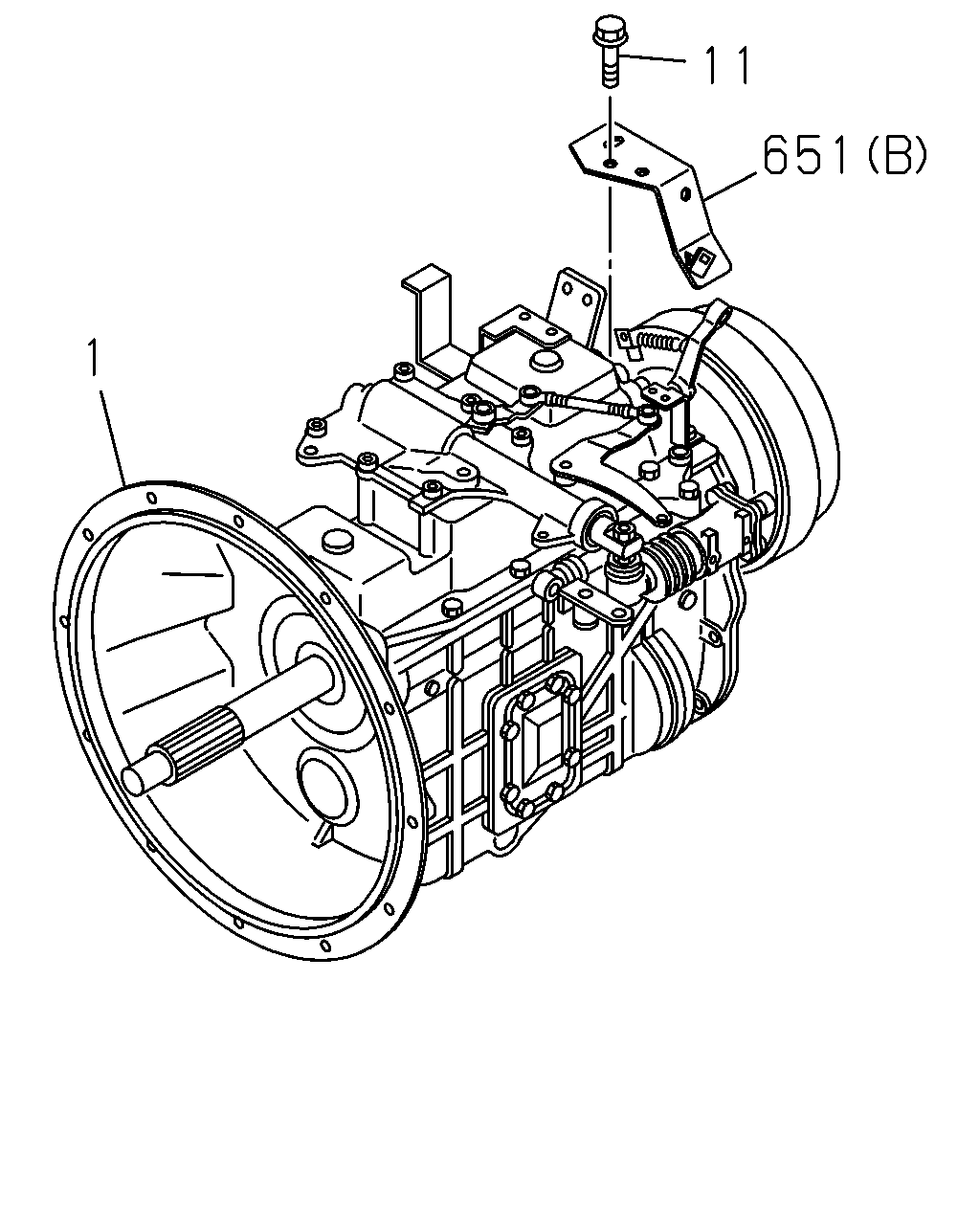

11 651

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	1212-	●
11	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE	0-28650-835-0	02	1	1212-		●
651	BRACKET; T/M HARNESS (B)	8-97627-300-0	01	1	1212-	●
651	BRACKET; T/M HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97610-090-3	01	1	1212-		●

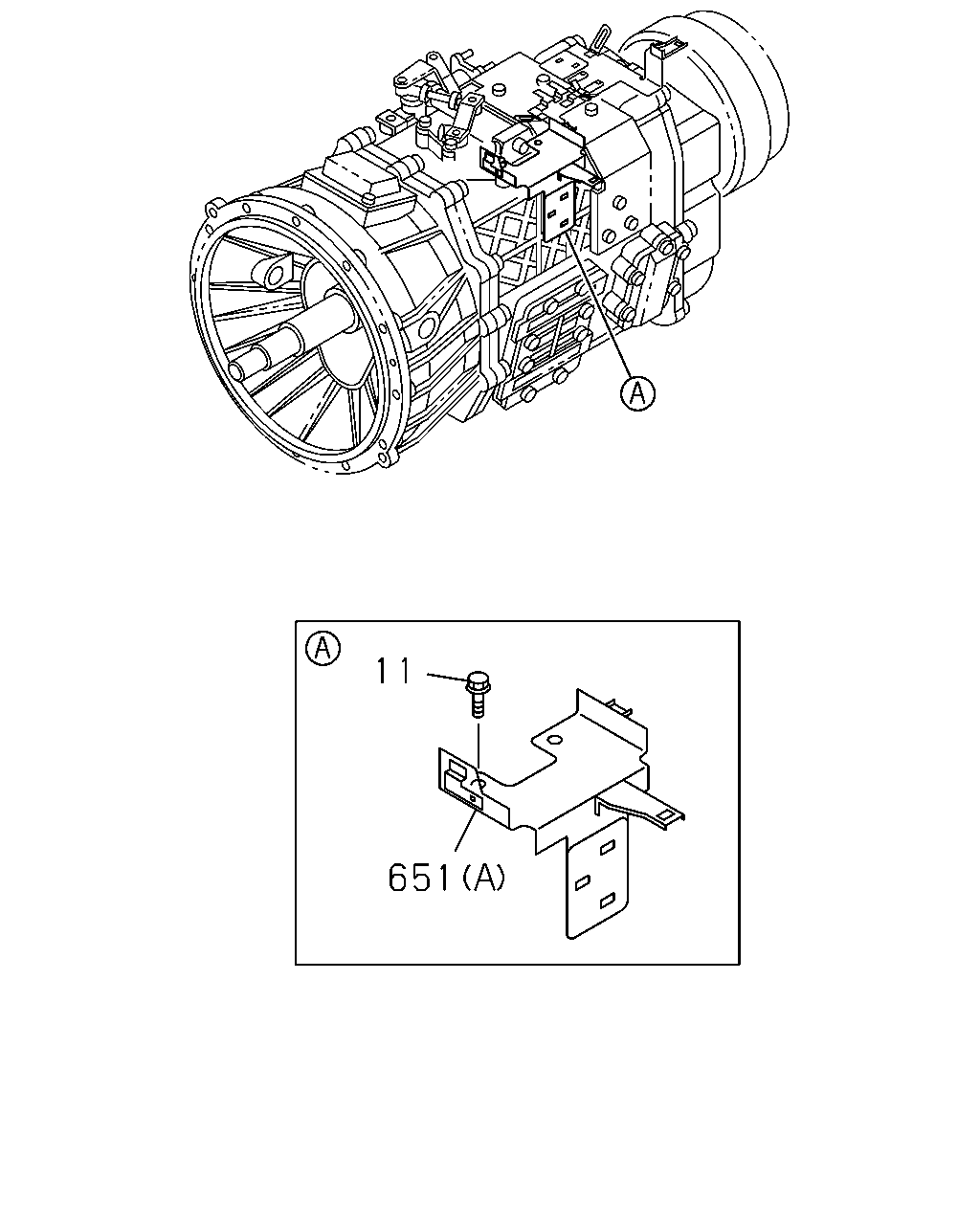

1 11 651

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-290-0	01	1	1212-	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-290-0	01	1	1212-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98134-520-0	01	1	1212-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-520-0	01	1	1212-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	1212-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 15" CLUTCH(RE9) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	1212-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-629-0	01	1	1212-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) TRANSMISSION SIDE PTO WO/LEVER(SH5) KD PREPARATORY PACK<6HF>	8-98134-629-0	01	1	1212-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. KD PREPARATORY PACK<6HF>	8-98134-568-0	01	1	1212-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),KD PREPARATORY PACK<6HF>	8-98134-568-0	01	1	1212-		●
11	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	1212-	●
11	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE	0-28650-835-0	02	1	1212-		●
651	BRACKET; T/M HARNESS (B)	8-97627-300-0	01	1	1212-	●
651	BRACKET; T/M HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97610-090-3	01	1	1212-		●

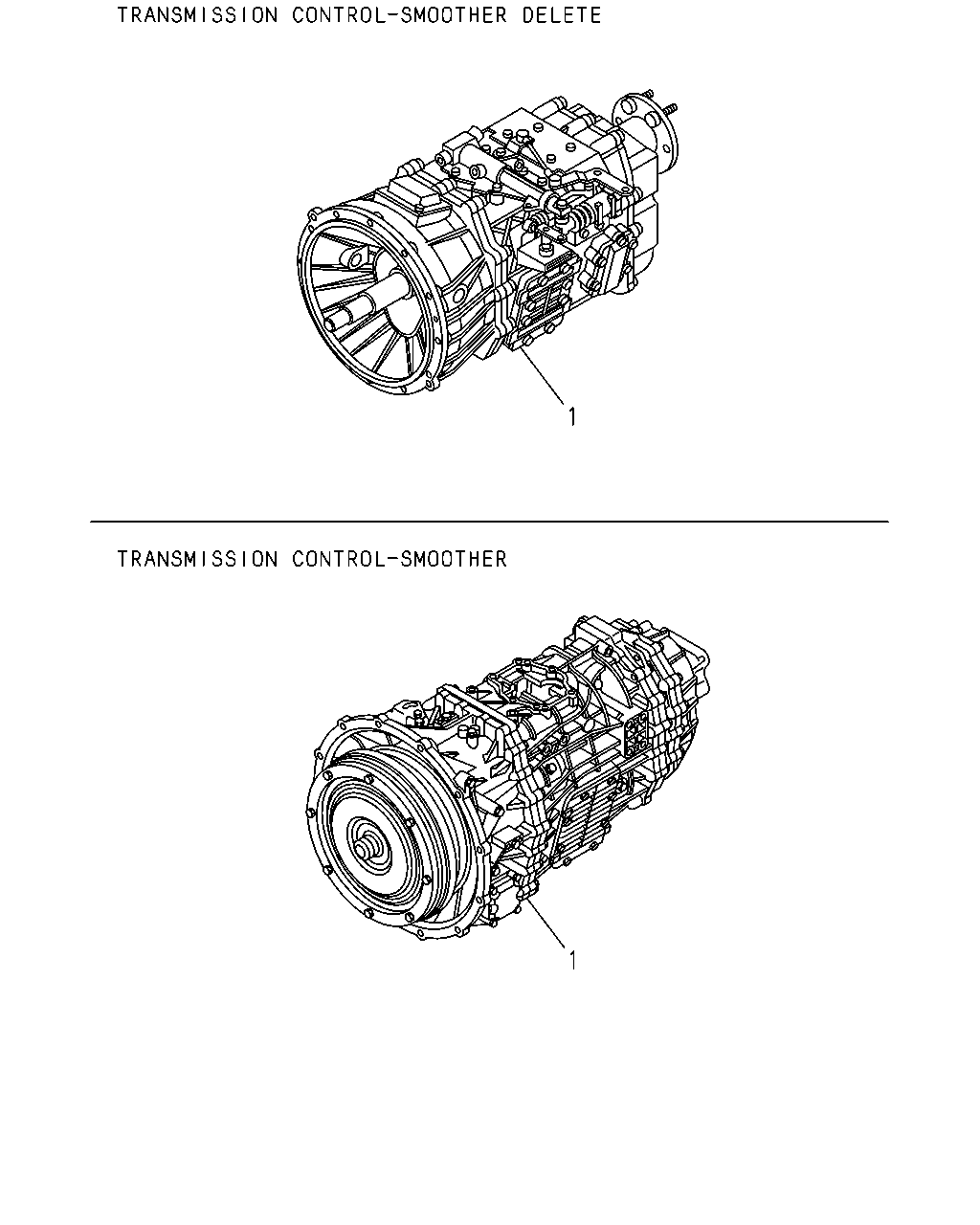

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-290-0	01	1	1212-	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-290-0	01	1	1212-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98134-520-0	01	1	1212-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-520-0	01	1	1212-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	1212-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 15" CLUTCH(RE9) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	1212-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-629-0	01	1	1212-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) TRANSMISSION SIDE PTO WO/LEVER(SH5) KD PREPARATORY PACK<6HF>	8-98134-629-0	01	1	1212-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. KD PREPARATORY PACK<6HF>	8-98134-568-0	01	1	1212-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),KD PREPARATORY PACK<6HF>	8-98134-568-0	01	1	1212-		●

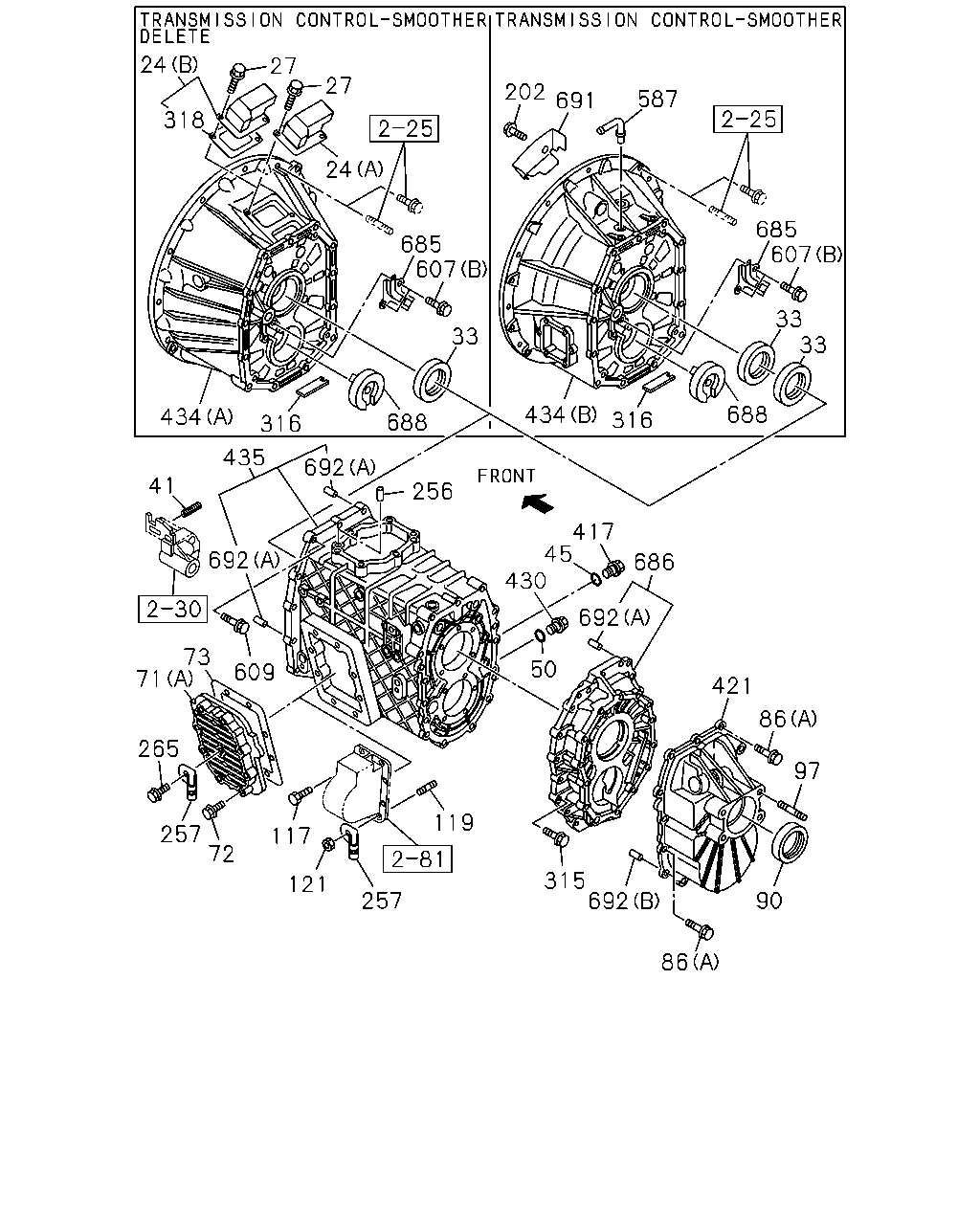

86 90 692 315 97 86 421 50 692 686 417 45 430 256 692 435 41 692 609 73 71 265 257 72 121 117 119 257 688 316 434 33 607 685 24 27 27 318 24 202 587 691 685 607 33 33 688 316 434

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	COVER; CHECK HOLE,DUST (A)	8-98284-107-0	01	1	1411-	●
24	COVER; CHECK HOLE,DUST 15" CLUTCH(RE9) (A)	1-31131-041-0	01	1	1212-1410	●	●
24	COVER; CHECK HOLE,DUST TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98283-062-0	01	1	1411-		●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1212-1410	●
27	BOLT; COVER TO CLU HSG 15" CLUTCH(RE9) M8X16 FLANGE	0-28050-816-0	02	1	1411-	●	●
27	BOLT; COVER TO CLU HSG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X12 FLANGE	0-28050-812-0	02	1	1212-1410		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	1212-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-187-0	02	1	1212-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97377-947-0	01	1	1212-		●
41	SPRING; DETENT BALL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98071-140-0	01	1	1212-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1212-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1212-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1212-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1212-1404		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-033-0	01	1	1212-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-98122-318-0	01	1	1212-1408		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-98270-265-1	01	1	1409-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	1212-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	1212-	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	1212-	●
86	BOLT; RR COVER (B) M12X60	1-09044-084-0	01	1	1212-	●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	1212-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1212-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1212-		●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1212-	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	1212-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	1212-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 L=45	0-44011-030-0	02	1	1212-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	1212-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	1212-	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	1212-		●
202	BOLT; PLATE TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1212-		●
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	1212-		●
257	CLIP; HARNESS EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=8	8-97329-633-0	01	1	1212-		●
265	BOLT; CLIP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	01	1	1212-		●
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	1212-		●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1212-		●
318	GASKET; COVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31139-023-0	01	1	1411-		●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	1212-	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1212-		●
421	COVER; RR,TRANS	1-33131-177-1	01	1	1212-	●
421	COVER; RR,TRANS	8-98004-790-1	01	1	1212-		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	1212-	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1212-1404		●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-		●
434	HOUSING; CLU (C)	1-31110-169-0	01	1	1212-	●
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98100-982-1	01	1	1212-		●
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98004-506-2	01	1	1212-		●
435	CASE; TRANS	1-33111-355-0	01	1	1212-	●
435	CASE; TRANS	8-98186-449-0	01	1	1212-1404		●
435	CASE; TRANS	8-98236-421-1	01	1	1405-		●
587	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97358-318-0	01	1	1212-		●
607	BOLT; COVER (B) M8X16 FLANGE	0-28050-816-0	02	1	1212-		●
607	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	04	1	1212-		●
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	1212-		●
685	COVER; OIL PORT	8-98018-864-1	01	1	1212-		●
686	CASE; RR,TRANS	8-97388-873-1	01	1	1212-		●
688	NOZZLE; OIL,COUNTER	8-98202-402-0	01	1	1212-1508		●
688	NOZZLE; OIL,COUNTER	8-98309-860-0	01	1	1509-		●
691	PLATE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98044-428-0	01	1	1212-		●
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	1212-		●
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	1212-		●

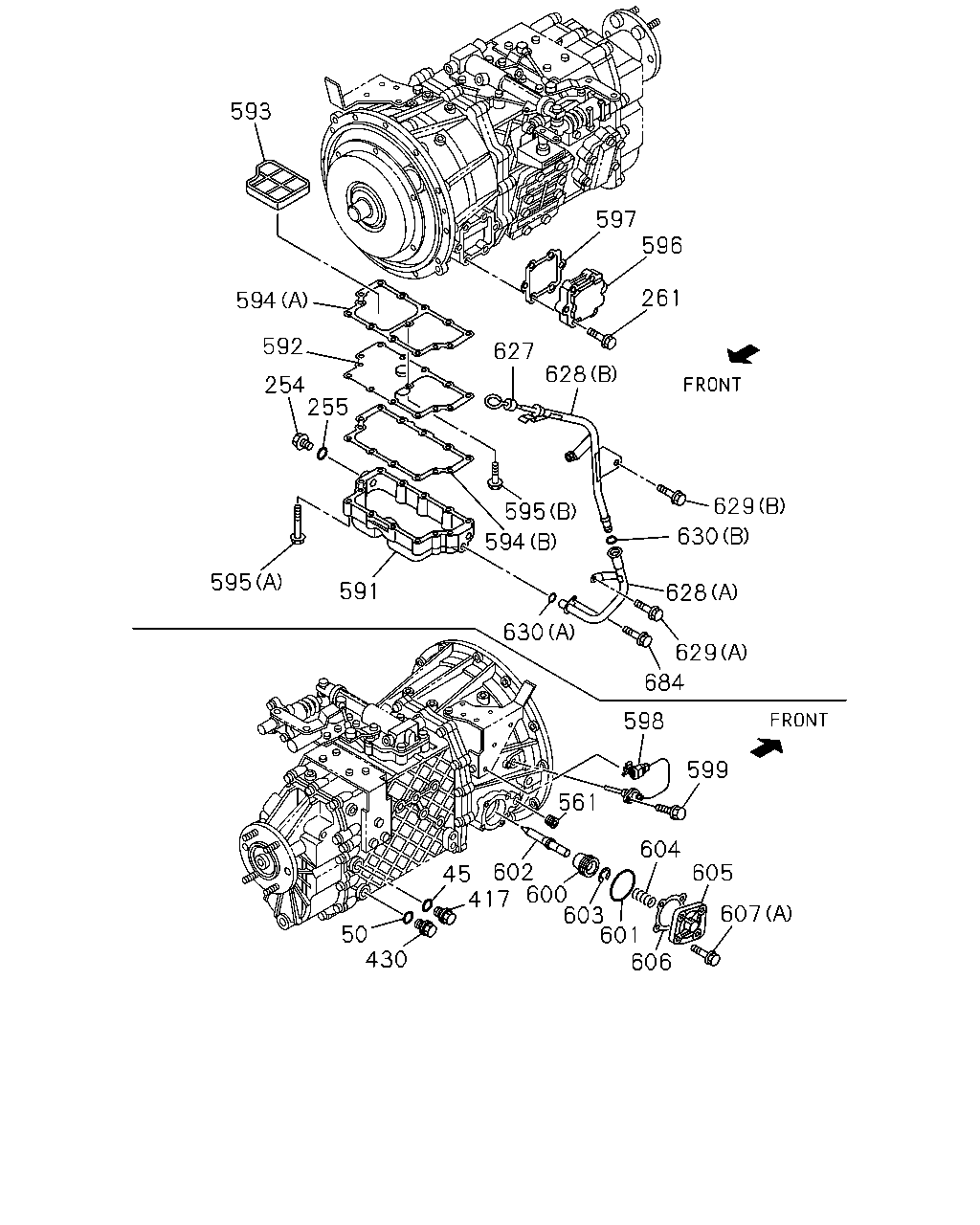

607 605 599 598 604 606 601 603 600 602 417 45 430 50 561 591 595 255 254 592 594 593 594 595 630 629 630 628 629 684 628 627 261 596 597

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1212-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1212-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1212-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1212-1404		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-		●
254	PLUG; DRAIN,OIL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97365-374-0	01	1	1212-		●
255	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) ID=17	8-97115-712-0	01	1	1212-		●
261	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) M6X35 FLANGE	0-28650-635-0	06	1	1212-		●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	1212-	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1212-		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	1212-	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1212-1404		●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-		●
561	PLUG TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97320-204-0	01	1	1212-		●
591	PAN; OIL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97256-429-2	01	1	1212-		●
592	COVER; STRAINER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-771-1	01	1	1212-		●
593	FILTER; STRAINER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97256-438-1	01	1	1212-		●
594	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97256-430-1	01	1	1212-		●
594	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97289-772-0	01	1	1212-		●
595	BOLT; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X16 FLANGE	0-28650-616-0	01	1	1212-		●
595	BOLT; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X35 FLANGE	0-28650-635-0	13	1	1212-		●
596	COVER; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-773-0	01	1	1212-		●
597	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-774-0	01	1	1212-		●
598	SENSOR; TURBINE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97316-495-1	01	1	1212-		●
599	BOLT; SENSOR TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE	0-28650-616-0	01	1	1212-		●
600	PISTON; BRAKE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-652-1	01	1	1212-		●
601	SEAL; PISTON ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-755-0	01	1	1212-		●
602	PLUNGER; BRAKE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98009-306-1	01	1	1212-		●
603	RING; SNAP TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8	9-09185-008-0	01	1	1212-		●
604	SPRING; PISTON TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97371-467-0	01	1	1212-		●
605	COVER; CYLINDER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-756-0	01	1	1212-		●
606	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-757-0	01	1	1212-		●
607	BOLT; COVER (B) M8X16 FLANGE	0-28050-816-0	02	1	1212-		●
607	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	04	1	1212-		●
627	GAUGE; OIL LEVEL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98024-424-0	01	1	1212-		●
628	TUBE; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-673-0	01	1	1212-		●
628	TUBE; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98005-327-0	01	1	1212-		●
629	BOLT; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10X16 FLANGE	0-28151-016-0	01	1	1212-		●
629	BOLT; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE	0-28650-616-0	01	1	1212-		●
630	GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=15.8	8-97305-656-0	01	1	1212-		●
630	GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=12.3	8-97313-558-0	01	1	1212-		●
684	BOLT; OIL FILLER TUBE TRANSMISSION CONTROL-SMOOTHER(8GF) M10X16 FLANGE	0-28151-016-0	02	1	1212-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
