Sayfa 2-26A - Isuzu EPC

2-26A — MANUAL TRANSMISSION GEAR (#111531) — 254 parça

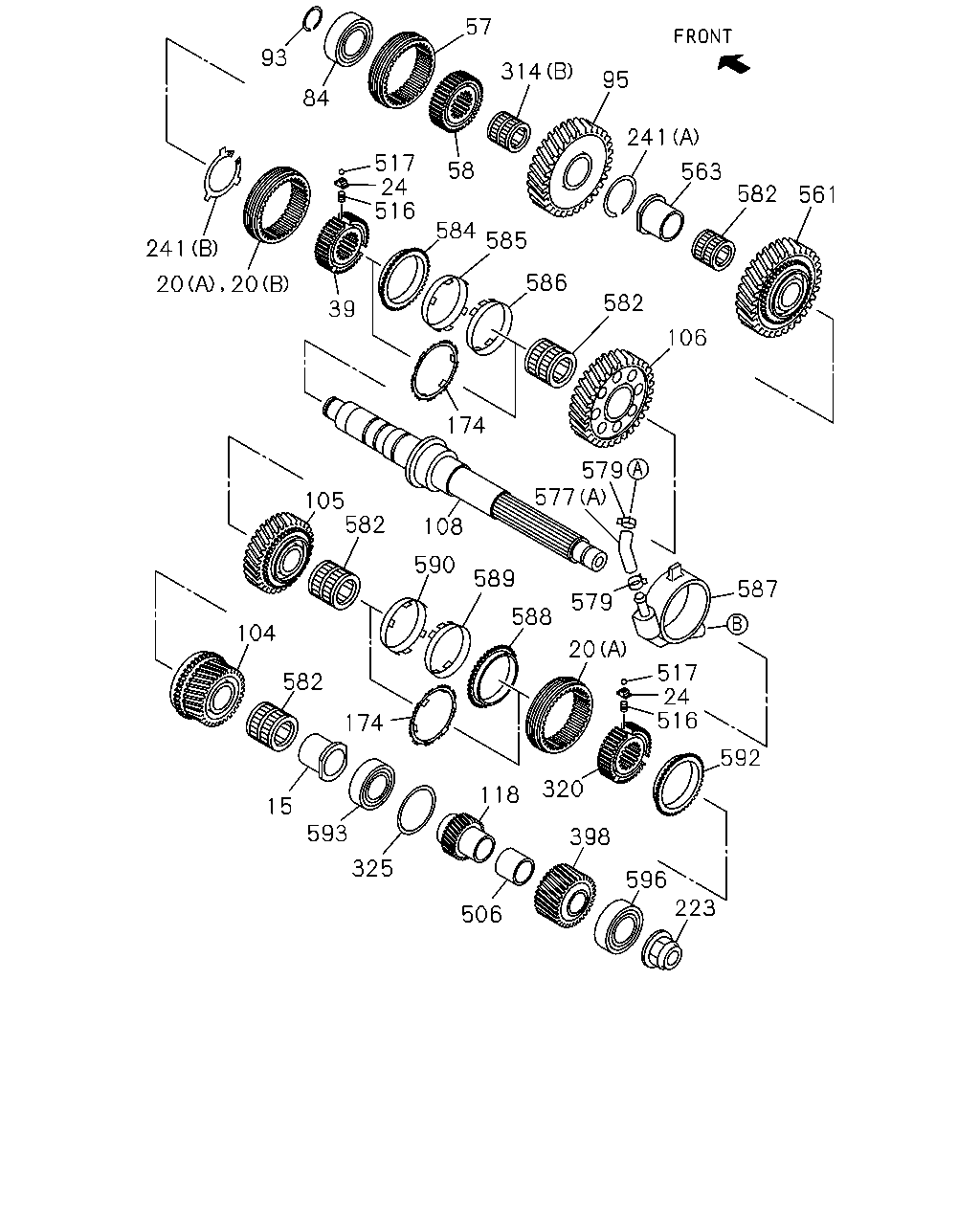

223 596 398 506 320 118 325 593 15 174 582 104 592 516 517 24 20 579 588 589 590 582 108 105 587 577 579 174 39 20 20 241 106 582 586 585 584 516 58 24 517 84 93 561 582 563 241 95 314 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	1212-	●
15	COLLAR; 4TH GEAR	8-98146-345-0	01	1	1212-		●
20	SLEEVE (A) Z=45	8-97241-296-1	03	1	1212-1308		●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1309-1311		●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-1508		●
20	SLEEVE (A) Z=45	8-98258-279-0	03	1	1509-		●
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	1309-1508		●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	1212-	●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1212-		●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	1212-	●
39	HUB; CLU,LOW & 2ND Z=45	8-98075-732-0	01	1	1212-1501		●
39	HUB; CLU,LOW & 2ND Z=45	8-98303-646-0	01	1	1502-1507		●
39	HUB; CLU,LOW & 2ND Z=45	8-98309-852-0	01	1	1508-		●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	1212-	●
57	SLEEVE; REV Z=45	8-94421-871-1	01	1	1212-		●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	1212-	●
58	HUB; CLU,REV Z=45-27	8-98005-296-0	01	1	1212-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	1212-	●
84	BEARING; COUNTER SHAFT,FRT	8-97377-957-1	01	1	1212-		●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	1212-	●
93	RING; SNAP,COUNTER FRT BRG	8-97377-958-0	01	1	1212-		●
95	GEAR; REV,COUNTER Z=44	8-98005-229-0	01	1	1212-		●
104	GEAR; 4TH,COUNTER Z=36	1-33332-133-0	01	1	1212-1311	●
104	GEAR; 4TH,COUNTER Z=36	8-98256-811-0	01	1	1312-	●
104	GEAR; 4TH,COUNTER Z=29	8-98198-297-0	01	1	1212-		●
105	GEAR; 3RD,COUNTER Z=28	1-33333-161-0	01	1	1212-1311	●
105	GEAR; 3RD,COUNTER Z=28	8-98256-803-0	01	1	1312-	●
105	GEAR; 3RD,COUNTER Z=35	8-98168-501-0	01	1	1212-		●
106	GEAR; 2ND,COUNTER Z=44	8-98140-884-0	01	1	1212-		●
108	SHAFT; COUNTER Z=19-14	1-33311-280-1	01	1	1212-	●
108	SHAFT; COUNTER Z=27-42-26	8-98223-607-0	01	1	1212-1501		●
108	SHAFT; COUNTER Z=27-42-26	8-98303-643-0	01	1	1502-		●
118	GEAR; 6TH,COUNTER Z=55	1-33332-103-1	01	1	1212-	●
118	GEAR; 6TH,COUNTER Z=17	8-98005-292-1	01	1	1212-		●
174	SYNCHRONIZER ASM; 2ND-3RD	8-98315-823-2	02	1	1509-		●
223	NUT; COUNTER SHAFT END M34 FLANGE	8-98005-894-0	01	1	1212-		●
241	RING; SNAP (A) ID=46.5 T=1.8	8-97254-743-0	01	1	1212-		●
241	RING; SNAP (B) ID=96 T=2.5	8-98009-391-0	01	1	1212-		●
314	BEARING; NEEDLE,REV GEAR (A) JTEKT	1-09811-017-0	02	1	1212-		●
314	BEARING; NEEDLE,REV GEAR (B) NSK	8-97253-111-0	01	1	1212-		●
320	HUB; CLU,4TH & 3RD Z=45	8-98075-733-0	01	1	1212-1501		●
320	HUB; CLU,4TH & 3RD Z=45	8-98303-649-0	01	1	1502-1507		●
320	HUB; CLU,4TH & 3RD Z=45	8-98309-859-0	01	1	1508-		●
325	SHIM; COUNTER SHAFT BRG T=1.56	8-97377-994-0	01	1	1212-		●
325	SHIM; COUNTER SHAFT BRG T=1.62	8-97377-995-0	01	1	1212-		●
325	SHIM; COUNTER SHAFT BRG T=1.68	8-97377-996-0	01	1	1212-		●
325	SHIM; COUNTER SHAFT BRG T=1.74	8-97377-997-0	01	1	1212-		●
325	SHIM; COUNTER SHAFT BRG T=1.80	8-97377-998-0	01	1	1212-		●
325	SHIM; COUNTER SHAFT BRG T=1.26	8-98009-373-0	01	1	1212-		●
325	SHIM; COUNTER SHAFT BRG T=1.32	8-98009-374-0	01	1	1212-		●
325	SHIM; COUNTER SHAFT BRG T=1.38	8-98009-375-0	01	1	1212-		●
325	SHIM; COUNTER SHAFT BRG T=1.44	8-98009-376-0	01	1	1212-		●
325	SHIM; COUNTER SHAFT BRG T=1.50	8-98009-377-0	01	1	1212-		●
325	SHIM; COUNTER SHAFT BRG T=1.14	8-98022-218-0	01	1	1212-		●
325	SHIM; COUNTER SHAFT BRG T=1.20	8-98022-219-0	01	1	1212-		●
398	GEAR; COUNTER Z=22	8-97380-568-0	01	1	1212-		●
506	COLLAR; 6TH,COUNTER	8-97377-965-0	01	1	1212-		●
516	SPRING; SYNCHRO,INDEX	8-98032-197-0	09	1	1212-		●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1212-		●
561	GEAR; LOW,COUNTER Z=44	8-98000-330-0	01	1	1212-		●
563	COLLAR; 1ST GEAR	8-98146-345-0	01	1	1212-		●
577	HOSE; OIL PUMP (A)	8-98033-981-0	02	1	1212-		●
577	HOSE; OIL PUMP (B)	8-98033-982-0	02	1	1212-		●
579	CLAMP; HOSE ID=16	8-97329-628-0	07	1	1212-		●
582	BEARING; NEEDLE,COUNTER GEAR	8-97253-110-0	04	1	1212-		●
584	RING; BLOCK,2ND Z=45	8-98223-605-1	01	1	1212-1308		●
584	RING; BLOCK,2ND Z=45	8-98034-770-0	01	1	1309-1508		●
585	RING; OUTSIDE,2ND	8-97241-309-1	01	1	1212-1508		●
586	RING; INSIDE,2ND	8-98223-606-1	01	1	1212-1308		●
586	RING; INSIDE,2ND	8-97241-312-1	01	1	1309-1508		●
587	CASE; PUMP,COUNTER	8-98212-196-0	01	1	1212-1501		●
587	CASE; PUMP,COUNTER	8-98303-650-0	01	1	1502-		●
588	RING; BLOCK,3RD Z=45	8-98223-605-1	01	1	1212-1308		●
588	RING; BLOCK,3RD Z=45	8-97241-306-1	01	1	1309-1508		●
589	RING; OUTSIDE,3RD	8-97241-309-1	01	1	1212-1508		●
590	RING; INSIDE,3RD	8-98223-606-1	01	1	1212-1308		●
590	RING; INSIDE,3RD	8-97241-312-1	01	1	1309-1508		●
592	RING; BLOCK,4TH Z=45	8-97241-306-1	01	1	1212-		●
593	BEARING; COUNTER MIDDLE	8-97377-976-0	01	1	1212-		●
596	BEARING; ROOLER,COUNTER END	8-97377-968-0	01	1	1212-		●

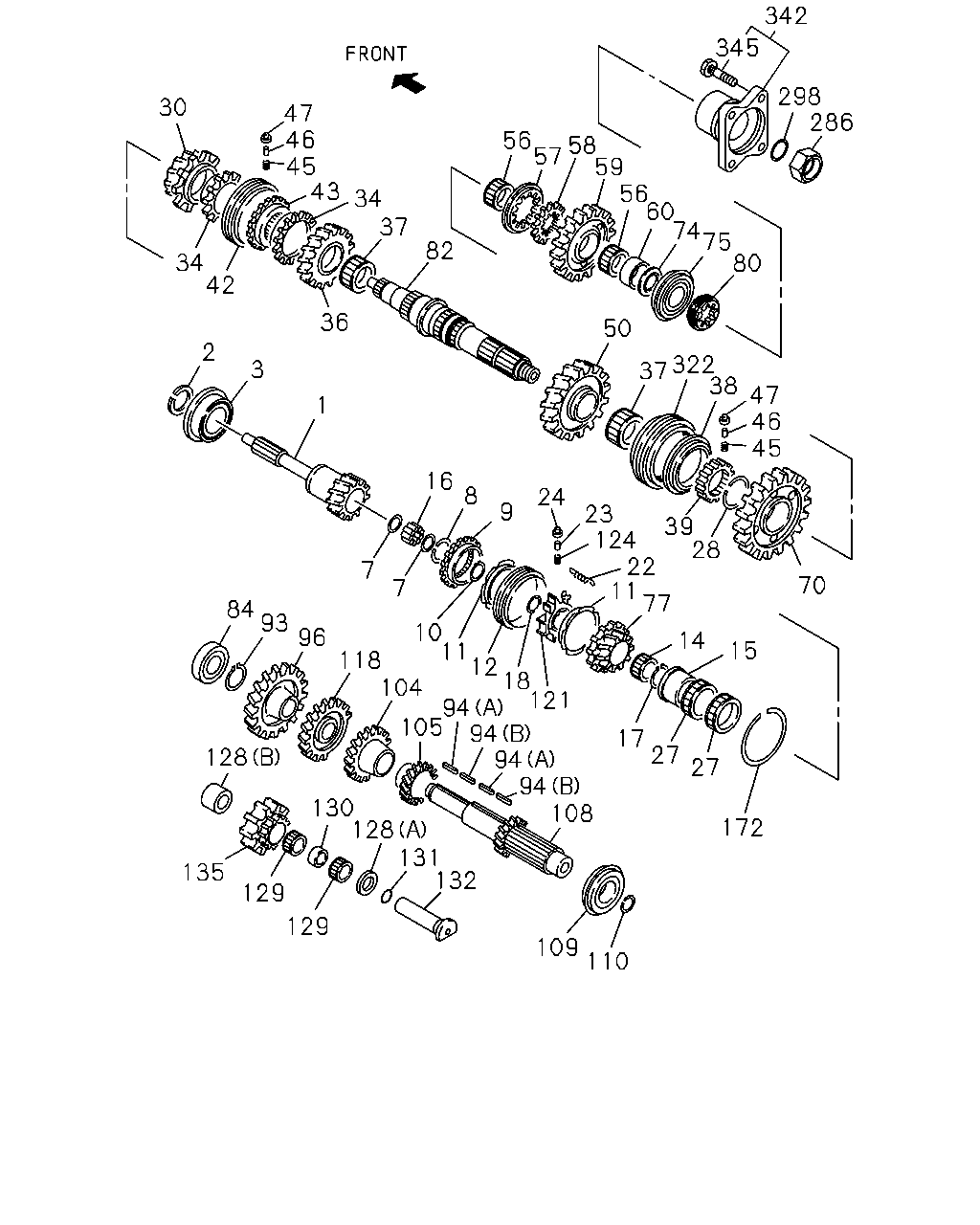

342 345 298 286 80 75 74 60 56 59 58 57 56 82 37 34 43 45 46 47 30 34 42 36 50 37 322 38 47 46 45 70 28 39 15 14 77 11 22 124 23 24 9 8 16 1 3 2 7 7 10 11 12 18 121 17 27 27 172 108 94 94 94 94 105 104 118 96 93 84 128 130 128 131 132 109 110 129 129 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-785-0	01	1	1212-	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	1212-	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	1212-	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	1212-	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	1212-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	1212-	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	1212-	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	1212-	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	1212-	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	1212-	●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	1212-	●
11	RING; BLOCK,5TH & 6TH Z=45	8-97241-306-1	02	1	1212-		●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	1212-	●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	1212-	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	1212-	●
15	COLLAR; 4TH GEAR	8-98146-345-0	01	1	1212-		●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	1212-	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	1212-	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	1212-	●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	1212-		●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	1212-	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	1212-	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	1212-	●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1212-		●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	1212-	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	1212-	●
30	GEAR; 4TH,MAINSHAFT Z=33-54	1-33253-723-0	01	1	1212-	●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-619-0	02	1	1212-	●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	1212-	●
36	GEAR; 3RD,MAINSHAFT Z=29	8-98168-499-0	01	1	1212-		●
37	BEARING; NEEDLE,2ND & 3RD JTEKT	1-09811-277-0	02	1	1212-	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	1212-	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-619-0	01	1	1212-	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	1212-	●
39	HUB; CLU,LOW & 2ND Z=45	8-98075-732-0	01	1	1212-1501		●
39	HUB; CLU,LOW & 2ND Z=45	8-98303-646-0	01	1	1502-1507		●
39	HUB; CLU,LOW & 2ND Z=45	8-98309-852-0	01	1	1508-		●
42	SLEEVE Z=54	1-33262-154-0	01	1	1212-	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	1212-	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	1212-	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	1212-	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	1212-	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	1212-	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	1212-	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	1212-	●
57	SLEEVE; REV Z=45	8-94421-871-1	01	1	1212-		●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	1212-	●
58	HUB; CLU,REV Z=45-27	8-98005-296-0	01	1	1212-		●
59	GEAR; REV MAINSHAFT Z=45	1-33257-061-1	01	1	1212-	●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	1212-	●
70	GEAR; 1ST,MAINSHAFT Z=51	1-33255-056-1	01	1	1212-	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	1212-	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	1212-	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	1212-	●
77	GEAR; 6TH,MAINSHAFT Z=25	1-33253-517-0	01	1	1212-	●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98137-256-0	01	1	1212-		●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	1212-	●
80	GEAR; SPD DRIVE Z=5	8-97377-978-1	01	1	1212-		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	1212-	●
82	SHAFT; MAIN,TRANS Z=13-21-19-26	8-98140-880-0	01	1	1212-1308		●
82	SHAFT; MAIN,TRANS Z=13-21-19-26	8-98245-057-0	01	1	1309-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	1212-	●
84	BEARING; COUNTER SHAFT,FRT	8-97377-957-1	01	1	1212-		●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	1212-	●
93	RING; SNAP,COUNTER FRT BRG	8-97377-958-0	01	1	1212-		●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	1212-	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	1212-	●
96	GEAR; COUNTER DRIVE Z=42	1-33331-212-1	01	1	1212-	●
104	GEAR; 4TH,COUNTER Z=36	1-33332-133-0	01	1	1212-1311	●
104	GEAR; 4TH,COUNTER Z=36	8-98256-811-0	01	1	1312-	●
104	GEAR; 4TH,COUNTER Z=29	8-98198-297-0	01	1	1212-		●
105	GEAR; 3RD,COUNTER Z=28	1-33333-161-0	01	1	1212-1311	●
105	GEAR; 3RD,COUNTER Z=28	8-98256-803-0	01	1	1312-	●
105	GEAR; 3RD,COUNTER Z=35	8-98168-501-0	01	1	1212-		●
108	SHAFT; COUNTER Z=19-14	1-33311-280-1	01	1	1212-	●
108	SHAFT; COUNTER Z=27-42-26	8-98223-607-0	01	1	1212-1501		●
108	SHAFT; COUNTER Z=27-42-26	8-98303-643-0	01	1	1502-		●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	1212-	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	1212-	●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	1212-	●
118	GEAR; 6TH,COUNTER Z=55	1-33332-103-1	01	1	1212-	●
118	GEAR; 6TH,COUNTER Z=17	8-98005-292-1	01	1	1212-		●
121	HUB; CLU,6TH	1-33261-270-0	01	1	1212-	●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	1212-	●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=42	1-33239-079-1	01	1	1212-	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=2	1-33363-024-1	01	1	1212-	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	1212-	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	1212-	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	1212-	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	1212-	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0	9-09571-410-0	02	1	1212-		●
132	SHAFT; REV	1-33351-017-0	01	1	1212-	●
132	SHAFT; REV	8-98009-372-0	01	1	1212-		●
135	GEAR; REV IDLER Z=29-24	1-33361-064-0	01	1	1212-	●
135	GEAR; REV IDLER Z=27	8-98005-601-1	01	1	1212-		●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	1212-	●
286	NUT; LK,MAINSHAFT M36 FLANGE	8-98014-140-0	01	1	1212-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	1212-	●	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	1212-	●
342	FLANGE; OUTPUT	1-37243-307-1	01	1	1212-	●
342	FLANGE; OUTPUT P46 PROP SHAFT(C4Z)	8-98155-334-0	01	1	1212-		●
342	FLANGE; OUTPUT P60 PROP SHAFT(C2M)	8-98155-332-0	01	1	1212-		●
345	BOLT; FLANGE TO YOKE M14X43 KNURL	8-98014-003-0	04	1	1212-	●

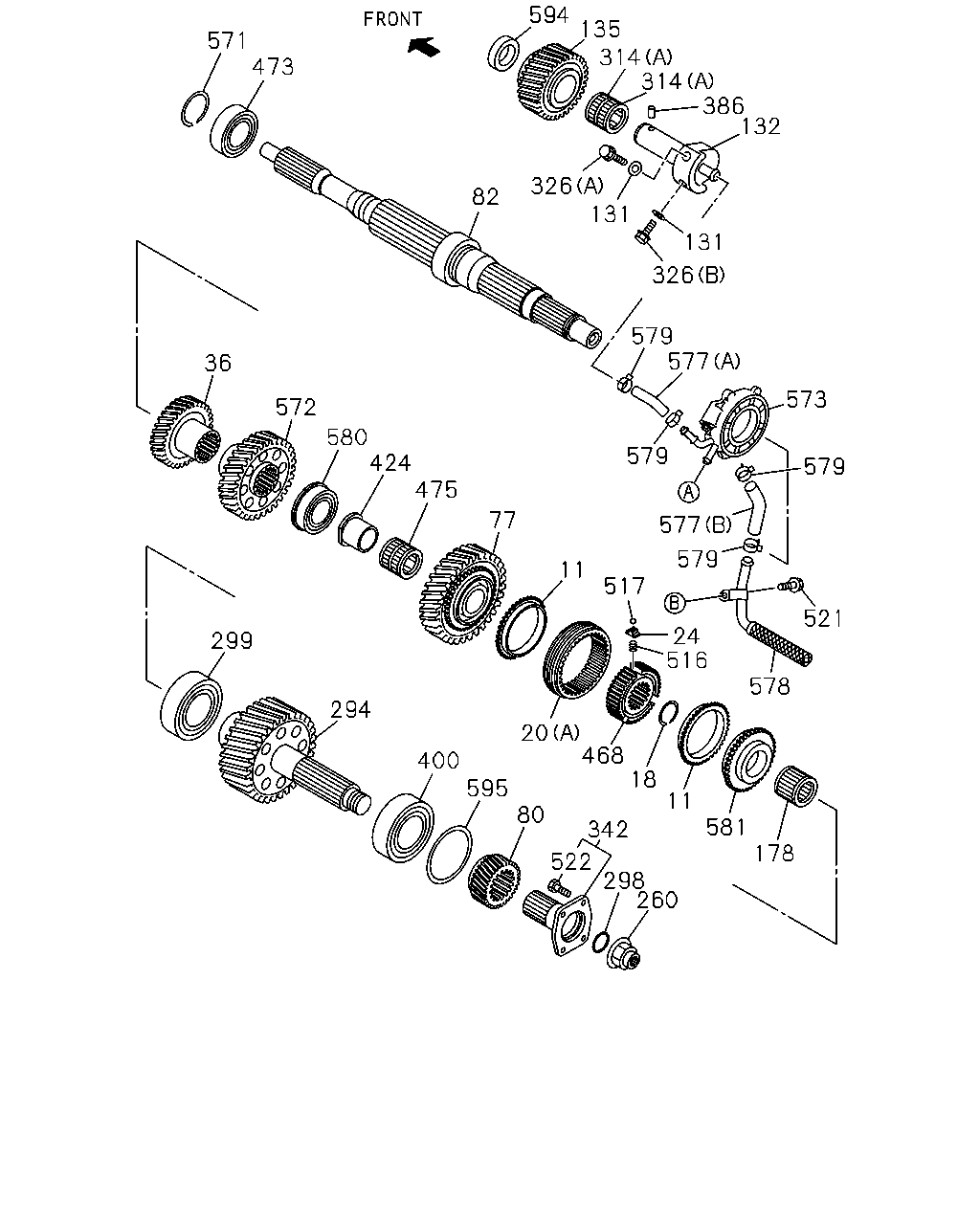

132 386 314 314 135 594 473 571 82 326 131 326 131 579 573 577 579 579 577 579 521 578 24 516 517 11 77 475 424 580 572 36 299 294 400 595 20 468 18 11 581 178 342 80 522 298 260

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	1212-	●
11	RING; BLOCK,5TH & 6TH Z=45	8-97241-306-1	02	1	1212-		●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	1212-	●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	1212-		●
20	SLEEVE (A) Z=45	8-97241-296-1	03	1	1212-1308		●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1309-1311		●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-1508		●
20	SLEEVE (A) Z=45	8-98258-279-0	03	1	1509-		●
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	1309-1508		●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	1212-	●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1212-		●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	1212-	●
36	GEAR; 3RD,MAINSHAFT Z=29	8-98168-499-0	01	1	1212-		●
77	GEAR; 6TH,MAINSHAFT Z=25	1-33253-517-0	01	1	1212-	●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98137-256-0	01	1	1212-		●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	1212-	●
80	GEAR; SPD DRIVE Z=5	8-97377-978-1	01	1	1212-		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	1212-	●
82	SHAFT; MAIN,TRANS Z=13-21-19-26	8-98140-880-0	01	1	1212-1308		●
82	SHAFT; MAIN,TRANS Z=13-21-19-26	8-98245-057-0	01	1	1309-		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	1212-	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0	9-09571-410-0	02	1	1212-		●
132	SHAFT; REV	1-33351-017-0	01	1	1212-	●
132	SHAFT; REV	8-98009-372-0	01	1	1212-		●
135	GEAR; REV IDLER Z=29-24	1-33361-064-0	01	1	1212-	●
135	GEAR; REV IDLER Z=27	8-98005-601-1	01	1	1212-		●
178	BEARING; NEEDLE,MAINSHAFT	8-97253-099-1	01	1	1212-		●
260	NUT; MAINSHAFT END M36 FLANGE	8-98014-140-0	01	1	1212-		●
294	SHAFT; OUTPUT Z=43	8-97380-571-0	01	1	1212-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	1212-	●	●
299	BEARING; OUTPUT SHAFT FRT	8-97377-970-0	01	1	1212-		●
314	BEARING; NEEDLE,REV GEAR (A) JTEKT	1-09811-017-0	02	1	1212-		●
314	BEARING; NEEDLE,REV GEAR (B) NSK	8-97253-111-0	01	1	1212-		●
326	BOLT; REV SHAFT (A) M10X50 FLANGE	0-29261-050-0	01	1	1212-		●
326	BOLT; REV SHAFT (B) M10X50	8-98014-738-0	01	1	1212-		●
342	FLANGE; OUTPUT	1-37243-307-1	01	1	1212-	●
342	FLANGE; OUTPUT P46 PROP SHAFT(C4Z)	8-98155-334-0	01	1	1212-		●
342	FLANGE; OUTPUT P60 PROP SHAFT(C2M)	8-98155-332-0	01	1	1212-		●
386	PIN; REV SHAFT OD=4 L=8	9-08150-408-0	01	1	1212-		●
400	BEARING; OUTPUT SHAFT RR	8-97377-977-0	01	1	1212-		●
424	COLLAR; 6TH GEAR	8-98125-318-0	01	1	1212-		●
468	HUB; CLU,5TH & 6TH Z=45	8-98075-734-0	01	1	1212-		●
473	BEARING; INPUT SHAFT	8-97377-950-0	01	1	1212-		●
475	BEARING; 6TH COLLAR OD=-49.999	8-98101-505-0	01	1	1212-		●
475	BEARING; 6TH COLLAR OD=50.000-	8-98142-265-0	01	1	1212-		●
516	SPRING; SYNCHRO,INDEX	8-98032-197-0	09	1	1212-		●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1212-		●
521	BOLT M8X12 FLANGE	0-28050-812-0	01	1	1212-		●
522	BOLT; FLANGE P46 PROP SHAFT(C4Z) M14X43 KNURL	8-98014-003-0	04	1	1212-		●
522	BOLT; FLANGE P60 PROP SHAFT(C2M) M16X51 W/MARK	1-46219-086-0	04	1	1212-		●
571	RING; SNAP,BRG	8-97377-951-0	01	1	1212-		●
572	GEAR; 4TH,INPUT Z=37	8-98168-500-0	01	1	1212-		●
573	PUMP ASM; OIL	8-98212-241-0	01	1	1212-		●
577	HOSE; OIL PUMP (A)	8-98033-981-0	02	1	1212-		●
577	HOSE; OIL PUMP (B)	8-98033-982-0	02	1	1212-		●
578	SCREEN; OIL PUMP	8-98009-345-0	02	1	1212-		●
579	CLAMP; HOSE ID=16	8-97329-628-0	07	1	1212-		●
580	BEARING; MAINSHAFT RR	8-97377-953-0	01	1	1212-		●
581	CLUTCH; DOG,5TH GEAR	8-97377-956-0	01	1	1212-		●
594	WASHER; THRUST,REV IDLE	8-98005-633-0	01	1	1212-		●
595	SHIM; OUTPUT SHAFT T=1.44	8-97377-984-0	01	1	1212-		●
595	SHIM; OUTPUT SHAFT T=1.50	8-97377-985-0	01	1	1212-		●
595	SHIM; OUTPUT SHAFT T=1.56	8-97377-986-0	01	1	1212-		●
595	SHIM; OUTPUT SHAFT T=1.62	8-97377-987-0	01	1	1212-		●
595	SHIM; OUTPUT SHAFT T=1.68	8-97377-988-0	01	1	1212-		●
595	SHIM; OUTPUT SHAFT T=1.74	8-97377-989-0	01	1	1212-		●
595	SHIM; OUTPUT SHAFT T=1.80	8-97377-990-0	01	1	1212-		●
595	SHIM; OUTPUT SHAFT T=1.86	8-97377-991-0	01	1	1212-		●
595	SHIM; OUTPUT SHAFT T=1.38	8-98009-379-0	01	1	1212-		●
595	SHIM; OUTPUT SHAFT T=1.26	8-98022-221-0	01	1	1212-		●
595	SHIM; OUTPUT SHAFT T=1.32	8-98022-222-0	01	1	1212-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
