Sayfa 2-30A - Isuzu EPC

2-30A — GEAR SHIFTER AND QUADRANT BOX (#111530) — 272 parça

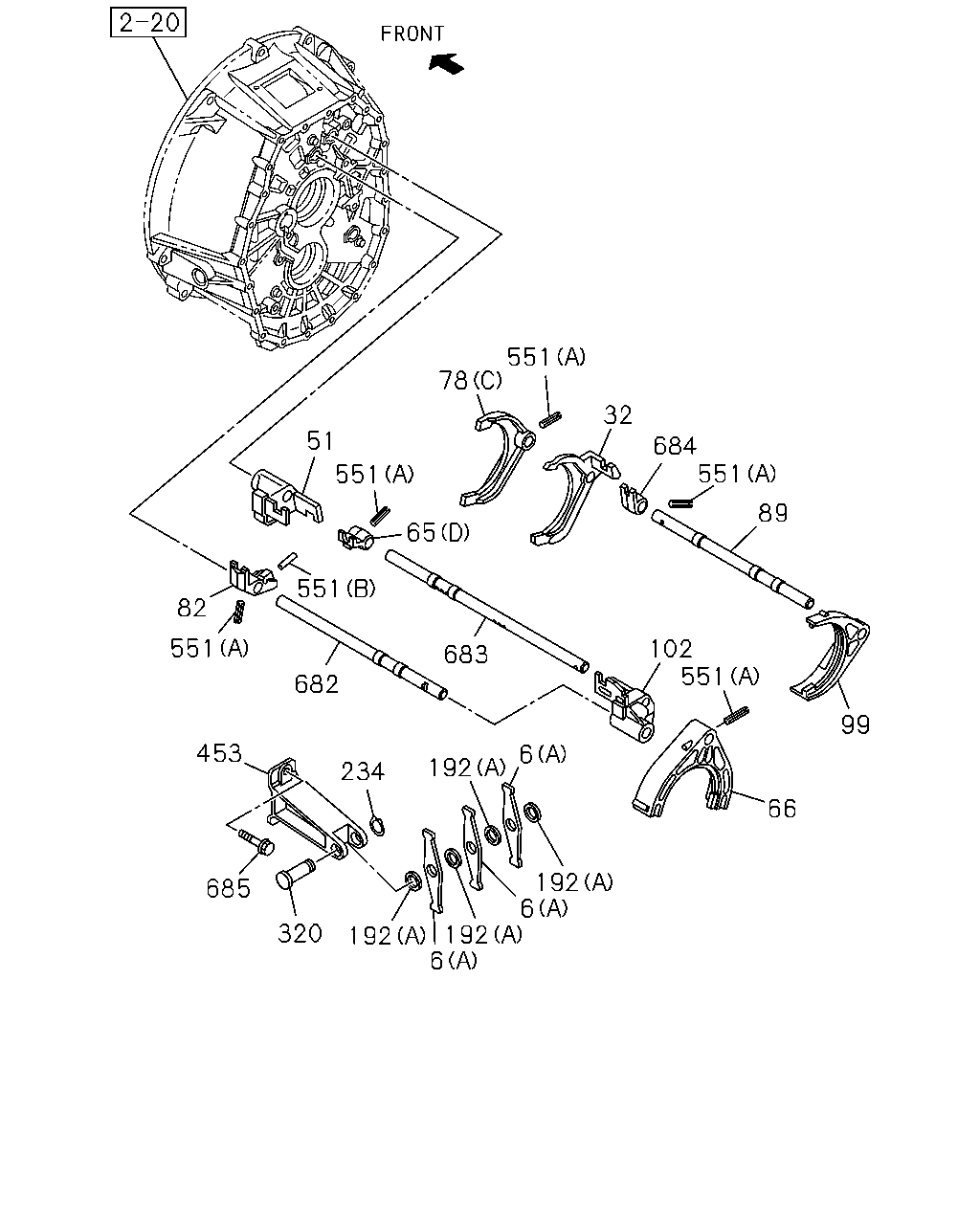

78 551 32 684 551 89 99 66 551 102 65 551 51 551 683 82 551 682 453 234 192 6 192 6 192 6 192 320 685

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	LEVER; RELAY (C)	1-33651-686-2	01	1	1212-	●
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1212-		●
6	LEVER; RELAY (B)	8-98022-855-0	01	1	1212-		●
32	ARM; SHIFT,1ST & 2ND	8-98062-167-0	01	1	1212-1307		●
32	ARM; SHIFT,1ST & 2ND	8-98236-424-1	01	1	1308-		●
51	BLOCK; SHIFT,1ST & 2ND	8-98074-457-1	01	1	1212-		●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-202-3	01	1	1212-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-208-3	01	1	1212-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	1212-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (D)	8-97388-980-1	01	1	1212-		●
66	ARM; SHIFT,5TH & 6TH	1-33511-505-0	01	1	1212-	●
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	1212-		●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	1212-	●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	1212-	●
78	ARM; SHIFT,REV (C)	8-97388-975-1	01	1	1212-		●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	1212-	●
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	1212-		●
89	ROD; SHIFT,REV	8-98207-582-0	01	1	1212-	●
89	ROD; SHIFT,REV	8-98062-172-0	01	1	1212-		●
99	ARM; SHIFT,4TH & 3RD	8-98062-170-0	01	1	1212-1506		●
99	ARM; SHIFT,4TH & 3RD	8-98309-861-0	01	1	1507-		●
102	BLOCK; SHIFT,3RD & 4TH	8-97388-978-2	01	1	1212-		●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1212-		●
192	WASHER; PL (B)	8-97305-661-0	02	1	1212-		●
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	1212-		●
320	SHAFT; LEVER	8-97377-928-0	01	1	1212-		●
453	BLOCK; RELAY LEVER	8-97377-927-1	01	1	1212-		●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1212-		●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1212-		●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1212-		●
682	ROD; SHIFT,REV,SUB	8-97388-974-0	01	1	1212-		●
683	ROD; SHIFT,5TH & 6TH	8-98062-173-1	01	1	1212-		●
684	BLOCK; SHIFT,REV,SUB	8-97388-970-0	01	1	1212-		●
685	BOLT; BLOCK M8X30 FLANGE	8-98034-764-0	02	1	1212-		●

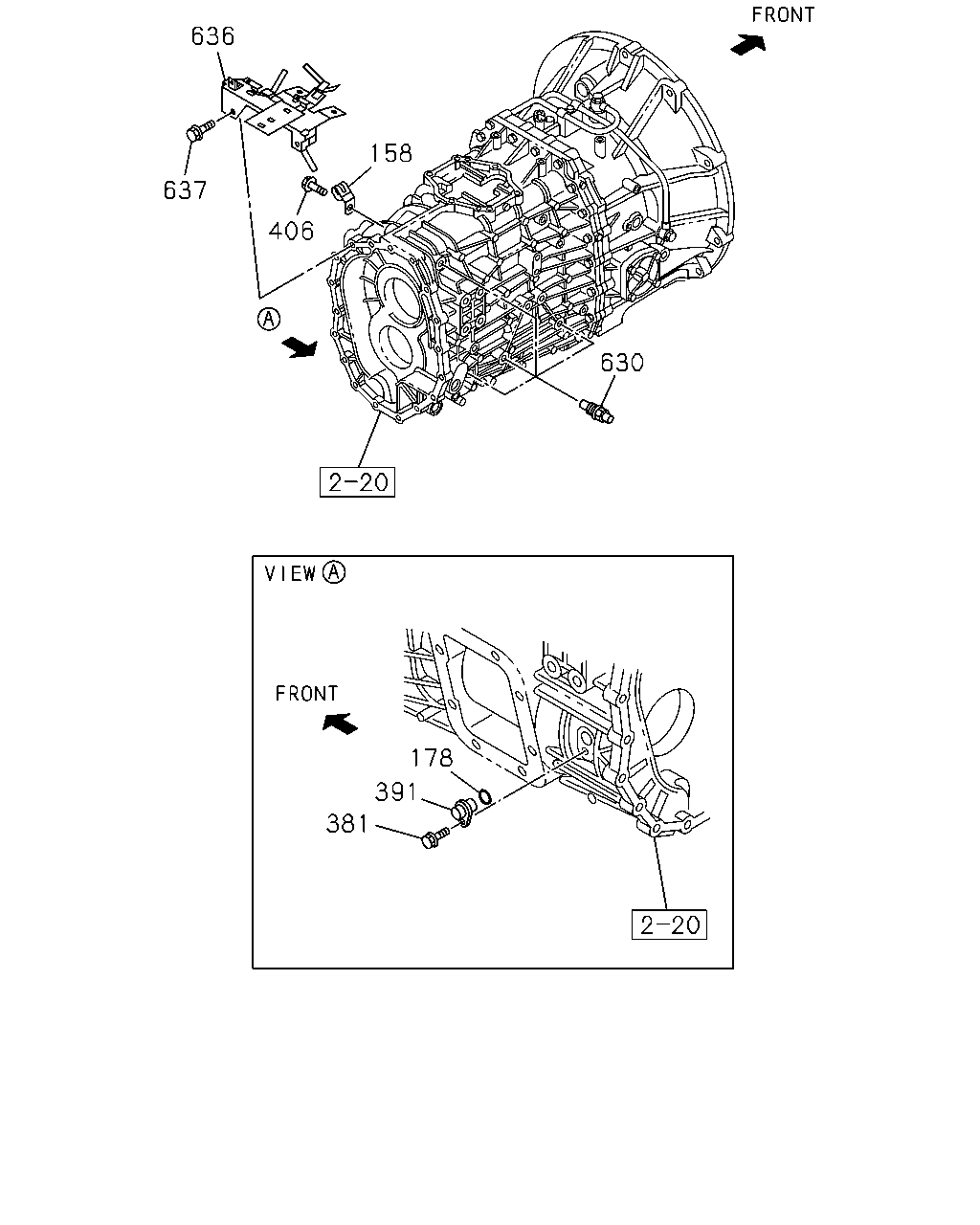

636 158 637 406 630 381 391 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1212-	●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	1212-	●
381	BOLT M6X16 FLANGE	0-28650-616-0	01	1	1212-	●
381	BOLT M6X16 FLANGE	0-28650-616-0	01	1	1212-	●
391	PLUG; SW HOLE	8-97300-273-1	01	1	1212-	●
406	BOLT; HARNESS CLIP M8X16 FLANGE	0-28050-816-0	02	1	1212-	●
630	DETENT ASM	8-98019-536-0	04	1	1212-	●
636	BRACKET; CLIP	8-97610-096-2	01	1	1212-	●
637	BOLT; BRACKET M8X16 FLANGE	0-28050-816-0	02	1	1212-	●

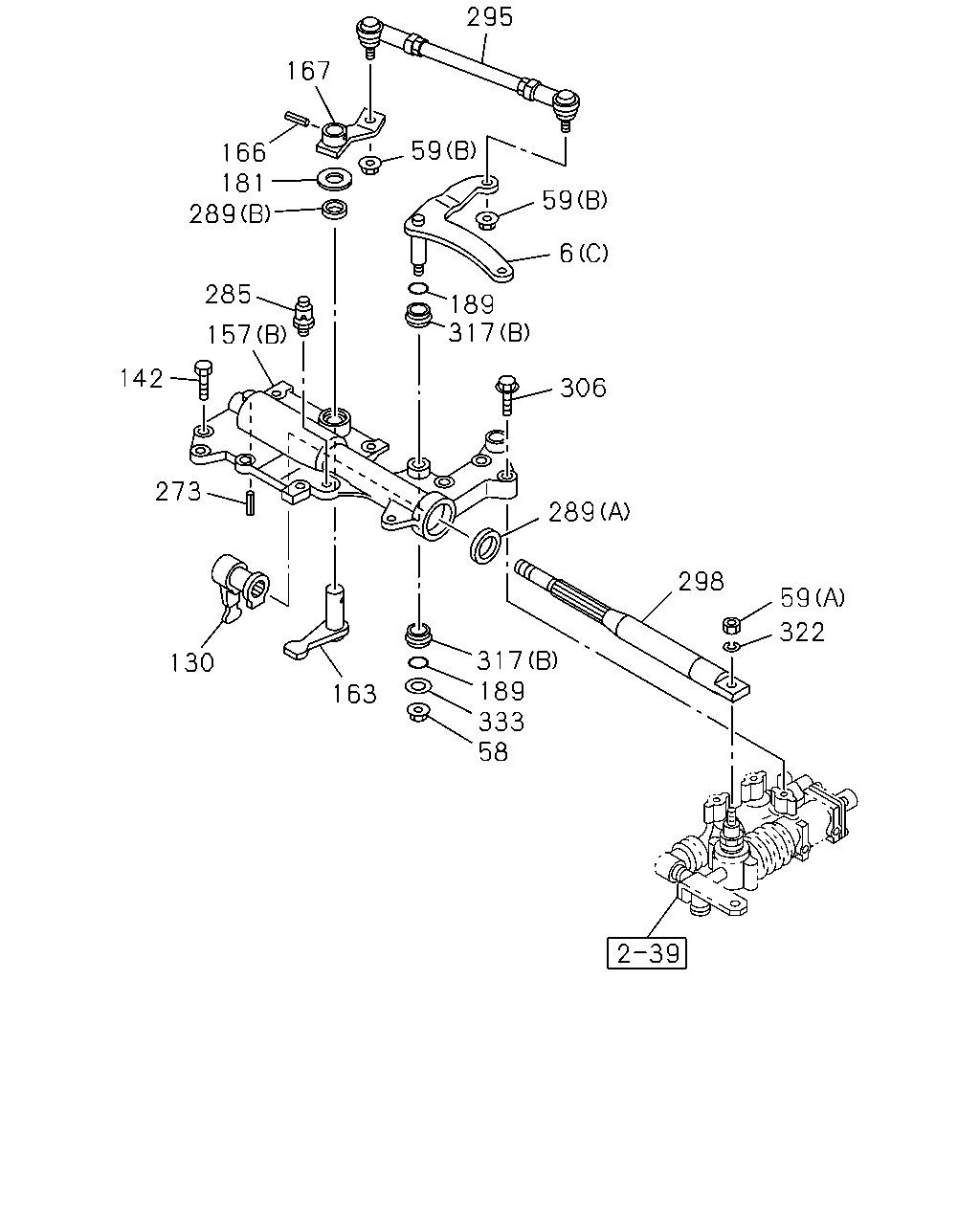

322 59 298 58 333 189 317 289 306 317 189 6 59 295 59 167 166 181 289 285 157 142 273 130 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	LEVER; RELAY (C)	1-33651-686-2	01	1	1212-	●
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1212-		●
6	LEVER; RELAY (B)	8-98022-855-0	01	1	1212-		●
58	NUT M10 FLANGE	0-91180-110-0	01	1	1212-	●	●
59	NUT (A) M12	0-91110-512-0	01	1	1212-	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1212-		●
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1212-	●	●
130	LEVER; SHIFT,INTERNAL	1-33521-165-0	01	1	1212-	●
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1212-		●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28151-060-0	04	1	1212-	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	8-97365-375-0	02	1	1212-	●
142	BOLT; QUAD BOX M10X28 FLANGE	8-98044-944-0	12	1	1212-	●
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1212-		●
157	BOX; QUAD,TRANS (B)	1-33541-479-0	01	1	1212-	●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	1212-	●
163	LEVER; SELECT,INTERNAL	1-33522-153-0	01	1	1212-	●
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1212-		●
166	PIN; SPR,SELECT LEVER L=25 OD=5	1-09748-032-0	01	1	1212-	●
167	LEVER; SELECT,EXTERNAL	1-33521-159-0	01	1	1212-	●
167	LEVER; SELECT,EXTERNAL	8-98022-857-0	01	1	1212-		●
181	WASHER; PL,SELECT LEVER	1-09503-280-0	01	1	1212-	●
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1212-		●
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1212-	●	●
273	PIN; SPR,STOPPER L=30 OD=4	1-09748-031-0	01	1	1212-	●
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1212-		●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1212-1404	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1405-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-599-0	01	1	1212-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09625-600-0	01	1	1212-	●
295	ROD; LINK,RELAY LEVER	8-98023-095-0	01	1	1212-	●
298	SHAFT; SHIFT LEVER	1-33522-163-0	01	1	1212-	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	1212-1507		●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98305-342-0	01	1	1508-		●
306	BOLT; SHIFT ASSISTOR M10X50 FLANGE	0-28051-050-0	03	1	1212-	●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	1212-		●
317	BUSHING; LEVER (B)	1-09330-119-0	02	1	1212-	●	●
322	WASHER; LK	8-98031-750-0	01	1	1212-	●
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	1212-		●
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1212-	●	●

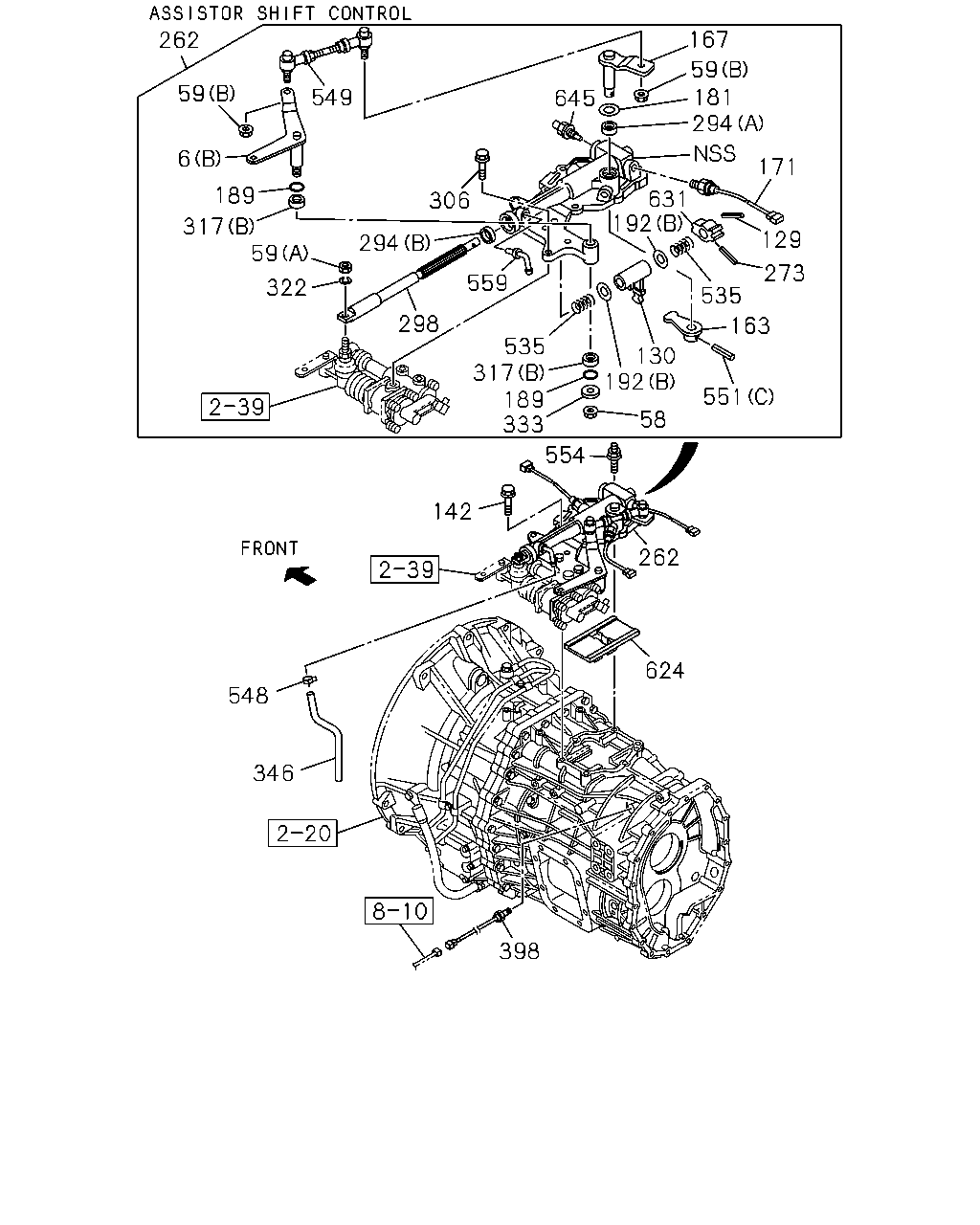

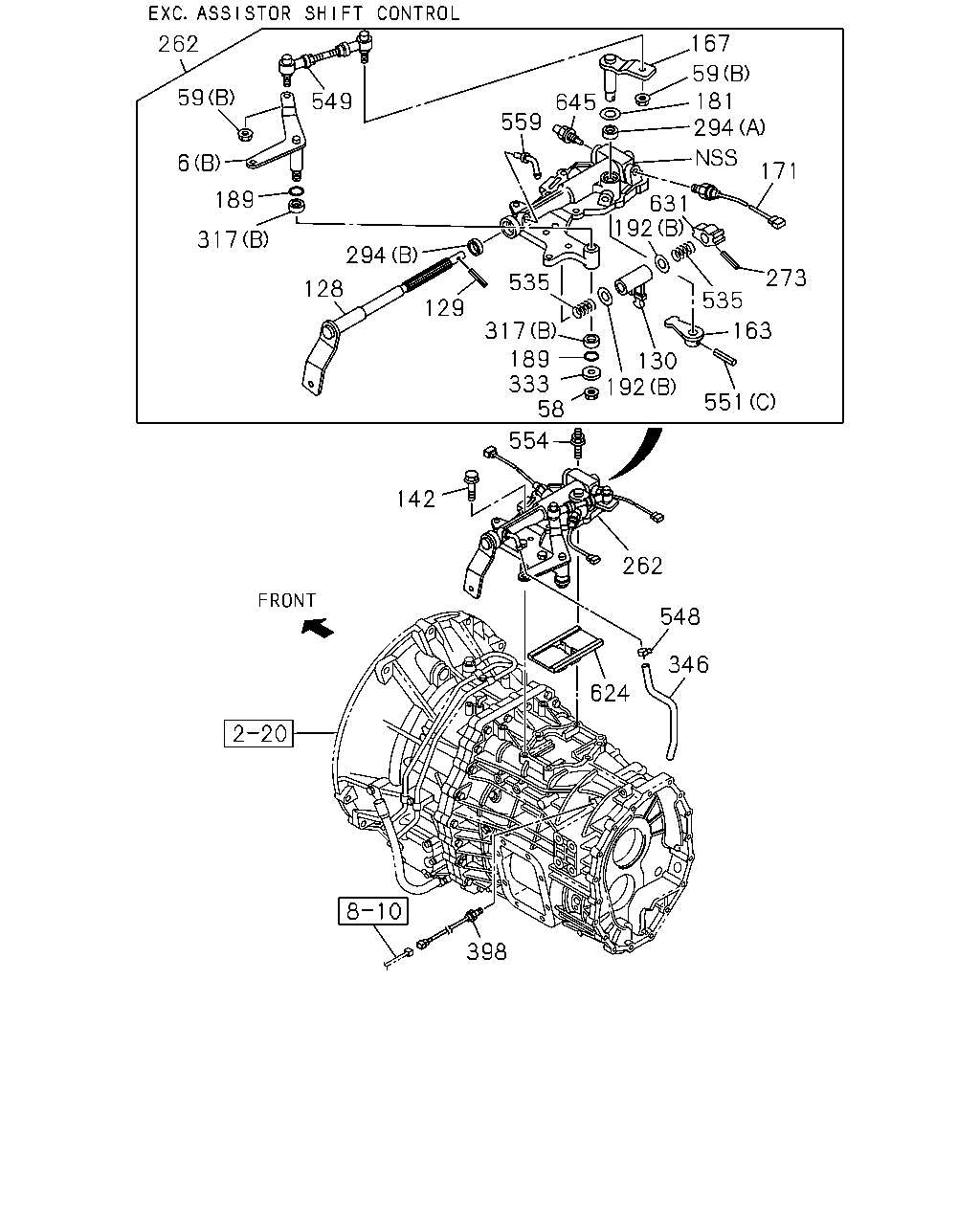

262 59 549 6 189 317 128 294 129 559 645 167 59 181 294 171 273 535 163 130 192 551 535 317 189 333 58 631 192 554 142 262 548 346 624 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	LEVER; RELAY (C)	1-33651-686-2	01	1	1212-	●
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1212-		●
6	LEVER; RELAY (B)	8-98022-855-0	01	1	1212-		●
58	NUT M10 FLANGE	0-91180-110-0	01	1	1212-	●	●
59	NUT (A) M12	0-91110-512-0	01	1	1212-	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1212-		●
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1212-	●	●
128	LEVER; SHIFT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	8-97306-927-0	01	1	1212-1507		●
128	LEVER; SHIFT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-346-0	01	1	1508-		●
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1212-		●
130	LEVER; SHIFT,INTERNAL	1-33521-165-0	01	1	1212-	●
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1212-		●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28151-060-0	04	1	1212-	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	8-97365-375-0	02	1	1212-	●
142	BOLT; QUAD BOX M10X28 FLANGE	8-98044-944-0	12	1	1212-	●
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1212-		●
163	LEVER; SELECT,INTERNAL	1-33522-153-0	01	1	1212-	●
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1212-		●
167	LEVER; SELECT,EXTERNAL	1-33521-159-0	01	1	1212-	●
167	LEVER; SELECT,EXTERNAL	8-98022-857-0	01	1	1212-		●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1212-	●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1212-1312		●
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509		●
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-		●
181	WASHER; PL,SELECT LEVER	1-09503-280-0	01	1	1212-	●
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1212-		●
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1212-	●	●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1212-		●
192	WASHER; PL (B)	8-97305-661-0	02	1	1212-		●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8>	8-98207-565-0	01	1	1212-1306		●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8>	8-98249-040-0	01	1	1307-1312		●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8>	8-98241-009-0	01	1	1401-1404		●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8>	8-98276-160-1	01	1	1405-1507		●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8>	8-98305-335-1	01	1	1508-		●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98207-566-0	01	1	1212-1306		●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98249-041-0	01	1	1307-1312		●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98241-010-0	01	1	1401-1404		●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98276-161-1	01	1	1405-1507		●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-336-1	01	1	1508-		●
273	PIN; SPR,STOPPER L=30 OD=4	1-09748-031-0	01	1	1212-	●
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1212-		●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1212-		●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1212-		●
317	BUSHING; LEVER (B)	1-09330-119-0	02	1	1212-	●	●
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1212-	●	●
346	HOSE; AIR	8-97309-855-0	01	1	1405-		●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1212-	●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1212-1312		●
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-		●
535	SPRING; LEVER	8-97385-713-0	02	1	1212-		●
548	CLIP; HOSE	8-97031-674-0	01	1	1405-		●
549	ROD; LINK	8-98022-841-0	01	1	1212-		●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1212-		●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1212-		●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1212-		●
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1212-		●
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-		●
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1212-		●
631	STOPPER; SPRING	8-97305-666-0	01	1	1212-		●
645	DETENT ASM	8-98019-536-0	01	1	1212-		●

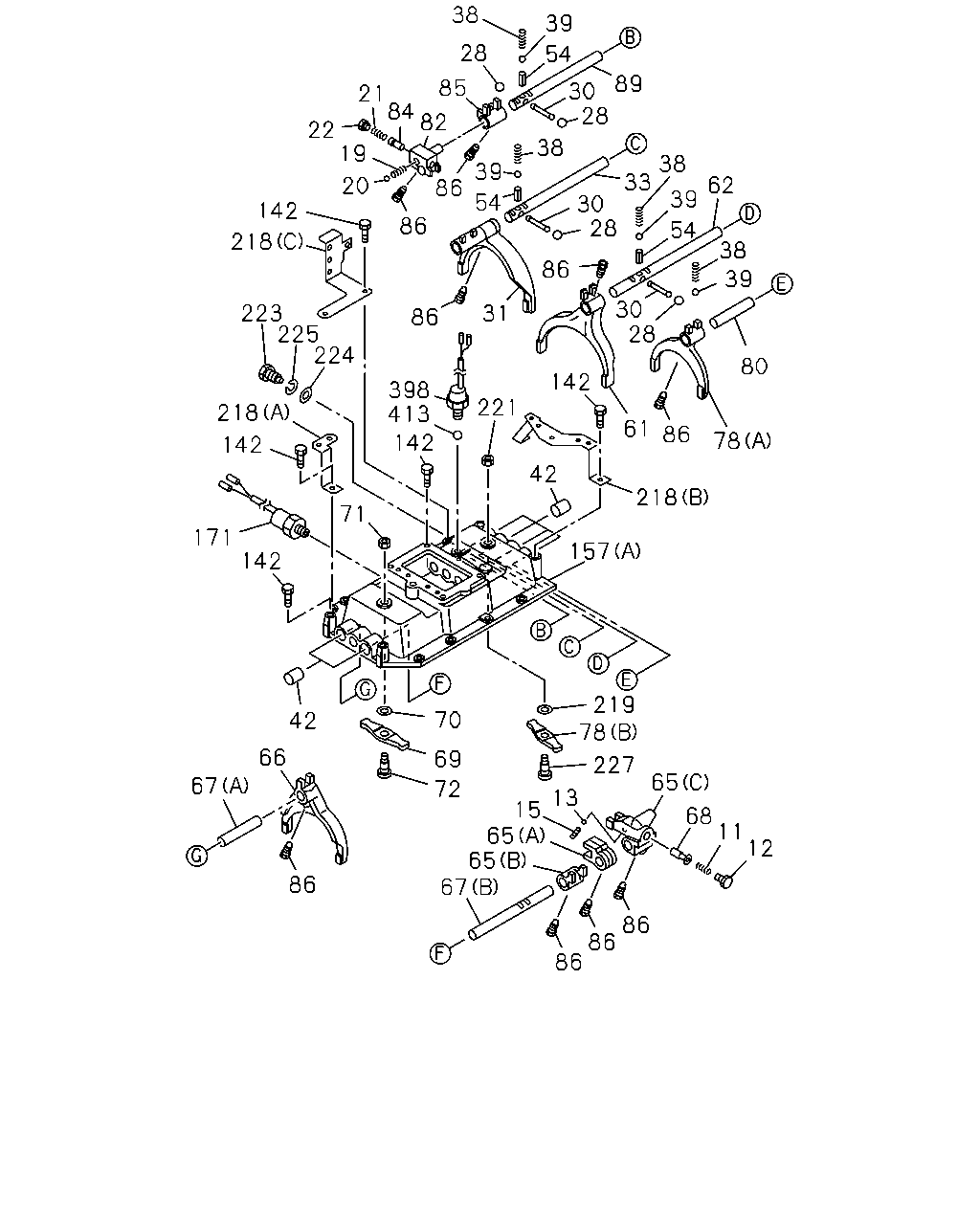

38 28 39 54 89 30 28 38 38 62 39 33 54 38 39 80 78 86 61 218 142 28 30 28 30 85 21 84 82 39 54 86 86 22 19 20 86 31 86 142 218 223 225 224 398 413 142 221 42 157 219 78 227 65 68 11 12 86 86 86 67 65 65 15 13 72 69 70 86 67 66 42 142 171 71 142 218

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	1212-	●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	1212-	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	1212-	●
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	1212-	●
19	SPRING; COIL COMP	1-09580-441-0	01	1	1212-	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	1212-	●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	1212-	●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	1212-	●
28	BALL; INTER LK	9-00097-501-0	04	1	1212-	●
30	PIN; INTER LK	9-33534-003-0	03	1	1212-	●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	1212-	●
33	ROD; SHIFT,LOW & 2ND	8-98207-578-0	01	1	1212-	●
38	SPRING; DETENT	1-09580-379-0	04	1	1212-	●
39	BALL; DETENT	1-09843-012-0	04	1	1212-	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	1212-	●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	1212-	●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	1212-	●
62	ROD; SHIFT,3RD & 4TH	8-98207-586-0	01	1	1212-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-202-3	01	1	1212-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-208-3	01	1	1212-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	1212-	●
65	BLOCK ASM; SHIFT,5TH & 6TH (D)	8-97388-980-1	01	1	1212-		●
66	ARM; SHIFT,5TH & 6TH	1-33511-505-0	01	1	1212-	●
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	1212-		●
67	ROD; SHIFT,5TH & 6TH (A) L=122	8-98207-587-0	01	1	1212-	●
67	ROD; SHIFT,5TH & 6TH (B) L=278	8-98207-589-0	01	1	1212-	●
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	1212-	●
69	LEVER; SHIFT,5TH & 6TH	1-33511-082-0	01	1	1212-	●
70	WASHER; PL,SHIFT LEVER ID=16.5	9-09857-042-0	01	1	1212-	●
71	NUT; SHIFT LEVER M12 FLANGE	0-91180-212-0	01	1	1212-	●
72	SPINDLE; 5TH & 6TH	1-33519-012-0	01	1	1212-	●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	1212-	●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	1212-	●
78	ARM; SHIFT,REV (C)	8-97388-975-1	01	1	1212-		●
80	ROD; SHIFT,REV ARM	8-98207-584-0	01	1	1212-	●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	1212-	●
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	1212-		●
84	SLEEVE; REV	1-33516-025-0	01	1	1212-	●
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	1212-	●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	09	1	1212-	●
89	ROD; SHIFT,REV	8-98207-582-0	01	1	1212-	●
89	ROD; SHIFT,REV	8-98062-172-0	01	1	1212-		●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28151-060-0	04	1	1212-	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	8-97365-375-0	02	1	1212-	●
142	BOLT; QUAD BOX M10X28 FLANGE	8-98044-944-0	12	1	1212-	●
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1212-		●
157	BOX; QUAD,TRANS (B)	1-33541-479-0	01	1	1212-	●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	1212-	●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1212-	●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1212-1312		●
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509		●
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	1212-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-663-1	01	1	1212-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-733-0	01	1	1212-	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	1212-	●
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	1212-	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	1212-	●
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	1212-	●
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	1212-	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	1212-	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1212-	●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1212-1312		●
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-		●
413	BALL; BACK SW	9-00097-013-0	01	1	1212-	●

262 59 6 189 317 59 322 549 306 294 298 559 535 317 189 333 554 142 548 346 624 262 398 58 551 192 130 163 535 273 129 171 631 192 645 167 59 181 294

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	LEVER; RELAY (C)	1-33651-686-2	01	1	1212-	●
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1212-		●
6	LEVER; RELAY (B)	8-98022-855-0	01	1	1212-		●
58	NUT M10 FLANGE	0-91180-110-0	01	1	1212-	●	●
59	NUT (A) M12	0-91110-512-0	01	1	1212-	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1212-		●
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1212-	●	●
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1212-		●
130	LEVER; SHIFT,INTERNAL	1-33521-165-0	01	1	1212-	●
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1212-		●
142	BOLT; QUAD BOX M10X60 FLANGE	0-28151-060-0	04	1	1212-	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	8-97365-375-0	02	1	1212-	●
142	BOLT; QUAD BOX M10X28 FLANGE	8-98044-944-0	12	1	1212-	●
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1212-		●
163	LEVER; SELECT,INTERNAL	1-33522-153-0	01	1	1212-	●
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1212-		●
167	LEVER; SELECT,EXTERNAL	1-33521-159-0	01	1	1212-	●
167	LEVER; SELECT,EXTERNAL	8-98022-857-0	01	1	1212-		●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1212-	●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1212-1312		●
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509		●
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-		●
181	WASHER; PL,SELECT LEVER	1-09503-280-0	01	1	1212-	●
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1212-		●
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1212-	●	●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1212-		●
192	WASHER; PL (B)	8-97305-661-0	02	1	1212-		●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8>	8-98207-565-0	01	1	1212-1306		●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8>	8-98249-040-0	01	1	1307-1312		●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8>	8-98241-009-0	01	1	1401-1404		●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8>	8-98276-160-1	01	1	1405-1507		●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8>	8-98305-335-1	01	1	1508-		●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98207-566-0	01	1	1212-1306		●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98249-041-0	01	1	1307-1312		●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98241-010-0	01	1	1401-1404		●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98276-161-1	01	1	1405-1507		●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-336-1	01	1	1508-		●
273	PIN; SPR,STOPPER L=30 OD=4	1-09748-031-0	01	1	1212-	●
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1212-		●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1212-		●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1212-		●
298	SHAFT; SHIFT LEVER	1-33522-163-0	01	1	1212-	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	1212-1507		●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98305-342-0	01	1	1508-		●
306	BOLT; SHIFT ASSISTOR M10X50 FLANGE	0-28051-050-0	03	1	1212-	●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	1212-		●
317	BUSHING; LEVER (B)	1-09330-119-0	02	1	1212-	●	●
322	WASHER; LK	8-98031-750-0	01	1	1212-	●
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	1212-		●
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1212-	●	●
346	HOSE; AIR	8-97309-855-0	01	1	1405-		●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1212-	●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1212-1312		●
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-		●
535	SPRING; LEVER	8-97385-713-0	02	1	1212-		●
548	CLIP; HOSE	8-97031-674-0	01	1	1405-		●
549	ROD; LINK	8-98022-841-0	01	1	1212-		●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1212-		●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1212-		●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1212-		●
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1212-		●
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-		●
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1212-		●
631	STOPPER; SPRING	8-97305-666-0	01	1	1212-		●
645	DETENT ASM	8-98019-536-0	01	1	1212-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
