Isuzu WW
▶
TRUCKS
▶
NPR
▶
51238 - NPR LHD EURO5 BUS CHASSIS
▶
2 - Clutch, Transmission, Trans Axle
▶
2-25 - SPEEDOMETER DRIVEN GEAR
▶

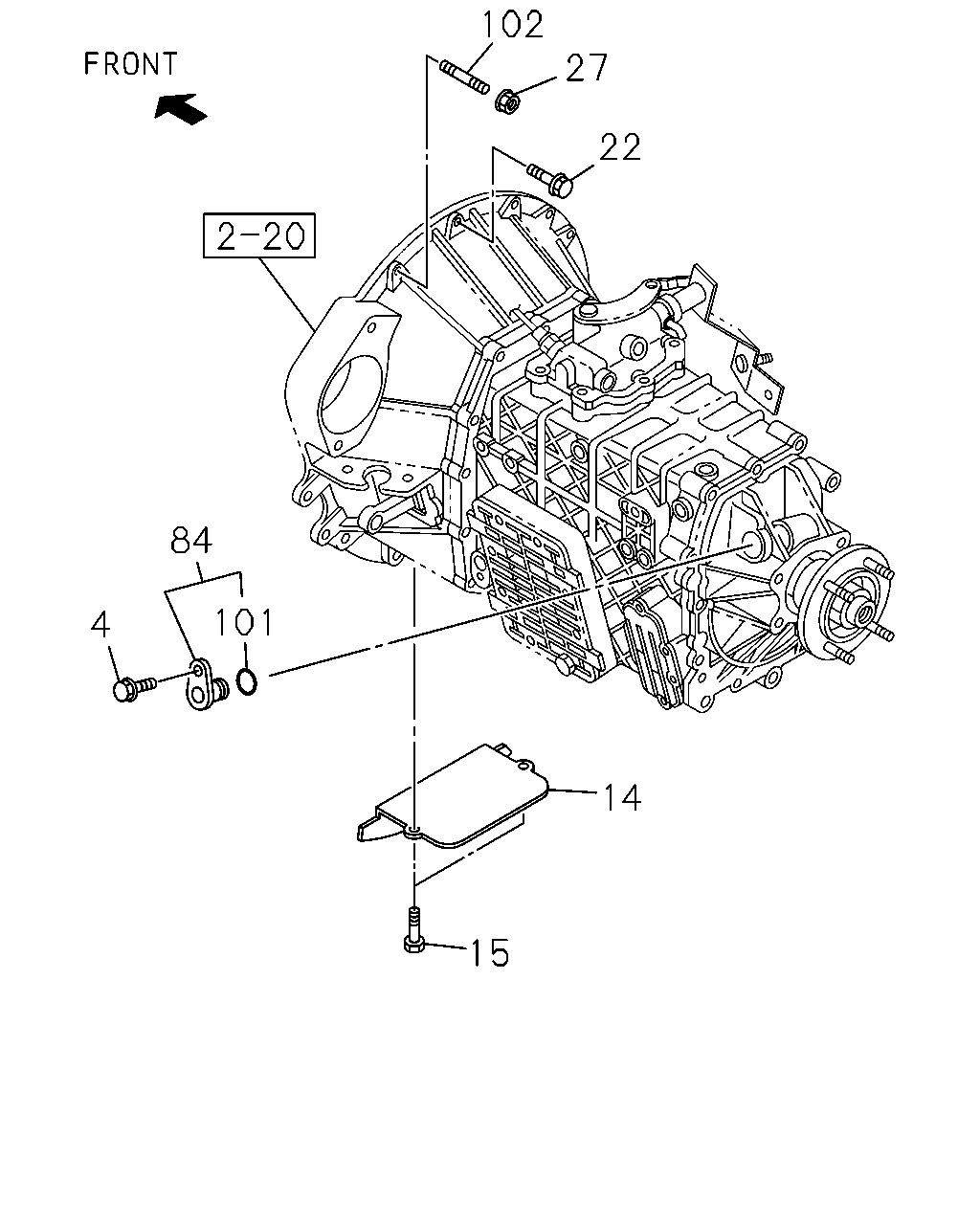

2-25 — SPEEDOMETER DRIVEN GEAR
(#111526) — 15 parça
102
22
84
101
4
14
15
27
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
04.338 BOLT; RET,DRIVEN GEAR
01.531 M8X20 FLANGE
0-28650-820-0
01
1
1212-
14
00.679 COVER; UNDER,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-97308-233-0
01
1
1212-
15
00.685 BOLT; UNDER COVER TO TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M6X16 FLANGE
0-28650-616-0
02
1
1212-
22
00.685 BOLT; TRANS CASE TO ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 09.171 M10X30 FLANGE
0-28151-030-0
04
1
1212-1510
22
00.685 BOLT; TRANS CASE TO ENG
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 09.171 M10X30 FLANGE
0-28151-030-0
04
1
1511-
22
00.685 BOLT; TRANS CASE TO ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.042 M10X50 FLANGE
0-28151-050-0
03
1
1212-
22
00.685 BOLT; TRANS CASE TO ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.683 M10X55 FLANGE
8-97365-449-0
04
1
1212-
22
00.685 BOLT; TRANS CASE TO ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.670 M10X35 FLANGE
0-28151-035-0
03
1
1212-1510
22
00.685 BOLT; TRANS CASE TO ENG
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.670 M10X35 FLANGE
0-28151-035-0
03
1
1511-
22
00.685 BOLT; TRANS CASE TO ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.683 M10X55 FLANGE
8-97365-449-0
02
1
1212-1510
22
00.685 BOLT; TRANS CASE TO ENG
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.683 M10X55 FLANGE
8-97365-449-0
02
1
1511-
27
00.685 NUT; CLU HSG TO TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE
0-91180-210-0
02
1
1212-
84
04.104 CAP; BUSH,SPEEDOMETER GEAR
8-98035-151-1
01
1
1212-
101
04.338 GASKET; CAP
04.439
9-09561-324-0
01
1
1212-
102
00.683 STUD; TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) M10X50 L=99
0-49241-050-0
02
1
1212-
