Isuzu WW
▶
TRUCKS
▶
FVR
▶
11496 - FVR(LHD) EURO5
▶
2 - Clutch, Transmission, Trans Axle
▶
2-26C - MANUAL TRANSMISSION GEAR
▶
2-26C — MANUAL TRANSMISSION GEAR
(#111524) — 83 parça
◀

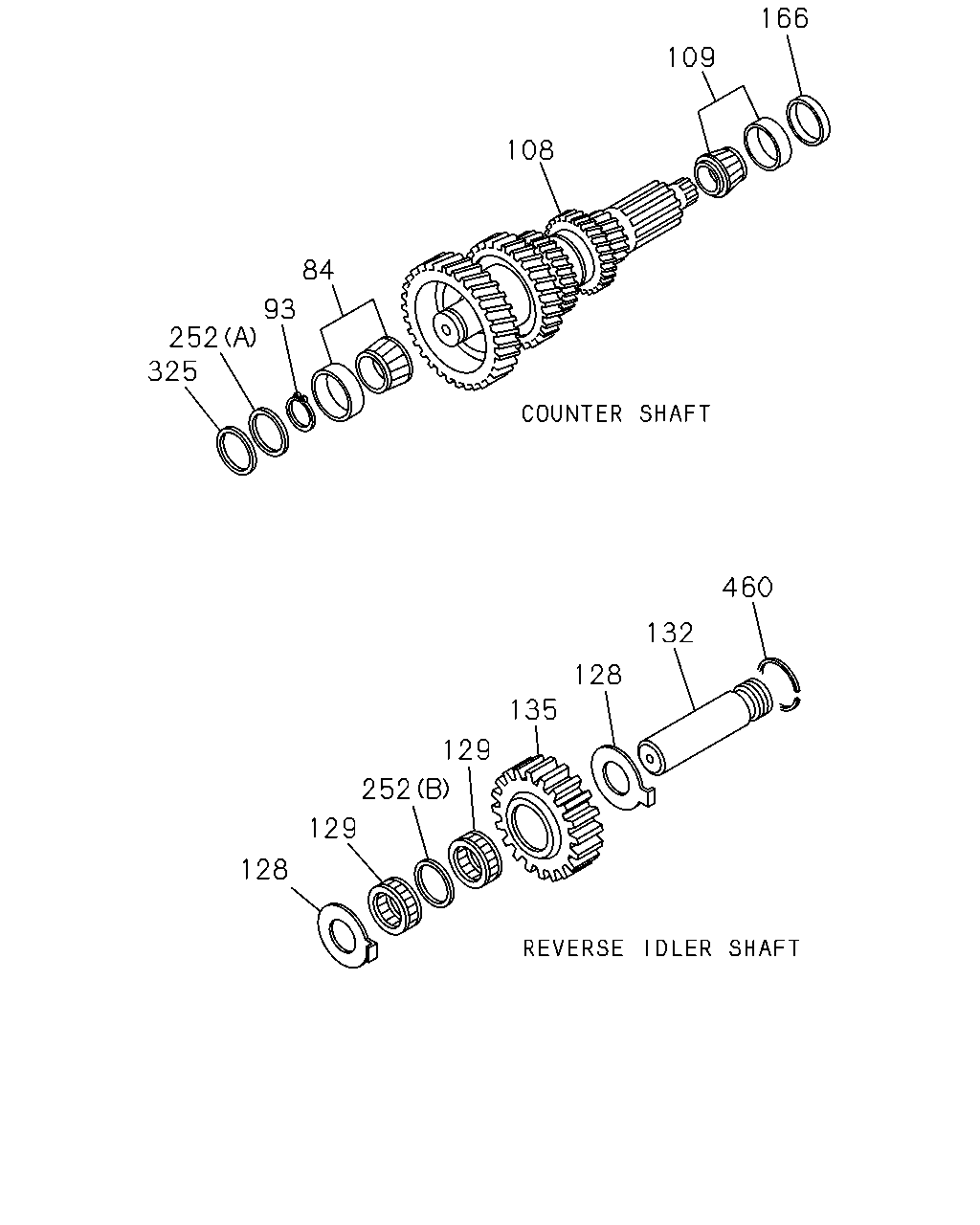

[226C] NO.2 (23 parça)

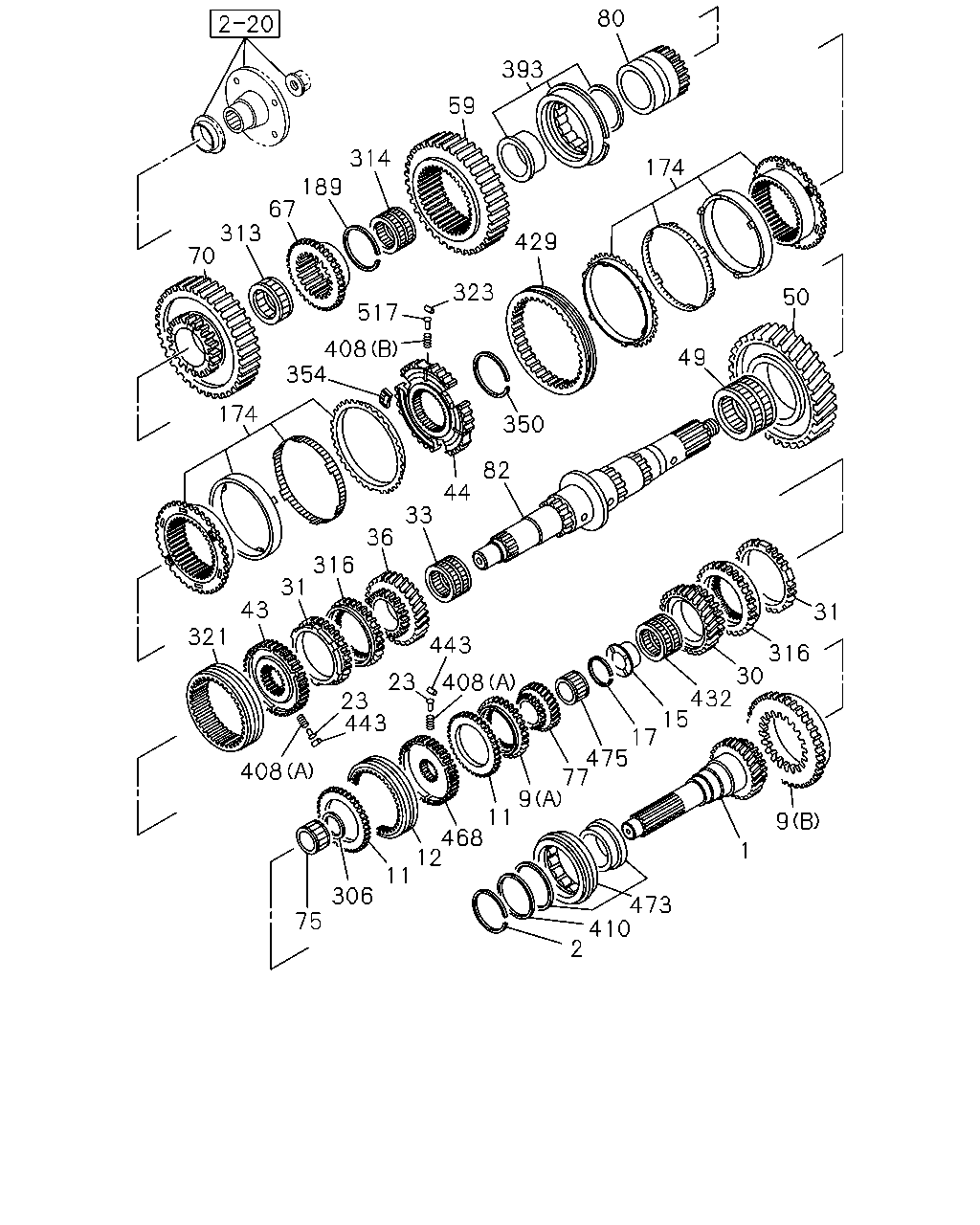

[226C] NO.1 (60 parça)
▶
166
109
108
84
93
252
325
460
132
128
135
129
252
129
128
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
84
BEARING; COUNTER SHAFT,FRT
1-33319-221-0
01
1
1212-
93
RING; SNAP,COUNTER FRT BRG
T=2.12
1-33239-238-0
01
1
1212-
93
RING; SNAP,COUNTER FRT BRG
T=2.07
1-33239-239-0
01
1
1212-
93
RING; SNAP,COUNTER FRT BRG
T=2.02
1-33239-240-0
01
1
1212-
93
RING; SNAP,COUNTER FRT BRG
T=1.97
1-33319-146-0
01
1
1212-
93
RING; SNAP,COUNTER FRT BRG
T=1.92
1-33319-147-0
01
1
1212-
93
RING; SNAP,COUNTER FRT BRG
T=1.87
1-33319-148-0
01
1
1212-
93
RING; SNAP,COUNTER FRT BRG
T=1.82
1-33319-149-0
01
1
1212-
93
RING; SNAP,COUNTER FRT BRG
T=1.77
1-33319-150-0
01
1
1212-
108
SHAFT; COUNTER
1-33311-334-0
01
1
1212-
109
BEARING; COUNTER SHAFT,RR
1-33319-221-0
01
1
1212-
128
WASHER; THRUST,REV SHAFT
1-33359-016-0
02
1
1212-
129
BEARING; NEEDLE,IDLER
1-33359-005-0
02
1
1212-
132
SHAFT; REV
1-33351-044-0
01
1
1212-
135
GEAR; REV IDLER
1-33361-090-0
01
1
1212-
166
PIECE; DIST
1-33319-222-0
01
1
1212-
252
SPACER
(A)
1-33319-223-0
01
1
1212-
252
SPACER
(B)
1-33359-017-0
01
1
1212-
325
SHIM; COUNTER SHAFT BRG
T=0.051
1-33319-152-0
01
1
1212-
325
SHIM; COUNTER SHAFT BRG
T=0.127
1-33319-153-0
01
1
1212-
325
SHIM; COUNTER SHAFT BRG
T=0.254
1-33319-154-0
01
1
1212-
325
SHIM; COUNTER SHAFT BRG
T=0.510
1-33319-155-0
01
1
1212-
460
RING; SNAP,REV SHAFT
1-33219-297-0
01
1
1212-
80
393
59
314
189
67
313
70
174
354
408
517
323
429
174
50
49
350
82
44
33
36
316
31
43
321
408
443
23
23
443
408
75
306
11
12
468
11
9
77
475
17
15
432
30
316
31
9
1
473
410
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHAFT; TOP GEAR,TRANS
1-33215-012-0
01
1
1212-
2
RING; SNAP,TOP GEAR SHAFT
1-33219-268-0
01
1
1212-
9
CLUTCH; DOG,TOP GEAR
(A)
1-33265-601-0
01
1
1212-
9
CLUTCH; DOG,TOP GEAR
(B)
1-33265-604-0
01
1
1212-
11
RING; BLOCK,5TH & 6TH
1-33265-602-0
02
1
1212-
12
SLEEVE; 5TH & 6TH
1-33262-234-0
01
1
1212-
15
COLLAR; 4TH GEAR
1-33259-123-0
01
1
1212-
17
RING; SNAP,4TH GEAR
T=2.00
1-33269-064-0
01
1
1212-
17
RING; SNAP,4TH GEAR
T=2.10
1-33269-100-0
01
1
1212-
17
RING; SNAP,4TH GEAR
T=2.05
1-33269-101-0
01
1
1212-
23
PLUNGER; DETENT,SYN
1-33265-600-0
06
1
1212-
30
GEAR; 4TH,MAINSHAFT
1-33252-474-0
01
1
1212-
31
RING; BLOCK,3RD & 4TH
1-33265-599-0
02
1
1212-
33
BEARING; NEEDLE,3RD GEAR
1-33259-089-0
01
1
1212-
36
GEAR; 3RD,MAINSHAFT
1-33252-473-0
01
1
1212-
43
HUB; CLU,3RD & 4TH,MAIN
1-33261-288-0
01
1
1212-
44
HUB; CLU,2ND & 3RD,MAIN
1-33261-301-0
01
1
1212-
49
BEARING; NEEDLE,2ND GEAR
1-33259-089-0
01
1
1212-
50
GEAR; 2ND,MAINSHAFT
1-33251-446-0
01
1
1212-
59
GEAR; REV MAINSHAFT
1-33257-092-0
01
1
1212-
67
HUB; CLU,1ST TO REV
1-33261-290-0
01
1
1212-
70
GEAR; 1ST,MAINSHAFT
1-33251-447-0
01
1
1212-
75
BEARING; MAINSHAFT
1-33239-241-0
01
1
1212-
77
GEAR; 6TH,MAINSHAFT
1-33253-719-0
01
1
1212-
80
GEAR; SPD DRIVE
1-33371-072-0
01
1
1212-
82
SHAFT; MAIN,TRANS
1-33231-333-0
01
1
1212-
174
SYNCHRONIZER ASM; 2ND-3RD
1-33265-639-0
02
1
1212-
189
RING; SNAP,REV,GEAR
T=2.10
1-33269-066-0
01
1
1212-
189
RING; SNAP,REV,GEAR
T=2.05
1-33269-067-0
01
1
1212-
189
RING; SNAP,REV,GEAR
T=2.00
1-33269-068-0
01
1
1212-
306
RING; SNAP,MAINSHAFT
T=2.12
1-33239-238-0
01
1
1212-
306
RING; SNAP,MAINSHAFT
T=2.07
1-33239-239-0
01
1
1212-
306
RING; SNAP,MAINSHAFT
T=2.02
1-33239-240-0
01
1
1212-
306
RING; SNAP,MAINSHAFT
SET
1-33239-314-0
01
1
1212-
313
BEARING; NEEDLE,LOW GEAR
1-33259-078-0
01
1
1212-
314
BEARING; NEEDLE,REV GEAR
1-33259-073-0
01
1
1212-
316
CLUTCH; DOG,3RD GEAR
1-33265-598-0
02
1
1212-
321
SLEEVE; SYN,4TH & 3RD
1-33262-233-0
01
1
1212-
323
INSERT
1-33269-103-0
03
1
1212-
350
RING; RET,2ND GEAR
1-33269-095-0
01
1
1212-
354
RETAINER; SYN
1-33269-102-0
03
1
1212-
393
BEARING; MAINSHAFT END
1-33239-347-0
01
1
1212-
408
SPRING
(A)
1-33264-042-0
06
1
1212-
408
SPRING
(B)
1-33264-043-0
03
1
1212-
410
SPACER; TOP GEAR SHAFT
T=3.10
1-33219-298-0
01
1
1212-
410
SPACER; TOP GEAR SHAFT
T=3.15
1-33219-299-0
01
1
1212-
410
SPACER; TOP GEAR SHAFT
T=3.20
1-33219-300-0
01
1
1212-
410
SPACER; TOP GEAR SHAFT
T=3.25
1-33219-301-0
01
1
1212-
410
SPACER; TOP GEAR SHAFT
T=3.30
1-33219-302-0
01
1
1212-
410
SPACER; TOP GEAR SHAFT
T=3.35
1-33219-303-0
01
1
1212-
410
SPACER; TOP GEAR SHAFT
T=3.40
1-33219-304-0
01
1
1212-
410
SPACER; TOP GEAR SHAFT
T=3.45
1-33219-305-0
01
1
1212-
410
SPACER; TOP GEAR SHAFT
T=3.50
1-33219-306-0
01
1
1212-
429
SLEEVE; 2ND & 3RD
1-33262-243-0
01
1
1212-
432
BEARING; NEEDLE,4TH
1-33259-069-0
01
1
1212-
443
ROLLER; SYNCHRONIZER
1-33269-063-0
06
1
1212-
468
HUB; CLU,5TH & 6TH
1-33261-289-0
01
1
1212-
473
BEARING; INPUT SHAFT
1-33219-186-0
01
1
1212-
475
BEARING; 6TH
1-33259-071-0
01
1
1212-
517
BALL; SYNCHRO,INDEX
1-33269-104-0
03
1
1212-
