◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11499 - FYH(AUST)EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30B - GEAR SHIFTER AND QUADRANT BOX ▶
2-30B — GEAR SHIFTER AND QUADRANT BOX (#111523) — 336 parça

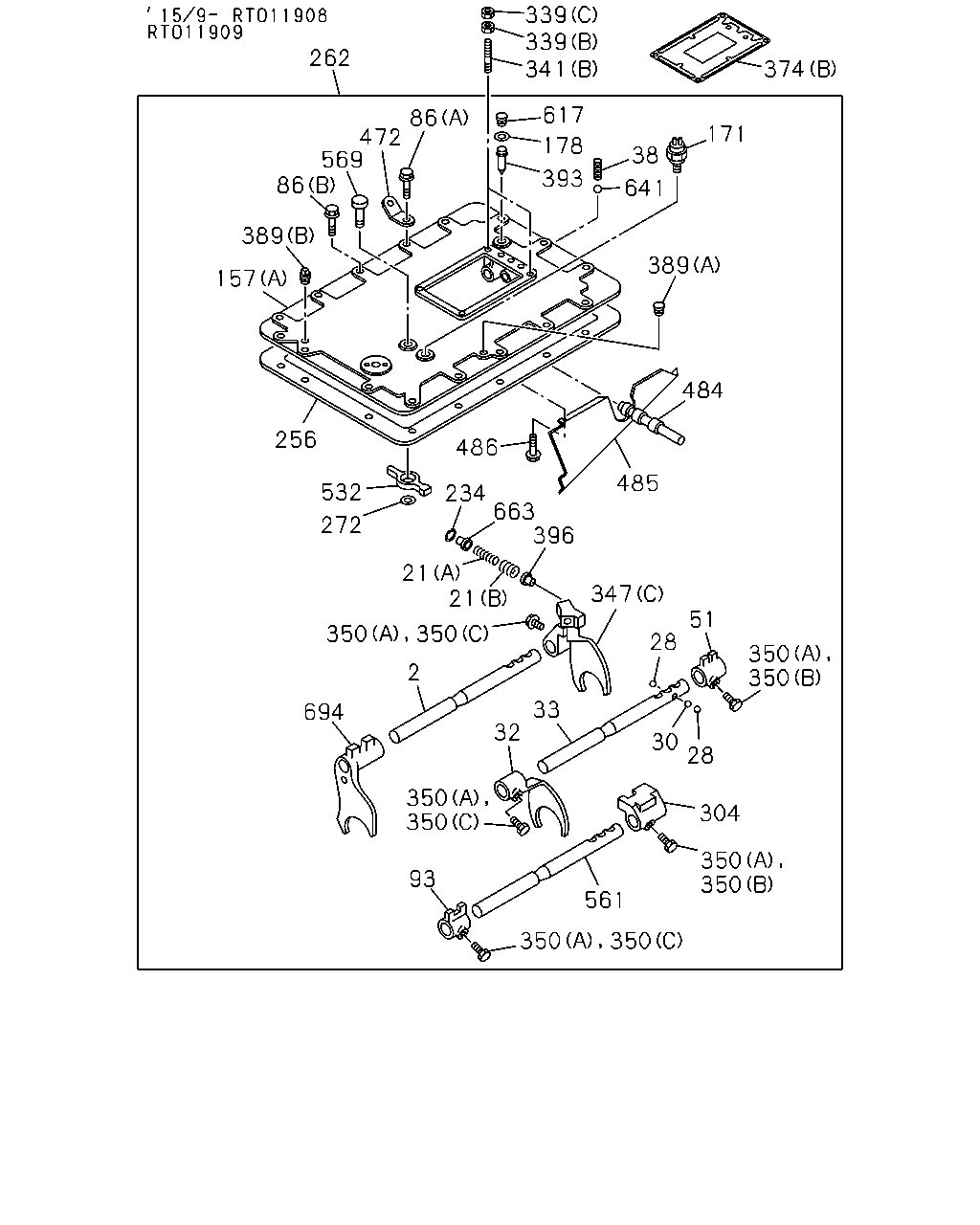

çizim 321334
262 339 339 341 374 171 617 178 393 641 38 389 86 472 569 86 389 157 256 532 272 486 234 485 484 663 396 21 21 350 350 694 2 32 350 350 93 350 350 561 350 350 304 28 30 33 28 350 350 51 347
BalonParca AdiParca NoAdetTipApplied Date A B
2 ROD; SHIFT,1ST & REV 1-33531-477-0 01 1 1212-1311 ●
2 ROD; SHIFT,1ST & REV 1-33531-477-0 01 1 1312- ● ●
21 SPRING; COIL COMP SLEEVE
(B) 		1-33519-205-0 01 1 1312- ●
21 SPRING; COIL COMP SLEEVE
(A) 		1-33519-206-0 01 1 1312- ●
21 SPRING; COIL COMP SLEEVE
(A) 		1-87061-207-0 01 1 1212-1508 ●
28 BALL; INTER LK 1-87061-224-0 02 1 1212-1311 ●
28 BALL; INTER LK 1-87061-224-0 02 1 1312- ● ●
30 PIN; INTER LK 1-87060-808-0 01 1 1212-1311 ●
30 PIN; INTER LK 1-87060-808-0 01 1 1312- ● ●
32 ARM; SHIFT,1ST & 2ND 1-33511-623-0 01 1 1212-1311 ●
32 ARM; SHIFT,1ST & 2ND 1-33511-623-0 01 1 1312- ● ●
33 ROD; SHIFT,LOW & 2ND 1-33531-476-0 01 1 1212-1311 ●
33 ROD; SHIFT,LOW & 2ND 1-33531-476-0 01 1 1312- ● ●
38 SPRING; DETENT 1-87061-140-0 03 1 1212-1311 ●
38 SPRING; DETENT 1-87061-140-0 03 1 1312- ● ●
51 BLOCK; SHIFT,1ST & 2ND 1-87061-126-0 01 1 1212-1311 ●
51 BLOCK; SHIFT,1ST & 2ND 1-87061-126-0 01 1 1312- ● ●
86 SCREW; TAPER,ARM TO ROD
(B) 		1-87060-778-0 16 1 1212-1311 ●
86 SCREW; TAPER,ARM TO ROD
(B) 		1-87060-778-0 16 1 1312- ● ●
86 SCREW; TAPER,ARM TO ROD
(A) 		1-87061-229-0 02 1 1212-1311 ●
86 SCREW; TAPER,ARM TO ROD
(A) 		1-87061-229-0 02 1 1312- ● ●
93 BLOCK; SHIFT,REV & 5TH 1-33549-367-0 01 1 1212-1311 ●
93 BLOCK; SHIFT,REV & 5TH 1-33549-367-0 01 1 1312- ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-398-1 01 1 1212-1311 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-398-1 01 1 1312- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33619-751-0 01 1 1212-1311 ●
157 BOX; QUAD,TRANS
(A) 		1-33619-751-0 01 1 1312- ● ●
171 SWITCH; NEUTRAL 1-87061-488-0 01 1 1212-1311 ●
171 SWITCH; NEUTRAL 1-87061-488-0 01 1 1312- ● ●
178 GASKET; PLUG 1-87060-781-0 01 1 1212-1311 ●
178 GASKET; PLUG 1-87060-781-0 01 1 1312- ● ●
234 RING; SNAP 1-33519-203-0 01 1 1312- ●
256 GASKET; QUAD BOX TO TRANS CASE 1-33619-817-0 01 1 1212-1311 ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33619-817-0 01 1 1312-1508 ● ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-402-0 01 1 1509- ● ●
262 BOX ASM; SHIFT CONT 1-33510-017-0 01 1 1312-1508 ●
262 BOX ASM; SHIFT CONT 1-33510-017-0 01 1 1509- ● ●
262 BOX ASM; SHIFT CONT 1-33510-016-0 01 1 1212-1508 ●
272 RING; SNAP,QUAD BOX 1-33539-077-0 01 1 1212-1311 ●
272 RING; SNAP,QUAD BOX 1-33539-077-0 01 1 1312- ● ●
304 BLOCK; SHIFT SHAFT 1-33549-366-0 01 1 1212-1311 ●
304 BLOCK; SHIFT SHAFT 1-33549-366-0 01 1 1312- ● ●
339 NUT; QUAD BOX
(B) 3/8 UNF 		1-33549-068-0 02 1 1312-1508 ●
339 NUT; QUAD BOX
(B) 3/8 UNF 		1-33549-068-0 02 1 1509- ● ●
339 NUT; QUAD BOX
(C) 5/8 UNF 		1-33549-069-0 02 1 1312-1508 ●
339 NUT; QUAD BOX
(C) 5/8 UNF 		1-33549-069-0 02 1 1509- ● ●
339 NUT; QUAD BOX
(A) M10 		0-91110-510-0 02 1 1212-1311 ●
339 NUT; QUAD BOX
(A) M10 		0-91110-510-0 02 1 1312- ● ●
341 STUD; QUAD BOX
(B) 		1-33549-067-0 02 1 1312-1508 ●
341 STUD; QUAD BOX
(B) 		1-33549-067-0 02 1 1509- ● ●
341 STUD; QUAD BOX
(A) 		1-09305-004-0 02 1 1212-1311 ●
341 STUD; QUAD BOX
(A) 		1-09305-004-0 02 1 1312- ● ●
347 ARM; SHIFT,RANGE CHANGE
(C) 		1-33511-672-0 01 1 1312- ●
347 ARM; SHIFT,RANGE CHANGE
(A) 		1-87061-077-0 01 1 1212-1311 ●
347 ARM; SHIFT,RANGE CHANGE
(A) 		1-87061-077-0 01 1 1312- ● ●
347 ARM; SHIFT,RANGE CHANGE
(B) 		1-87061-078-0 01 1 1212-1311 ●
347 ARM; SHIFT,RANGE CHANGE
(B) 		1-87061-078-0 01 1 1312- ● ●
347 ARM; SHIFT,RANGE CHANGE
(C) 		1-87061-143-0 01 1 1212- ●
350 SCREW; SHIFT ARM
(B) 		1-33549-627-0 02 1 1312- ●
350 SCREW; SHIFT ARM
(C) 		1-87061-202-0 03 1 1312- ●
350 SCREW; SHIFT ARM
(A) 		1-87061-202-0 05 1 1212- ●
374 GASKET
(B) 		1-33549-402-0 01 1 1312-1508 ●
374 GASKET
(B) 		1-33549-402-0 01 1 1509- ● ●
374 GASKET
(A) 		1-87061-025-0 01 1 1212-1311 ●
374 GASKET
(A) 		1-87061-025-0 01 1 1312- ● ●
389 PLUG; QUAD BOX,NEUTRAL SW
(B) 		1-87061-091-0 01 1 1212-1311 ●
389 PLUG; QUAD BOX,NEUTRAL SW
(B) 		1-87061-091-0 01 1 1312- ● ●
389 PLUG; QUAD BOX,NEUTRAL SW
(A) 		1-87061-304-0 01 1 1212-1311 ●
389 PLUG; QUAD BOX,NEUTRAL SW
(A) 		1-87061-304-0 01 1 1312- ● ●
393 PIN; SW 1-87061-139-0 01 1 1212-1311 ●
393 PIN; SW 1-87061-139-0 01 1 1312- ● ●
396 PLUNGER; SHIFT ROD 1-33519-204-0 01 1 1312- ●
396 PLUNGER; SHIFT ROD 1-87061-112-0 01 1 1212-1508 ●
472 EYE; LIFTING 1-87060-783-0 02 1 1212-1311 ●
472 EYE; LIFTING 1-87060-783-0 02 1 1312- ● ●
484 SHAFT; AIR VALVE 1-87061-551-0 01 1 1212-1311 ●
484 SHAFT; AIR VALVE 1-87061-551-0 01 1 1312- ● ●
485 TROUGH; OIL 1-87061-006-0 01 1 1212-1311 ●
485 TROUGH; OIL 1-87061-006-0 01 1 1312- ● ●
486 BOLT; OIL TROUGH 1-87061-093-0 02 1 1212-1311 ●
486 BOLT; OIL TROUGH 1-87061-093-0 02 1 1312- ● ●
532 PLATE; SHIFT FORK 1-33539-078-0 01 1 1212-1311 ●
532 PLATE; SHIFT FORK 1-33539-078-0 01 1 1312- ● ●
561 ROD; SHIFT 1-33531-475-0 01 1 1212-1311 ●
561 ROD; SHIFT 1-33531-475-0 01 1 1312- ● ●
569 PIN; QUADRANT BOX 1-33549-365-0 01 1 1212-1311 ●
569 PIN; QUADRANT BOX 1-33549-365-0 01 1 1312- ● ●
617 PLUG 1-33619-818-0 01 1 1212-1311 ●
617 PLUG 1-33619-818-0 01 1 1312- ● ●
641 BALL 1-87060-789-0 03 1 1212-1311 ●
641 BALL 1-87060-789-0 03 1 1312- ● ●
663 SPRING 1-33519-207-0 01 1 1312- ●
694 ARM; SHIFT,3RD & OD 1-33511-654-0 01 1 1212-1311 ●
694 ARM; SHIFT,3RD & OD 1-33511-654-0 01 1 1312- ● ●

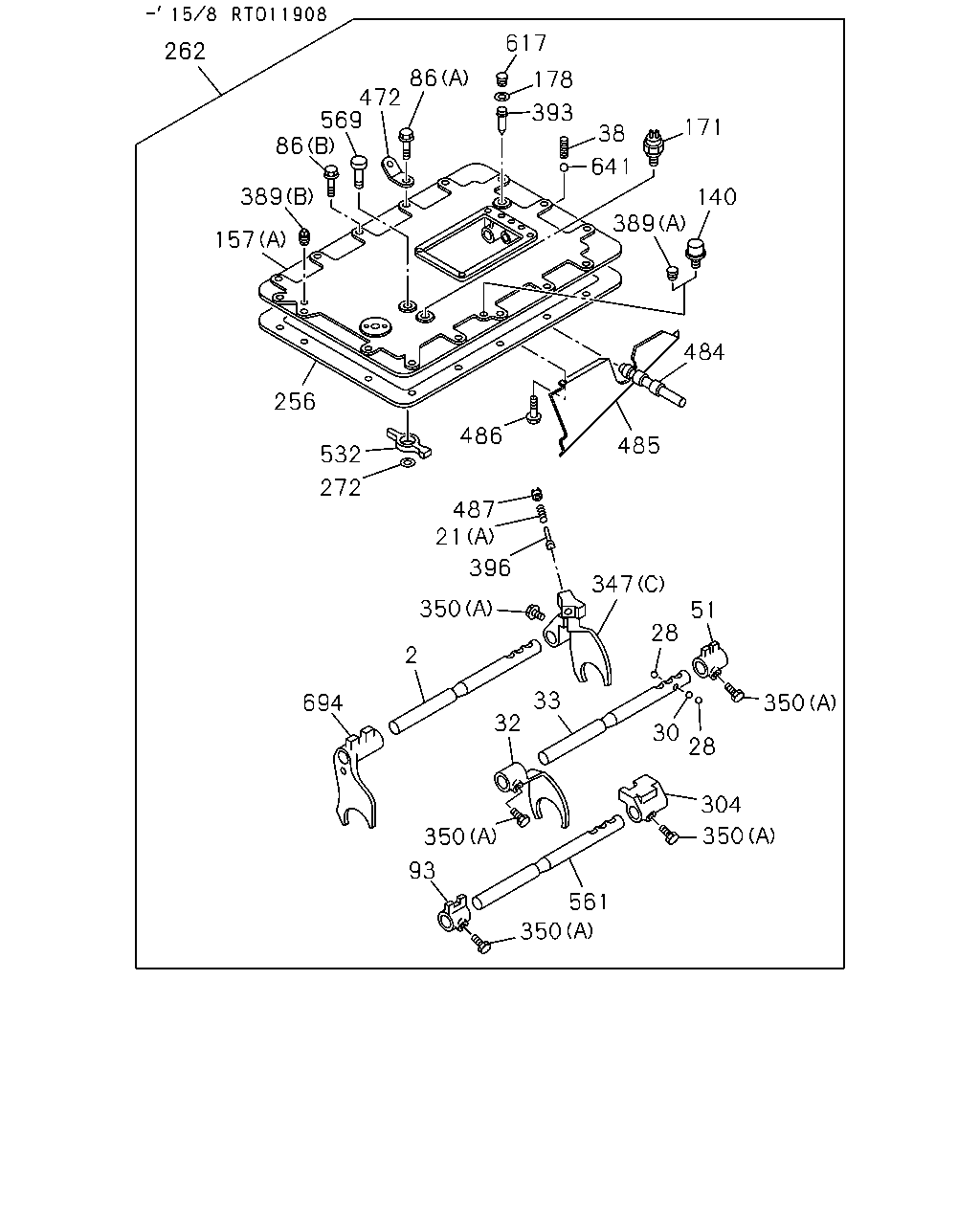

çizim 322579
262 86 472 569 86 389 157 617 178 393 38 171 641 389 140 484 485 486 532 256 272 487 21 396 350 694 2 32 350 93 350 350 304 28 30 33 28 350 51 347 561
BalonParca AdiParca NoAdetTipApplied Date A B
2 ROD; SHIFT,1ST & REV 1-33531-477-0 01 1 1212-1311 ●
2 ROD; SHIFT,1ST & REV 1-33531-477-0 01 1 1312- ● ●
21 SPRING; COIL COMP SLEEVE
(B) 		1-33519-205-0 01 1 1312- ●
21 SPRING; COIL COMP SLEEVE
(A) 		1-33519-206-0 01 1 1312- ●
21 SPRING; COIL COMP SLEEVE
(A) 		1-87061-207-0 01 1 1212-1508 ●
28 BALL; INTER LK 1-87061-224-0 02 1 1212-1311 ●
28 BALL; INTER LK 1-87061-224-0 02 1 1312- ● ●
30 PIN; INTER LK 1-87060-808-0 01 1 1212-1311 ●
30 PIN; INTER LK 1-87060-808-0 01 1 1312- ● ●
32 ARM; SHIFT,1ST & 2ND 1-33511-623-0 01 1 1212-1311 ●
32 ARM; SHIFT,1ST & 2ND 1-33511-623-0 01 1 1312- ● ●
33 ROD; SHIFT,LOW & 2ND 1-33531-476-0 01 1 1212-1311 ●
33 ROD; SHIFT,LOW & 2ND 1-33531-476-0 01 1 1312- ● ●
38 SPRING; DETENT 1-87061-140-0 03 1 1212-1311 ●
38 SPRING; DETENT 1-87061-140-0 03 1 1312- ● ●
51 BLOCK; SHIFT,1ST & 2ND 1-87061-126-0 01 1 1212-1311 ●
51 BLOCK; SHIFT,1ST & 2ND 1-87061-126-0 01 1 1312- ● ●
86 SCREW; TAPER,ARM TO ROD
(B) 		1-87060-778-0 16 1 1212-1311 ●
86 SCREW; TAPER,ARM TO ROD
(B) 		1-87060-778-0 16 1 1312- ● ●
86 SCREW; TAPER,ARM TO ROD
(A) 		1-87061-229-0 02 1 1212-1311 ●
86 SCREW; TAPER,ARM TO ROD
(A) 		1-87061-229-0 02 1 1312- ● ●
93 BLOCK; SHIFT,REV & 5TH 1-33549-367-0 01 1 1212-1311 ●
93 BLOCK; SHIFT,REV & 5TH 1-33549-367-0 01 1 1312- ● ●
140 BREATHER; AIR,TRANS 1-33549-405-0 01 1 1212-1508 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-398-1 01 1 1212-1311 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-398-1 01 1 1312- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33619-751-0 01 1 1212-1311 ●
157 BOX; QUAD,TRANS
(A) 		1-33619-751-0 01 1 1312- ● ●
171 SWITCH; NEUTRAL 1-87061-488-0 01 1 1212-1311 ●
171 SWITCH; NEUTRAL 1-87061-488-0 01 1 1312- ● ●
178 GASKET; PLUG 1-87060-781-0 01 1 1212-1311 ●
178 GASKET; PLUG 1-87060-781-0 01 1 1312- ● ●
256 GASKET; QUAD BOX TO TRANS CASE 1-33619-817-0 01 1 1212-1311 ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33619-817-0 01 1 1312-1508 ● ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-402-0 01 1 1509- ● ●
262 BOX ASM; SHIFT CONT 1-33510-017-0 01 1 1312-1508 ●
262 BOX ASM; SHIFT CONT 1-33510-017-0 01 1 1509- ● ●
262 BOX ASM; SHIFT CONT 1-33510-016-0 01 1 1212-1508 ●
272 RING; SNAP,QUAD BOX 1-33539-077-0 01 1 1212-1311 ●
272 RING; SNAP,QUAD BOX 1-33539-077-0 01 1 1312- ● ●
304 BLOCK; SHIFT SHAFT 1-33549-366-0 01 1 1212-1311 ●
304 BLOCK; SHIFT SHAFT 1-33549-366-0 01 1 1312- ● ●
347 ARM; SHIFT,RANGE CHANGE
(C) 		1-33511-672-0 01 1 1312- ●
347 ARM; SHIFT,RANGE CHANGE
(A) 		1-87061-077-0 01 1 1212-1311 ●
347 ARM; SHIFT,RANGE CHANGE
(A) 		1-87061-077-0 01 1 1312- ● ●
347 ARM; SHIFT,RANGE CHANGE
(B) 		1-87061-078-0 01 1 1212-1311 ●
347 ARM; SHIFT,RANGE CHANGE
(B) 		1-87061-078-0 01 1 1312- ● ●
347 ARM; SHIFT,RANGE CHANGE
(C) 		1-87061-143-0 01 1 1212- ●
350 SCREW; SHIFT ARM
(B) 		1-33549-627-0 02 1 1312- ●
350 SCREW; SHIFT ARM
(C) 		1-87061-202-0 03 1 1312- ●
350 SCREW; SHIFT ARM
(A) 		1-87061-202-0 05 1 1212- ●
389 PLUG; QUAD BOX,NEUTRAL SW
(B) 		1-87061-091-0 01 1 1212-1311 ●
389 PLUG; QUAD BOX,NEUTRAL SW
(B) 		1-87061-091-0 01 1 1312- ● ●
389 PLUG; QUAD BOX,NEUTRAL SW
(A) 		1-87061-304-0 01 1 1212-1311 ●
389 PLUG; QUAD BOX,NEUTRAL SW
(A) 		1-87061-304-0 01 1 1312- ● ●
393 PIN; SW 1-87061-139-0 01 1 1212-1311 ●
393 PIN; SW 1-87061-139-0 01 1 1312- ● ●
396 PLUNGER; SHIFT ROD 1-33519-204-0 01 1 1312- ●
396 PLUNGER; SHIFT ROD 1-87061-112-0 01 1 1212-1508 ●
472 EYE; LIFTING 1-87060-783-0 02 1 1212-1311 ●
472 EYE; LIFTING 1-87060-783-0 02 1 1312- ● ●
484 SHAFT; AIR VALVE 1-87061-551-0 01 1 1212-1311 ●
484 SHAFT; AIR VALVE 1-87061-551-0 01 1 1312- ● ●
485 TROUGH; OIL 1-87061-006-0 01 1 1212-1311 ●
485 TROUGH; OIL 1-87061-006-0 01 1 1312- ● ●
486 BOLT; OIL TROUGH 1-87061-093-0 02 1 1212-1311 ●
486 BOLT; OIL TROUGH 1-87061-093-0 02 1 1312- ● ●
487 PLUG; SHIFT BLOCK 1-87061-213-0 01 1 1212-1508 ●
532 PLATE; SHIFT FORK 1-33539-078-0 01 1 1212-1311 ●
532 PLATE; SHIFT FORK 1-33539-078-0 01 1 1312- ● ●
561 ROD; SHIFT 1-33531-475-0 01 1 1212-1311 ●
561 ROD; SHIFT 1-33531-475-0 01 1 1312- ● ●
569 PIN; QUADRANT BOX 1-33549-365-0 01 1 1212-1311 ●
569 PIN; QUADRANT BOX 1-33549-365-0 01 1 1312- ● ●
617 PLUG 1-33619-818-0 01 1 1212-1311 ●
617 PLUG 1-33619-818-0 01 1 1312- ● ●
641 BALL 1-87060-789-0 03 1 1212-1311 ●
641 BALL 1-87060-789-0 03 1 1312- ● ●
694 ARM; SHIFT,3RD & OD 1-33511-654-0 01 1 1212-1311 ●
694 ARM; SHIFT,3RD & OD 1-33511-654-0 01 1 1312- ● ●

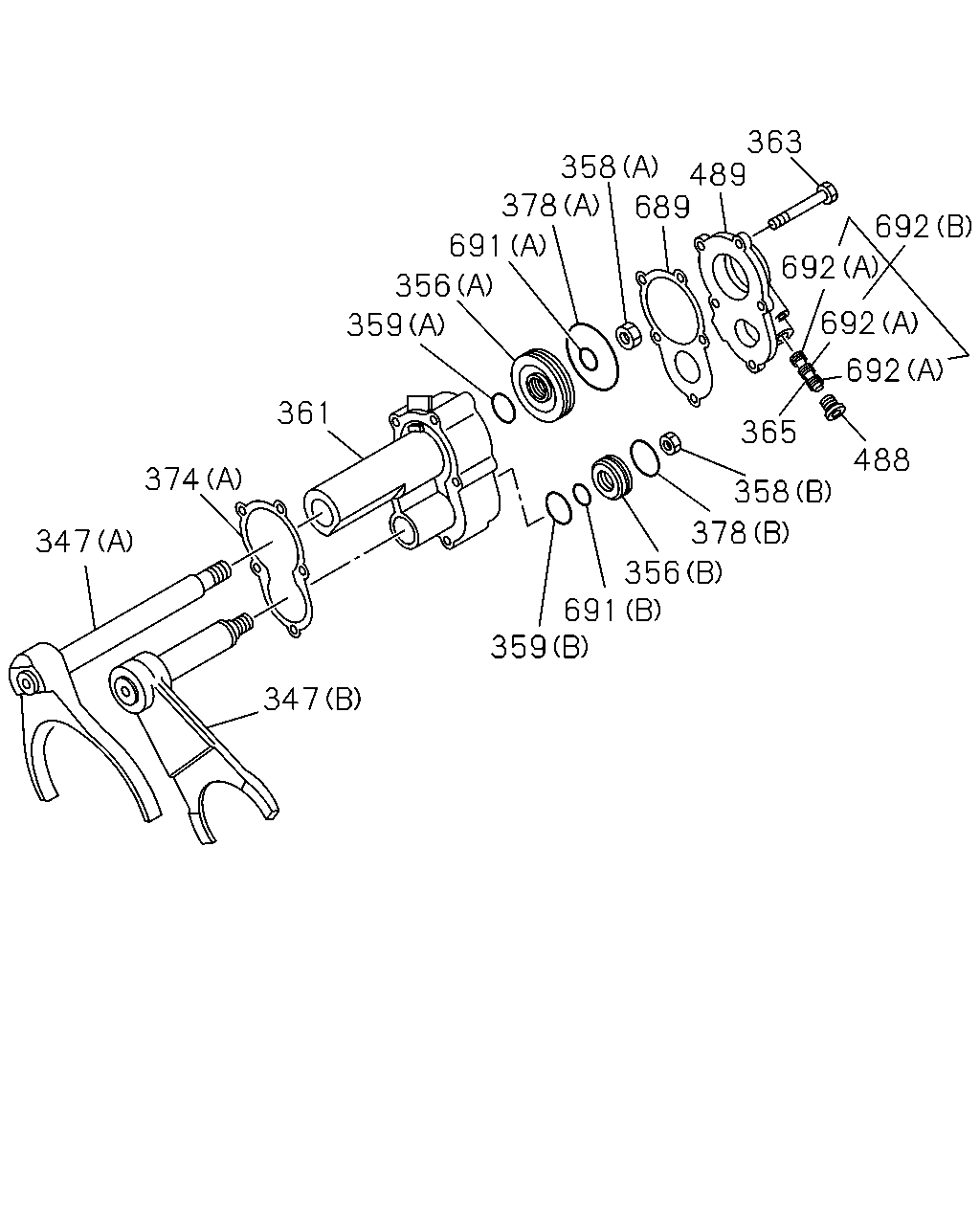

çizim 322581
347 347 374 361 359 359 691 356 356 378 358 488 365 692 692 692 692 363 489 689 358 378 691
BalonParca AdiParca NoAdetTipApplied Date A B
347 ARM; SHIFT,RANGE CHANGE
(C) 		1-33511-672-0 01 1 1312- ●
347 ARM; SHIFT,RANGE CHANGE
(A) 		1-87061-077-0 01 1 1212-1311 ●
347 ARM; SHIFT,RANGE CHANGE
(A) 		1-87061-077-0 01 1 1312- ● ●
347 ARM; SHIFT,RANGE CHANGE
(B) 		1-87061-078-0 01 1 1212-1311 ●
347 ARM; SHIFT,RANGE CHANGE
(B) 		1-87061-078-0 01 1 1312- ● ●
347 ARM; SHIFT,RANGE CHANGE
(C) 		1-87061-143-0 01 1 1212- ●
356 PISTON; AIR CYL
(B) 		1-33519-180-0 01 1 1212-1311 ●
356 PISTON; AIR CYL
(B) 		1-33519-180-0 01 1 1312- ● ●
356 PISTON; AIR CYL
(A) 		1-87061-121-0 01 1 1212-1311 ●
356 PISTON; AIR CYL
(A) 		1-87061-121-0 01 1 1312- ● ●
358 NUT; SHIFT ROD
(B) 		1-87061-089-0 01 1 1212-1311 ●
358 NUT; SHIFT ROD
(B) 		1-87061-089-0 01 1 1312- ● ●
358 NUT; SHIFT ROD
(A) 		1-87061-222-0 01 1 1212-1311 ●
358 NUT; SHIFT ROD
(A) 		1-87061-222-0 01 1 1312- ● ●
359 GASKET; AIR CYL
(B) 		1-87061-125-0 01 1 1212-1311 ●
359 GASKET; AIR CYL
(B) 		1-87061-125-0 01 1 1312- ● ●
359 GASKET; AIR CYL
(A) 		1-87061-136-0 01 1 1212-1311 ●
359 GASKET; AIR CYL
(A) 		1-87061-136-0 01 1 1312- ● ●
361 CYLINDER; AIR,SHIFT 1-87061-023-0 01 1 1212-1311 ●
361 CYLINDER; AIR,SHIFT 1-87061-023-0 01 1 1312- ● ●
363 BOLT; AIR CYL 1-33519-182-0 05 1 1212-1311 ●
363 BOLT; AIR CYL 1-33519-182-0 05 1 1312- ● ●
365 VALVE; AIR CYL 1-33519-183-0 01 1 1212-1311 ●
365 VALVE; AIR CYL 1-33519-183-0 01 1 1312- ● ●
374 GASKET
(B) 		1-33549-402-0 01 1 1312-1508 ●
374 GASKET
(B) 		1-33549-402-0 01 1 1509- ● ●
374 GASKET
(A) 		1-87061-025-0 01 1 1212-1311 ●
374 GASKET
(A) 		1-87061-025-0 01 1 1312- ● ●
378 GASKET; PISTON
(B) 		1-87061-009-0 01 1 1212-1311 ●
378 GASKET; PISTON
(B) 		1-87061-009-0 01 1 1312- ● ●
378 GASKET; PISTON
(A) 		1-87061-122-0 01 1 1212-1311 ●
378 GASKET; PISTON
(A) 		1-87061-122-0 01 1 1312- ● ●
488 PLUG; AIR CYL 1-87060-998-0 01 1 1212-1311 ●
488 PLUG; AIR CYL 1-87060-998-0 01 1 1312- ● ●
489 COVER; AIR CYL 1-87061-022-0 01 1 1212-1311 ●
489 COVER; AIR CYL 1-87061-022-0 01 1 1312- ● ●
689 GASKET; COVER 1-87061-024-0 01 1 1212-1311 ●
689 GASKET; COVER 1-87061-024-0 01 1 1312- ● ●
691 GASKET; YOKE
(B) 		1-33519-181-0 01 1 1212-1311 ●
691 GASKET; YOKE
(B) 		1-33519-181-0 01 1 1312- ● ●
691 GASKET; YOKE
(A) 		1-87061-123-0 01 1 1212-1311 ●
691 GASKET; YOKE
(A) 		1-87061-123-0 01 1 1312- ● ●
692 GASKET; VALVE
(B) 		1-33619-811-0 01 1 1212-1508 ●
692 GASKET; VALVE
(A) 		1-87060-994-0 03 1 1212-1311 ●
692 GASKET; VALVE
(A) 		1-87060-994-0 03 1 1312- ● ●

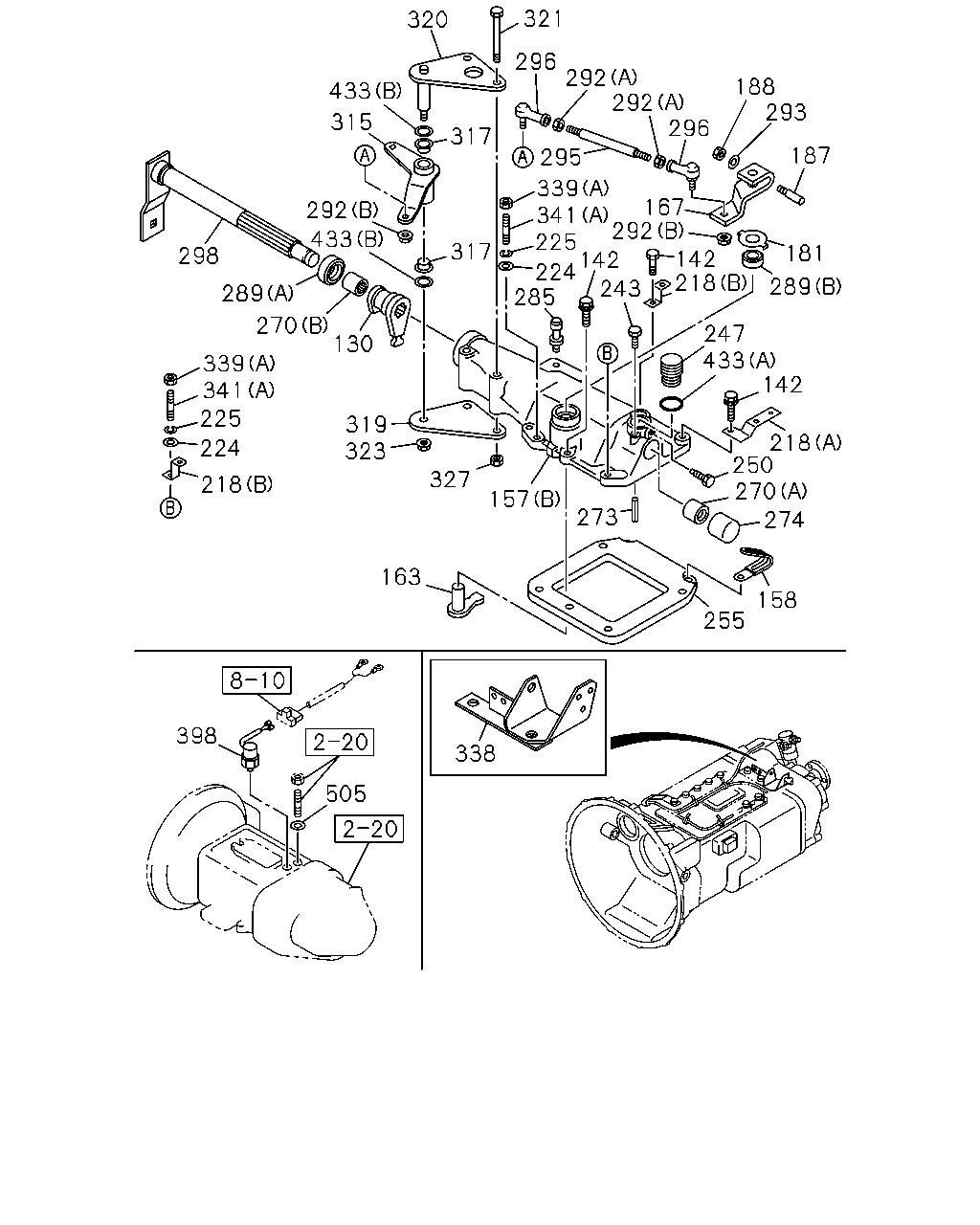

çizim 322688
338 505 398 163 255 158 273 274 270 250 218 142 157 327 323 319 433 247 289 181 218 243 142 187 293 188 296 292 292 296 321 295 339 341 225 224 285 142 292 167 218 224 225 341 339 270 289 130 433 292 317 317 320 433 315 298
BalonParca AdiParca NoAdetTipApplied Date A B
130 LEVER; SHIFT,INTERNAL 1-33521-109-0 01 1 1212-1311 ●
130 LEVER; SHIFT,INTERNAL 1-33521-109-0 01 1 1312- ● ●
142 BOLT; QUAD BOX
M10X28 W/LK&PL WASHER 		0-50641-028-0 04 1 1212-1311 ●
142 BOLT; QUAD BOX
M10X28 W/LK&PL WASHER 		0-50641-028-0 04 1 1312- ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-398-1 01 1 1212-1311 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-398-1 01 1 1312- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33619-751-0 01 1 1212-1311 ●
157 BOX; QUAD,TRANS
(A) 		1-33619-751-0 01 1 1312- ● ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 01 1 1212-1311 ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 01 1 1312- ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 1212-1311 ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 1312- ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-138-0 01 1 1212-1311 ●
167 LEVER; SELECT,EXTERNAL 1-33521-138-0 01 1 1312- ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 1212-1311 ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 1312- ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 1212-1311 ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 1312- ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 1212-1311 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 1312- ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82569-341-0 01 1 1212-1311 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82569-341-0 01 1 1312- ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 03 1 1212-1311 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 03 1 1312- ● ●
224 WASHER; PL,QUAD BOX
ID=10.5 		0-91610-510-0 02 1 1212-1311 ●
224 WASHER; PL,QUAD BOX
ID=10.5 		0-91610-510-0 02 1 1312- ● ●
225 WASHER; LK,QUAD BOX
ID=10.2 		0-91510-810-0 02 1 1212-1311 ●
225 WASHER; LK,QUAD BOX
ID=10.2 		0-91510-810-0 02 1 1312- ● ●
243 BOLT; COVER
M6X12 W/LK&PL WASHER 		0-50640-612-0 01 1 1212-1311 ●
243 BOLT; COVER
M6X12 W/LK&PL WASHER 		0-50640-612-0 01 1 1312- ● ●
247 BUSHING ASM; DETENT 1-33529-019-0 01 1 1212-1311 ●
247 BUSHING ASM; DETENT 1-33529-019-0 01 1 1312- ● ●
250 SCREW; BUSHING 9-06130-618-0 01 1 1212-1311 ●
250 SCREW; BUSHING 9-06130-618-0 01 1 1312- ● ●
255 PLATE; DIST,QUAD BOX 1-33549-070-1 01 1 1212-1311 ●
255 PLATE; DIST,QUAD BOX 1-33549-070-1 01 1 1312- ● ●
270 BEARING; NEEDLE,QUAD BOX
(A) NTN 		1-09811-006-0 01 1 1212-1311 ●
270 BEARING; NEEDLE,QUAD BOX
(A) NTN 		1-09811-006-0 01 1 1312- ● ●
270 BEARING; NEEDLE,QUAD BOX
(A) NSK 		1-09811-057-0 01 1 1212-1311 ●
270 BEARING; NEEDLE,QUAD BOX
(A) NSK 		1-09811-057-0 01 1 1312- ● ●
270 BEARING; NEEDLE,QUAD BOX
(B) NTN 		1-09811-260-0 01 1 1212-1311 ●
270 BEARING; NEEDLE,QUAD BOX
(B) NTN 		1-09811-260-0 01 1 1312- ● ●
273 PIN; SPR,STOPPER 1-09748-016-0 01 1 1212-1311 ●
273 PIN; SPR,STOPPER 1-09748-016-0 01 1 1312- ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 1212-1311 ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 1312- ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 1212-1311 ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 1312- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
(B) OD=30 		1-09625-386-0 01 1 1212-1311 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
(B) OD=30 		1-09625-386-0 01 1 1312- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
(A) OD=41 		1-09625-647-0 01 1 1212-1311 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
(A) OD=41 		1-09625-647-0 01 1 1312- ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 1212-1311 ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 1312- ● ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 1212-1311 ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 1312- ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 1212-1311 ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 1312- ● ●
295 ROD; LINK,RELAY LEVER 9-08400-816-0 01 1 1212-1311 ●
295 ROD; LINK,RELAY LEVER 9-08400-816-0 01 1 1312- ● ●
296 ROD END 1-09760-108-0 02 1 1212-1311 ●
296 ROD END 1-09760-108-0 02 1 1312- ● ●
298 SHAFT; SHIFT LEVER 1-33522-148-0 01 1 1212-1311 ●
298 SHAFT; SHIFT LEVER 1-33522-148-0 01 1 1312- ● ●
315 LEVER; SELECT 8-98077-805-0 01 1 1212-1311 ●
315 LEVER; SELECT 8-98077-805-0 01 1 1312- ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 1212-1311 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 1312- ● ●
319 BRACKET; SELECT LEVER 1-33657-640-0 01 1 1212-1311 ●
319 BRACKET; SELECT LEVER 1-33657-640-0 01 1 1312- ● ●
320 SHAFT; LEVER 1-33619-629-0 01 1 1212-1311 ●
320 SHAFT; LEVER 1-33619-629-0 01 1 1312- ● ●
321 BOLT; BRKT,RELAY LEVER
M10X80 FLANGE 		0-28051-080-0 02 1 1212-1311 ●
321 BOLT; BRKT,RELAY LEVER
M10X80 FLANGE 		0-28051-080-0 02 1 1312- ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 1212-1311 ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 1312- ● ●
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91180-210-0 02 1 1212-1311 ●
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91180-210-0 02 1 1312- ● ●
338 BRACKET; FLEX TUBE 1-47478-877-0 01 1 1212-1311 ●
338 BRACKET; FLEX TUBE 1-47478-877-0 01 1 1312- ● ●
339 NUT; QUAD BOX
(B) 3/8 UNF 		1-33549-068-0 02 1 1312-1508 ●
339 NUT; QUAD BOX
(B) 3/8 UNF 		1-33549-068-0 02 1 1509- ● ●
339 NUT; QUAD BOX
(C) 5/8 UNF 		1-33549-069-0 02 1 1312-1508 ●
339 NUT; QUAD BOX
(C) 5/8 UNF 		1-33549-069-0 02 1 1509- ● ●
339 NUT; QUAD BOX
(A) M10 		0-91110-510-0 02 1 1212-1311 ●
339 NUT; QUAD BOX
(A) M10 		0-91110-510-0 02 1 1312- ● ●
341 STUD; QUAD BOX
(B) 		1-33549-067-0 02 1 1312-1508 ●
341 STUD; QUAD BOX
(B) 		1-33549-067-0 02 1 1509- ● ●
341 STUD; QUAD BOX
(A) 		1-09305-004-0 02 1 1212-1311 ●
341 STUD; QUAD BOX
(A) 		1-09305-004-0 02 1 1312- ● ●
398 SWITCH; REV LAMP 1-82440-102-0 01 1 1212-1311 ●
398 SWITCH; REV LAMP 1-82440-102-0 01 1 1312- ● ●
433 GASKET; BUSHING
(A) 		1-09623-130-0 01 1 1212-1311 ●
433 GASKET; BUSHING
(A) 		1-09623-130-0 01 1 1312- ● ●
433 GASKET; BUSHING
(B) 		1-09623-636-0 02 1 1212-1311 ●
433 GASKET; BUSHING
(B) 		1-09623-636-0 02 1 1312- ● ●
505 SPACER; BRKT 1-53459-587-0 01 1 1212-1311 ●
505 SPACER; BRKT 1-53459-587-0 01 1 1312- ● ●

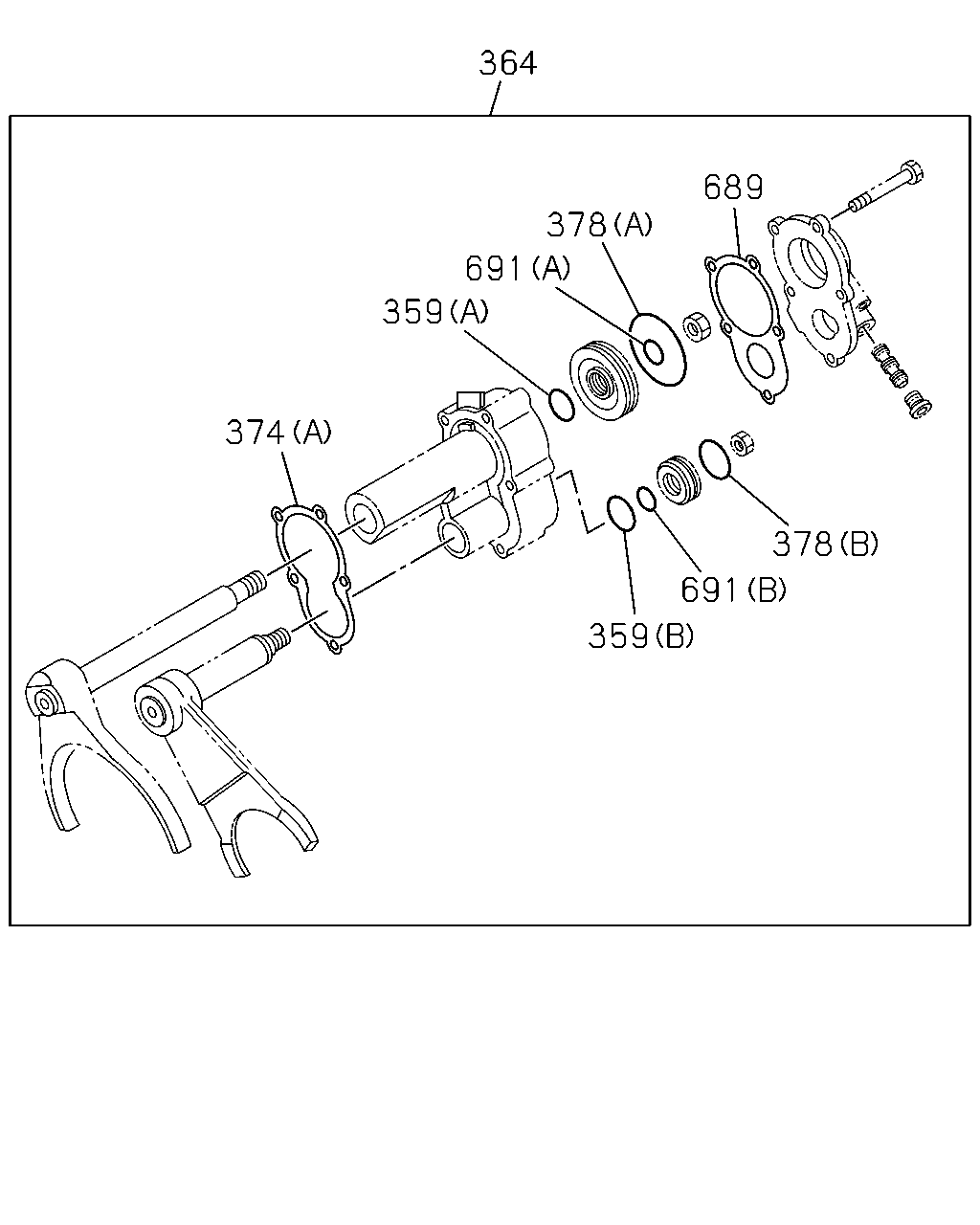

çizim 413277
364 689 378 691 359 374 359 691 378
BalonParca AdiParca NoAdetTipApplied Date A B
359 GASKET; AIR CYL
(B) 		1-87061-125-0 01 1 1212-1311 ●
359 GASKET; AIR CYL
(B) 		1-87061-125-0 01 1 1312- ● ●
359 GASKET; AIR CYL
(A) 		1-87061-136-0 01 1 1212-1311 ●
359 GASKET; AIR CYL
(A) 		1-87061-136-0 01 1 1312- ● ●
364 SEAL KIT; AIR CYL 1-87061-217-0 01 1 1212-1508 ●
374 GASKET
(B) 		1-33549-402-0 01 1 1312-1508 ●
374 GASKET
(B) 		1-33549-402-0 01 1 1509- ● ●
374 GASKET
(A) 		1-87061-025-0 01 1 1212-1311 ●
374 GASKET
(A) 		1-87061-025-0 01 1 1312- ● ●
378 GASKET; PISTON
(B) 		1-87061-009-0 01 1 1212-1311 ●
378 GASKET; PISTON
(B) 		1-87061-009-0 01 1 1312- ● ●
378 GASKET; PISTON
(A) 		1-87061-122-0 01 1 1212-1311 ●
378 GASKET; PISTON
(A) 		1-87061-122-0 01 1 1312- ● ●
689 GASKET; COVER 1-87061-024-0 01 1 1212-1311 ●
689 GASKET; COVER 1-87061-024-0 01 1 1312- ● ●
691 GASKET; YOKE
(B) 		1-33519-181-0 01 1 1212-1311 ●
691 GASKET; YOKE
(B) 		1-33519-181-0 01 1 1312- ● ●
691 GASKET; YOKE
(A) 		1-87061-123-0 01 1 1212-1311 ●
691 GASKET; YOKE
(A) 		1-87061-123-0 01 1 1312- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
