2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#111516) — 198 parça

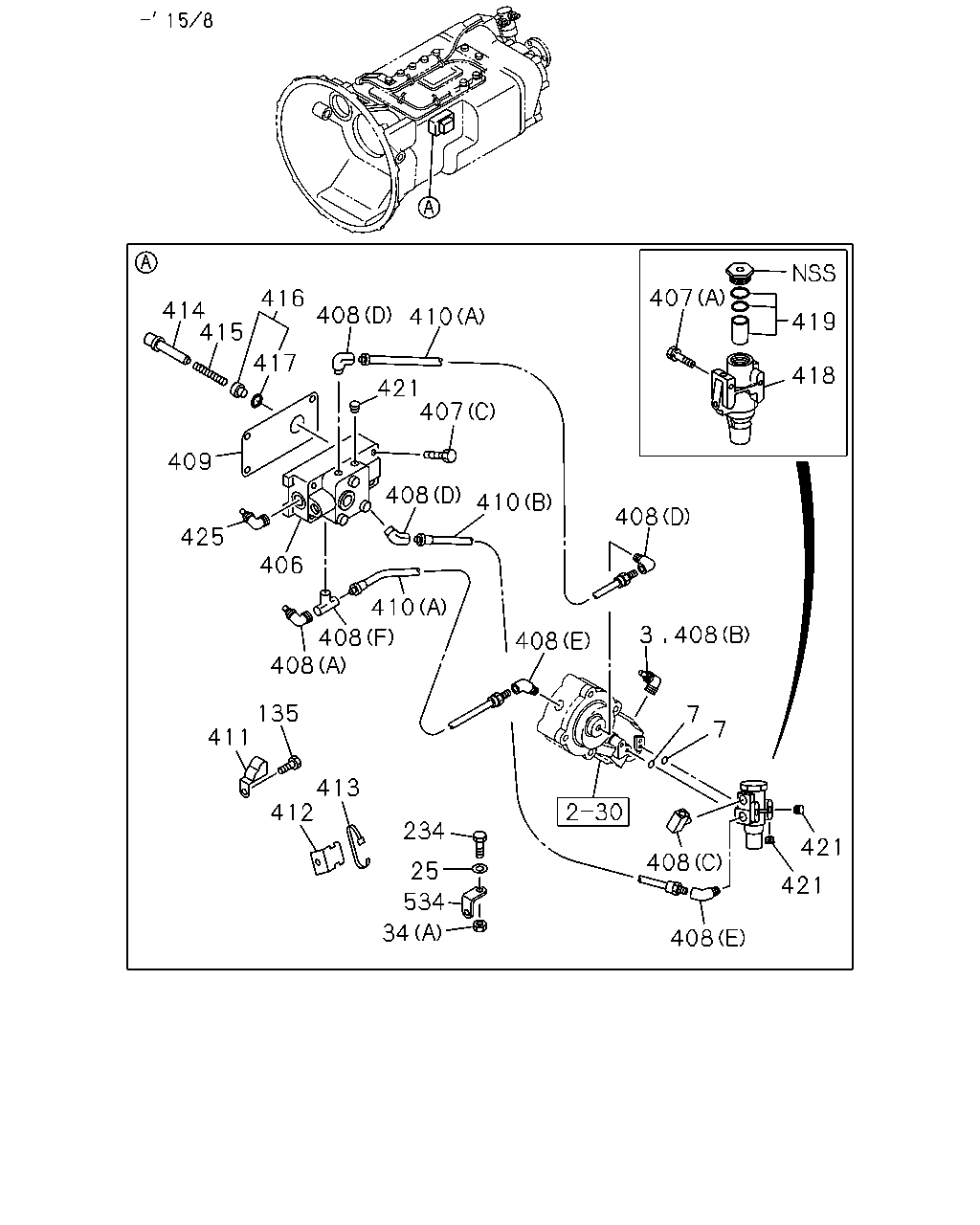

çizim 321003
414 417 415 416 410 408 409 425 421 408 410 406 410 408 408 135 411 413 412 234 25 534 34 408 408 421 421 7 7 3 408 408 408 418 419 407 407
BalonParca AdiParca NoAdetTipApplied Date A B
3 CONNECTOR; CONT TUBE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-533-0 01 1 1212- ● ●
7 GASKET; CONNECTOR
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87060-996-0 02 1 1212-1311 ● ●
7 GASKET; CONNECTOR
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		1-87060-996-0 02 1 1312- ● ●
25 WASHER
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-808-0 01 1 1212-1311 ● ●
25 WASHER
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		1-33619-808-0 01 1 1312- ● ●
34 NUT
TRANSMISSION-FULLER RTO11908(Y5L) (A) 		1-33619-809-0 01 1 1212-1311 ● ●
34 NUT
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A) 		1-33619-809-0 01 1 1312- ● ●
34 NUT
TRANSMISSION-FULLER RTO11908(Y5L) (B) 		1-87061-098-0 01 1 1212- ● ●
135 BOLT
TRANSMISSION-FULLER RTO11909(Y5Y) 		1-87061-229-0 01 1 1312-1508 ● ●
135 BOLT
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-806-0 01 1 1212-1508 ● ●
234 BOLT; BRKT
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-807-0 01 1 1212-1311 ● ●
234 BOLT; BRKT
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		1-33619-807-0 01 1 1312- ● ●
406 VALVE ASM; SLAVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-508-0 01 1 1212-1311 ● ●
406 VALVE ASM; SLAVE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		1-87061-508-0 01 1 1312- ● ●
407 BOLT; VALVE
TRANSMISSION-FULLER RTO11908(Y5L) (A) 		1-87061-096-0 02 1 1212-1311 ● ●
407 BOLT; VALVE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A) 		1-87061-096-0 02 1 1312- ● ●
407 BOLT; VALVE
TRANSMISSION-FULLER RTO11908(Y5L) (B) 		1-87061-533-0 03 1 1212-1311 ● ●
407 BOLT; VALVE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (B) 		1-87061-533-0 03 1 1312- ● ●
407 BOLT; VALVE
TRANSMISSION-FULLER RTO11908(Y5L) (C) 		1-87061-539-0 04 1 1212-1311 ● ●
407 BOLT; VALVE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (C) 		1-87061-539-0 04 1 1312- ● ●
408 CONNECTOR; AIR HOSE
TRANSMISSION-FULLER RTO11909(Y5Y) (A) 		1-33619-532-0 03 1 1312-1508 ● ●
408 CONNECTOR; AIR HOSE
TRANSMISSION-FULLER RTO11909(Y5Y) (E) 		1-87061-114-0 01 1 1312-1508 ● ●
408 CONNECTOR; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L) (A) 		1-33619-532-0 06 1 1212-1508 ● ●
408 CONNECTOR; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L) (A) 		1-33619-532-0 03 1 1509- ● ●
408 CONNECTOR; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L) (B) 		1-33619-533-0 01 1 1212-1311 ● ●
408 CONNECTOR; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (B) 		1-33619-533-0 01 1 1312-1508 ● ●
408 CONNECTOR; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L) (C) 		1-33619-810-0 01 1 1212-1311 ● ●
408 CONNECTOR; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (C) 		1-33619-810-0 01 1 1312-1508 ● ●
408 CONNECTOR; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L) (D) 		1-87061-113-0 06 1 1212-1311 ● ●
408 CONNECTOR; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (D) 		1-87061-113-0 06 1 1312-1508 ● ●
408 CONNECTOR; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L) (E) 		1-87061-114-0 02 1 1212-1508 ● ●
408 CONNECTOR; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L) (F) 		1-87061-186-0 01 1 1212-1311 ● ●
408 CONNECTOR; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (F) 		1-87061-186-0 01 1 1312-1508 ● ●
409 GASKET; SLAVE VALVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-170-0 01 1 1212-1311 ● ●
409 GASKET; SLAVE VALVE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		1-87061-170-0 01 1 1312- ● ●
410 HOSE; AIR
TRANSMISSION-FULLER RTO11908(Y5L) (A) 		1-33619-805-0 02 1 1212-1311 ● ●
410 HOSE; AIR
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A) 		1-33619-805-0 02 1 1312-1508 ● ●
410 HOSE; AIR
TRANSMISSION-FULLER RTO11908(Y5L) (B) 		1-87061-067-0 01 1 1212-1311 ● ●
410 HOSE; AIR
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (B) 		1-87061-067-0 01 1 1312-1508 ● ●
411 CLAMP; AIR HOSE
TRANSMISSION-FULLER RTO11909(Y5Y) 		1-87061-045-0 02 1 1312-1508 ● ●
411 CLAMP; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-045-0 01 1 1212-1508 ● ●
412 BRACKET; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-044-0 01 1 1212-1311 ● ●
412 BRACKET; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		1-87061-044-0 01 1 1312-1508 ● ●
413 CLIP; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-043-0 01 1 1212-1311 ● ●
413 CLIP; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		1-87061-043-0 01 1 1312-1508 ● ●
414 PIN; SLAVE VALVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-185-0 01 1 1212-1311 ● ●
414 PIN; SLAVE VALVE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		1-87061-185-0 01 1 1312- ● ●
415 SPRING; SLAVE VALVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-187-0 01 1 1212-1311 ● ●
415 SPRING; SLAVE VALVE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		1-87061-187-0 01 1 1312- ● ●
416 SLEEVE; SLAVE VALVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-748-0 01 1 1212-1311 ● ●
416 SLEEVE; SLAVE VALVE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		1-33619-748-0 01 1 1312- ● ●
417 GASKET; SLEEVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-747-0 01 1 1212-1311 ● ●
417 GASKET; SLEEVE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		1-33619-747-0 01 1 1312- ● ●
418 VALVE ASM; AIR FILTER REG
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33549-543-0 01 1 1212-1311 ● ●
418 VALVE ASM; AIR FILTER REG
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		1-33549-543-0 01 1 1312- ● ●
419 ELEMENT KIT; REG VLV
TRANSMISSION-FULLER RTO11909(Y5Y) 		1-87061-100-0 01 1 1312-1508 ● ●
419 ELEMENT KIT; REG VLV
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-100-0 01 1 1212-1508 ● ●
419 ELEMENT KIT; REG VLV
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		1-87061-100-0 01 1 1509- ● ●
421 PLUG; REG VLV
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-090-0 03 1 1212-1311 ● ●
421 PLUG; REG VLV
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		1-87061-090-0 03 1 1312- ● ●
425 ADAPTER; CONNECTER
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-291-0 03 1 1212-1311 ● ●
425 ADAPTER; CONNECTER
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		1-33619-291-0 03 1 1312- ● ●
534 EYE; LIFTING
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87060-783-0 01 1 1212-1508 ● ●

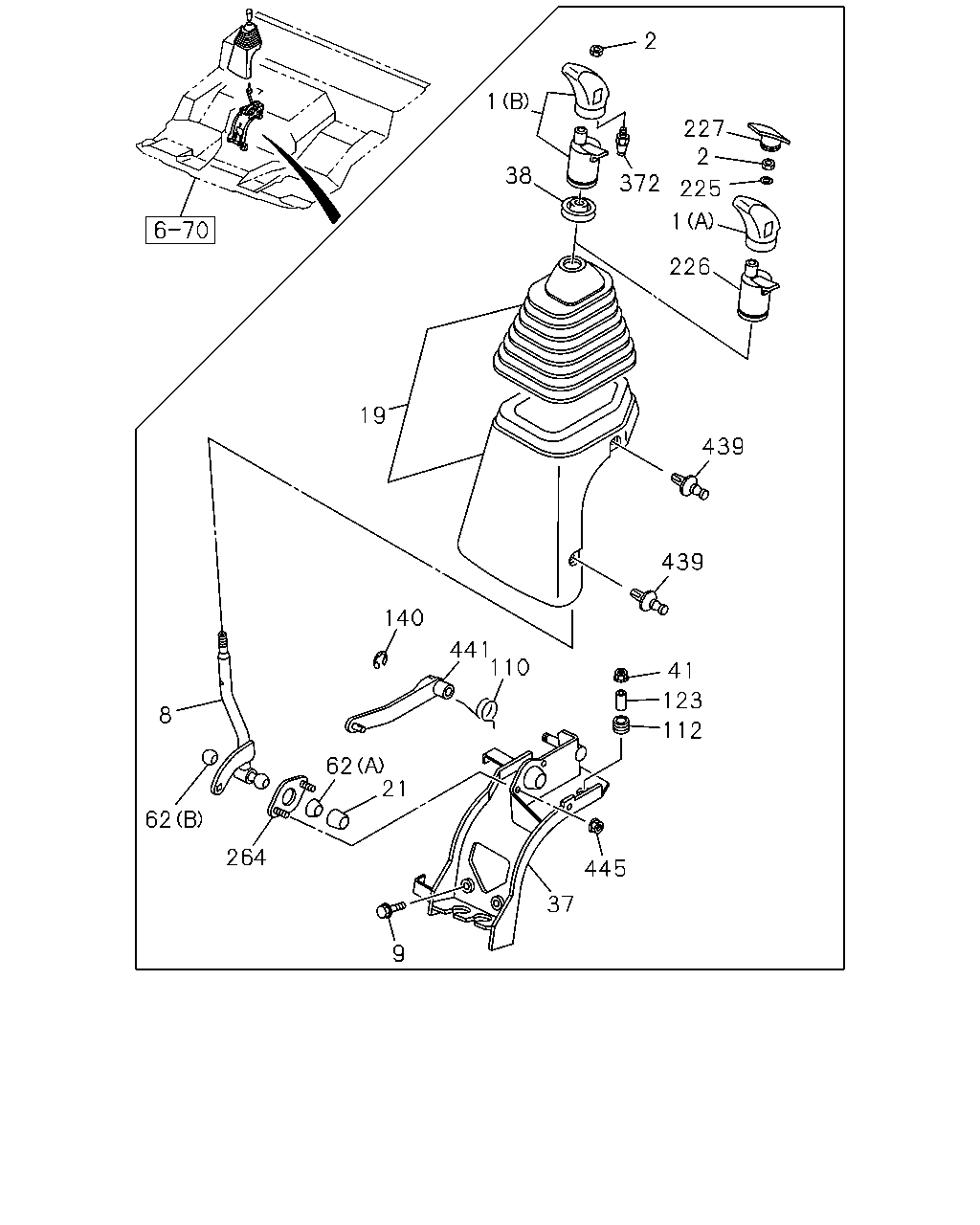

çizim 321345
2 1 38 227 372 225 2 1 226 19 439 439 41 123 112 445 37 264 62 8 21 62 110 441 140 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER
TRANSMISSION-FULLER RTO11908(Y5L) (B) 		1-33611-110-0 01 1 1212-1311 ● ●
1 KNOB; CHANGE LEVER
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (B) 		8-98224-292-0 01 1 1312- ● ●
1 KNOB; CHANGE LEVER
ZF9S1310 M/T(Y5K) (A) 		1-33611-038-0 01 1 1212- ●
2 NUT; KNOB
TRANSMISSION-FULLER RTO11908(Y5L) 1/2-13UNC 		1-33619-033-0 01 1 1212-1311 ● ●
2 NUT; KNOB
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 1/2-13UNC 		1-33619-033-0 01 1 1312- ● ●
2 NUT; KNOB
ZF9S1310 M/T(Y5K) M10 FLANGE 		0-91180-210-0 01 1 1212- ●
8 LEVER; CHANGE
TRANSMISSION-FULLER RTO11908(Y5L) 		8-98079-301-0 01 1 1212-1311 ● ●
8 LEVER; CHANGE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		8-98079-301-0 01 1 1312-1502 ● ●
8 LEVER; CHANGE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		8-98296-344-0 01 1 1503- ● ●
8 LEVER; CHANGE
ZF9S1310 M/T(Y5K) 		8-98079-300-0 01 1 1212-1502 ●
8 LEVER; CHANGE
ZF9S1310 M/T(Y5K) 		8-98221-569-0 01 1 1503- ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1212- ● ●
19 COVER; CHANGE LEVER
FULLER M/T<X9B> GRAY 		8-97416-183-2 01 1 1212- ●
19 COVER; CHANGE LEVER
FULLER M/T<X9B>,ZF M/T<X9E> GRAY 		8-97416-183-2 01 1 1212- ●
21 SEAT; CHANGE LEVER
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-429-0 01 1 1212-1311 ● ●
21 SEAT; CHANGE LEVER
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) 		1-33619-429-0 01 1 1312- ● ●
37 BRACKET; CHANGE LEVER SUPPORT
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		8-98079-298-0 01 1 1212-1311 ● ●
37 BRACKET; CHANGE LEVER SUPPORT
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) 		8-98245-920-0 01 1 1312-1502 ● ●
37 BRACKET; CHANGE LEVER SUPPORT
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) 		8-98296-342-0 01 1 1503- ● ●
38 HOLDER; BOOT CHANGE LEVER
FULLER M/T<X9B> 		1-79996-383-0 01 1 1212- ● ●
41 NUT; CHANGE LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1212- ● ●
62 SEAT; BALL,CHANGE LEVER
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) 		1-33619-427-0 01 1 1212-1311 ● ●
62 SEAT; BALL,CHANGE LEVER
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (A) 		1-33619-427-0 01 1 1312- ● ●
62 SEAT; BALL,CHANGE LEVER
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) 		8-97049-147-0 01 1 1212-1311 ● ●
62 SEAT; BALL,CHANGE LEVER
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (B) 		8-97049-147-0 01 1 1312- ● ●
110 SPRING; RETURN,CHANGE LEVER
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-435-0 01 1 1212-1311 ● ●
110 SPRING; RETURN,CHANGE LEVER
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) 		1-33619-435-0 01 1 1312- ● ●
112 RUBBER; CUSHION
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-442-0 04 1 1212-1311 ● ●
112 RUBBER; CUSHION
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) 		1-33619-442-0 04 1 1312- ● ●
123 COLLAR; DIST,CHANGE LEVER
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-443-0 04 1 1212-1311 ● ●
123 COLLAR; DIST,CHANGE LEVER
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) 		1-33619-443-0 04 1 1312- ● ●
140 RING; SNAP
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) ID=10 		0-91805-510-0 01 1 1212-1311 ● ●
140 RING; SNAP
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) ID=10 		0-91805-510-0 01 1 1312- ● ●
225 WASHER; PL,KNOB
ZF9S1310 M/T(Y5K) ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 1212- ●
226 VALVE; SELECTOR
ZF9S1310 M/T(Y5K) 		1-33710-008-0 01 1 1212- ●
227 COVER; KNOB
ZF9S1310 M/T(Y5K) 		8-98013-168-0 01 1 1212- ●
264 PLATE; COVER
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-430-0 01 1 1212-1311 ● ●
264 PLATE; COVER
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) 		1-33619-430-0 01 1 1312- ● ●
372 CONNECTOR; CHANGE LEVER
TRANSMISSION-FULLER RTO11908(Y5L) 		8-98114-396-0 04 1 1212-1311 ● ●
372 CONNECTOR; CHANGE LEVER
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		8-98114-396-0 04 1 1312- ● ●
439 FASTENER; COVER
FULLER M/T<X9B> GRAY 		8-97407-955-0 04 1 1212- ●
439 FASTENER; COVER
FULLER M/T<X9B>,ZF M/T<X9E> GRAY 		8-97407-955-0 04 1 1212- ●
441 LEVER; SELECT
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		8-98079-302-0 01 1 1212-1311 ● ●
441 LEVER; SELECT
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) 		8-98079-302-0 01 1 1312- ● ●
445 NUT; PLATE
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M6 FLANGE 		0-91180-106-0 02 1 1212-1311 ● ●
445 NUT; PLATE
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) M6 FLANGE 		0-91180-106-0 02 1 1312- ● ●
çizim 321352
173 173 538 537 364 408 34 536 535
BalonParca AdiParca NoAdetTipApplied Date A B
34 NUT
TRANSMISSION-FULLER RTO11908(Y5L) (A) 		1-33619-809-0 01 1 1212-1311 ● ●
34 NUT
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A) 		1-33619-809-0 01 1 1312- ● ●
34 NUT
TRANSMISSION-FULLER RTO11908(Y5L) (B) 		1-87061-098-0 01 1 1212- ● ●
173 SCREW; COVER
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-813-0 02 1 1212- ● ●
364 GASKET; COVER
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87060-993-0 02 1 1212-1508 ● ●
408 CONNECTOR; AIR HOSE
TRANSMISSION-FULLER RTO11909(Y5Y) (A) 		1-33619-532-0 03 1 1312-1508 ● ●
408 CONNECTOR; AIR HOSE
TRANSMISSION-FULLER RTO11909(Y5Y) (E) 		1-87061-114-0 01 1 1312-1508 ● ●
408 CONNECTOR; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L) (A) 		1-33619-532-0 06 1 1212-1508 ● ●
408 CONNECTOR; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L) (A) 		1-33619-532-0 03 1 1509- ● ●
408 CONNECTOR; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L) (B) 		1-33619-533-0 01 1 1212-1311 ● ●
408 CONNECTOR; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (B) 		1-33619-533-0 01 1 1312-1508 ● ●
408 CONNECTOR; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L) (C) 		1-33619-810-0 01 1 1212-1311 ● ●
408 CONNECTOR; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (C) 		1-33619-810-0 01 1 1312-1508 ● ●
408 CONNECTOR; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L) (D) 		1-87061-113-0 06 1 1212-1311 ● ●
408 CONNECTOR; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (D) 		1-87061-113-0 06 1 1312-1508 ● ●
408 CONNECTOR; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L) (E) 		1-87061-114-0 02 1 1212-1508 ● ●
408 CONNECTOR; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L) (F) 		1-87061-186-0 01 1 1212-1311 ● ●
408 CONNECTOR; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (F) 		1-87061-186-0 01 1 1312-1508 ● ●
535 REPAIR KIT; MASTER VALVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-812-0 01 1 1212- ● ●
536 CONNECTOR ASM; ROADRANGER VALVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-814-0 04 1 1212- ● ●
537 UNION
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-815-0 01 1 1212-1508 ● ●
538 VALVE ASM; ROADRANGER
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-816-0 01 1 1212- ● ●

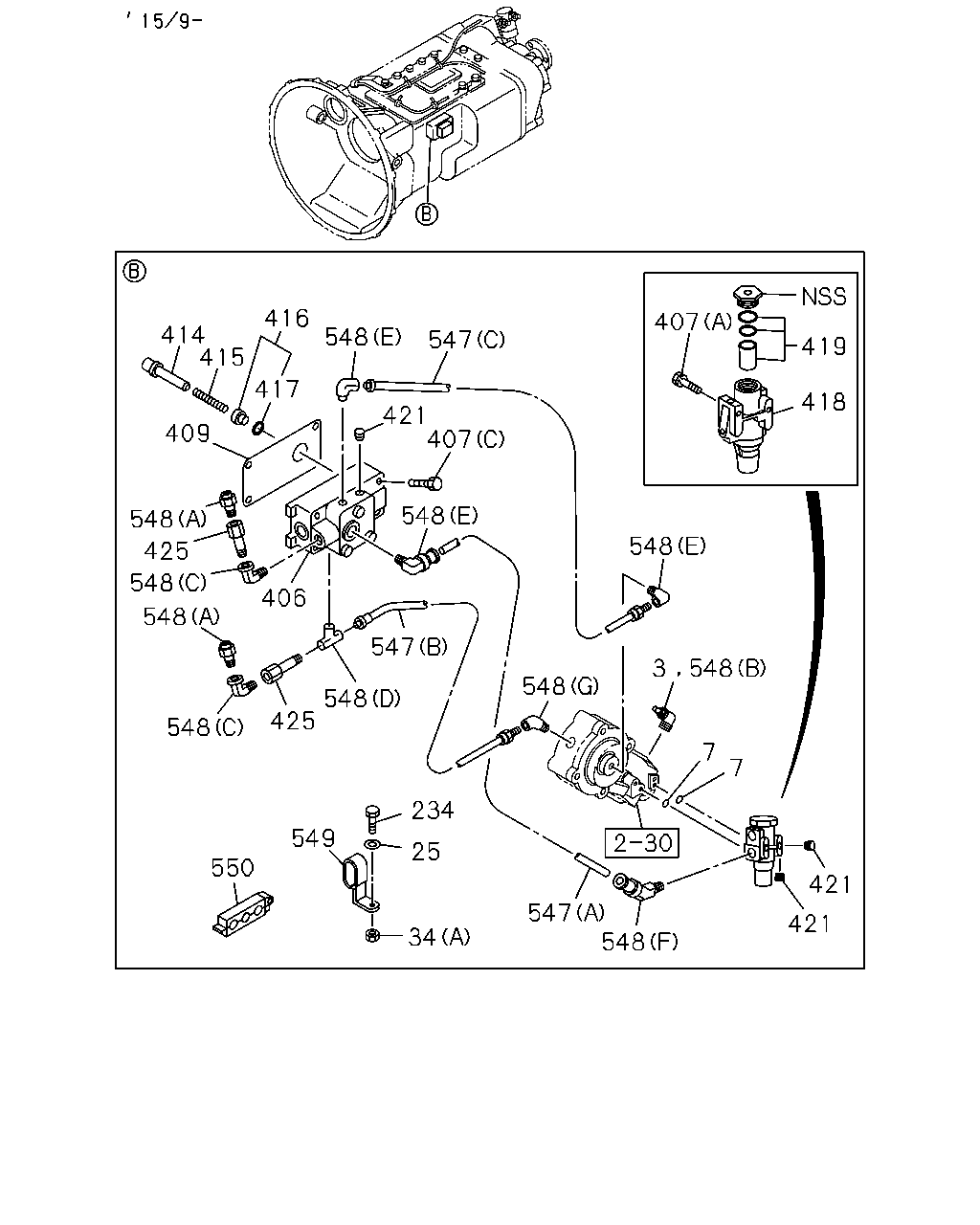

çizim 321356
414 416 415 409 548 548 548 425 548 550 234 25 549 425 547 406 548 34 547 548 421 7 7 421 548 3 548 548 418 419 407 548 547 421 548 407 417
BalonParca AdiParca NoAdetTipApplied Date A B
3 CONNECTOR; CONT TUBE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-533-0 01 1 1212- ● ●
7 GASKET; CONNECTOR
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87060-996-0 02 1 1212-1311 ● ●
7 GASKET; CONNECTOR
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		1-87060-996-0 02 1 1312- ● ●
25 WASHER
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-808-0 01 1 1212-1311 ● ●
25 WASHER
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		1-33619-808-0 01 1 1312- ● ●
34 NUT
TRANSMISSION-FULLER RTO11908(Y5L) (A) 		1-33619-809-0 01 1 1212-1311 ● ●
34 NUT
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A) 		1-33619-809-0 01 1 1312- ● ●
34 NUT
TRANSMISSION-FULLER RTO11908(Y5L) (B) 		1-87061-098-0 01 1 1212- ● ●
234 BOLT; BRKT
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-807-0 01 1 1212-1311 ● ●
234 BOLT; BRKT
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		1-33619-807-0 01 1 1312- ● ●
406 VALVE ASM; SLAVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-508-0 01 1 1212-1311 ● ●
406 VALVE ASM; SLAVE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		1-87061-508-0 01 1 1312- ● ●
407 BOLT; VALVE
TRANSMISSION-FULLER RTO11908(Y5L) (A) 		1-87061-096-0 02 1 1212-1311 ● ●
407 BOLT; VALVE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A) 		1-87061-096-0 02 1 1312- ● ●
407 BOLT; VALVE
TRANSMISSION-FULLER RTO11908(Y5L) (B) 		1-87061-533-0 03 1 1212-1311 ● ●
407 BOLT; VALVE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (B) 		1-87061-533-0 03 1 1312- ● ●
407 BOLT; VALVE
TRANSMISSION-FULLER RTO11908(Y5L) (C) 		1-87061-539-0 04 1 1212-1311 ● ●
407 BOLT; VALVE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (C) 		1-87061-539-0 04 1 1312- ● ●
409 GASKET; SLAVE VALVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-170-0 01 1 1212-1311 ● ●
409 GASKET; SLAVE VALVE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		1-87061-170-0 01 1 1312- ● ●
414 PIN; SLAVE VALVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-185-0 01 1 1212-1311 ● ●
414 PIN; SLAVE VALVE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		1-87061-185-0 01 1 1312- ● ●
415 SPRING; SLAVE VALVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-187-0 01 1 1212-1311 ● ●
415 SPRING; SLAVE VALVE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		1-87061-187-0 01 1 1312- ● ●
416 SLEEVE; SLAVE VALVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-748-0 01 1 1212-1311 ● ●
416 SLEEVE; SLAVE VALVE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		1-33619-748-0 01 1 1312- ● ●
417 GASKET; SLEEVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-747-0 01 1 1212-1311 ● ●
417 GASKET; SLEEVE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		1-33619-747-0 01 1 1312- ● ●
418 VALVE ASM; AIR FILTER REG
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33549-543-0 01 1 1212-1311 ● ●
418 VALVE ASM; AIR FILTER REG
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		1-33549-543-0 01 1 1312- ● ●
419 ELEMENT KIT; REG VLV
TRANSMISSION-FULLER RTO11909(Y5Y) 		1-87061-100-0 01 1 1312-1508 ● ●
419 ELEMENT KIT; REG VLV
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-100-0 01 1 1212-1508 ● ●
419 ELEMENT KIT; REG VLV
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		1-87061-100-0 01 1 1509- ● ●
421 PLUG; REG VLV
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-090-0 03 1 1212-1311 ● ●
421 PLUG; REG VLV
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		1-87061-090-0 03 1 1312- ● ●
425 ADAPTER; CONNECTER
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-291-0 03 1 1212-1311 ● ●
425 ADAPTER; CONNECTER
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		1-33619-291-0 03 1 1312- ● ●
547 TUBE; NYLON
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A) 		8-98336-342-0 01 1 1509- ● ●
547 TUBE; NYLON
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (B) 		8-98336-343-0 01 1 1509- ● ●
547 TUBE; NYLON
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (C) 		8-98336-344-0 01 1 1509- ● ●
548 CONNECTOR; NYLON TUBE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A) 		1-33619-532-0 03 1 1509- ● ●
548 CONNECTOR; NYLON TUBE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (B) 		1-33619-533-0 01 1 1509- ● ●
548 CONNECTOR; NYLON TUBE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (C) 		1-87061-113-0 03 1 1509- ● ●
548 CONNECTOR; NYLON TUBE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (D) 		1-87061-186-0 01 1 1509- ● ●
548 CONNECTOR; NYLON TUBE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (E) 		8-98336-345-0 03 1 1509- ● ●
548 CONNECTOR; NYLON TUBE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (F) 		8-98336-346-0 02 1 1509- ● ●
548 CONNECTOR; NYLON TUBE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (G) 		8-98336-354-0 01 1 1509- ● ●
549 CLAMP; NYLON TUBE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		8-98336-347-0 01 1 1509- ● ●
550 CLIP; NYLON TUBE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		8-98336-349-0 01 1 1509- ● ●
çizim 513177
406 420 546 407 516 539 515
BalonParca AdiParca NoAdetTipApplied Date A B
406 VALVE ASM; SLAVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-508-0 01 1 1212-1311 ● ●
406 VALVE ASM; SLAVE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		1-87061-508-0 01 1 1312- ● ●
407 BOLT; VALVE
TRANSMISSION-FULLER RTO11908(Y5L) (A) 		1-87061-096-0 02 1 1212-1311 ● ●
407 BOLT; VALVE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A) 		1-87061-096-0 02 1 1312- ● ●
407 BOLT; VALVE
TRANSMISSION-FULLER RTO11908(Y5L) (B) 		1-87061-533-0 03 1 1212-1311 ● ●
407 BOLT; VALVE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (B) 		1-87061-533-0 03 1 1312- ● ●
407 BOLT; VALVE
TRANSMISSION-FULLER RTO11908(Y5L) (C) 		1-87061-539-0 04 1 1212-1311 ● ●
407 BOLT; VALVE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (C) 		1-87061-539-0 04 1 1312- ● ●
420 PLUG; VALVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-473-0 01 1 1212-1311 ● ●
420 PLUG; VALVE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		1-87061-473-0 01 1 1312- ● ●
515 REPAIR KIT; SLAVE VALVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-512-0 01 1 1212-1311 ● ●
515 REPAIR KIT; SLAVE VALVE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		1-87061-512-0 01 1 1312- ● ●
516 PISTON; SLAVE VALVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-472-0 01 1 1212-1311 ● ●
516 PISTON; SLAVE VALVE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		1-87061-472-0 01 1 1312- ● ●
539 CAP; SLAVE VALVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-016-0 01 1 1212-1311 ● ●
539 CAP; SLAVE VALVE
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		1-87061-016-0 01 1 1312- ● ●
546 CAP; ASM
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-516-0 01 1 1212-1311 ● ●
546 CAP; ASM
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		1-87061-516-0 01 1 1312- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
