◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51238 - NPR LHD EURO5 BUS CHASSIS ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#111515) — 37 parça
çizim 321347
8 525 41 249 185 22 401 9
BalonParca AdiParca NoAdetTipApplied Date
8 04.006 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DARK GRAY 		8-97421-816-0 01 1 1212-1311
8 04.006 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DARK GRAY 		8-97429-048-0 01 1 1312-1408
8 04.006 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DARK GRAY 		8-97465-739-1 01 1 1409-
8 04.006 LEVER; CHANGE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97204-506-0 01 1 1212-
9 04.012 BOLT; CHANGE LEVER
07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 1212-
22 04.015 COVER; DUST,CHANGE LEVER
GRAY 		8-97422-706-0 01 1 1212-
41 04.012 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1212-
41 04.012 NUT; CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1212-
185 04.012 BOLT; BRKT,COVER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1212-
249 04.012 BRACKET; COVER 8-97387-767-0 01 1 1212-
401 04.012 CLIP; COVER
GRAY 		8-97406-179-0 04 1 1212-
525 04.040 LABEL; SHIFT POSITION
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98048-480-1 01 1 1212-

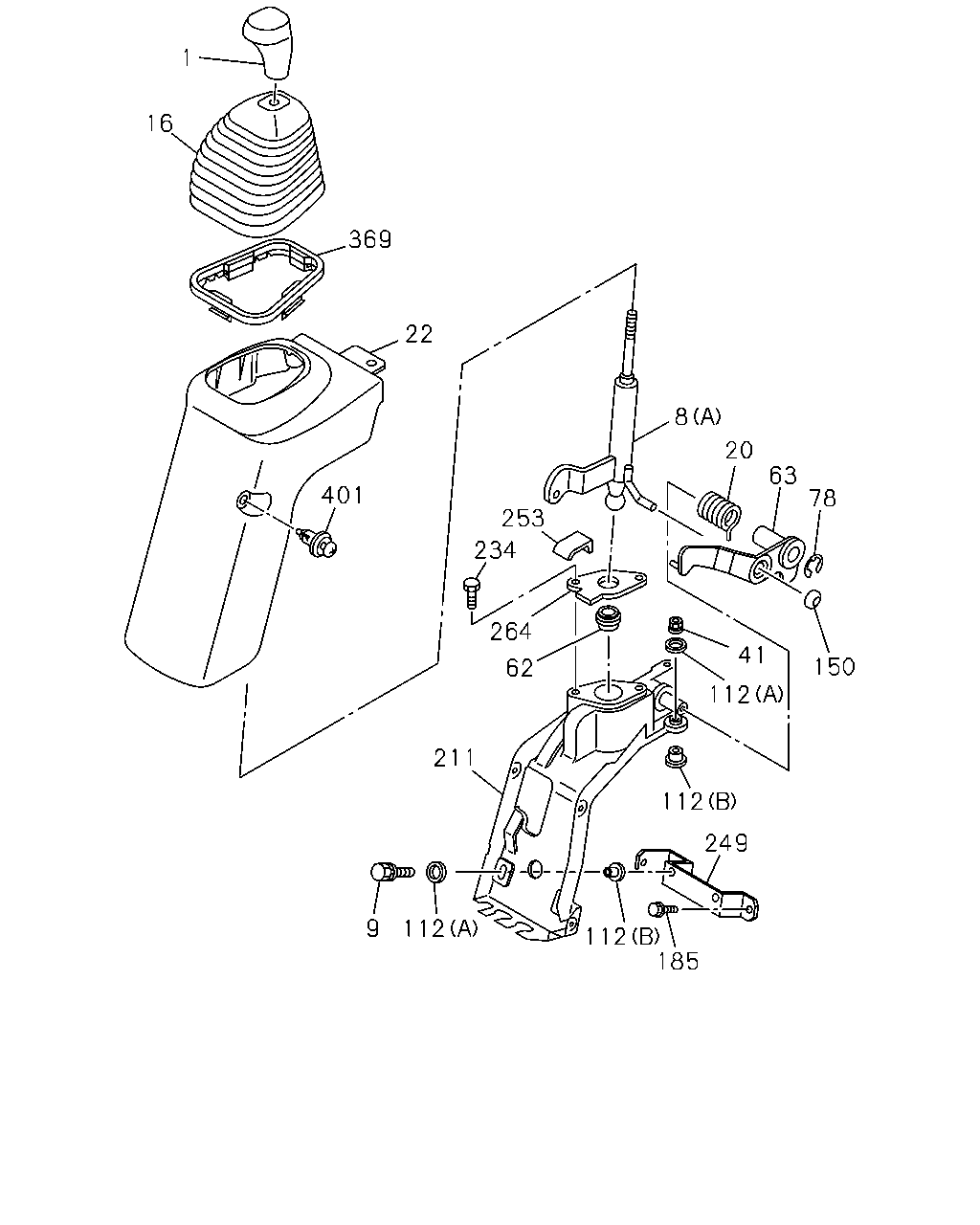

çizim 321350
1 16 369 22 401 253 234 8 63 20 78 150 41 112 112 249 185 112 112 9 211 62 264
BalonParca AdiParca NoAdetTipApplied Date
1 04.006 KNOB; CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK 		8-97196-287-1 01 1 1212-
8 04.006 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DARK GRAY 		8-97421-816-0 01 1 1212-1311
8 04.006 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DARK GRAY 		8-97429-048-0 01 1 1312-1408
8 04.006 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DARK GRAY 		8-97465-739-1 01 1 1409-
8 04.006 LEVER; CHANGE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97204-506-0 01 1 1212-
9 04.012 BOLT; CHANGE LEVER
07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 1212-
16 04.015 BOOT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98035-063-0 01 1 1212-
20 04.012 SPRING; CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97204-514-1 01 1 1212-
22 04.015 COVER; DUST,CHANGE LEVER
GRAY 		8-97422-706-0 01 1 1212-
41 04.012 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1212-
41 04.012 NUT; CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1212-
62 04.012 SEAT; BALL,CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97011-895-1 01 1 1212-
63 04.006 LEVER; RELAY,SELECT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97163-768-0 01 1 1212-
78 04.008 RING; SNAP,CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10 		0-91805-510-0 01 1 1212-
112 04.012 RUBBER; CUSHION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97091-426-0 04 1 1212-
112 04.012 RUBBER; CUSHION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97091-427-0 04 1 1212-
150 04.008 BALL; DETENT,CONT LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97049-147-0 01 1 1212-
185 04.012 BOLT; BRKT,COVER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1212-
211 04.010 BRACKET; CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97204-505-1 01 1 1212-
234 04.010 BOLT; BRKT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X12 FLANGE 		1-33739-842-0 02 1 1212-
249 04.012 BRACKET; COVER 8-97387-767-0 01 1 1212-
253 04.012 STOPPER; CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97204-510-0 01 1 1212-
264 04.015 PLATE; COVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97204-511-0 01 1 1212-
369 04.012 RETAINER; REINF
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98032-213-1 01 1 1212-
401 04.012 CLIP; COVER
GRAY 		8-97406-179-0 04 1 1212-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
