◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11496 - FVR(LHD) EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30C - GEAR SHIFTER AND QUADRANT BOX ▶
2-30C — GEAR SHIFTER AND QUADRANT BOX (#111514) — 67 parça

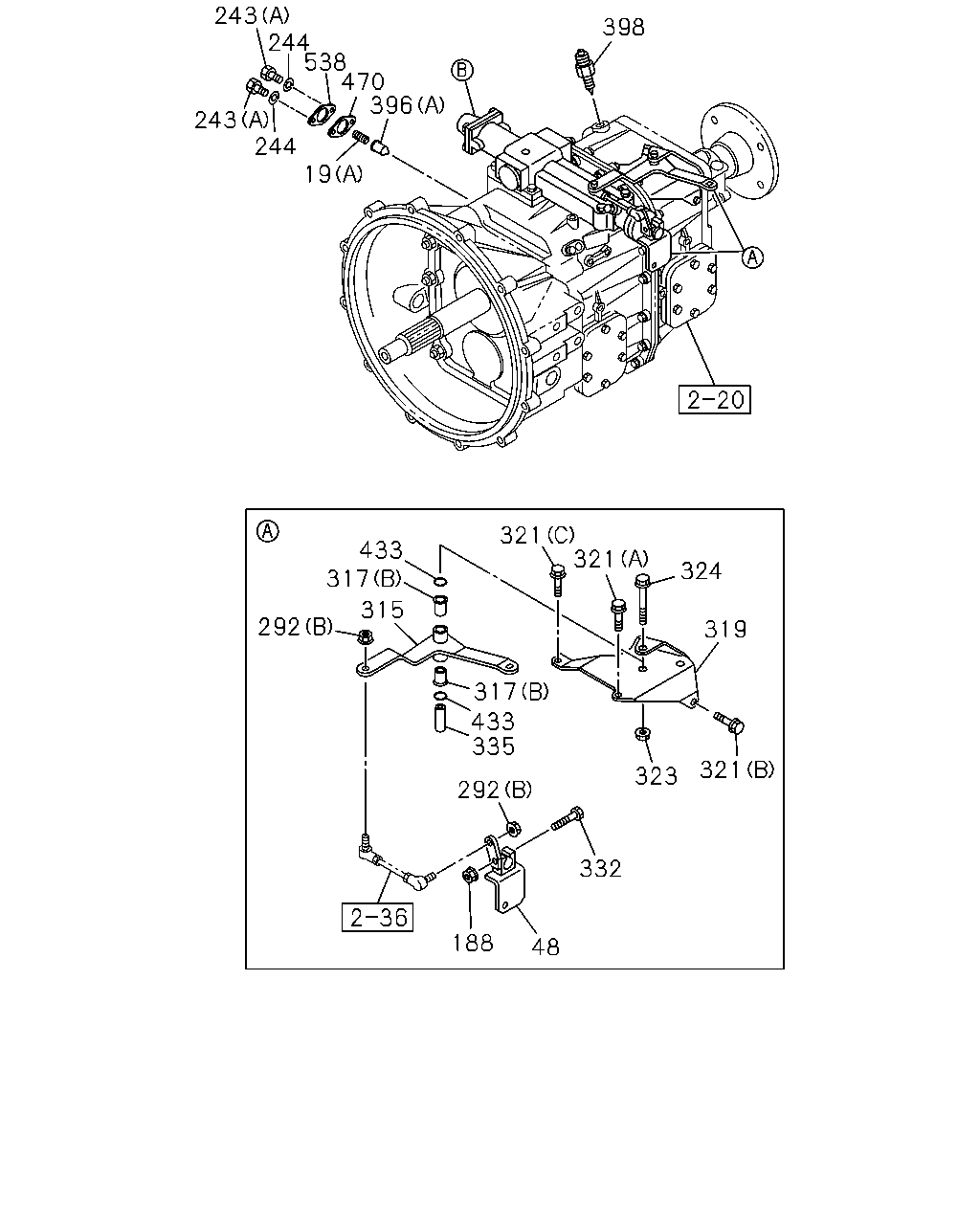

çizim 321348
398 396 470 538 244 243 243 19 244 321 321 324 319 321 323 317 433 335 292 332 188 48 315 433 317 292
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
(A) 		1-33539-085-0 01 1 1212-
19 SPRING; COIL COMP
(B) 		1-33549-392-0 01 1 1212-
19 SPRING; COIL COMP
(C) 		1-33549-393-0 01 1 1212-
48 LEVER; 4TH,SHIFT 8-98031-634-0 01 1 1212-
188 NUT; SELECT LEVER
M10 FLANGE 		0-91180-110-0 01 1 1212-
243 BOLT; COVER
(A) 		1-33119-575-0 02 1 1212-
243 BOLT; COVER
(B) 		1-33549-551-0 02 1 1212-
244 WASHER; LK,COVER 1-33119-564-0 02 1 1212-
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 1212-
315 LEVER; SELECT 8-98032-139-0 01 1 1212-
317 BUSHING; LEVER
(B) 		1-09330-119-0 02 1 1212-
319 BRACKET; SELECT LEVER 1-33657-816-0 01 1 1212-
321 BOLT; BRKT,RELAY LEVER
(C) M10X30 FLANGE 		0-28151-030-0 01 1 1212-
321 BOLT; BRKT,RELAY LEVER
(A) M10X60 FLANGE 		0-28151-060-0 01 1 1212-
321 BOLT; BRKT,RELAY LEVER
(B) M10X25 FLANGE 		0-28751-025-0 01 1 1212-
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91180-110-0 01 1 1212-
324 BOLT; SHAFT
M10X60 FLANGE 		0-28051-060-0 01 1 1212-
332 BOLT; 4TH,SHIFT LEVER 0-29261-060-0 01 1 1212-
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-203-0 01 1 1212-
396 PLUNGER; SHIFT ROD
(A) 		1-33539-084-0 01 1 1212-
396 PLUNGER; SHIFT ROD
(B) 		1-33549-390-0 01 1 1212-
398 SWITCH; REV LAMP 1-82440-128-0 01 1 1212-
433 GASKET; BUSHING 1-09623-594-0 02 1 1212-
470 GASKET; SPRING COVER 1-33119-489-0 02 1 1212-
538 COVER; DETENT 1-33119-574-0 01 1 1212-

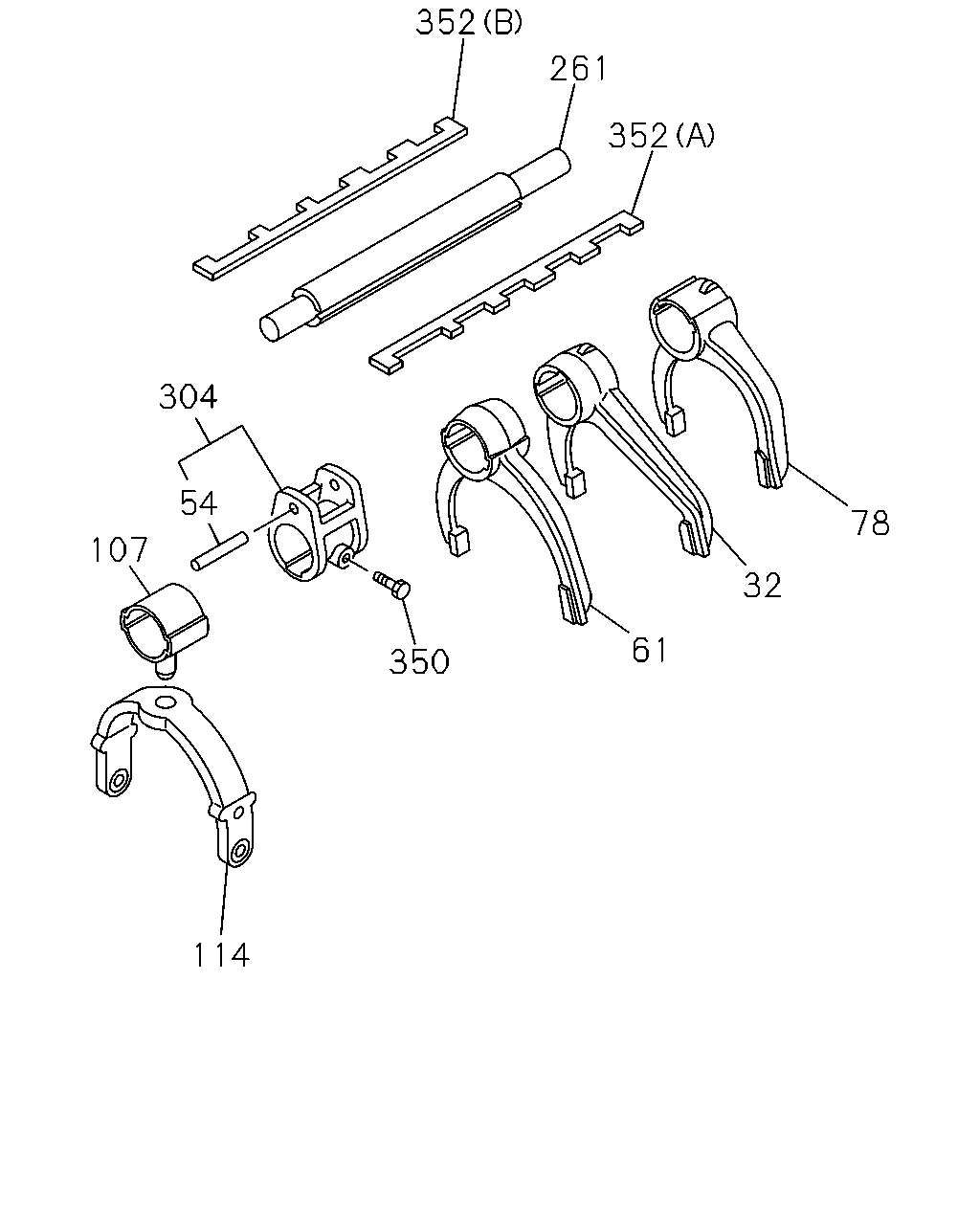

çizim 321359
352 261 352 78 32 61 350 114 107 54 304
BalonParca AdiParca NoAdetTipApplied Date
32 ARM; SHIFT,1ST & 2ND 1-33511-634-0 01 1 1212-
54 PIN; SPR,SHIFT BLOCK 1-33519-101-0 01 1 1212-
61 ARM; SHIFT,3RD & 4TH 1-33511-635-0 01 1 1212-
78 ARM; SHIFT,REV 1-33511-633-0 01 1 1212-
107 BLOCK; SHIFT,OD TO TOP 1-33511-636-0 01 1 1212-
114 ARM; SHIFT,OD TO TOP 1-33511-637-0 01 1 1212-
261 ROD; GEAR CONT 1-33531-480-0 01 1 1212-
304 BLOCK; SHIFT SHAFT 1-33511-534-0 01 1 1212-
350 SCREW; SHIFT ARM 1-33519-163-0 01 1 1212-
352 ROD; SHIFT,RANGE CHANGE
(B) 		1-33539-082-0 01 1 1212-
352 ROD; SHIFT,RANGE CHANGE
(A) 		1-33539-083-0 01 1 1212-

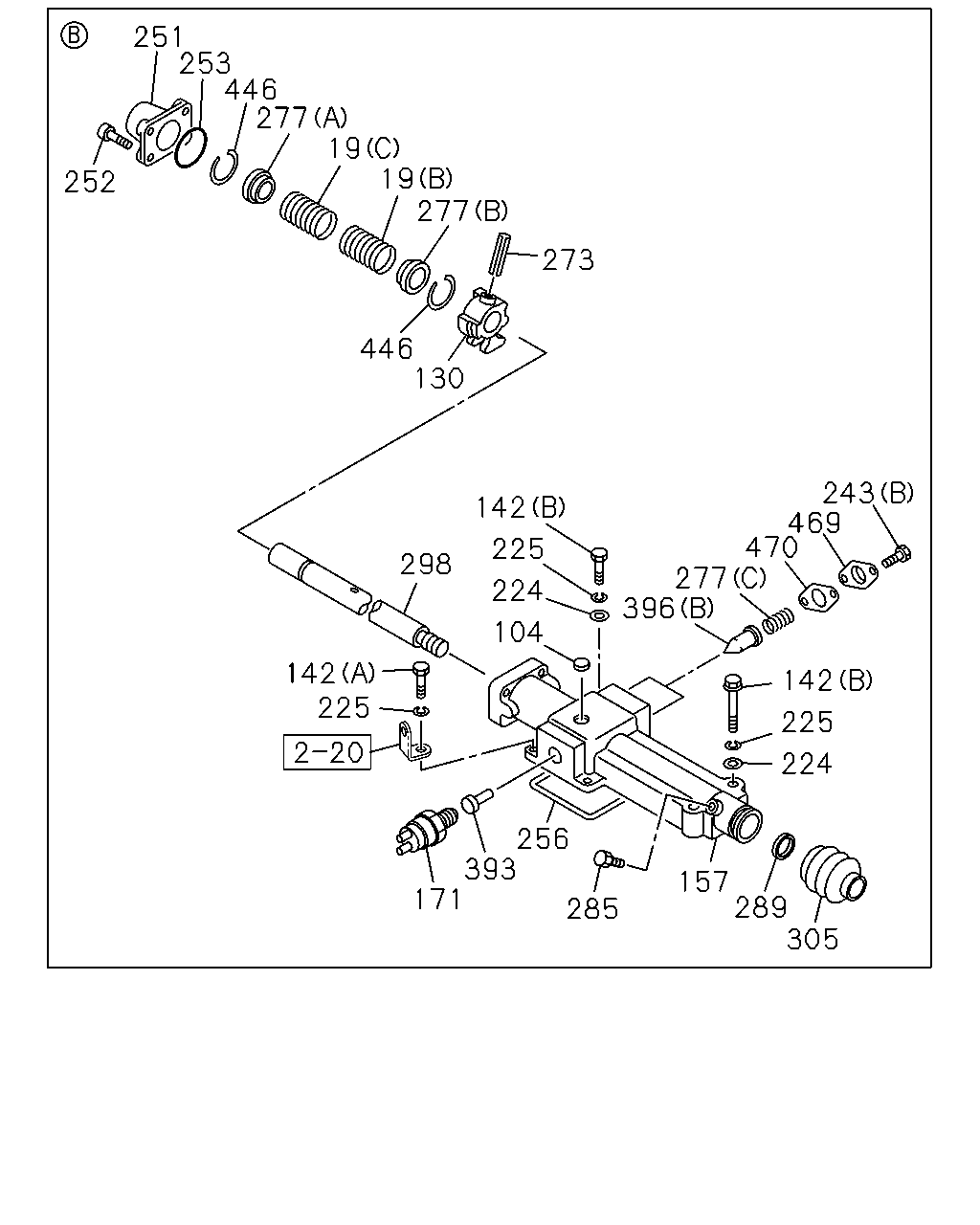

çizim 322364
251 252 446 253 277 19 19 277 273 130 446 142 298 224 225 104 396 470 277 469 243 142 225 224 305 289 157 285 256 393 171 225 142
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
(A) 		1-33539-085-0 01 1 1212-
19 SPRING; COIL COMP
(B) 		1-33549-392-0 01 1 1212-
19 SPRING; COIL COMP
(C) 		1-33549-393-0 01 1 1212-
104 PLUG; PLATE 1-33549-550-0 01 1 1212-
130 LEVER; SHIFT,INTERNAL 1-33521-186-0 01 1 1212-
142 BOLT; QUAD BOX
(A) 		1-33119-569-0 04 1 1212-
142 BOLT; QUAD BOX
(B) 		1-33119-585-0 02 1 1212-
157 BOX; QUAD,TRANS 1-33541-537-0 01 1 1212-
171 SWITCH; NEUTRAL 1-82440-123-0 01 1 1212-
224 WASHER; PL,QUAD BOX 1-33119-567-0 05 1 1212-
225 WASHER; LK,QUAD BOX 1-33119-568-0 06 1 1212-
243 BOLT; COVER
(A) 		1-33119-575-0 02 1 1212-
243 BOLT; COVER
(B) 		1-33549-551-0 02 1 1212-
251 COVER; SIDE 1-33545-013-0 01 1 1212-
252 BOLT; SIDE COVER 1-33549-552-0 04 1 1212-
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33544-055-0 01 1 1212-
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-391-0 01 1 1212-
273 PIN; SPR,STOPPER 1-33529-095-0 01 1 1212-
277 PLATE; SPRING SEAT
(A) 		1-33549-388-0 01 1 1212-
277 PLATE; SPRING SEAT
(B) 		1-33549-389-0 01 1 1212-
277 PLATE; SPRING SEAT
(C) 		1-33549-395-0 01 1 1212-
285 BREATHER; AIR,QUAD BOX 1-33549-354-0 01 1 1212-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		1-33542-061-0 01 1 1212-
298 SHAFT; SHIFT LEVER 1-33522-209-0 01 1 1212-
305 BOOT; LEVER SHAFT 1-33549-233-0 01 1 1212-
393 PIN; SW 1-33549-394-0 01 1 1212-
396 PLUNGER; SHIFT ROD
(A) 		1-33539-084-0 01 1 1212-
396 PLUNGER; SHIFT ROD
(B) 		1-33549-390-0 01 1 1212-
446 RING; SNAP,SPR SEAT 1-33549-223-0 02 1 1212-
469 COVER; SPRING,QUAD BOX 1-33119-574-0 01 1 1212-
470 GASKET; SPRING COVER 1-33119-489-0 02 1 1212-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
