◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10868 - EXR LHD FUEL TANK 400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#11151) — 141 parça

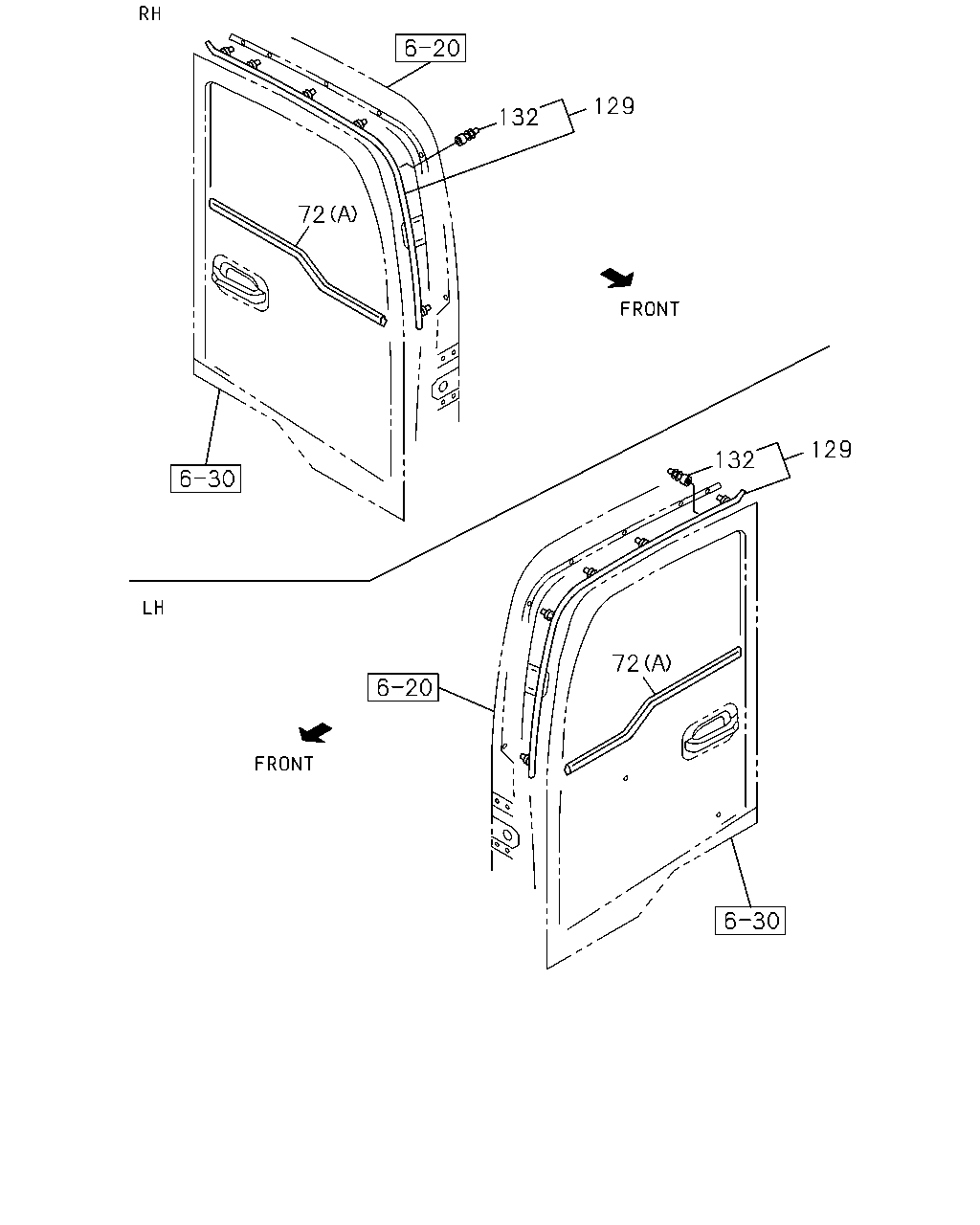

çizim 20581
129 132 72 129 132 72
BalonParca AdiParca NoAdetTipApplied Date
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 0105-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 0105-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 0105-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 0105-
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 0105-
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 0105-
132 CLIP; SEAL,DOOR
YELLOW 		1-09987-254-1 06 1 0105-
132 CLIP; SEAL,DOOR
NATURAL 		1-09987-253-1 06 1 0105-

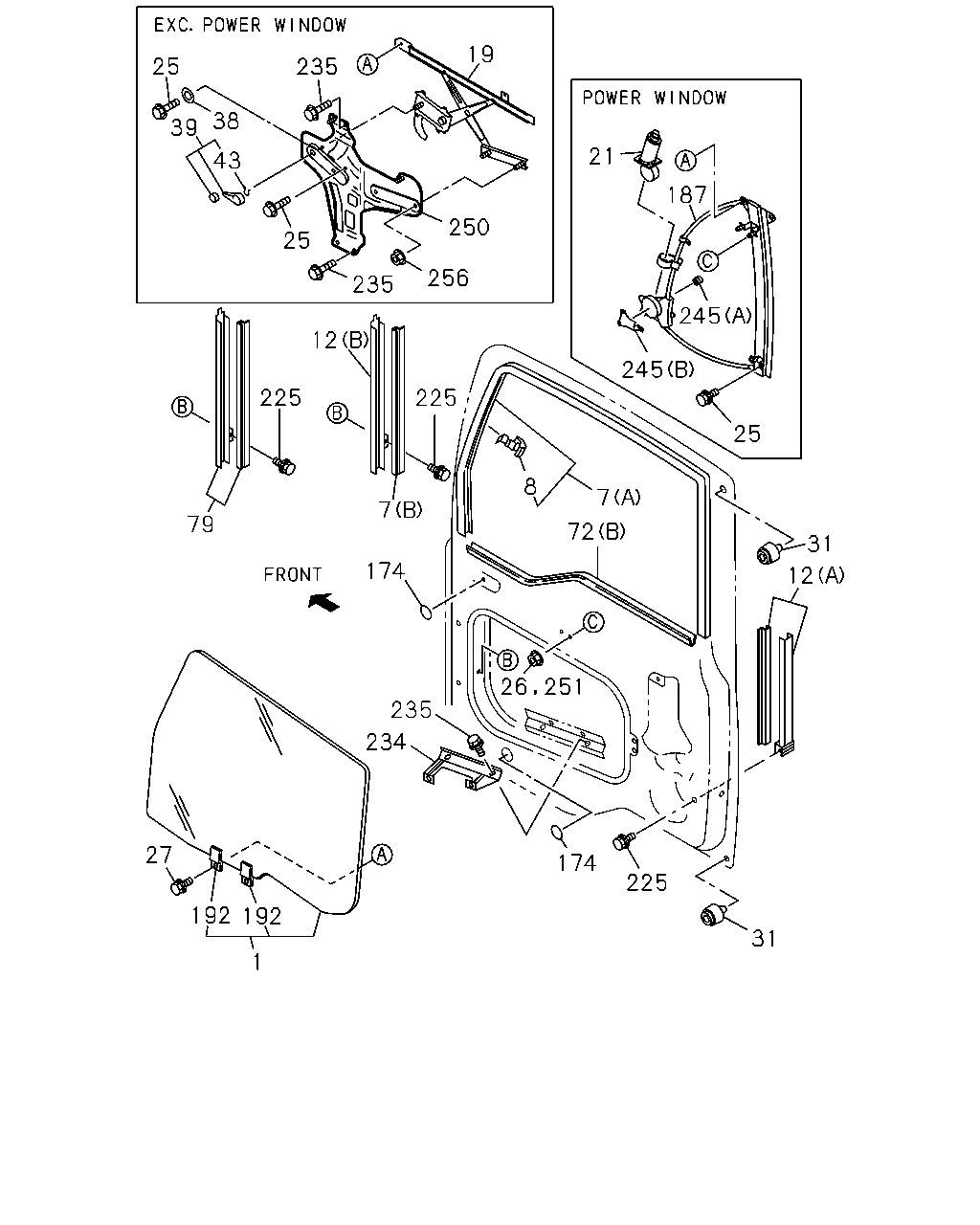

çizim 20582
19 25 235 38 39 21 43 187 250 25 256 235 245 12 245 225 225 25 8 7 7 79 72 31 174 12 235 234 27 174 225 192 192 31 1 26 251
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-095-2 01 1 0105-
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-177-2 01 1 0105-
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-094-2 01 1 0105-
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76167-174-2 01 1 0105-
7 GLASS RUN; FRT DOOR
(A) 		1-74318-022-8 01 1 0105-
7 GLASS RUN; FRT DOOR
(A) 		1-74318-021-8 01 1 0105-
7 GLASS RUN; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74318-042-0 01 1 0105-
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 0105-
12 CHANNEL; GLASS RUN,FRT
(A) 		1-74338-071-2 01 1 0105-
12 CHANNEL; GLASS RUN,FRT
(A) 		1-74338-070-2 01 1 0105-
12 CHANNEL; GLASS RUN,FRT
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74338-036-0 01 1 0105-
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74418-134-4 01 1 0105-
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74418-144-4 01 1 0105-
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-177-0 01 1 0105-
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-176-0 01 1 0105-
25 BOLT; WINDOW REG
EXC. POWER WINDOW<A30> M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 0105-
25 BOLT; WINDOW REG
POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 0105-0405
25 BOLT; WINDOW REG
POWER WINDOW<A30> M6X16 FLANGE 		0-28080-616-0 10 1 0406-
26 NUT; FLANGE,WINDOW REG
POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 06 1 0105-
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0105-
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 0105-
38 WASHER; PL,WINDOW REG
EXC. POWER WINDOW<A30> ID=6.4 OD=14 T=1 		1-09985-187-0 04 1 0105-
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A30> BLACK 		8-94371-427-0 02 1 0105-
43 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW<A30> 		8-94220-591-0 02 1 0105-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 0105-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 0105-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 0105-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 0105-
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-2 01 1 0105-
79 CHANNEL; DOOR GLASS,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74338-068-2 01 1 0105-
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 12 1 0105-0212
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 13 1 0301-
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 14 1 0105-0212
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 16 1 0301-
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 20 1 0105-0212
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 22 1 0301-
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> OD=52 BLACK 		1-76798-041-0 02 1 0105-
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-179-3 01 1 0105-
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-178-3 01 1 0105-
192 HOLDER; DOOR GLASS 1-74427-170-0 04 1 0105-
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 04 1 0105-
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 0105-
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 0105-
235 BOLT; BRKT
EXC. POWER WINDOW<A30> M6X16 FLANGE 		0-28080-616-0 08 1 0406-
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0105-0405
235 BOLT; BRKT
EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0105-0405
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0406-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (A) 		1-74417-074-0 02 1 0106-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (B) 		1-74418-181-0 01 1 0105-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (B) 		1-74418-180-0 01 1 0105-
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-148-0 01 1 0105-
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-149-0 01 1 0105-
251 NUT; BRKT
EXC. POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 04 1 0105-
256 NUT
EXC. POWER WINDOW<A30> M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0105-

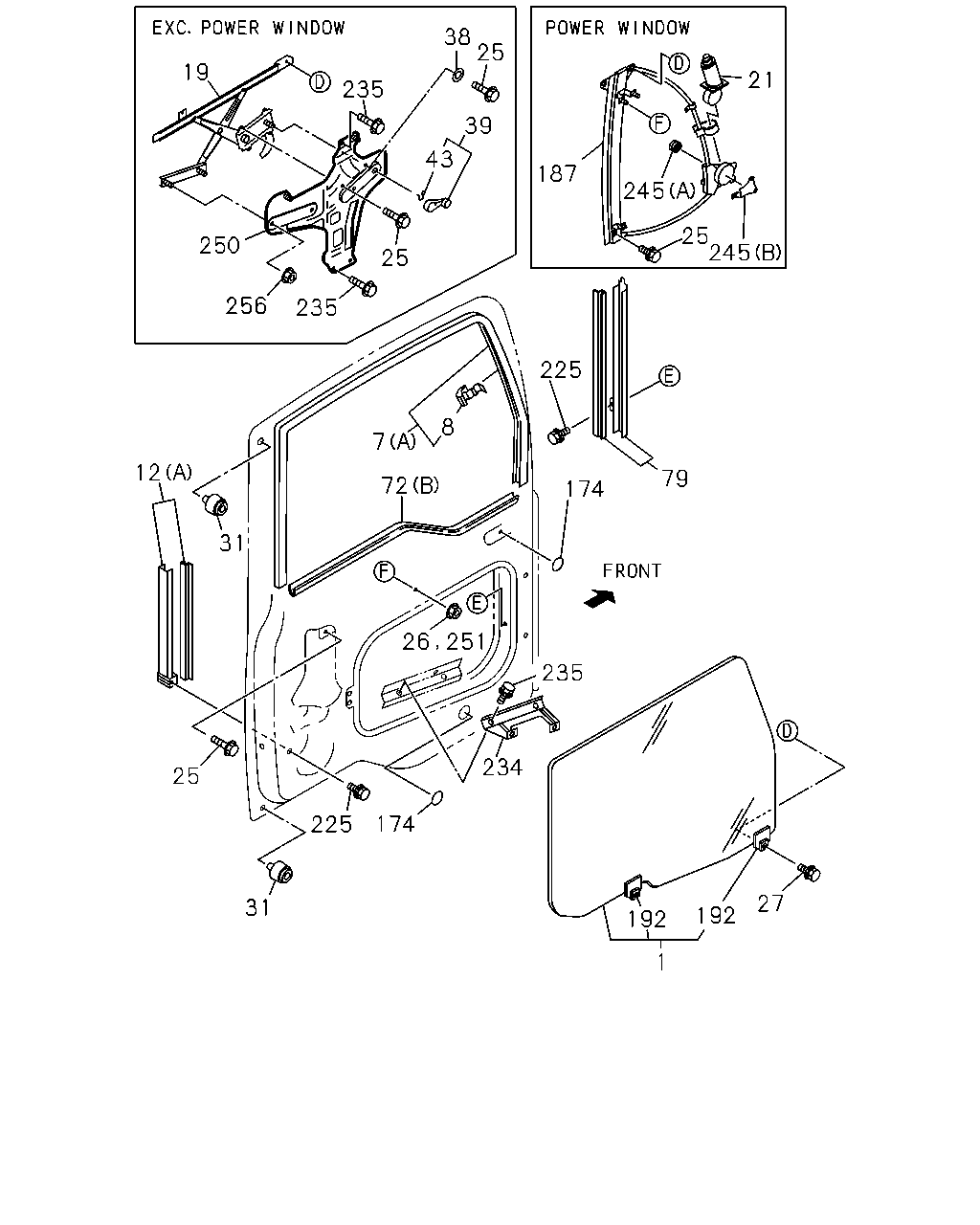

çizim 20583
38 25 19 21 235 39 43 187 245 25 245 250 25 256 235 225 8 7 12 79 72 174 31 235 234 25 225 174 192 27 31 192 1 26 251
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-095-2 01 1 0105-
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-177-2 01 1 0105-
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-094-2 01 1 0105-
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76167-174-2 01 1 0105-
7 GLASS RUN; FRT DOOR
(A) 		1-74318-022-8 01 1 0105-
7 GLASS RUN; FRT DOOR
(A) 		1-74318-021-8 01 1 0105-
7 GLASS RUN; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74318-042-0 01 1 0105-
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 0105-
12 CHANNEL; GLASS RUN,FRT
(A) 		1-74338-071-2 01 1 0105-
12 CHANNEL; GLASS RUN,FRT
(A) 		1-74338-070-2 01 1 0105-
12 CHANNEL; GLASS RUN,FRT
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74338-036-0 01 1 0105-
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74418-134-4 01 1 0105-
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74418-144-4 01 1 0105-
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-177-0 01 1 0105-
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-176-0 01 1 0105-
25 BOLT; WINDOW REG
EXC. POWER WINDOW<A30> M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 0105-
25 BOLT; WINDOW REG
POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 0105-0405
25 BOLT; WINDOW REG
POWER WINDOW<A30> M6X16 FLANGE 		0-28080-616-0 10 1 0406-
26 NUT; FLANGE,WINDOW REG
POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 06 1 0105-
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0105-
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 0105-
38 WASHER; PL,WINDOW REG
EXC. POWER WINDOW<A30> ID=6.4 OD=14 T=1 		1-09985-187-0 04 1 0105-
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A30> BLACK 		8-94371-427-0 02 1 0105-
43 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW<A30> 		8-94220-591-0 02 1 0105-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 0105-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 0105-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 0105-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 0105-
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-2 01 1 0105-
79 CHANNEL; DOOR GLASS,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74338-068-2 01 1 0105-
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 12 1 0105-0212
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 13 1 0301-
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 14 1 0105-0212
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> OD=25 BLACK 		1-76798-019-0 16 1 0301-
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 20 1 0105-0212
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 22 1 0301-
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> OD=52 BLACK 		1-76798-041-0 02 1 0105-
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-179-3 01 1 0105-
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-178-3 01 1 0105-
192 HOLDER; DOOR GLASS 1-74427-170-0 04 1 0105-
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 04 1 0105-
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 0105-
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 0105-
235 BOLT; BRKT
EXC. POWER WINDOW<A30> M6X16 FLANGE 		0-28080-616-0 08 1 0406-
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0105-0405
235 BOLT; BRKT
EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0105-0405
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0406-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (A) 		1-74417-074-0 02 1 0106-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (B) 		1-74418-181-0 01 1 0105-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (B) 		1-74418-180-0 01 1 0105-
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-148-0 01 1 0105-
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-149-0 01 1 0105-
251 NUT; BRKT
EXC. POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 04 1 0105-
256 NUT
EXC. POWER WINDOW<A30> M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0105-

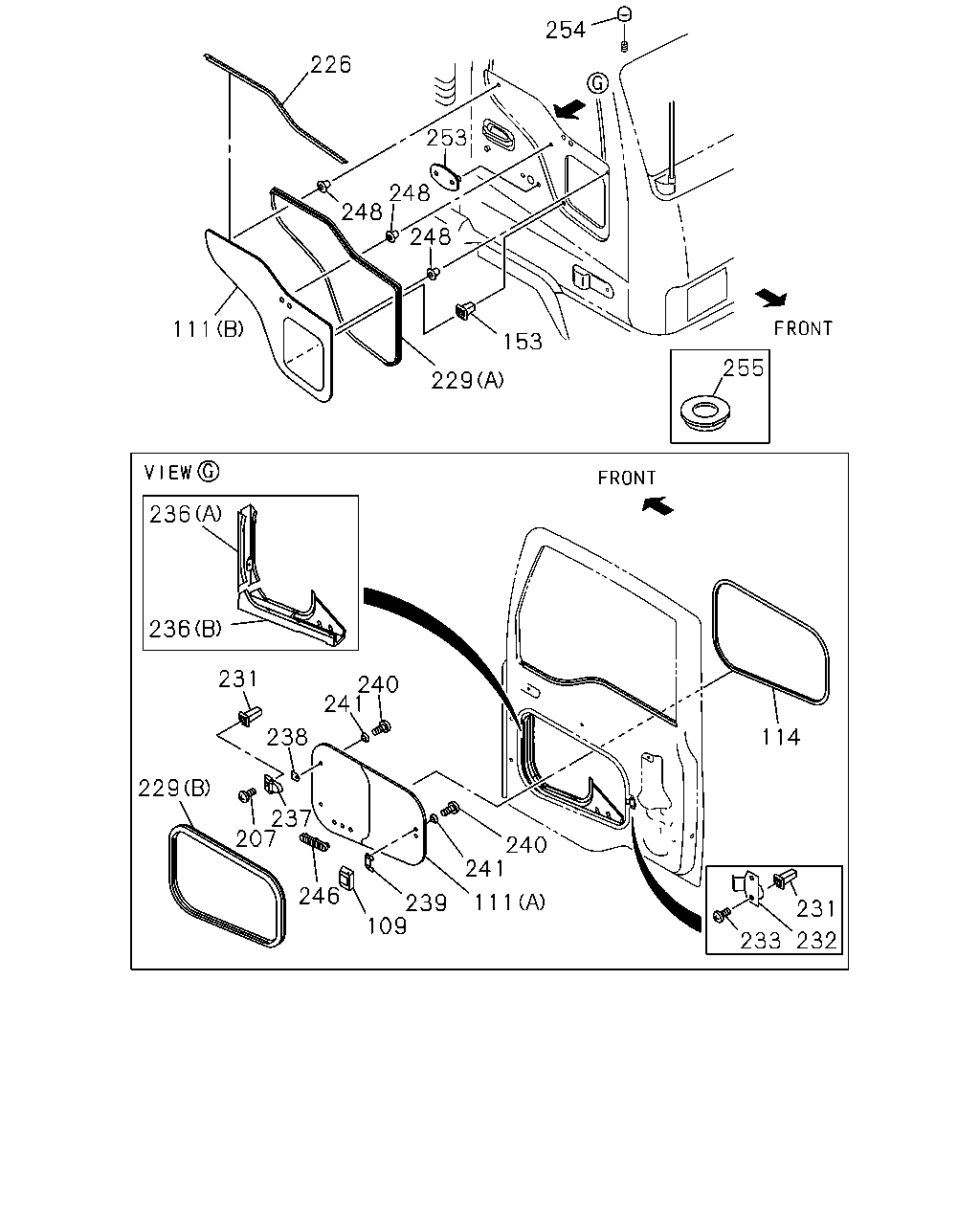

çizim 80706
254 226 253 248 248 248 111 153 255 229 236 236 231 240 241 238 114 229 237 207 240 241 246 111 239 109 231 232 233
BalonParca AdiParca NoAdetTipApplied Date
109 LOCK ASM; DOOR WINDOW GLASS
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-052-0 01 1 0105-
111 GLASS; FRT DOOR,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-76148-081-3 01 1 0105-
111 GLASS; FRT DOOR,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		8-97893-167-1 01 1 0105-
114 MOLDING; OK WINDOW,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-71538-037-2 01 1 0105-
153 GROMMET; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 01 1 0105-
207 SCREW; DOOR GLASS
DOOR WITH UNDER VIEW WINDOW<YD8> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0105-
226 FINISHER; OK WINDOW,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76738-156-1 01 1 0105-
229 SEAL; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (A) OUTER 		1-76738-160-4 01 1 0105-
229 SEAL; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (B) INNER 		1-76738-161-1 01 1 0105-
231 GROMMET; SCREW
DOOR WITH UNDER VIEW WINDOW<YD8> D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 04 1 0105-
232 STRIKER; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-055-1 01 1 0105-
233 SCREW; STRIKER
DOOR WITH UNDER VIEW WINDOW<YD8> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0105-
236 COVER; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-73338-461-2 01 1 0105-
236 COVER; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-73338-462-0 01 1 0105-
237 HINGE; DOOR WINDOW GLASS
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-050-1 02 1 0105-
238 SHEET; HINGE
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-051-0 02 1 0105-
239 SHEET; LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-053-0 01 1 0105-
240 SCREW; HINGE & LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> M6X12 		8-94279-346-0 04 1 0105-
241 GASKET; HINGE & LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-054-0 04 1 0105-
246 GRILLE; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74298-002-1 01 1 0105-
248 FASTENER
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-072-0 01 1 0105-
248 FASTENER
DOOR WITH UNDER VIEW WINDOW<YD8> ID=5.4 OD=6.8 		1-09989-019-0 03 1 0105-
253 COVER; CONNECTOR
DOOR WITH UNDER VIEW WINDOW<YD8> 		8-97865-049-0 01 1 0105-
254 CAP; MIRROR STAY
DOOR WITH UNDER VIEW WINDOW<YD8> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 		8-94276-413-1 02 1 0105-
255 GROMMET; MIRROR
DOOR WITH UNDER VIEW WINDOW<YD8> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> OD=25 		8-94225-442-0 02 1 0105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
