9-01 — TOOLS (#111507) — 72 parça

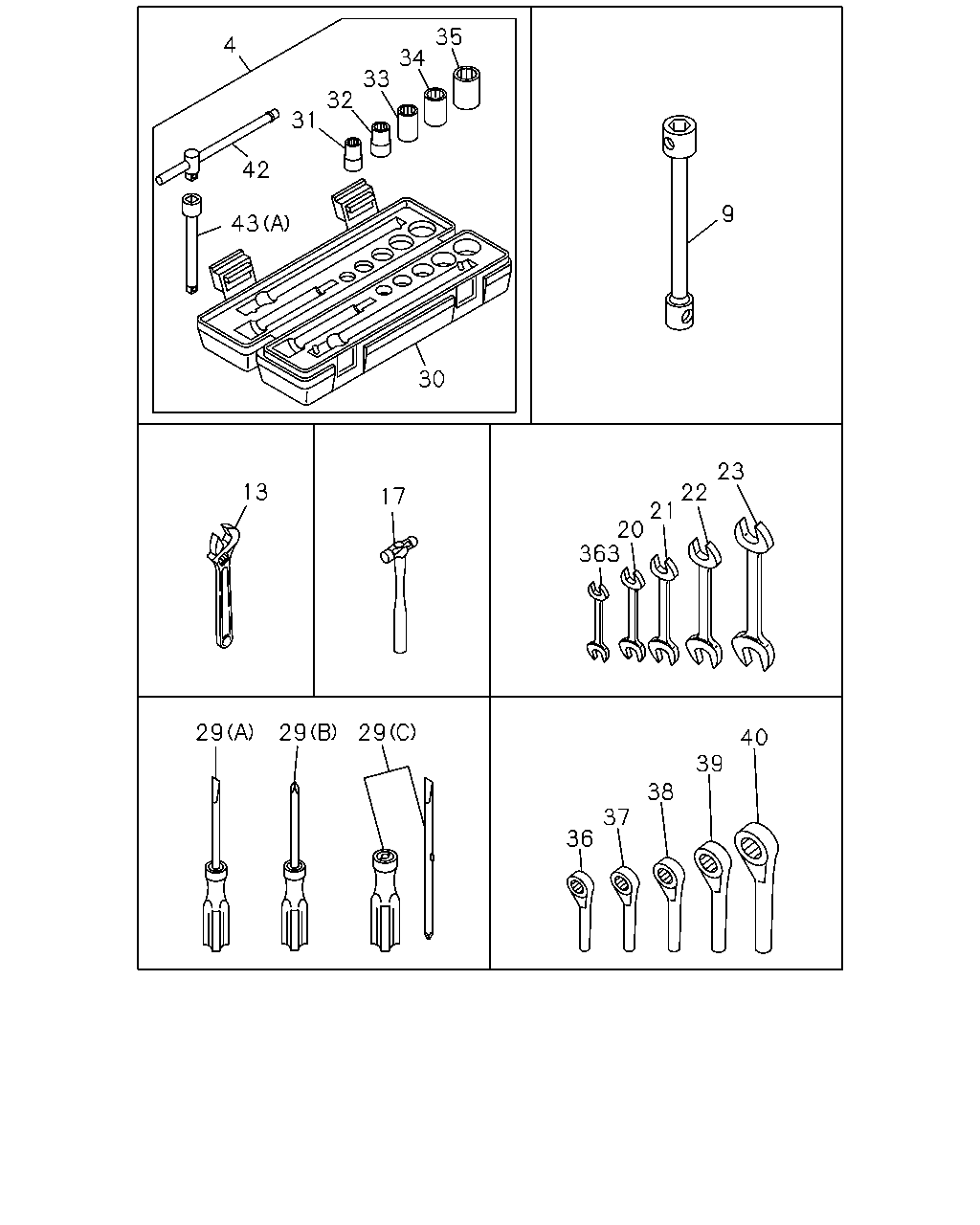

4 42 43 31 32 33 34 35 9 30 13 17 363 23 22 21 20 29 29 29 36 38 40 39 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	WRENCH KIT; SOCKET CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1>	1-85000-491-0	01	1	1212-	●	●
9	WRENCH; WHEEL PIN CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> B=41X21 L=440	1-85113-015-1	01	1	1212-	●	●
9	WRENCH; WHEEL PIN INTERNATIONAL STANDARD ISO 10STUD<B3V> CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> B=33X30 L=450	1-85111-033-1	01	1	1212-	●	●
13	WRENCH; MONKEY CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> L=247	1-85117-006-0	01	1	1212-1407	●	●
13	WRENCH; MONKEY CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> L=255	8-98270-303-0	01	1	1408-	●	●
17	HAMMER CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1>	9-85121-406-0	01	1	1212-	●	●
20	WRENCH; 10X12 CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> 10X12	0-95902-510-0	01	1	1212-	●	●
21	WRENCH; 14X17 CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> 14X17	0-95902-514-0	01	1	1212-	●	●
22	WRENCH; 19X22 CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> 19X22	0-95902-519-0	01	1	1212-	●	●
23	WRENCH; 24X27 CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> 24X27	0-95902-524-0	01	1	1212-	●	●
29	DRIVER; SCREW CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> (A) <-> L=285	1-85151-004-0	01	1	1212-	●	●
29	DRIVER; SCREW CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> (C) <+>,<-> L=160	8-94242-798-1	01	1	1212-	●	●
29	DRIVER; SCREW CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> (B) <+> L=275	9-09595-023-0	01	1	1212-	●	●
30	BOX; SOCKET WRENCH CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1>	1-85000-492-0	01	1	1212-	●	●
31	WRENCH; 12 CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1>	1-85000-495-0	01	1	1212-	●	●
32	WRENCH; 14 CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1>	1-85000-496-0	01	1	1212-	●	●
33	WRENCH; 17 CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1>	1-85000-497-0	01	1	1212-	●	●
34	WRENCH; 19 CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1>	1-85000-498-0	01	1	1212-	●	●
35	WRENCH; 22 CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1>	1-85000-499-0	01	1	1212-	●	●
36	WRENCH; 24	9-85111-377-0	01	1	1212-	●	●
37	WRENCH; 27	9-85111-375-0	01	1	1212-	●	●
38	WRENCH; 32	9-85111-358-0	01	1	1212-	●	●
39	WRENCH; 36	9-85111-374-0	01	1	1212-	●	●
40	WRENCH; 41	9-85111-356-0	01	1	1212-	●	●
42	HANDLE; SLIDING CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1>	1-85000-500-0	01	1	1212-	●	●
43	BAR; EXTENSION,SOCKET WRENCH CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> (A)	1-85000-501-0	01	1	1212-	●	●
43	BAR; EXTENSION,SOCKET WRENCH TOOL B KIT<SL1> (B) OD=25 L=480	8-98257-407-0	01	1	1502-	●	●
363	WRENCH; OPEN END 8X10 CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> 8X10	0-95902-508-0	01	1	1212-	●	●

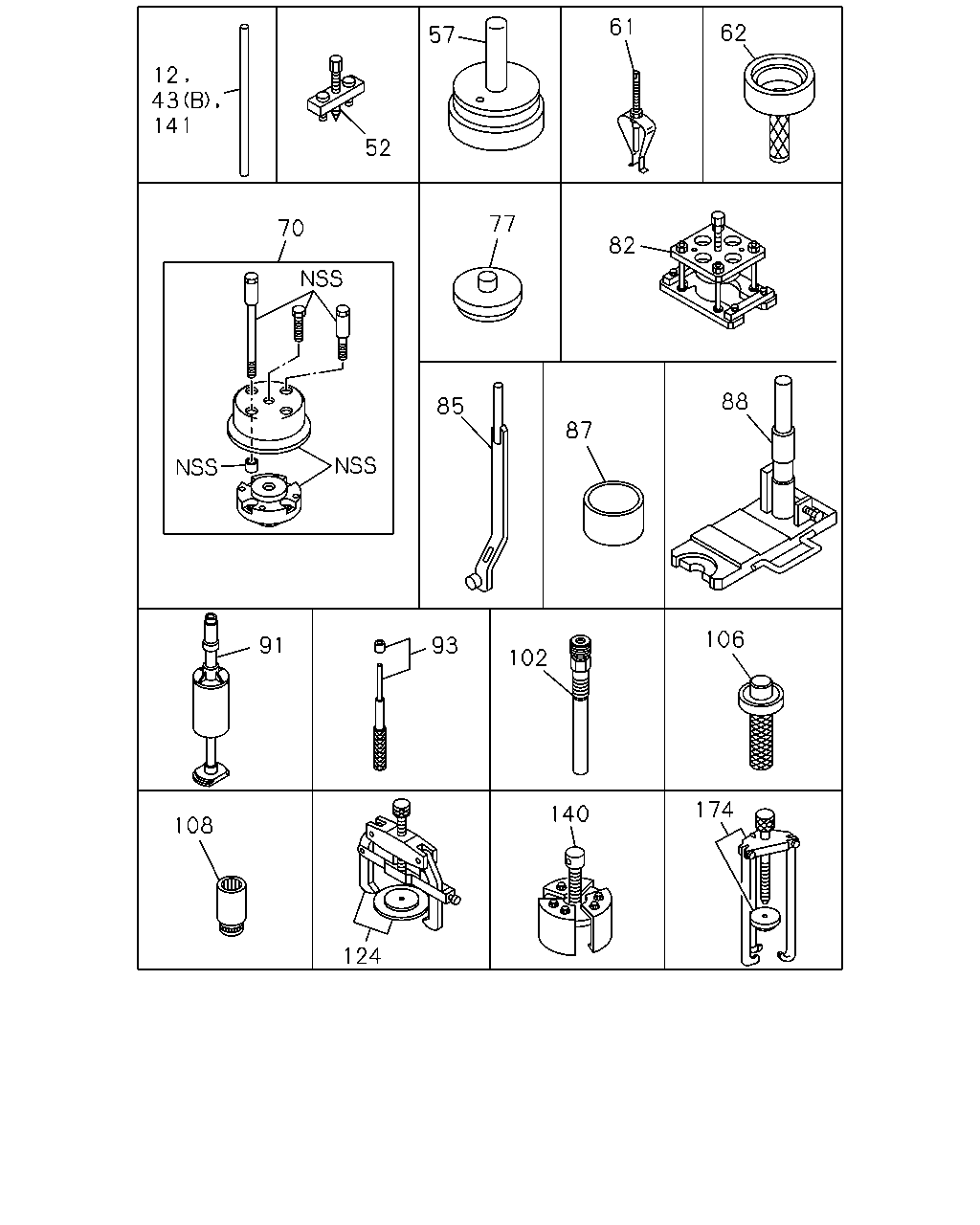

61 62 57 52 12 88 82 77 70 43 141 91 93 102 106 87 85 140 174 108 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	HANDLE; WRENCH,WHEEL PIN CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> OD=25 L=480	1-85116-011-0	01	1	1212-1501	●	●
12	HANDLE; WRENCH,WHEEL PIN CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> OD=25 L=480	8-98257-407-0	01	1	1502-	●	●
43	BAR; EXTENSION,SOCKET WRENCH CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> (A)	1-85000-501-0	01	1	1212-	●	●
43	BAR; EXTENSION,SOCKET WRENCH TOOL B KIT<SL1> (B) OD=25 L=480	8-98257-407-0	01	1	1502-	●	●
52	REMOVER; WATER PUMP	1-85210-047-0	01	1	1212-	●	●
57	TOOL; SETTING CRANK GEAR ID=144.5	1-85221-072-0	01	1	1212-	●	●
57	TOOL; SETTING CRANK GEAR ID=165.8	1-85221-075-0	01	1	1212-	●	●
61	PULLER ASM; PILOT BRG	1-85220-028-0	01	1	1212-	●	●
62	TOOL ASM; SETTING WEAR RING	1-85221-079-0	01	1	1212-	●	●
70	TOOL; SETTING,OIL SEAL	8-98194-607-0	01	1	1212-	●	●
77	TOOL; SETTING,CYL LINER	1-85221-073-0	01	1	1212-	●	●
82	PULLER ASM; CR/SHF GEAR	1-85210-051-0	01	1	1212-	●	●
85	REPLACER ASM; VALVE SPR	1-85235-007-0	01	1	1212-	●	●
87	TOOL; PISTON	1-85221-082-0	01	1	1212-	●	●
88	TOOL; CONNROD BUSHING	1-85220-037-0	01	1	1212-	●	●
91	REPLACER ASM; CYL LINER	1-85231-021-0	01	1	1212-	●	●
93	SETTING KIT; VALVE GUIDE L=260	9-85231-202-0	01	1	1212-	●	●
102	ADAPTER; COMP GAGE	5-85317-001-0	01	1	1212-	●	●
106	TOOL; SETTING PILOT BRG	1-85221-080-0	01	1	1212-	●	●
108	WRENCH; SOCKET	9-85113-132-0	01	1	1212-	●	●
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	1212-	●	●
140	REMOVER; WEAR RING	1-85210-053-0	01	1	1212-	●	●
141	HANDLE; WRENCH TOOL B KIT<SL1> OD=16 L=200	9-85111-934-0	01	1	1212-	●	●
174	PULLER ASM; MAIN CLU SHAFT 17INCH CLUTCH(RF3)	9-85210-148-0	01	1	1304-		●

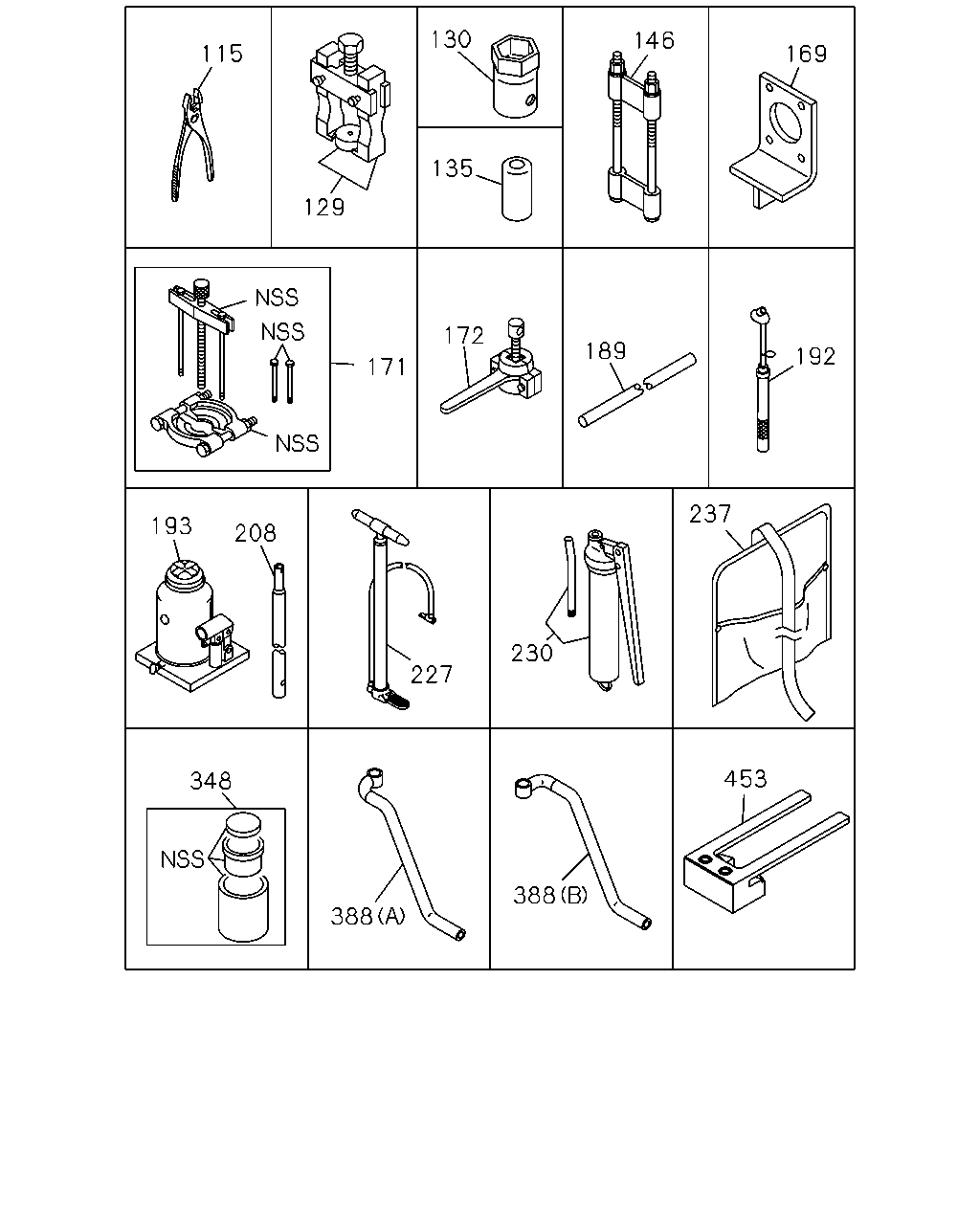

115 193 208 348 388 227 171 129 135 130 146 189 172 230 388 453 237 192 169

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
115	PLIER CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1>	5-85171-002-0	01	1	1212-1410	●	●
115	PLIER CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1>	8-98282-845-0	01	1	1411-	●	●
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	1212-	●	●
130	WRENCH; BOX TOOL B KIT<SL1> B=63	9-85111-368-0	01	1	1212-	●	●
135	COVER; ENG MTG,FRT TOOL B KIT<SL1>	9-85595-016-0	02	1	1212-	●	●
146	REPLACER KIT; LEAF SPR	9-85231-556-0	01	1	1212-	●	●
169	BRACKET; SPLINE YOKE	1-85221-317-0	01	1	1212-	●	●
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	1212-	●	●
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	1212-	●	●
189	TUBE; AIR BREATHER CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> L=460	9-85291-414-0	01	1	1212-	●	●
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	1212-	●	●
193	JACK ASM CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> 15TON	1-85510-019-2	01	1	1212-	●	●
208	HANDLE; JACK TOOL B KIT<SL1> L=600	8-98181-437-0	01	1	1212-	●	●
227	PUMP ASM; TIRE	9-85521-132-0	01	1	1212-	●	●
230	PUMP; GREASE CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1>	1-85556-007-5	01	1	1212-	●	●
237	BAG; TOOL CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1>	8-97130-902-1	01	1	1212-	●	●
348	PULLER; TORQUE ROD	1-85230-008-0	01	1	1212-	●
388	WRENCH; U-BOLT (A)	9-85111-954-0	01	1	1212-	●	●
388	WRENCH; U-BOLT (B)	9-85111-955-0	01	1	1212-	●	●
453	TOOL; SETTING,COUPLING	8-97620-813-0	01	1	1212-	●	●
