◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11499 - FYH(AUST)EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#111503) — 28 parça

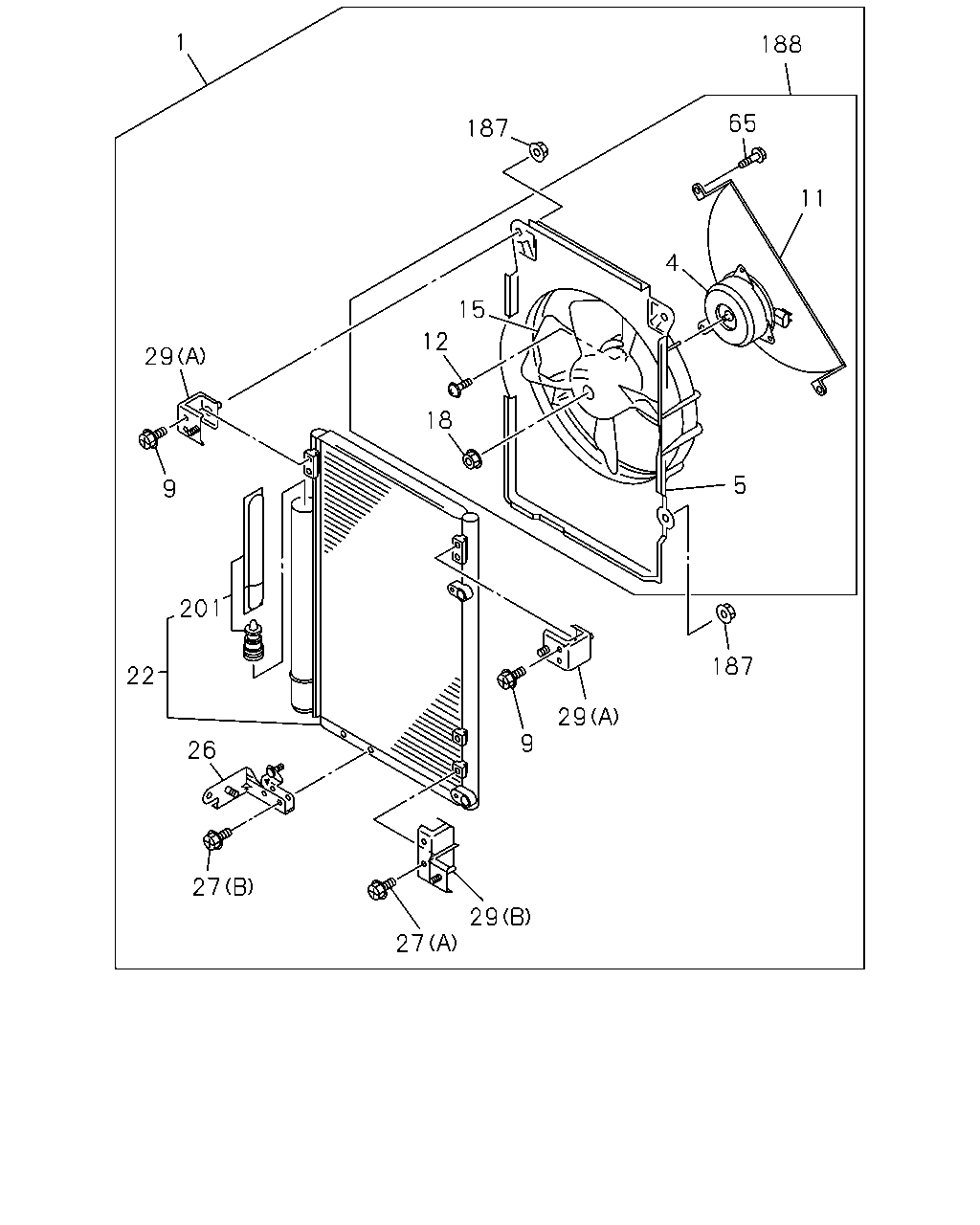

çizim 321615
1 188 187 65 11 4 15 12 29 9 18 5 187 29 9 27 29 26 27 22 201
BalonParca AdiParca NoAdetTipApplied Date A B
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98115-512-2 01 1 1212- ● ●
4 MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98116-585-0 01 1 1212- ● ●
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98076-093-0 01 1 1212- ● ●
9 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X14 		1-83539-382-0 04 1 1212- ● ●
11 COVER; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98068-234-0 01 1 1212-1308 ● ●
12 BOLT; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97180-269-0 03 1 1212- ● ●
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98076-092-0 01 1 1212-1409 ● ●
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98152-860-0 01 1 1410- ● ●
18 NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5 FLANGE 		8-94157-075-0 01 1 1212- ● ●
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-83534-261-0 01 1 1212-1409 ● ●
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98275-189-0 01 1 1410- ● ●
26 BRACKET; LOW
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-83573-281-0 01 1 1212- ● ●
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M6X14 		1-83539-382-0 02 1 1212- ● ●
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M5X25 		8-97178-770-0 02 1 1212- ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98065-914-0 02 1 1212- ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98065-915-0 01 1 1212- ● ●
65 BOLT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X16 		8-97096-525-0 03 1 1212-1308 ● ●
187 NUT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 		1-83539-354-0 04 1 1212- ● ●
188 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98116-588-1 01 1 1212- ● ●
201 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-83535-097-0 01 1 1212-1409 ● ●
201 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98282-482-0 01 1 1410- ● ●

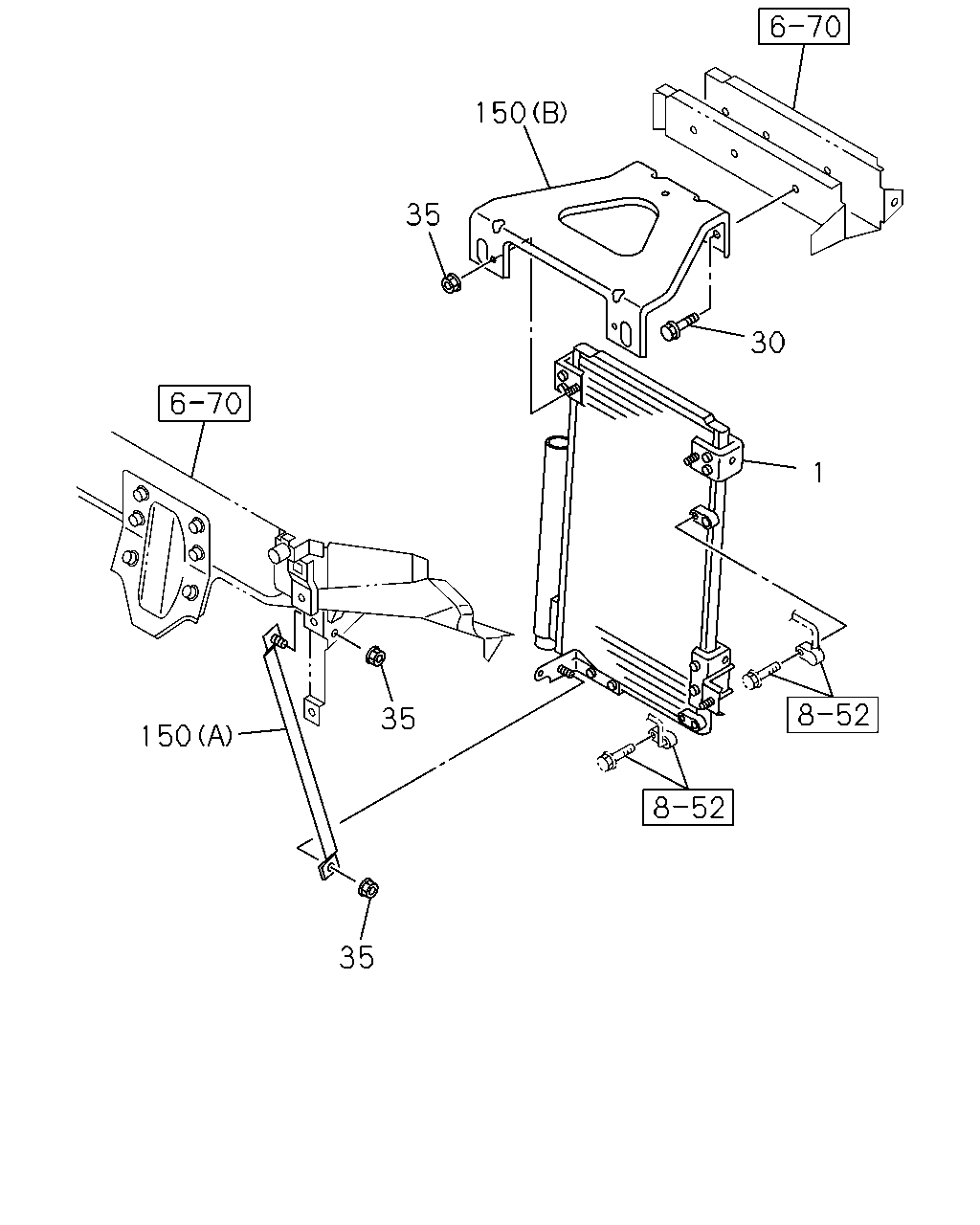

çizim 322085
150 35 30 1 150 35 35
BalonParca AdiParca NoAdetTipApplied Date A B
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98115-512-2 01 1 1212- ● ●
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X20 FLANGE 		0-28650-820-0 02 1 1212- ● ●
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8 FLANGE 		0-91180-108-0 05 1 1212- ● ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98041-321-0 01 1 1212-1405 ● ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98270-947-0 01 1 1406- ● ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98041-322-0 01 1 1212-1409 ● ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98242-412-0 01 1 1410- ● ●
