Isuzu WW
▶
TRUCKS
▶
FRR
▶
11475 - FRR-L EURO5 EXC.SPAC
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-73 - BLOWER UNIT
▶

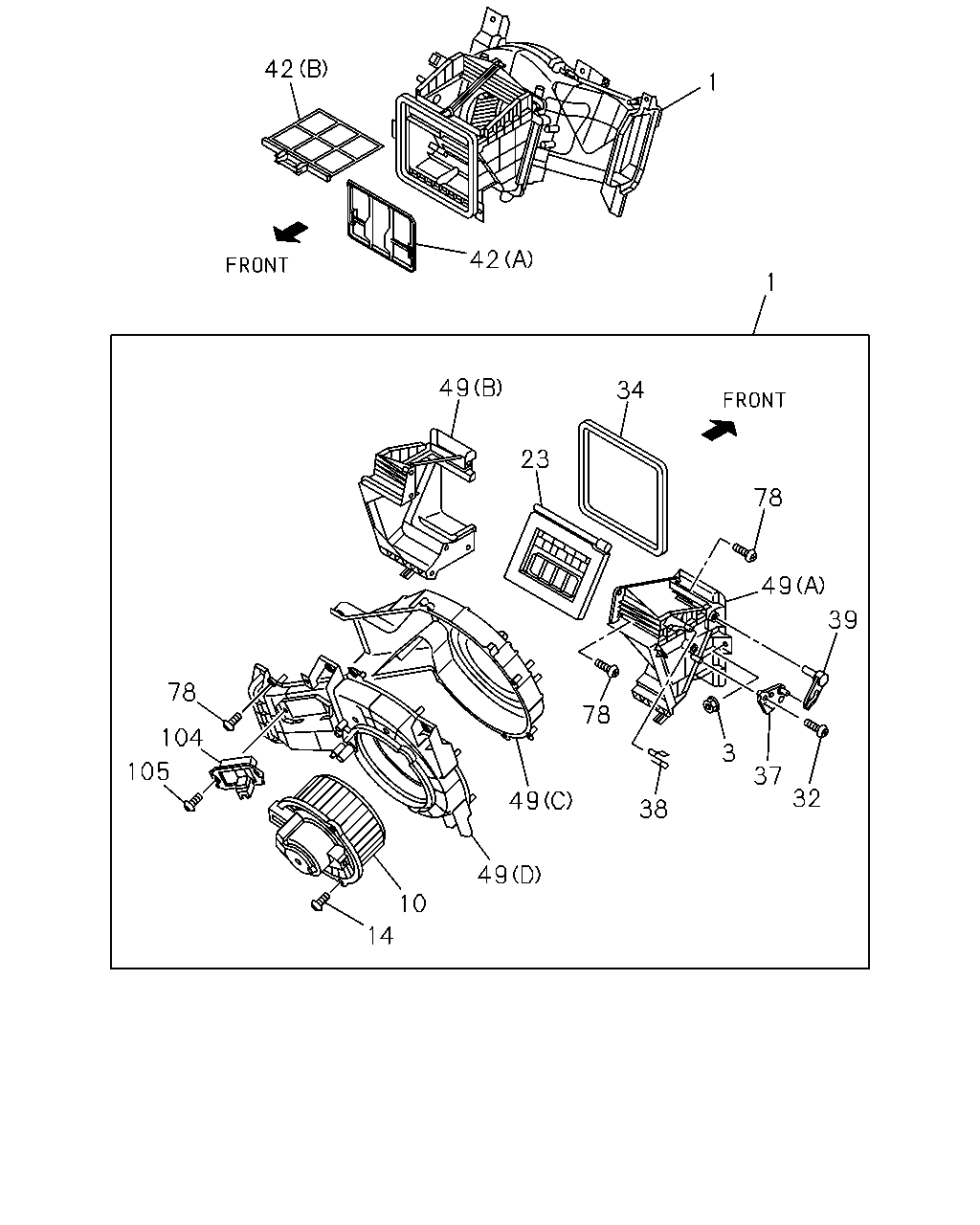

8-73 — BLOWER UNIT
(#111500) — 20 parça
◀
[873A] COMPONENT (19 parça)
[873A] BLOWER UNIT COVER (1 parça)
▶
42
1
1
42
49
34
23
78
49
39
32
37
3
38
78
49
49
10
14
105
104
78
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BLOWER ASM
8-98183-598-0
01
1
1212-
3
NUT; CASE
M6
1-83539-354-0
02
1
1212-
10
MOTOR ASM; FAN,BLOWER UNIT
8-98183-926-0
01
1
1212-
14
SCREW; COVER TO CASE
M5X16
8-98047-448-0
03
1
1212-
23
SHUTTER; BLOWER UNIT
8-98047-761-0
01
1
1212-
32
SCREW; LEVER
M4X16
8-98047-416-0
01
1
1212-
34
LINING; BLOWER UNIT
8-98096-453-0
01
1
1212-
37
LEVER; MODE LEVER
8-98047-453-0
01
1
1212-
38
CLIP; BLOWER UNIT
8-98047-417-0
01
1
1212-
39
LEVER; SHUTTER,BLOWER UNIT
8-98047-454-0
01
1
1212-
42
FILTER; BLOWER UNIT
(B)
8-98025-006-1
01
1
1212-
42
FILTER; BLOWER UNIT
(A)
8-98041-327-0
01
1
1212-
49
CASE; BLOWER UNIT
(D)
8-98047-444-0
01
1
1212-
49
CASE; BLOWER UNIT
(C)
8-98047-445-0
01
1
1212-
49
CASE; BLOWER UNIT
(B)
8-98077-415-0
01
1
1212-
49
CASE; BLOWER UNIT
(A)
8-98077-416-0
01
1
1212-
78
SCREW; CASE TO CASE
M4X16 TAPPING
8-97957-708-0
16
1
1212-
104
RESISTOR; BLOWER UNIT
8-98077-418-0
01
1
1212-
105
SCREW; RESISTOR
M4X16 TAPPING
8-97957-708-0
02
1
1212-
50
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

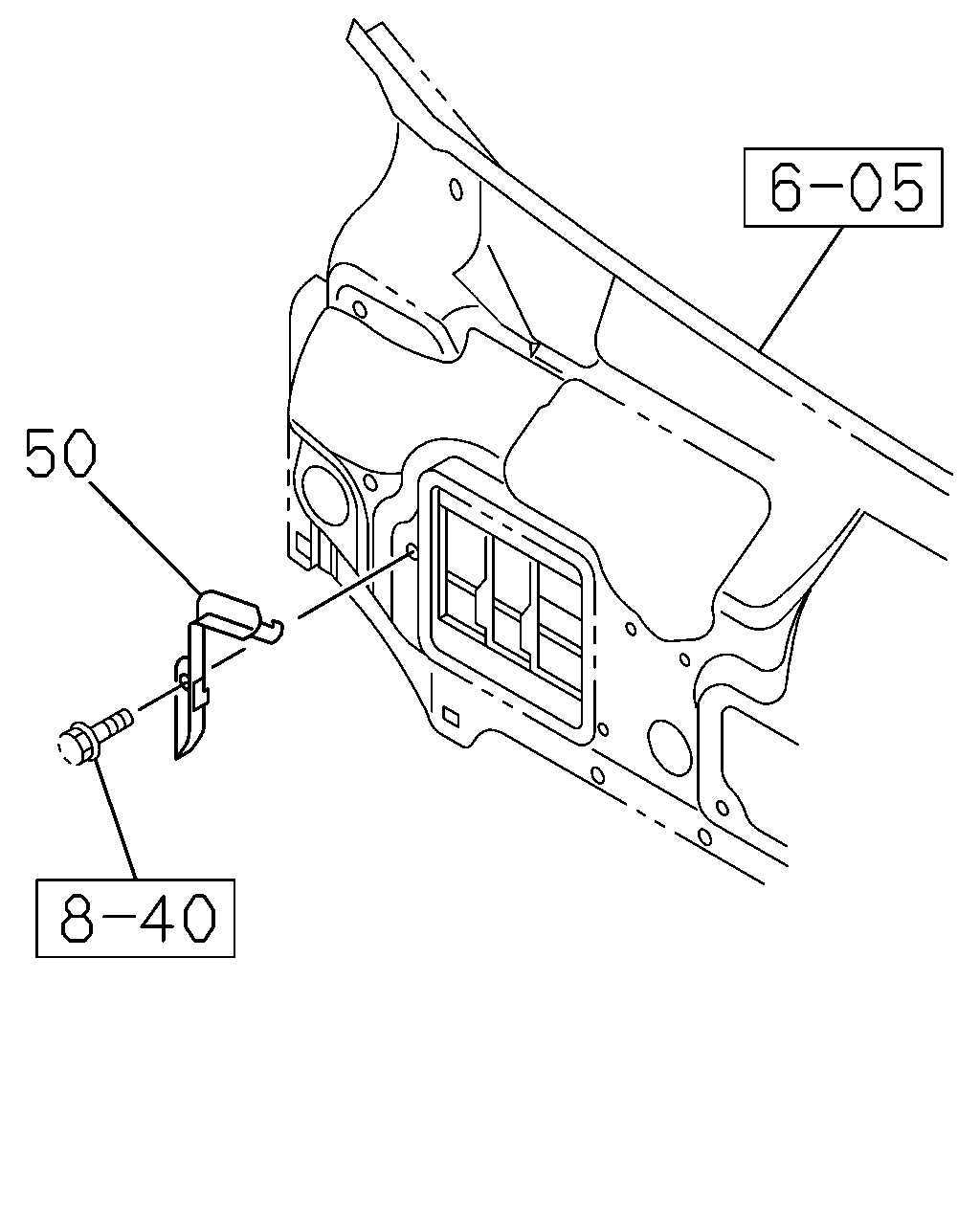

50
COVER; BLOWER UNIT
8-98071-470-5
01
1
1212-
