Isuzu WW
▶
TRUCKS
▶
FYH
▶
11499 - FYH(AUST)EURO5
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-50 - AIR CONDITIONING SYSTEM; FRONT
▶
8-50 — AIR CONDITIONING SYSTEM; FRONT
(#111494) — 19 parça
Tümü
A - FGH5MY
B - FGJ5MY
◀

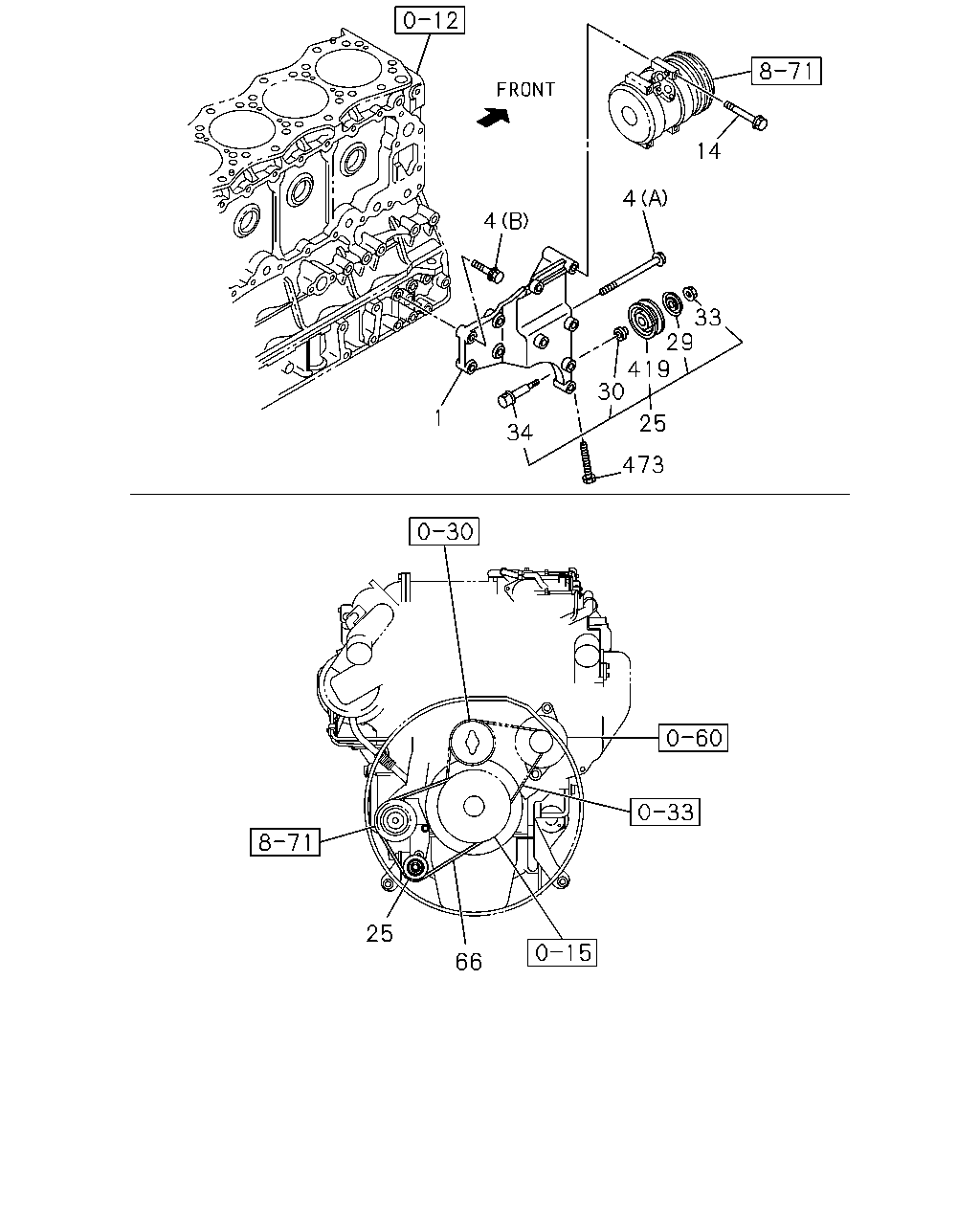

[850A] NO.2 (12 parça)
[850A] NO.3 (3 parça)
[850A] NO.1 (4 parça)
▶
473
25
30
419
29
33
4
14
4
1
25
66
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BRACKET; A/C
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
8-97632-242-1
01
1
1212-
●
●
4
BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M10X45 FLANGE
0-28151-045-0
04
1
1212-
●
●
4
BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M10X150 FLANGE
0-28156-015-0
01
1
1212-
●
●
14
BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X80 FLANGE
0-28050-880-0
04
1
1212-
●
●
25
PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
8-97603-949-0
01
1
1212-
●
●
29
COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
1-83578-100-0
01
1
1212-
●
●
30
COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
1-87540-319-0
01
1
1212-
●
●
33
NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
1-83579-985-0
01
1
1212-
●
●
34
SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
1-83579-982-0
01
1
1212-
●
●
66
BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=1274
8-98204-691-0
01
1
1212-
●
●
419
PULLEY; IDLE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
1-87540-322-0
01
1
1212-
●
●
473
BOLT; TENSIONER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X80 FLANGE
1-09044-091-0
01
1
1212-
●
●
378
378
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
378
HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)
8-98204-844-0
01
1
1212-
●
●
378
HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)
8-98041-428-0
01
1
1212-1302
●
●
378
HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)
8-98041-428-0
01
1
1303-
●
●

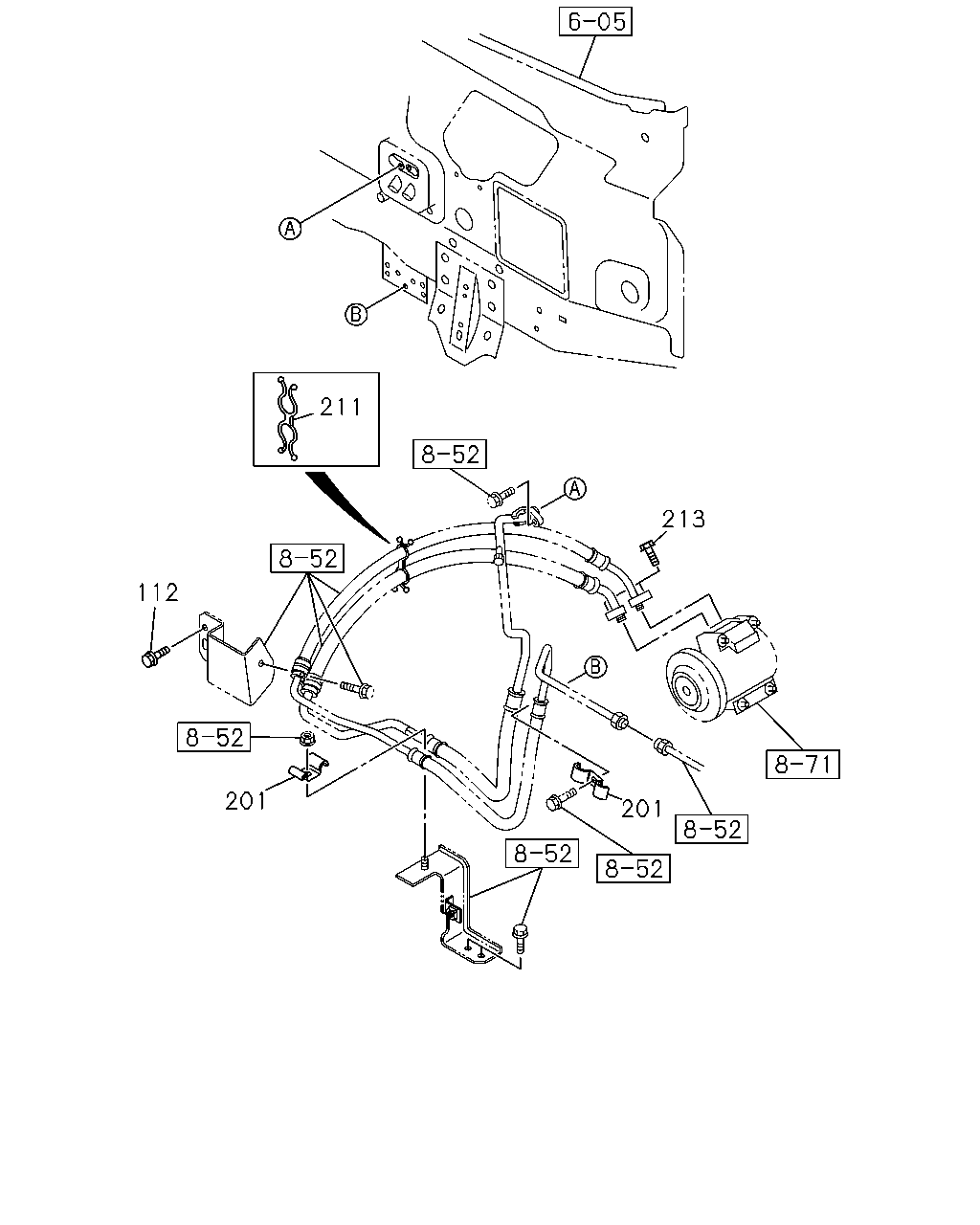

213
201
112
201
211
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
112
BOLT; STAY
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X20 FLANGE
0-28650-820-0
02
1
1212-
●
●
201
CLIP; HOSE,CMPR TO EVAP
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
8-98043-673-0
02
1
1212-
●
●
211
CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
8-94423-042-0
02
1
1212-
●
●
213
BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X25 FLANGE
0-28050-625-0
02
1
1212-
●
●
