8-50 — AIR CONDITIONING SYSTEM; FRONT (#111491) — 18 parça

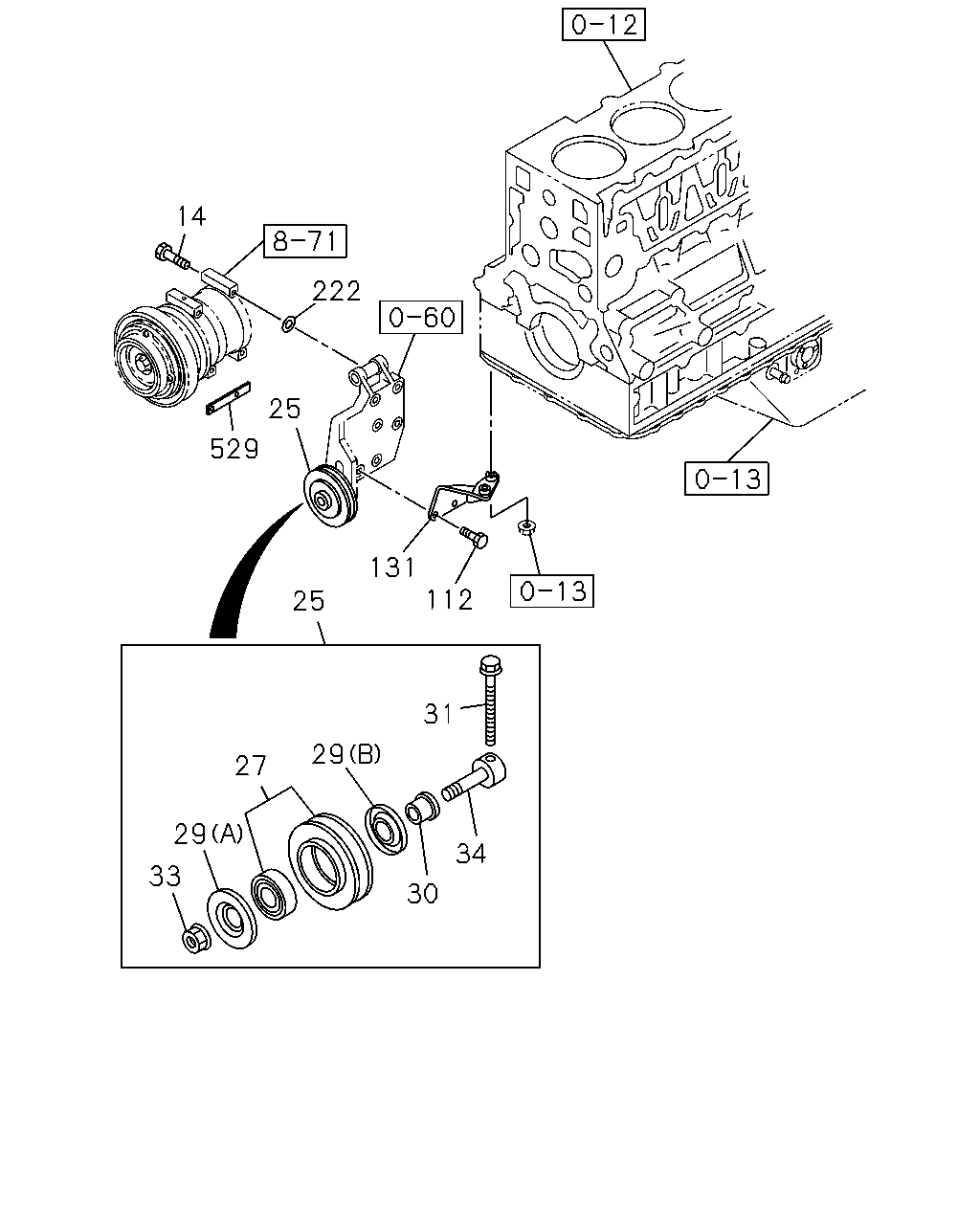

çizim 321735
30 31 34 29 27 29 33 25 112 131 529 25 222 14
BalonParca AdiParca NoAdetTipApplied Date
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M8X78 W/LK WASHER 		5-09000-228-1 04 1 1212-
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-079-0 01 1 1212-
27 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-323-0 01 1 1212-
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97605-329-0 01 1 1212-
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97605-330-0 01 1 1212-
30 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-328-0 01 1 1212-
31 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-325-0 01 1 1212-
33 NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-326-0 01 1 1212-
34 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-327-0 01 1 1212-
112 BOLT; STAY
M8X16 FLANGE 		0-28050-816-0 02 1 1212-
131 STAY; CMPR BRKT 8-97601-869-1 01 1 1212-
222 GASKET; CONNECTOR
AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2 		8-94312-733-0 02 1 1212-
529 SPACER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-271-0 01 1 1212-
çizim 322848
378 378 25 66
BalonParca AdiParca NoAdetTipApplied Date
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97605-079-0 01 1 1212-
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=1114 		8-97605-102-0 01 1 1212-
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) BEST VALUE PARTS 		1-87610-104-0 01 1 1212-
378 HOSE; DRAIN,EVAPORATOR
(A) 		8-98062-954-0 01 1 1212-
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98204-846-0 01 1 1212-
