Isuzu WW
▶
TRUCKS
▶
FRR
▶
11475 - FRR-L EURO5 EXC.SPAC
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-45 - HEATER PIPING
▶

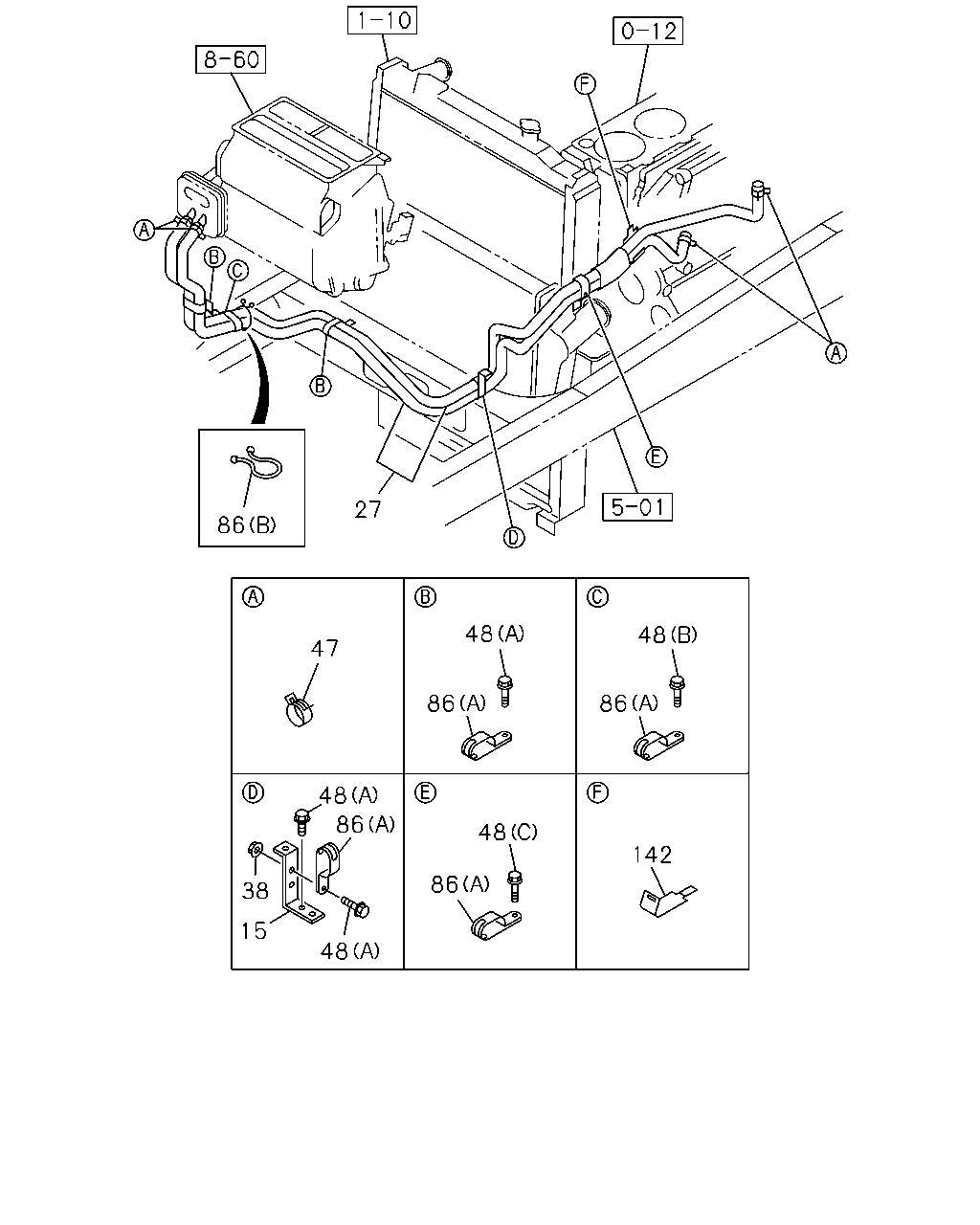

8-45 — HEATER PIPING
(#111483) — 17 parça
◀
[845A] FIXING (11 parça)
[845A] COMPONENT (6 parça)
▶
48
86
142
86
48
86
48
38
15
47
86
48
27
48
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
BRACKET; WATER HOSE
1-83571-927-1
01
1
1212-
27
HOSE; WATER,HTR UNIT TO WATER PIPE
8-98015-307-3
01
1
1212-
38
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
1212-
47
CLAMP; WATER HOSE,HTR
ID=22
8-97359-141-0
04
1
1212-
48
BOLT; CLIP FIX
(B) M8X16 FLANGE
0-28050-816-0
01
1
1212-
48
BOLT; CLIP FIX
(A) M8X25 FLANGE
0-28650-825-0
05
1
1212-
48
BOLT; CLIP FIX
(C) M8X16 W/LK&PL WASHER
1-09980-498-0
01
1
1212-
86
CLIP; HTR HOSE
(A) ID=24X2 L=25
1-09700-710-0
02
1
1212-
86
CLIP; HTR HOSE
(A) ID=24X2 L=25
1-09700-710-0
03
1
1212-
86
CLIP; HTR HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=44
8-94463-508-0
01
1
1212-
142
CLIP; BAND
L=170
8-98166-021-0
01
1
1212-
63
56
103
56
63
63
56
56
103
27
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; WATER,HTR UNIT TO WATER PIPE
8-98015-307-3
01
1
1212-
56
CLAMP; HTR HOSE
ID=22
8-97359-141-0
08
1
1212-
63
HOSE; WATER
(A)
8-98112-653-0
02
1
1212-
63
HOSE; WATER
(B)
8-98112-654-0
02
1
1212-
63
HOSE; WATER
(C)
8-98112-655-0
02
1
1212-
103
CONNECTOR; HOSE
9-09703-048-0
04
1
1212-
