8-28 — CHASSIS ELECTRICAL
(#111480) — 70 parça
Tümü
A - FGH5MY
B - FGJ5MY
◀

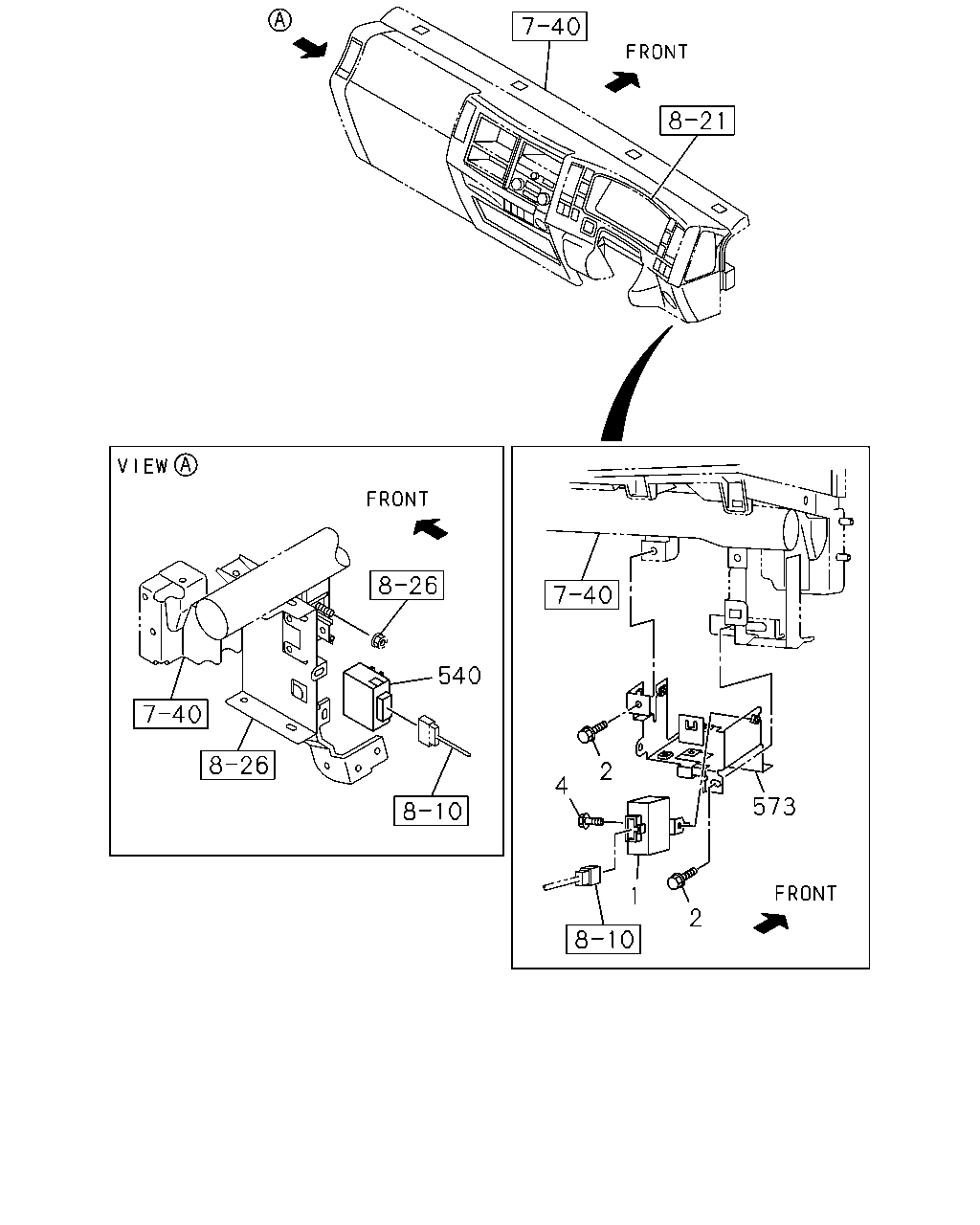

[828A] INST PANEL SIDE NO.1 (6 parça)

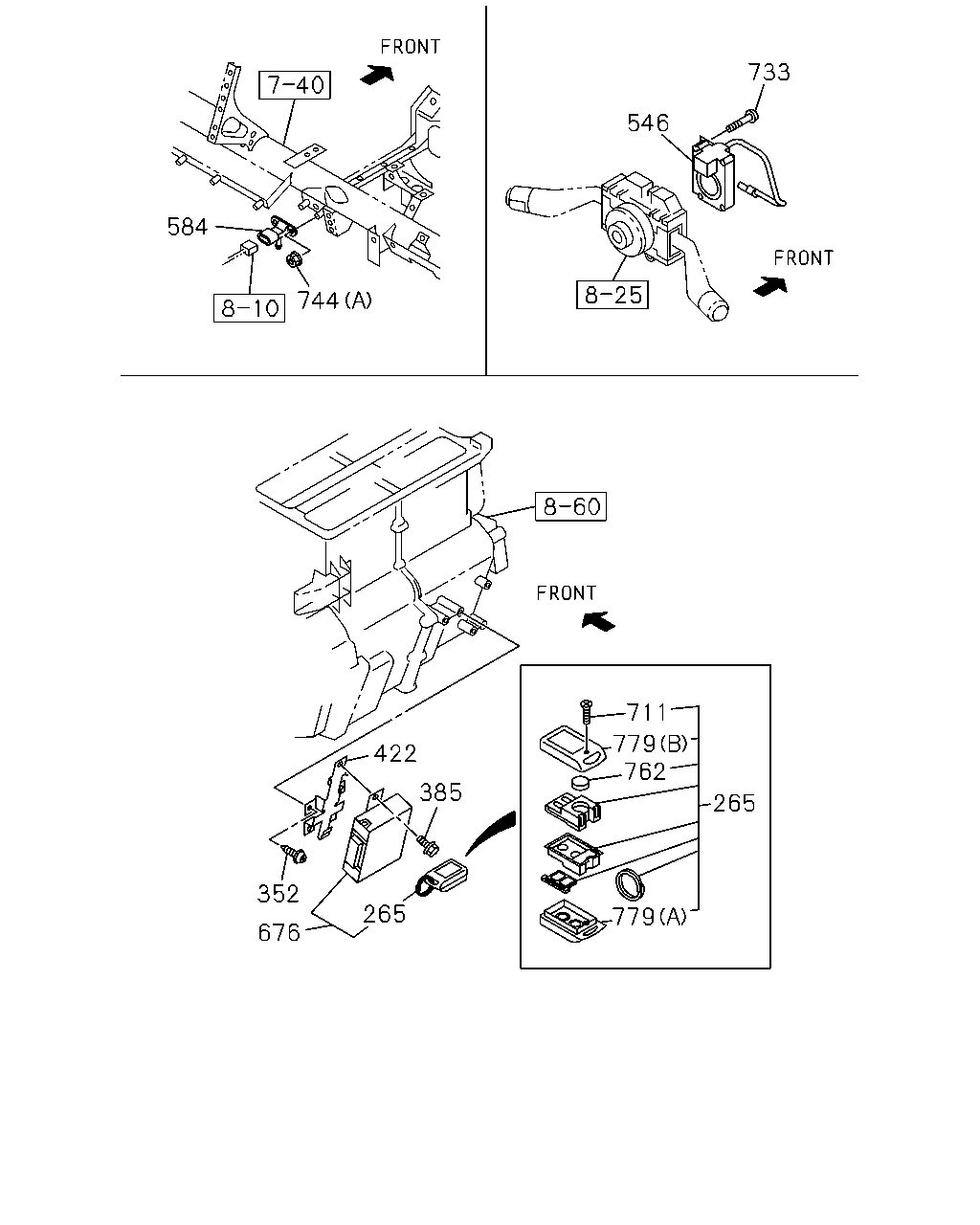

[828A] INST PANEL SIDE NO.2 (14 parça)

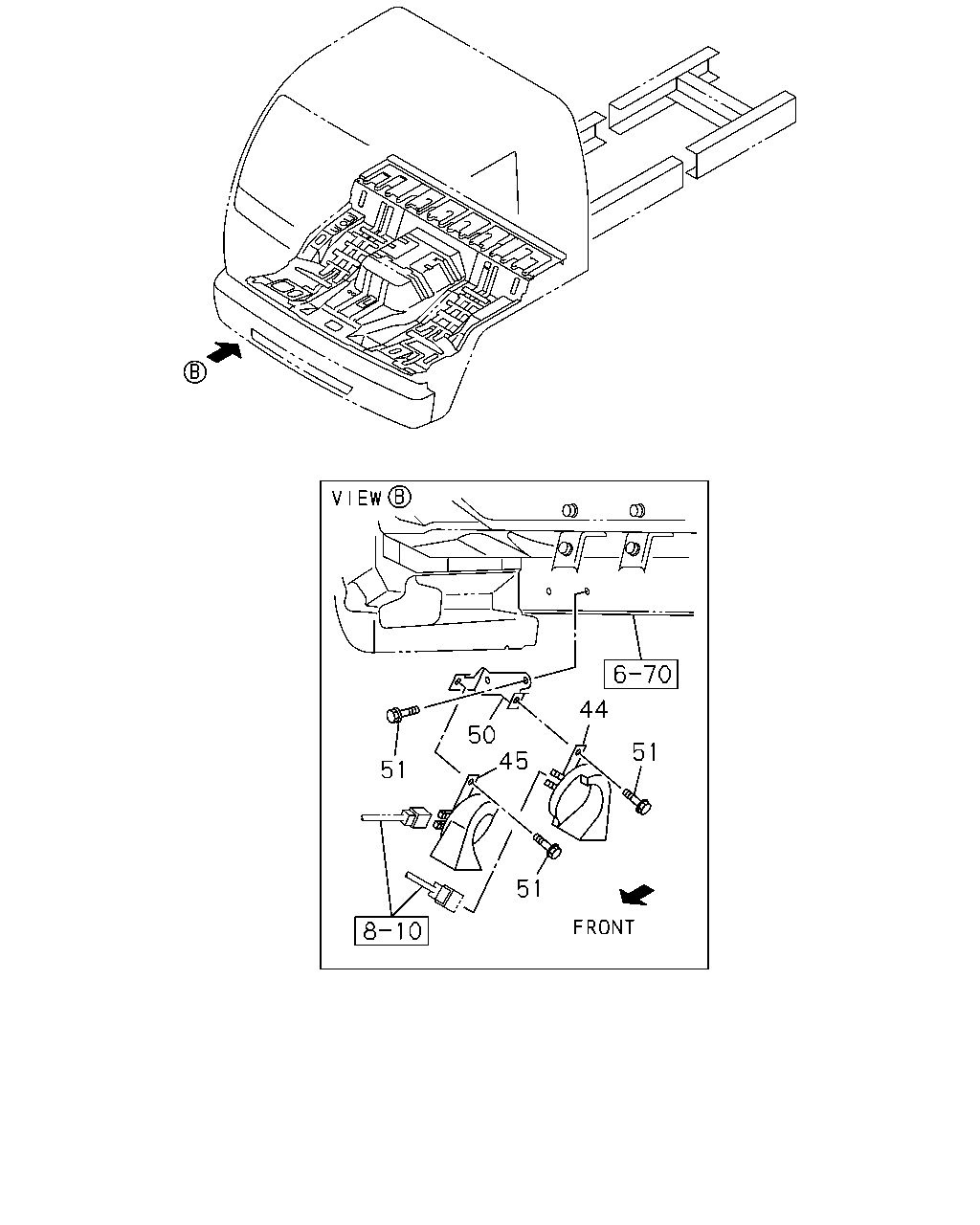

[828A] CAB SIDE (4 parça)
[828A] MAGNETIC VALVE; DIFF LOCK (12 parça)

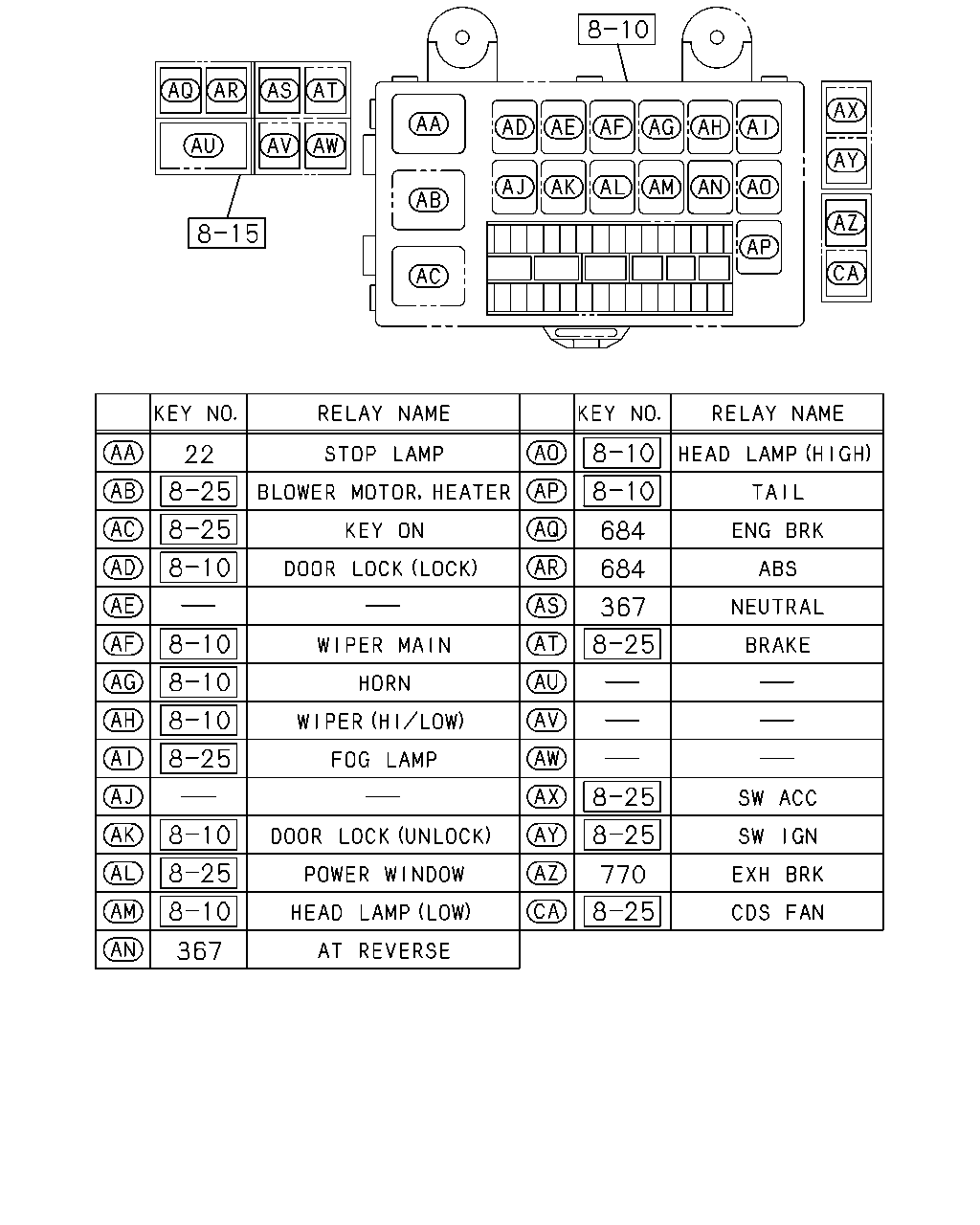

[828A] RELAY; CAB HARNESS (5 parça)
[828A] RELAY; FRAME HARNESS (2 parça)

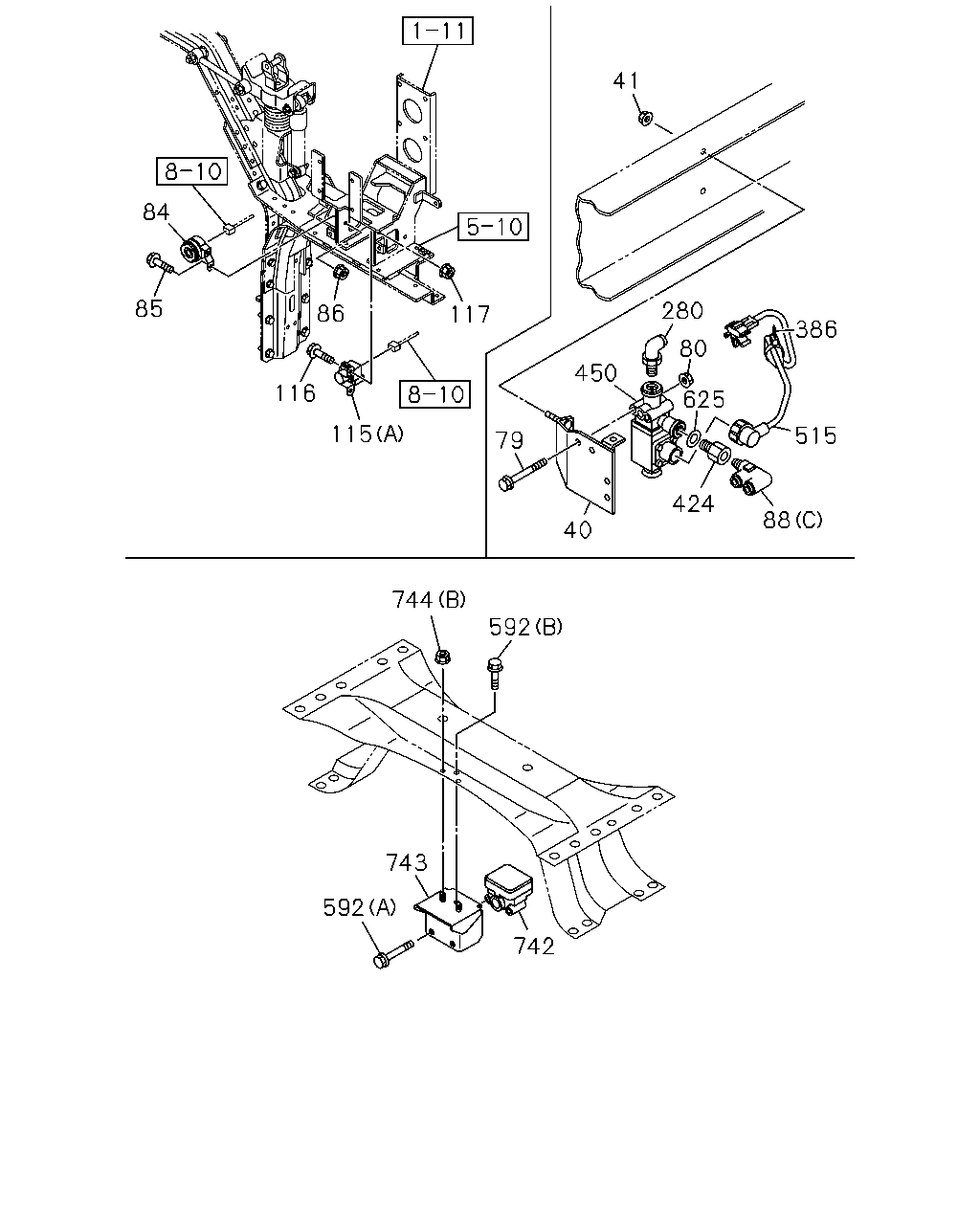

[828A] FRAME SIDE (27 parça)
▶
540
4
2
2
1
573
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
UNIT; FLASHER
8-98025-533-1
01
1
1212-
●
●
2
BOLT; FLASHER UNIT
M6X16 FLANGE
0-28650-616-0
02
1
1212-
●
●
4
SCREW; FLASHER UNIT
BOLT M6X16 FLANGE
0-28650-616-0
01
1
1212-
●
●
540
RELAY; WIPER INTERVAL
8-98060-388-0
01
1
1212-1308
●
●
540
RELAY; WIPER INTERVAL
8-98233-976-0
01
1
1309-
●
●
573
BRACKET; FLASHER UNIT
8-97609-984-5
01
1
1212-
●
●
584
744
546
733
676
352
422
385
265
711
779
762
265
779
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
265
TRANSMITTER ASM; AUTO DOOR LOCK
8-98218-236-0
02
1
1212-
●
●
352
SCREW; BRKT
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1212-
●
●
385
BOLT; CONT UNIT
M6X12 W/LK&PL WASHER
0-52000-612-0
01
1
1212-
●
●
422
BRACKET; CONT UNIT
8-98055-281-1
01
1
1212-
●
●
546
SENSOR; STEERING POSITION
BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK)
8-98190-828-0
01
1
1512-
●
584
SENSOR; PRESSURE
8-98020-514-0
01
1
1212-
●
●
676
CONTROL UNIT; KEYLESS ENTRY
8-98218-231-0
01
1
1212-
●
●
711
SCREW; TRANSMITTER
M2X5
8-98218-239-0
02
1
1212-
●
●
733
SCREW; SENSOR
BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) M3X25 TAPPING
0-71240-325-0
03
1
1512-
●
744
NUT; SENSOR
BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) (B) M8 FLANGE
0-91180-108-0
02
1
1512-
●
744
NUT; SENSOR
(A) M6 FLANGE
0-91180-106-0
02
1
1212-
●
●
762
BATTERY
8-98078-061-0
02
1
1212-
●
●
779
COVER; TRANSMITTER
(A)
8-98218-240-0
02
1
1212-
●
●
779
COVER; TRANSMITTER
(B)
8-98218-243-0
02
1
1212-
●
●
45
50
44
51
51
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
44
HORN; HIGH NOTE
8-97611-677-2
01
1
1212-
●
●
45
HORN; LOW NOTE
8-97611-676-2
01
1
1212-
●
●
50
BRACKET; HORN
8-97613-300-2
01
1
1212-
●
●
51
BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER
8-97086-825-0
04
1
1212-
●
●
285
90
89
34
88
210
284
210
602
89
261
88
132
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
34
CONNECTOR; MAG VLV,INL PORT
DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
1212-
●
●
88
CONNECTOR; MAG VLV
WHEEL BASE 5700MM(57W) (C) DIN8X2 & PT3/8 DOUBLE ELBOW
1-09661-025-0
02
1
1512-
●
88
CONNECTOR; MAG VLV
(A) PT3/8 & PT1/4 ELBOW
1-09660-709-0
01
1
1212-
●
●
88
CONNECTOR; MAG VLV
(B) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1212-
●
●
89
VALVE; MAG,DIFF LOCK
8-97641-594-0
02
1
1212-
●
●
90
BOLT; MAG VLV
M8X25 FLANGE
0-28650-825-0
02
1
1212-
●
●
132
CONNECTOR; OUTLET,MAG VLV
DIN8X2 & PT3/8 DOUBLE ELBOW
1-09661-025-0
01
1
1212-
●
●
210
WASHER; PL,BRKT
1-82569-266-0
02
1
1212-
●
●
261
PLUG; MAG VLV
PT1/4
9-99204-513-0
01
1
1212-
●
●
284
BOLT; MAG VLV
M6X50 FLANGE
0-28050-650-0
01
1
1212-
●
●
285
NUT; MAG VLV
M6 FLANGE
0-91180-106-0
01
1
1212-
●
●
602
GASKET; MAG VLV
ID=16.8
9-09565-117-0
01
1
1212-
●
●
22
367
684
684
367
770
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
22
RELAY; STOP LAMP
24V 12.5A PANASONIC
8-97262-933-0
01
1
1212-
●
●
367
RELAY; NEUTRAL
A/T ALLISON 4430(Y5V) 24V 10A PANASONIC
8-97173-035-1
02
1
1212-
●
●
684
RELAY; BRAKE
ANTILOCK BRAKE SYSTEM(BFA) 24V 10A PANASONIC
8-97173-035-1
02
1
1212-1511
●
●
684
RELAY; BRAKE
24V 10A PANASONIC
8-97173-035-1
02
1
1512-
●
●
770
RELAY; ENG BRK
24V 10A PANASONIC
8-97173-035-1
01
1
1212-
●
●
531
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
531
RELAY; MAIN
24V 30A MITSUBA
8-97238-540-0
01
1
1212-1402
●
●
531
RELAY; MAIN
24V 30A MITSUBA
8-98259-779-0
01
1
1403-
●
●
84
85
116
86
115
117
744
592
743
742
592
79
450
40
424
280
80
625
386
515
88
41
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
40
BRACKET; MAG VLV
WHEEL BASE 5700MM(57W)
8-97627-993-0
02
1
1512-
●
41
NUT; BRKT,MAG VLV
WHEEL BASE 5700MM(57W) M8 FLANGE
0-91180-108-0
04
1
1512-
●
79
BOLT; MAG VLV
WHEEL BASE 5700MM(57W) M8X60 FLANGE
0-28050-860-0
04
1
1512-
●
80
NUT; MAG VLV
WHEEL BASE 5700MM(57W) M8 FLANGE
0-91180-108-0
04
1
1512-
●
84
BUZZER; POWER CAB TILT
METRO DENSO
8-98069-860-0
01
1
1212-
●
●
85
BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE
0-28650-820-0
01
1
1212-
●
●
86
NUT; BUZZER
M8 FLANGE
0-91180-108-0
01
1
1212-
●
●
88
CONNECTOR; MAG VLV
WHEEL BASE 5700MM(57W) (C) DIN8X2 & PT3/8 DOUBLE ELBOW
1-09661-025-0
02
1
1512-
●
88
CONNECTOR; MAG VLV
(A) PT3/8 & PT1/4 ELBOW
1-09660-709-0
01
1
1212-
●
●
88
CONNECTOR; MAG VLV
(B) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1212-
●
●
115
RELAY; POWER CAB TILT UNIT
(B) 24V 10A PANASONIC
8-97173-035-1
01
1
1212-
●
●
115
RELAY; POWER CAB TILT UNIT
(A) 24V NIKKO
8-98005-631-1
01
1
1212-
●
●
116
BOLT; RELAY FIX
M8X20 FLANGE
0-28650-820-0
02
1
1212-1308
●
●
116
BOLT; RELAY FIX
M8X25 FLANGE
0-28650-825-0
02
1
1309-
●
●
117
NUT; RELAY FIX
M8 FLANGE
0-91180-108-0
02
1
1212-
●
●
280
CONNECTOR; IN,MAG VLV
WHEEL BASE 5700MM(57W) DIN12 & M16 ELBOW
1-09661-535-0
02
1
1512-
●
386
CLIP; HARNESS
WHEEL BASE 5700MM(57W) L=350
1-09707-183-0
02
1
1512-
●
424
ADAPTER
WHEEL BASE 5700MM(57W) M16 & PT3/8 STRAIGHT
1-09661-044-0
02
1
1512-
●
450
VALVE; MAG
WHEEL BASE 5700MM(57W)
1-82564-278-0
02
1
1512-
●
515
HARNESS; VLV
WHEEL BASE 5700MM(57W)
8-97621-785-0
02
1
1512-
●
592
BOLT; SENSOR
BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) (A) M10X25 FLANGE
0-28751-025-0
02
1
1512-
●
592
BOLT; SENSOR
BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) (B)
8-94133-973-2
01
1
1512-
●
625
GASKET; CONNECTOR
WHEEL BASE 5700MM(57W) ID=16.2 OD=24
9-09571-416-0
02
1
1512-
●
742
SENSOR; IESC
BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK)
8-98096-503-0
01
1
1512-
●
743
BRACKET; SENSOR
BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK)
8-98306-844-0
01
1
1512-
●
744
NUT; SENSOR
BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) (B) M8 FLANGE
0-91180-108-0
02
1
1512-
●
744
NUT; SENSOR
(A) M6 FLANGE
0-91180-106-0
02
1
1212-
●
●
