◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11499 - FYH(AUST)EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#111477) — 20 parça

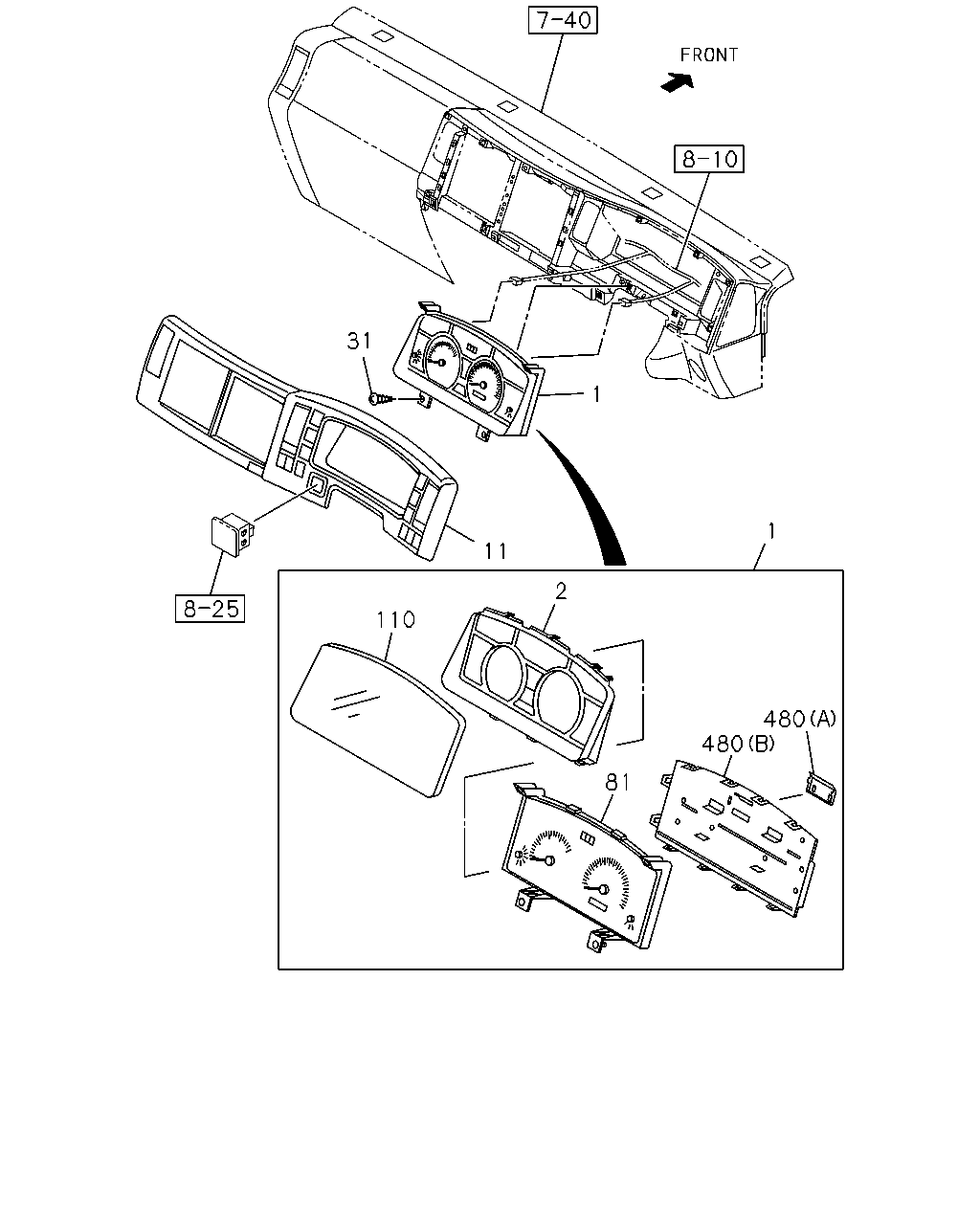

çizim 321878
31 1 1 11 110 2 81 480 480
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
A/T ALLISON 4430(Y5V) BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) CATALYSIS CONTROL<6MZ> MULTI INFORMATION DISPLAY<7NY> 		8-98325-192-0 01 1 1512- ●
1 METER COMPL; CLUSTER
VIN MODEL YEAR 2015<VZF> 		8-98281-580-0 01 1 1504-1511 ● ●
1 METER COMPL; CLUSTER
A/T ALLISON 4430(Y5V) ANTILOCK BRAKE SYSTEM(BFA) VIN MODEL YEAR 2015<VZF> CATALYSIS CONTROL<6MZ> MULTI INFORMATION DISPLAY<7NY> 		8-98281-580-0 01 1 1512- ● ●
1 METER COMPL; CLUSTER 8-98195-738-2 01 1 1212-1503 ● ●
1 METER COMPL; CLUSTER
EXC. VIN MODEL YEAR 2015<VZF> 		8-98195-738-2 01 1 1504-1511 ● ●
1 METER COMPL; CLUSTER
TRANSMISSION-FULLER RTO11908(Y5L),A/T ALLISON 4430(Y5V),TRANSMISSION-FULLER RTO11909(Y5Y) ANTILOCK BRAKE SYSTEM(BFA) CATALYSIS CONTROL<6MZ> MULTI INFORMATION DISPLAY<7NY> EXC. VIN MODEL YEAR 2015<VZF> 		8-98195-738-2 01 1 1512- ●
1 METER COMPL; CLUSTER
ANTILOCK BRAKE SYSTEM(BFA) CATALYSIS CONTROL<6MZ> MULTI INFORMATION DISPLAY<7NY> EXC. VIN MODEL YEAR 2015<VZF> 		8-98195-738-2 01 1 1512- ●
2 PANEL; CLUSTER 8-98054-638-0 01 1 1212- ● ●
11 CLUSTER ASM; METER
DARK GRAY 		8-97405-350-6 01 1 1212- ● ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1212- ● ●
81 METER SUB ASM
A/T ALLISON 4430(Y5V) BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) CATALYSIS CONTROL<6MZ> MULTI INFORMATION DISPLAY<7NY> 		8-98329-471-0 01 1 1512- ●
81 METER SUB ASM
VIN MODEL YEAR 2015<VZF> 		8-98305-500-0 01 1 1504-1511 ● ●
81 METER SUB ASM
A/T ALLISON 4430(Y5V) ANTILOCK BRAKE SYSTEM(BFA) VIN MODEL YEAR 2015<VZF> CATALYSIS CONTROL<6MZ> MULTI INFORMATION DISPLAY<7NY> 		8-98305-500-0 01 1 1512- ● ●
81 METER SUB ASM 8-98195-739-0 01 1 1212-1503 ● ●
81 METER SUB ASM
EXC. VIN MODEL YEAR 2015<VZF> 		8-98195-739-0 01 1 1504-1511 ● ●
81 METER SUB ASM
TRANSMISSION-FULLER RTO11908(Y5L),A/T ALLISON 4430(Y5V),TRANSMISSION-FULLER RTO11909(Y5Y) ANTILOCK BRAKE SYSTEM(BFA) CATALYSIS CONTROL<6MZ> MULTI INFORMATION DISPLAY<7NY> EXC. VIN MODEL YEAR 2015<VZF> 		8-98195-739-0 01 1 1512- ●
81 METER SUB ASM
ANTILOCK BRAKE SYSTEM(BFA) CATALYSIS CONTROL<6MZ> MULTI INFORMATION DISPLAY<7NY> EXC. VIN MODEL YEAR 2015<VZF> 		8-98195-739-0 01 1 1512- ●
110 GLASS; CLUSTER METER 8-98054-642-0 01 1 1212- ● ●
480 COVER; METER
(B) BLACK 		8-98054-433-0 01 1 1212- ● ●
480 COVER; METER
(A) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 1212- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
