◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11499 - FYH(AUST)EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#111476) — 104 parça

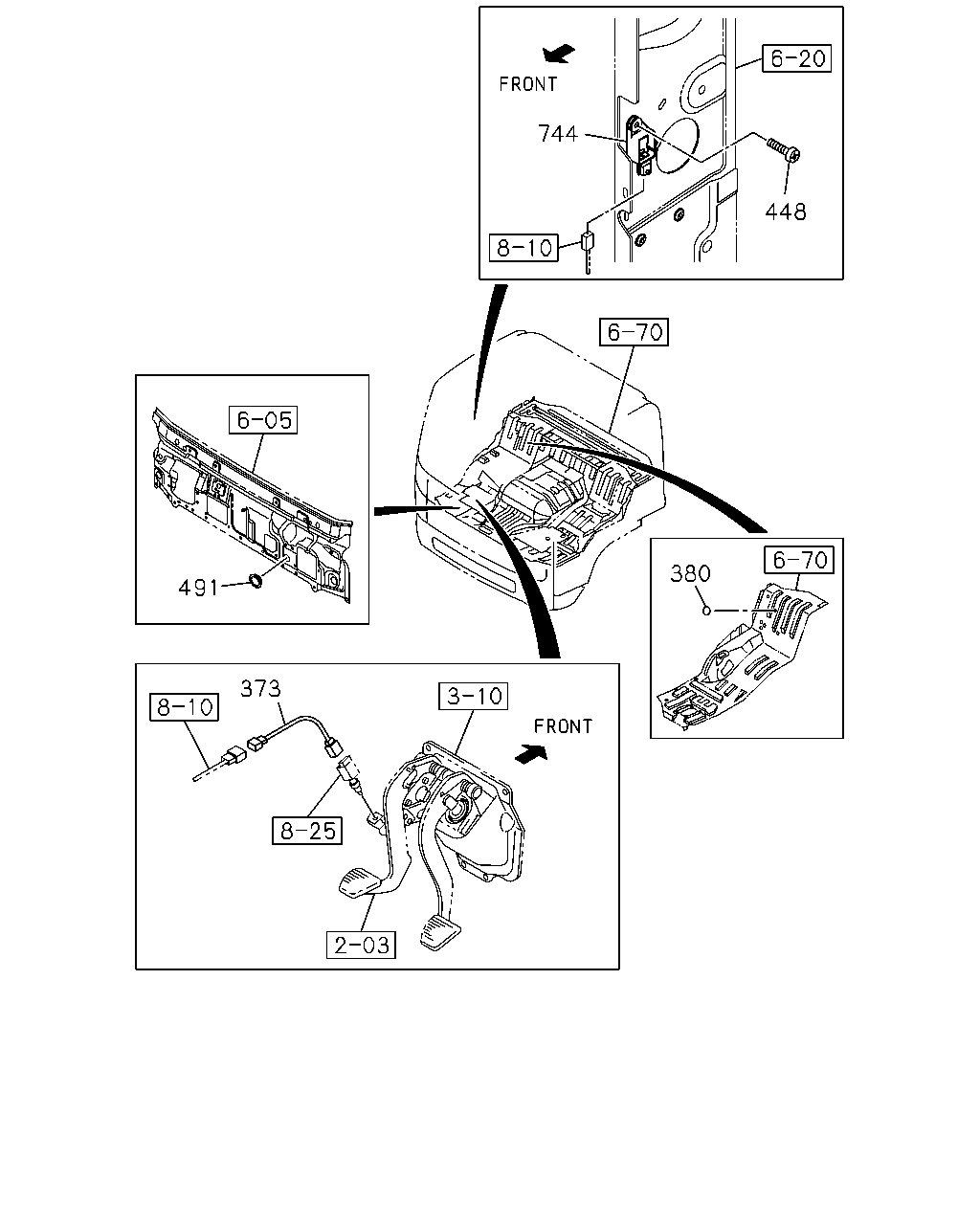

çizim 321696
744 448 380 373 491
BalonParca AdiParca NoAdetTipApplied Date A B
373 HARNESS; CLU SWITCH
TRANSMISSION-FULLER RTO11908(Y5L) 		8-98059-419-2 01 1 1212-1311 ●
373 HARNESS; CLU SWITCH
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		8-98059-419-2 01 1 1212-1311 ●
373 HARNESS; CLU SWITCH
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		8-98059-419-2 01 1 1312- ●
373 HARNESS; CLU SWITCH
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) 		8-98059-419-2 01 1 1312- ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1212- ● ●
448 BOLT; SENSOR
M6X18 W/PL WASHER 		8-97105-796-1 02 1 1212- ● ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1212- ● ●
744 SENSOR; AIR BAG 8-97386-841-2 01 1 1212- ● ●

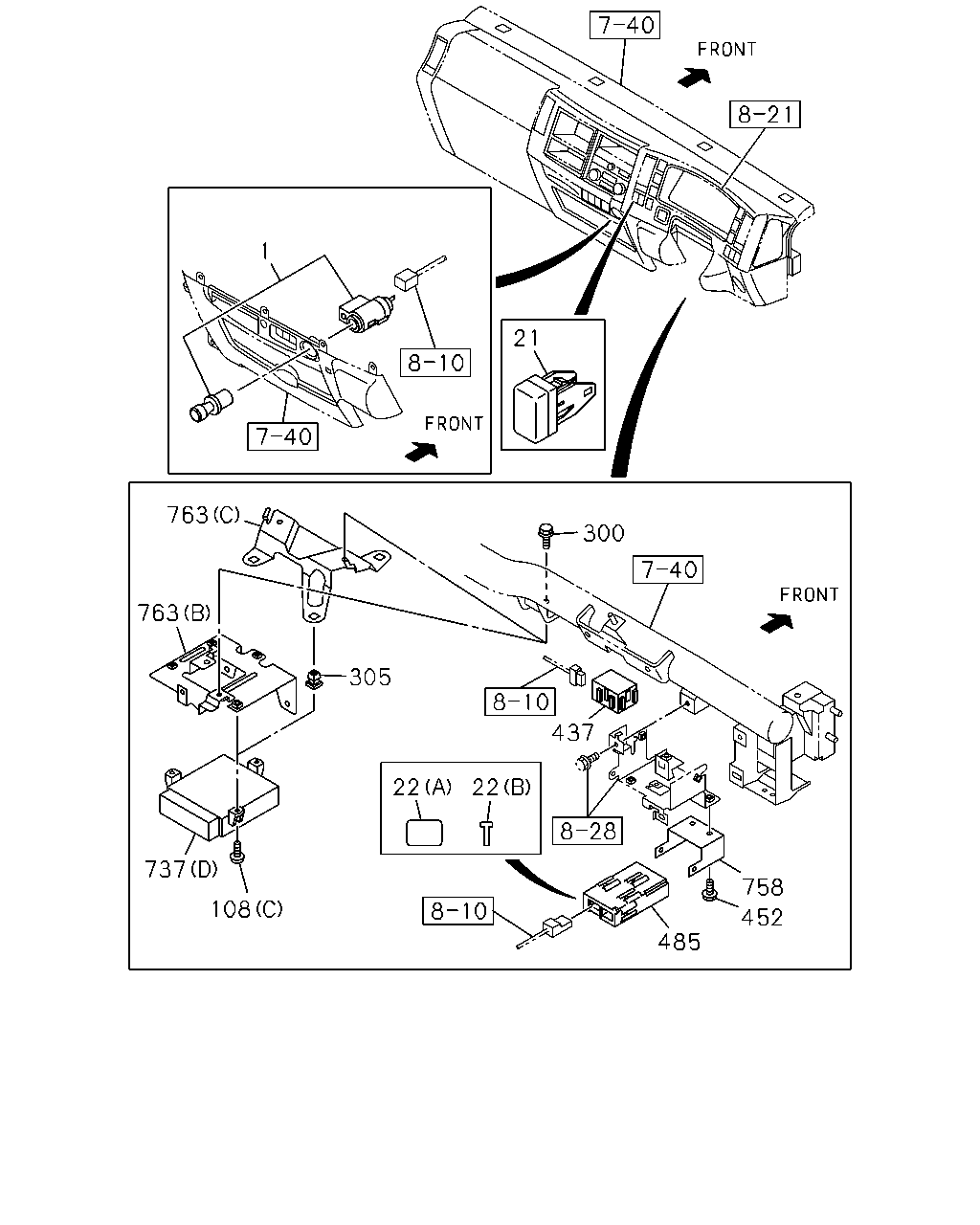

çizim 322117
1 21 300 437 22 22 305 763 763 737 108 485 758 452
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1212- ● ●
21 COVER; HOLE 8-98025-954-1 01 1 1212- ● ●
22 SEAL; TAPE
(B) 		8-98083-174-0 01 1 1212- ● ●
22 SEAL; TAPE
(A) 		8-98166-639-0 01 1 1212- ● ●
108 BOLT; TRANS CONT MODULE
A/T ALLISON 4430(Y5V) VIN MODEL YEAR 2015<VZF> (C) M6X20 TAPPING 		0-72180-620-0 03 1 1504- ● ●
108 BOLT; TRANS CONT MODULE
A/T ALLISON 4430(Y5V) (C) M6X16 FLANGE 		0-28650-616-0 03 1 1212-1503 ● ●
108 BOLT; TRANS CONT MODULE
A/T ALLISON 4430(Y5V) EXC. VIN MODEL YEAR 2015<VZF> (C) M6X16 FLANGE 		0-28650-616-0 03 1 1504- ● ●
108 BOLT; TRANS CONT MODULE
ZF9S1310 M/T(Y5K) (A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1212- ●
108 BOLT; TRANS CONT MODULE
ZF9S1310 M/T(Y5K) (B) M4X25 TAPPING 		0-74160-425-0 02 1 1212- ●
300 BOLT; CONT UNIT BRKT
A/T ALLISON 4430(Y5V) M6X16 FLANGE 		0-28650-616-0 02 1 1212- ● ●
300 BOLT; CONT UNIT BRKT
ZF9S1310 M/T(Y5K) M6X16 FLANGE 		0-28650-616-0 04 1 1212- ●
305 NUT; CONT UNIT
A/T ALLISON 4430(Y5V) VIN MODEL YEAR 2015<VZF> D=9.7X9.7 L=8 		8-94222-314-0 03 1 1504- ● ●
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 1212- ● ●
452 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 02 1 1212- ● ●
485 CONTROL UNIT; SPEED SENSOR
A/T ALLISON 4430(Y5V) 		1-80190-061-0 01 1 1212- ● ●
485 CONTROL UNIT; SPEED SENSOR
TRANSMISSION-FULLER RTO11908(Y5L) 		1-80190-059-1 01 1 1212-1311 ● ●
485 CONTROL UNIT; SPEED SENSOR
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		1-80190-059-1 01 1 1312- ● ●
485 CONTROL UNIT; SPEED SENSOR
ZF9S1310 M/T(Y5K) 		1-80190-063-0 01 1 1212- ●
737 CONTROL UNIT; TRANSMISSION
A/T ALLISON 4430(Y5V) VIN MODEL YEAR 2015<VZF> (D) 		8-98257-647-0 01 1 1504- ● ●
737 CONTROL UNIT; TRANSMISSION
A/T ALLISON 4430(Y5V) (D) 		8-98215-411-1 01 1 1212-1503 ● ●
737 CONTROL UNIT; TRANSMISSION
A/T ALLISON 4430(Y5V) EXC. VIN MODEL YEAR 2015<VZF> (D) 		8-98215-411-1 01 1 1504- ● ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1310 M/T(Y5K) (A) 		1-80111-271-0 01 1 1212- ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1310 M/T(Y5K) (B) 		8-98095-040-0 01 1 1212- ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1310 M/T(Y5K) (C) 		8-98095-041-0 01 1 1212- ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 1212- ● ●
763 BRACKET; TRANS CONT MODULE
A/T ALLISON 4430(Y5V) VIN MODEL YEAR 2015<VZF> (C) 		8-98252-197-0 01 1 1504- ● ●
763 BRACKET; TRANS CONT MODULE
A/T ALLISON 4430(Y5V) (B) 		8-98064-901-0 01 1 1212-1503 ● ●
763 BRACKET; TRANS CONT MODULE
A/T ALLISON 4430(Y5V) EXC. VIN MODEL YEAR 2015<VZF> (B) 		8-98064-901-0 01 1 1504- ● ●
763 BRACKET; TRANS CONT MODULE
ZF9S1310 M/T(Y5K) (A) 		8-98085-587-0 01 1 1212- ●

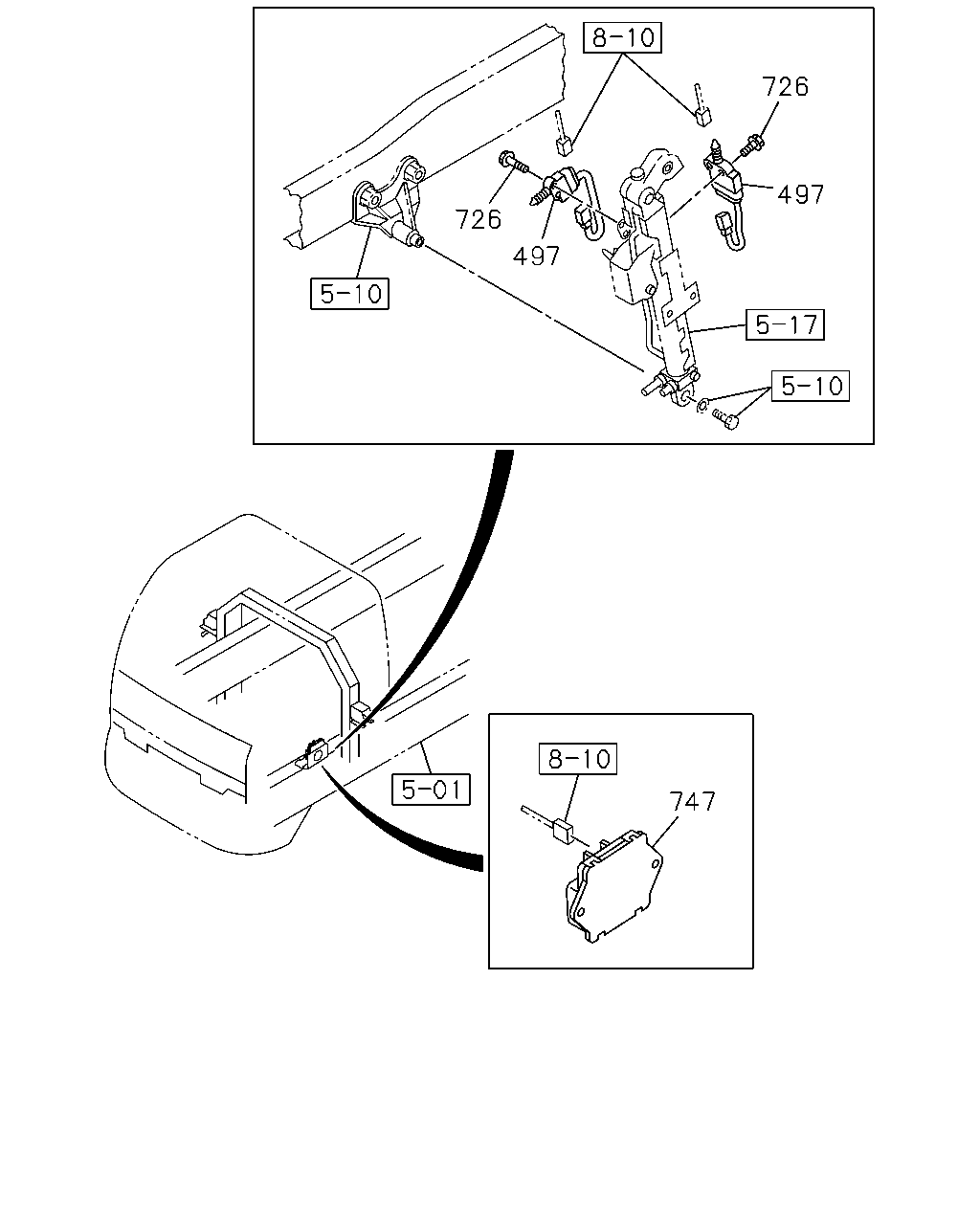

çizim 322819
726 726 497 497 747
BalonParca AdiParca NoAdetTipApplied Date A B
497 SWITCH; CAB TILT
STAMP NO 		1-82380-172-1 02 1 1212- ● ●
726 BOLT; SW,CAB TILT
M6X25 FLANGE 		0-28050-625-0 04 1 1212- ● ●
747 CONTROL UNIT; TURBOCHARGER 8-98118-472-0 01 1 1212- ● ●

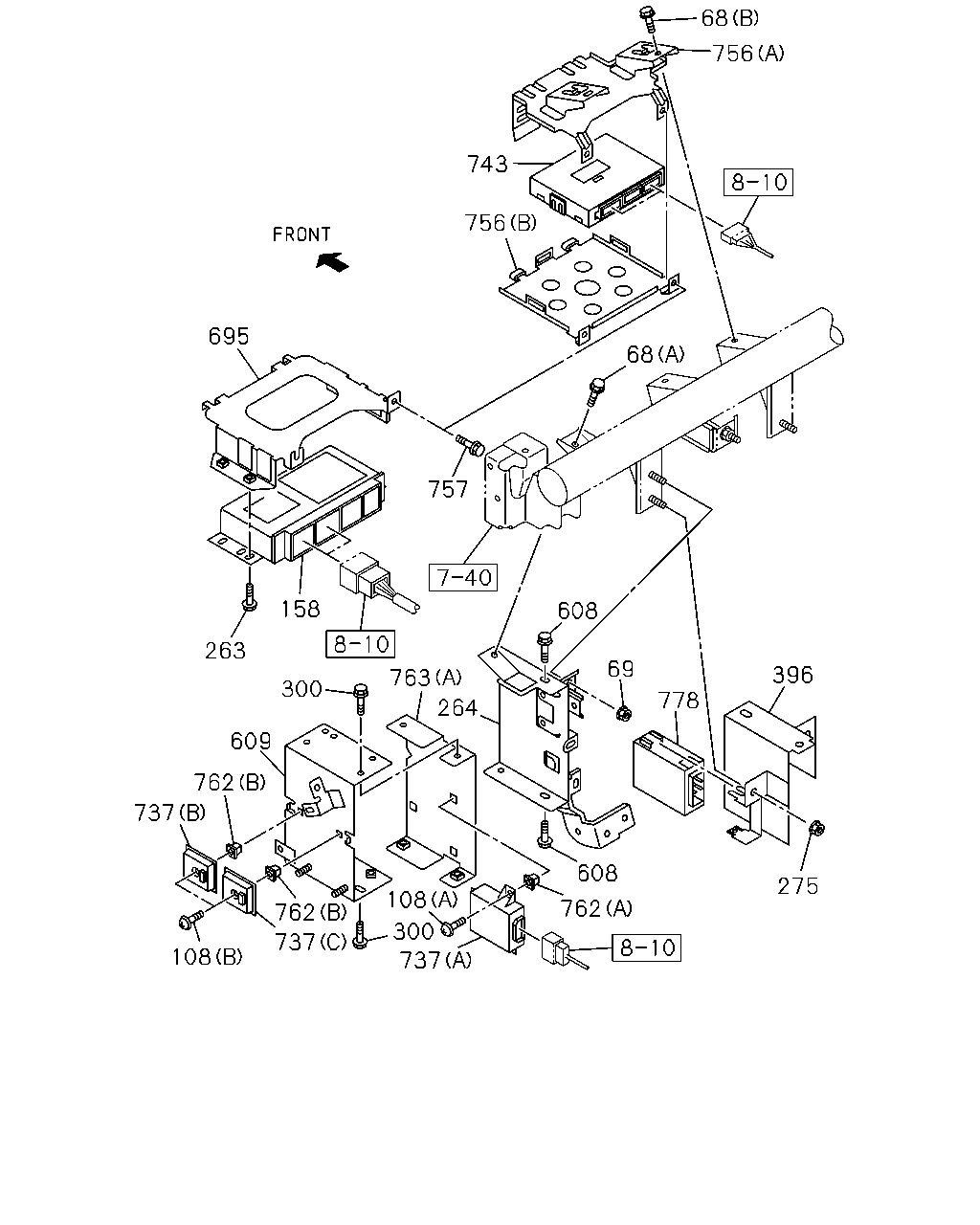

çizim 322824
68 743 756 68 756 695 757 608 69 778 396 158 263 300 763 275 737 609 264 762 608 762 108 300 762 737 108 737
BalonParca AdiParca NoAdetTipApplied Date A B
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1212- ● ●
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1212-1511 ● ●
68 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1212-1511 ● ●
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1512- ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1212- ● ●
108 BOLT; TRANS CONT MODULE
A/T ALLISON 4430(Y5V) VIN MODEL YEAR 2015<VZF> (C) M6X20 TAPPING 		0-72180-620-0 03 1 1504- ● ●
108 BOLT; TRANS CONT MODULE
A/T ALLISON 4430(Y5V) (C) M6X16 FLANGE 		0-28650-616-0 03 1 1212-1503 ● ●
108 BOLT; TRANS CONT MODULE
A/T ALLISON 4430(Y5V) EXC. VIN MODEL YEAR 2015<VZF> (C) M6X16 FLANGE 		0-28650-616-0 03 1 1504- ● ●
108 BOLT; TRANS CONT MODULE
ZF9S1310 M/T(Y5K) (A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1212- ●
108 BOLT; TRANS CONT MODULE
ZF9S1310 M/T(Y5K) (B) M4X25 TAPPING 		0-74160-425-0 02 1 1212- ●
158 CONTROLLER; ABS
BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) 		8-98333-030-0 01 1 1512- ●
158 CONTROLLER; ABS
TIRE 295/80R22.5-152/148M RIB ALL WEATHER(5P5), TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) ANTILOCK BRAKE SYSTEM(BFA) 		8-98220-159-0 01 1 1212-1506 ● ●
158 CONTROLLER; ABS
TIRE 295/80R22.5-152/148M RIB ALL WEATHER(5P5), TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) ANTILOCK BRAKE SYSTEM(BFA) 		8-98220-159-0 01 1 1507-1510 ●
158 CONTROLLER; ABS
ANTILOCK BRAKE SYSTEM(BFA) 		8-98220-159-0 01 1 1507-1510 ●
158 CONTROLLER; ABS
ANTILOCK BRAKE SYSTEM(BFA) 		8-98220-159-0 01 1 1511- ● ●
263 BOLT; CONT UNIT
ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 04 1 1212-1511 ● ●
263 BOLT; CONT UNIT
ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 04 1 1512- ●
263 BOLT; CONT UNIT
ANTILOCK BRAKE SYSTEM(BFA),BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) M6X16 FLANGE 		0-28650-616-0 04 1 1512- ●
263 BOLT; CONT UNIT
BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) M6X16 FLANGE 		0-28650-616-0 04 1 1512- ●
264 BRACKET; CONT UNIT 8-97609-985-9 01 1 1212- ● ●
275 NUT; BRKT
AUTO CRUISE<K30> M6 FLANGE 		0-91180-106-0 02 1 1212-1511 ● ●
275 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 1512- ● ●
300 BOLT; CONT UNIT BRKT
A/T ALLISON 4430(Y5V) M6X16 FLANGE 		0-28650-616-0 02 1 1212- ● ●
300 BOLT; CONT UNIT BRKT
ZF9S1310 M/T(Y5K) M6X16 FLANGE 		0-28650-616-0 04 1 1212- ●
396 BRACKET
AUTO CRUISE<K30> 		8-98084-467-4 01 1 1212-1511 ● ●
396 BRACKET 8-98084-467-4 01 1 1512- ● ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1310 M/T(Y5K) M6X16 FLANGE 		0-28650-616-0 05 1 1212-1511 ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> M6X16 FLANGE 		0-28650-616-0 05 1 1512- ●
608 BOLT; CONT UNIT,AIR SUS
A/T ALLISON 4430(Y5V) BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) VIN MODEL YEAR 2015<VZF> M6X16 FLANGE 		0-28650-616-0 05 1 1512- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1310 M/T(Y5K) 		8-98095-337-0 01 1 1212-1308 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1310 M/T(Y5K) 		8-98169-737-1 01 1 1309-1511 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> 		8-98169-737-1 01 1 1512- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
A/T ALLISON 4430(Y5V) BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) VIN MODEL YEAR 2015<VZF> 		8-98169-737-1 01 1 1512- ●
695 BRACKET; CONT UNIT,ABS
ANTILOCK BRAKE SYSTEM(BFA) 		8-98045-016-1 01 1 1212-1511 ● ●
695 BRACKET; CONT UNIT,ABS
ANTILOCK BRAKE SYSTEM(BFA) 		8-98045-016-1 01 1 1512- ●
695 BRACKET; CONT UNIT,ABS
ANTILOCK BRAKE SYSTEM(BFA),BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) 		8-98045-016-1 01 1 1512- ●
737 CONTROL UNIT; TRANSMISSION
A/T ALLISON 4430(Y5V) VIN MODEL YEAR 2015<VZF> (D) 		8-98257-647-0 01 1 1504- ● ●
737 CONTROL UNIT; TRANSMISSION
A/T ALLISON 4430(Y5V) (D) 		8-98215-411-1 01 1 1212-1503 ● ●
737 CONTROL UNIT; TRANSMISSION
A/T ALLISON 4430(Y5V) EXC. VIN MODEL YEAR 2015<VZF> (D) 		8-98215-411-1 01 1 1504- ● ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1310 M/T(Y5K) (A) 		1-80111-271-0 01 1 1212- ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1310 M/T(Y5K) (B) 		8-98095-040-0 01 1 1212- ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1310 M/T(Y5K) (C) 		8-98095-041-0 01 1 1212- ●
743 CONTROL UNIT; BCM
TRANSMISSION-FULLER RTO11909(Y5Y) MULTI INFORMATION DISPLAY<7NY> 		8-98256-117-1 01 1 1312- ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98182-026-2 01 1 1212-1309 ● ●
743 CONTROL UNIT; BCM
TRANSMISSION-FULLER RTO11908(Y5L),A/T ALLISON 4430(Y5V) MULTI INFORMATION DISPLAY<7NY> 		8-98182-026-3 01 1 1310- ●
743 CONTROL UNIT; BCM
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),A/T ALLISON 4430(Y5V) MULTI INFORMATION DISPLAY<7NY> 		8-98182-026-3 01 1 1310- ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (B) 		8-98111-836-1 01 1 1212- ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98056-411-3 01 1 1212-1511 ● ●
756 BRACKET; ECU,BCM
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98056-411-3 01 1 1212-1511 ● ●
756 BRACKET; ECU,BCM
(A) 		8-98056-411-3 01 1 1512- ● ●
757 BOLT; BRKT,BCM
MULTI INFORMATION DISPLAY<7NY> EXC. ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 02 1 1212-1511 ● ●
757 BOLT; BRKT,BCM
ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 02 1 1212-1511 ● ●
757 BOLT; BRKT,BCM
M6X16 FLANGE 		0-28650-616-0 02 1 1512- ● ●
762 GROMMET; TRANS CONT MODULE
ZF9S1310 M/T(Y5K) (A) D=8.6X7.7 L=7.5 		8-94279-078-0 03 1 1212- ●
762 GROMMET; TRANS CONT MODULE
ZF9S1310 M/T(Y5K) (B) D=7.5X7.5 L=7 		8-94430-147-0 02 1 1212- ●
763 BRACKET; TRANS CONT MODULE
A/T ALLISON 4430(Y5V) VIN MODEL YEAR 2015<VZF> (C) 		8-98252-197-0 01 1 1504- ● ●
763 BRACKET; TRANS CONT MODULE
A/T ALLISON 4430(Y5V) (B) 		8-98064-901-0 01 1 1212-1503 ● ●
763 BRACKET; TRANS CONT MODULE
A/T ALLISON 4430(Y5V) EXC. VIN MODEL YEAR 2015<VZF> (B) 		8-98064-901-0 01 1 1504- ● ●
763 BRACKET; TRANS CONT MODULE
ZF9S1310 M/T(Y5K) (A) 		8-98085-587-0 01 1 1212- ●
778 MODULE; CRUISE CONT
AUTO CRUISE<K30> 		8-97620-055-0 01 1 1212- ● ●

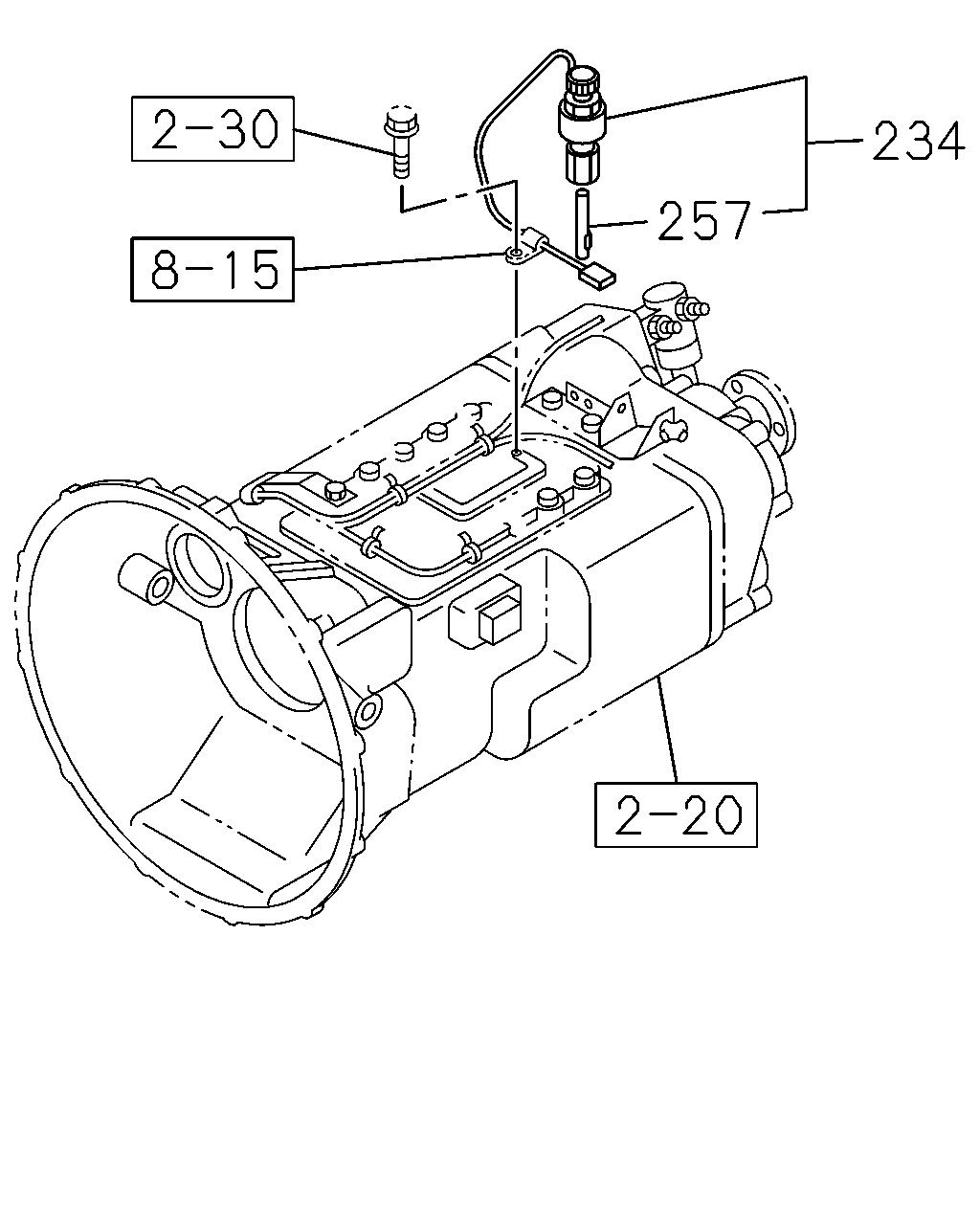

çizim 322832
257 234
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD
TRANSMISSION-FULLER RTO11908(Y5L) 25 PULSE 		1-83127-414-1 01 1 1212-1311 ● ●
234 SENSOR; VEHICLE SPD
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 25 PULSE 		1-83127-414-1 01 1 1312- ● ●
257 KEY; SPEED SENSOR
TRANSMISSION-FULLER RTO11908(Y5L) 		1-83129-073-0 01 1 1212-1311 ● ●
257 KEY; SPEED SENSOR
TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 		1-83129-073-0 01 1 1312- ● ●
