Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#111472) — 807 parça

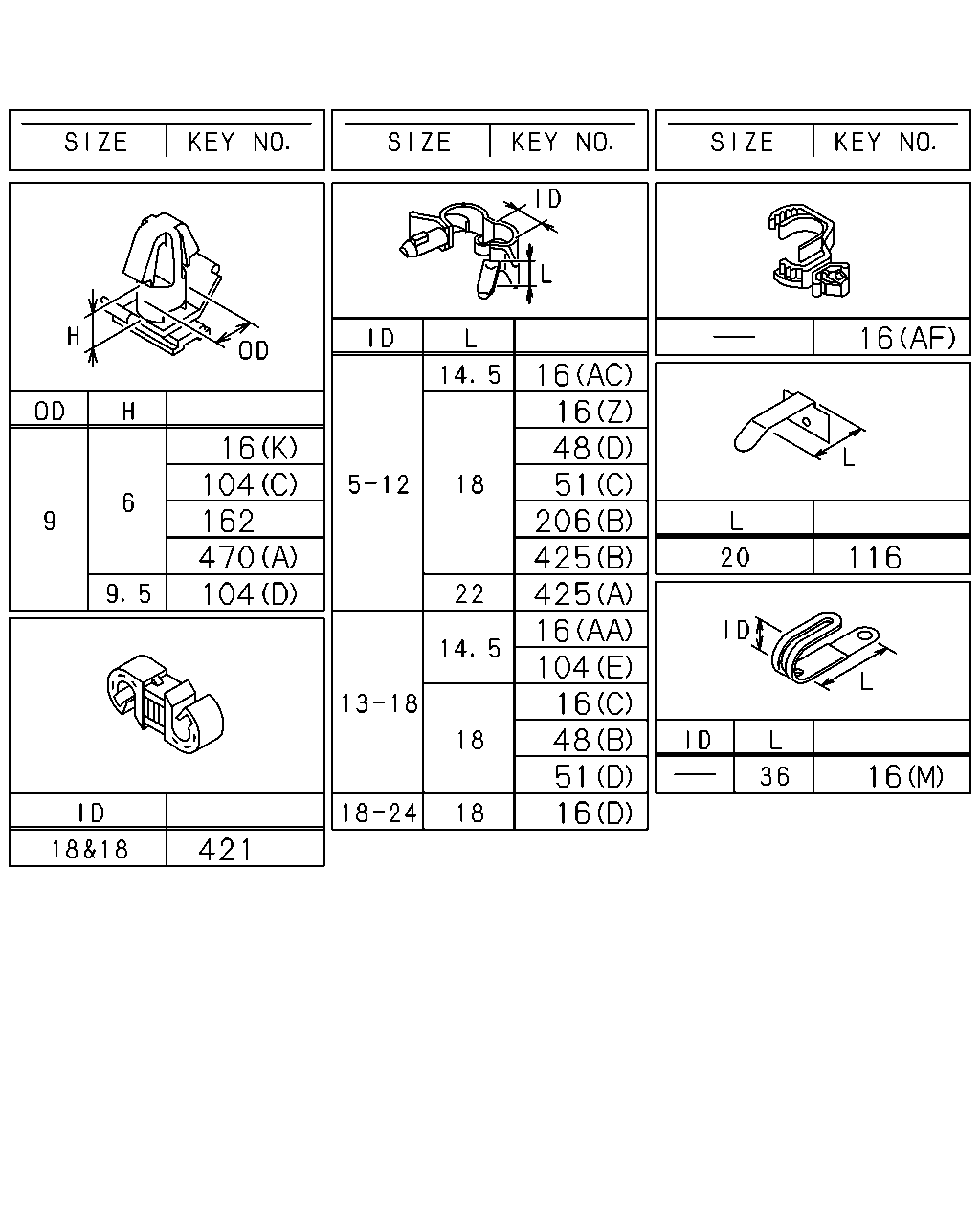

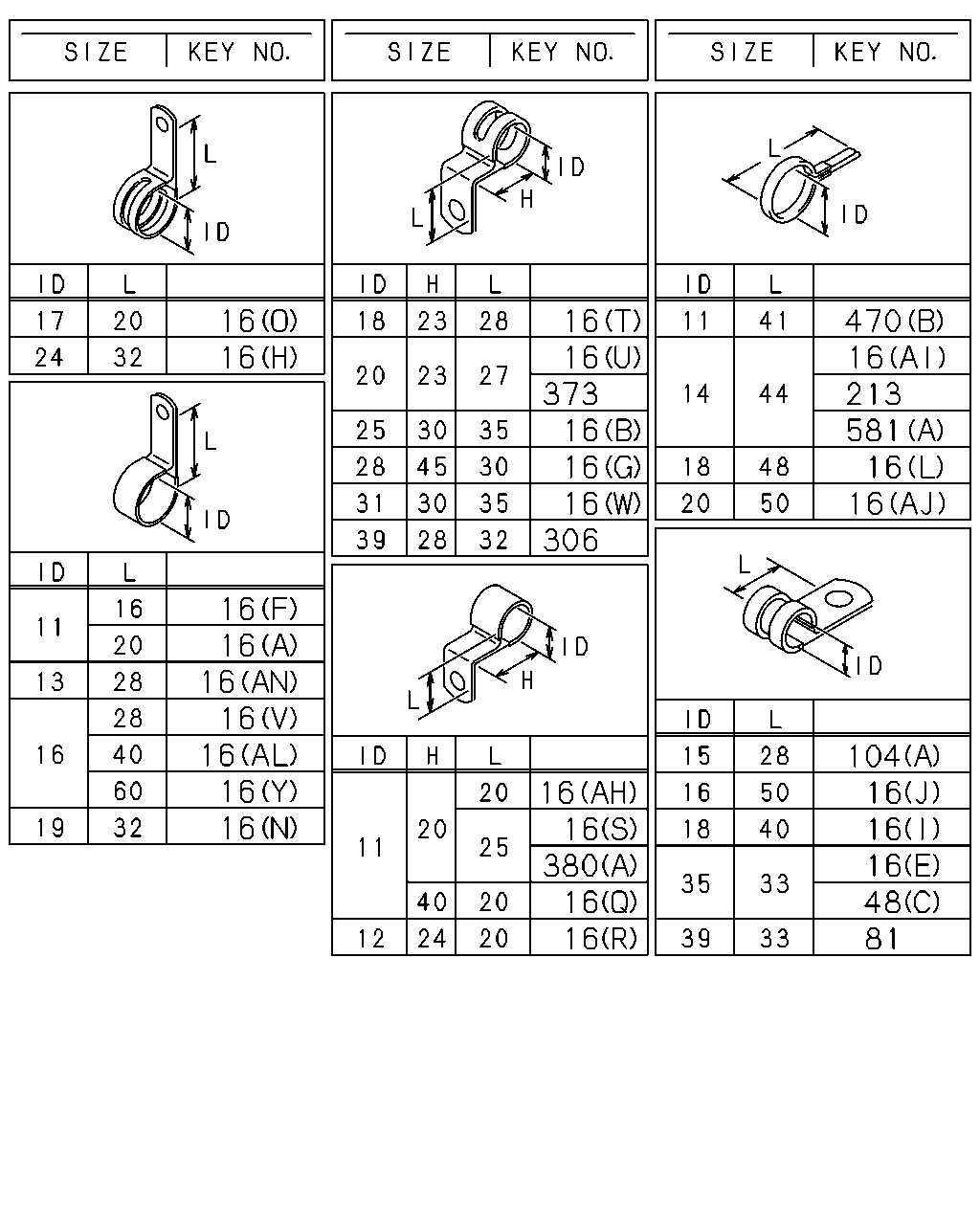

16 16 16 16 16 142 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (N) ID=19 L=32	0-95235-866-0	01	1	1512-	●
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (N) ID=19 L=32	0-95235-866-0	01	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (AD) L=250	5-09707-030-1	04	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (AD) L=250	5-09707-030-1	04	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18	1-09709-287-0	04	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18	1-09709-287-0	04	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (X) L=350	1-09707-183-0	14	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (Z) ID=5-12 L=18	1-09709-287-0	06	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (D) ID=18-24 L=18	1-09709-294-0	03	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (AC) ID=5-12 L=14.5	1-09987-221-0	04	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (X) L=350	1-09707-183-0	03	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) ID=13-18 L=18	1-09709-291-0	05	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 7300MM(73W) (D) ID=18-24 L=18	1-09709-294-0	10	1	1303-1511		●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (D) ID=18-24 L=18	1-09709-294-0	10	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 7300MM(73W) (D) ID=18-24 L=18	1-09709-294-0	10	1	1512-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AC) ID=5-12 L=14.5	1-09987-221-0	01	1	1212-1511	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	03	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (AC) ID=5-12 L=14.5	1-09987-221-0	03	1	1512-		●
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (N) ID=19 L=32	0-95235-866-0	02	1	1212-1212	●	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (X) L=350	1-09707-183-0	02	1	1212-1511	●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (X) L=350	1-09707-183-0	12	1	1512-	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18	1-09709-291-0	02	1	1212-1511	●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (C) ID=13-18 L=18	1-09709-291-0	04	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W) (Z) ID=5-12 L=18	1-09709-287-0	03	1	1212-	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W) (D) ID=18-24 L=18	1-09709-294-0	13	1	1212-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18	1-09709-287-0	04	1	1212-1511	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18	1-09709-287-0	04	1	1212-1511	●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (Z) ID=5-12 L=18	1-09709-287-0	07	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (D) ID=18-24 L=18	1-09709-294-0	14	1	1212-	●
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1212-	●	●
16	CLIP; HARNESS (T) ID=18 H=23 L=28	1-09700-860-0	01	1	1212-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1212-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1212-	●	●
16	CLIP; HARNESS (B) ID=25 H=30 L=35	1-09700-875-0	01	1	1212-	●	●
16	CLIP; HARNESS (E) ID=35 L=33	1-09700-945-0	01	1	1212-	●	●
16	CLIP; HARNESS (G) ID=28 H=45 L=30	1-09700-948-0	01	1	1212-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1212-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1212-	●	●
16	CLIP; HARNESS (I) ID=18 L=40	1-09701-111-0	01	1	1212-	●	●
16	CLIP; HARNESS (J) ID=16 L=50	1-09701-158-0	01	1	1212-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	08	1	1212-1511	●	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (X) L=350	1-09707-183-0	08	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (X) L=350	1-09707-183-0	08	1	1512-		●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1212-1302	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1212-1302		●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1303-1511	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1303-1511		●
16	CLIP; HARNESS WHEEL BASE 7300MM(73W) (X) L=350	1-09707-183-0	01	1	1303-1511		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (X) L=350	1-09707-183-0	02	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (X) L=350	1-09707-183-0	02	1	1512-	●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	02	1	1212-1302	●	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1212-1302		●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	02	1	1303-1511	●	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W),WHEEL BASE 7300MM(73W) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1303-1511		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W),WHEEL BASE 7300MM(73W) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1512-		●
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1212-	●	●
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	01	1	1212-1511	●	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) ID=13-18 L=18	1-09709-291-0	01	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) ID=13-18 L=18	1-09709-291-0	01	1	1512-		●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	02	1	1212-1511	●	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA),BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) (AC) ID=5-12 L=14.5	1-09987-221-0	01	1	1512-	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	06	1	1212-1511	●	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (AC) ID=5-12 L=14.5	1-09987-221-0	02	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (AC) ID=5-12 L=14.5	1-09987-221-0	02	1	1512-		●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	04	1	1212-1511	●	●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (AD) L=250	5-09707-030-1	05	1	1512-	●	●
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	04	1	1212-	●	●
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1212-	●	●
16	CLIP; HARNESS (AF) ID=10 & 16	8-94413-325-0	01	1	1212-	●	●
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1212-	●	●
16	CLIP; HARNESS (AM) L=155	8-97173-307-0	18	1	1212-	●	●
16	CLIP; HARNESS (AK) L=40.6	8-97229-357-0	02	1	1212-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1212-	●	●
16	CLIP; HARNESS (O) ID=17 L=20	8-97619-251-0	04	1	1212-	●	●
16	CLIP; HARNESS (AG)	8-98052-679-0	02	1	1212-	●	●
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	1212-	●	●
16	CLIP; HARNESS (L) ID=18 L=48	9-09917-429-0	01	1	1212-	●	●
16	CLIP; HARNESS (AJ) ID=20 L=50	9-09917-430-0	02	1	1212-	●	●
16	CLIP; HARNESS (AH) ID=11 H=20 L=20	8-98033-780-0	01	1	1212-	●	●
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (N) ID=19 L=32	0-95235-866-0	01	1	1212-1212	●	●
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (N) ID=19 L=32	0-95235-866-0	03	1	1212-1511	●	●
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (N) ID=19 L=32	0-95235-866-0	02	1	1512-	●	●
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (S) ID=11 H=20 L=25	1-09700-848-0	02	1	1212-	●	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (F) ID=11 L=16	0-95235-025-0	02	1	1212-1511	●	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA),BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) (F) ID=11 L=16	0-95235-025-0	02	1	1512-	●	●
16	CLIP; HARNESS ENGINE REAR PTO(SV1) (P) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1212-	●	●
16	CLIP; HARNESS ENGINE REAR PTO(SV1) (Q) D=11 H=40 L=20	8-94246-610-0	01	1	1212-	●	●
16	CLIP; HARNESS EXC. ENGINE REAR PTO(SV1) (R) ID=12 H=24 L=20	1-09700-605-0	01	1	1212-	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L) (A) ID=11 L=20	0-95235-035-0	01	1	1212-1311	●	●
16	CLIP; HARNESS EXC. ENGINE REAR PTO(SV1) (A) ID=11 L=20	0-95235-035-0	01	1	1212-1311	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A) ID=11 L=20	0-95235-035-0	01	1	1312-	●	●
16	CLIP; HARNESS EXC. ENGINE REAR PTO(SV1) (A) ID=11 L=20	0-95235-035-0	01	1	1312-	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L) (AN) ID=13 L=28	0-95235-255-0	01	1	1212-1311	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (AN) ID=13 L=28	0-95235-255-0	01	1	1312-1511	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 6600MM(66W) (AN) ID=13 L=28	0-95235-255-0	01	1	1512-	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (AN) ID=13 L=28	0-95235-255-0	01	1	1512-		●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L) (AL) ID=16 L=40	0-95235-576-0	01	1	1212-1311	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (AL) ID=16 L=40	0-95235-576-0	01	1	1312-	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L) (K) OD=9 H=6	1-09709-178-0	02	1	1212-1311	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (K) OD=9 H=6	1-09709-178-0	02	1	1312-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	03	1	1212-1511		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (X) L=350	1-09707-183-0	01	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (X) L=350	1-09707-183-0	01	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 7300MM(73W) (X) L=350	1-09707-183-0	01	1	1512-		●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1512-		●
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	05	1	1212-1511		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18	1-09709-291-0	02	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (C) ID=13-18 L=18	1-09709-291-0	02	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1212-1301		●
16	CLIP; HARNESS HEATER & DEFROSTER(C41) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1302-1302	●	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1302-1302		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1303-		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W) (D) ID=18-24 L=18	1-09709-294-0	06	1	1212-		●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (D) ID=18-24 L=18	1-09709-294-0	07	1	1212-		●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) (V) ID=16 L=28	0-95235-556-0	01	1	1212-1511		●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) SHIFT PATTERN SINGLE-H<EDY> (V) ID=16 L=28	0-95235-556-0	01	1	1512-		●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) (Y) ID=16 L=60	0-95235-596-0	02	1	1212-		●
142	CLIP; HARNESS,ENG (A) L=170.3	8-97209-720-0	01	1	1212-	●	●
142	CLIP; HARNESS,ENG (B) L=251	8-97619-917-0	01	1	1212-	●	●
142	CLIP; HARNESS,ENG ENGINE REAR PTO(SV1) (B) L=251	8-97619-917-0	01	1	1212-	●	●
142	CLIP; HARNESS,ENG (C) L=145	8-98116-079-0	02	1	1212-	●	●

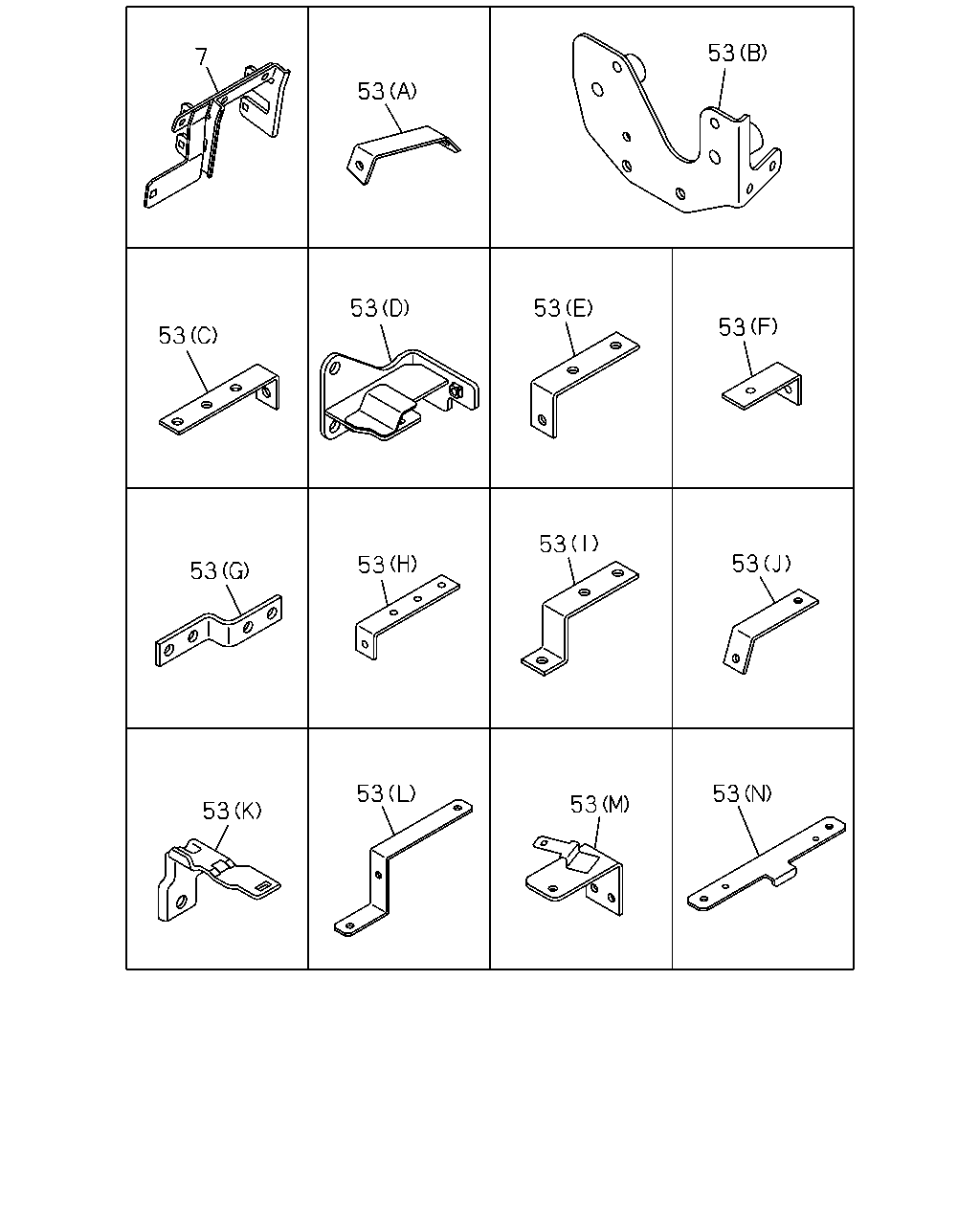

7 53 53 53 53 53 53 53 53 53 53 53 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	1212-	●	●
53	BRACKET; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A)	1-47479-537-0	13	1	1512-	●
53	BRACKET; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A)	1-47479-537-0	13	1	1512-		●
53	BRACKET; HARNESS (E) L=82 B=20	1-47478-420-0	01	1	1212-1404	●	●
53	BRACKET; HARNESS (E) L=82 B=20	8-98259-390-0	01	1	1405-	●	●
53	BRACKET; HARNESS (F) L=65	1-47479-064-1	01	1	1212-1511	●	●
53	BRACKET; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (F) L=65	1-47479-064-1	01	1	1512-	●
53	BRACKET; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (F) L=65	1-47479-064-1	01	1	1512-		●
53	BRACKET; HARNESS (A)	1-47479-537-0	06	1	1212-1511	●	●
53	BRACKET; HARNESS WHEEL BASE 5700MM(57W) (A)	1-47479-537-0	20	1	1512-	●	●
53	BRACKET; HARNESS (A)	1-47479-537-0	13	1	1212-1511	●	●
53	BRACKET; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A)	1-47479-537-0	06	1	1512-	●
53	BRACKET; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A)	1-47479-537-0	06	1	1512-		●
53	BRACKET; HARNESS (G)	1-82569-278-0	01	1	1212-	●	●
53	BRACKET; HARNESS (H) L=120 H=35	1-82698-088-0	01	1	1212-	●	●
53	BRACKET; HARNESS (C) L=115	1-82698-360-0	01	1	1212-1511	●	●
53	BRACKET; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) L=115	1-82698-360-0	01	1	1512-	●
53	BRACKET; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) L=115	1-82698-360-0	01	1	1512-		●
53	BRACKET; HARNESS (J)	1-82698-514-0	01	1	1212-	●	●
53	BRACKET; HARNESS (K)	8-98052-458-0	01	1	1212-	●	●
53	BRACKET; HARNESS (L)	8-98078-801-0	01	1	1212-	●	●
53	BRACKET; HARNESS (M)	8-98102-490-0	01	1	1212-	●	●
53	BRACKET; HARNESS (I)	8-98124-778-0	01	1	1212-1511	●	●
53	BRACKET; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (I)	8-98124-778-0	01	1	1512-	●
53	BRACKET; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (I)	8-98124-778-0	01	1	1512-		●
53	BRACKET; HARNESS (D)	8-98127-603-1	01	1	1212-	●	●
53	BRACKET; HARNESS (B)	8-98178-990-0	01	1	1212-	●	●
53	BRACKET; HARNESS A/T ALLISON 4430(Y5V) (N)	8-98202-645-0	01	1	1212-	●	●
53	BRACKET; HARNESS WHEEL BASE 6400MM(64W) (A)	1-47479-537-0	01	1	1212-1302	●	●
53	BRACKET; HARNESS WHEEL BASE 6400MM(64W) (A)	1-47479-537-0	01	1	1303-	●
53	BRACKET; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 7300MM(73W) (A)	1-47479-537-0	01	1	1303-		●

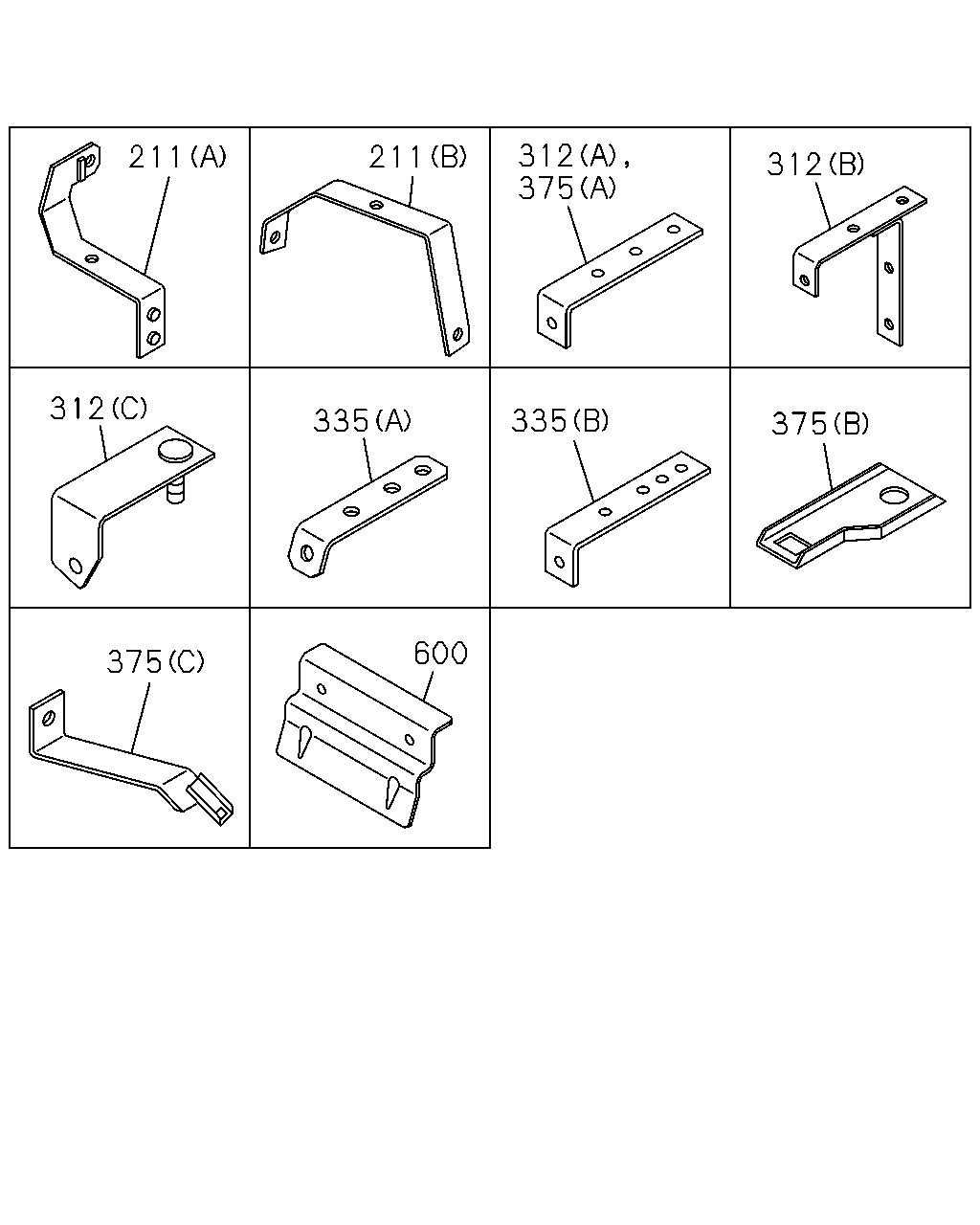

211 312 375 211 335 600 312 375 335 312 375

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
211	BRACKET; AXLE HARNESS ANTILOCK BRAKE SYSTEM(BFA) (B)	8-98230-105-0	01	1	1212-1511	●	●
211	BRACKET; AXLE HARNESS ANTILOCK BRAKE SYSTEM(BFA),BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) (B)	8-98230-105-0	01	1	1512-	●	●
211	BRACKET; AXLE HARNESS ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98219-429-1	01	1	1212-1511	●	●
211	BRACKET; AXLE HARNESS ANTILOCK BRAKE SYSTEM(BFA),BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) (A)	8-98219-429-1	01	1	1512-	●	●
312	BRACKET; CLIP HARNESS WHEEL BASE 5700MM(57W) (C)	8-98312-917-0	01	1	1512-		●
312	BRACKET; CLIP HARNESS TRANSMISSION-FULLER RTO11908(Y5L) (A) L=120	8-97619-440-0	01	1	1212-1311	●
312	BRACKET; CLIP HARNESS ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) L=120	8-97619-440-0	01	1	1212-1311		●
312	BRACKET; CLIP HARNESS TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A) L=120	8-97619-440-0	01	1	1312-1511	●
312	BRACKET; CLIP HARNESS ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (A) L=120	8-97619-440-0	01	1	1312-1511		●
312	BRACKET; CLIP HARNESS TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 6600MM(66W) (A) L=120	8-97619-440-0	01	1	1512-	●
312	BRACKET; CLIP HARNESS ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) L=120	8-97619-440-0	01	1	1512-		●
312	BRACKET; CLIP HARNESS A/T ALLISON 4430(Y5V) (B)	1-82698-479-0	01	1	1212-1511	●	●
312	BRACKET; CLIP HARNESS A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B)	1-82698-479-0	01	1	1512-	●
312	BRACKET; CLIP HARNESS A/T ALLISON 4430(Y5V) (B)	1-82698-479-0	01	1	1512-		●
335	BRACKET; CONNECTOR (B)	1-82698-358-0	01	1	1212-	●	●
335	BRACKET; CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) (A)	1-82698-167-0	01	1	1212-1511	●	●
335	BRACKET; CONNECTOR ANTILOCK BRAKE SYSTEM(BFA),BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) (A)	1-82698-167-0	01	1	1512-	●	●
375	BRACKET; AC GEN HARNESS CLIP (C)	8-98229-600-0	01	1	1212-	●	●
375	BRACKET; AC GEN HARNESS CLIP (A) L=120 H=35	1-82698-088-0	01	1	1212-	●	●
375	BRACKET; AC GEN HARNESS CLIP (B)	1-82698-569-0	01	1	1212-	●	●
600	PROTECTOR; HEAT	8-97608-456-0	01	1	1212-	●	●

16 104 470 421 104 16 48 16 51 425 206 425 104 16 16 48 51 16 16 116 16 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

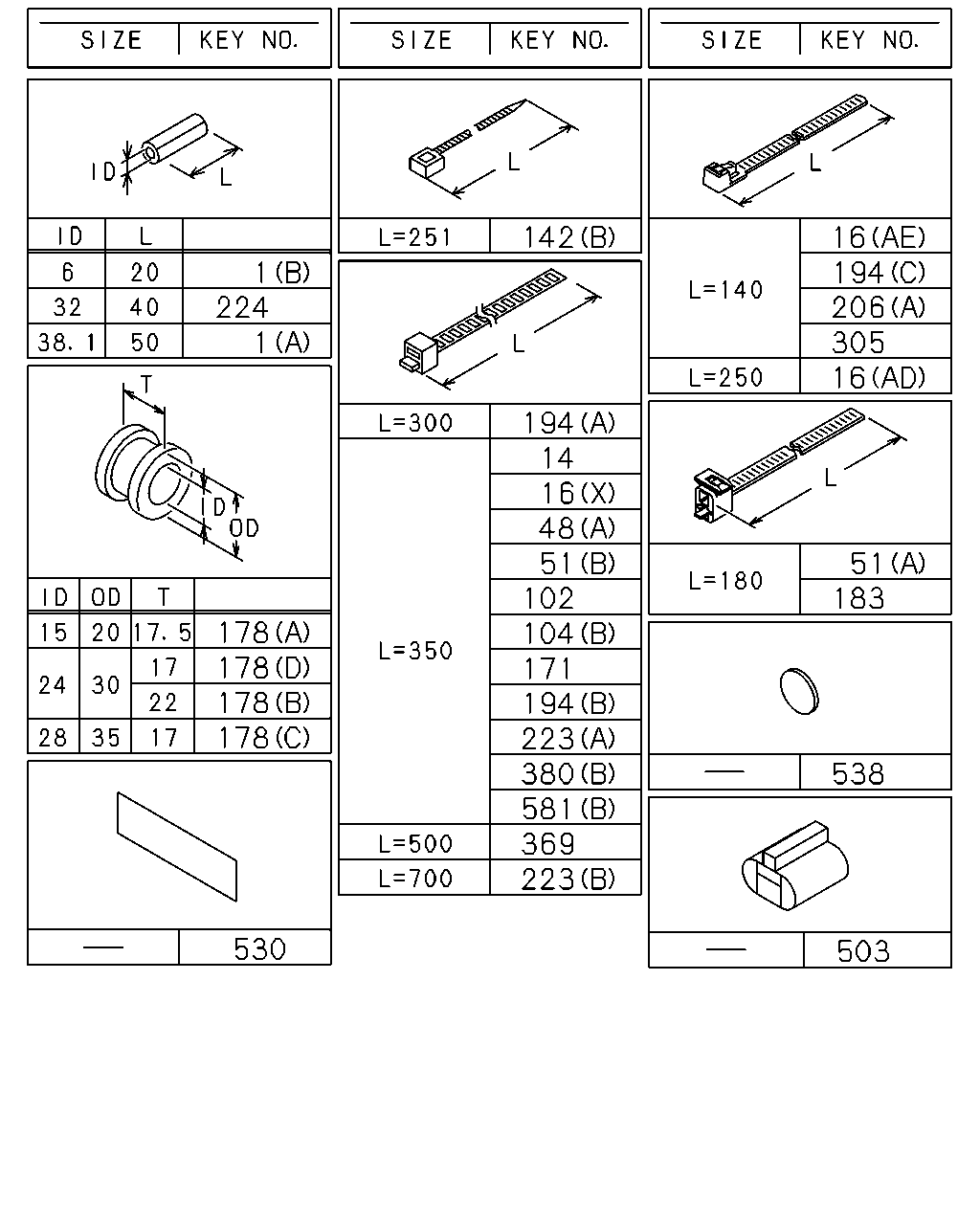

16	CLIP; HARNESS A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (N) ID=19 L=32	0-95235-866-0	01	1	1512-	●
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (N) ID=19 L=32	0-95235-866-0	01	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (AD) L=250	5-09707-030-1	04	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (AD) L=250	5-09707-030-1	04	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18	1-09709-287-0	04	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18	1-09709-287-0	04	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (X) L=350	1-09707-183-0	14	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (Z) ID=5-12 L=18	1-09709-287-0	06	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (D) ID=18-24 L=18	1-09709-294-0	03	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (AC) ID=5-12 L=14.5	1-09987-221-0	04	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (X) L=350	1-09707-183-0	03	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) ID=13-18 L=18	1-09709-291-0	05	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 7300MM(73W) (D) ID=18-24 L=18	1-09709-294-0	10	1	1303-1511		●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (D) ID=18-24 L=18	1-09709-294-0	10	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 7300MM(73W) (D) ID=18-24 L=18	1-09709-294-0	10	1	1512-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AC) ID=5-12 L=14.5	1-09987-221-0	01	1	1212-1511	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	03	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (AC) ID=5-12 L=14.5	1-09987-221-0	03	1	1512-		●
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (N) ID=19 L=32	0-95235-866-0	02	1	1212-1212	●	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (X) L=350	1-09707-183-0	02	1	1212-1511	●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (X) L=350	1-09707-183-0	12	1	1512-	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18	1-09709-291-0	02	1	1212-1511	●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (C) ID=13-18 L=18	1-09709-291-0	04	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W) (Z) ID=5-12 L=18	1-09709-287-0	03	1	1212-	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W) (D) ID=18-24 L=18	1-09709-294-0	13	1	1212-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18	1-09709-287-0	04	1	1212-1511	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18	1-09709-287-0	04	1	1212-1511	●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (Z) ID=5-12 L=18	1-09709-287-0	07	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (D) ID=18-24 L=18	1-09709-294-0	14	1	1212-	●
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1212-	●	●
16	CLIP; HARNESS (T) ID=18 H=23 L=28	1-09700-860-0	01	1	1212-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1212-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1212-	●	●
16	CLIP; HARNESS (B) ID=25 H=30 L=35	1-09700-875-0	01	1	1212-	●	●
16	CLIP; HARNESS (E) ID=35 L=33	1-09700-945-0	01	1	1212-	●	●
16	CLIP; HARNESS (G) ID=28 H=45 L=30	1-09700-948-0	01	1	1212-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1212-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1212-	●	●
16	CLIP; HARNESS (I) ID=18 L=40	1-09701-111-0	01	1	1212-	●	●
16	CLIP; HARNESS (J) ID=16 L=50	1-09701-158-0	01	1	1212-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	08	1	1212-1511	●	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (X) L=350	1-09707-183-0	08	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (X) L=350	1-09707-183-0	08	1	1512-		●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1212-1302	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1212-1302		●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1303-1511	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1303-1511		●
16	CLIP; HARNESS WHEEL BASE 7300MM(73W) (X) L=350	1-09707-183-0	01	1	1303-1511		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (X) L=350	1-09707-183-0	02	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (X) L=350	1-09707-183-0	02	1	1512-	●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	02	1	1212-1302	●	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1212-1302		●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	02	1	1303-1511	●	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W),WHEEL BASE 7300MM(73W) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1303-1511		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W),WHEEL BASE 7300MM(73W) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1512-		●
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1212-	●	●
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	01	1	1212-1511	●	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) ID=13-18 L=18	1-09709-291-0	01	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) ID=13-18 L=18	1-09709-291-0	01	1	1512-		●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	02	1	1212-1511	●	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA),BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) (AC) ID=5-12 L=14.5	1-09987-221-0	01	1	1512-	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	06	1	1212-1511	●	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (AC) ID=5-12 L=14.5	1-09987-221-0	02	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (AC) ID=5-12 L=14.5	1-09987-221-0	02	1	1512-		●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	04	1	1212-1511	●	●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (AD) L=250	5-09707-030-1	05	1	1512-	●	●
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	04	1	1212-	●	●
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1212-	●	●
16	CLIP; HARNESS (AF) ID=10 & 16	8-94413-325-0	01	1	1212-	●	●
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1212-	●	●
16	CLIP; HARNESS (AM) L=155	8-97173-307-0	18	1	1212-	●	●
16	CLIP; HARNESS (AK) L=40.6	8-97229-357-0	02	1	1212-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1212-	●	●
16	CLIP; HARNESS (O) ID=17 L=20	8-97619-251-0	04	1	1212-	●	●
16	CLIP; HARNESS (AG)	8-98052-679-0	02	1	1212-	●	●
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	1212-	●	●
16	CLIP; HARNESS (L) ID=18 L=48	9-09917-429-0	01	1	1212-	●	●
16	CLIP; HARNESS (AJ) ID=20 L=50	9-09917-430-0	02	1	1212-	●	●
16	CLIP; HARNESS (AH) ID=11 H=20 L=20	8-98033-780-0	01	1	1212-	●	●
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (N) ID=19 L=32	0-95235-866-0	01	1	1212-1212	●	●
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (N) ID=19 L=32	0-95235-866-0	03	1	1212-1511	●	●
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (N) ID=19 L=32	0-95235-866-0	02	1	1512-	●	●
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (S) ID=11 H=20 L=25	1-09700-848-0	02	1	1212-	●	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (F) ID=11 L=16	0-95235-025-0	02	1	1212-1511	●	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA),BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) (F) ID=11 L=16	0-95235-025-0	02	1	1512-	●	●
16	CLIP; HARNESS ENGINE REAR PTO(SV1) (P) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1212-	●	●
16	CLIP; HARNESS ENGINE REAR PTO(SV1) (Q) D=11 H=40 L=20	8-94246-610-0	01	1	1212-	●	●
16	CLIP; HARNESS EXC. ENGINE REAR PTO(SV1) (R) ID=12 H=24 L=20	1-09700-605-0	01	1	1212-	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L) (A) ID=11 L=20	0-95235-035-0	01	1	1212-1311	●	●
16	CLIP; HARNESS EXC. ENGINE REAR PTO(SV1) (A) ID=11 L=20	0-95235-035-0	01	1	1212-1311	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A) ID=11 L=20	0-95235-035-0	01	1	1312-	●	●
16	CLIP; HARNESS EXC. ENGINE REAR PTO(SV1) (A) ID=11 L=20	0-95235-035-0	01	1	1312-	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L) (AN) ID=13 L=28	0-95235-255-0	01	1	1212-1311	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (AN) ID=13 L=28	0-95235-255-0	01	1	1312-1511	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 6600MM(66W) (AN) ID=13 L=28	0-95235-255-0	01	1	1512-	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (AN) ID=13 L=28	0-95235-255-0	01	1	1512-		●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L) (AL) ID=16 L=40	0-95235-576-0	01	1	1212-1311	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (AL) ID=16 L=40	0-95235-576-0	01	1	1312-	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L) (K) OD=9 H=6	1-09709-178-0	02	1	1212-1311	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (K) OD=9 H=6	1-09709-178-0	02	1	1312-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	03	1	1212-1511		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (X) L=350	1-09707-183-0	01	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (X) L=350	1-09707-183-0	01	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 7300MM(73W) (X) L=350	1-09707-183-0	01	1	1512-		●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1512-		●
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	05	1	1212-1511		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18	1-09709-291-0	02	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (C) ID=13-18 L=18	1-09709-291-0	02	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1212-1301		●
16	CLIP; HARNESS HEATER & DEFROSTER(C41) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1302-1302	●	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1302-1302		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1303-		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W) (D) ID=18-24 L=18	1-09709-294-0	06	1	1212-		●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (D) ID=18-24 L=18	1-09709-294-0	07	1	1212-		●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) (V) ID=16 L=28	0-95235-556-0	01	1	1212-1511		●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) SHIFT PATTERN SINGLE-H<EDY> (V) ID=16 L=28	0-95235-556-0	01	1	1512-		●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) (Y) ID=16 L=60	0-95235-596-0	02	1	1212-		●
48	CLIP; FRAME HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) L=350	1-09707-183-0	13	1	1512-	●
48	CLIP; FRAME HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) L=350	1-09707-183-0	13	1	1512-		●
48	CLIP; FRAME HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (D) ID=5-12 L=18	1-09709-287-0	03	1	1512-	●
48	CLIP; FRAME HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (D) ID=5-12 L=18	1-09709-287-0	03	1	1512-		●
48	CLIP; FRAME HARNESS (C) ID=35 L=33	1-09700-945-0	04	1	1212-	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	06	1	1212-1511	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5700MM(57W) (A) L=350	1-09707-183-0	20	1	1512-	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	13	1	1212-1511	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) L=350	1-09707-183-0	06	1	1512-	●
48	CLIP; FRAME HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) L=350	1-09707-183-0	06	1	1512-		●
48	CLIP; FRAME HARNESS (D) ID=5-12 L=18	1-09709-287-0	03	1	1212-1511	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5700MM(57W) (D) ID=5-12 L=18	1-09709-287-0	06	1	1512-	●	●
48	CLIP; FRAME HARNESS (B) ID=13-18 L=18	1-09709-291-0	05	1	1212-1511	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) ID=13-18 L=18	1-09709-291-0	05	1	1512-	●
48	CLIP; FRAME HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) ID=13-18 L=18	1-09709-291-0	05	1	1512-		●
48	CLIP; FRAME HARNESS WHEEL BASE 6400MM(64W) (A) L=350	1-09707-183-0	01	1	1212-1302	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 6400MM(64W) (A) L=350	1-09707-183-0	01	1	1303-	●
48	CLIP; FRAME HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 7300MM(73W) (A) L=350	1-09707-183-0	01	1	1303-		●
48	CLIP; FRAME HARNESS WHEEL BASE 6600MM(66W) (B) ID=13-18 L=18	1-09709-291-0	01	1	1212-1511	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5700MM(57W),WHEEL BASE 6600MM(66W) (B) ID=13-18 L=18	1-09709-291-0	01	1	1512-	●
48	CLIP; FRAME HARNESS WHEEL BASE 6600MM(66W) (B) ID=13-18 L=18	1-09709-291-0	01	1	1512-		●
51	CLIP; COOLER CMPR WHEEL BASE 7300MM(73W) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) ID=13-18 L=18	1-09709-291-0	01	1	1303-1410		●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) L=180	1-09707-162-1	01	1	1212-1511	●	●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) L=180	1-09707-162-1	01	1	1512-	●	●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) L=350	1-09707-183-0	01	1	1212-1410	●	●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) L=350	1-09707-183-0	02	1	1411-1511	●	●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) L=350	1-09707-183-0	02	1	1512-	●	●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=5-12 L=18	1-09709-287-0	01	1	1212-1212	●	●
51	CLIP; COOLER CMPR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=5-12 L=18	1-09709-287-0	01	1	1212-1410	●	●
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	01	1	1212-	●	●
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	03	1	1212-	●	●
104	CLIP; HEADLAMP HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1212-	●	●
104	CLIP; HEADLAMP HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1212-	●	●
104	CLIP; HEADLAMP HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	02	1	1212-	●	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	01	1	1212-	●	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	1212-	●	●
162	CLIP; SW HARNESS OD=9 H=6	1-09709-178-0	01	1	1212-	●	●
206	CLIP; FUEL TANK HARNESS (B) ID=5-12 L=18	1-09709-287-0	01	1	1212-	●	●
206	CLIP; FUEL TANK HARNESS (A) L=140	5-09707-031-1	02	1	1212-	●	●
421	CLIP; FLOOR HARNESS ID=18 & 18	8-94323-068-0	02	1	1212-	●	●
425	CLIP; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (A) ID=5-12 L=22	1-09709-288-0	01	1	1212-1511	●	●
425	CLIP; MODULATOR ANTILOCK BRAKE SYSTEM(BFA),BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) (A) ID=5-12 L=22	1-09709-288-0	01	1	1512-	●	●
425	CLIP; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (B) ID=5-12 L=18	1-09709-287-0	02	1	1212-1511	●	●
425	CLIP; MODULATOR ANTILOCK BRAKE SYSTEM(BFA),BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) (B) ID=5-12 L=18	1-09709-287-0	02	1	1512-	●	●
470	CLIP; HARNESS,LICENSE LAMP (B) ID=11 L=41	1-09700-403-0	01	1	1212-	●	●
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	1212-	●	●

1 224 178 178 178 178 1 530 223 581 369 380 194 194 16 51 48 142 14 223 171 102 104 16 206 16 305 194 183 51 538 503

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SLEEVE; RUBBER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=38.1 OD=48.1 L=50	5-09360-835-0	01	1	1212-	●	●
1	SLEEVE; RUBBER ENGINE REAR PTO(SV1) (B) ID=6 L=20	1-09360-924-0	01	1	1212-	●	●
14	CLIP; BAND,HARNESS ANTILOCK BRAKE SYSTEM(BFA) L=350	1-09707-183-0	02	1	1212-1511	●	●
14	CLIP; BAND,HARNESS ANTILOCK BRAKE SYSTEM(BFA),BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) L=350	1-09707-183-0	02	1	1512-	●	●
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (N) ID=19 L=32	0-95235-866-0	01	1	1512-	●
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (N) ID=19 L=32	0-95235-866-0	01	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (AD) L=250	5-09707-030-1	04	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (AD) L=250	5-09707-030-1	04	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18	1-09709-287-0	04	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18	1-09709-287-0	04	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (X) L=350	1-09707-183-0	14	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (Z) ID=5-12 L=18	1-09709-287-0	06	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (D) ID=18-24 L=18	1-09709-294-0	03	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (AC) ID=5-12 L=14.5	1-09987-221-0	04	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (X) L=350	1-09707-183-0	03	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) ID=13-18 L=18	1-09709-291-0	05	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 7300MM(73W) (D) ID=18-24 L=18	1-09709-294-0	10	1	1303-1511		●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (D) ID=18-24 L=18	1-09709-294-0	10	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 7300MM(73W) (D) ID=18-24 L=18	1-09709-294-0	10	1	1512-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AC) ID=5-12 L=14.5	1-09987-221-0	01	1	1212-1511	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	03	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (AC) ID=5-12 L=14.5	1-09987-221-0	03	1	1512-		●
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (N) ID=19 L=32	0-95235-866-0	02	1	1212-1212	●	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (X) L=350	1-09707-183-0	02	1	1212-1511	●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (X) L=350	1-09707-183-0	12	1	1512-	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18	1-09709-291-0	02	1	1212-1511	●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (C) ID=13-18 L=18	1-09709-291-0	04	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W) (Z) ID=5-12 L=18	1-09709-287-0	03	1	1212-	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W) (D) ID=18-24 L=18	1-09709-294-0	13	1	1212-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18	1-09709-287-0	04	1	1212-1511	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18	1-09709-287-0	04	1	1212-1511	●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (Z) ID=5-12 L=18	1-09709-287-0	07	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (D) ID=18-24 L=18	1-09709-294-0	14	1	1212-	●
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1212-	●	●
16	CLIP; HARNESS (T) ID=18 H=23 L=28	1-09700-860-0	01	1	1212-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1212-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1212-	●	●
16	CLIP; HARNESS (B) ID=25 H=30 L=35	1-09700-875-0	01	1	1212-	●	●
16	CLIP; HARNESS (E) ID=35 L=33	1-09700-945-0	01	1	1212-	●	●
16	CLIP; HARNESS (G) ID=28 H=45 L=30	1-09700-948-0	01	1	1212-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1212-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1212-	●	●
16	CLIP; HARNESS (I) ID=18 L=40	1-09701-111-0	01	1	1212-	●	●
16	CLIP; HARNESS (J) ID=16 L=50	1-09701-158-0	01	1	1212-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	08	1	1212-1511	●	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (X) L=350	1-09707-183-0	08	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (X) L=350	1-09707-183-0	08	1	1512-		●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1212-1302	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1212-1302		●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1303-1511	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1303-1511		●
16	CLIP; HARNESS WHEEL BASE 7300MM(73W) (X) L=350	1-09707-183-0	01	1	1303-1511		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (X) L=350	1-09707-183-0	02	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (X) L=350	1-09707-183-0	02	1	1512-	●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	02	1	1212-1302	●	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1212-1302		●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	02	1	1303-1511	●	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W),WHEEL BASE 7300MM(73W) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1303-1511		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W),WHEEL BASE 7300MM(73W) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1512-		●
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1212-	●	●
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	01	1	1212-1511	●	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) ID=13-18 L=18	1-09709-291-0	01	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) ID=13-18 L=18	1-09709-291-0	01	1	1512-		●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	02	1	1212-1511	●	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA),BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) (AC) ID=5-12 L=14.5	1-09987-221-0	01	1	1512-	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	06	1	1212-1511	●	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (AC) ID=5-12 L=14.5	1-09987-221-0	02	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (AC) ID=5-12 L=14.5	1-09987-221-0	02	1	1512-		●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	04	1	1212-1511	●	●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (AD) L=250	5-09707-030-1	05	1	1512-	●	●
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	04	1	1212-	●	●
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1212-	●	●
16	CLIP; HARNESS (AF) ID=10 & 16	8-94413-325-0	01	1	1212-	●	●
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1212-	●	●
16	CLIP; HARNESS (AM) L=155	8-97173-307-0	18	1	1212-	●	●
16	CLIP; HARNESS (AK) L=40.6	8-97229-357-0	02	1	1212-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1212-	●	●
16	CLIP; HARNESS (O) ID=17 L=20	8-97619-251-0	04	1	1212-	●	●
16	CLIP; HARNESS (AG)	8-98052-679-0	02	1	1212-	●	●
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	1212-	●	●
16	CLIP; HARNESS (L) ID=18 L=48	9-09917-429-0	01	1	1212-	●	●
16	CLIP; HARNESS (AJ) ID=20 L=50	9-09917-430-0	02	1	1212-	●	●
16	CLIP; HARNESS (AH) ID=11 H=20 L=20	8-98033-780-0	01	1	1212-	●	●
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (N) ID=19 L=32	0-95235-866-0	01	1	1212-1212	●	●
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (N) ID=19 L=32	0-95235-866-0	03	1	1212-1511	●	●
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (N) ID=19 L=32	0-95235-866-0	02	1	1512-	●	●
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (S) ID=11 H=20 L=25	1-09700-848-0	02	1	1212-	●	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (F) ID=11 L=16	0-95235-025-0	02	1	1212-1511	●	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA),BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) (F) ID=11 L=16	0-95235-025-0	02	1	1512-	●	●
16	CLIP; HARNESS ENGINE REAR PTO(SV1) (P) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1212-	●	●
16	CLIP; HARNESS ENGINE REAR PTO(SV1) (Q) D=11 H=40 L=20	8-94246-610-0	01	1	1212-	●	●
16	CLIP; HARNESS EXC. ENGINE REAR PTO(SV1) (R) ID=12 H=24 L=20	1-09700-605-0	01	1	1212-	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L) (A) ID=11 L=20	0-95235-035-0	01	1	1212-1311	●	●
16	CLIP; HARNESS EXC. ENGINE REAR PTO(SV1) (A) ID=11 L=20	0-95235-035-0	01	1	1212-1311	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A) ID=11 L=20	0-95235-035-0	01	1	1312-	●	●
16	CLIP; HARNESS EXC. ENGINE REAR PTO(SV1) (A) ID=11 L=20	0-95235-035-0	01	1	1312-	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L) (AN) ID=13 L=28	0-95235-255-0	01	1	1212-1311	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (AN) ID=13 L=28	0-95235-255-0	01	1	1312-1511	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 6600MM(66W) (AN) ID=13 L=28	0-95235-255-0	01	1	1512-	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (AN) ID=13 L=28	0-95235-255-0	01	1	1512-		●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L) (AL) ID=16 L=40	0-95235-576-0	01	1	1212-1311	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (AL) ID=16 L=40	0-95235-576-0	01	1	1312-	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L) (K) OD=9 H=6	1-09709-178-0	02	1	1212-1311	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (K) OD=9 H=6	1-09709-178-0	02	1	1312-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	03	1	1212-1511		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (X) L=350	1-09707-183-0	01	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (X) L=350	1-09707-183-0	01	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 7300MM(73W) (X) L=350	1-09707-183-0	01	1	1512-		●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1512-		●
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	05	1	1212-1511		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18	1-09709-291-0	02	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (C) ID=13-18 L=18	1-09709-291-0	02	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1212-1301		●
16	CLIP; HARNESS HEATER & DEFROSTER(C41) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1302-1302	●	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1302-1302		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1303-		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W) (D) ID=18-24 L=18	1-09709-294-0	06	1	1212-		●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (D) ID=18-24 L=18	1-09709-294-0	07	1	1212-		●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) (V) ID=16 L=28	0-95235-556-0	01	1	1212-1511		●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) SHIFT PATTERN SINGLE-H<EDY> (V) ID=16 L=28	0-95235-556-0	01	1	1512-		●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) (Y) ID=16 L=60	0-95235-596-0	02	1	1212-		●
48	CLIP; FRAME HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) L=350	1-09707-183-0	13	1	1512-	●
48	CLIP; FRAME HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) L=350	1-09707-183-0	13	1	1512-		●
48	CLIP; FRAME HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (D) ID=5-12 L=18	1-09709-287-0	03	1	1512-	●
48	CLIP; FRAME HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (D) ID=5-12 L=18	1-09709-287-0	03	1	1512-		●
48	CLIP; FRAME HARNESS (C) ID=35 L=33	1-09700-945-0	04	1	1212-	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	06	1	1212-1511	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5700MM(57W) (A) L=350	1-09707-183-0	20	1	1512-	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	13	1	1212-1511	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) L=350	1-09707-183-0	06	1	1512-	●
48	CLIP; FRAME HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) L=350	1-09707-183-0	06	1	1512-		●
48	CLIP; FRAME HARNESS (D) ID=5-12 L=18	1-09709-287-0	03	1	1212-1511	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5700MM(57W) (D) ID=5-12 L=18	1-09709-287-0	06	1	1512-	●	●
48	CLIP; FRAME HARNESS (B) ID=13-18 L=18	1-09709-291-0	05	1	1212-1511	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) ID=13-18 L=18	1-09709-291-0	05	1	1512-	●
48	CLIP; FRAME HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) ID=13-18 L=18	1-09709-291-0	05	1	1512-		●
48	CLIP; FRAME HARNESS WHEEL BASE 6400MM(64W) (A) L=350	1-09707-183-0	01	1	1212-1302	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 6400MM(64W) (A) L=350	1-09707-183-0	01	1	1303-	●
48	CLIP; FRAME HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 7300MM(73W) (A) L=350	1-09707-183-0	01	1	1303-		●
48	CLIP; FRAME HARNESS WHEEL BASE 6600MM(66W) (B) ID=13-18 L=18	1-09709-291-0	01	1	1212-1511	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5700MM(57W),WHEEL BASE 6600MM(66W) (B) ID=13-18 L=18	1-09709-291-0	01	1	1512-	●
48	CLIP; FRAME HARNESS WHEEL BASE 6600MM(66W) (B) ID=13-18 L=18	1-09709-291-0	01	1	1512-		●
51	CLIP; COOLER CMPR WHEEL BASE 7300MM(73W) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) ID=13-18 L=18	1-09709-291-0	01	1	1303-1410		●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) L=180	1-09707-162-1	01	1	1212-1511	●	●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) L=180	1-09707-162-1	01	1	1512-	●	●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) L=350	1-09707-183-0	01	1	1212-1410	●	●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) L=350	1-09707-183-0	02	1	1411-1511	●	●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) L=350	1-09707-183-0	02	1	1512-	●	●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=5-12 L=18	1-09709-287-0	01	1	1212-1212	●	●
51	CLIP; COOLER CMPR WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=5-12 L=18	1-09709-287-0	01	1	1212-1410	●	●
102	CLIP; BAND WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) ANTILOCK BRAKE SYSTEM(BFA) L=350	1-09707-183-0	02	1	1512-		●
102	CLIP; BAND WHEEL BASE 5700MM(57W) BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) L=350	1-09707-183-0	02	1	1512-		●
102	CLIP; BAND ANTILOCK BRAKE SYSTEM(BFA) L=350	1-09707-183-0	02	1	1212-1511		●
102	CLIP; BAND WHEEL BASE 5700MM(57W) L=350	1-09707-183-0	01	1	1512-		●
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	01	1	1212-	●	●
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	03	1	1212-	●	●
104	CLIP; HEADLAMP HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1212-	●	●
104	CLIP; HEADLAMP HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1212-	●	●
104	CLIP; HEADLAMP HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	02	1	1212-	●	●
142	CLIP; HARNESS,ENG (A) L=170.3	8-97209-720-0	01	1	1212-	●	●
142	CLIP; HARNESS,ENG (B) L=251	8-97619-917-0	01	1	1212-	●	●
142	CLIP; HARNESS,ENG ENGINE REAR PTO(SV1) (B) L=251	8-97619-917-0	01	1	1212-	●	●
142	CLIP; HARNESS,ENG (C) L=145	8-98116-079-0	02	1	1212-	●	●
171	CLIP; STARTER HARNESS L=350	1-09707-183-0	03	1	1212-	●	●
178	GROMMET; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	1512-	●
178	GROMMET; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	1512-		●
178	GROMMET; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) ID=28 OD=35 T=17	9-09956-256-2	02	1	1512-	●
178	GROMMET; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) ID=28 OD=35 T=17	9-09956-256-2	02	1	1512-		●
178	GROMMET; HARNESS (B) ID=24 OD=30 T=22	1-09332-104-0	01	1	1212-	●	●
178	GROMMET; HARNESS (A) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	1212-1511	●	●
178	GROMMET; HARNESS WHEEL BASE 5700MM(57W) (A) ID=15 OD=20 T=17.5	1-09332-130-0	02	1	1512-	●	●
178	GROMMET; HARNESS (D) ID=24 OD=30 T=17	9-09956-092-1	01	1	1212-1511	●	●
178	GROMMET; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (D) ID=24 OD=30 T=17	9-09956-092-1	01	1	1512-	●
178	GROMMET; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (D) ID=24 OD=30 T=17	9-09956-092-1	01	1	1512-		●
178	GROMMET; HARNESS (C) ID=28 OD=35 T=17	9-09956-256-2	02	1	1212-1511	●	●
178	GROMMET; HARNESS ANTILOCK BRAKE SYSTEM(BFA),BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) (C) ID=28 OD=35 T=17	9-09956-256-2	04	1	1512-	●	●
178	GROMMET; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (C) ID=28 OD=35 T=17	9-09956-256-2	04	1	1212-1511	●	●
178	GROMMET; HARNESS WHEEL BASE 5700MM(57W) (C) ID=28 OD=35 T=17	9-09956-256-2	01	1	1512-	●	●
183	CLIP; CONNECTOR WHEEL BASE 6400MM(64W) L=180	1-09707-162-1	01	1	1212-	●	●
194	CLIP; BAND WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) L=350	1-09707-183-0	07	1	1512-	●
194	CLIP; BAND WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) L=350	1-09707-183-0	07	1	1512-		●
194	CLIP; BAND (A) L=300	1-09707-001-1	02	1	1212-1511	●	●
194	CLIP; BAND AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) L=300	1-09707-001-1	02	1	1512-	●	●
194	CLIP; BAND (B) L=350	1-09707-183-0	07	1	1212-1511	●	●
194	CLIP; BAND WHEEL BASE 5700MM(57W) (B) L=350	1-09707-183-0	05	1	1512-	●	●
194	CLIP; BAND (C) L=140	5-09707-031-1	02	1	1212-	●	●
194	CLIP; BAND WHEEL BASE 6400MM(64W) (B) L=350	1-09707-183-0	01	1	1212-	●	●
206	CLIP; FUEL TANK HARNESS (B) ID=5-12 L=18	1-09709-287-0	01	1	1212-	●	●
206	CLIP; FUEL TANK HARNESS (A) L=140	5-09707-031-1	02	1	1212-	●	●
223	CLIP; AIR TANK HARNESS (A) L=350	1-09707-183-0	01	1	1212-1511	●	●
223	CLIP; AIR TANK HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) L=350	1-09707-183-0	01	1	1512-	●
223	CLIP; AIR TANK HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) L=350	1-09707-183-0	01	1	1512-		●
223	CLIP; AIR TANK HARNESS (B) L=700	1-09707-190-0	02	1	1212-	●	●
224	SLEEVE; RUBBER,HARNESS ID=23 OD=27 L=40	1-09337-015-0	01	1	1212-	●	●
305	CLIP; ENG HARNESS L=140	5-09707-031-1	01	1	1212-	●	●
369	CLIP; BAND EDS HARNESS L=500	1-09707-082-1	01	1	1212-	●	●
380	CLIP; EARTH HARNESS (A) ID=11 H=20 L=25	1-09700-848-0	02	1	1212-	●	●
380	CLIP; EARTH HARNESS (B) L=350	1-09707-183-0	01	1	1212-	●	●
503	CONNECTOR WHEEL BASE 6400MM(64W)	1-82690-666-0	01	1	1212-	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	23	1	1212-	●	●
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1212-	●	●
581	CLIP; HARNESS,REAR SUSP ANTILOCK BRAKE SYSTEM(BFA) (A) ID=14 L=44	9-09917-427-0	03	1	1212-	●
581	CLIP; HARNESS,REAR SUSP ANTILOCK BRAKE SYSTEM(BFA) (B) L=350	1-09707-183-0	01	1	1212-1511		●
581	CLIP; HARNESS,REAR SUSP ANTILOCK BRAKE SYSTEM(BFA),BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) (B) L=350	1-09707-183-0	01	1	1512-		●

16 16 16 16 16 16 16 16 16 16 16 373 16 16 16 306 16 16 380 16 16 470 16 213 581 16 16 104 16 16 16 48 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (N) ID=19 L=32	0-95235-866-0	01	1	1512-	●
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (N) ID=19 L=32	0-95235-866-0	01	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (AD) L=250	5-09707-030-1	04	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (AD) L=250	5-09707-030-1	04	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18	1-09709-287-0	04	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18	1-09709-287-0	04	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (X) L=350	1-09707-183-0	14	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (Z) ID=5-12 L=18	1-09709-287-0	06	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (D) ID=18-24 L=18	1-09709-294-0	03	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (AC) ID=5-12 L=14.5	1-09987-221-0	04	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (X) L=350	1-09707-183-0	03	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) ID=13-18 L=18	1-09709-291-0	05	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 7300MM(73W) (D) ID=18-24 L=18	1-09709-294-0	10	1	1303-1511		●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (D) ID=18-24 L=18	1-09709-294-0	10	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 7300MM(73W) (D) ID=18-24 L=18	1-09709-294-0	10	1	1512-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AC) ID=5-12 L=14.5	1-09987-221-0	01	1	1212-1511	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	03	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (AC) ID=5-12 L=14.5	1-09987-221-0	03	1	1512-		●
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (N) ID=19 L=32	0-95235-866-0	02	1	1212-1212	●	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (X) L=350	1-09707-183-0	02	1	1212-1511	●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (X) L=350	1-09707-183-0	12	1	1512-	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18	1-09709-291-0	02	1	1212-1511	●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (C) ID=13-18 L=18	1-09709-291-0	04	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W) (Z) ID=5-12 L=18	1-09709-287-0	03	1	1212-	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W) (D) ID=18-24 L=18	1-09709-294-0	13	1	1212-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18	1-09709-287-0	04	1	1212-1511	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=5-12 L=18	1-09709-287-0	04	1	1212-1511	●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (Z) ID=5-12 L=18	1-09709-287-0	07	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (D) ID=18-24 L=18	1-09709-294-0	14	1	1212-	●
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1212-	●	●
16	CLIP; HARNESS (T) ID=18 H=23 L=28	1-09700-860-0	01	1	1212-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1212-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1212-	●	●
16	CLIP; HARNESS (B) ID=25 H=30 L=35	1-09700-875-0	01	1	1212-	●	●
16	CLIP; HARNESS (E) ID=35 L=33	1-09700-945-0	01	1	1212-	●	●
16	CLIP; HARNESS (G) ID=28 H=45 L=30	1-09700-948-0	01	1	1212-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1212-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1212-	●	●
16	CLIP; HARNESS (I) ID=18 L=40	1-09701-111-0	01	1	1212-	●	●
16	CLIP; HARNESS (J) ID=16 L=50	1-09701-158-0	01	1	1212-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	08	1	1212-1511	●	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (X) L=350	1-09707-183-0	08	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (X) L=350	1-09707-183-0	08	1	1512-		●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1212-1302	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1212-1302		●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1303-1511	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1303-1511		●
16	CLIP; HARNESS WHEEL BASE 7300MM(73W) (X) L=350	1-09707-183-0	01	1	1303-1511		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (X) L=350	1-09707-183-0	02	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (X) L=350	1-09707-183-0	02	1	1512-	●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	02	1	1212-1302	●	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1212-1302		●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	02	1	1303-1511	●	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W),WHEEL BASE 7300MM(73W) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1303-1511		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W),WHEEL BASE 7300MM(73W) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1512-		●
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1212-	●	●
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	01	1	1212-1511	●	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (C) ID=13-18 L=18	1-09709-291-0	01	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (C) ID=13-18 L=18	1-09709-291-0	01	1	1512-		●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	02	1	1212-1511	●	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA),BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) (AC) ID=5-12 L=14.5	1-09987-221-0	01	1	1512-	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	06	1	1212-1511	●	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (AC) ID=5-12 L=14.5	1-09987-221-0	02	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (AC) ID=5-12 L=14.5	1-09987-221-0	02	1	1512-		●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	04	1	1212-1511	●	●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (AD) L=250	5-09707-030-1	05	1	1512-	●	●
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	04	1	1212-	●	●
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1212-	●	●
16	CLIP; HARNESS (AF) ID=10 & 16	8-94413-325-0	01	1	1212-	●	●
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1212-	●	●
16	CLIP; HARNESS (AM) L=155	8-97173-307-0	18	1	1212-	●	●
16	CLIP; HARNESS (AK) L=40.6	8-97229-357-0	02	1	1212-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1212-	●	●
16	CLIP; HARNESS (O) ID=17 L=20	8-97619-251-0	04	1	1212-	●	●
16	CLIP; HARNESS (AG)	8-98052-679-0	02	1	1212-	●	●
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	1212-	●	●
16	CLIP; HARNESS (L) ID=18 L=48	9-09917-429-0	01	1	1212-	●	●
16	CLIP; HARNESS (AJ) ID=20 L=50	9-09917-430-0	02	1	1212-	●	●
16	CLIP; HARNESS (AH) ID=11 H=20 L=20	8-98033-780-0	01	1	1212-	●	●
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (N) ID=19 L=32	0-95235-866-0	01	1	1212-1212	●	●
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (N) ID=19 L=32	0-95235-866-0	03	1	1212-1511	●	●
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (N) ID=19 L=32	0-95235-866-0	02	1	1512-	●	●
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (S) ID=11 H=20 L=25	1-09700-848-0	02	1	1212-	●	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (F) ID=11 L=16	0-95235-025-0	02	1	1212-1511	●	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA),BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) (F) ID=11 L=16	0-95235-025-0	02	1	1512-	●	●
16	CLIP; HARNESS ENGINE REAR PTO(SV1) (P) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1212-	●	●
16	CLIP; HARNESS ENGINE REAR PTO(SV1) (Q) D=11 H=40 L=20	8-94246-610-0	01	1	1212-	●	●
16	CLIP; HARNESS EXC. ENGINE REAR PTO(SV1) (R) ID=12 H=24 L=20	1-09700-605-0	01	1	1212-	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L) (A) ID=11 L=20	0-95235-035-0	01	1	1212-1311	●	●
16	CLIP; HARNESS EXC. ENGINE REAR PTO(SV1) (A) ID=11 L=20	0-95235-035-0	01	1	1212-1311	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A) ID=11 L=20	0-95235-035-0	01	1	1312-	●	●
16	CLIP; HARNESS EXC. ENGINE REAR PTO(SV1) (A) ID=11 L=20	0-95235-035-0	01	1	1312-	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L) (AN) ID=13 L=28	0-95235-255-0	01	1	1212-1311	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (AN) ID=13 L=28	0-95235-255-0	01	1	1312-1511	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 6600MM(66W) (AN) ID=13 L=28	0-95235-255-0	01	1	1512-	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (AN) ID=13 L=28	0-95235-255-0	01	1	1512-		●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L) (AL) ID=16 L=40	0-95235-576-0	01	1	1212-1311	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (AL) ID=16 L=40	0-95235-576-0	01	1	1312-	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L) (K) OD=9 H=6	1-09709-178-0	02	1	1212-1311	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (K) OD=9 H=6	1-09709-178-0	02	1	1312-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	03	1	1212-1511		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (X) L=350	1-09707-183-0	01	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (X) L=350	1-09707-183-0	01	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 7300MM(73W) (X) L=350	1-09707-183-0	01	1	1512-		●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1512-		●
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	05	1	1212-1511		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18	1-09709-291-0	02	1	1512-	●
16	CLIP; HARNESS WHEEL BASE 5700MM(57W) (C) ID=13-18 L=18	1-09709-291-0	02	1	1512-		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1212-1301		●
16	CLIP; HARNESS HEATER & DEFROSTER(C41) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1302-1302	●	●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1302-1302		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1303-		●
16	CLIP; HARNESS WHEEL BASE 6400MM(64W) (D) ID=18-24 L=18	1-09709-294-0	06	1	1212-		●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (D) ID=18-24 L=18	1-09709-294-0	07	1	1212-		●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) (V) ID=16 L=28	0-95235-556-0	01	1	1212-1511		●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) SHIFT PATTERN SINGLE-H<EDY> (V) ID=16 L=28	0-95235-556-0	01	1	1512-		●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) (Y) ID=16 L=60	0-95235-596-0	02	1	1212-		●
48	CLIP; FRAME HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) L=350	1-09707-183-0	13	1	1512-	●
48	CLIP; FRAME HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) L=350	1-09707-183-0	13	1	1512-		●
48	CLIP; FRAME HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (D) ID=5-12 L=18	1-09709-287-0	03	1	1512-	●
48	CLIP; FRAME HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (D) ID=5-12 L=18	1-09709-287-0	03	1	1512-		●
48	CLIP; FRAME HARNESS (C) ID=35 L=33	1-09700-945-0	04	1	1212-	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	06	1	1212-1511	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5700MM(57W) (A) L=350	1-09707-183-0	20	1	1512-	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	13	1	1212-1511	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) L=350	1-09707-183-0	06	1	1512-	●
48	CLIP; FRAME HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) L=350	1-09707-183-0	06	1	1512-		●
48	CLIP; FRAME HARNESS (D) ID=5-12 L=18	1-09709-287-0	03	1	1212-1511	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5700MM(57W) (D) ID=5-12 L=18	1-09709-287-0	06	1	1512-	●	●
48	CLIP; FRAME HARNESS (B) ID=13-18 L=18	1-09709-291-0	05	1	1212-1511	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (B) ID=13-18 L=18	1-09709-291-0	05	1	1512-	●
48	CLIP; FRAME HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (B) ID=13-18 L=18	1-09709-291-0	05	1	1512-		●
48	CLIP; FRAME HARNESS WHEEL BASE 6400MM(64W) (A) L=350	1-09707-183-0	01	1	1212-1302	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 6400MM(64W) (A) L=350	1-09707-183-0	01	1	1303-	●
48	CLIP; FRAME HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 7300MM(73W) (A) L=350	1-09707-183-0	01	1	1303-		●
48	CLIP; FRAME HARNESS WHEEL BASE 6600MM(66W) (B) ID=13-18 L=18	1-09709-291-0	01	1	1212-1511	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5700MM(57W),WHEEL BASE 6600MM(66W) (B) ID=13-18 L=18	1-09709-291-0	01	1	1512-	●
48	CLIP; FRAME HARNESS WHEEL BASE 6600MM(66W) (B) ID=13-18 L=18	1-09709-291-0	01	1	1512-		●
81	CLIP; HARNESS ID=39 L=33	8-98009-359-0	01	1	1212-	●	●
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	01	1	1212-	●	●
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	03	1	1212-	●	●
104	CLIP; HEADLAMP HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1212-	●	●
104	CLIP; HEADLAMP HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1212-	●	●
104	CLIP; HEADLAMP HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	02	1	1212-	●	●
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1212-	●	●
306	CLIP; HARNESS,ELEC GOV ID=39 H=28 L=32	1-09701-263-0	03	1	1212-	●	●
373	CLIP; BAND,GEN HARNESS ID=20 H=23 L=27	1-09700-861-0	02	1	1212-	●	●
380	CLIP; EARTH HARNESS (A) ID=11 H=20 L=25	1-09700-848-0	02	1	1212-	●	●
380	CLIP; EARTH HARNESS (B) L=350	1-09707-183-0	01	1	1212-	●	●
470	CLIP; HARNESS,LICENSE LAMP (B) ID=11 L=41	1-09700-403-0	01	1	1212-	●	●
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	1212-	●	●
581	CLIP; HARNESS,REAR SUSP ANTILOCK BRAKE SYSTEM(BFA) (A) ID=14 L=44	9-09917-427-0	03	1	1212-	●
581	CLIP; HARNESS,REAR SUSP ANTILOCK BRAKE SYSTEM(BFA) (B) L=350	1-09707-183-0	01	1	1212-1511		●
581	CLIP; HARNESS,REAR SUSP ANTILOCK BRAKE SYSTEM(BFA),BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) (B) L=350	1-09707-183-0	01	1	1512-		●

38 150 38 139 150 466 242 38 150 139 38 358 377 242 377 38 386 38 386 38 490 38 139 242 313 38 86 139 139 127 524 219 340 294 515 525 515 423

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	BOLT; CLIP,HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (D) M8X30 FLANGE	0-28650-830-0	04	1	1512-	●
38	BOLT; CLIP,HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (D) M8X30 FLANGE	0-28650-830-0	04	1	1512-		●
38	BOLT; CLIP,HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) M8X35 FLANGE	0-28650-835-0	02	1	1512-	●
38	BOLT; CLIP,HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) M8X35 FLANGE	0-28650-835-0	02	1	1512-		●
38	BOLT; CLIP,HARNESS (I) M6X10 FLANGE	0-28050-610-0	01	1	1212-	●	●
38	BOLT; CLIP,HARNESS (C) M8X35 FLANGE	0-28050-835-0	03	1	1212-	●	●
38	BOLT; CLIP,HARNESS (G) M12X16 FLANGE	0-28051-216-0	01	1	1212-	●	●
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28650-820-0	01	1	1212-1212	●	●
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28650-820-0	08	1	1212-	●	●
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28650-820-0	07	1	1212-1212	●	●
38	BOLT; CLIP,HARNESS (F) M8X25 FLANGE	0-28650-825-0	03	1	1212-	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	1212-1511	●	●
38	BOLT; CLIP,HARNESS WHEEL BASE 5700MM(57W) (D) M8X30 FLANGE	0-28650-830-0	05	1	1512-	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	04	1	1212-1511	●	●
38	BOLT; CLIP,HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (D) M8X30 FLANGE	0-28650-830-0	01	1	1512-	●
38	BOLT; CLIP,HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (D) M8X30 FLANGE	0-28650-830-0	01	1	1512-		●
38	BOLT; CLIP,HARNESS (A) M8X35 FLANGE	0-28650-835-0	01	1	1212-1511	●	●
38	BOLT; CLIP,HARNESS WHEEL BASE 5700MM(57W) (A) M8X35 FLANGE	0-28650-835-0	03	1	1512-	●	●
38	BOLT; CLIP,HARNESS (A) M8X35 FLANGE	0-28650-835-0	02	1	1212-1511	●	●
38	BOLT; CLIP,HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) M8X35 FLANGE	0-28650-835-0	01	1	1512-	●
38	BOLT; CLIP,HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) M8X35 FLANGE	0-28650-835-0	01	1	1512-		●
38	BOLT; CLIP,HARNESS (H) M8X14 W/PL WASHER	8-98164-837-0	03	1	1212-	●	●
38	BOLT; CLIP,HARNESS A/T ALLISON 4430(Y5V) (B) M8X20 FLANGE	0-28650-820-0	04	1	1212-	●	●
38	BOLT; CLIP,HARNESS TRANSMISSION-FULLER RTO11908(Y5L) (B) M8X20 FLANGE	0-28650-820-0	02	1	1212-1311	●	●
38	BOLT; CLIP,HARNESS ANTILOCK BRAKE SYSTEM(BFA) (B) M8X20 FLANGE	0-28650-820-0	02	1	1212-1311	●	●
38	BOLT; CLIP,HARNESS ANTILOCK BRAKE SYSTEM(BFA) (B) M8X20 FLANGE	0-28650-820-0	02	1	1312-1511	●	●
38	BOLT; CLIP,HARNESS TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (B) M8X20 FLANGE	0-28650-820-0	02	1	1312-1511	●	●
38	BOLT; CLIP,HARNESS TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (B) M8X20 FLANGE	0-28650-820-0	02	1	1512-	●	●
38	BOLT; CLIP,HARNESS WHEEL BASE 5700MM(57W),WHEEL BASE 6400MM(64W), WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (B) M8X20 FLANGE	0-28650-820-0	02	1	1512-	●
38	BOLT; CLIP,HARNESS WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) ANTILOCK BRAKE SYSTEM(BFA) (B) M8X20 FLANGE	0-28650-820-0	02	1	1512-		●
38	BOLT; CLIP,HARNESS WHEEL BASE 5700MM(57W) BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) (B) M8X20 FLANGE	0-28650-820-0	02	1	1512-		●
38	BOLT; CLIP,HARNESS ZF9S1310 M/T(Y5K) (E) M8X12 FLANGE	0-28050-812-0	02	1	1212-		●
86	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	01	1	1212-1212	●	●
86	BOLT; CLIP BRKT A/T ALLISON 4430(Y5V) M8X35 FLANGE	0-28650-835-0	01	1	1212-1212	●	●
86	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	01	1	1301-1511	●	●
86	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	01	1	1512-	●	●
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1212-	●	●
139	BOLT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (D) M8X35 FLANGE	0-28650-835-0	01	1	1512-	●
139	BOLT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (D) M8X35 FLANGE	0-28650-835-0	01	1	1512-	●
139	BOLT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (D) M8X35 FLANGE	0-28650-835-0	01	1	1512-		●
139	BOLT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (D) M8X35 FLANGE	0-28650-835-0	01	1	1512-		●
139	BOLT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) M8X30 FLANGE	0-28650-830-0	12	1	1512-	●
139	BOLT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) M8X30 FLANGE	0-28650-830-0	12	1	1512-		●
139	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	01	1	1212-	●	●
139	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	02	1	1212-	●	●
139	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	12	1	1212-1511	●	●
139	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA),BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) (A) M8X30 FLANGE	0-28650-830-0	03	1	1512-	●	●
139	BOLT; BRKT (D) M8X35 FLANGE	0-28650-835-0	01	1	1212-1511	●	●
139	BOLT; BRKT (D) M8X35 FLANGE	0-28650-835-0	01	1	1212-1511	●	●
139	BOLT; BRKT WHEEL BASE 5700MM(57W) (D) M8X35 FLANGE	0-28650-835-0	02	1	1512-	●	●
139	BOLT; BRKT A/T ALLISON 4430(Y5V) (E) M10X40 FLANGE	0-28051-040-0	02	1	1212-	●	●
139	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE	0-28650-830-0	03	1	1212-1511	●	●
139	BOLT; BRKT WHEEL BASE 5700MM(57W) (A) M8X30 FLANGE	0-28650-830-0	13	1	1512-	●	●
139	BOLT; BRKT WHEEL BASE 6400MM(64W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1212-1302	●	●
139	BOLT; BRKT WHEEL BASE 6400MM(64W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1303-	●
139	BOLT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 7300MM(73W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1303-		●
150	BOLT; CLIP (B) M6X16 FLANGE	0-28050-616-0	01	1	1212-	●	●
150	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	08	1	1212-	●	●
150	BOLT; CLIP (C) M8X66 FLANGE	8-98081-507-0	02	1	1212-	●	●
150	BOLT; CLIP EXC. ENGINE REAR PTO(SV1) (A) M8X16 FLANGE	0-28050-816-0	02	1	1212-	●	●
219	NUT M8 FLANGE	0-91180-108-0	08	1	1212-1511	●	●
219	NUT ANTILOCK BRAKE SYSTEM(BFA),BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) M8 FLANGE	0-91180-108-0	02	1	1512-	●	●
219	NUT M8 FLANGE	0-91180-108-0	01	1	1212-1311	●	●
219	NUT TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	01	1	1212-1311	●	●
219	NUT M8 FLANGE	0-91180-108-0	01	1	1312-1511	●	●
219	NUT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	01	1	1512-	●
219	NUT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M8 FLANGE	0-91180-108-0	01	1	1512-		●
219	NUT A/T ALLISON 4430(Y5V) M8 FLANGE	0-91180-108-0	04	1	1212-	●	●
219	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	02	1	1212-1511	●	●
219	NUT M8 FLANGE	0-91180-108-0	08	1	1512-	●	●
242	BOLT; BRKT,HARNESS (B) M8X20 FLANGE	0-28050-820-0	01	1	1212-	●	●
242	BOLT; BRKT,HARNESS (A) M8X30 FLANGE	0-28650-830-0	01	1	1212-	●	●
242	BOLT; BRKT,HARNESS (C) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1212-	●	●
294	NUT M8 FLANGE	0-91180-108-0	02	1	1212-1511	●	●
294	NUT M8 FLANGE	0-91180-108-0	08	1	1512-	●	●
294	NUT M8 FLANGE	0-91180-108-0	06	1	1212-1511	●	●
294	NUT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	03	1	1512-	●
294	NUT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	03	1	1512-		●
294	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	03	1	1212-1511	●	●
294	NUT WHEEL BASE 5700MM(57W) ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	02	1	1512-	●
294	NUT WHEEL BASE 5700MM(57W) BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) M8 FLANGE	0-91180-108-0	02	1	1512-		●
313	BOLT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) M8X30 FLANGE	0-28650-830-0	08	1	1512-	●
313	BOLT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) M8X30 FLANGE	0-28650-830-0	08	1	1512-		●
313	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	08	1	1212-1511	●	●
313	BOLT; BRKT WHEEL BASE 5700MM(57W) M8X30 FLANGE	0-28650-830-0	06	1	1512-	●	●
340	NUT; HARNESS CAB TO FRAME M8 FLANGE	0-91180-108-0	03	1	1212-	●	●
358	BOLT; EARTH M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1212-	●	●
377	BOLT; CAB EARTH (A) M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1212-	●	●
377	BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	1212-	●	●
386	BOLT; GRAND HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1212-	●	●
386	BOLT; GRAND HARNESS (B) M8X24 W/PL WASHER	8-98141-256-1	02	1	1212-	●	●
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	03	1	1212-	●	●
466	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28050-816-0	02	1	1212-	●	●
490	BOLT; CLIP,RELAY BOX M8X20 FLANGE	0-28650-820-0	01	1	1212-	●	●
515	NUT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (A) M8 FLANGE	0-91180-108-0	12	1	1512-	●
515	NUT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (A) M8 FLANGE	0-91180-108-0	12	1	1512-		●
515	NUT; BRKT WHEEL BASE 5700MM(57W) (A) M8 FLANGE	0-91180-108-0	14	1	1512-		●
515	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	12	1	1212-1511	●	●
515	NUT; BRKT WHEEL BASE 5700MM(57W) (A) M8 FLANGE	0-91180-108-0	13	1	1512-	●
515	NUT; BRKT A/T ALLISON 4430(Y5V) (B) M10 FLANGE	0-91180-210-0	02	1	1212-	●	●
515	NUT; BRKT WHEEL BASE 6400MM(64W) (A) M8 FLANGE	0-91180-108-0	01	1	1212-1302	●	●
515	NUT; BRKT WHEEL BASE 6400MM(64W) (A) M8 FLANGE	0-91180-108-0	01	1	1303-	●
515	NUT; BRKT WHEEL BASE 6400MM(64W),WHEEL BASE 7300MM(73W) (A) M8 FLANGE	0-91180-108-0	01	1	1303-		●
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	1212-	●	●
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1212-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
