8-15 — FIXING PARTS; WIRING HARNESS (#111471) — 127 parça

516 139 150 242 529 139 139 313 480 304 480 377 377 386 386 139 24 515 577 219 294 515 552 24 515 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.559 NUT; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1212-
24	02.559 NUT; HARNESS 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1212-1409
24	02.559 NUT; HARNESS (A) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1212-
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1212-
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	1212-
139	02.559 BOLT; BRKT 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1212-1212
139	02.559 BOLT; BRKT 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
150	02.343 BOLT; CLIP M8X12 FLANGE	0-28050-812-0	01	1	1212-
219	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	1212-1402
242	02.483 BOLT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1212-
294	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	1212-
304	02.483 BOLT; ENG HARNESS CLIP 00.029 M10X16 FLANGE	0-28151-016-0	01	1	1212-
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1212-
377	02.559 BOLT; CAB EARTH 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1212-
377	02.559 BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1212-
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1212-
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1212-
480	02.483 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1212-
480	02.483 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1212-
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1212-
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1212-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1212-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1212-
516	02.559 BOLT; HARNESS 09.650 M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1212-
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1212-
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1212-
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1212-
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1212-
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1212-
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1212-

14 22 22 102 22 488 483 48 48 483 48 483 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	02.559 CLIP; BAND,HARNESS 09.242 L=150	8-97355-273-0	03	1	1212-
22	02.559 CLIP; ENG HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	1212-
22	02.559 CLIP; ENG HARNESS (D) L=250	5-09707-030-1	01	1	1212-
22	02.559 CLIP; ENG HARNESS 08.852 (C) L=350	8-94152-256-1	02	1	1212-
22	02.559 CLIP; ENG HARNESS (B) ID=14-20	8-97061-603-0	02	1	1212-1505
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1212-
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	1212-
48	02.559 CLIP; FRAME HARNESS 03.430 (E) ID=10 & 16.5	8-94424-440-0	01	1	1212-
48	02.559 CLIP; FRAME HARNESS (C) T=4.5 & 9	8-97371-947-0	01	1	1212-
48	02.559 CLIP; FRAME HARNESS (B) T=5.5	8-97371-951-0	02	1	1212-
102	02.559 CLIP; BAND 03.162 L=140	5-09707-031-1	08	1	1212-
483	02.559 CLIP; ENG HARNESS 06.602 (C) ID=15 H=24 L=20	1-09700-606-0	01	1	1212-
483	02.559 CLIP; ENG HARNESS 04.785 (A) ID=14.5 L=40	1-09701-014-0	01	1	1212-
483	02.559 CLIP; ENG HARNESS (D) ID=19 H=33 L=45	1-09701-045-0	01	1	1212-
483	02.559 CLIP; ENG HARNESS 01.152 (E) L=36	8-94224-891-1	01	1	1212-
483	02.559 CLIP; ENG HARNESS (B) ID=12	8-97329-630-0	01	1	1212-
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	1212-

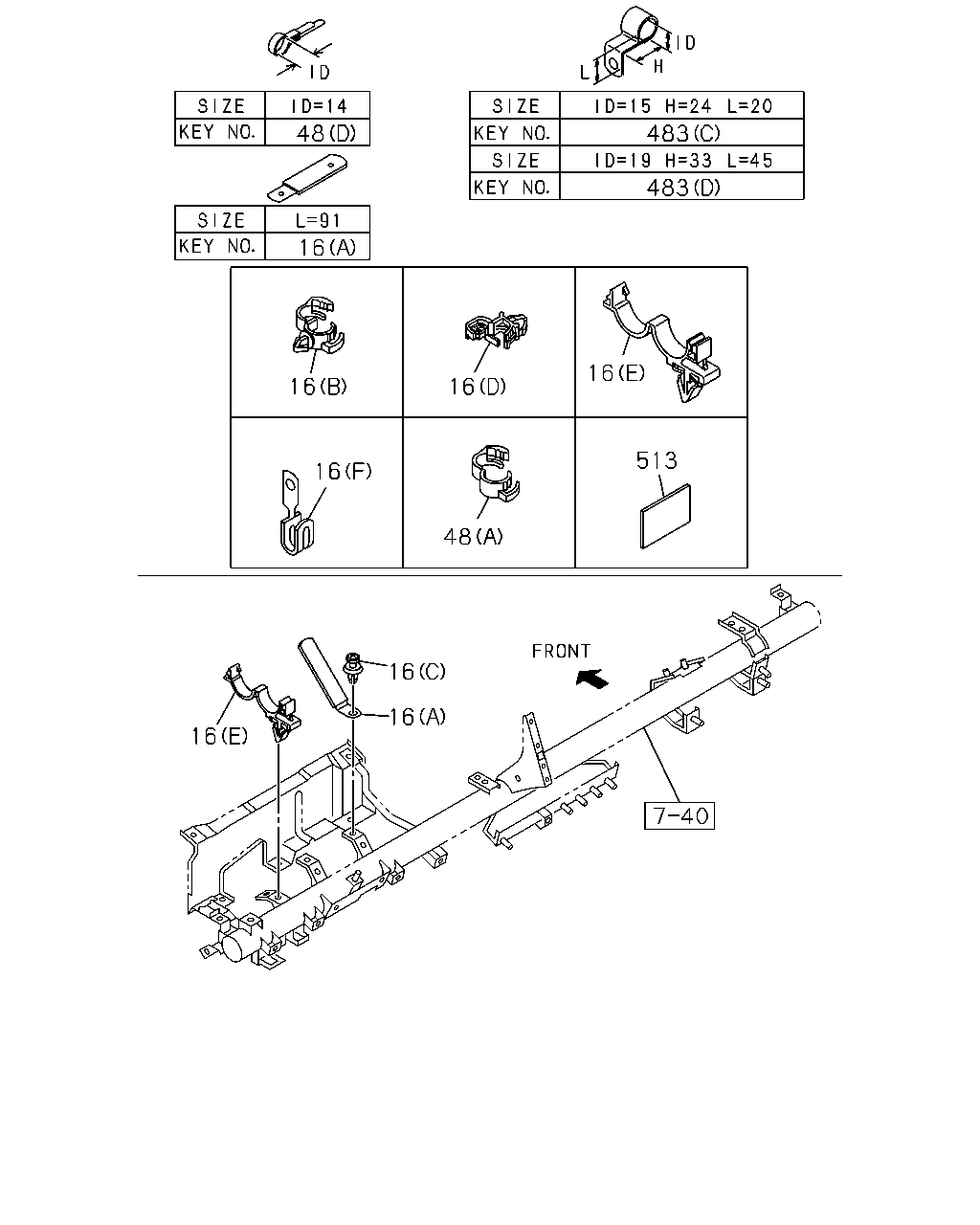

16 16 16 513 16 48 16 16 483 16 48 483 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.483 (E) ID=28	8-94362-106-0	01	1	1212-
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 02.694 (B) ID=6 & 10-13	8-97069-515-0	01	1	1212-
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.483 (F)	8-97101-436-0	01	1	1212-
16	02.559 CLIP; HARNESS 04.930 (A) L=91 ID=8.5	8-94329-956-0	01	1	1212-
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1212-
16	02.559 CLIP; HARNESS 16.578 (C) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1212-
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1212-
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	1212-
48	02.559 CLIP; FRAME HARNESS 03.430 (E) ID=10 & 16.5	8-94424-440-0	01	1	1212-
48	02.559 CLIP; FRAME HARNESS (C) T=4.5 & 9	8-97371-947-0	01	1	1212-
48	02.559 CLIP; FRAME HARNESS (B) T=5.5	8-97371-951-0	02	1	1212-
483	02.559 CLIP; ENG HARNESS 06.602 (C) ID=15 H=24 L=20	1-09700-606-0	01	1	1212-
483	02.559 CLIP; ENG HARNESS 04.785 (A) ID=14.5 L=40	1-09701-014-0	01	1	1212-
483	02.559 CLIP; ENG HARNESS (D) ID=19 H=33 L=45	1-09701-045-0	01	1	1212-
483	02.559 CLIP; ENG HARNESS 01.152 (E) L=36	8-94224-891-1	01	1	1212-
483	02.559 CLIP; ENG HARNESS (B) ID=12	8-97329-630-0	01	1	1212-
513	02.559 TAPE; SOFT,HARNESS 130X80	8-97304-373-0	01	1	1212-
513	02.559 TAPE; SOFT,HARNESS 130X80	8-97304-373-0	01	1	1212-
513	02.559 TAPE; SOFT,HARNESS 70X45	8-97304-372-0	01	1	1212-1309

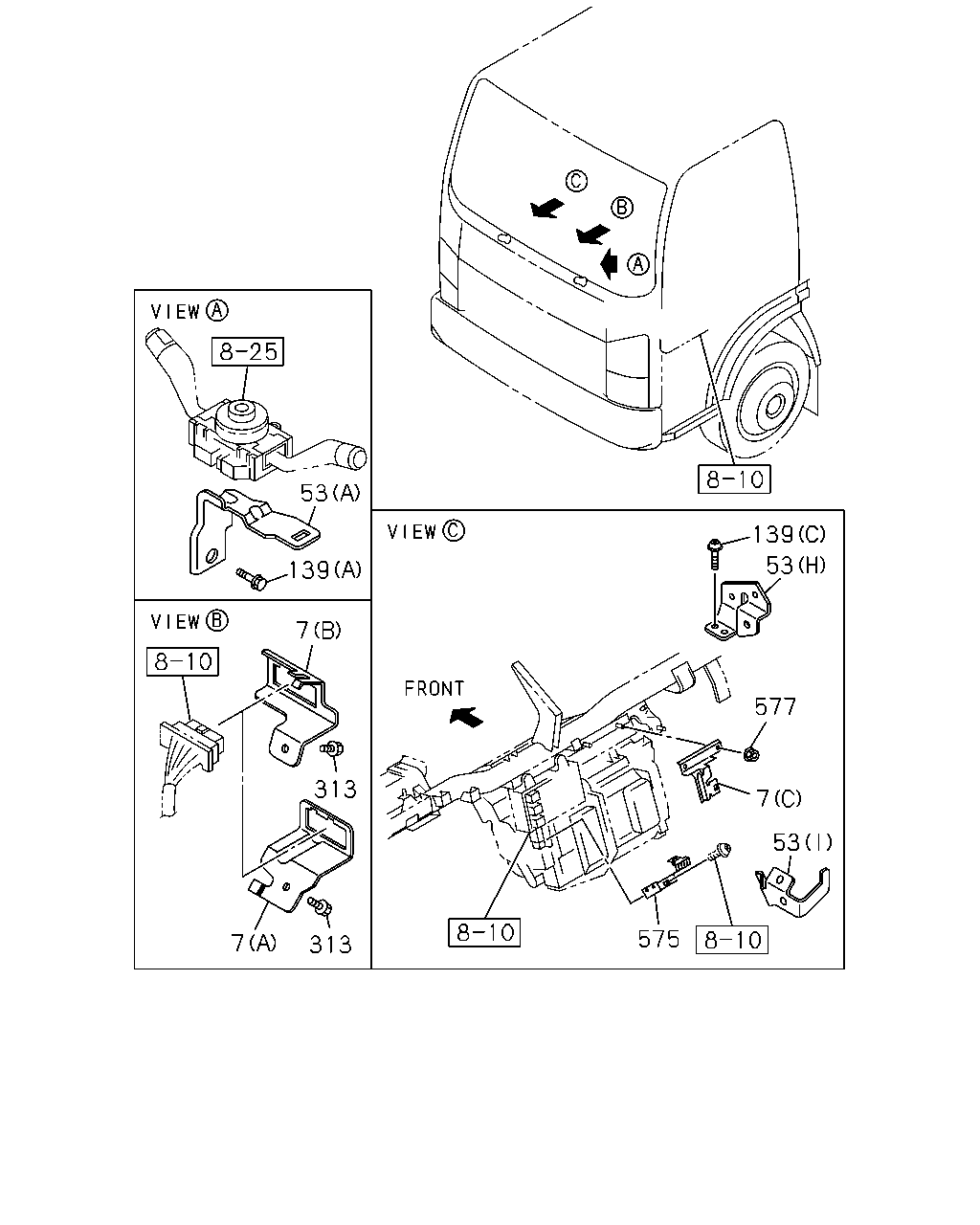

139 53 577 7 53 575 313 7 313 7 139 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98114-514-0	01	1	1212-
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98043-070-1	01	1	1212-
7	02.559 BRACKET; CONNECTOR (C)	8-98056-073-3	01	1	1212-
53	02.483 BRACKET; HARNESS 02.559 (F)	8-98052-804-0	01	1	1212-
53	02.483 BRACKET; HARNESS 02.559 (E)	8-98055-636-0	01	1	1212-
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1212-
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1212-
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1212-
53	02.483 BRACKET; HARNESS (I)	8-98074-502-0	01	1	1212-
53	02.483 BRACKET; HARNESS (B)	8-98077-504-0	01	1	1212-
53	02.483 BRACKET; HARNESS (H)	8-98084-699-0	01	1	1212-
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1212-
53	02.483 BRACKET; HARNESS (J)	8-98130-669-1	01	1	1212-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1212-
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1212-
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	1212-
139	02.559 BOLT; BRKT 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1212-1212
139	02.559 BOLT; BRKT 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1212-
575	02.559 BRACKET; FUSE BOX	8-98132-932-1	01	1	1212-
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1212-
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1212-

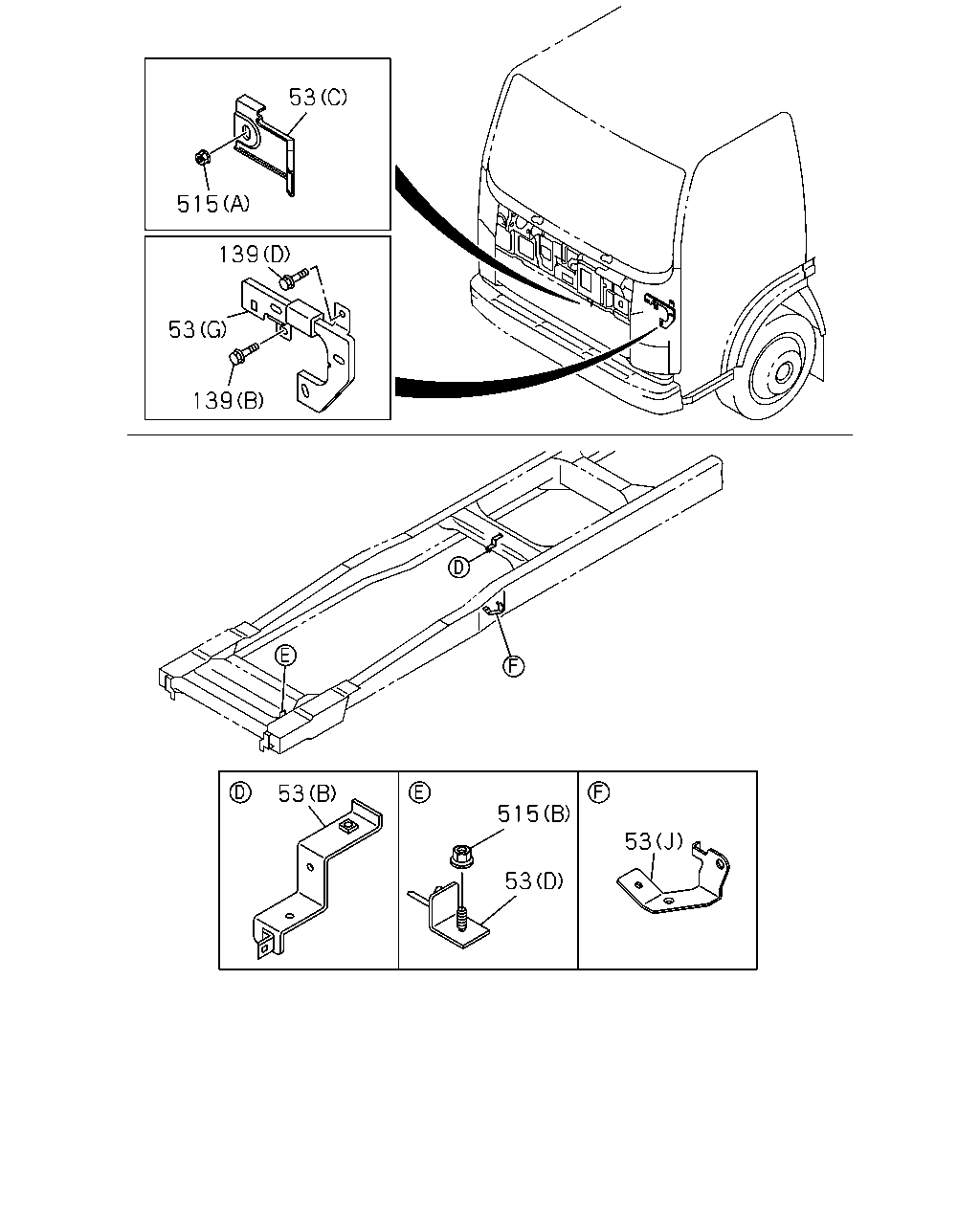

515 53 53 53 53 139 139 515 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	02.483 BRACKET; HARNESS 02.559 (F)	8-98052-804-0	01	1	1212-
53	02.483 BRACKET; HARNESS 02.559 (E)	8-98055-636-0	01	1	1212-
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1212-
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1212-
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1212-
53	02.483 BRACKET; HARNESS (I)	8-98074-502-0	01	1	1212-
53	02.483 BRACKET; HARNESS (B)	8-98077-504-0	01	1	1212-
53	02.483 BRACKET; HARNESS (H)	8-98084-699-0	01	1	1212-
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1212-
53	02.483 BRACKET; HARNESS (J)	8-98130-669-1	01	1	1212-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1212-
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1212-
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	1212-
139	02.559 BOLT; BRKT 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1212-1212
139	02.559 BOLT; BRKT 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1212-
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1212-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1212-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1212-

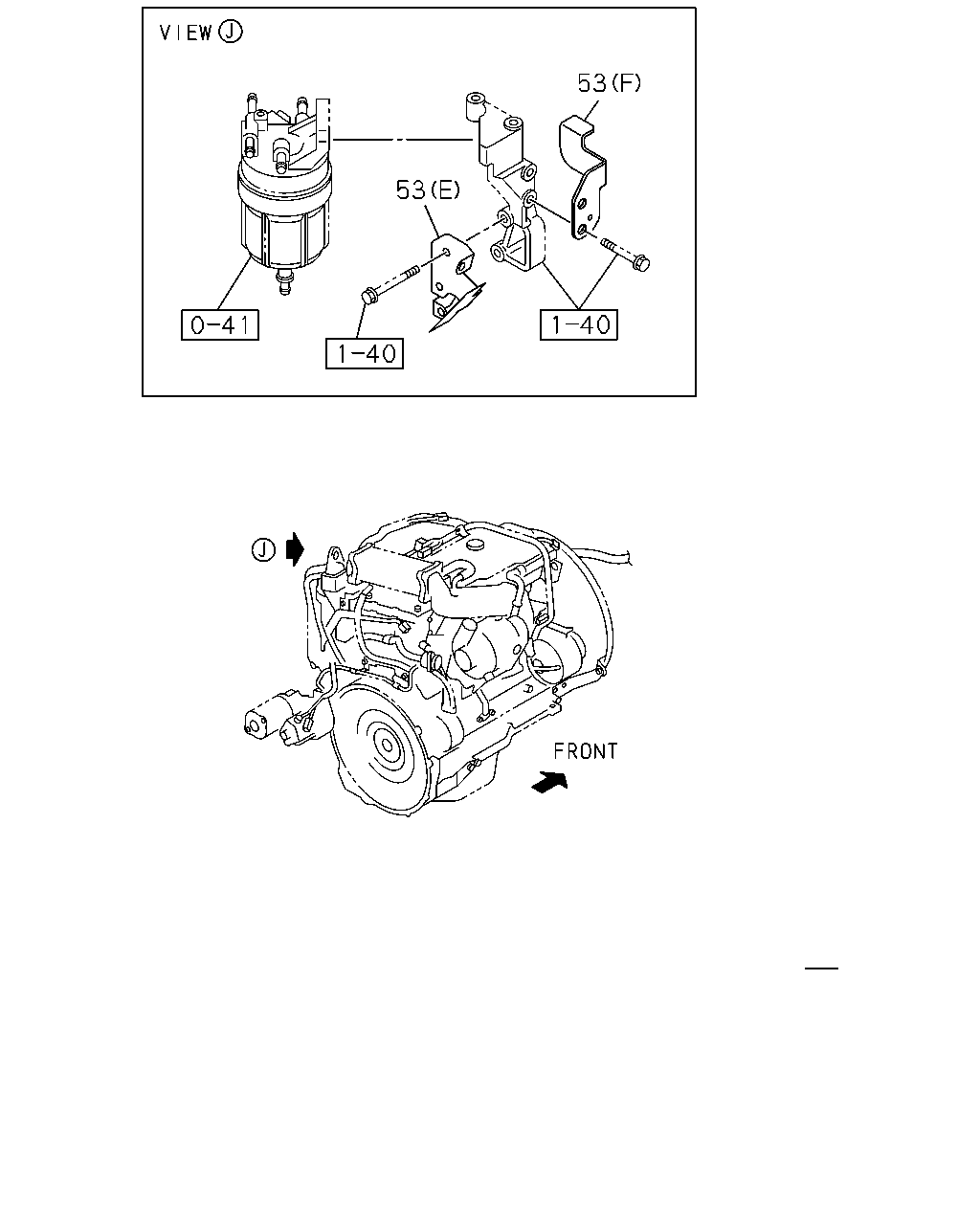

53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	02.483 BRACKET; HARNESS 02.559 (F)	8-98052-804-0	01	1	1212-
53	02.483 BRACKET; HARNESS 02.559 (E)	8-98055-636-0	01	1	1212-
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	1212-
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	1212-
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1212-
53	02.483 BRACKET; HARNESS (I)	8-98074-502-0	01	1	1212-
53	02.483 BRACKET; HARNESS (B)	8-98077-504-0	01	1	1212-
53	02.483 BRACKET; HARNESS (H)	8-98084-699-0	01	1	1212-
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	1212-
53	02.483 BRACKET; HARNESS (J)	8-98130-669-1	01	1	1212-

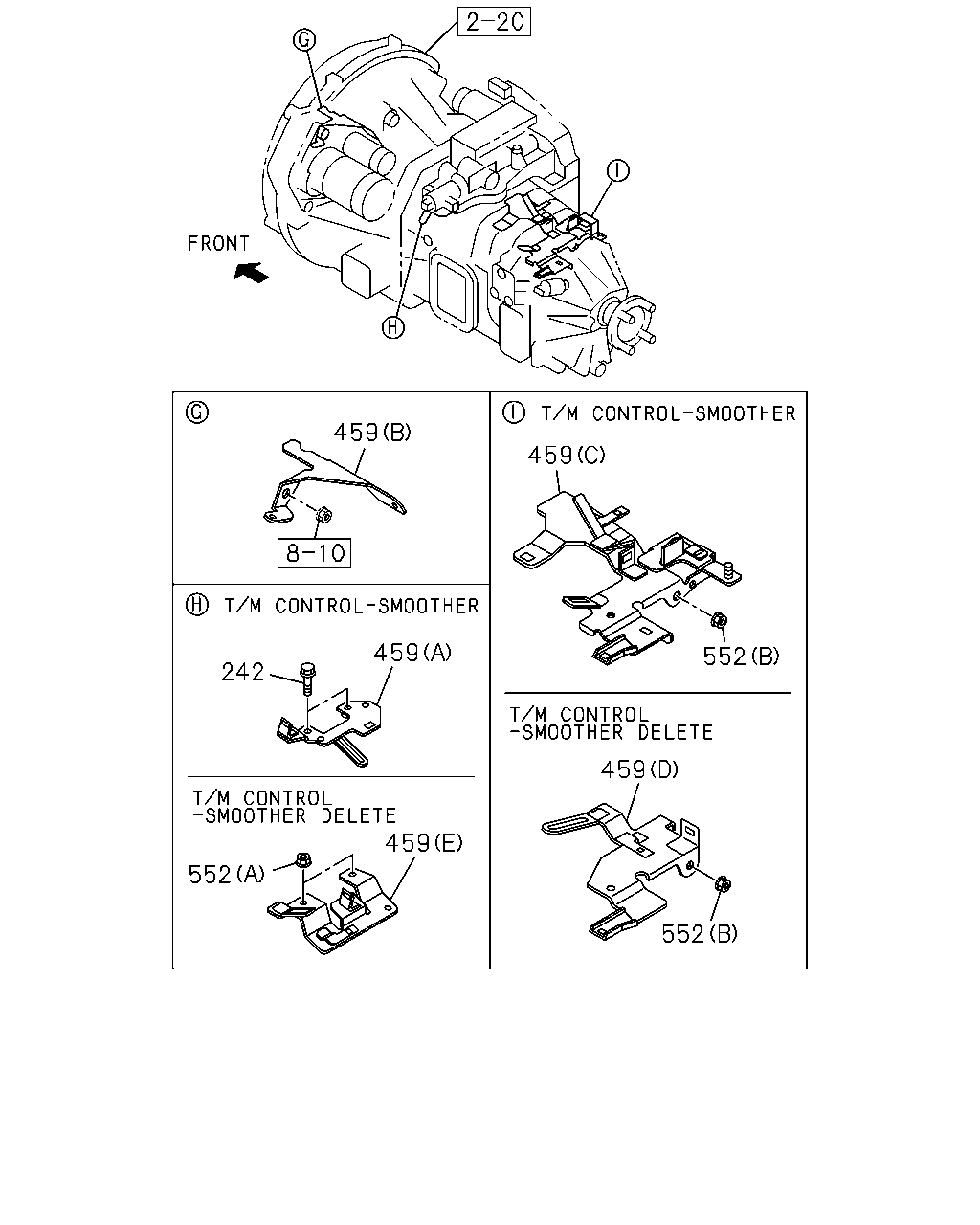

459 552 459 552 459 552 242 459 459

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
242	02.483 BOLT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1212-
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98018-899-1	01	1	1212-
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98030-988-2	01	1	1212-
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98030-991-2	01	1	1212-
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98020-227-3	01	1	1212-
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98196-974-0	01	1	1212-
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1212-
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1212-
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1212-
