3-77 — BRAKE PIPING; AIR,REAR (#11147) — 119 parça

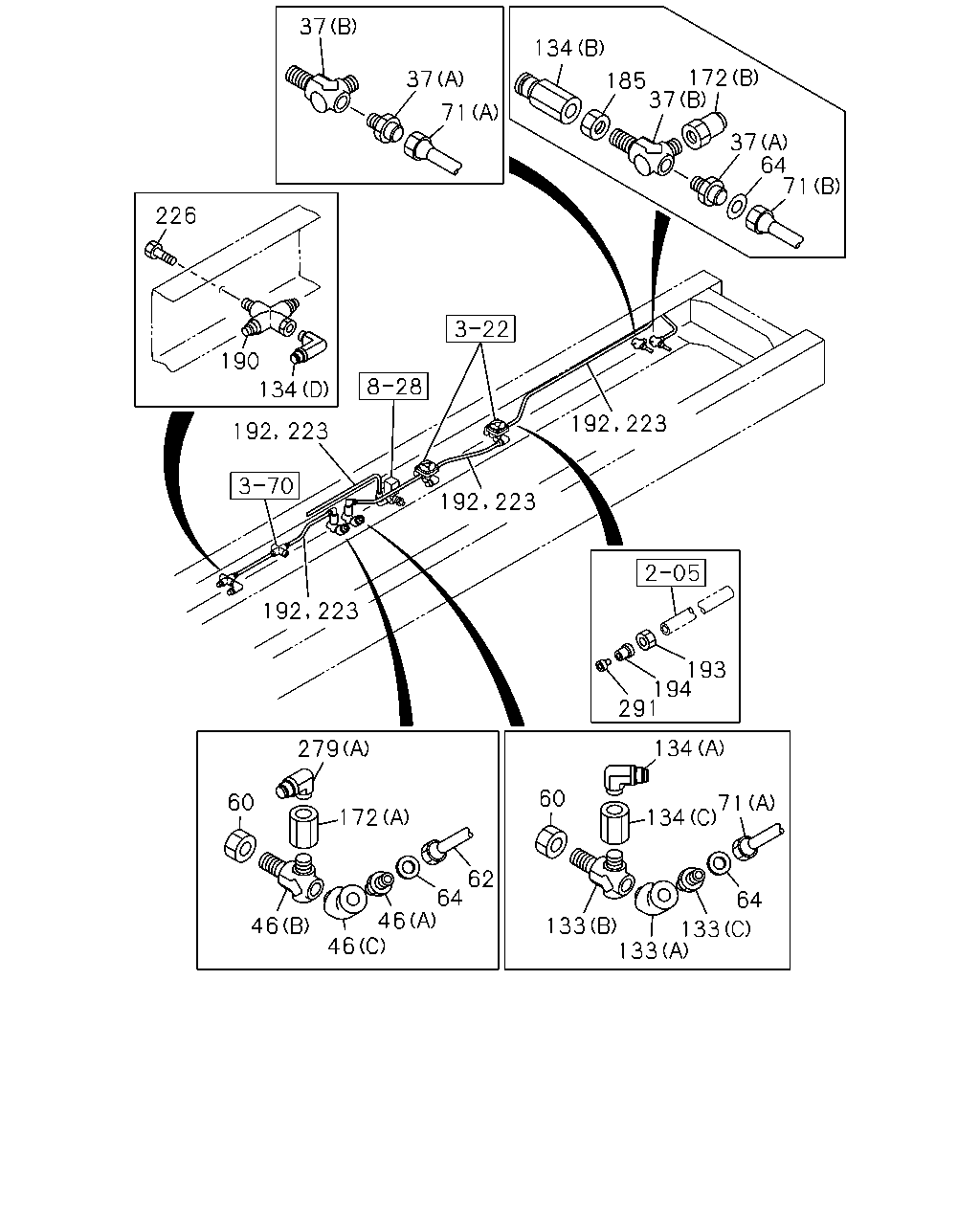

çizim 22925
37 134 185 172 37 37 71 37 64 71 226 190 134 193 194 291 134 279 60 60 71 134 172 62 64 64 46 46 46 133 133 133 192 223 192 223 192 223 192 223
BalonParca AdiParca NoAdetTipApplied Date
37 UNION; AIR PIPE
(A) M27 & PT3/8 STRAIGHT 		1-09650-250-0 01 1 0105-
37 UNION; AIR PIPE
(A) M27 & PT3/8 STRAIGHT 		1-09650-250-0 01 1 0105-
37 UNION; AIR PIPE
(B) 		1-09650-251-1 01 1 0105-
37 UNION; AIR PIPE
(B) 		1-09650-251-1 01 1 0105-
46 NIPPLE; AIR PIPE
(A) M27 & PT3/8 STRAIGHT 		1-09650-250-0 01 1 0105-
46 NIPPLE; AIR PIPE
(B) 		1-09650-251-1 01 1 0105-
46 NIPPLE; AIR PIPE
(C) 		1-09664-209-0 01 1 0105-
60 NUT; NIPPLE,AIR PIPE
M20 		9-99111-420-0 02 1 0105-
60 NUT; NIPPLE,AIR PIPE
M20 		9-99111-420-0 02 1 0105-
62 HOSE; FLEX,FWD RR
L=630 		0-07909-630-0 01 1 0105-
64 GASKET; FLEX HOSE
ID=17.5 		9-09572-515-0 04 1 0105-
64 GASKET; FLEX HOSE
ID=17.5 		9-09572-515-0 04 1 0105-
71 HOSE; FLEX,RWD RR
(A) L=550 		0-07909-550-0 02 1 0105-
71 HOSE; FLEX,RWD RR
(B) L=630 		0-07909-630-0 01 1 0105-
133 UNION; NIPPLE
(A) M27 & PT3/8 STRAIGHT 		1-09650-250-0 01 1 0105-
133 UNION; NIPPLE
(B) 		1-09650-251-1 01 1 0105-
133 UNION; NIPPLE
(C) 		1-09664-209-0 01 1 0105-
134 CONNECTOR
(B) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0105-
134 CONNECTOR
(C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0105-
134 CONNECTOR
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105-
134 CONNECTOR
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105-
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0105-
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0105-
172 ADAPTER; UNION
(B) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0105-
172 ADAPTER; UNION
(A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0105-
185 NUT; NIPPLE
EXC. BRAKE REGULATION HONG KONG<TCZ> M20 		9-99111-420-0 01 1 0105-0105
185 NUT; NIPPLE
M20 		9-99111-420-0 01 1 0106-
190 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0105-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-0212
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0105-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-0312
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0105-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0301-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0401-
193 NUT; SLEEVE
ZF M/T<X9E> M18 		1-09660-213-0 01 1 0105-0105
194 SLEEVE; TUBE
ZF M/T<X9E> ID=12.15 OD=15 L=10 		1-09666-043-0 01 1 0105-0105
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87410-096-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 0105-
226 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0105-
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0105-0203
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0204-
279 UNION; AIR PIPE
(C) M14X35 		1-09650-272-2 01 1 0105-
279 UNION; AIR PIPE
(B) M16 & PT3/8 2WAY 		1-09654-239-1 01 1 0105-
279 UNION; AIR PIPE
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0105-
291 INSERT
ZF M/T<X9E> ID=7.5 OD=8.8 L=18 		1-09669-055-0 01 1 0105-0105

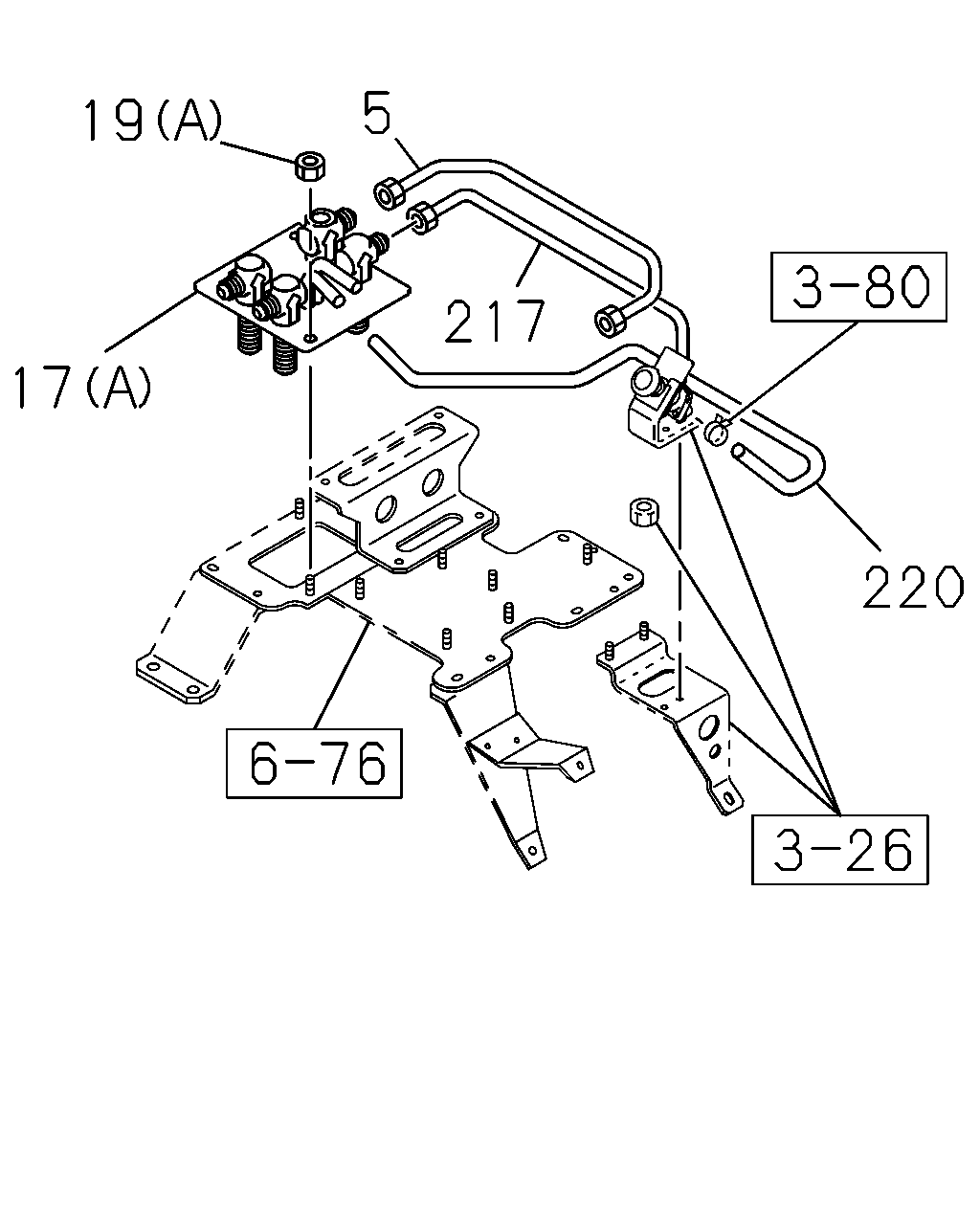

çizim 23161
5 19 217 17 220
BalonParca AdiParca NoAdetTipApplied Date
5 PIPE; AIR,UNION TO PARKING VLV 1-49114-638-1 01 1 0105-
17 UNION; AIR PIPE
(B) 		1-47470-469-3 01 1 0105-
17 UNION; AIR PIPE
TRAILER BRAKE HAND CONTROL<NLG> (A) 		1-47470-443-2 01 1 0105-0111
17 UNION; AIR PIPE
TRAILER BRAKE HAND CONTROL<NLG> (A) 		1-47470-443-2 01 1 0112-
17 UNION; AIR PIPE
EXC. TRAILER BRAKE HAND CONTROL<NLG> (A) 		1-47470-418-2 01 1 0105-0111
17 UNION; AIR PIPE
EXC. TRAILER BRAKE HAND CONTROL<NLG> (B) 		1-47470-464-3 01 1 0105-
19 NUT; PIPE UNION
(A) M8 FLANGE 		0-91150-108-0 02 1 0105-0111
19 NUT; PIPE UNION
(A) M8 FLANGE 		0-91150-108-0 02 1 0112-
19 NUT; PIPE UNION
(B) M8 		9-09110-408-0 01 1 0105-0203
217 PIPE; AIR,PARKING BRK VLV TO UNION 1-49114-639-0 01 1 0105-
220 HOSE; VINYL,EXH,PARKING BRK VLV
TRAILER BRAKE HAND CONTROL<NLG> L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0105-0111
220 HOSE; VINYL,EXH,PARKING BRK VLV
TRAILER BRAKE CONTROL<J91> L=650 SERVICED BY L=10000 		9-09914-701-0 01 1 0112-

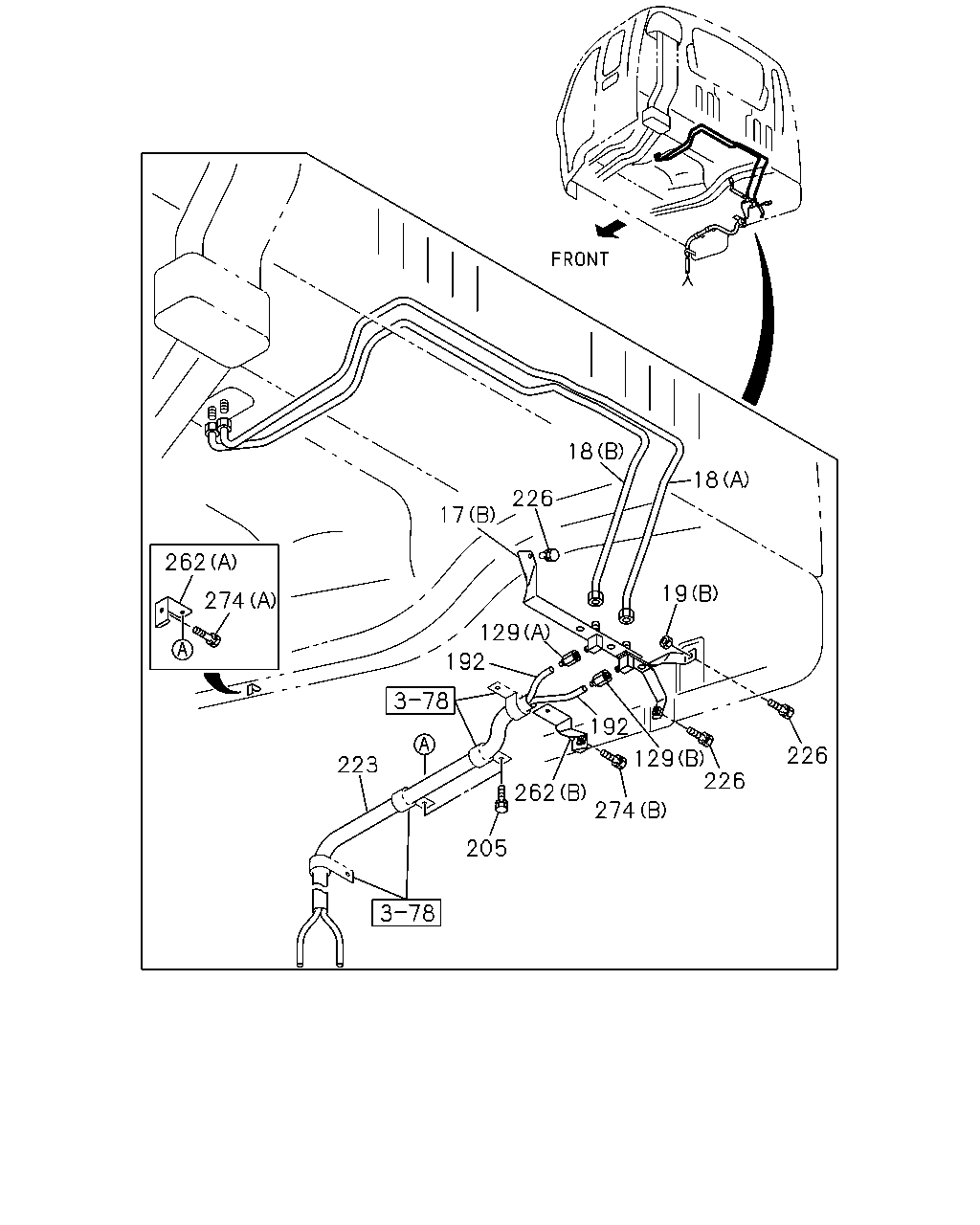

çizim 77826
18 18 226 17 262 19 274 129 192 192 226 129 226 223 262 274 205
BalonParca AdiParca NoAdetTipApplied Date
17 UNION; AIR PIPE
(B) 		1-47470-469-3 01 1 0105-
17 UNION; AIR PIPE
TRAILER BRAKE HAND CONTROL<NLG> (A) 		1-47470-443-2 01 1 0105-0111
17 UNION; AIR PIPE
TRAILER BRAKE HAND CONTROL<NLG> (A) 		1-47470-443-2 01 1 0112-
17 UNION; AIR PIPE
EXC. TRAILER BRAKE HAND CONTROL<NLG> (A) 		1-47470-418-2 01 1 0105-0111
17 UNION; AIR PIPE
EXC. TRAILER BRAKE HAND CONTROL<NLG> (B) 		1-47470-464-3 01 1 0105-
18 PIPE; AIR,UNION TO UNION
(B) L=1937 SERVICED BY L=1950 		1-47426-393-0 01 1 0105-
18 PIPE; AIR,UNION TO UNION
(A) L=2108 SERVICED BY L=2500 		1-47426-423-0 01 1 0105-
19 NUT; PIPE UNION
(A) M8 FLANGE 		0-91150-108-0 02 1 0105-0111
19 NUT; PIPE UNION
(A) M8 FLANGE 		0-91150-108-0 02 1 0112-
19 NUT; PIPE UNION
(B) M8 		9-09110-408-0 01 1 0105-0203
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0105-0206
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0105-0206
129 CONNECTOR; NYLON TUBE
TRAILER BRAKE CONTROL<J91> (A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0207-
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0105-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-0212
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0105-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-0312
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0105-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0301-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0401-
205 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0105-
205 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28080-816-0 03 1 0105-
205 BOLT; TUBE CLIP
M6X16 W/LK WASHER 		0-50040-616-0 01 1 0105-0211
205 BOLT; TUBE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0212-0312
205 BOLT; TUBE CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0401-0501
205 BOLT; TUBE CLIP
TRAILER BRAKE CONTROL<J91> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0502-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87410-096-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 0105-
226 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0105-
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0105-0203
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0204-
262 BRACKET
(A) 		1-79996-143-0 01 1 0105-
262 BRACKET
(B) 		1-79996-258-1 01 1 0105-
274 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0105-
274 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0105-

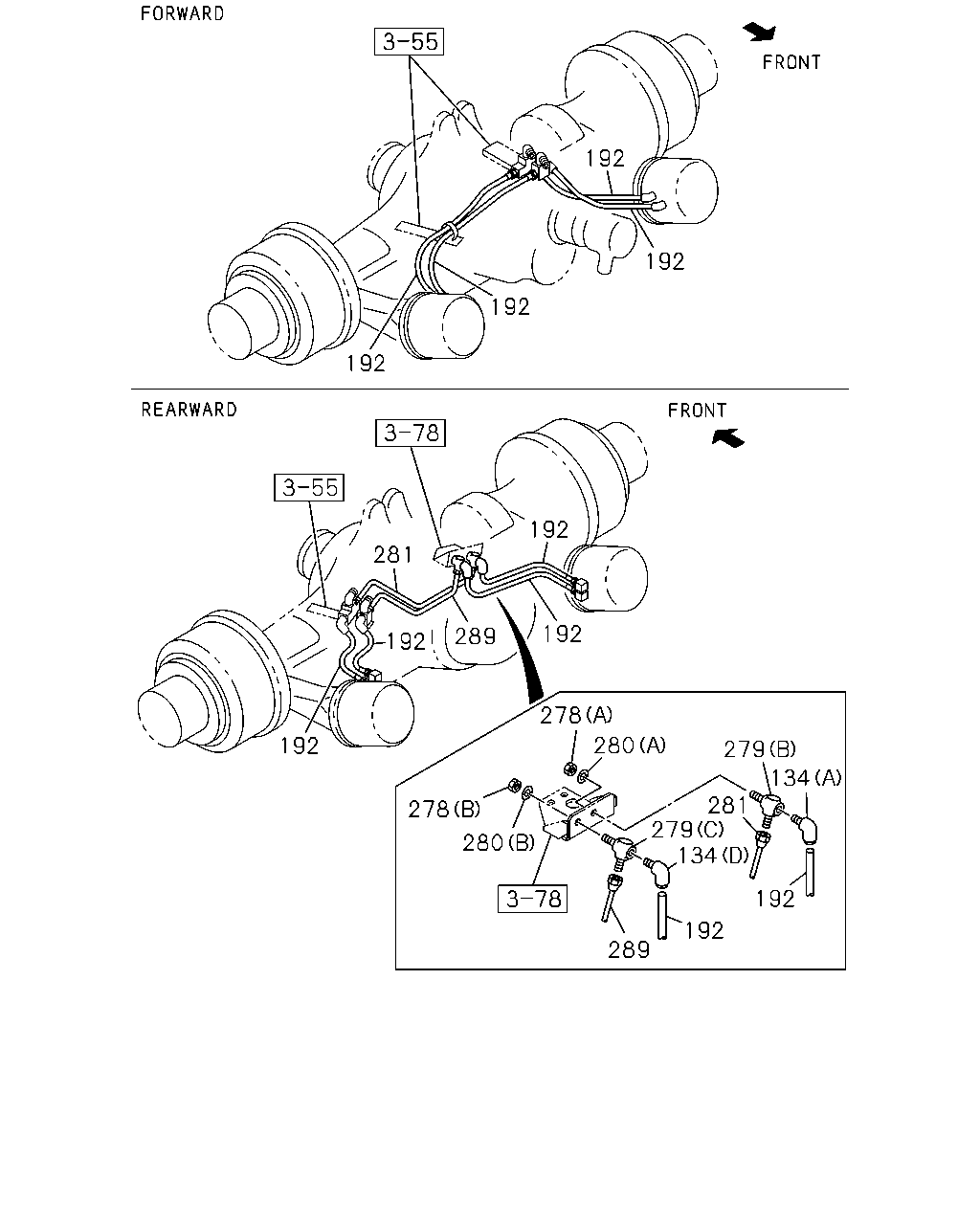

çizim 80601
192 192 192 192 192 281 192 192 289 278 280 192 279 134 281 279 134 278 280 192 192 289
BalonParca AdiParca NoAdetTipApplied Date
134 CONNECTOR
(B) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0105-
134 CONNECTOR
(C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0105-
134 CONNECTOR
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105-
134 CONNECTOR
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105-
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0105-
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0105-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-0212
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0105-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-0312
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0105-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0301-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0401-
278 NUT; UNION
(A) M16 		9-99111-416-0 01 1 0105-
278 NUT; UNION
(B) M20 		9-99111-420-0 01 1 0105-
279 UNION; AIR PIPE
(C) M14X35 		1-09650-272-2 01 1 0105-
279 UNION; AIR PIPE
(B) M16 & PT3/8 2WAY 		1-09654-239-1 01 1 0105-
279 UNION; AIR PIPE
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0105-
280 WASHER; LK
(A) ID=16.2 		9-09150-516-0 01 1 0105-
280 WASHER; LK
(B) ID=20.2 		9-09150-520-0 01 1 0105-
281 PIPE; AIR,EMERGENCY 1-49117-109-0 01 1 0105-
289 PIPE; AIR,MODULATOR TO RELAY VLV 1-49117-108-0 01 1 0105-
