Sayfa 8-15 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11475 - FRR-L EURO5 EXC.SPAC ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶

8-15 — FIXING PARTS; WIRING HARNESS (#111469) — 212 parça

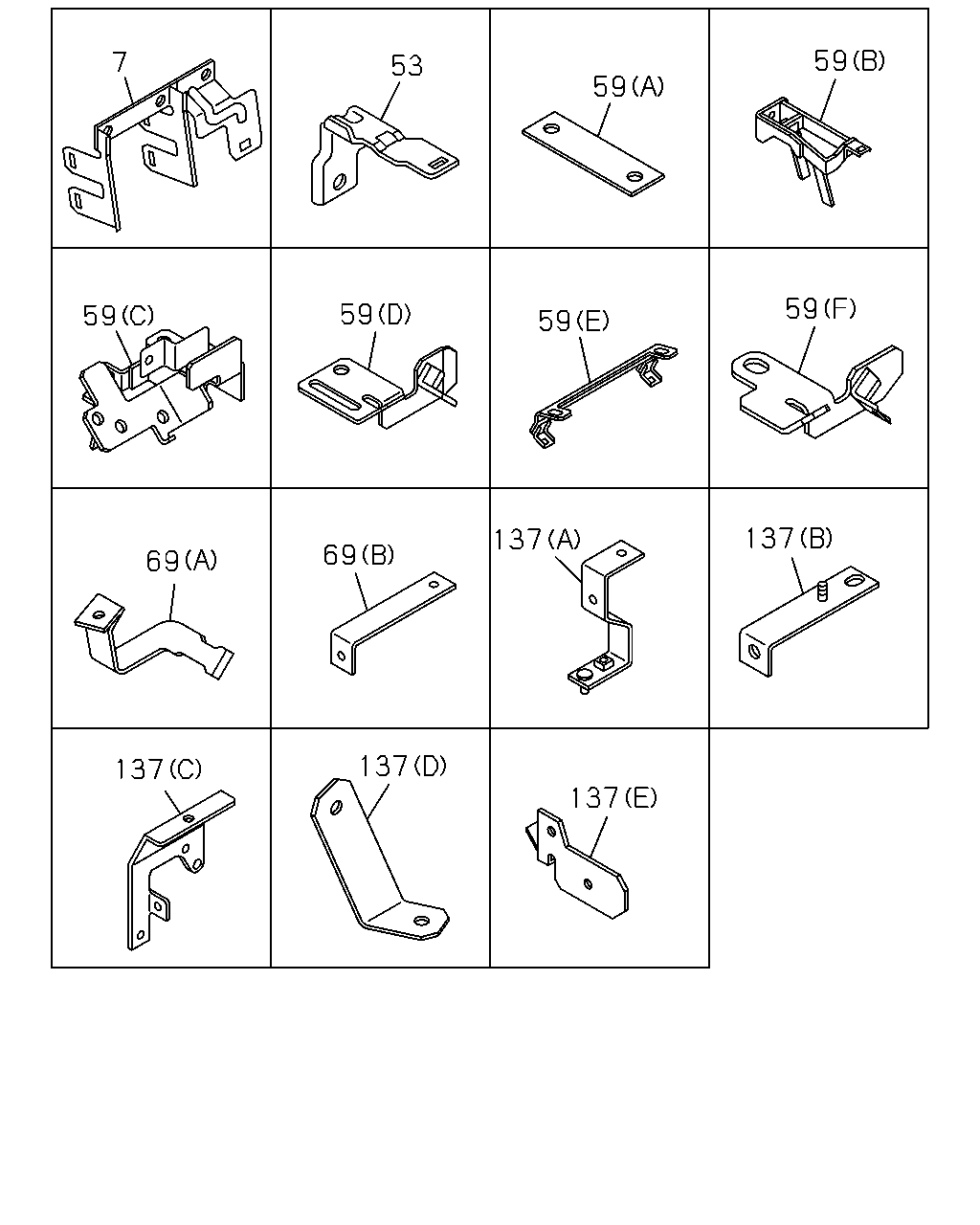

137 137 137 69 69 137 137 59 59 59 59 7 53 59 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98090-846-0	01	1	1212-
53	BRACKET; HARNESS	8-98052-458-0	01	1	1212-
59	BRACKET; FRAME HARNESS (E)	8-97619-533-0	01	1	1212-
59	BRACKET; FRAME HARNESS (A) L=85	8-98044-743-0	01	1	1212-
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	1212-1502
59	BRACKET; FRAME HARNESS (F)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (C)	8-97619-534-0	01	1	1212-
59	BRACKET; FRAME HARNESS MLD6S M/T(X7W) (B)	8-97627-325-0	01	1	1212-
59	BRACKET; FRAME HARNESS MZW6P M/T(RSZ) (B)	8-97609-264-2	01	1	1212-
69	BRACKET; CLIP (A)	8-97616-357-3	01	1	1212-
69	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=95	1-82699-085-0	01	1	1212-
137	BRACKET; HARNESS CLAMP (D)	8-97614-728-1	01	1	1212-
137	BRACKET; HARNESS CLAMP (C)	8-97618-098-2	01	1	1212-
137	BRACKET; HARNESS CLAMP (B)	8-97624-013-0	01	1	1212-
137	BRACKET; HARNESS CLAMP (A)	8-98065-904-0	01	1	1212-
137	BRACKET; HARNESS CLAMP (E)	8-98059-231-1	01	1	1212-

308 308 308 308 324 335 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1212-
308	BRACKET; CLIP,ENG HARNESS (B)	8-97614-078-0	01	1	1212-
308	BRACKET; CLIP,ENG HARNESS (C)	8-98021-291-2	01	1	1212-
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	1212-
324	BRACKET; CLIP	8-98061-654-2	01	1	1212-
324	BRACKET; CLIP	8-98061-653-2	01	1	1212-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	1212-
428	BRACKET	8-98090-952-0	01	1	1212-

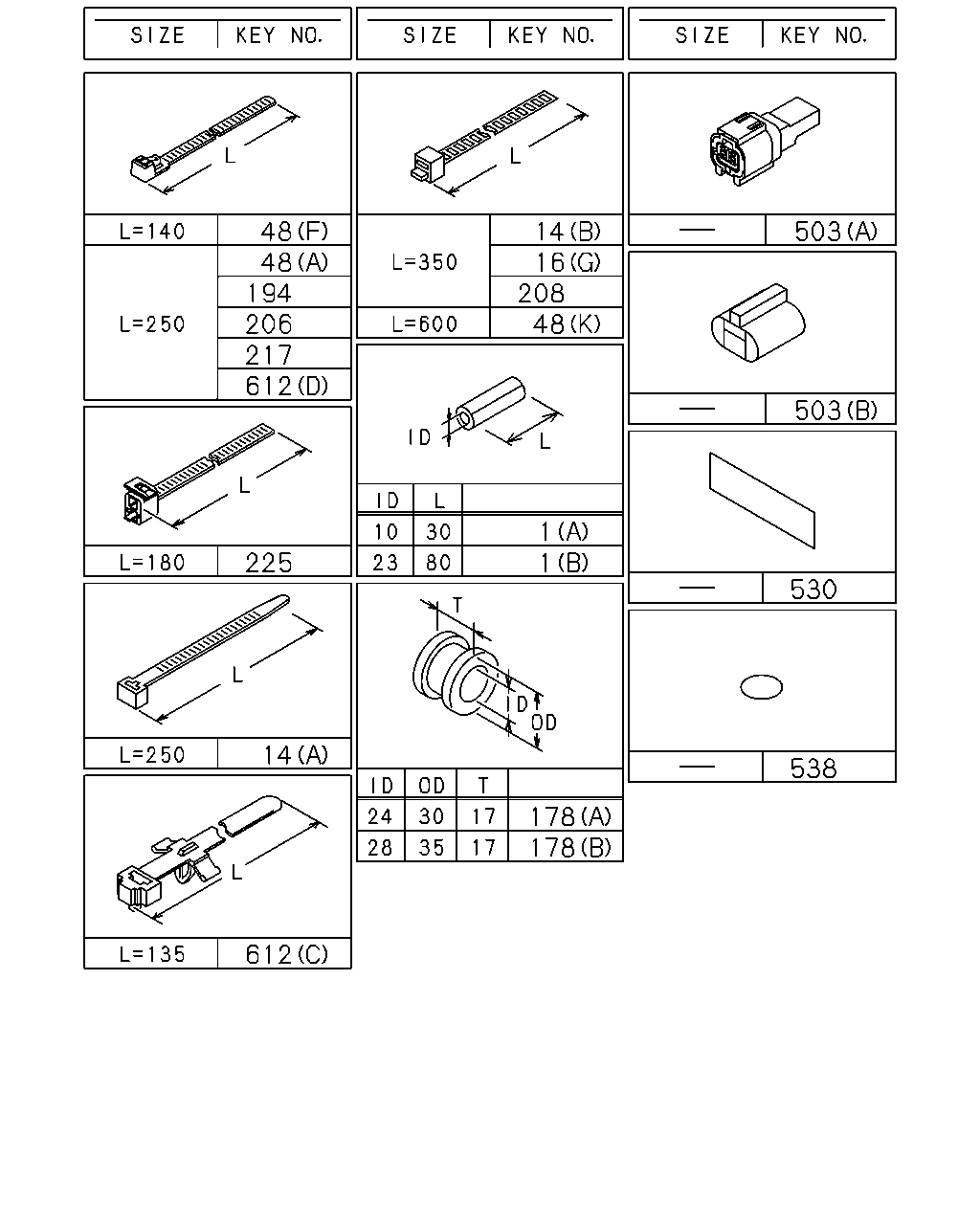

612 217 206 194 48 48 14 16 208 48 503 503 530 538 178 178 612 14 225 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	1212-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1212-
14	CLIP; BAND,HARNESS (B) L=350	1-09707-183-0	01	1	1212-
14	CLIP; BAND,HARNESS (A) L=250	8-98216-430-0	13	1	1212-
16	CLIP; HARNESS (J) ID=11 L=16	0-95235-025-0	02	1	1212-
16	CLIP; HARNESS (E) ID=11X2 L=16	1-09700-734-0	01	1	1212-
16	CLIP; HARNESS (D) ID=35 L=33	1-09700-945-0	01	1	1212-
16	CLIP; HARNESS (G) L=350	1-09707-183-0	02	1	1212-
16	CLIP; HARNESS (F) ID=10 & 10	1-09709-277-1	01	1	1212-
16	CLIP; HARNESS (K) ID=5-12 L=14.5	1-09987-221-0	03	1	1212-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1212-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1212-
16	CLIP; HARNESS (I) L=40.6	8-97229-357-0	02	1	1212-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1212-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (H) OD=9 H=6	1-09709-178-0	01	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (H) ID=14 L=44	9-09917-427-0	13	1	1212-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1212-
48	CLIP; FRAME HARNESS (K) L=600	1-09707-107-1	01	1	1212-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	1212-
48	CLIP; FRAME HARNESS (J) ID=5-12 L=14.5	1-09987-221-0	02	1	1212-
48	CLIP; FRAME HARNESS (D) ID=17.5X2 L=25	5-09700-358-0	01	1	1212-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	1212-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1212-
48	CLIP; FRAME HARNESS (H) ID=14 L=44	9-09917-427-0	02	1	1212-
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) ID=32 L=50	1-09701-055-1	01	1	1212-
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) ID=35 L=50	1-09701-214-0	01	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (H) ID=14 L=44	9-09917-427-0	09	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (H) ID=14 L=44	9-09917-427-0	15	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (I) ID=13-18 L=18	1-09709-291-0	01	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (H) ID=14 L=44	9-09917-427-0	20	1	1212-
178	GROMMET; HARNESS (A) ID=24 OD=30 T=17	9-09956-092-1	01	1	1212-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=17	9-09956-256-2	01	1	1212-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=17	9-09956-256-2	03	1	1212-
194	CLIP; BAND L=250	5-09707-030-1	01	1	1212-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	03	1	1212-
208	CLIP; HARNESS,MAG VLV L=350	1-09707-183-0	01	1	1212-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1212-
225	CLIP; AIR TANK HARNESS L=180	1-09707-162-1	01	1	1212-
503	CONNECTOR EXC. H.S.A SYSTEM<6EP> (A)	1-82691-191-0	01	1	1212-
503	CONNECTOR HEATER & DEFROSTER(C41) (B)	1-82690-668-0	01	1	1212-
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	1212-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	1212-1305
530	SEAL; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 180X40	1-72498-019-1	01	1	1306-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1212-
612	CLIP; HARNESS DPD (A) ID=11 L=41	1-09700-403-0	01	1	1212-
612	CLIP; HARNESS DPD (B) ID=4.76 & 10.0	1-09709-305-0	03	1	1212-
612	CLIP; HARNESS DPD (C) L=135	1-09987-143-1	01	1	1212-
612	CLIP; HARNESS DPD (D) L=250	5-09707-030-1	01	1	1212-

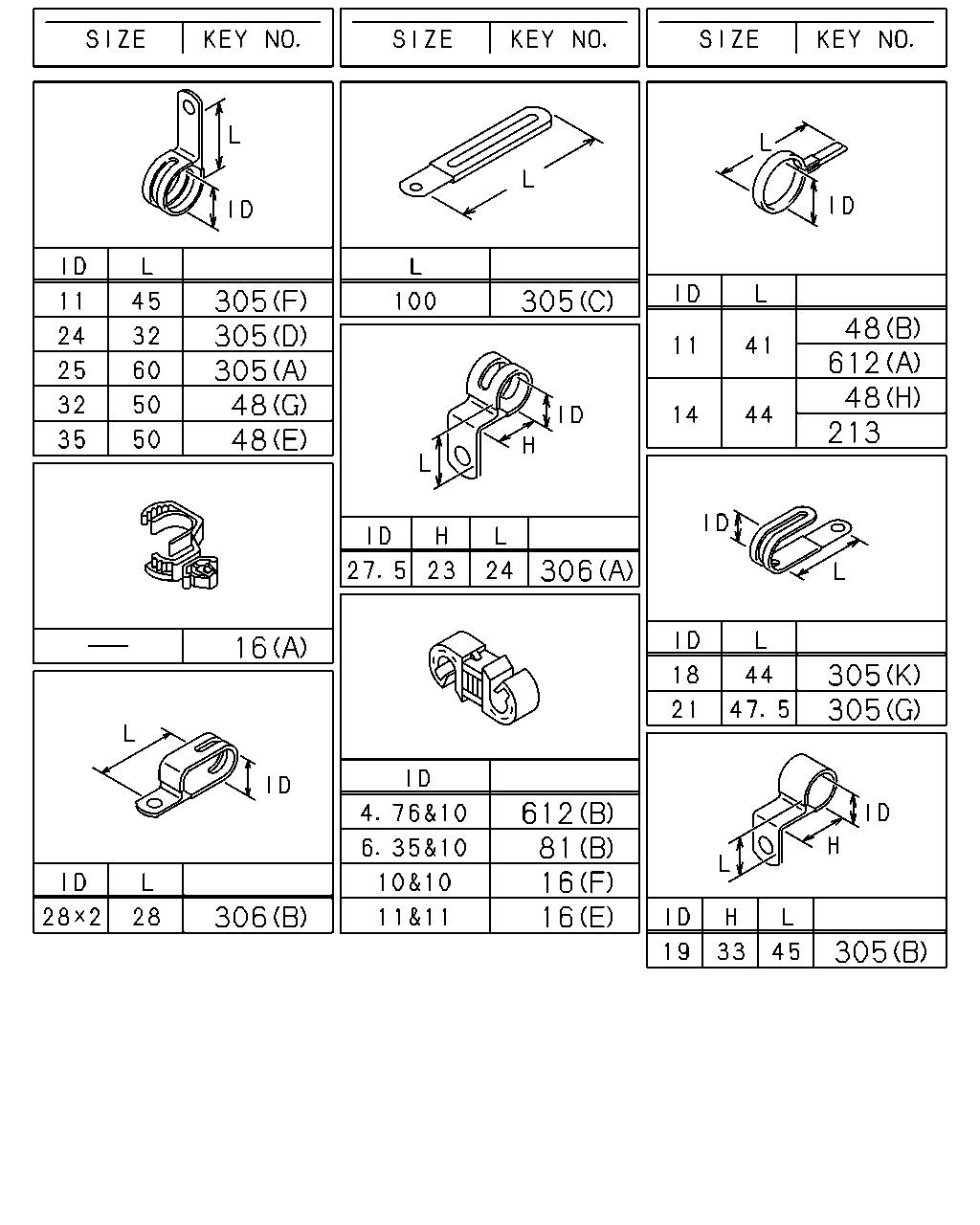

305 305 305 48 48 306 612 81 16 16 305 305 305 48 612 48 213 305 306 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (J) ID=11 L=16	0-95235-025-0	02	1	1212-
16	CLIP; HARNESS (E) ID=11X2 L=16	1-09700-734-0	01	1	1212-
16	CLIP; HARNESS (D) ID=35 L=33	1-09700-945-0	01	1	1212-
16	CLIP; HARNESS (G) L=350	1-09707-183-0	02	1	1212-
16	CLIP; HARNESS (F) ID=10 & 10	1-09709-277-1	01	1	1212-
16	CLIP; HARNESS (K) ID=5-12 L=14.5	1-09987-221-0	03	1	1212-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1212-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1212-
16	CLIP; HARNESS (I) L=40.6	8-97229-357-0	02	1	1212-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1212-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (H) OD=9 H=6	1-09709-178-0	01	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (H) ID=14 L=44	9-09917-427-0	13	1	1212-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1212-
48	CLIP; FRAME HARNESS (K) L=600	1-09707-107-1	01	1	1212-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	1212-
48	CLIP; FRAME HARNESS (J) ID=5-12 L=14.5	1-09987-221-0	02	1	1212-
48	CLIP; FRAME HARNESS (D) ID=17.5X2 L=25	5-09700-358-0	01	1	1212-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	1212-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1212-
48	CLIP; FRAME HARNESS (H) ID=14 L=44	9-09917-427-0	02	1	1212-
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) ID=32 L=50	1-09701-055-1	01	1	1212-
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) ID=35 L=50	1-09701-214-0	01	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (H) ID=14 L=44	9-09917-427-0	09	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (H) ID=14 L=44	9-09917-427-0	15	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (I) ID=13-18 L=18	1-09709-291-0	01	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (H) ID=14 L=44	9-09917-427-0	20	1	1212-
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	1212-
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1212-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1212-
305	CLIP; ENG HARNESS (H) ID=16 L=28	0-95235-556-0	02	1	1212-
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	1212-
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	1212-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1212-
305	CLIP; ENG HARNESS (B) ID=19 H=33 L=45	1-09701-045-0	01	1	1212-
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	1212-
305	CLIP; ENG HARNESS (F) ID=11 L=45	8-94296-897-1	01	1	1212-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1212-
305	CLIP; ENG HARNESS (J) L=140	8-97122-360-0	01	1	1212-
305	CLIP; ENG HARNESS (K) ID=18 L=44	8-97367-985-1	01	1	1212-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1212-
306	CLIP; HARNESS,ELEC GOV (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1212-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1212-
612	CLIP; HARNESS DPD (A) ID=11 L=41	1-09700-403-0	01	1	1212-
612	CLIP; HARNESS DPD (B) ID=4.76 & 10.0	1-09709-305-0	03	1	1212-
612	CLIP; HARNESS DPD (C) L=135	1-09987-143-1	01	1	1212-
612	CLIP; HARNESS DPD (D) L=250	5-09707-030-1	01	1	1212-

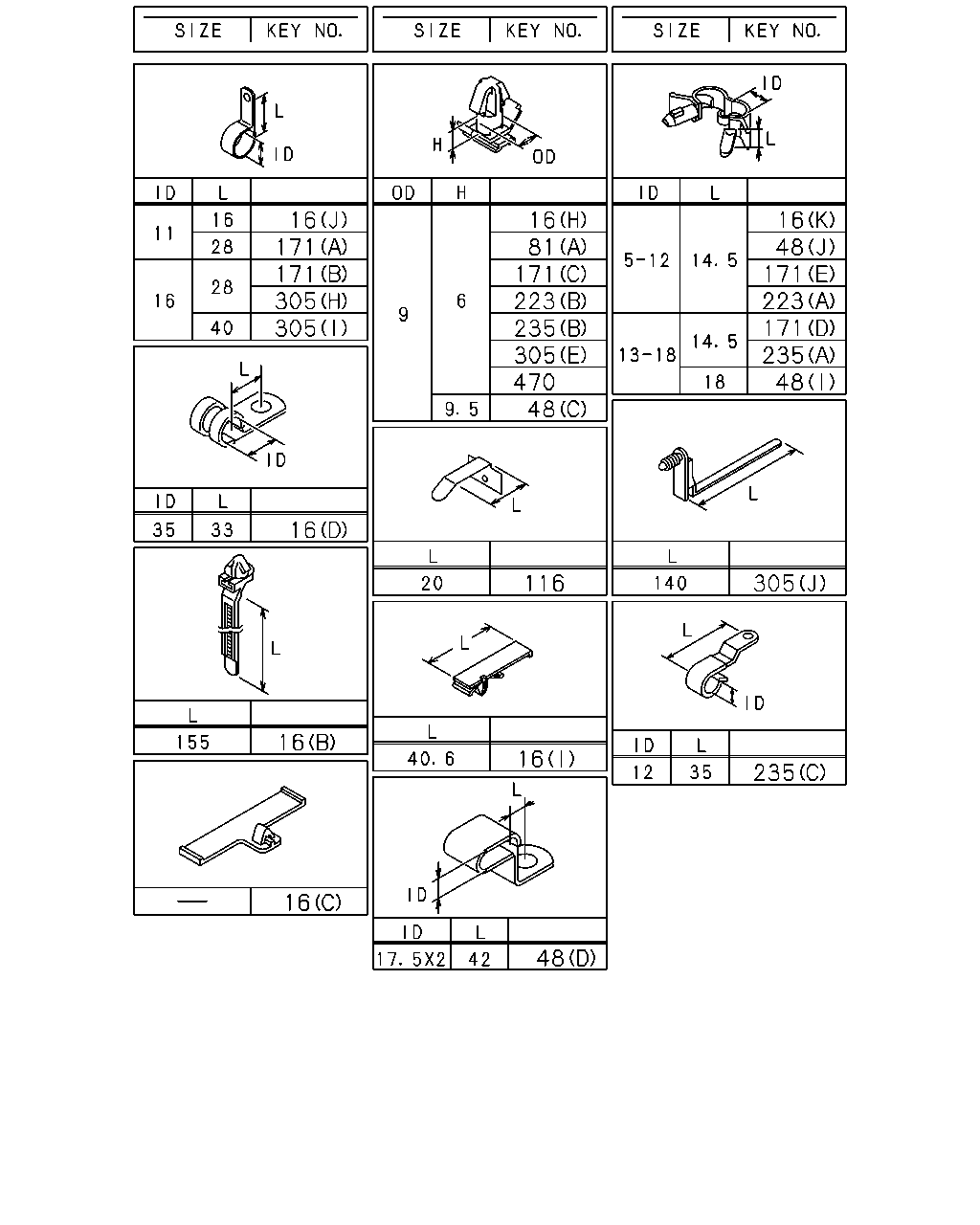

16 48 171 223 171 235 48 305 235 48 16 116 16 81 171 223 235 305 470 48 16 16 16 16 171 171 305 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (J) ID=11 L=16	0-95235-025-0	02	1	1212-
16	CLIP; HARNESS (E) ID=11X2 L=16	1-09700-734-0	01	1	1212-
16	CLIP; HARNESS (D) ID=35 L=33	1-09700-945-0	01	1	1212-
16	CLIP; HARNESS (G) L=350	1-09707-183-0	02	1	1212-
16	CLIP; HARNESS (F) ID=10 & 10	1-09709-277-1	01	1	1212-
16	CLIP; HARNESS (K) ID=5-12 L=14.5	1-09987-221-0	03	1	1212-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1212-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1212-
16	CLIP; HARNESS (I) L=40.6	8-97229-357-0	02	1	1212-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1212-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (H) OD=9 H=6	1-09709-178-0	01	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (H) ID=14 L=44	9-09917-427-0	13	1	1212-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1212-
48	CLIP; FRAME HARNESS (K) L=600	1-09707-107-1	01	1	1212-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	1212-
48	CLIP; FRAME HARNESS (J) ID=5-12 L=14.5	1-09987-221-0	02	1	1212-
48	CLIP; FRAME HARNESS (D) ID=17.5X2 L=25	5-09700-358-0	01	1	1212-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	1212-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1212-
48	CLIP; FRAME HARNESS (H) ID=14 L=44	9-09917-427-0	02	1	1212-
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) ID=32 L=50	1-09701-055-1	01	1	1212-
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) ID=35 L=50	1-09701-214-0	01	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (H) ID=14 L=44	9-09917-427-0	09	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (H) ID=14 L=44	9-09917-427-0	15	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (I) ID=13-18 L=18	1-09709-291-0	01	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (H) ID=14 L=44	9-09917-427-0	20	1	1212-
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	1212-
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1212-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	04	1	1212-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) (A) ID=11 L=28	0-95235-055-0	01	1	1212-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) (B) ID=16 L=28	0-95235-556-0	01	1	1212-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) (C) OD=9 H=6	1-09709-178-0	02	1	1212-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) (D) ID=13-18 L=14.5	1-09709-290-0	01	1	1212-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) (E) ID=5-12 L=14.5	1-09987-221-0	01	1	1212-
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	03	1	1212-
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	04	1	1212-
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) OD=9 H=6	1-09709-178-0	01	1	1212-
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1212-
235	CLIP; HARNESS,SPD SENSOR,SSPS MLD6S M/T(X7W) (C) ID=12 L=35	5-09700-206-0	01	1	1212-
305	CLIP; ENG HARNESS (H) ID=16 L=28	0-95235-556-0	02	1	1212-
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	1212-
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	1212-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1212-
305	CLIP; ENG HARNESS (B) ID=19 H=33 L=45	1-09701-045-0	01	1	1212-
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	1212-
305	CLIP; ENG HARNESS (F) ID=11 L=45	8-94296-897-1	01	1	1212-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1212-
305	CLIP; ENG HARNESS (J) L=140	8-97122-360-0	01	1	1212-
305	CLIP; ENG HARNESS (K) ID=18 L=44	8-97367-985-1	01	1	1212-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1212-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1212-

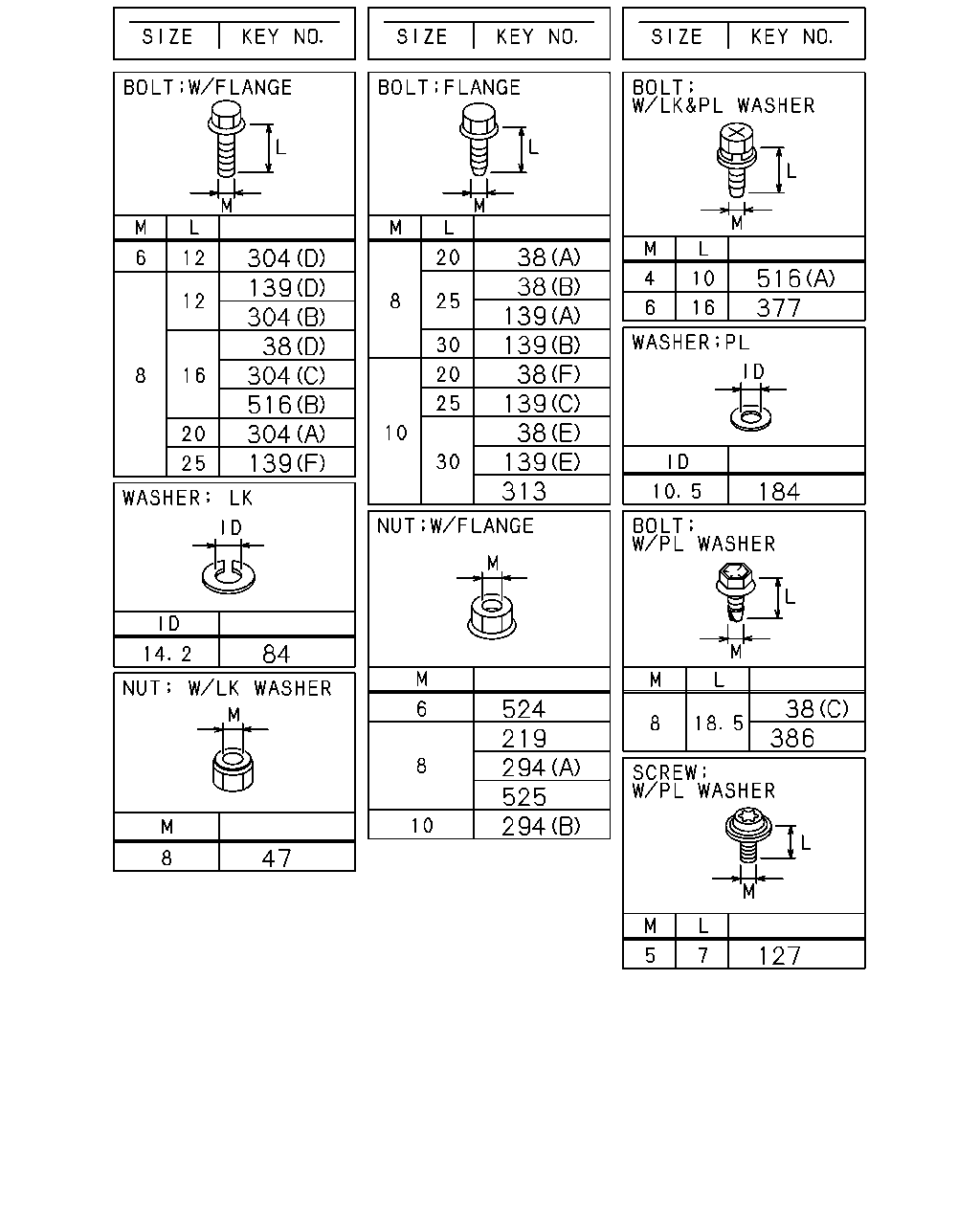

304 304 139 38 516 304 304 139 47 38 139 38 139 139 38 38 139 313 524 219 294 525 294 516 377 184 38 386 127 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (D) M8X16 FLANGE	0-28050-816-0	03	1	1212-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	1212-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	1212-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	01	1	1212-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	03	1	1212-
38	BOLT; CLIP,HARNESS (E) M10X30 FLANGE	0-28651-030-0	01	1	1212-
38	BOLT; CLIP,HARNESS (C) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1212-
38	BOLT; CLIP,HARNESS MLD6S M/T(X7W) (F) M10X20 FLANGE	0-28751-020-0	01	1	1212-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
84	WASHER; LK BRKT,HARNESS ID=14.2	0-91510-814-0	02	1	1212-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1212-
139	BOLT; BRKT (D) M8X12 FLANGE	0-28050-812-0	01	1	1212-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1212-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	1212-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1212-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1212-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1212-
139	BOLT; BRKT (E) M10X30 FLANGE	0-28651-030-0	01	1	1212-
139	BOLT; BRKT (E) M10X30 FLANGE	0-28651-030-0	01	1	1212-
139	BOLT; BRKT (F) M8X25 FLANGE	0-28050-825-0	02	1	1212-
139	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE	0-28650-825-0	01	1	1212-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1212-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1212-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1212-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1212-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1212-
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1212-
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	1212-
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	1212-
294	NUT (B) M10 FLANGE	0-91180-210-0	03	1	1212-
304	BOLT; ENG HARNESS CLIP (D) M6X12 FLANGE	0-28050-612-0	01	1	1212-
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	02	1	1212-
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE	0-28050-816-0	02	1	1212-
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	01	1	1212-
313	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	1212-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1212-
386	BOLT; GRAND HARNESS M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1212-
516	BOLT; HARNESS (A) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1212-
516	BOLT; HARNESS MLD6S M/T(X7W) (B) M8X16 FLANGE	0-28050-816-0	02	1	1212-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	1212-
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	02	1	1212-
525	NUT; CLIP T=8.5 M8 FLANGE	5-09440-010-0	01	1	1212-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
