◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11496 - FVR(LHD) EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#111466) — 194 parça

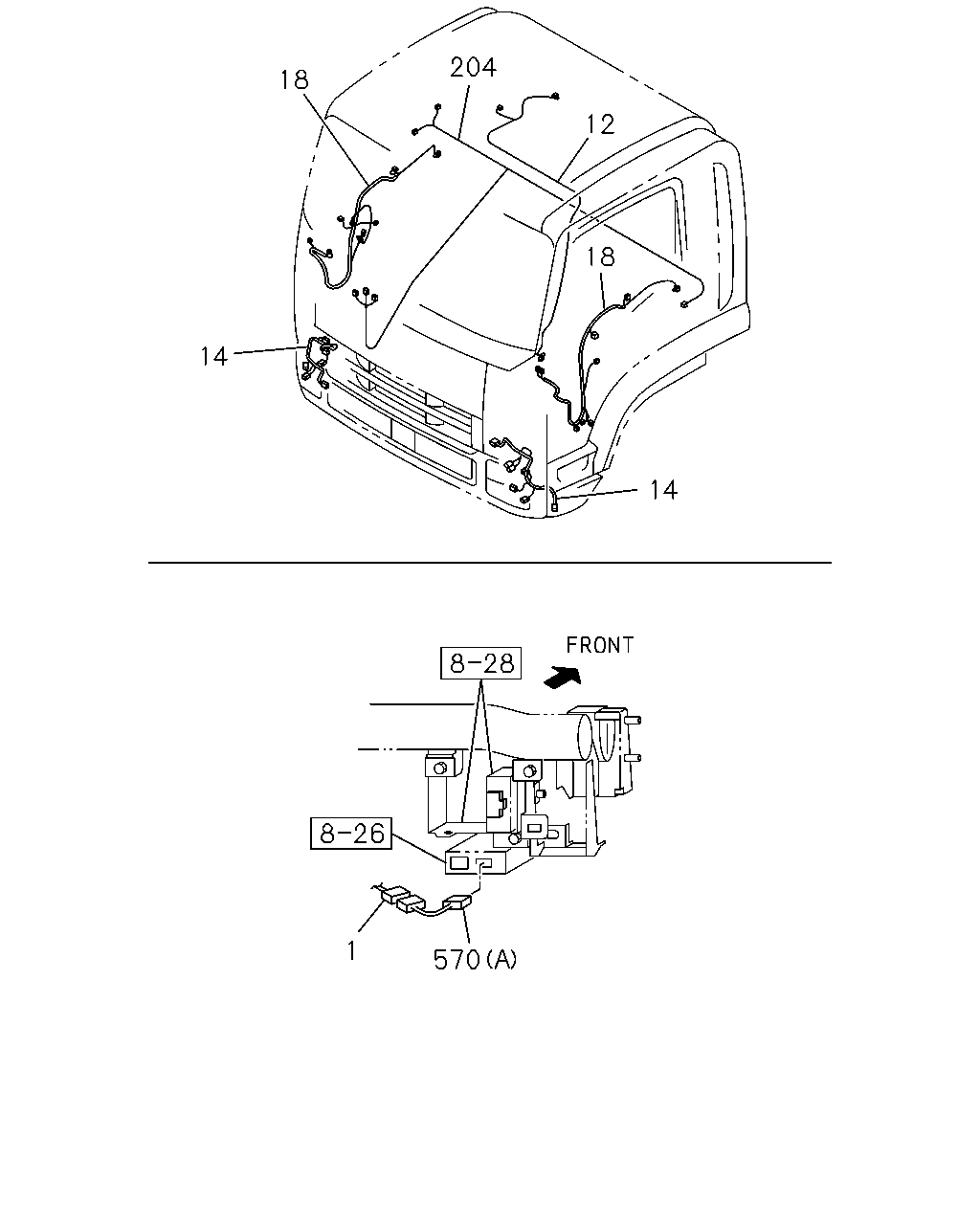

çizim 321606
14 14 18 204 12 18 570 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
MZW6P M/T(RSZ),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) KD PREPARATORY PACK<6HF> 		8-98257-338-1 01 1 1403-
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) KD PREPARATORY PACK<6HF> 		8-98257-339-1 01 1 1403-
1 HARNESS; CAB
MZW6P M/T(RSZ),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98212-812-0 01 1 1212-1402
1 HARNESS; CAB
MZW6P M/T(RSZ),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. KD PREPARATORY PACK<6HF> 		8-98212-812-1 01 1 1403-
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98212-813-0 01 1 1212-1402
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. KD PREPARATORY PACK<6HF> 		8-98212-813-1 01 1 1403-
12 HARNESS; ROOF
FLUORESCENT LAMP<6UC> 		8-98079-074-2 01 1 1212-
12 HARNESS; ROOF
EXC. FLUORESCENT LAMP<6UC> 		8-98085-336-1 01 1 1212-
14 HARNESS; HEADLAMP 8-98069-166-1 02 1 1212-
18 HARNESS; DOOR 8-98178-803-0 01 1 1212-
18 HARNESS; DOOR 8-98178-804-0 01 1 1212-
204 HARNESS; CABLE,FLOOR 8-98085-307-1 01 1 1212-
570 HARNESS; SPEED SENSOR
FULLER FSO5206B OD M/T(Y4V) (C) 		1-82670-012-0 01 1 1212-
570 HARNESS; SPEED SENSOR
ZF9S1110 M/T(Y5E) (A) 		8-98058-327-1 01 1 1212-
570 HARNESS; SPEED SENSOR
ZF9S1110 M/T(Y5E) (B) 		8-98148-602-0 01 1 1212-

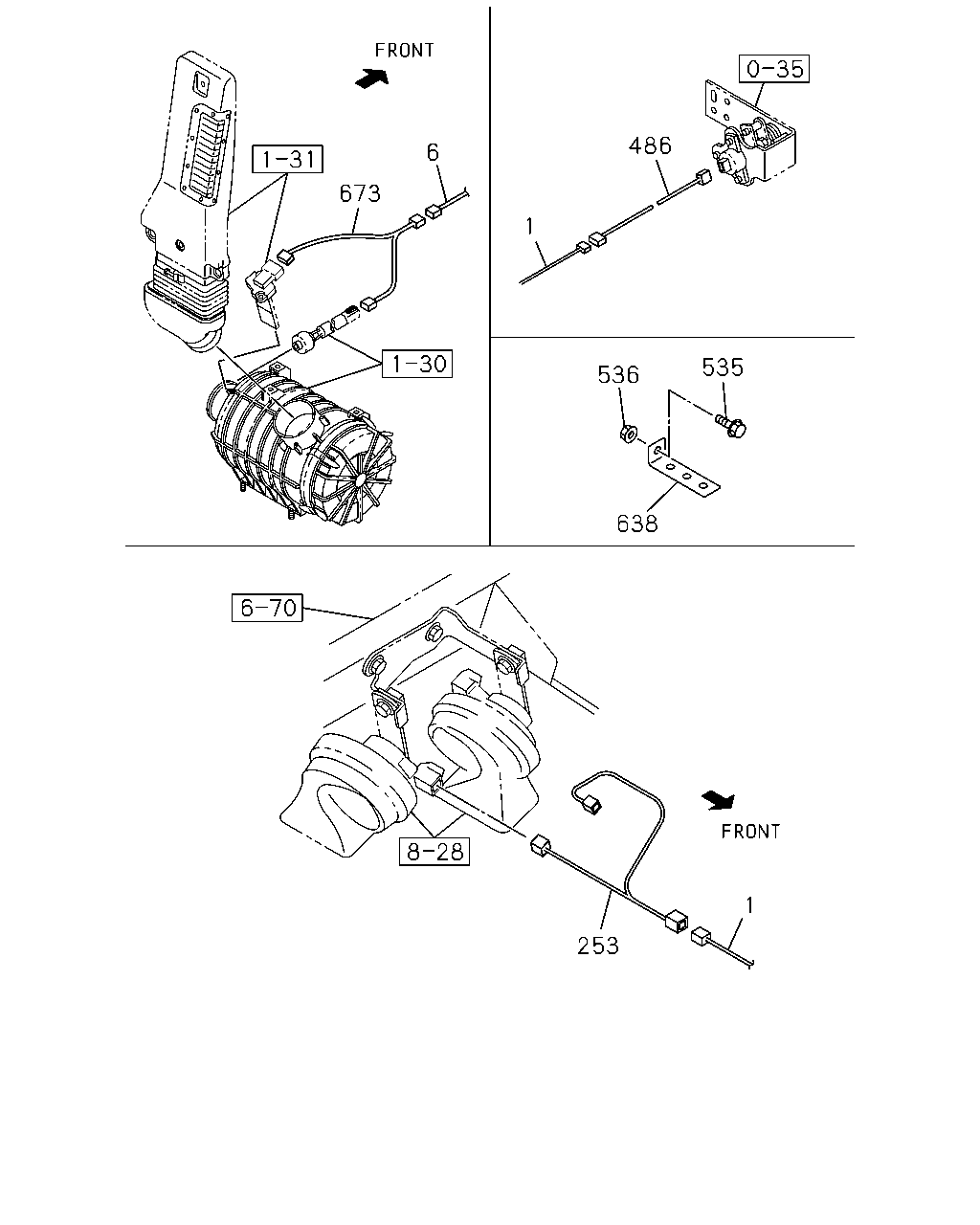

çizim 321647
536 535 486 6 1 673 253 1 638
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
MZW6P M/T(RSZ),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) KD PREPARATORY PACK<6HF> 		8-98257-338-1 01 1 1403-
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) KD PREPARATORY PACK<6HF> 		8-98257-339-1 01 1 1403-
1 HARNESS; CAB
MZW6P M/T(RSZ),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98212-812-0 01 1 1212-1402
1 HARNESS; CAB
MZW6P M/T(RSZ),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. KD PREPARATORY PACK<6HF> 		8-98212-812-1 01 1 1403-
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98212-813-0 01 1 1212-1402
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. KD PREPARATORY PACK<6HF> 		8-98212-813-1 01 1 1403-
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) 		8-98069-254-4 01 1 1212-1402
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) 		8-98256-870-2 01 1 1403-
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 6500MM(65W) 		8-98105-640-4 01 1 1212-1402
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 6500MM(65W) 		8-98256-872-1 01 1 1403-
6 HARNESS; FRAME
MZW6P M/T(RSZ),MLD6W M/T(Y2C) 		8-98113-741-4 01 1 1212-
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) 		8-98069-252-4 01 1 1212-1402
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) 		8-98256-869-1 01 1 1403-
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) 		8-98105-639-4 01 1 1212-1402
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) 		8-98256-871-1 01 1 1403-
253 HARNESS; EXT,HORN 8-98074-080-3 01 1 1212-
486 HARNESS; ALL SPEED ACCEL
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82675-898-0 01 1 1212-
535 BOLT; BRKT FIX
M8X35 FLANGE 		0-28650-835-0 01 1 1212-
536 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 01 1 1212-
638 BRACKET; SPD SENSOR 1-82698-167-0 01 1 1212-
673 HARNESS; EXT,SENSOR 8-98098-510-0 01 1 1212-

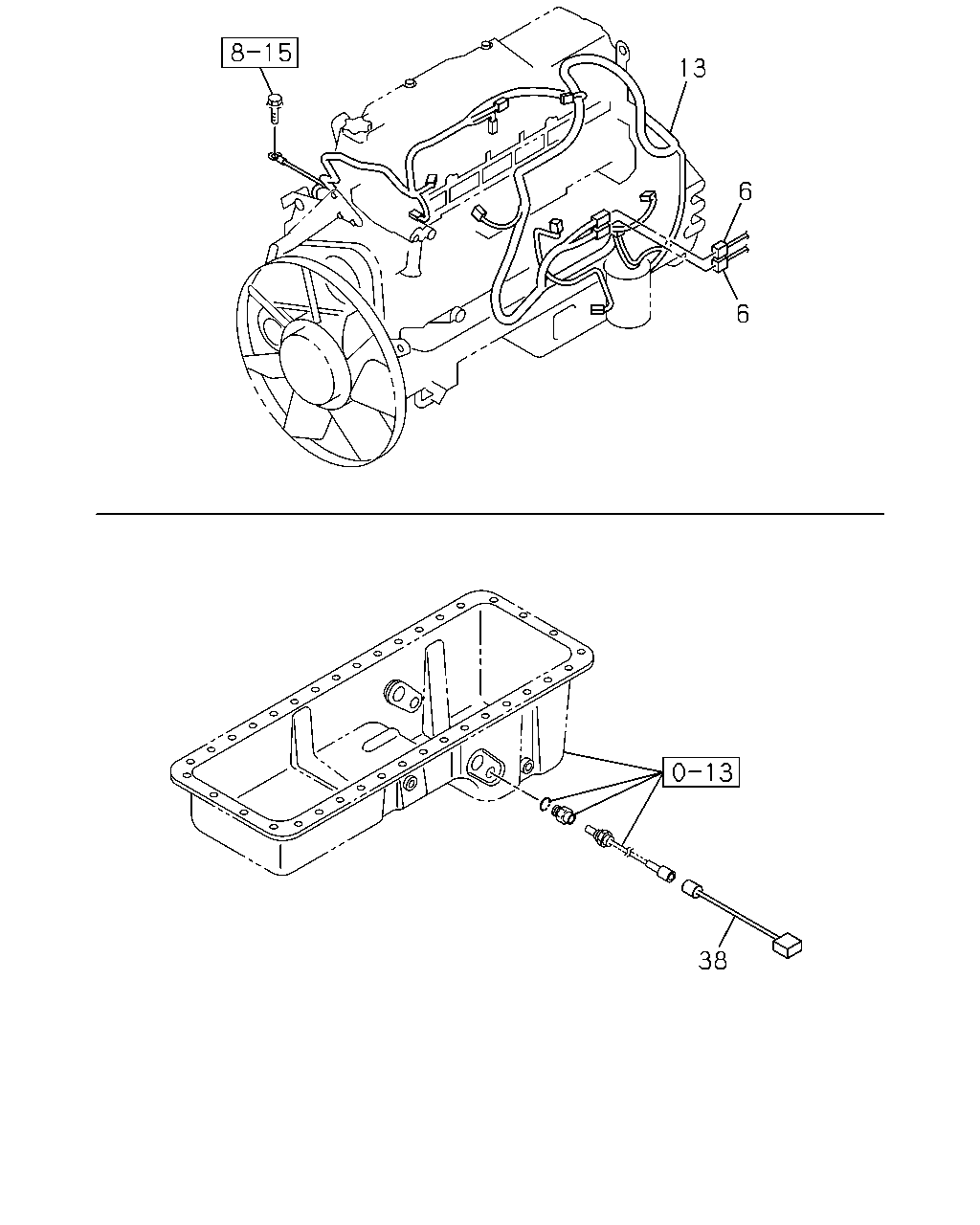

çizim 321691
6 6 13 38
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) 		8-98069-254-4 01 1 1212-1402
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) 		8-98256-870-2 01 1 1403-
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 6500MM(65W) 		8-98105-640-4 01 1 1212-1402
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 6500MM(65W) 		8-98256-872-1 01 1 1403-
6 HARNESS; FRAME
MZW6P M/T(RSZ),MLD6W M/T(Y2C) 		8-98113-741-4 01 1 1212-
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) 		8-98069-252-4 01 1 1212-1402
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) 		8-98256-869-1 01 1 1403-
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) 		8-98105-639-4 01 1 1212-1402
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) 		8-98256-871-1 01 1 1403-
13 HARNESS; ENG
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> GENERATOR 24V50A(K89) 		8-98177-222-1 01 1 1212-
13 HARNESS; ENG
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) 		8-98177-223-1 01 1 1212-
13 HARNESS; ENG
GENERATOR 24V50A(K89) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> 		8-98177-208-1 01 1 1212-
13 HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> 		8-98177-209-1 01 1 1212-
38 HARNESS; CHAS
ENGINE OIL TEMPERATURE GAUGE<UG3> 		8-98112-849-0 01 1 1212-

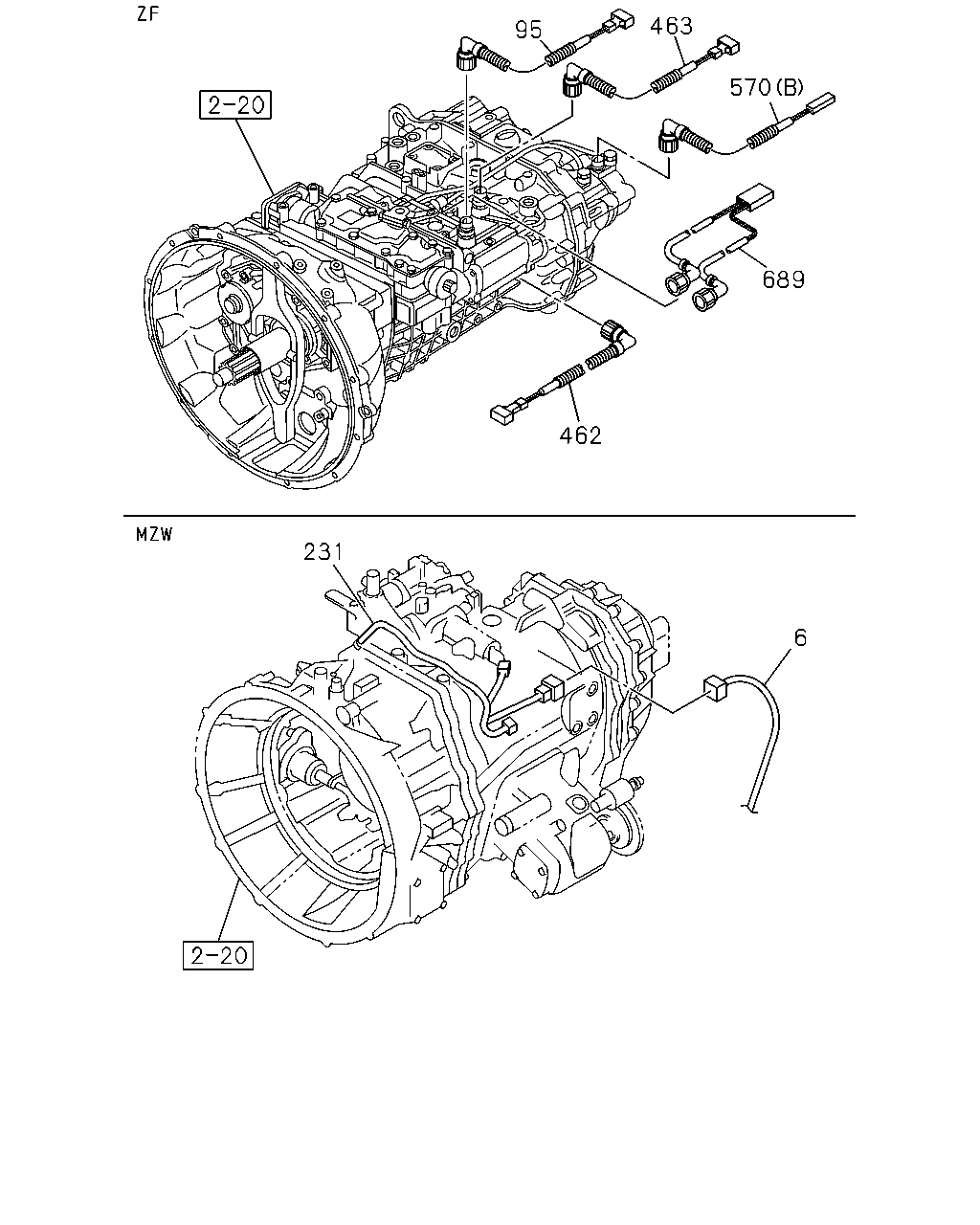

çizim 321694
6 462 689 570 463 95 231
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) 		8-98069-254-4 01 1 1212-1402
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) 		8-98256-870-2 01 1 1403-
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 6500MM(65W) 		8-98105-640-4 01 1 1212-1402
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 6500MM(65W) 		8-98256-872-1 01 1 1403-
6 HARNESS; FRAME
MZW6P M/T(RSZ),MLD6W M/T(Y2C) 		8-98113-741-4 01 1 1212-
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) 		8-98069-252-4 01 1 1212-1402
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) 		8-98256-869-1 01 1 1403-
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) 		8-98105-639-4 01 1 1212-1402
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) 		8-98256-871-1 01 1 1403-
95 HARNESS; NEUTRAL SW
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> RED 		8-98145-854-0 01 1 1212-
95 HARNESS; NEUTRAL SW
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> RED 		8-98145-855-0 01 1 1212-
231 HARNESS; TRANS
MLD6W M/T(Y2C) 		8-97626-769-1 01 1 1212-
231 HARNESS; TRANS
MZW6P M/T(RSZ) 		8-97618-932-2 01 1 1212-
462 HARNESS; SW,RANGE
ZF9S1110 M/T(Y5E) BLUE 		8-98145-857-0 01 1 1212-
463 HARNESS; SW,BACK UP
ZF9S1110 M/T(Y5E) BLACK 		8-98145-856-0 01 1 1212-
570 HARNESS; SPEED SENSOR
FULLER FSO5206B OD M/T(Y4V) (C) 		1-82670-012-0 01 1 1212-
570 HARNESS; SPEED SENSOR
ZF9S1110 M/T(Y5E) (A) 		8-98058-327-1 01 1 1212-
570 HARNESS; SPEED SENSOR
ZF9S1110 M/T(Y5E) (B) 		8-98148-602-0 01 1 1212-
689 HARNESS; PRESSURE & ECU SWITCH
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98148-603-0 01 1 1212-

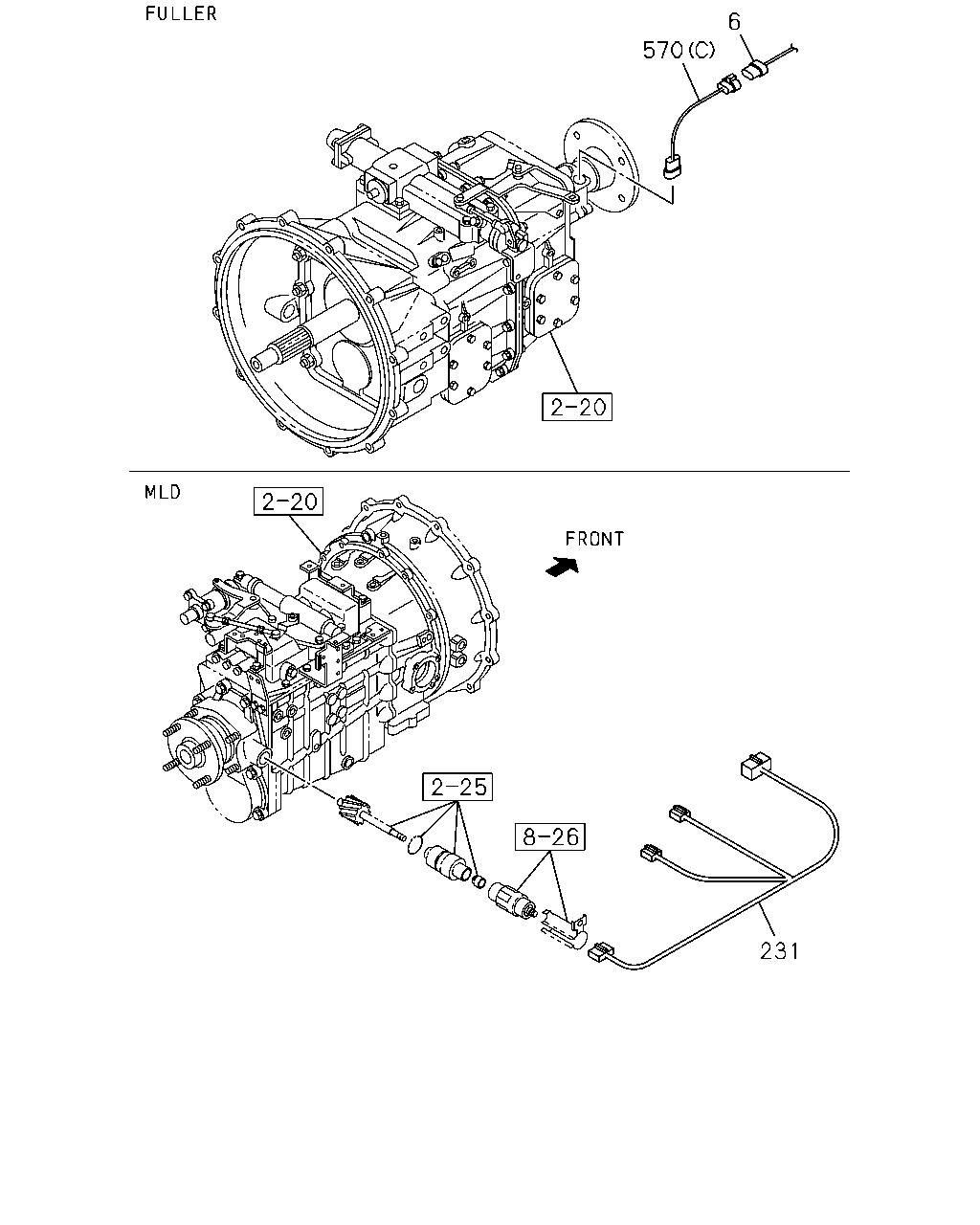

çizim 321727
231 6 570
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) 		8-98069-254-4 01 1 1212-1402
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) 		8-98256-870-2 01 1 1403-
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 6500MM(65W) 		8-98105-640-4 01 1 1212-1402
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 6500MM(65W) 		8-98256-872-1 01 1 1403-
6 HARNESS; FRAME
MZW6P M/T(RSZ),MLD6W M/T(Y2C) 		8-98113-741-4 01 1 1212-
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) 		8-98069-252-4 01 1 1212-1402
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) 		8-98256-869-1 01 1 1403-
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) 		8-98105-639-4 01 1 1212-1402
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) 		8-98256-871-1 01 1 1403-
231 HARNESS; TRANS
MLD6W M/T(Y2C) 		8-97626-769-1 01 1 1212-
231 HARNESS; TRANS
MZW6P M/T(RSZ) 		8-97618-932-2 01 1 1212-
570 HARNESS; SPEED SENSOR
FULLER FSO5206B OD M/T(Y4V) (C) 		1-82670-012-0 01 1 1212-
570 HARNESS; SPEED SENSOR
ZF9S1110 M/T(Y5E) (A) 		8-98058-327-1 01 1 1212-
570 HARNESS; SPEED SENSOR
ZF9S1110 M/T(Y5E) (B) 		8-98148-602-0 01 1 1212-

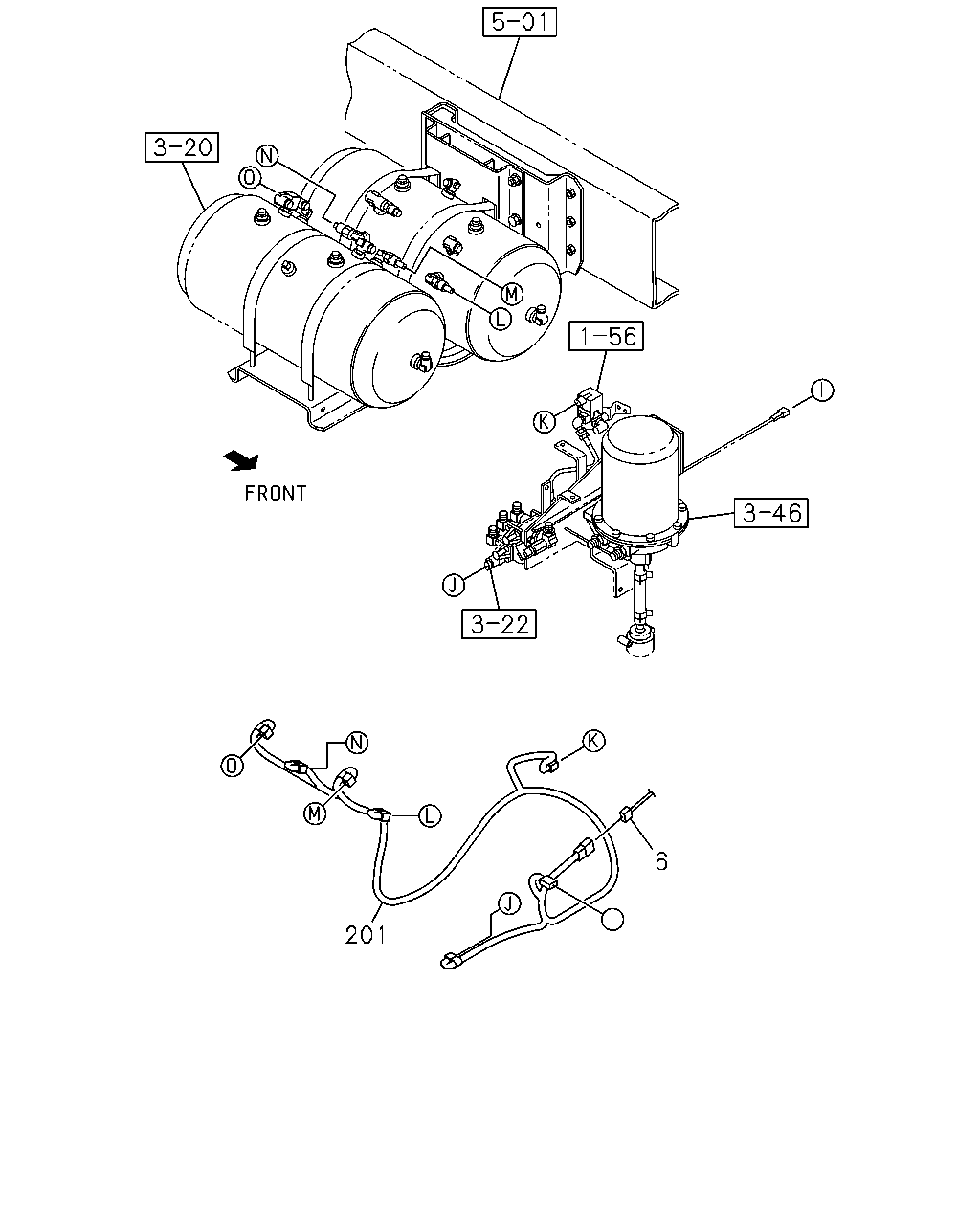

çizim 321758
201 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) 		8-98069-254-4 01 1 1212-1402
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) 		8-98256-870-2 01 1 1403-
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 6500MM(65W) 		8-98105-640-4 01 1 1212-1402
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 6500MM(65W) 		8-98256-872-1 01 1 1403-
6 HARNESS; FRAME
MZW6P M/T(RSZ),MLD6W M/T(Y2C) 		8-98113-741-4 01 1 1212-
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) 		8-98069-252-4 01 1 1212-1402
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) 		8-98256-869-1 01 1 1403-
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) 		8-98105-639-4 01 1 1212-1402
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) 		8-98256-871-1 01 1 1403-
201 HARNESS; AIR TANK 8-98069-170-1 01 1 1212-

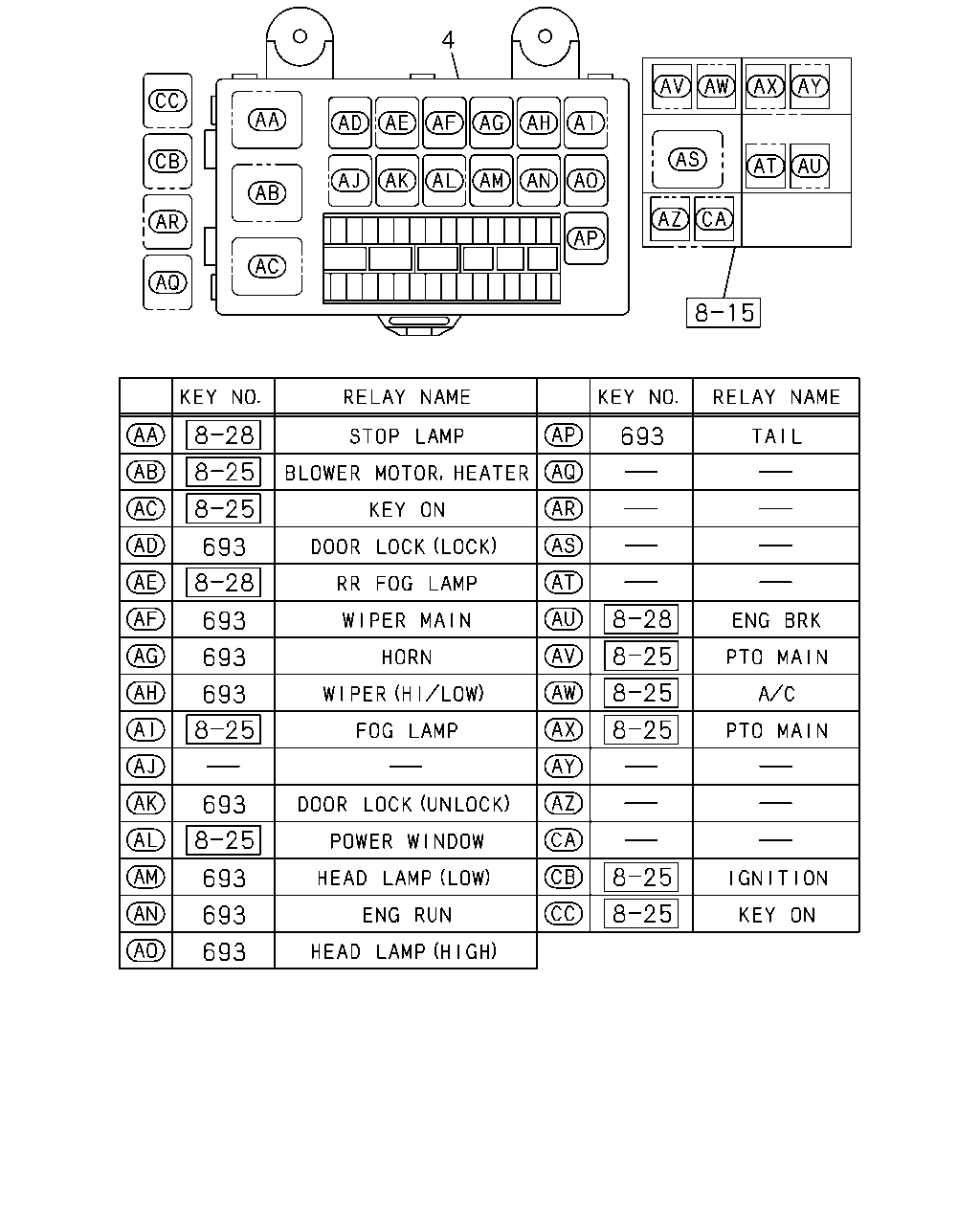

çizim 321761
4 693 693 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98065-666-0 01 1 1212-
693 RELAY; FUSE BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 24V 10A PANASONIC 		8-97173-035-1 AR 1 1212-

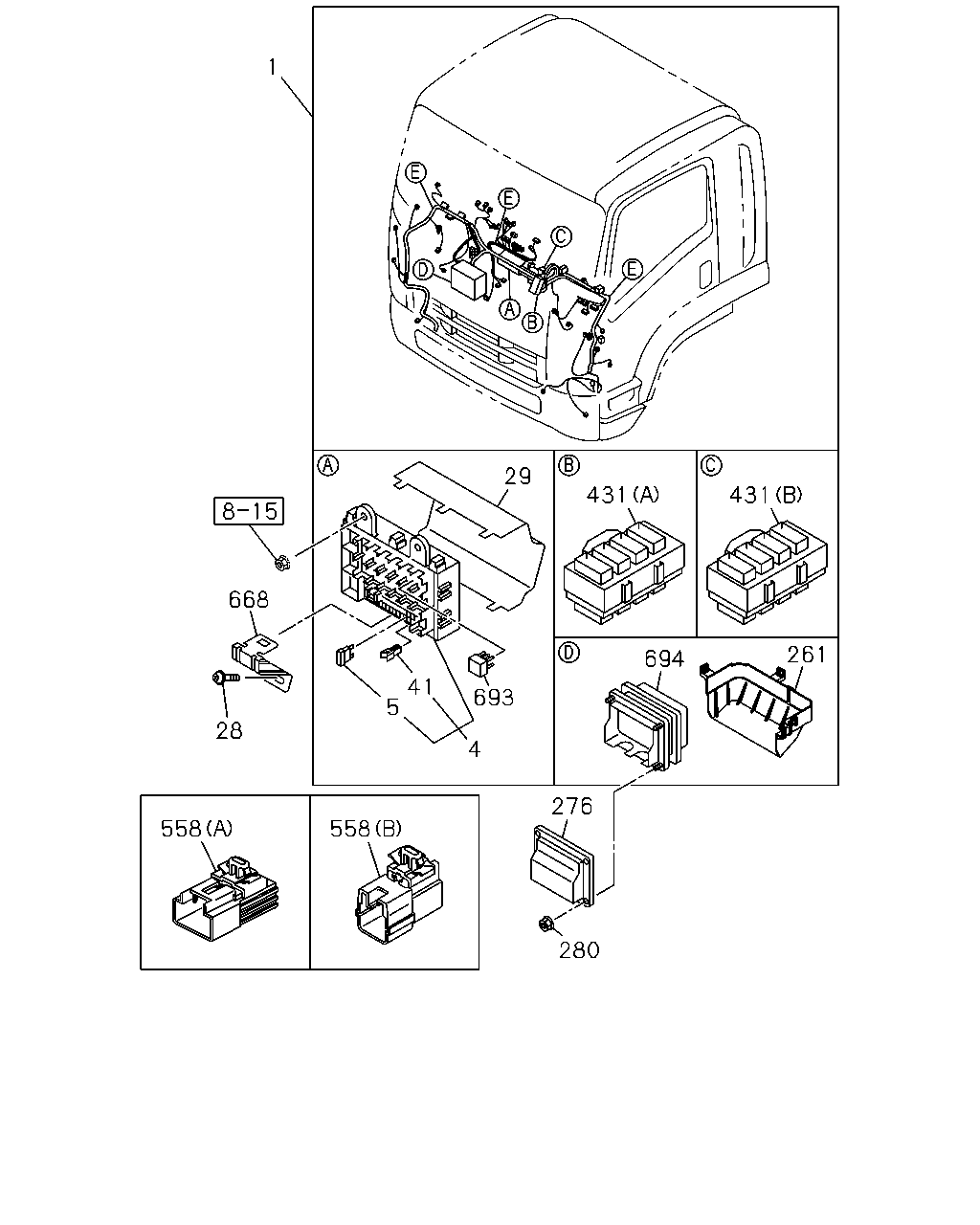

çizim 321935
1 668 28 558 558 276 280 4 693 41 5 431 29 431 261 694
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
MZW6P M/T(RSZ),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) KD PREPARATORY PACK<6HF> 		8-98257-338-1 01 1 1403-
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) KD PREPARATORY PACK<6HF> 		8-98257-339-1 01 1 1403-
1 HARNESS; CAB
MZW6P M/T(RSZ),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98212-812-0 01 1 1212-1402
1 HARNESS; CAB
MZW6P M/T(RSZ),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. KD PREPARATORY PACK<6HF> 		8-98212-812-1 01 1 1403-
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98212-813-0 01 1 1212-1402
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. KD PREPARATORY PACK<6HF> 		8-98212-813-1 01 1 1403-
4 BOX ASM; FUSE,HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98065-666-0 01 1 1212-
5 FUSE; FACIA HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 10A RED 		8-98054-257-0 AR 1 1212-
5 FUSE; FACIA HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 15A BLUE 		8-98054-258-0 AR 1 1212-
5 FUSE; FACIA HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 20A YELLOW 		8-98054-259-0 AR 1 1212-
5 FUSE; FACIA HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 25A WHITE 		8-98062-982-0 AR 1 1212-
28 SCREW; FUSE BOX
M6X16 FLANGE 		0-28650-616-0 01 1 1212-
28 SCREW; FUSE BOX
M6X16 FLANGE 		0-28650-616-0 01 1 1212-
29 COVER; FUSE BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98056-968-0 01 1 1212-
41 PULLER; FUSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98054-260-0 01 1 1212-
261 COVER; CONNECTOR BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98065-986-1 01 1 1212-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1212-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1212-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1212-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1212-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1212-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1212-
431 CONNECTOR; JOINT
(E) 6P BLACK 		8-97616-194-0 02 1 1212-
431 CONNECTOR; JOINT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) WHITE 		8-98056-374-0 01 1 1212-
431 CONNECTOR; JOINT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) WHITE 		8-98056-375-0 01 1 1212-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (A) 		8-98108-678-0 01 1 1212-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B) 		8-98108-679-0 01 1 1212-
668 BRACKET; HARNESS 8-98095-653-2 01 1 1212-
693 RELAY; FUSE BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 24V 10A PANASONIC 		8-97173-035-1 AR 1 1212-
694 BOX ASM; CONNECTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98057-771-0 01 1 1212-

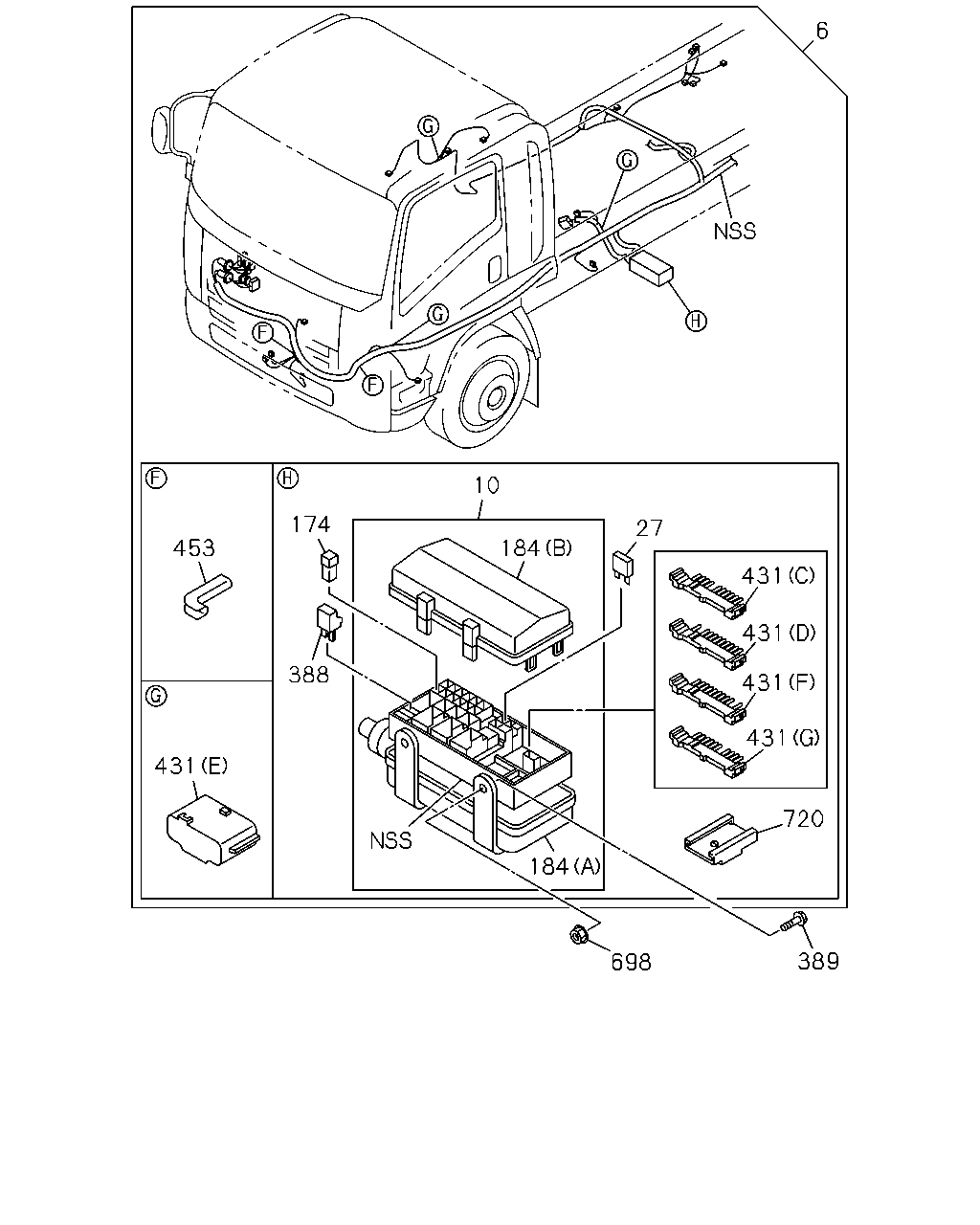

çizim 322044
6 10 174 453 388 431 184 27 431 431 431 431 720 389 698 184
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) 		8-98069-254-4 01 1 1212-1402
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) 		8-98256-870-2 01 1 1403-
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 6500MM(65W) 		8-98105-640-4 01 1 1212-1402
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 6500MM(65W) 		8-98256-872-1 01 1 1403-
6 HARNESS; FRAME
MZW6P M/T(RSZ),MLD6W M/T(Y2C) 		8-98113-741-4 01 1 1212-
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) 		8-98069-252-4 01 1 1212-1402
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) 		8-98256-869-1 01 1 1403-
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) 		8-98105-639-4 01 1 1212-1402
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) 		8-98256-871-1 01 1 1403-
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1212-
27 FUSE UNIT
10A RED 		8-98054-257-0 01 1 1212-
27 FUSE UNIT
15A BLUE 		8-98054-258-0 02 1 1212-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1212-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 02 1 1212-
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 01 1 1212-
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 01 1 1212-
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 1212-
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1212-
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-1 01 1 1212-
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 01 1 1212-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1212-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1212-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1212-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1212-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1212-
431 CONNECTOR; JOINT
(E) 6P BLACK 		8-97616-194-0 02 1 1212-
431 CONNECTOR; JOINT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) WHITE 		8-98056-374-0 01 1 1212-
431 CONNECTOR; JOINT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) WHITE 		8-98056-375-0 01 1 1212-
453 PROTECTOR; HARNESS 1-82699-709-0 01 1 1212-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1212-
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 1212-
çizim 322617
1 2 2 2 2 431 431 431
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
MZW6P M/T(RSZ),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) KD PREPARATORY PACK<6HF> 		8-98257-338-1 01 1 1403-
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) KD PREPARATORY PACK<6HF> 		8-98257-339-1 01 1 1403-
1 HARNESS; CAB
MZW6P M/T(RSZ),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98212-812-0 01 1 1212-1402
1 HARNESS; CAB
MZW6P M/T(RSZ),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. KD PREPARATORY PACK<6HF> 		8-98212-812-1 01 1 1403-
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98212-813-0 01 1 1212-1402
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. KD PREPARATORY PACK<6HF> 		8-98212-813-1 01 1 1403-
2 DIODE; CABLE HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) BLACK 10P 		1-82699-703-0 AR 1 1212-
2 DIODE; CABLE HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) BLACK 3P-1.5A 		8-94416-438-1 AR 1 1212-
2 DIODE; CABLE HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1212-
2 DIODE; CABLE HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1212-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1212-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1212-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1212-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1212-
431 CONNECTOR; JOINT
(E) 6P BLACK 		8-97616-194-0 02 1 1212-
431 CONNECTOR; JOINT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) WHITE 		8-98056-374-0 01 1 1212-
431 CONNECTOR; JOINT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) WHITE 		8-98056-375-0 01 1 1212-
çizim 322802
1 485
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
MZW6P M/T(RSZ),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) KD PREPARATORY PACK<6HF> 		8-98257-338-1 01 1 1403-
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) KD PREPARATORY PACK<6HF> 		8-98257-339-1 01 1 1403-
1 HARNESS; CAB
MZW6P M/T(RSZ),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98212-812-0 01 1 1212-1402
1 HARNESS; CAB
MZW6P M/T(RSZ),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. KD PREPARATORY PACK<6HF> 		8-98212-812-1 01 1 1403-
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98212-813-0 01 1 1212-1402
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. KD PREPARATORY PACK<6HF> 		8-98212-813-1 01 1 1403-
485 SEAL; CONNECTOR
180X40 		1-72498-019-1 01 1 1212-

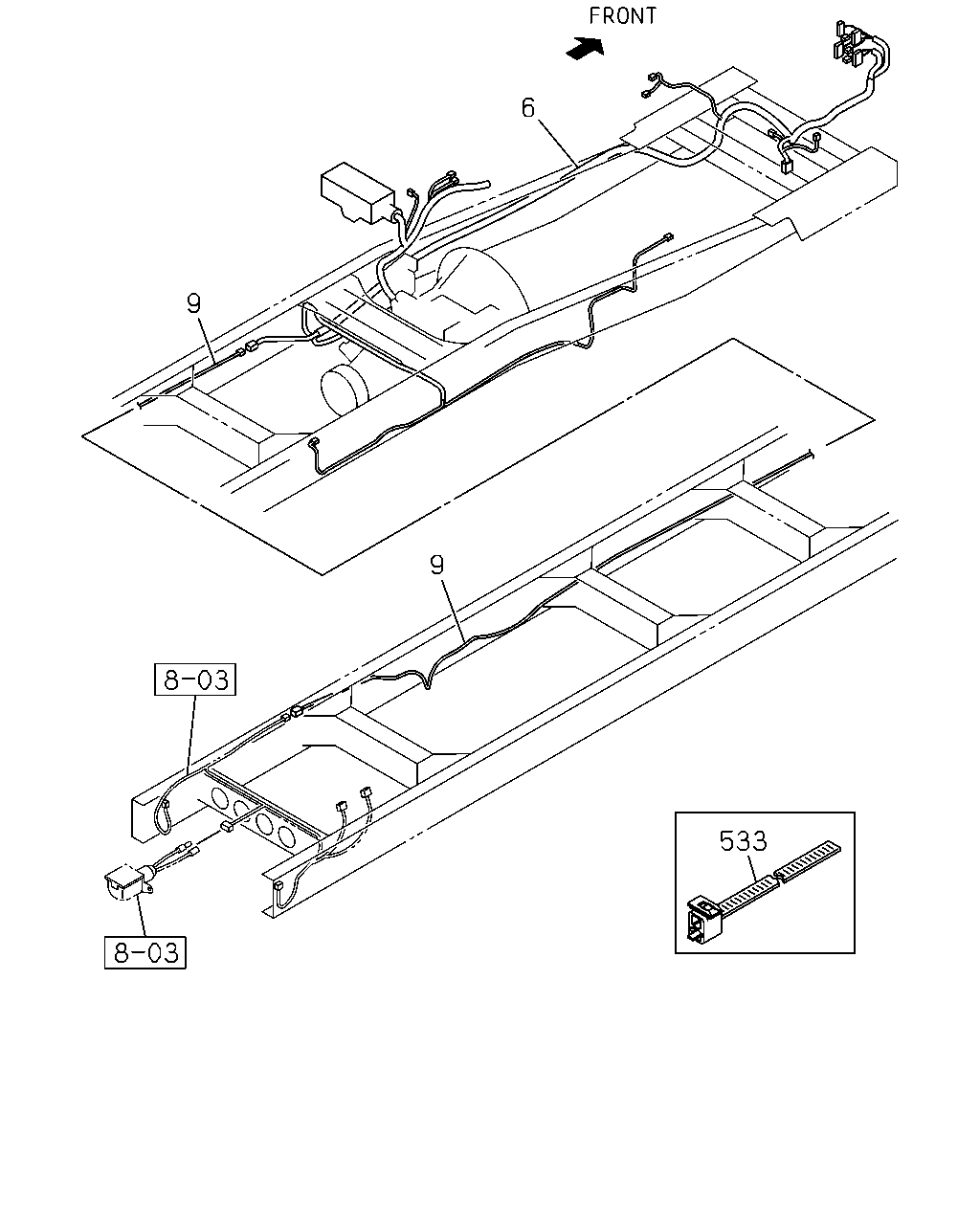

çizim 322804
6 9 9 533
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) 		8-98069-254-4 01 1 1212-1402
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) 		8-98256-870-2 01 1 1403-
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 6500MM(65W) 		8-98105-640-4 01 1 1212-1402
6 HARNESS; FRAME
FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 6500MM(65W) 		8-98256-872-1 01 1 1403-
6 HARNESS; FRAME
MZW6P M/T(RSZ),MLD6W M/T(Y2C) 		8-98113-741-4 01 1 1212-
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) 		8-98069-252-4 01 1 1212-1402
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) 		8-98256-869-1 01 1 1403-
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) 		8-98105-639-4 01 1 1212-1402
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) 		8-98256-871-1 01 1 1403-
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) 		8-98168-639-0 01 1 1212-
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) 		8-98168-641-0 01 1 1212-
9 HARNESS; FRAME,RR
WHEEL BASE 6000MM(60W) 		8-98168-645-0 01 1 1212-
9 HARNESS; FRAME,RR
WHEEL BASE 6500MM(65W) 		8-98168-651-0 01 1 1212-
533 CLIP
AIR CONDITIONER MANUAL CONTROL(C60) L=180 		1-09707-162-1 01 1 1212-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
