Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#111464) — 327 parça

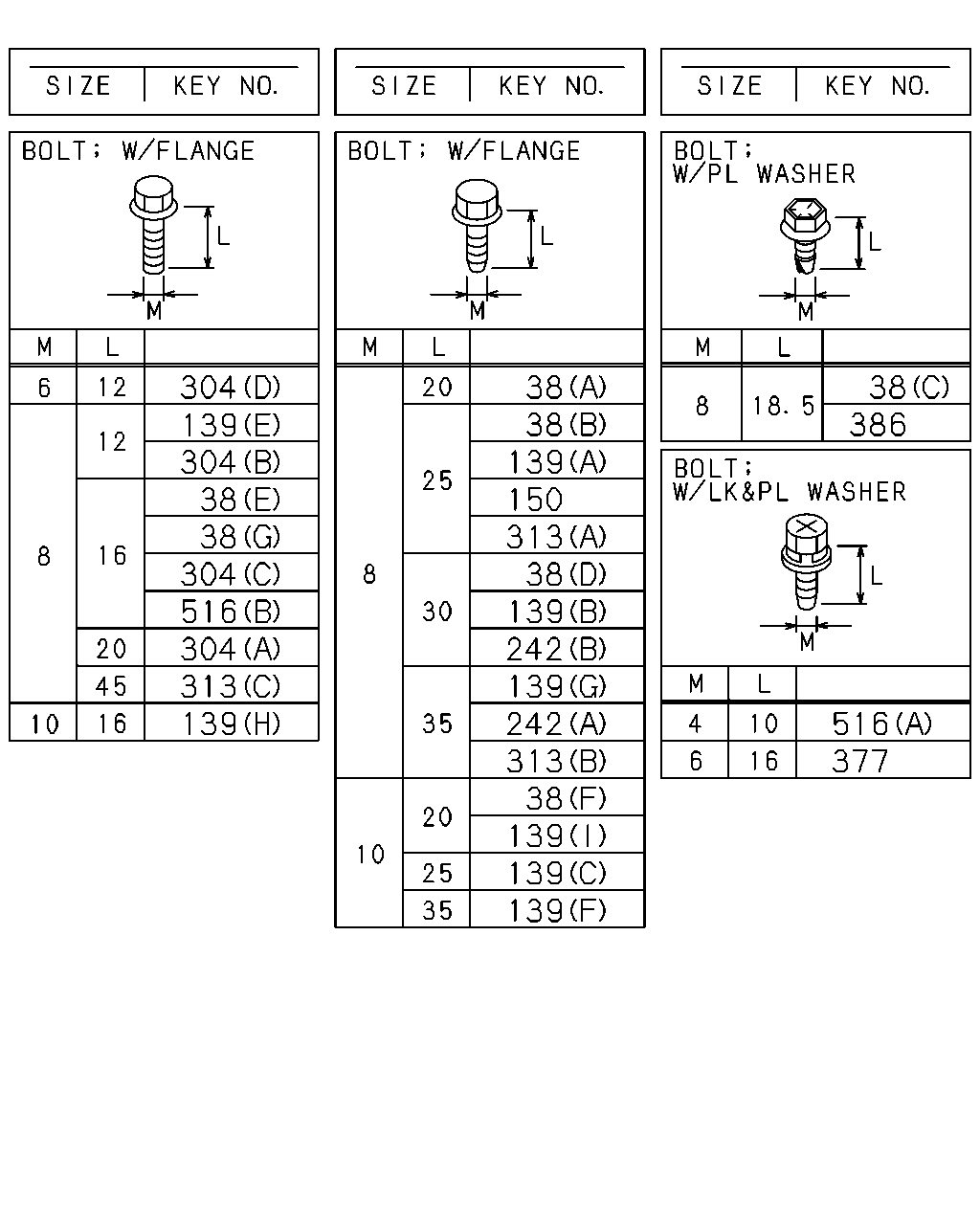

304 304 304 139 38 38 304 516 313 139 38 38 139 150 313 38 139 242 139 242 313 38 139 139 139 38 386 516 377

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1212-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1212-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1212-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	04	1	1212-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	1212-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	1212-
38	BOLT; CLIP,HARNESS (C) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1212-
38	BOLT; CLIP,HARNESS FULLER FSO5206B OD M/T(Y4V) (E) M8X16 FLANGE	0-28050-816-0	03	1	1212-
38	BOLT; CLIP,HARNESS MLD6W M/T(Y2C) (F) M10X20 FLANGE	0-28751-020-0	01	1	1212-
38	BOLT; CLIP,HARNESS ZF9S1110 M/T(Y5E) (G) M8X16 FLANGE	0-28050-816-0	02	1	1212-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1212-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1212-
139	BOLT; BRKT MZW6P M/T(RSZ),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) (A) M8X25 FLANGE	0-28650-825-0	01	1	1212-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1212-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1212-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	1212-
139	BOLT; BRKT (G) M8X35 FLANGE	0-28650-835-0	01	1	1212-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1212-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	02	1	1212-
139	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) (H) M10X16 FLANGE	0-28051-016-0	03	1	1212-
139	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) (I) M10X20 FLANGE	0-28751-020-0	01	1	1212-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (D) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1212-
150	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	1212-
242	BOLT; BRKT,HARNESS WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) (B) M8X30 FLANGE	0-28650-830-0	01	1	1403-
242	BOLT; BRKT,HARNESS MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 6500MM(65W) (A) M8X35 FLANGE	0-28650-835-0	01	1	1212-
242	BOLT; BRKT,HARNESS FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A) M8X35 FLANGE	0-28650-835-0	01	1	1212-
304	BOLT; ENG HARNESS CLIP (D) M6X12 FLANGE	0-28050-612-0	01	1	1212-
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	02	1	1212-
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	01	1	1212-
304	BOLT; ENG HARNESS CLIP ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C) M8X16 FLANGE	0-28050-816-0	01	1	1212-
304	BOLT; ENG HARNESS CLIP EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C) M8X16 FLANGE	0-28050-816-0	03	1	1212-
313	BOLT; BRKT (C) M8X45 FLANGE	0-28050-845-0	01	1	1212-
313	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1212-
313	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	01	1	1212-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1212-
386	BOLT; GRAND HARNESS M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1212-
516	BOLT; HARNESS (A) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1212-
516	BOLT; HARNESS MLD6W M/T(Y2C) (B) M8X16 FLANGE	0-28050-816-0	02	1	1212-

139 127 524 219 294 525 552 294 184 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1212-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1212-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1212-
139	BOLT; BRKT MZW6P M/T(RSZ),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) (A) M8X25 FLANGE	0-28650-825-0	01	1	1212-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1212-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1212-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	1212-
139	BOLT; BRKT (G) M8X35 FLANGE	0-28650-835-0	01	1	1212-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1212-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	02	1	1212-
139	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) (H) M10X16 FLANGE	0-28051-016-0	03	1	1212-
139	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) (I) M10X20 FLANGE	0-28751-020-0	01	1	1212-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (D) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1212-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1212-
219	NUT M8 FLANGE	0-91180-108-0	04	1	1212-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1212-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1212-
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1212-
294	NUT (A) M8 FLANGE	0-91180-108-0	04	1	1212-
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	1212-
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	1212-
294	NUT FIRE TRUCK CHASSIS(V4F) (A) M8 FLANGE	0-91180-108-0	01	1	1212-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1212-
294	NUT FULLER FSO5206B OD M/T(Y4V) (B) M10 FLANGE	0-91180-210-0	01	1	1212-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	1212-
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	02	1	1212-
525	NUT; CLIP T=8.5 M8 FLANGE	5-09440-010-0	01	1	1212-
552	NUT; BRKT,HARNESS WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) M8 FLANGE	0-91180-108-0	01	1	1403-

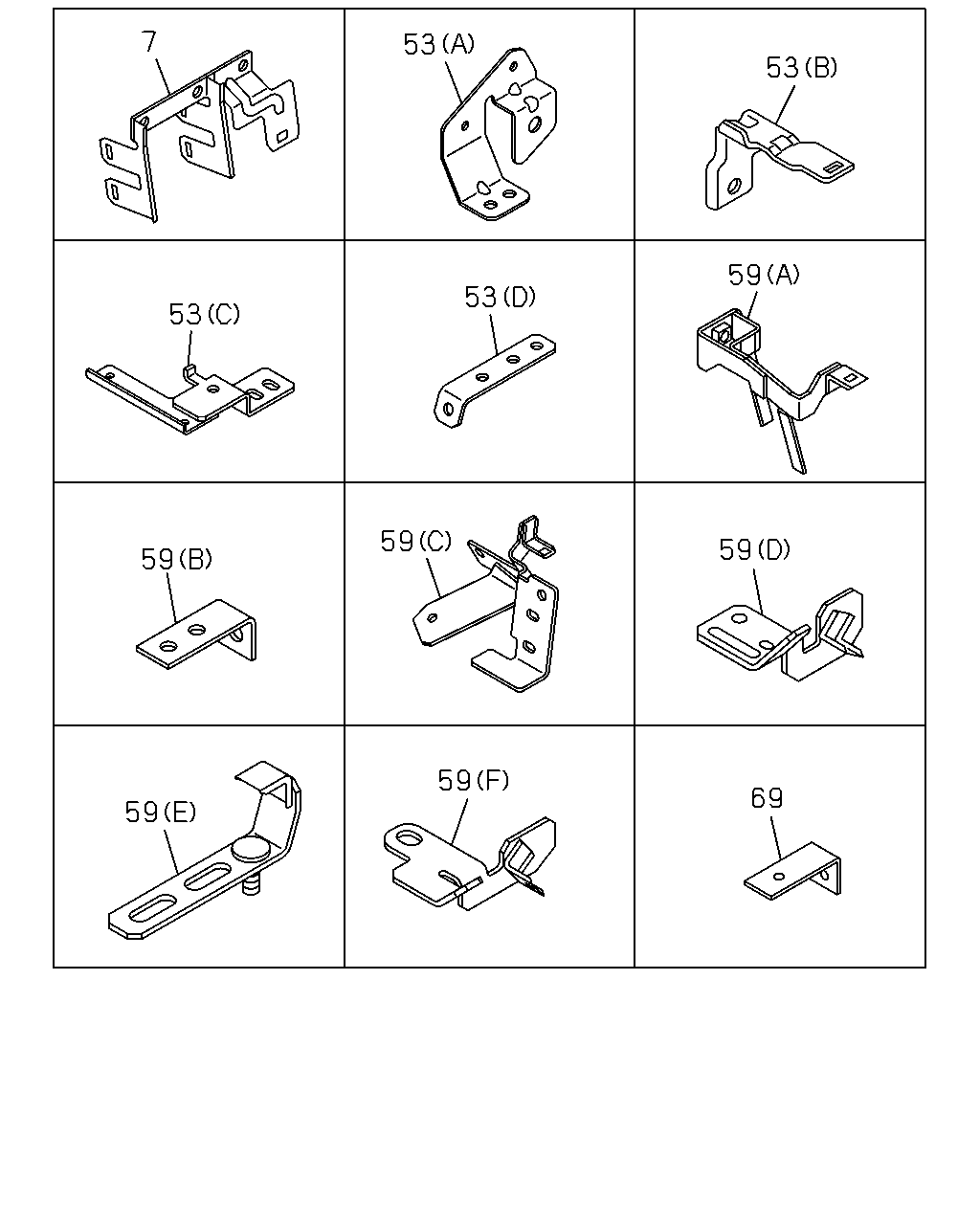

69 59 59 59 59 59 59 53 53 7 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98090-846-0	01	1	1212-
53	BRACKET; HARNESS WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) (D)	1-82698-167-0	01	1	1403-
53	BRACKET; HARNESS (B)	8-98052-458-0	01	1	1212-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (A)	8-98084-699-0	01	1	1212-
53	BRACKET; HARNESS MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 6500MM(65W) (C)	8-97620-485-0	01	1	1212-
53	BRACKET; HARNESS FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (C)	8-97620-485-0	01	1	1212-
59	BRACKET; FRAME HARNESS (B) L=62	1-21464-170-2	01	1	1212-
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	1212-1502
59	BRACKET; FRAME HARNESS (F)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (E)	8-98047-730-0	02	1	1212-
59	BRACKET; FRAME HARNESS (C)	8-98107-611-0	01	1	1212-
59	BRACKET; FRAME HARNESS MLD6W M/T(Y2C) (A)	8-97627-325-0	01	1	1212-
59	BRACKET; FRAME HARNESS MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V), ZF9S1110M/T(Y5E) (A)	8-97609-264-2	01	1	1212-
69	BRACKET; CLIP MZW6P M/T(RSZ),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) L=55	1-47475-304-0	01	1	1212-

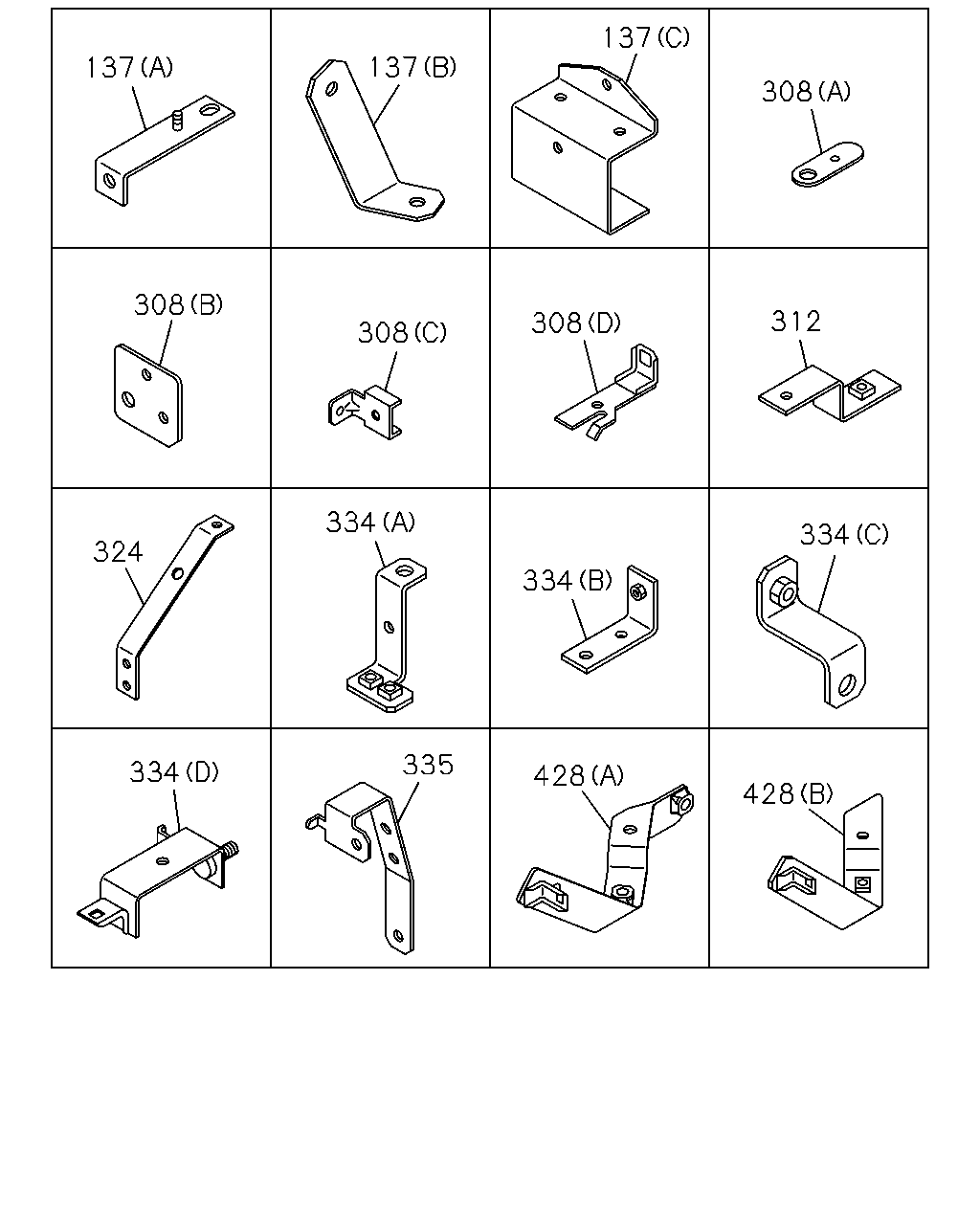

137 137 137 308 308 308 308 312 324 334 334 334 334 335 428 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	BRACKET; HARNESS CLAMP (C)	8-97609-797-1	02	1	1212-
137	BRACKET; HARNESS CLAMP (B)	8-97614-728-1	01	1	1212-
137	BRACKET; HARNESS CLAMP (A)	8-97624-013-0	01	1	1212-
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1212-
308	BRACKET; CLIP,ENG HARNESS (C)	8-97614-078-0	01	1	1212-
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-291-2	01	1	1212-
308	BRACKET; CLIP,ENG HARNESS EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-98021-692-1	01	1	1212-
312	BRACKET; CLIP HARNESS	8-97609-110-1	01	1	1212-
324	BRACKET; CLIP	1-47479-430-0	02	1	1212-
334	BRACKET FIRE TRUCK CHASSIS(V4F) (D)	8-98018-251-1	01	1	1212-
334	BRACKET FULLER FSO5206B OD M/T(Y4V) (C)	1-47475-868-0	02	1	1212-
334	BRACKET FULLER FSO5206B OD M/T(Y4V) (B)	1-47477-698-0	02	1	1212-
334	BRACKET FULLER FSO5206B OD M/T(Y4V) (A)	1-82699-639-1	01	1	1212-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	1212-
428	BRACKET FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B)	8-97620-514-0	01	1	1212-
428	BRACKET MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A)	8-98107-614-0	01	1	1212-

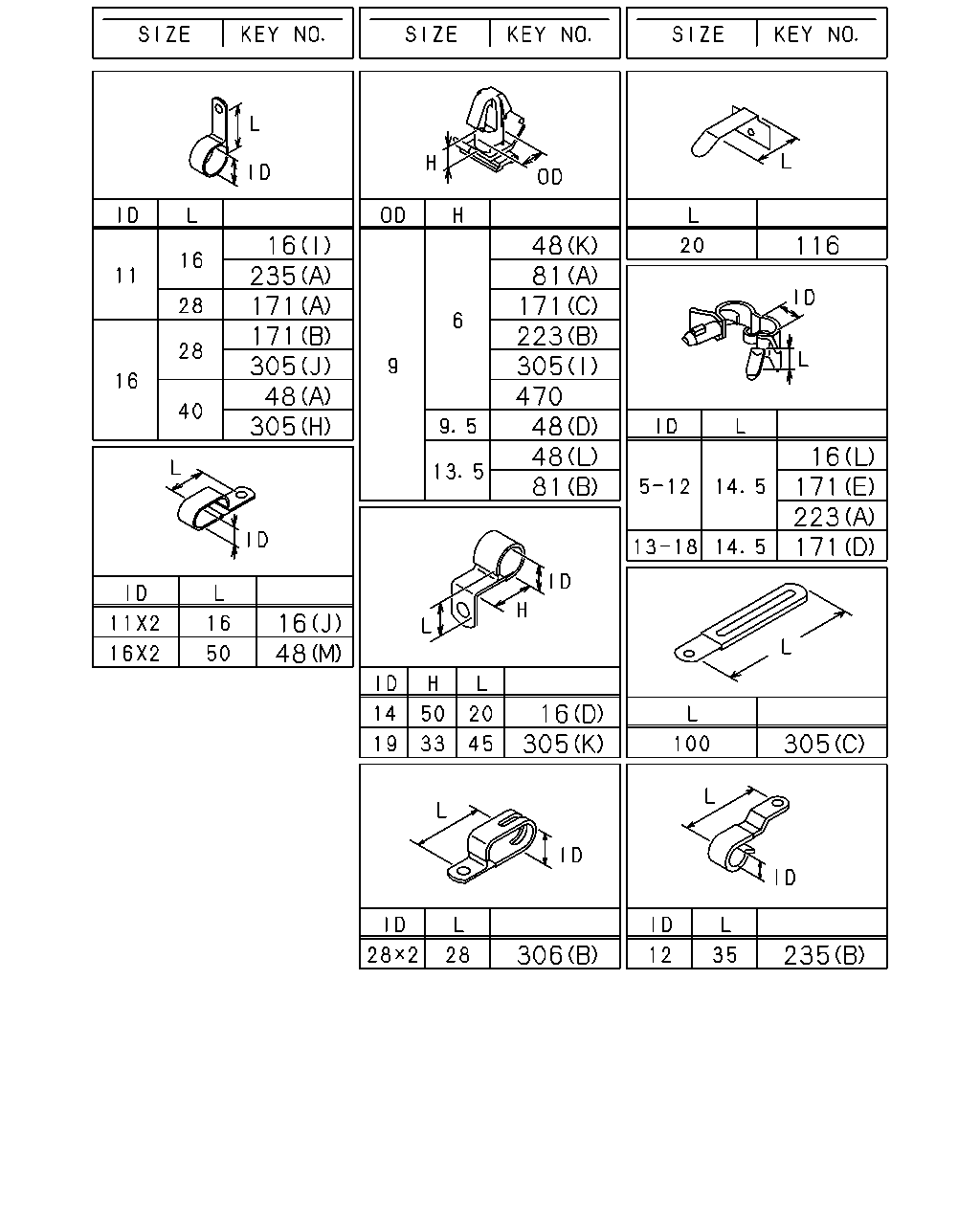

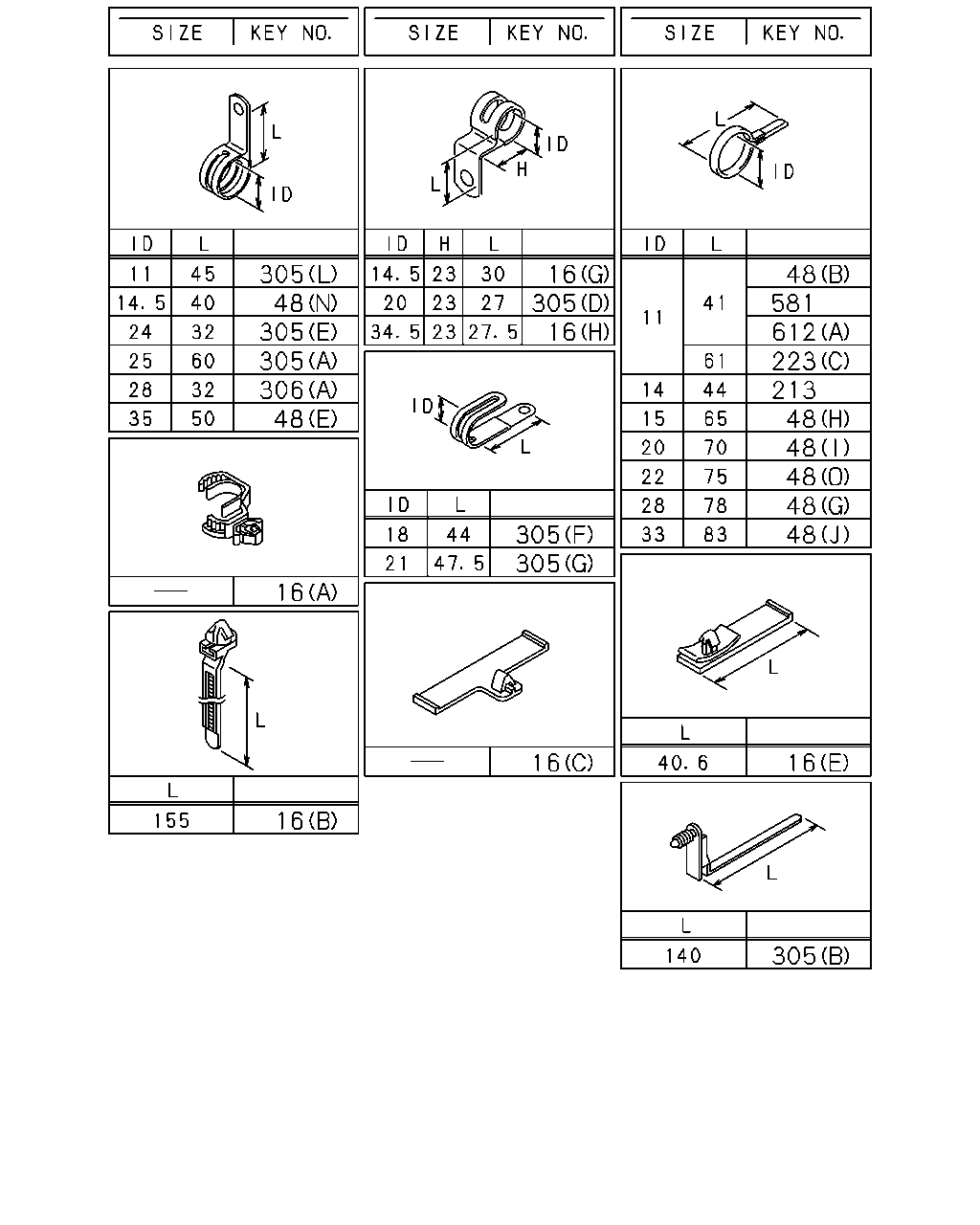

16 48 14 16 81 183 206 217 225 491 612 530 14 612 48 14 14 102 538 503 1 1 1 178 178 178 596

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (C) ID=23 OD=27 L=80	8-97608-976-0	06	1	1212-
1	SLEEVE; RUBBER ENGINE OIL TEMPERATURE GAUGE<UG3> (B) ID=15 OD=19 L=50	1-09337-014-0	02	1	1212-
1	SLEEVE; RUBBER ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) ID=10 OD=14 L=30	9-09956-682-0	04	1	1212-
1	SLEEVE; RUBBER EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1212-
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	1212-
14	CLIP; BAND,HARNESS (C) L=350	1-09707-183-0	01	1	1212-
14	CLIP; BAND,HARNESS ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) L=250	8-98216-430-0	15	1	1212-
14	CLIP; BAND,HARNESS EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) L=250	8-98216-430-0	13	1	1212-
14	CLIP; BAND,HARNESS FULLER FSO5206B OD M/T(Y4V) (D) L=250	5-09707-030-1	01	1	1212-
16	CLIP; HARNESS (I) ID=11 L=16	0-95235-025-0	02	1	1212-
16	CLIP; HARNESS (J) ID=11X2 L=16	0-95325-025-0	02	1	1212-
16	CLIP; HARNESS (D) ID=14 H=50 L=20	1-09700-843-0	02	1	1212-
16	CLIP; HARNESS (G) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1212-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1212-
16	CLIP; HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	02	1	1212-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	04	1	1212-
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	1212-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1212-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1212-
16	CLIP; HARNESS (E) L=40.6	8-97229-357-0	02	1	1212-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 6500MM(65W) (I) ID=20 L=70	1-09700-485-0	13	1	1408-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) (O) ID=25 L=75	1-09701-275-0	01	1	1408-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W), WHEELBASE 6500MM(65W) (I) ID=20 L=70	1-09700-485-0	03	1	1408-
48	CLIP; FRAME HARNESS WHEEL BASE 6500MM(65W) (O) ID=25 L=75	1-09701-275-0	02	1	1408-
48	CLIP; FRAME HARNESS (J) ID=33 L=83	1-09701-291-0	01	1	1306-
48	CLIP; FRAME HARNESS (H) ID=15 L=65	1-09700-466-0	01	1	1212-
48	CLIP; FRAME HARNESS (I) ID=20 L=70	1-09700-485-0	04	1	1212-1407
48	CLIP; FRAME HARNESS (I) ID=20 L=70	1-09700-485-0	01	1	1408-
48	CLIP; FRAME HARNESS (G) ID=28 L=78	1-09700-858-0	02	1	1212-
48	CLIP; FRAME HARNESS (E) ID=35 L=50	1-09701-214-0	01	1	1212-
48	CLIP; FRAME HARNESS (J) ID=33 L=83	1-09701-291-0	03	1	1212-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1212-
48	CLIP; FRAME HARNESS (H) ID=15 L=65	1-09700-466-0	02	1	1212-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (A) ID=16 L=40	0-95235-576-0	03	1	1212-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (C) L=180	1-09707-162-1	01	1	1212-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (K) OD=9 H=6	1-09709-178-0	01	1	1212-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W) (B) ID=11 L=41	1-09700-403-0	01	1	1212-1402
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1212-1402
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1403-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (H) ID=15 L=65	1-09700-466-0	05	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (I) ID=20 L=70	1-09700-485-0	08	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) OD=9 H=9.5	1-09709-179-0	01	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (H) ID=15 L=65	1-09700-466-0	06	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (I) ID=20 L=70	1-09700-485-0	09	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (H) ID=15 L=65	1-09700-466-0	07	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (I) ID=20 L=70	1-09700-485-0	12	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (L) OD=9 H=13.5	1-09709-180-0	01	1	1212-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (L) OD=9 H=13.5	1-09709-180-0	01	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 6500MM(65W) (I) ID=20 L=70	1-09700-485-0	01	1	1212-1407
48	CLIP; FRAME HARNESS (I) ID=20 L=70	1-09700-485-0	01	1	1212-1407
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (I) ID=20 L=70	1-09700-485-0	04	1	1408-
48	CLIP; FRAME HARNESS WHEEL BASE 6500MM(65W) (H) ID=15 L=65	1-09700-466-0	08	1	1212-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (M) ID=16X2 L=50	0-95325-586-0	01	1	1212-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (N) ID=14.5 L=40	1-09701-014-0	01	1	1212-
81	CLIP; HARNESS MZW6P M/T(RSZ),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) (A) OD=9 H=6	1-09709-178-0	01	1	1212-
81	CLIP; HARNESS ZF9S1110 M/T(Y5E) (B) OD=9 H=13.5	1-09709-180-0	01	1	1212-
81	CLIP; HARNESS ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> (C) L=250	5-09707-030-1	01	1	1212-
102	CLIP; BAND ENGINE OIL TEMPERATURE GAUGE<UG3> L=350	1-09707-183-0	03	1	1212-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	02	1	1212-
178	GROMMET; HARNESS (C) ID=32 OD=40 T=23	1-09332-112-0	01	1	1212-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1212-
183	CLIP; CONNECTOR H.S.A SYSTEM<6EP> L=250	5-09707-030-1	01	1	1212-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	1212-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1212-
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	04	1	1212-
491	CLIP; BAND,HTR HOSE & HARNESS FIRE TRUCK CHASSIS(V4F) L=250	5-09707-030-1	06	1	1212-
503	CONNECTOR HEATER & DEFROSTER(C41)	1-82690-668-0	01	1	1212-
503	CONNECTOR ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	1-82690-668-0	01	1	1212-
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	1212-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	1212-1305
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1212-
596	GROMMET FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=32 OD=40 T=23	1-09332-112-0	01	1	1212-
612	CLIP; HARNESS DPD FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A) ID=11 L=41	1-09700-403-0	01	1	1403-
612	CLIP; HARNESS DPD FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) L=250	5-09707-030-1	01	1	1403-
612	CLIP; HARNESS DPD FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) (A) ID=11 L=41	1-09700-403-0	02	1	1403-
612	CLIP; HARNESS DPD MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W) (C) L=135	1-09987-143-1	01	1	1212-
612	CLIP; HARNESS DPD MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 6500MM(65W) (C) L=135	1-09987-143-1	02	1	1212-
612	CLIP; HARNESS DPD FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (C) L=135	1-09987-143-1	02	1	1212-

305 305 48 305 48 306 16 16 305 48 612 581 223 48 48 48 48 213 48 16 16 305 305 305 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (I) ID=11 L=16	0-95235-025-0	02	1	1212-
16	CLIP; HARNESS (J) ID=11X2 L=16	0-95325-025-0	02	1	1212-
16	CLIP; HARNESS (D) ID=14 H=50 L=20	1-09700-843-0	02	1	1212-
16	CLIP; HARNESS (G) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1212-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1212-
16	CLIP; HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	02	1	1212-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	04	1	1212-
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	1212-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1212-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1212-
16	CLIP; HARNESS (E) L=40.6	8-97229-357-0	02	1	1212-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 6500MM(65W) (I) ID=20 L=70	1-09700-485-0	13	1	1408-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) (O) ID=25 L=75	1-09701-275-0	01	1	1408-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W), WHEELBASE 6500MM(65W) (I) ID=20 L=70	1-09700-485-0	03	1	1408-
48	CLIP; FRAME HARNESS WHEEL BASE 6500MM(65W) (O) ID=25 L=75	1-09701-275-0	02	1	1408-
48	CLIP; FRAME HARNESS (J) ID=33 L=83	1-09701-291-0	01	1	1306-
48	CLIP; FRAME HARNESS (H) ID=15 L=65	1-09700-466-0	01	1	1212-
48	CLIP; FRAME HARNESS (I) ID=20 L=70	1-09700-485-0	04	1	1212-1407
48	CLIP; FRAME HARNESS (I) ID=20 L=70	1-09700-485-0	01	1	1408-
48	CLIP; FRAME HARNESS (G) ID=28 L=78	1-09700-858-0	02	1	1212-
48	CLIP; FRAME HARNESS (E) ID=35 L=50	1-09701-214-0	01	1	1212-
48	CLIP; FRAME HARNESS (J) ID=33 L=83	1-09701-291-0	03	1	1212-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1212-
48	CLIP; FRAME HARNESS (H) ID=15 L=65	1-09700-466-0	02	1	1212-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (A) ID=16 L=40	0-95235-576-0	03	1	1212-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (C) L=180	1-09707-162-1	01	1	1212-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (K) OD=9 H=6	1-09709-178-0	01	1	1212-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W) (B) ID=11 L=41	1-09700-403-0	01	1	1212-1402
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1212-1402
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1403-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (H) ID=15 L=65	1-09700-466-0	05	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (I) ID=20 L=70	1-09700-485-0	08	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) OD=9 H=9.5	1-09709-179-0	01	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (H) ID=15 L=65	1-09700-466-0	06	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (I) ID=20 L=70	1-09700-485-0	09	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (H) ID=15 L=65	1-09700-466-0	07	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (I) ID=20 L=70	1-09700-485-0	12	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (L) OD=9 H=13.5	1-09709-180-0	01	1	1212-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (L) OD=9 H=13.5	1-09709-180-0	01	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 6500MM(65W) (I) ID=20 L=70	1-09700-485-0	01	1	1212-1407
48	CLIP; FRAME HARNESS (I) ID=20 L=70	1-09700-485-0	01	1	1212-1407
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (I) ID=20 L=70	1-09700-485-0	04	1	1408-
48	CLIP; FRAME HARNESS WHEEL BASE 6500MM(65W) (H) ID=15 L=65	1-09700-466-0	08	1	1212-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (M) ID=16X2 L=50	0-95325-586-0	01	1	1212-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (N) ID=14.5 L=40	1-09701-014-0	01	1	1212-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1212-
223	CLIP; AIR TANK HARNESS (C) ID=11 L=61	1-09700-484-0	01	1	1212-
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	1212-
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	02	1	1212-
305	CLIP; ENG HARNESS (H) ID=16 L=40	0-95235-576-0	01	1	1212-
305	CLIP; ENG HARNESS (E) ID=24 L=32	1-09700-766-1	01	1	1212-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1212-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1212-
305	CLIP; ENG HARNESS (K) ID=19 H=33 L=45	1-09701-045-0	01	1	1212-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	1212-
305	CLIP; ENG HARNESS (L) ID=11 L=45	8-94296-897-1	01	1	1212-
305	CLIP; ENG HARNESS (B) L=140	8-97122-360-0	01	1	1212-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1212-
305	CLIP; ENG HARNESS ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (J) ID=16 L=28	0-95235-556-0	01	1	1212-
305	CLIP; ENG HARNESS ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C) L=100	8-94443-021-1	01	1	1212-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1212-
305	CLIP; ENG HARNESS EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (J) ID=16 L=28	0-95235-556-0	02	1	1212-
305	CLIP; ENG HARNESS EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (F) ID=18 L=44	8-97367-985-1	01	1	1212-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	1212-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1212-
581	CLIP; HARNESS,REAR SUSP ID=11 L=41	1-09700-403-0	01	1	1212-
612	CLIP; HARNESS DPD FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A) ID=11 L=41	1-09700-403-0	01	1	1403-
612	CLIP; HARNESS DPD FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) L=250	5-09707-030-1	01	1	1403-
612	CLIP; HARNESS DPD FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) (A) ID=11 L=41	1-09700-403-0	02	1	1403-
612	CLIP; HARNESS DPD MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W) (C) L=135	1-09987-143-1	01	1	1212-
612	CLIP; HARNESS DPD MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 6500MM(65W) (C) L=135	1-09987-143-1	02	1	1212-
612	CLIP; HARNESS DPD FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (C) L=135	1-09987-143-1	02	1	1212-

16 171 235 171 48 305 305 16 48 48 171 81 223 305 470 48 48 81 16 305 306 116 16 223 171 171 305 235

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (I) ID=11 L=16	0-95235-025-0	02	1	1212-
16	CLIP; HARNESS (J) ID=11X2 L=16	0-95325-025-0	02	1	1212-
16	CLIP; HARNESS (D) ID=14 H=50 L=20	1-09700-843-0	02	1	1212-
16	CLIP; HARNESS (G) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1212-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1212-
16	CLIP; HARNESS (L) ID=5-12 L=14.5	1-09987-221-0	02	1	1212-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	04	1	1212-
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	1212-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1212-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1212-
16	CLIP; HARNESS (E) L=40.6	8-97229-357-0	02	1	1212-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 6500MM(65W) (I) ID=20 L=70	1-09700-485-0	13	1	1408-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) (O) ID=25 L=75	1-09701-275-0	01	1	1408-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W), WHEELBASE 6500MM(65W) (I) ID=20 L=70	1-09700-485-0	03	1	1408-
48	CLIP; FRAME HARNESS WHEEL BASE 6500MM(65W) (O) ID=25 L=75	1-09701-275-0	02	1	1408-
48	CLIP; FRAME HARNESS (J) ID=33 L=83	1-09701-291-0	01	1	1306-
48	CLIP; FRAME HARNESS (H) ID=15 L=65	1-09700-466-0	01	1	1212-
48	CLIP; FRAME HARNESS (I) ID=20 L=70	1-09700-485-0	04	1	1212-1407
48	CLIP; FRAME HARNESS (I) ID=20 L=70	1-09700-485-0	01	1	1408-
48	CLIP; FRAME HARNESS (G) ID=28 L=78	1-09700-858-0	02	1	1212-
48	CLIP; FRAME HARNESS (E) ID=35 L=50	1-09701-214-0	01	1	1212-
48	CLIP; FRAME HARNESS (J) ID=33 L=83	1-09701-291-0	03	1	1212-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	1212-
48	CLIP; FRAME HARNESS (H) ID=15 L=65	1-09700-466-0	02	1	1212-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (A) ID=16 L=40	0-95235-576-0	03	1	1212-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (C) L=180	1-09707-162-1	01	1	1212-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V) (K) OD=9 H=6	1-09709-178-0	01	1	1212-
48	CLIP; FRAME HARNESS FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W) (B) ID=11 L=41	1-09700-403-0	01	1	1212-1402
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1212-1402
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1403-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (H) ID=15 L=65	1-09700-466-0	05	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (I) ID=20 L=70	1-09700-485-0	08	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) OD=9 H=9.5	1-09709-179-0	01	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (H) ID=15 L=65	1-09700-466-0	06	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (I) ID=20 L=70	1-09700-485-0	09	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (H) ID=15 L=65	1-09700-466-0	07	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W) (I) ID=20 L=70	1-09700-485-0	12	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (L) OD=9 H=13.5	1-09709-180-0	01	1	1212-
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (L) OD=9 H=13.5	1-09709-180-0	01	1	1212-
48	CLIP; FRAME HARNESS WHEEL BASE 6500MM(65W) (I) ID=20 L=70	1-09700-485-0	01	1	1212-1407
48	CLIP; FRAME HARNESS (I) ID=20 L=70	1-09700-485-0	01	1	1212-1407
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (I) ID=20 L=70	1-09700-485-0	04	1	1408-
48	CLIP; FRAME HARNESS WHEEL BASE 6500MM(65W) (H) ID=15 L=65	1-09700-466-0	08	1	1212-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (M) ID=16X2 L=50	0-95325-586-0	01	1	1212-
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (N) ID=14.5 L=40	1-09701-014-0	01	1	1212-
81	CLIP; HARNESS MZW6P M/T(RSZ),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) (A) OD=9 H=6	1-09709-178-0	01	1	1212-
81	CLIP; HARNESS ZF9S1110 M/T(Y5E) (B) OD=9 H=13.5	1-09709-180-0	01	1	1212-
81	CLIP; HARNESS ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> (C) L=250	5-09707-030-1	01	1	1212-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	04	1	1212-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (A) ID=11 L=28	0-95235-055-0	01	1	1212-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (B) ID=16 L=28	0-95235-556-0	01	1	1212-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (C) OD=9 H=6	1-09709-178-0	02	1	1212-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (D) ID=13-18 L=14.5	1-09709-290-0	01	1	1212-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (E) ID=5-12 L=14.5	1-09987-221-0	01	1	1212-
223	CLIP; AIR TANK HARNESS (C) ID=11 L=61	1-09700-484-0	01	1	1212-
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	1212-
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	02	1	1212-
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=11 L=16	0-95235-025-0	02	1	1212-
235	CLIP; HARNESS,SPD SENSOR,SSPS MLD6W M/T(Y2C) (B) ID=12 L=35	5-09700-206-0	01	1	1212-
305	CLIP; ENG HARNESS (H) ID=16 L=40	0-95235-576-0	01	1	1212-
305	CLIP; ENG HARNESS (E) ID=24 L=32	1-09700-766-1	01	1	1212-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1212-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1212-
305	CLIP; ENG HARNESS (K) ID=19 H=33 L=45	1-09701-045-0	01	1	1212-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	1212-
305	CLIP; ENG HARNESS (L) ID=11 L=45	8-94296-897-1	01	1	1212-
305	CLIP; ENG HARNESS (B) L=140	8-97122-360-0	01	1	1212-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	1212-
305	CLIP; ENG HARNESS ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (J) ID=16 L=28	0-95235-556-0	01	1	1212-
305	CLIP; ENG HARNESS ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C) L=100	8-94443-021-1	01	1	1212-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1212-
305	CLIP; ENG HARNESS EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (J) ID=16 L=28	0-95235-556-0	02	1	1212-
305	CLIP; ENG HARNESS EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (F) ID=18 L=44	8-97367-985-1	01	1	1212-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	1212-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1212-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1212-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
