Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#111461) — 373 parça

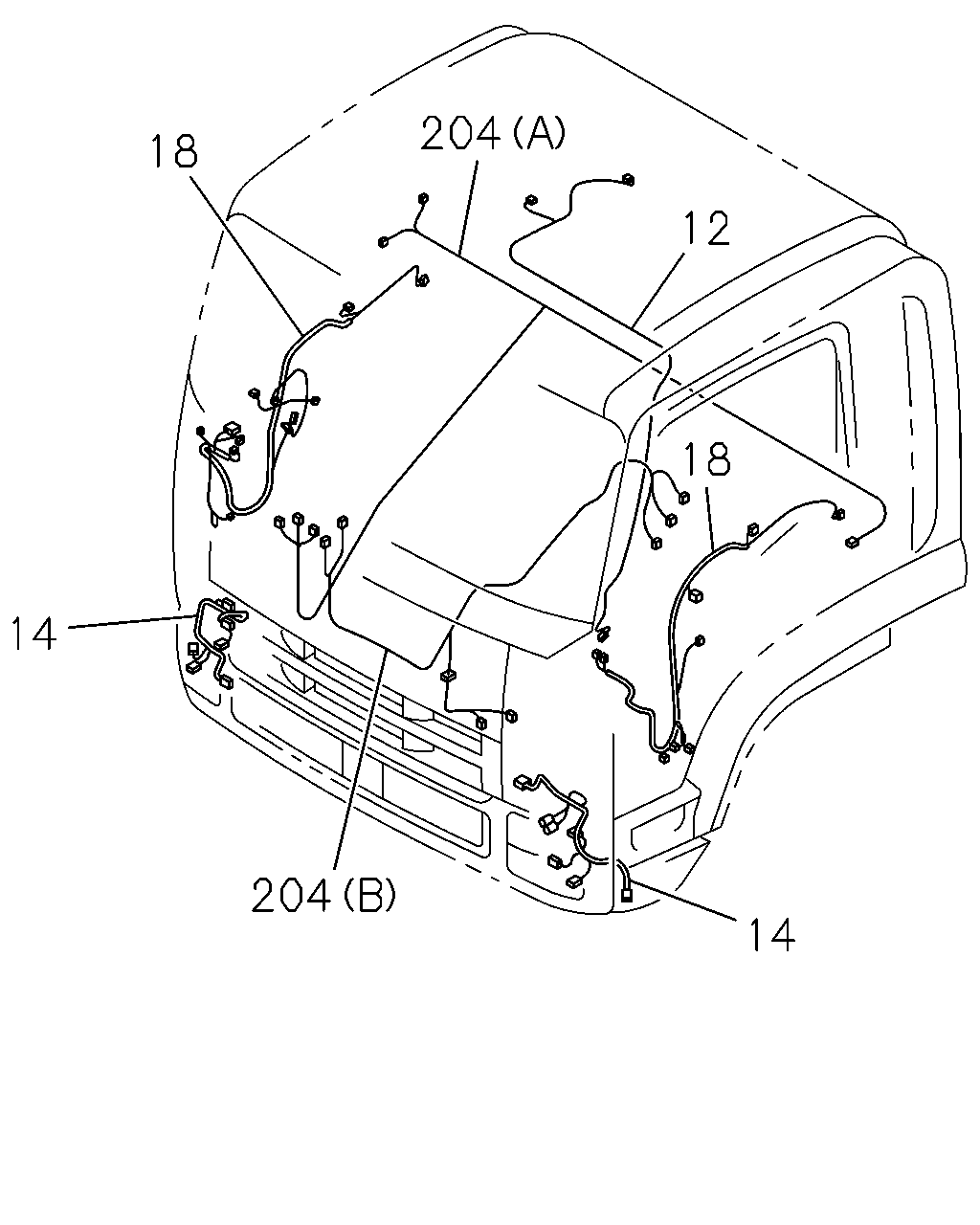

18 204 12 18 14 204 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	HARNESS; ROOF	8-98079-072-1	01	1	1212-	●	●
14	HARNESS; HEADLAMP HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98103-680-1	02	1	1212-	●	●
14	HARNESS; HEADLAMP HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98075-629-3	02	1	1212-	●	●
18	HARNESS; DOOR	8-98079-079-5	01	1	1212-	●	●
18	HARNESS; DOOR	8-98079-076-5	01	1	1212-	●	●
204	HARNESS; CABLE,FLOOR TRANSMISSION-FULLER RTO11908(Y5L) (A)	8-98117-544-0	01	1	1212-1311	●
204	HARNESS; CABLE,FLOOR ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A)	8-98117-544-0	01	1	1212-1311		●
204	HARNESS; CABLE,FLOOR TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A)	8-98117-544-0	01	1	1312-	●
204	HARNESS; CABLE,FLOOR ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (A)	8-98117-544-0	01	1	1312-		●
204	HARNESS; CABLE,FLOOR TRANSMISSION-FULLER RTO11908(Y5L) (B)	8-98155-317-2	01	1	1212-1311	●
204	HARNESS; CABLE,FLOOR ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B)	8-98155-317-2	01	1	1212-1311		●
204	HARNESS; CABLE,FLOOR TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (B)	8-98155-317-2	01	1	1312-	●
204	HARNESS; CABLE,FLOOR ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (B)	8-98155-317-2	01	1	1312-		●
204	HARNESS; CABLE,FLOOR A/T ALLISON 4430(Y5V) (A)	8-98213-048-1	01	1	1212-	●	●
204	HARNESS; CABLE,FLOOR A/T ALLISON 4430(Y5V) (B)	8-98213-049-1	01	1	1212-	●	●

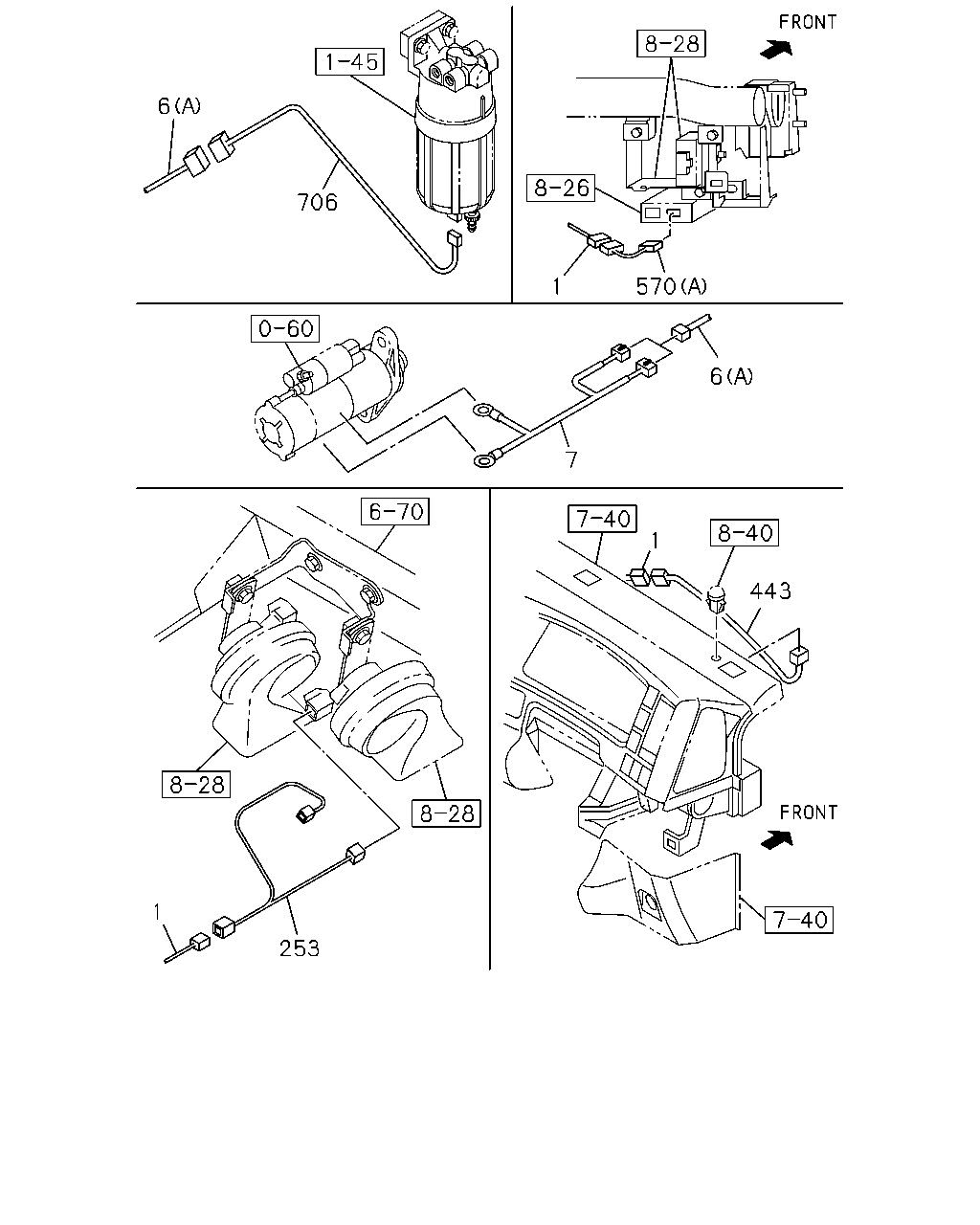

6 706 1 570 6 7 1 253 1 443

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB A/T ALLISON 4430(Y5V) BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2015<VZF>	8-98328-405-0	01	1	1512-		●
1	HARNESS; CAB A/T ALLISON 4430(Y5V) BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) VIN MODEL YEAR 2015<VZF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98328-383-0	01	1	1512-		●
1	HARNESS; CAB A/T ALLISON 4430(Y5V) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2015<VZF>	8-98296-565-0	01	1	1504-1511	●	●
1	HARNESS; CAB A/T ALLISON 4430(Y5V) ANTILOCK BRAKE SYSTEM(BFA) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2015<VZF>	8-98296-565-0	01	1	1512-	●	●
1	HARNESS; CAB A/T ALLISON 4430(Y5V) VIN MODEL YEAR 2015<VZF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98296-564-0	01	1	1504-1511	●	●
1	HARNESS; CAB A/T ALLISON 4430(Y5V) ANTILOCK BRAKE SYSTEM(BFA) VIN MODEL YEAR 2015<VZF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98296-564-0	01	1	1512-	●	●
1	HARNESS; CAB A/T ALLISON 4430(Y5V) FULLAUTO AIR CONDITIONER(C68)	8-98211-960-2	01	1	1212-1503	●	●
1	HARNESS; CAB A/T ALLISON 4430(Y5V) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2015<VZF>	8-98211-960-2	01	1	1504-	●	●
1	HARNESS; CAB A/T ALLISON 4430(Y5V) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98211-959-2	01	1	1212-1503	●	●
1	HARNESS; CAB A/T ALLISON 4430(Y5V) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2015<VZF>	8-98211-959-2	01	1	1504-	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68)	8-98211-956-0	01	1	1212-1311	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) FULLAUTO AIR CONDITIONER(C68)	8-98211-956-0	01	1	1312-	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98211-954-0	01	1	1212-1311	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98211-954-0	01	1	1312-	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68)	8-98211-955-0	01	1	1212-		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98211-953-0	01	1	1212-		●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 5700MM(57W) GENERATOR 24V90A(K44) (A)	8-98330-204-0	01	1	1512-	●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 5700MM(57W) EXC. GENERATOR 24V90A(K44) (A)	8-98330-203-0	01	1	1512-	●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) WHEEL BASE 5700MM(57W) GENERATOR 24V90A(K44) (A)	8-98330-202-0	01	1	1512-		●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) WHEEL BASE 5700MM(57W) EXC. GENERATOR 24V90A(K44) (A)	8-98330-201-0	01	1	1512-		●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L) GENERATOR 24V90A(K44) (A)	8-98212-709-1	01	1	1212-1311	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) GENERATOR 24V90A(K44) (A)	8-98212-709-1	01	1	1212-1311		●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) GENERATOR 24V90A(K44) (A)	8-98212-709-2	01	1	1312-1511	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) GENERATOR 24V90A(K44) (A)	8-98212-709-2	01	1	1312-1511		●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) GENERATOR 24V90A(K44) (A)	8-98212-709-2	01	1	1512-	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) GENERATOR 24V90A(K44) (A)	8-98212-709-2	01	1	1512-		●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L) EXC. GENERATOR 24V90A(K44) (A)	8-98212-708-1	01	1	1212-1311	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. GENERATOR 24V90A(K44) (A)	8-98212-708-1	01	1	1212-1311		●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) EXC. GENERATOR 24V90A(K44) (A)	8-98212-708-2	01	1	1312-1511	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) EXC. GENERATOR 24V90A(K44) (A)	8-98212-708-2	01	1	1312-1511		●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) EXC. GENERATOR 24V90A(K44) (A)	8-98212-708-2	01	1	1512-	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) EXC. GENERATOR 24V90A(K44) (A)	8-98212-708-2	01	1	1512-		●
6	HARNESS; FRAME (B)	8-98156-190-1	01	1	1212-	●	●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) GENERATOR 24V90A(K44) (A)	8-98191-371-3	01	1	1212-1511	●	●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) GENERATOR 24V90A(K44) (A)	8-98191-371-3	01	1	1512-	●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) GENERATOR 24V90A(K44) (A)	8-98191-371-3	01	1	1512-		●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) EXC. GENERATOR 24V90A(K44) (A)	8-98191-370-3	01	1	1212-1511	●	●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) EXC. GENERATOR 24V90A(K44) (A)	8-98191-370-3	01	1	1512-	●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) EXC. GENERATOR 24V90A(K44) (A)	8-98191-370-3	01	1	1512-		●
7	LINK ASM; FUSIBLE ENGINE REAR PTO(SV1) EXC. GENERATOR 24V90A(K44)	8-98106-137-0	01	1	1212-	●	●
7	LINK ASM; FUSIBLE GENERATOR 24V90A(K44) ENGINE REAR PTO(SV1)	8-98106-138-0	01	1	1212-	●	●
7	LINK ASM; FUSIBLE GENERATOR 24V90A(K44) EXC. ENGINE REAR PTO(SV1)	8-98103-000-0	01	1	1212-	●	●
7	LINK ASM; FUSIBLE EXC. GENERATOR 24V90A(K44),ENGINE REAR PTO(SV1)	8-98088-132-0	01	1	1212-	●	●
253	HARNESS; EXT,HORN	8-98074-081-2	01	1	1212-	●	●
443	HARNESS; EXT,A/C FULLAUTO AIR CONDITIONER(C68)	8-98096-565-0	01	1	1212-	●	●
570	HARNESS; SPEED SENSOR TRANSMISSION-FULLER RTO11908(Y5L) (A)	8-98058-327-1	01	1	1212-1311	●
570	HARNESS; SPEED SENSOR ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A)	8-98058-327-1	01	1	1212-1311		●
570	HARNESS; SPEED SENSOR TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A)	8-98058-327-1	01	1	1312-	●
570	HARNESS; SPEED SENSOR ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (A)	8-98058-327-1	01	1	1312-		●
570	HARNESS; SPEED SENSOR A/T ALLISON 4430(Y5V) (A)	8-98091-562-0	01	1	1212-	●	●
570	HARNESS; SPEED SENSOR ZF9S1310 M/T(Y5K) (B)	8-98148-602-0	01	1	1212-		●
706	HARNESS; EXT,SEDIMENTER WHEEL BASE 6400MM(64W)	8-98212-462-1	01	1	1212-1302	●	●
706	HARNESS; EXT,SEDIMENTER WHEEL BASE 6400MM(64W)	8-98212-462-1	01	1	1303-	●
706	HARNESS; EXT,SEDIMENTER WHEEL BASE 6400MM(64W),WHEEL BASE 7300MM(73W)	8-98212-462-1	01	1	1303-		●
706	HARNESS; EXT,SEDIMENTER WHEEL BASE 6600MM(66W)	8-98217-726-1	01	1	1212-	●	●

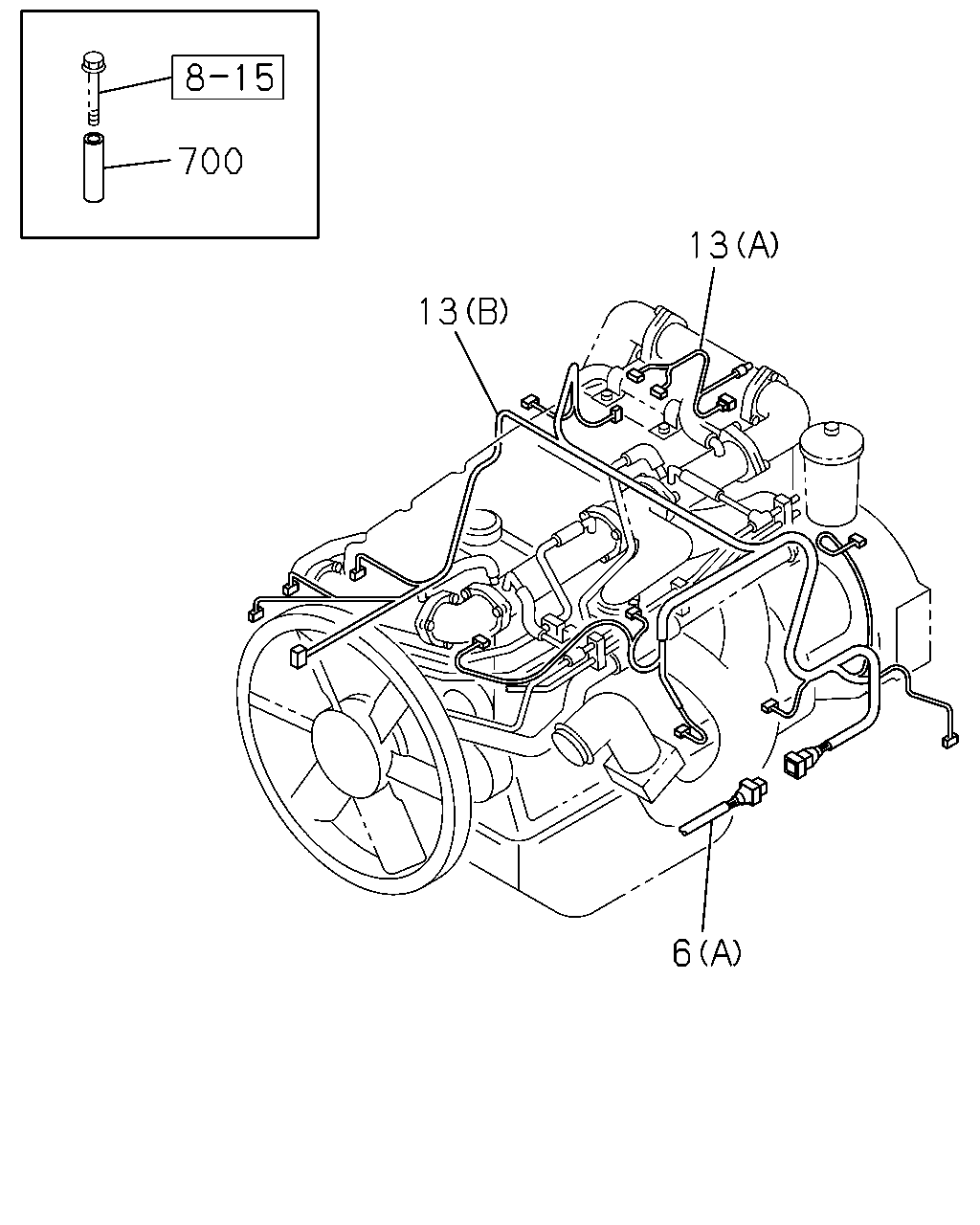

700 13 13 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 5700MM(57W) GENERATOR 24V90A(K44) (A)	8-98330-204-0	01	1	1512-	●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 5700MM(57W) EXC. GENERATOR 24V90A(K44) (A)	8-98330-203-0	01	1	1512-	●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) WHEEL BASE 5700MM(57W) GENERATOR 24V90A(K44) (A)	8-98330-202-0	01	1	1512-		●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) WHEEL BASE 5700MM(57W) EXC. GENERATOR 24V90A(K44) (A)	8-98330-201-0	01	1	1512-		●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L) GENERATOR 24V90A(K44) (A)	8-98212-709-1	01	1	1212-1311	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) GENERATOR 24V90A(K44) (A)	8-98212-709-1	01	1	1212-1311		●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) GENERATOR 24V90A(K44) (A)	8-98212-709-2	01	1	1312-1511	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) GENERATOR 24V90A(K44) (A)	8-98212-709-2	01	1	1312-1511		●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) GENERATOR 24V90A(K44) (A)	8-98212-709-2	01	1	1512-	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) GENERATOR 24V90A(K44) (A)	8-98212-709-2	01	1	1512-		●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L) EXC. GENERATOR 24V90A(K44) (A)	8-98212-708-1	01	1	1212-1311	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. GENERATOR 24V90A(K44) (A)	8-98212-708-1	01	1	1212-1311		●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) EXC. GENERATOR 24V90A(K44) (A)	8-98212-708-2	01	1	1312-1511	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) EXC. GENERATOR 24V90A(K44) (A)	8-98212-708-2	01	1	1312-1511		●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) EXC. GENERATOR 24V90A(K44) (A)	8-98212-708-2	01	1	1512-	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) EXC. GENERATOR 24V90A(K44) (A)	8-98212-708-2	01	1	1512-		●
6	HARNESS; FRAME (B)	8-98156-190-1	01	1	1212-	●	●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) GENERATOR 24V90A(K44) (A)	8-98191-371-3	01	1	1212-1511	●	●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) GENERATOR 24V90A(K44) (A)	8-98191-371-3	01	1	1512-	●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) GENERATOR 24V90A(K44) (A)	8-98191-371-3	01	1	1512-		●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) EXC. GENERATOR 24V90A(K44) (A)	8-98191-370-3	01	1	1212-1511	●	●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) EXC. GENERATOR 24V90A(K44) (A)	8-98191-370-3	01	1	1512-	●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) EXC. GENERATOR 24V90A(K44) (A)	8-98191-370-3	01	1	1512-		●
13	HARNESS; ENG (B)	8-98210-223-1	01	1	1212-	●	●
13	HARNESS; ENG ENGINE REAR PTO(SV1) (A)	8-98160-805-0	01	1	1212-	●	●
13	HARNESS; ENG EXC. ENGINE REAR PTO(SV1) (A)	8-98152-373-1	01	1	1212-	●	●
700	TUBE; DISTANCE L=51	1-11369-157-0	02	1	1212-	●	●

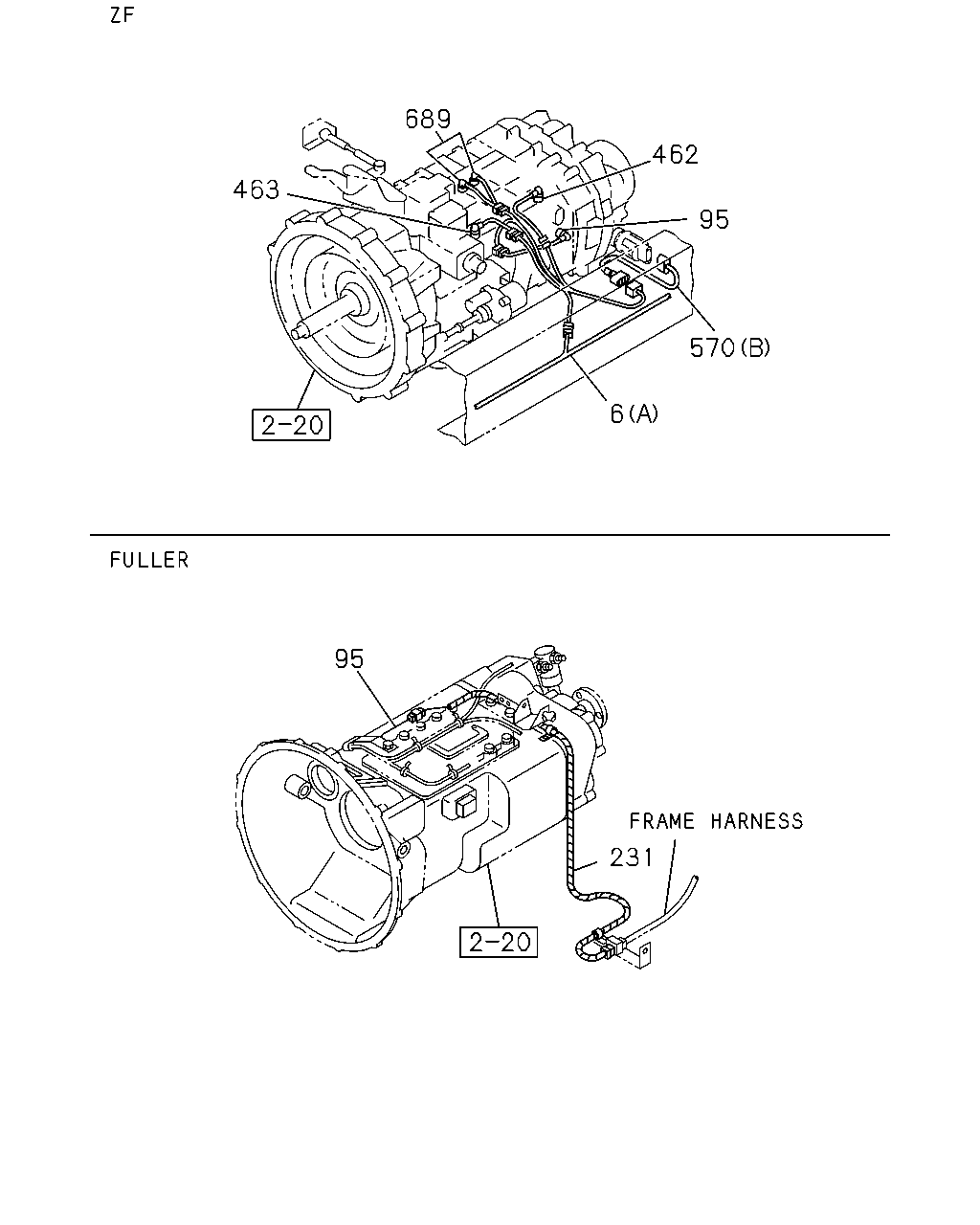

689 463 462 95 570 6 231 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 5700MM(57W) GENERATOR 24V90A(K44) (A)	8-98330-204-0	01	1	1512-	●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 5700MM(57W) EXC. GENERATOR 24V90A(K44) (A)	8-98330-203-0	01	1	1512-	●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) WHEEL BASE 5700MM(57W) GENERATOR 24V90A(K44) (A)	8-98330-202-0	01	1	1512-		●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) WHEEL BASE 5700MM(57W) EXC. GENERATOR 24V90A(K44) (A)	8-98330-201-0	01	1	1512-		●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L) GENERATOR 24V90A(K44) (A)	8-98212-709-1	01	1	1212-1311	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) GENERATOR 24V90A(K44) (A)	8-98212-709-1	01	1	1212-1311		●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) GENERATOR 24V90A(K44) (A)	8-98212-709-2	01	1	1312-1511	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) GENERATOR 24V90A(K44) (A)	8-98212-709-2	01	1	1312-1511		●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) GENERATOR 24V90A(K44) (A)	8-98212-709-2	01	1	1512-	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) GENERATOR 24V90A(K44) (A)	8-98212-709-2	01	1	1512-		●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L) EXC. GENERATOR 24V90A(K44) (A)	8-98212-708-1	01	1	1212-1311	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. GENERATOR 24V90A(K44) (A)	8-98212-708-1	01	1	1212-1311		●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) EXC. GENERATOR 24V90A(K44) (A)	8-98212-708-2	01	1	1312-1511	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) EXC. GENERATOR 24V90A(K44) (A)	8-98212-708-2	01	1	1312-1511		●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) EXC. GENERATOR 24V90A(K44) (A)	8-98212-708-2	01	1	1512-	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) EXC. GENERATOR 24V90A(K44) (A)	8-98212-708-2	01	1	1512-		●
6	HARNESS; FRAME (B)	8-98156-190-1	01	1	1212-	●	●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) GENERATOR 24V90A(K44) (A)	8-98191-371-3	01	1	1212-1511	●	●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) GENERATOR 24V90A(K44) (A)	8-98191-371-3	01	1	1512-	●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) GENERATOR 24V90A(K44) (A)	8-98191-371-3	01	1	1512-		●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) EXC. GENERATOR 24V90A(K44) (A)	8-98191-370-3	01	1	1212-1511	●	●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) EXC. GENERATOR 24V90A(K44) (A)	8-98191-370-3	01	1	1512-	●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) EXC. GENERATOR 24V90A(K44) (A)	8-98191-370-3	01	1	1512-		●
95	HARNESS; NEUTRAL SW TRANSMISSION-FULLER RTO11908(Y5L)	1-82639-626-0	01	1	1212-1311	●	●
95	HARNESS; NEUTRAL SW TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y)	1-82639-626-0	01	1	1312-	●	●
95	HARNESS; NEUTRAL SW ZF9S1310 M/T(Y5K) RED	8-98145-854-0	01	1	1212-		●
231	HARNESS; TRANS A/T ALLISON 4430(Y5V) VIN MODEL YEAR 2015<VZF>	8-98305-945-0	01	1	1504-	●	●
231	HARNESS; TRANS A/T ALLISON 4430(Y5V)	8-98197-147-0	01	1	1212-1503	●	●
231	HARNESS; TRANS A/T ALLISON 4430(Y5V) EXC. VIN MODEL YEAR 2015<VZF>	8-98197-147-0	01	1	1504-	●	●
231	HARNESS; TRANS TRANSMISSION-FULLER RTO11908(Y5L)	8-98079-751-1	01	1	1212-1311	●	●
231	HARNESS; TRANS TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y)	8-98079-751-1	01	1	1312-	●	●
231	HARNESS; TRANS ZF9S1310 M/T(Y5K)	8-98163-093-0	01	1	1212-		●
462	HARNESS; SW,RANGE ZF9S1310 M/T(Y5K) BLUE	8-98145-857-0	01	1	1212-		●
463	HARNESS; SW,BACK UP ZF9S1310 M/T(Y5K) BLACK	8-98145-856-0	01	1	1212-		●
570	HARNESS; SPEED SENSOR TRANSMISSION-FULLER RTO11908(Y5L) (A)	8-98058-327-1	01	1	1212-1311	●
570	HARNESS; SPEED SENSOR ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A)	8-98058-327-1	01	1	1212-1311		●
570	HARNESS; SPEED SENSOR TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (A)	8-98058-327-1	01	1	1312-	●
570	HARNESS; SPEED SENSOR ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (A)	8-98058-327-1	01	1	1312-		●
570	HARNESS; SPEED SENSOR A/T ALLISON 4430(Y5V) (A)	8-98091-562-0	01	1	1212-	●	●
570	HARNESS; SPEED SENSOR ZF9S1310 M/T(Y5K) (B)	8-98148-602-0	01	1	1212-		●
689	HARNESS; PRESSURE & ECU SWITCH ZF9S1310 M/T(Y5K)	8-98148-603-0	01	1	1212-		●

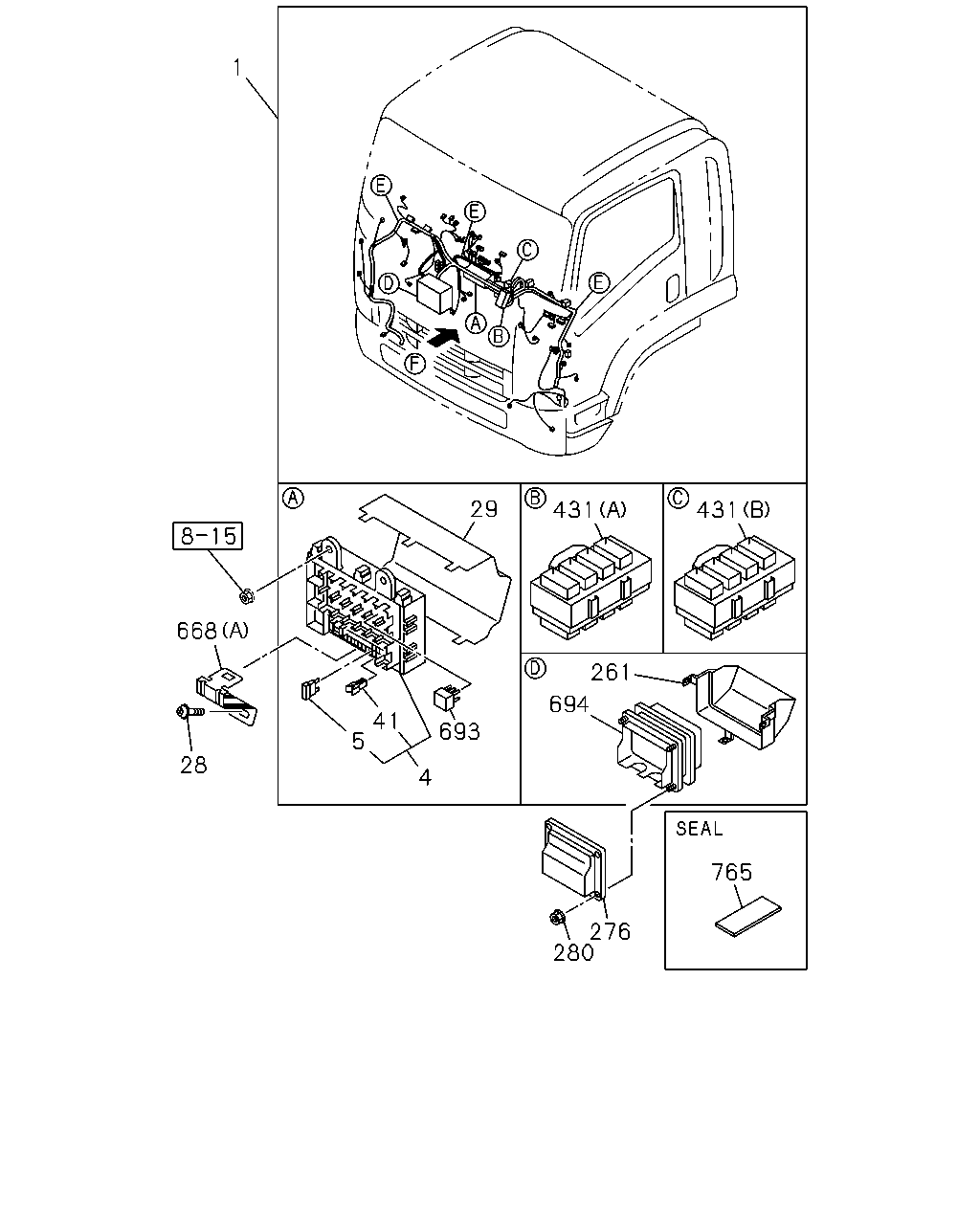

1 668 28 29 41 5 4 693 431 431 261 694 276 280 765

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB A/T ALLISON 4430(Y5V) BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2015<VZF>	8-98328-405-0	01	1	1512-		●
1	HARNESS; CAB A/T ALLISON 4430(Y5V) BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) VIN MODEL YEAR 2015<VZF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98328-383-0	01	1	1512-		●
1	HARNESS; CAB A/T ALLISON 4430(Y5V) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2015<VZF>	8-98296-565-0	01	1	1504-1511	●	●
1	HARNESS; CAB A/T ALLISON 4430(Y5V) ANTILOCK BRAKE SYSTEM(BFA) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2015<VZF>	8-98296-565-0	01	1	1512-	●	●
1	HARNESS; CAB A/T ALLISON 4430(Y5V) VIN MODEL YEAR 2015<VZF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98296-564-0	01	1	1504-1511	●	●
1	HARNESS; CAB A/T ALLISON 4430(Y5V) ANTILOCK BRAKE SYSTEM(BFA) VIN MODEL YEAR 2015<VZF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98296-564-0	01	1	1512-	●	●
1	HARNESS; CAB A/T ALLISON 4430(Y5V) FULLAUTO AIR CONDITIONER(C68)	8-98211-960-2	01	1	1212-1503	●	●
1	HARNESS; CAB A/T ALLISON 4430(Y5V) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2015<VZF>	8-98211-960-2	01	1	1504-	●	●
1	HARNESS; CAB A/T ALLISON 4430(Y5V) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98211-959-2	01	1	1212-1503	●	●
1	HARNESS; CAB A/T ALLISON 4430(Y5V) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2015<VZF>	8-98211-959-2	01	1	1504-	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68)	8-98211-956-0	01	1	1212-1311	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) FULLAUTO AIR CONDITIONER(C68)	8-98211-956-0	01	1	1312-	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98211-954-0	01	1	1212-1311	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98211-954-0	01	1	1312-	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68)	8-98211-955-0	01	1	1212-		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98211-953-0	01	1	1212-		●
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1212-	●	●
5	FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	1212-	●	●
5	FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	1212-	●	●
5	FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	1212-	●	●
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	AR	1	1212-	●	●
28	SCREW; FUSE BOX M6X16 FLANGE	0-28650-616-0	01	1	1212-	●	●
29	COVER; FUSE BOX	8-98056-968-0	01	1	1212-	●	●
41	PULLER; FUSE	8-98054-260-0	01	1	1212-	●	●
261	COVER; CONNECTOR BOX	8-98065-986-1	01	1	1212-	●	●
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1212-	●	●
280	NUT; BOX ASM FIX M6 FLANGE	0-91180-106-0	04	1	1212-	●	●
431	CONNECTOR; JOINT TRANSMISSION-FULLER RTO11908(Y5L) (E) 10P GREEN	1-82699-599-0	07	1	1212-1311	●
431	CONNECTOR; JOINT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (E) 10P GREEN	1-82699-599-0	07	1	1212-1311		●
431	CONNECTOR; JOINT TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (E) 10P GREEN	1-82699-599-0	07	1	1312-1511	●
431	CONNECTOR; JOINT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (E) 10P GREEN	1-82699-599-0	07	1	1312-1511		●
431	CONNECTOR; JOINT A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (E) 10P GREEN	1-82699-599-0	06	1	1512-	●
431	CONNECTOR; JOINT TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 5700MM(57W) (E) 10P GREEN	1-82699-599-0	06	1	1512-	●
431	CONNECTOR; JOINT A/T ALLISON 4430(Y5V) (E) 10P GREEN	1-82699-599-0	06	1	1512-		●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	1212-	●	●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	01	1	1212-	●	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1212-	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1212-	●	●
431	CONNECTOR; JOINT A/T ALLISON 4430(Y5V) (E) 10P GREEN	1-82699-599-0	06	1	1212-1511	●	●
431	CONNECTOR; JOINT TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (E) 10P GREEN	1-82699-599-0	07	1	1512-	●
431	CONNECTOR; JOINT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (E) 10P GREEN	1-82699-599-0	07	1	1512-		●
668	BRACKET; HARNESS (A)	8-98095-653-2	01	1	1212-	●	●
668	BRACKET; HARNESS (B)	8-98117-572-0	01	1	1212-	●	●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1212-	●	●
694	BOX ASM; CONNECTOR	8-98057-771-0	01	1	1212-	●	●
765	TAPE 100X40	1-72498-022-1	01	1	1409-	●	●

2 2 2 1 2 431 431 535 668 533 534 536

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB A/T ALLISON 4430(Y5V) BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2015<VZF>	8-98328-405-0	01	1	1512-		●
1	HARNESS; CAB A/T ALLISON 4430(Y5V) BRAKE ELECTRONIC STABILITY CONTROL SYSTEM(BHK) VIN MODEL YEAR 2015<VZF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98328-383-0	01	1	1512-		●
1	HARNESS; CAB A/T ALLISON 4430(Y5V) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2015<VZF>	8-98296-565-0	01	1	1504-1511	●	●
1	HARNESS; CAB A/T ALLISON 4430(Y5V) ANTILOCK BRAKE SYSTEM(BFA) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2015<VZF>	8-98296-565-0	01	1	1512-	●	●
1	HARNESS; CAB A/T ALLISON 4430(Y5V) VIN MODEL YEAR 2015<VZF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98296-564-0	01	1	1504-1511	●	●
1	HARNESS; CAB A/T ALLISON 4430(Y5V) ANTILOCK BRAKE SYSTEM(BFA) VIN MODEL YEAR 2015<VZF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98296-564-0	01	1	1512-	●	●
1	HARNESS; CAB A/T ALLISON 4430(Y5V) FULLAUTO AIR CONDITIONER(C68)	8-98211-960-2	01	1	1212-1503	●	●
1	HARNESS; CAB A/T ALLISON 4430(Y5V) FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2015<VZF>	8-98211-960-2	01	1	1504-	●	●
1	HARNESS; CAB A/T ALLISON 4430(Y5V) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98211-959-2	01	1	1212-1503	●	●
1	HARNESS; CAB A/T ALLISON 4430(Y5V) EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2015<VZF>	8-98211-959-2	01	1	1504-	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68)	8-98211-956-0	01	1	1212-1311	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) FULLAUTO AIR CONDITIONER(C68)	8-98211-956-0	01	1	1312-	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98211-954-0	01	1	1212-1311	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98211-954-0	01	1	1312-	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68)	8-98211-955-0	01	1	1212-		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98211-953-0	01	1	1212-		●
2	DIODE; CABLE HARNESS (A) BLACK 10P	1-82699-703-0	01	1	1212-	●	●
2	DIODE; CABLE HARNESS (D) BLACK 3P-1.5A	8-94416-438-1	01	1	1212-	●	●
2	DIODE; CABLE HARNESS (C) BLACK 2P-1.5A	8-94422-639-1	02	1	1212-	●	●
2	DIODE; CABLE HARNESS (B) BLACK 3P-1.5A	8-94422-640-1	01	1	1212-	●	●
431	CONNECTOR; JOINT TRANSMISSION-FULLER RTO11908(Y5L) (E) 10P GREEN	1-82699-599-0	07	1	1212-1311	●
431	CONNECTOR; JOINT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (E) 10P GREEN	1-82699-599-0	07	1	1212-1311		●
431	CONNECTOR; JOINT TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (E) 10P GREEN	1-82699-599-0	07	1	1312-1511	●
431	CONNECTOR; JOINT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (E) 10P GREEN	1-82699-599-0	07	1	1312-1511		●
431	CONNECTOR; JOINT A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (E) 10P GREEN	1-82699-599-0	06	1	1512-	●
431	CONNECTOR; JOINT TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 5700MM(57W) (E) 10P GREEN	1-82699-599-0	06	1	1512-	●
431	CONNECTOR; JOINT A/T ALLISON 4430(Y5V) (E) 10P GREEN	1-82699-599-0	06	1	1512-		●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	1212-	●	●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	01	1	1212-	●	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1212-	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1212-	●	●
431	CONNECTOR; JOINT A/T ALLISON 4430(Y5V) (E) 10P GREEN	1-82699-599-0	06	1	1212-1511	●	●
431	CONNECTOR; JOINT TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (E) 10P GREEN	1-82699-599-0	07	1	1512-	●
431	CONNECTOR; JOINT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (E) 10P GREEN	1-82699-599-0	07	1	1512-		●
533	CLIP ID=31 L=35	1-09700-329-1	01	1	1212-	●	●
534	BOLT M8X20 FLANGE	0-28650-820-0	01	1	1212-	●	●
535	BOLT; BRKT FIX M8X20 FLANGE	0-28650-820-0	01	1	1212-1302	●	●
535	BOLT; BRKT FIX M8X20 FLANGE	0-28650-820-0	02	1	1303-1303	●	●
535	BOLT; BRKT FIX M8X20 FLANGE	0-28650-820-0	01	1	1304-	●	●
536	NUT; BRKT FIX M8	8-98041-929-0	01	1	1212-	●	●
668	BRACKET; HARNESS (A)	8-98095-653-2	01	1	1212-	●	●
668	BRACKET; HARNESS (B)	8-98117-572-0	01	1	1212-	●	●

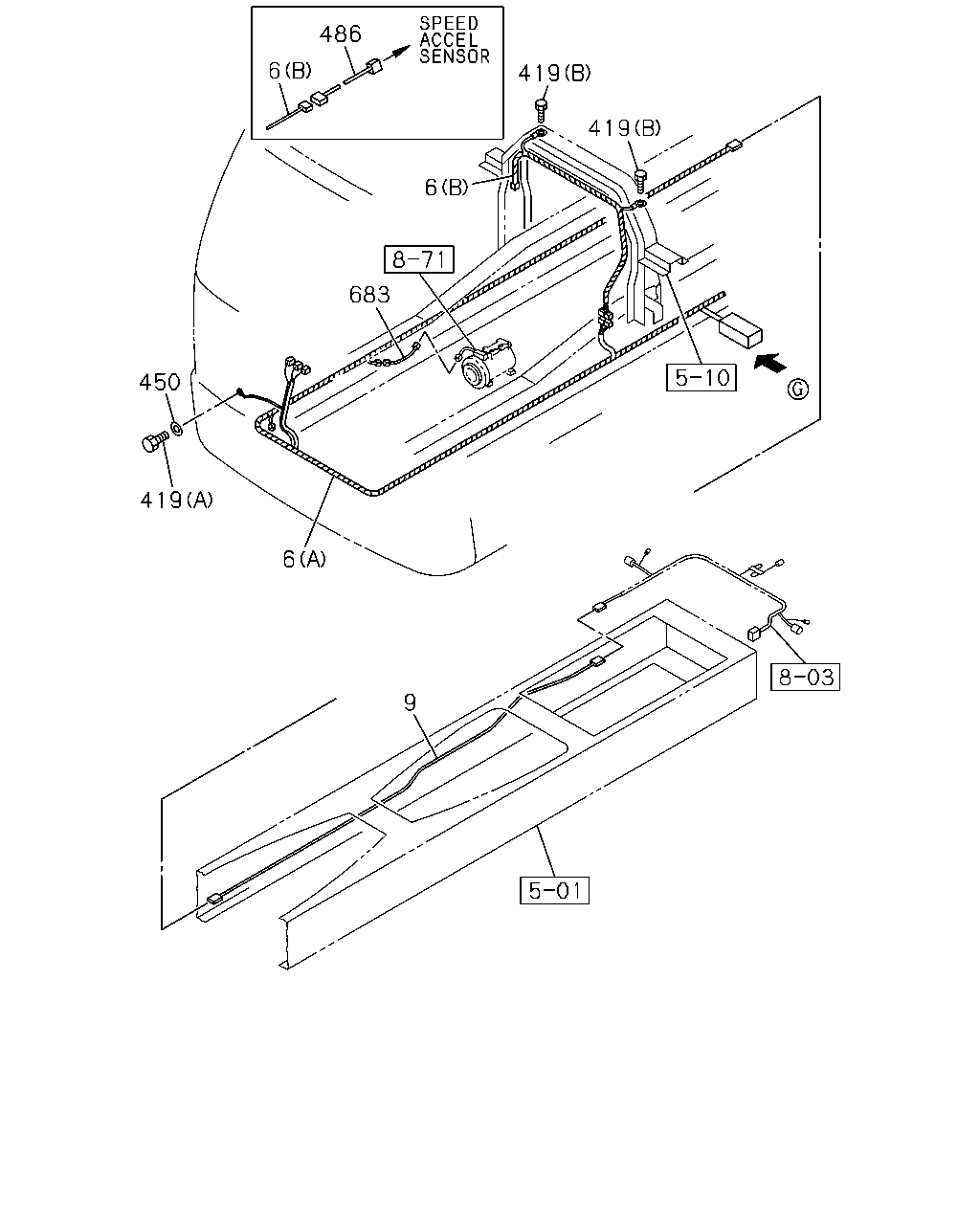

9 6 419 450 683 6 486 419 419 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 5700MM(57W) GENERATOR 24V90A(K44) (A)	8-98330-204-0	01	1	1512-	●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 5700MM(57W) EXC. GENERATOR 24V90A(K44) (A)	8-98330-203-0	01	1	1512-	●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) WHEEL BASE 5700MM(57W) GENERATOR 24V90A(K44) (A)	8-98330-202-0	01	1	1512-		●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) WHEEL BASE 5700MM(57W) EXC. GENERATOR 24V90A(K44) (A)	8-98330-201-0	01	1	1512-		●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L) GENERATOR 24V90A(K44) (A)	8-98212-709-1	01	1	1212-1311	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) GENERATOR 24V90A(K44) (A)	8-98212-709-1	01	1	1212-1311		●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) GENERATOR 24V90A(K44) (A)	8-98212-709-2	01	1	1312-1511	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) GENERATOR 24V90A(K44) (A)	8-98212-709-2	01	1	1312-1511		●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) GENERATOR 24V90A(K44) (A)	8-98212-709-2	01	1	1512-	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) GENERATOR 24V90A(K44) (A)	8-98212-709-2	01	1	1512-		●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L) EXC. GENERATOR 24V90A(K44) (A)	8-98212-708-1	01	1	1212-1311	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. GENERATOR 24V90A(K44) (A)	8-98212-708-1	01	1	1212-1311		●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) EXC. GENERATOR 24V90A(K44) (A)	8-98212-708-2	01	1	1312-1511	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) EXC. GENERATOR 24V90A(K44) (A)	8-98212-708-2	01	1	1312-1511		●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) EXC. GENERATOR 24V90A(K44) (A)	8-98212-708-2	01	1	1512-	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) EXC. GENERATOR 24V90A(K44) (A)	8-98212-708-2	01	1	1512-		●
6	HARNESS; FRAME (B)	8-98156-190-1	01	1	1212-	●	●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) GENERATOR 24V90A(K44) (A)	8-98191-371-3	01	1	1212-1511	●	●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) GENERATOR 24V90A(K44) (A)	8-98191-371-3	01	1	1512-	●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) GENERATOR 24V90A(K44) (A)	8-98191-371-3	01	1	1512-		●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) EXC. GENERATOR 24V90A(K44) (A)	8-98191-370-3	01	1	1212-1511	●	●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) EXC. GENERATOR 24V90A(K44) (A)	8-98191-370-3	01	1	1512-	●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) EXC. GENERATOR 24V90A(K44) (A)	8-98191-370-3	01	1	1512-		●
9	HARNESS; FRAME,RR WHEEL BASE 5700MM(57W)	8-98330-206-0	01	1	1512-	●
9	HARNESS; FRAME,RR WHEEL BASE 5700MM(57W)	8-98330-207-0	01	1	1512-		●
9	HARNESS; FRAME,RR WHEEL BASE 7300MM(73W)	8-98221-363-0	01	1	1303-		●
9	HARNESS; FRAME,RR WHEEL BASE 6400MM(64W)	8-98191-704-0	01	1	1212-	●
9	HARNESS; FRAME,RR WHEEL BASE 6600MM(66W)	8-98191-705-0	01	1	1212-	●
9	HARNESS; FRAME,RR WHEEL BASE 6400MM(64W)	8-98191-535-0	01	1	1212-		●
9	HARNESS; FRAME,RR WHEEL BASE 6600MM(66W)	8-98191-536-0	01	1	1212-		●
419	BOLT; CAB EARTH (A) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	1212-	●	●
419	BOLT; CAB EARTH (B) M8X14 W/PL WASHER	8-98164-837-0	03	1	1212-	●	●
450	WASHER; PL,CAB EARTH ID=8.4	1-09503-264-0	01	1	1212-	●	●
486	HARNESS; ALL SPEED ACCEL ENGINE REAR PTO(SV1)	8-98163-095-0	01	1	1212-	●	●
683	HARNESS; EXT,COOLER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97609-020-1	01	1	1212-	●	●

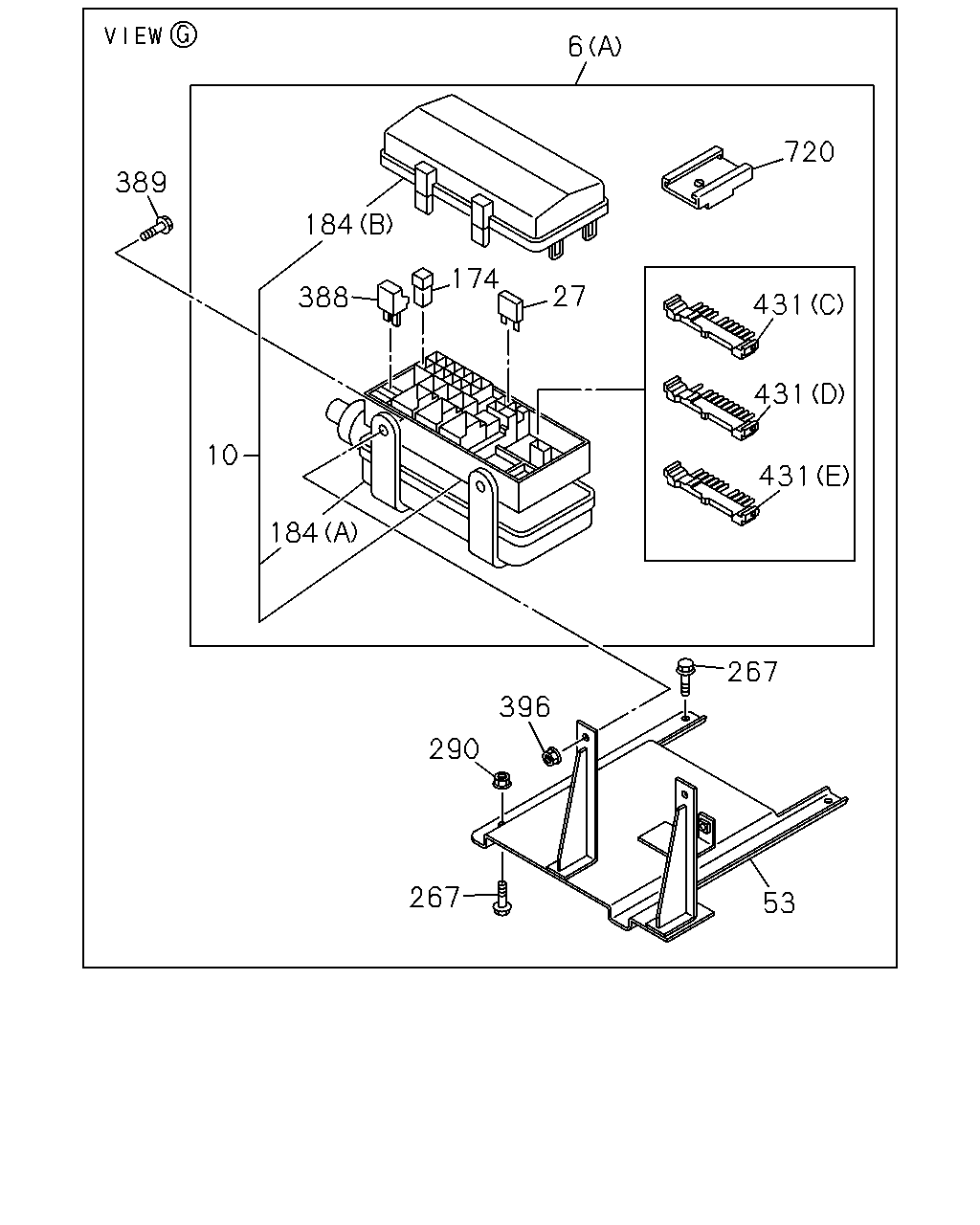

6 720 431 431 431 184 388 174 27 10 184 389 290 396 267 267 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 5700MM(57W) GENERATOR 24V90A(K44) (A)	8-98330-204-0	01	1	1512-	●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 5700MM(57W) EXC. GENERATOR 24V90A(K44) (A)	8-98330-203-0	01	1	1512-	●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) WHEEL BASE 5700MM(57W) GENERATOR 24V90A(K44) (A)	8-98330-202-0	01	1	1512-		●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) WHEEL BASE 5700MM(57W) EXC. GENERATOR 24V90A(K44) (A)	8-98330-201-0	01	1	1512-		●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L) GENERATOR 24V90A(K44) (A)	8-98212-709-1	01	1	1212-1311	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) GENERATOR 24V90A(K44) (A)	8-98212-709-1	01	1	1212-1311		●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) GENERATOR 24V90A(K44) (A)	8-98212-709-2	01	1	1312-1511	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) GENERATOR 24V90A(K44) (A)	8-98212-709-2	01	1	1312-1511		●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) GENERATOR 24V90A(K44) (A)	8-98212-709-2	01	1	1512-	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) GENERATOR 24V90A(K44) (A)	8-98212-709-2	01	1	1512-		●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L) EXC. GENERATOR 24V90A(K44) (A)	8-98212-708-1	01	1	1212-1311	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. GENERATOR 24V90A(K44) (A)	8-98212-708-1	01	1	1212-1311		●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) EXC. GENERATOR 24V90A(K44) (A)	8-98212-708-2	01	1	1312-1511	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) EXC. GENERATOR 24V90A(K44) (A)	8-98212-708-2	01	1	1312-1511		●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) EXC. GENERATOR 24V90A(K44) (A)	8-98212-708-2	01	1	1512-	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) EXC. GENERATOR 24V90A(K44) (A)	8-98212-708-2	01	1	1512-		●
6	HARNESS; FRAME (B)	8-98156-190-1	01	1	1212-	●	●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) GENERATOR 24V90A(K44) (A)	8-98191-371-3	01	1	1212-1511	●	●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) GENERATOR 24V90A(K44) (A)	8-98191-371-3	01	1	1512-	●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) GENERATOR 24V90A(K44) (A)	8-98191-371-3	01	1	1512-		●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) EXC. GENERATOR 24V90A(K44) (A)	8-98191-370-3	01	1	1212-1511	●	●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) EXC. GENERATOR 24V90A(K44) (A)	8-98191-370-3	01	1	1512-	●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) EXC. GENERATOR 24V90A(K44) (A)	8-98191-370-3	01	1	1512-		●
10	BOX; FUSE,HARNESS	8-98030-762-0	01	1	1212-	●	●
27	FUSE UNIT TRANSMISSION-FULLER RTO11908(Y5L) 15A BLUE	8-98054-258-0	01	1	1212-1311	●
27	FUSE UNIT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 15A BLUE	8-98054-258-0	01	1	1212-1311		●
27	FUSE UNIT TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) 15A BLUE	8-98054-258-0	01	1	1312-1511	●
27	FUSE UNIT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) 15A BLUE	8-98054-258-0	01	1	1312-1511		●
27	FUSE UNIT A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) 15A BLUE	8-98054-258-0	02	1	1512-	●
27	FUSE UNIT TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 5700MM(57W) 15A BLUE	8-98054-258-0	02	1	1512-	●
27	FUSE UNIT A/T ALLISON 4430(Y5V) 15A BLUE	8-98054-258-0	02	1	1512-		●
27	FUSE UNIT 10A RED	8-98054-257-0	03	1	1212-	●	●
27	FUSE UNIT A/T ALLISON 4430(Y5V) 15A BLUE	8-98054-258-0	02	1	1212-1511	●	●
27	FUSE UNIT TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) 15A BLUE	8-98054-258-0	01	1	1512-	●
27	FUSE UNIT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) 15A BLUE	8-98054-258-0	01	1	1512-		●
53	BRACKET; FUSE BOX	8-98168-973-2	01	1	1212-	●	●
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	01	1	1212-	●	●
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	01	1	1212-	●	●
174	FUSE; SLOW BLOW 30A PINK	8-98079-191-0	01	1	1212-	●	●
174	FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	01	1	1212-	●	●
174	FUSE; SLOW BLOW 50A RED	8-98079-193-0	03	1	1212-	●	●
184	COVER; RELAY & FUSE BOX (A)	8-98030-766-0	01	1	1212-	●	●
184	COVER; RELAY & FUSE BOX (B)	8-98030-767-1	01	1	1212-	●	●
267	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1212-	●	●
267	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1212-	●	●
290	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1212-	●	●
388	DIODE; RELAY BOX TRANSMISSION-FULLER RTO11908(Y5L) BLACK 2P-1.5A	8-94422-639-1	01	1	1212-1311	●
388	DIODE; RELAY BOX ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) BLACK 2P-1.5A	8-94422-639-1	01	1	1212-1311		●
388	DIODE; RELAY BOX TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) BLACK 2P-1.5A	8-94422-639-1	01	1	1312-1511	●
388	DIODE; RELAY BOX ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) BLACK 2P-1.5A	8-94422-639-1	01	1	1312-1511		●
388	DIODE; RELAY BOX A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) BLACK 2P-1.5A	8-94422-639-1	02	1	1512-	●
388	DIODE; RELAY BOX TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 5700MM(57W) BLACK 2P-1.5A	8-94422-639-1	02	1	1512-	●
388	DIODE; RELAY BOX A/T ALLISON 4430(Y5V) BLACK 2P-1.5A	8-94422-639-1	02	1	1512-		●
388	DIODE; RELAY BOX BLACK 4P-1.5A	8-94381-730-0	01	1	1212-	●	●
388	DIODE; RELAY BOX A/T ALLISON 4430(Y5V) BLACK 2P-1.5A	8-94422-639-1	02	1	1212-1511	●	●
388	DIODE; RELAY BOX TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) BLACK 2P-1.5A	8-94422-639-1	01	1	1512-	●
388	DIODE; RELAY BOX ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) BLACK 2P-1.5A	8-94422-639-1	01	1	1512-		●
389	BOLT; COVER,RELAY BOX M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1212-	●	●
396	NUT; COVER,RELAY BOX M8 FLANGE	0-91180-108-0	02	1	1212-	●	●
431	CONNECTOR; JOINT TRANSMISSION-FULLER RTO11908(Y5L) (E) 10P GREEN	1-82699-599-0	07	1	1212-1311	●
431	CONNECTOR; JOINT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (E) 10P GREEN	1-82699-599-0	07	1	1212-1311		●
431	CONNECTOR; JOINT TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) (E) 10P GREEN	1-82699-599-0	07	1	1312-1511	●
431	CONNECTOR; JOINT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) (E) 10P GREEN	1-82699-599-0	07	1	1312-1511		●
431	CONNECTOR; JOINT A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (E) 10P GREEN	1-82699-599-0	06	1	1512-	●
431	CONNECTOR; JOINT TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 5700MM(57W) (E) 10P GREEN	1-82699-599-0	06	1	1512-	●
431	CONNECTOR; JOINT A/T ALLISON 4430(Y5V) (E) 10P GREEN	1-82699-599-0	06	1	1512-		●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	1212-	●	●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	01	1	1212-	●	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1212-	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1212-	●	●
431	CONNECTOR; JOINT A/T ALLISON 4430(Y5V) (E) 10P GREEN	1-82699-599-0	06	1	1212-1511	●	●
431	CONNECTOR; JOINT TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) (E) 10P GREEN	1-82699-599-0	07	1	1512-	●
431	CONNECTOR; JOINT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) (E) 10P GREEN	1-82699-599-0	07	1	1512-		●
720	ATTACHMENT; CONNECTOR	1-82699-688-0	03	1	1212-	●	●

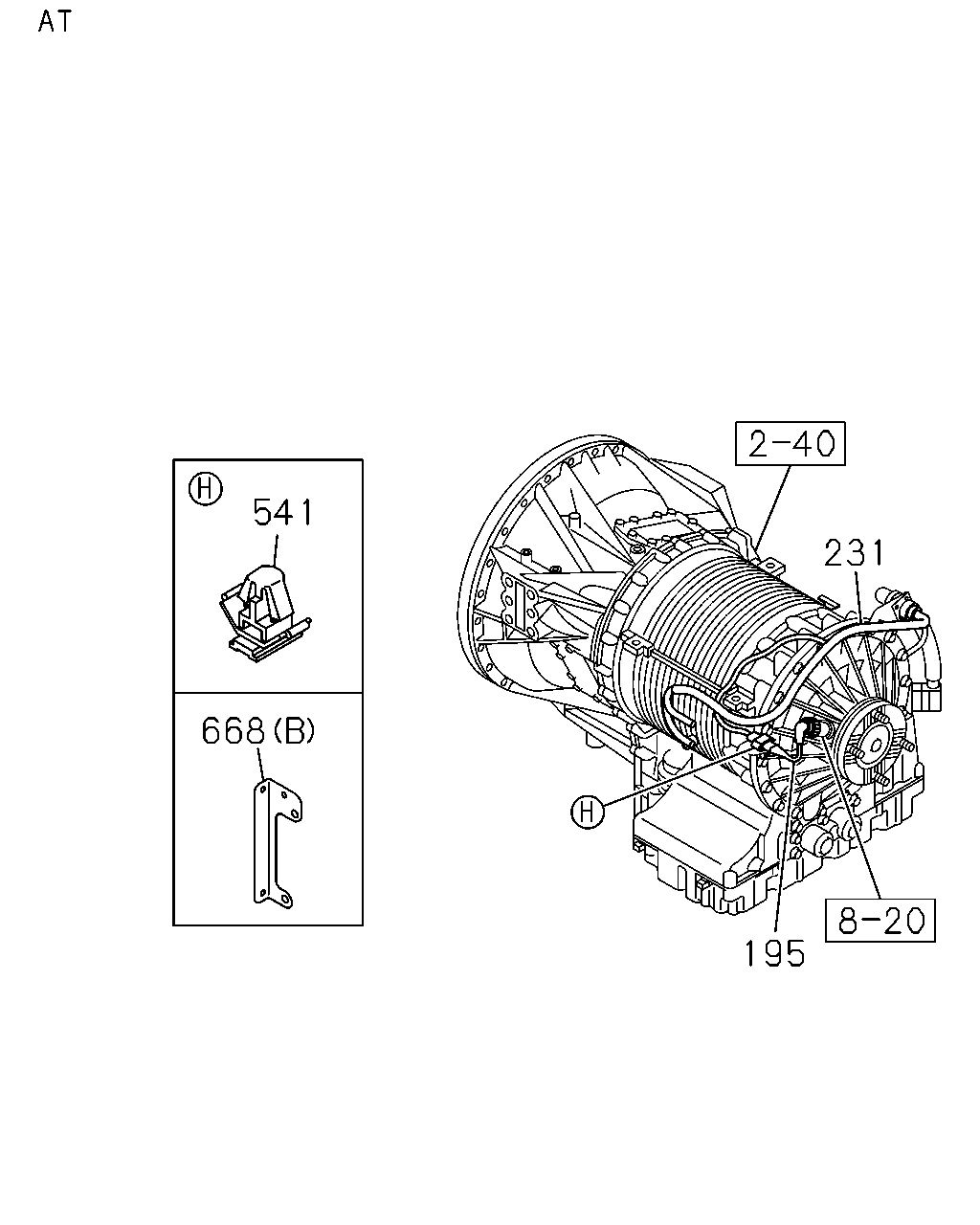

541 668 231 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
195	HARNESS; EXT A/T ALLISON 4430(Y5V)	1-82671-045-1	01	1	1212-	●	●
231	HARNESS; TRANS A/T ALLISON 4430(Y5V) VIN MODEL YEAR 2015<VZF>	8-98305-945-0	01	1	1504-	●	●
231	HARNESS; TRANS A/T ALLISON 4430(Y5V)	8-98197-147-0	01	1	1212-1503	●	●
231	HARNESS; TRANS A/T ALLISON 4430(Y5V) EXC. VIN MODEL YEAR 2015<VZF>	8-98197-147-0	01	1	1504-	●	●
231	HARNESS; TRANS TRANSMISSION-FULLER RTO11908(Y5L)	8-98079-751-1	01	1	1212-1311	●	●
231	HARNESS; TRANS TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y)	8-98079-751-1	01	1	1312-	●	●
231	HARNESS; TRANS ZF9S1310 M/T(Y5K)	8-98163-093-0	01	1	1212-		●
541	CLIP A/T ALLISON 4430(Y5V) OD=9 H=6	1-09709-178-0	01	1	1212-	●	●
668	BRACKET; HARNESS (A)	8-98095-653-2	01	1	1212-	●	●
668	BRACKET; HARNESS (B)	8-98117-572-0	01	1	1212-	●	●

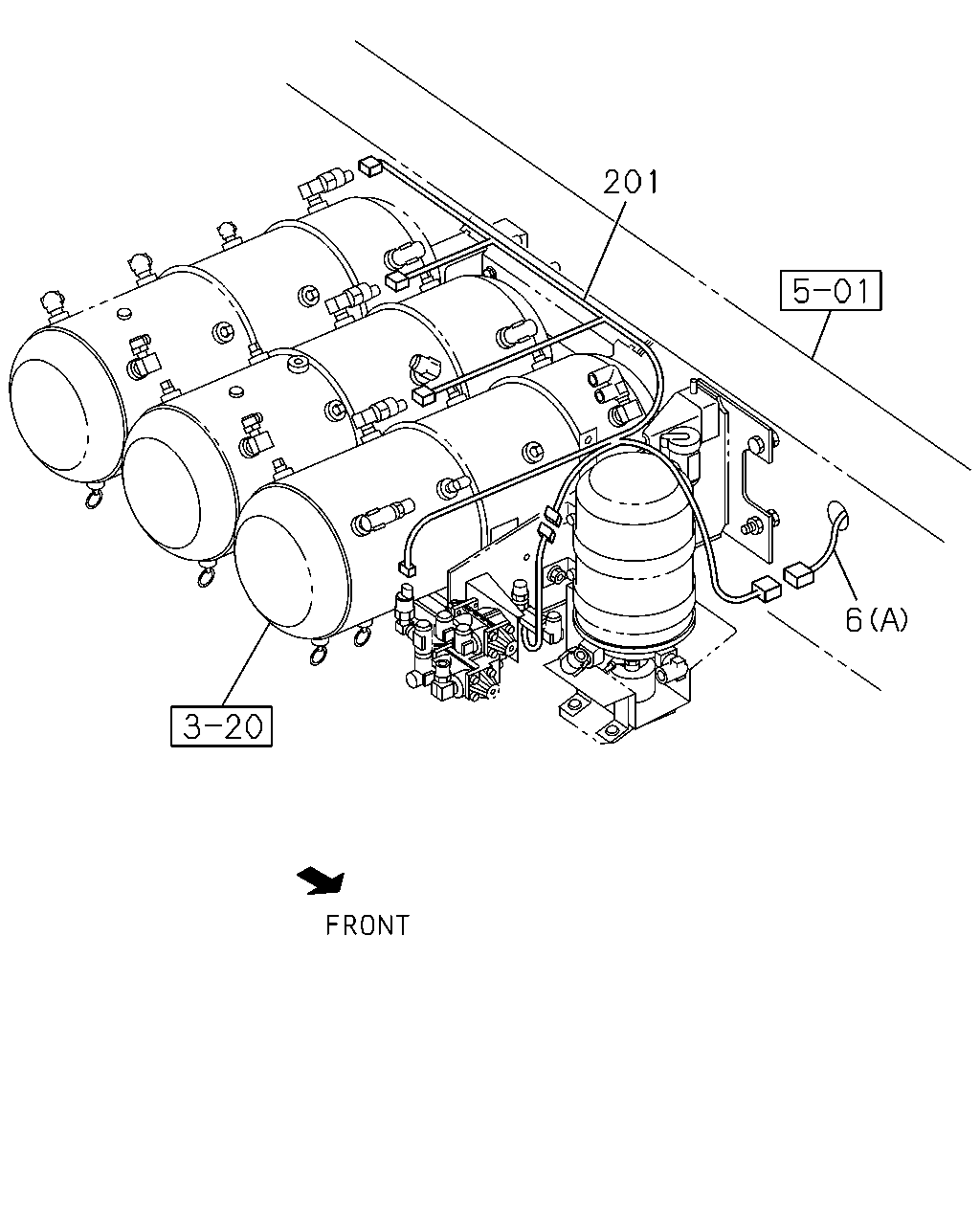

201 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 5700MM(57W) GENERATOR 24V90A(K44) (A)	8-98330-204-0	01	1	1512-	●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 5700MM(57W) EXC. GENERATOR 24V90A(K44) (A)	8-98330-203-0	01	1	1512-	●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) WHEEL BASE 5700MM(57W) GENERATOR 24V90A(K44) (A)	8-98330-202-0	01	1	1512-		●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) WHEEL BASE 5700MM(57W) EXC. GENERATOR 24V90A(K44) (A)	8-98330-201-0	01	1	1512-		●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L) GENERATOR 24V90A(K44) (A)	8-98212-709-1	01	1	1212-1311	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) GENERATOR 24V90A(K44) (A)	8-98212-709-1	01	1	1212-1311		●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) GENERATOR 24V90A(K44) (A)	8-98212-709-2	01	1	1312-1511	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) GENERATOR 24V90A(K44) (A)	8-98212-709-2	01	1	1312-1511		●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) GENERATOR 24V90A(K44) (A)	8-98212-709-2	01	1	1512-	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) GENERATOR 24V90A(K44) (A)	8-98212-709-2	01	1	1512-		●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L) EXC. GENERATOR 24V90A(K44) (A)	8-98212-708-1	01	1	1212-1311	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. GENERATOR 24V90A(K44) (A)	8-98212-708-1	01	1	1212-1311		●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) EXC. GENERATOR 24V90A(K44) (A)	8-98212-708-2	01	1	1312-1511	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) EXC. GENERATOR 24V90A(K44) (A)	8-98212-708-2	01	1	1312-1511		●
6	HARNESS; FRAME TRANSMISSION-FULLER RTO11908(Y5L), TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) EXC. GENERATOR 24V90A(K44) (A)	8-98212-708-2	01	1	1512-	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L),TRANSMISSION-FULLER RTO11909(Y5Y) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) EXC. GENERATOR 24V90A(K44) (A)	8-98212-708-2	01	1	1512-		●
6	HARNESS; FRAME (B)	8-98156-190-1	01	1	1212-	●	●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) GENERATOR 24V90A(K44) (A)	8-98191-371-3	01	1	1212-1511	●	●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) GENERATOR 24V90A(K44) (A)	8-98191-371-3	01	1	1512-	●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) GENERATOR 24V90A(K44) (A)	8-98191-371-3	01	1	1512-		●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) EXC. GENERATOR 24V90A(K44) (A)	8-98191-370-3	01	1	1212-1511	●	●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W) EXC. GENERATOR 24V90A(K44) (A)	8-98191-370-3	01	1	1512-	●
6	HARNESS; FRAME A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W),WHEEL BASE 6600MM(66W), WHEEL BASE 7300MM(73W) EXC. GENERATOR 24V90A(K44) (A)	8-98191-370-3	01	1	1512-		●
201	HARNESS; AIR TANK WHEEL BASE 5700MM(57W)	8-98330-208-0	01	1	1512-	●	●
201	HARNESS; AIR TANK WHEEL BASE 6400MM(64W)	8-98079-765-5	01	1	1212-	●	●
201	HARNESS; AIR TANK WHEEL BASE 6600MM(66W)	8-98192-282-0	01	1	1212-1302	●	●
201	HARNESS; AIR TANK WHEEL BASE 6600MM(66W)	8-98192-282-0	01	1	1303-	●
201	HARNESS; AIR TANK WHEEL BASE 6600MM(66W),WHEEL BASE 7300MM(73W)	8-98192-282-0	01	1	1303-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
