Isuzu WW
▶
TRUCKS
▶
FYH
▶
11499 - FYH(AUST)EURO5
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-70 - SEPARATER AND BED
▶

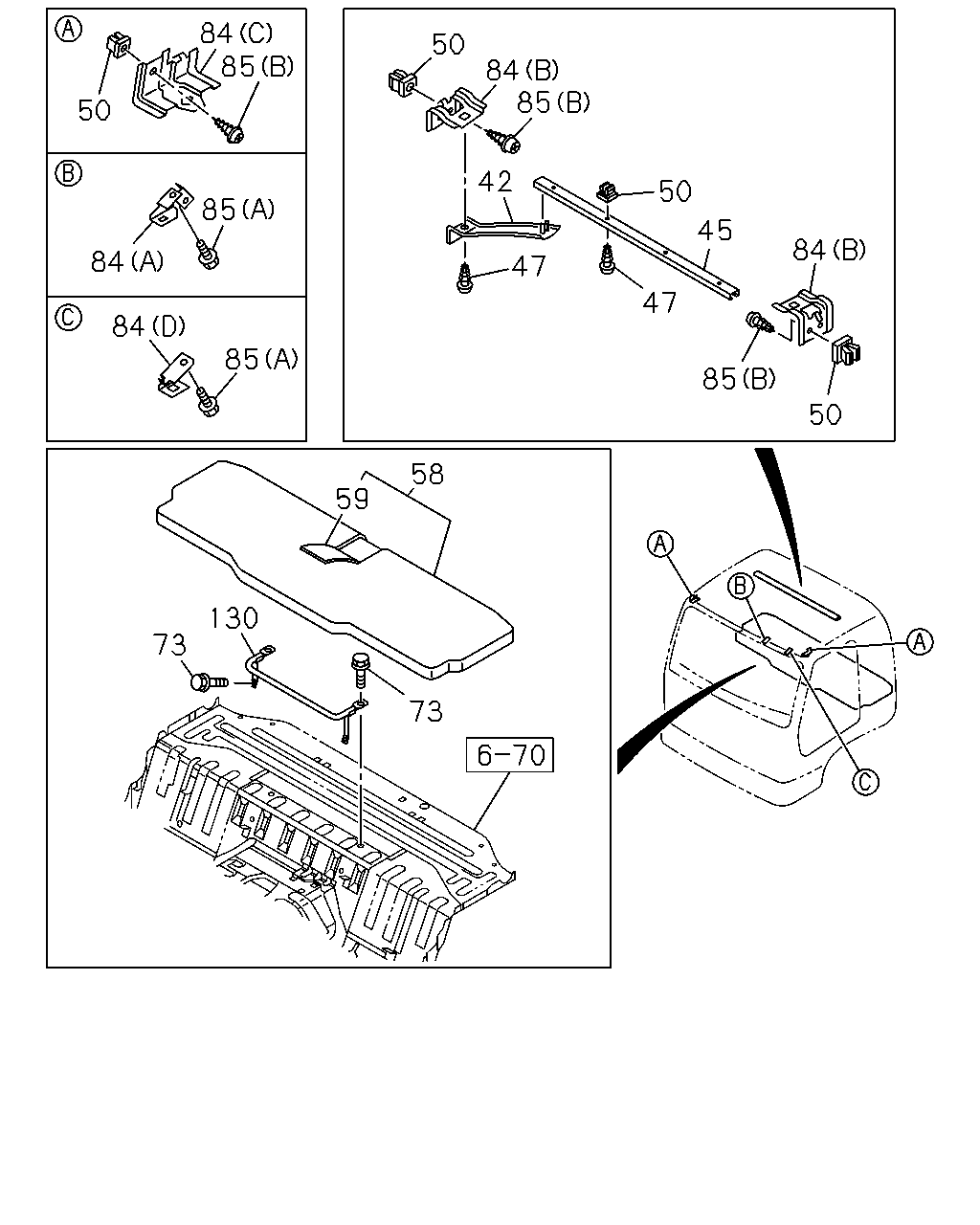

7-70 — SEPARATER AND BED
(#111460) — 17 parça
Tümü
A - FGH5MY
B - FGJ5MY
50
84
85
84
85
84
85
73
130
59
58
73
50
84
85
42
47
50
47
45
84
85
50
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
42
STOPPER; CURTAIN RAIL
DARK GRAY
8-97407-972-2
01
1
1212-
●
●
42
STOPPER; CURTAIN RAIL
DARK GRAY
8-97407-499-2
01
1
1212-
●
●
45
RAIL; CURTAIN,FRT
DARK GRAY
8-97407-486-0
01
1
1212-
●
●
47
SCREW; CURTAIN RAIL
M5X20
5-09981-059-0
06
1
1212-
●
●
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
10
1
1212-1405
●
●
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
08
1
1406-
●
●
58
BED; MAT
MATTRESS SLEEPER CAB<E40> DARK GRAY
8-97409-894-1
01
1
1212-
●
●
59
COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> DARK GRAY
8-97414-135-0
01
1
1212-
●
●
73
BOLT; GUARD PIPE
MATTRESS SLEEPER CAB<E40> M8X20 FLANGE
0-28450-820-0
04
1
1212-
●
●
84
BRACKET; CURTAIN RAIL
(C)
8-98028-326-1
02
1
1212-1405
●
●
84
BRACKET; CURTAIN RAIL
(B)
8-98042-152-0
02
1
1212-
●
●
84
BRACKET; CURTAIN RAIL
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)
8-98049-290-1
01
1
1212-
●
●
84
BRACKET; CURTAIN RAIL
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (D)
8-98074-740-0
01
1
1212-
●
●
85
SCREW; BRKT
(B) M5X20
5-09981-059-0
04
1
1212-1405
●
●
85
SCREW; BRKT
(B) M5X20
5-09981-059-0
02
1
1406-
●
●
85
SCREW; BRKT
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE
8-97108-669-0
02
1
1212-
●
●
130
PIPE; GUARD,BED
MATTRESS SLEEPER CAB<E40>
8-98014-968-0
01
1
1212-
●
●
