◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11499 - FYH(AUST)EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#111453) — 115 parça

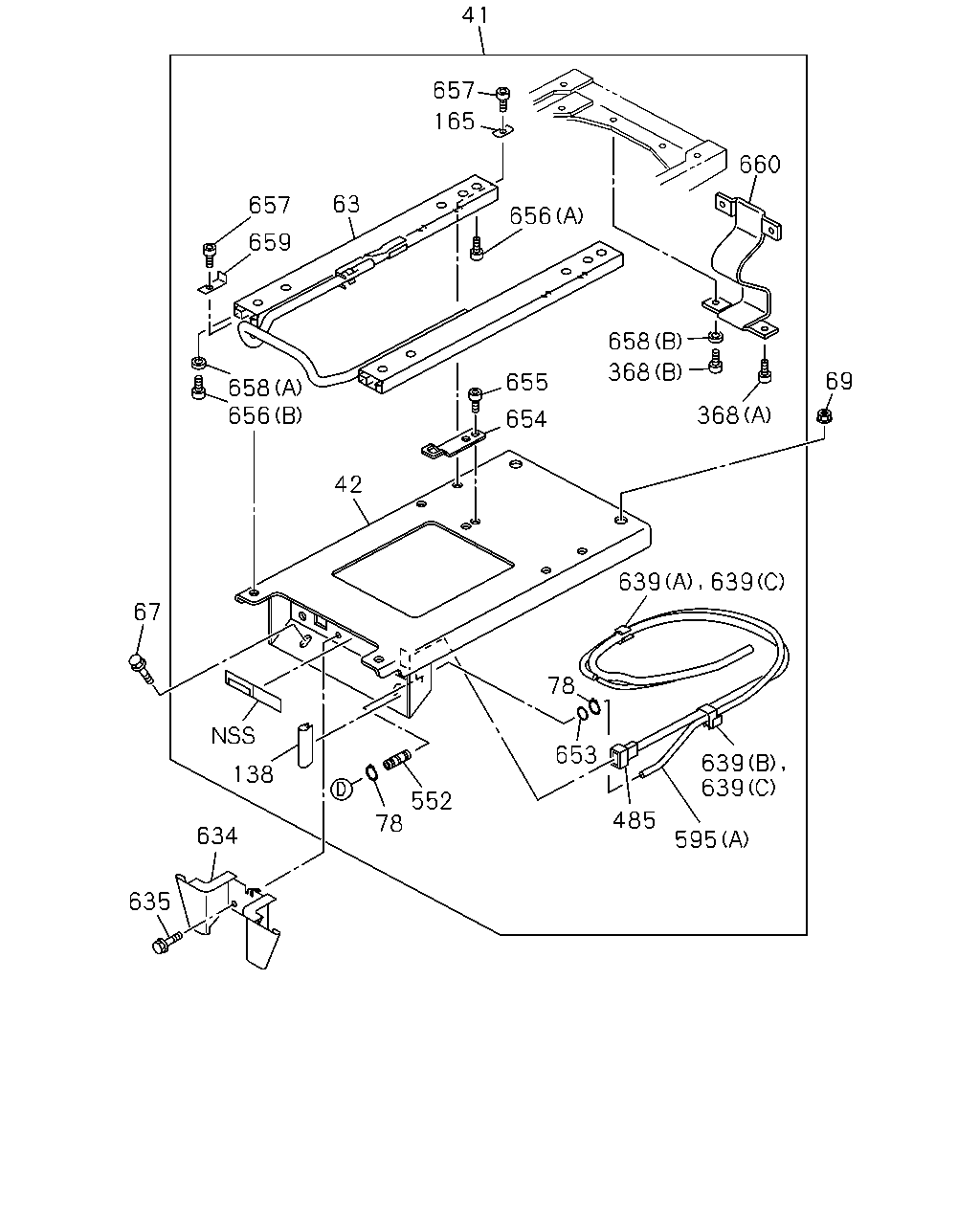

çizim 321686
41 657 63 657 659 656 660 658 655 368 368 69 639 639 78 653 485 595 639 639 654 165 658 656 67 138 78 42 552 634 635
BalonParca AdiParca NoAdetTipApplied Date A B
41 SEAT ASM; DRIVER 8-98046-984-2 01 1 1212-1212 ● ●
41 SEAT ASM; DRIVER 8-98195-063-1 01 1 1301- ● ●
42 STAND; DRIVER SEAT 8-98106-346-0 01 1 1212- ● ●
63 ADJUSTER; SEAT SLIDE 8-98098-005-0 01 1 1212- ● ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1212- ● ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1212- ● ●
78 RING; SNAP 8-98101-900-0 02 1 1212- ● ●
138 PROTECTOR; SEAT STAND 8-98106-351-0 01 1 1212- ● ●
165 WASHER; PL 1-75590-086-0 04 1 1212- ● ●
368 BOLT; SEAT
(A) 		8-98106-353-0 03 1 1212- ● ●
368 BOLT; SEAT
(B) 		8-98106-358-0 01 1 1212- ● ●
485 HARNESS; FRT SEAT 8-98106-360-0 01 1 1212- ● ●
552 CONNECTOR 8-98101-902-0 01 1 1212-1508 ● ●
552 CONNECTOR 8-98308-101-0 01 1 1509- ● ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 1212- ● ●
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 1212- ● ●
634 COVER; CONNECTOR,SEAT 8-98088-279-0 01 1 1212- ● ●
635 BOLT; COVER
M6X16 		0-52000-616-0 02 1 1212- ● ●
639 CLIP; SEAT
(A) 		8-98106-349-0 01 1 1212-1508 ● ●
639 CLIP; SEAT
(C) 		8-98308-100-0 02 1 1509- ● ●
639 CLIP; SEAT
(B) 		8-98106-350-0 01 1 1212-1508 ● ●
653 GASKET 8-98101-901-0 01 1 1212- ● ●
654 HOOK; STOPPER 8-98106-352-0 01 1 1212- ● ●
655 BOLT; HOOK 8-98106-353-0 02 1 1212- ● ●
656 BOLT; SLIDER TO SEAT
(A) 		1-75590-085-0 04 1 1212- ● ●
656 BOLT; SLIDER TO SEAT
(B) 		8-98106-354-0 02 1 1212- ● ●
657 BOLT; SLIDER TO STAND 1-75590-085-0 06 1 1212- ● ●
658 SPACER; BOLT
(A) 		8-98106-355-0 02 1 1212- ● ●
658 SPACER; BOLT
(B) 		8-98106-359-0 01 1 1212- ● ●
659 STOPPER 8-98106-356-0 02 1 1212- ● ●
660 BELT; TETHER 8-98106-357-0 01 1 1212- ● ●

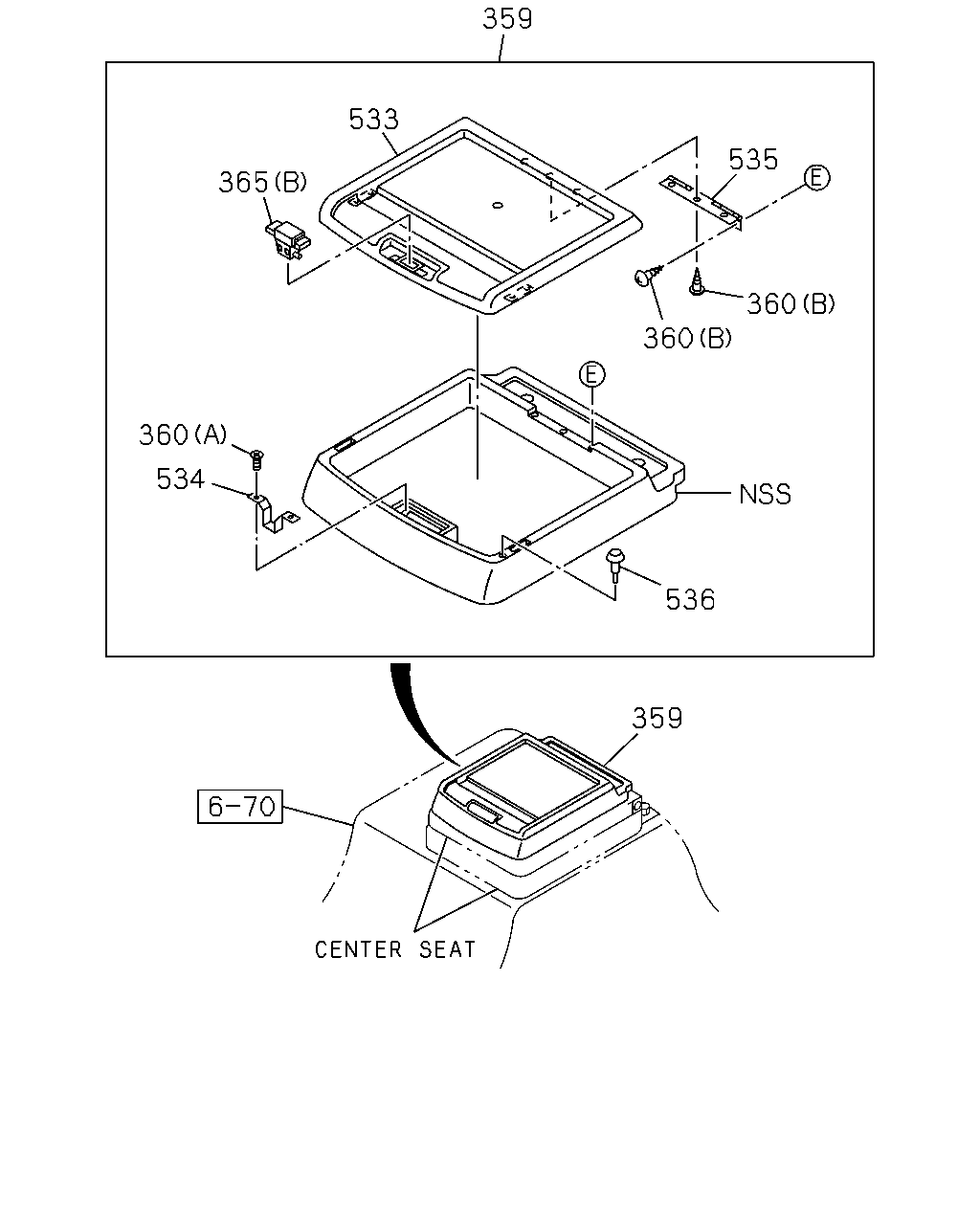

çizim 321722
359 533 365 360 534 359 536 360 360 535
BalonParca AdiParca NoAdetTipApplied Date A B
359 BOX; PARCEL
CENTER SEAT(SA1) GRAY 		8-97417-261-0 01 1 1212- ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 1212- ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1212- ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (C) M5 		8-98062-663-0 04 1 1212- ● ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 1212- ● ●
365 LOCK ASM; SEAT
CENTER SEAT(SA1) (B) 		1-72538-312-0 01 1 1212- ● ●
533 LID; PARCEL BOX
CENTER SEAT(SA1) GRAY 		8-97417-263-0 01 1 1212- ● ●
534 STRIKER; PARCEL BOX
CENTER SEAT(SA1) 		1-72538-190-0 01 1 1212- ● ●
535 HINGE; PARCEL BOX
CENTER SEAT(SA1) 		1-72447-391-1 01 1 1212- ● ●
536 RUBBER; CUSHION
CENTER SEAT(SA1) 		1-72538-187-0 02 1 1212- ● ●

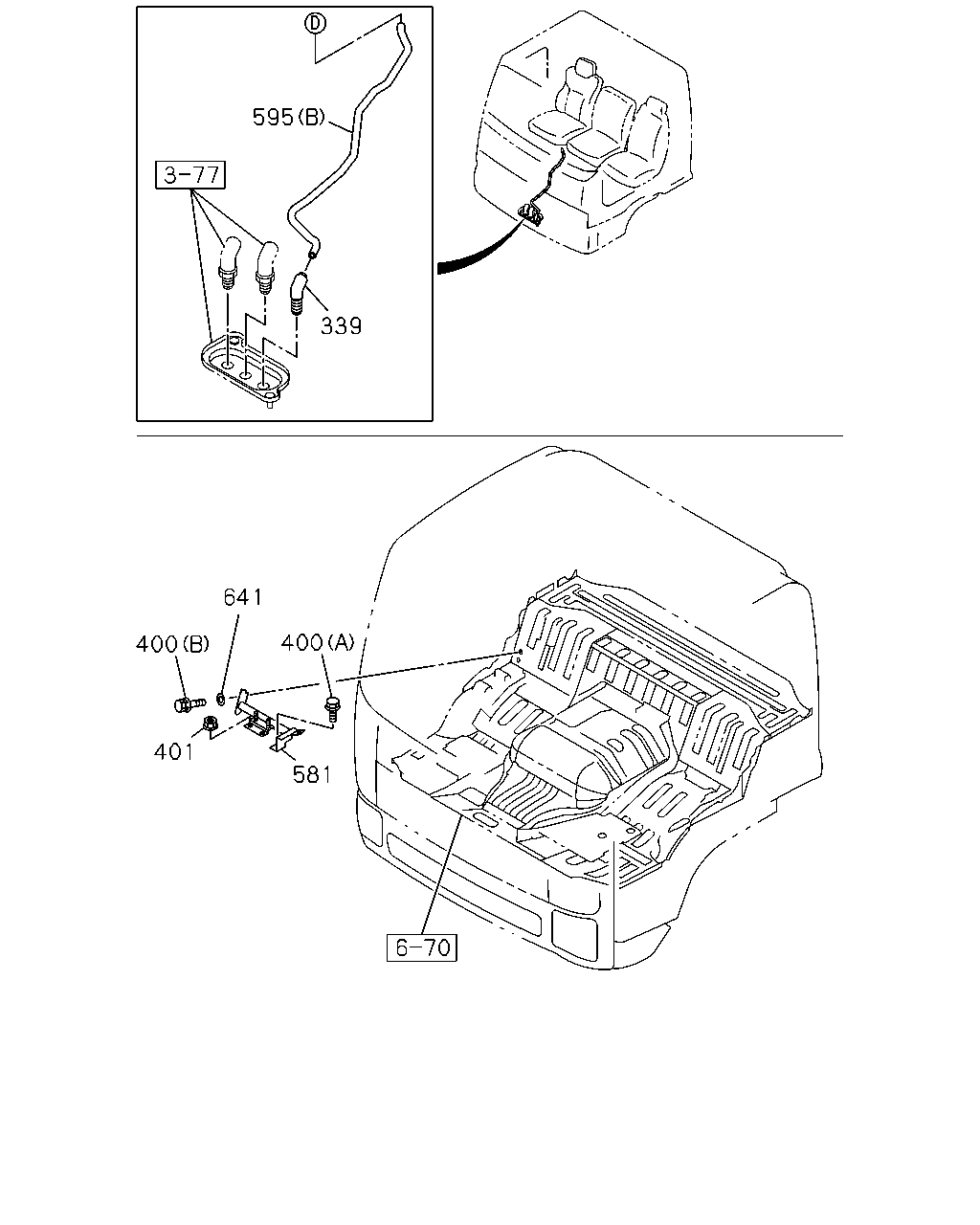

çizim 321845
595 339 641 400 400 401 581
BalonParca AdiParca NoAdetTipApplied Date A B
339 UNION; DRIVER SEAT 8-98014-971-0 01 1 1212- ● ●
400 BOLT; SUPPORT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1212- ● ●
400 BOLT; SUPPORT
(B) 		8-98098-996-0 02 1 1212- ● ●
401 NUT; SUPPORT
M10 FLANGE 		0-91180-110-0 02 1 1212- ● ●
581 PIPE; SEAT 8-97589-692-3 01 1 1212- ● ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 1212- ● ●
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 1212- ● ●
641 WASHER; SUPPORT 8-98099-007-0 02 1 1212- ● ●

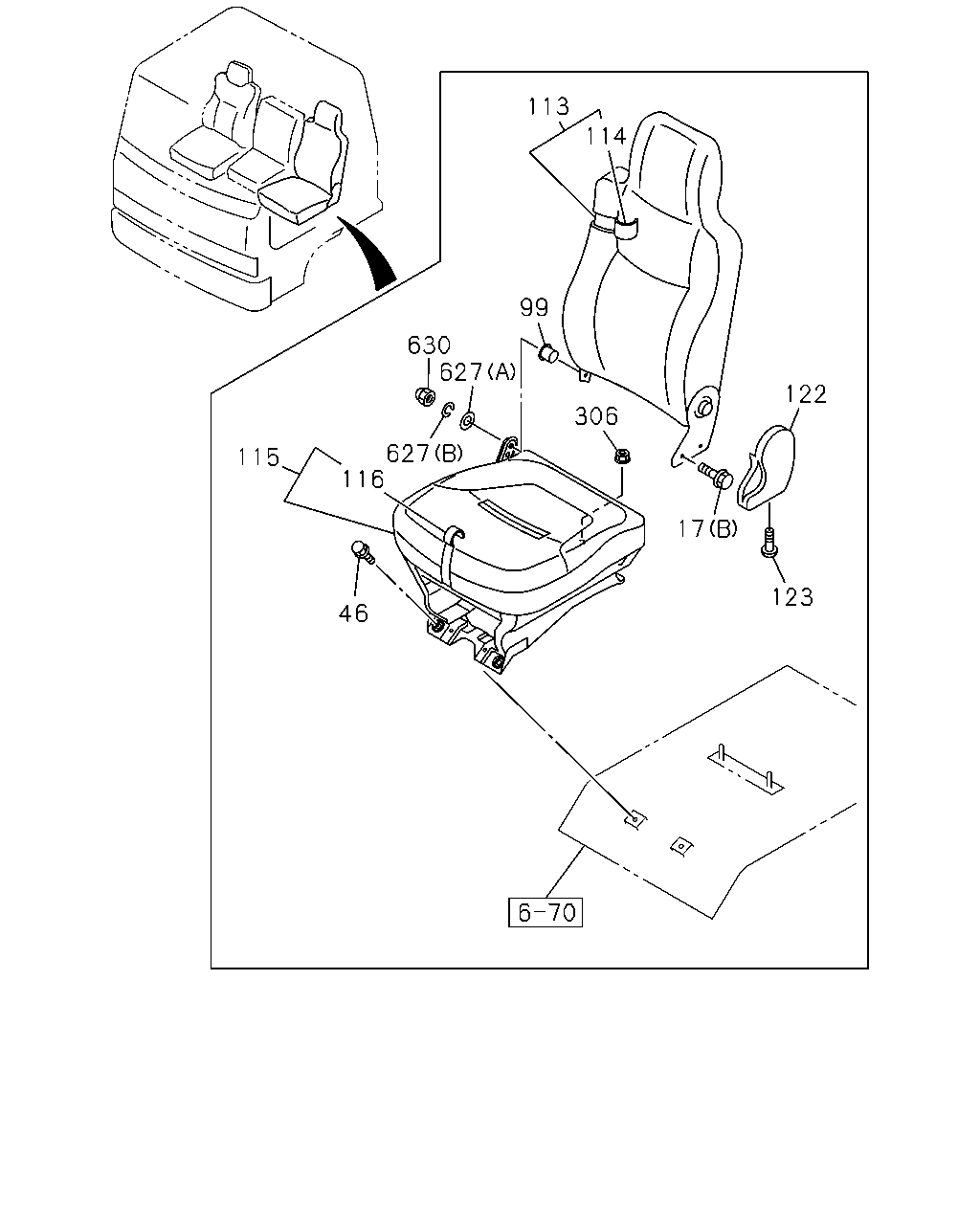

çizim 321872
113 114 99 122 123 17 306 627 630 115 627 116 46
BalonParca AdiParca NoAdetTipApplied Date A B
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 1212- ● ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1212- ● ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1212- ● ●
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1212- ● ●
113 BACK ASM; SEAT
DARK GRAY 		8-97421-422-0 01 1 1212- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97421-424-0 01 1 1212- ● ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97421-418-2 01 1 1212- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97421-420-1 01 1 1212- ● ●
122 COVER; ADJ,RECLINING
GRAY 		8-97409-967-0 01 1 1212- ● ●
123 SCREW; COVER,RECLINING
M5 		8-98070-026-0 01 1 1212- ● ●
306 NUT; SEAT ADJ
M10 FLANGE 		0-91180-110-0 02 1 1212- ● ●
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1212- ● ●
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1212- ● ●
630 NUT; CAP
M8 		8-98063-225-0 01 1 1212- ● ●

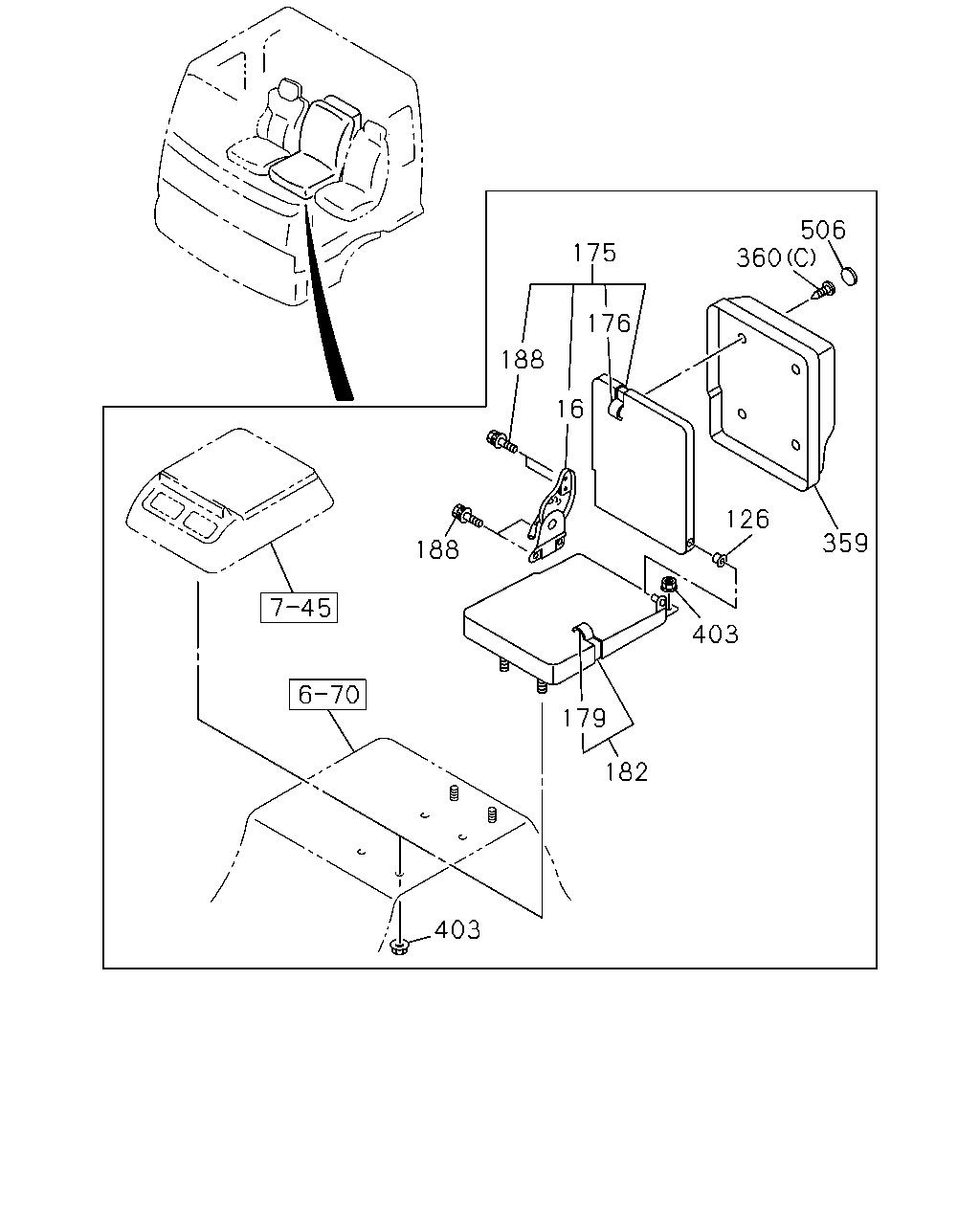

çizim 322003
188 403 182 179 403 126 359 188 16 176 175 360 506
BalonParca AdiParca NoAdetTipApplied Date A B
16 ADJUSTER ASM; RECLINING
CENTER SEAT(SA1) 		1-75418-062-1 01 1 1212- ● ●
126 BUSHING; HINGE,RECLINING
CENTER SEAT(SA1) 		8-97854-900-0 01 1 1212- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) DARK GRAY 		8-97421-434-1 01 1 1212- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) DARK GRAY 		8-97421-435-1 01 1 1212- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) DARK GRAY 		8-97421-432-1 01 1 1212- ● ●
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) DARK GRAY 		8-97421-430-3 01 1 1212- ● ●
188 BOLT; BACK TO CUSHION
CENTER SEAT(SA1) M10X16 FLANGE 		1-75198-053-0 04 1 1212- ● ●
359 BOX; PARCEL
CENTER SEAT(SA1) GRAY 		8-97417-261-0 01 1 1212- ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 1212- ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1212- ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (C) M5 		8-98062-663-0 04 1 1212- ● ●
403 NUT; CENTER SEAT
CENTER SEAT(SA1) M8 FLANGE 		0-91180-108-0 04 1 1212- ● ●
506 CAP; PARCEL BOX
CENTER SEAT(SA1) GRAY 		8-97409-980-1 02 1 1212- ● ●

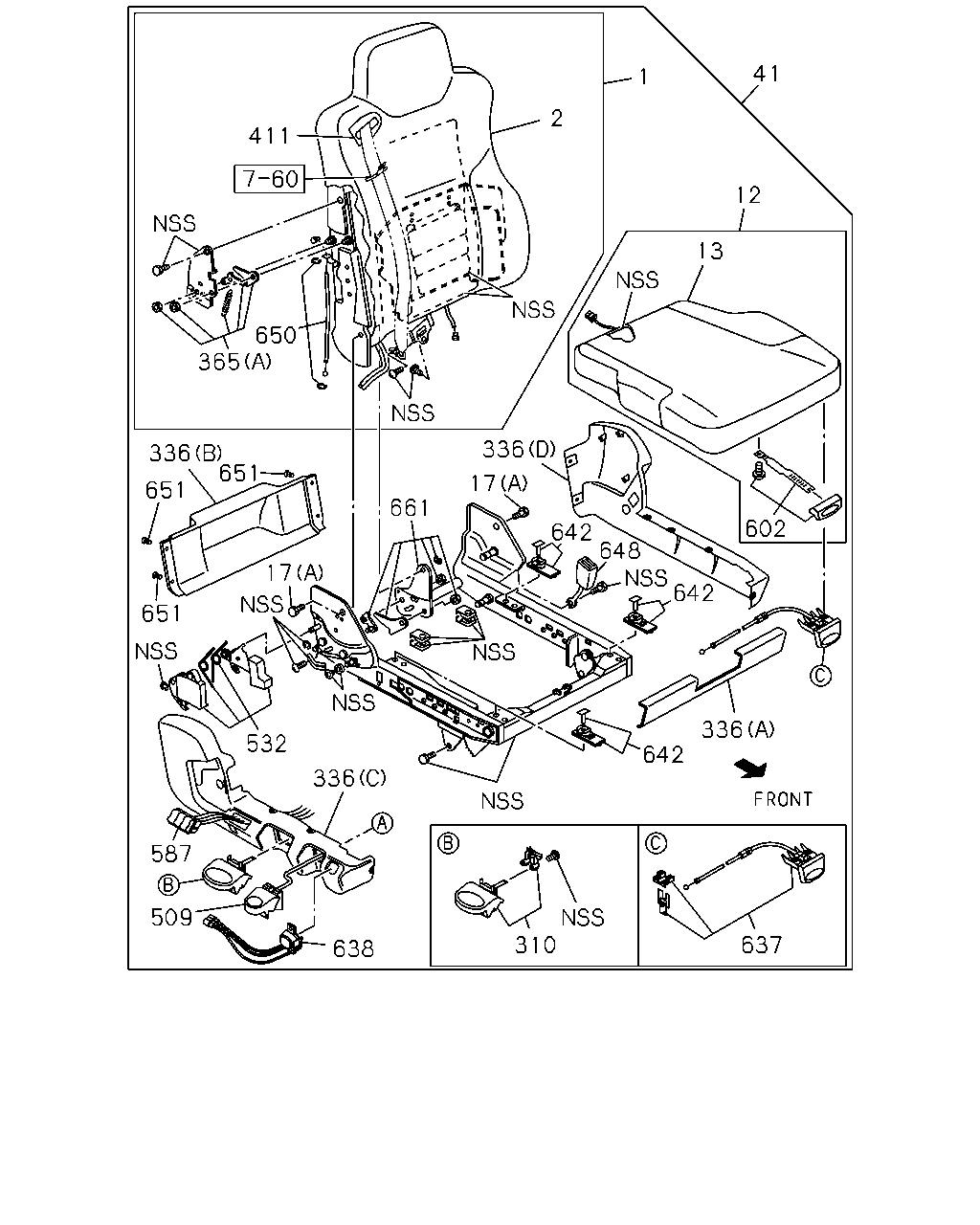

çizim 322190
411 2 1 41 12 13 650 365 336 17 602 648 642 336 642 642 661 651 651 651 17 532 336 587 336 310 637 638 509
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT 8-98097-964-0 01 1 1212- ● ●
2 COVER; TRIM,FRT SEAT,BACK 8-98097-966-0 01 1 1212-1212 ● ●
2 COVER; TRIM,FRT SEAT,BACK 8-98232-353-0 01 1 1301- ● ●
12 CUSHION; SEAT,FRT 8-98098-006-0 01 1 1212- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION 8-98098-007-0 01 1 1212- ● ●
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 1212- ● ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1212- ● ●
41 SEAT ASM; DRIVER 8-98046-984-2 01 1 1212-1212 ● ●
41 SEAT ASM; DRIVER 8-98195-063-1 01 1 1301- ● ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT 8-98097-992-0 01 1 1212- ● ●
336 COVER; DRIVER SEAT
(D) 		8-98097-978-0 01 1 1212-1508 ● ●
336 COVER; DRIVER SEAT
(D) 		8-98331-313-0 01 1 1509- ● ●
336 COVER; DRIVER SEAT
(C) 		8-98097-984-0 01 1 1212- ● ●
336 COVER; DRIVER SEAT
(A) 		8-98097-995-0 01 1 1212- ● ●
336 COVER; DRIVER SEAT
(B) 		8-98097-996-0 01 1 1212- ● ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 1212- ● ●
365 LOCK ASM; SEAT
CENTER SEAT(SA1) (B) 		1-72538-312-0 01 1 1212- ● ●
411 GUIDE; SEAT BELT 8-98097-967-0 01 1 1212- ● ●
509 LEVER; DAMPER 8-98097-988-0 01 1 1212- ● ●
532 LEVER ASM; TILT 8-98097-982-0 01 1 1212- ● ●
587 VALVE; LUMBAR SUPPORT 8-98097-986-0 01 1 1212- ● ●
602 KNOB; ADJ,SEAT 8-98098-008-0 01 1 1212- ● ●
637 LEVER; SLOPE ADJ 8-98097-989-0 01 1 1212- ● ●
638 VALVE; LOWERING 8-98097-994-0 01 1 1212- ● ●
642 SLIDER; CUSHION 8-98192-932-0 04 1 1212- ● ●
648 BUCKLE; SEAT BELT 8-98097-976-0 01 1 1212- ● ●
650 CABLE 8-98097-973-0 01 1 1212-1212 ● ●
650 CABLE 8-98232-354-0 01 1 1301- ● ●
651 RIVET 8-98194-075-0 04 1 1212- ● ●
661 LOCK ASM; RECLINING 8-98097-980-0 01 1 1212- ● ●

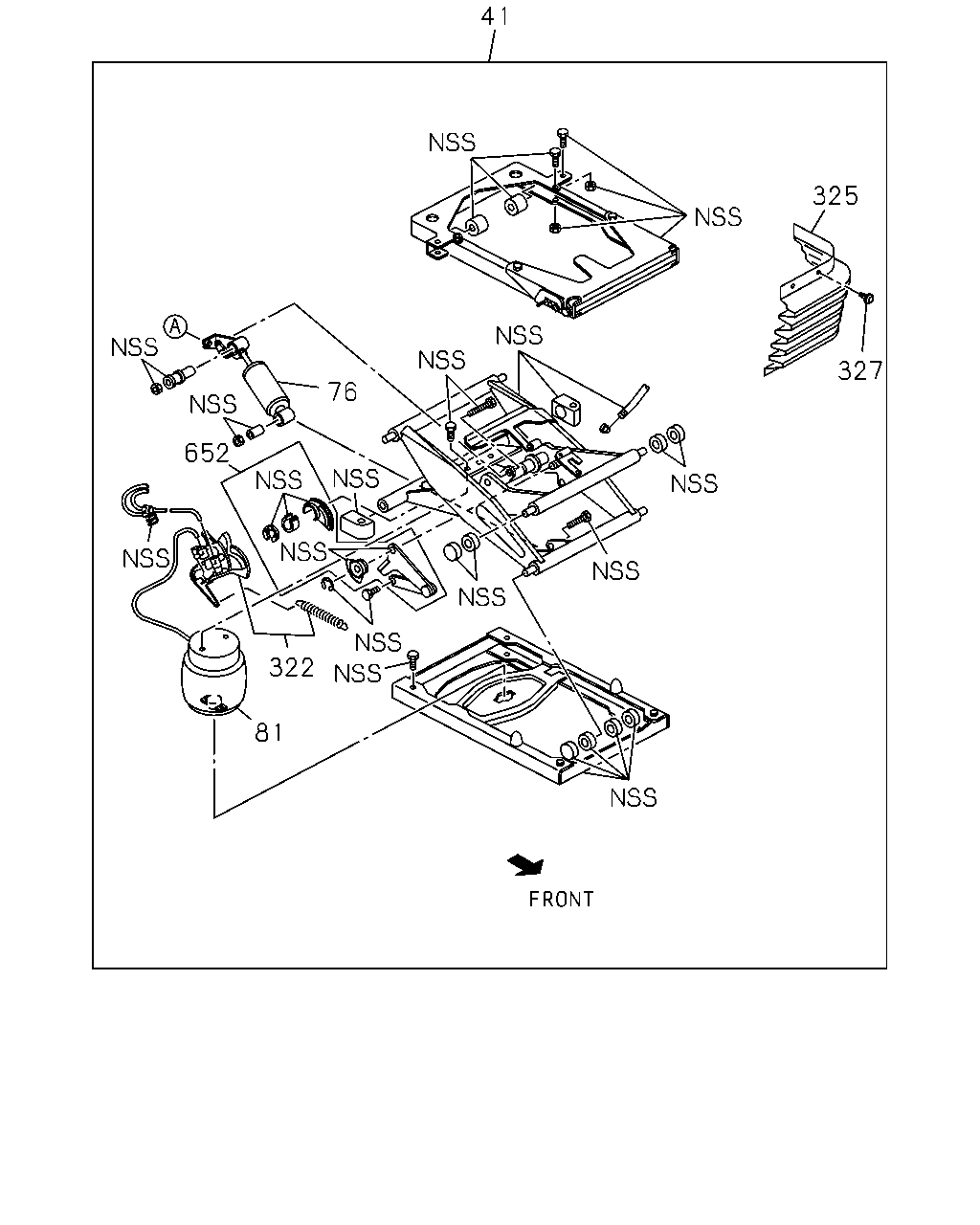

çizim 322642
41 325 327 322 81 652 76
BalonParca AdiParca NoAdetTipApplied Date A B
41 SEAT ASM; DRIVER 8-98046-984-2 01 1 1212-1212 ● ●
41 SEAT ASM; DRIVER 8-98195-063-1 01 1 1301- ● ●
76 DAMPER; AIR SUSP 8-98097-999-0 01 1 1212- ● ●
81 SPRING; AIR 8-98098-000-0 01 1 1212- ● ●
322 VALVE; AIR SPRING 8-98098-001-0 01 1 1212-1508 ● ●
322 VALVE; AIR SPRING 8-98331-314-0 01 1 1509- ● ●
325 COVER; SUSPENSION DEVICE 8-98098-003-0 01 1 1212- ● ●
327 CLIP; COVER 8-98098-004-0 01 1 1212- ● ●
652 LOCK ASM; HEIGHT 8-98098-002-0 01 1 1212- ● ●
