Isuzu WW
▶
TRUCKS
▶
FVR
▶
11496 - FVR(LHD) EURO5
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-45 - CONSOLE BOX
▶

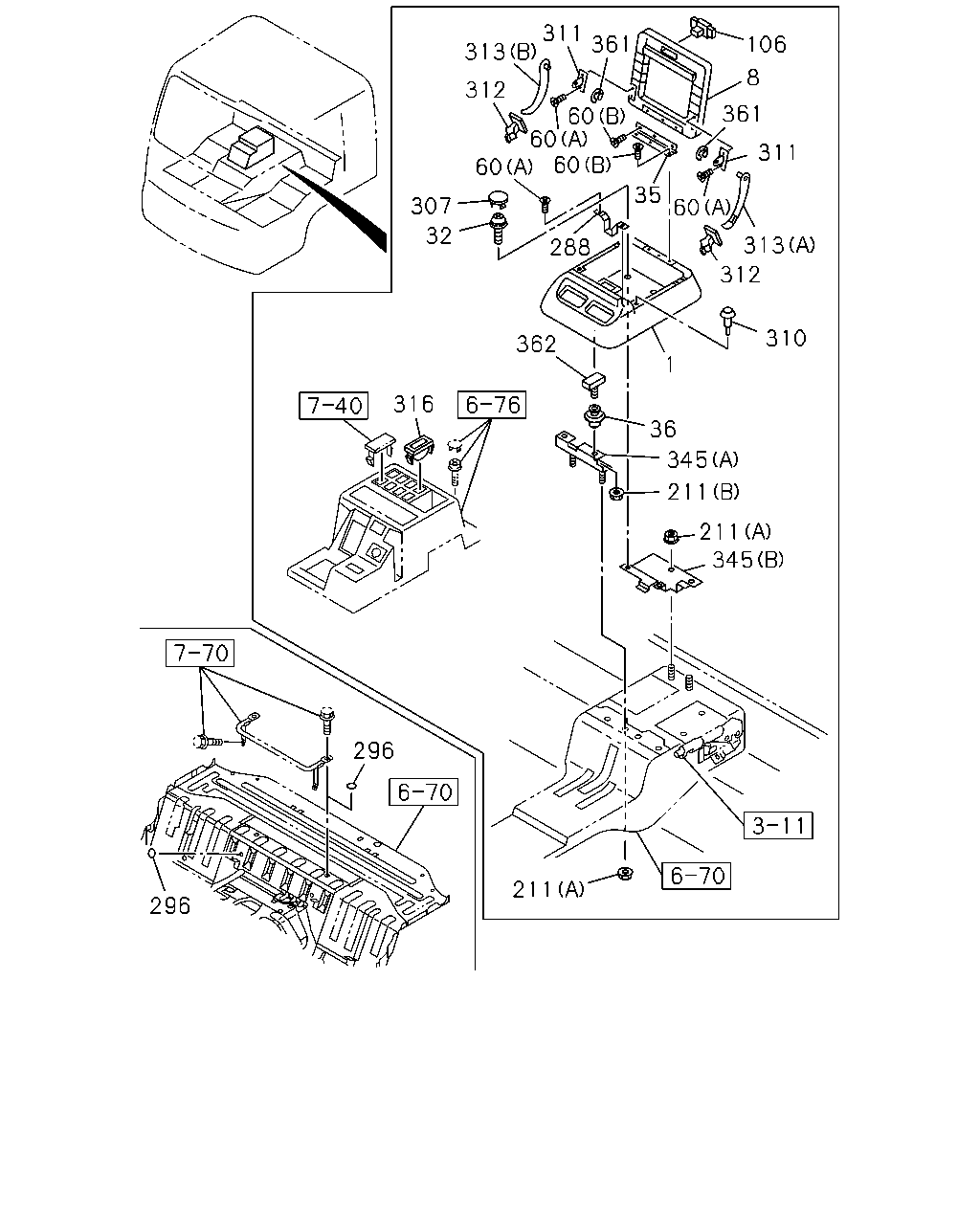

7-45 — CONSOLE BOX
(#111452) — 23 parça
313
311
312
307
60
60
60
361
106
8
361
35
60
311
313
312
310
1
36
362
32
316
345
211
345
211
211
296
296
288
60
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BOX; PARCEL
CENTER SEAT DELETE 2 CREWS<SP9> GRAY
8-97408-710-0
01
1
1212-
8
LID; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> GRAY
8-97408-712-0
01
1
1212-
32
SCREW; PARCEL BOX
CENTER SEAT DELETE 2 CREWS<SP9> M6X16
0-38050-616-0
02
1
1212-
35
HINGE; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9>
1-72538-182-1
01
1
1212-
36
FASTENER; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9>
1-09984-190-0
02
1
1212-
60
SCREW; BOX
CENTER SEAT DELETE 2 CREWS<SP9> (A) M5X14 TAPPING CK-HEAD
0-70040-514-0
06
1
1212-
60
SCREW; BOX
CENTER SEAT DELETE 2 CREWS<SP9> (B) M5X14
8-94279-325-0
04
1
1212-
106
LOCK; CONSOLE LID
CENTER SEAT DELETE 2 CREWS<SP9>
1-72538-312-0
01
1
1212-
211
NUT; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> (A) M8 FLANGE
0-91180-108-0
04
1
1212-
211
NUT; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> (B) M8 FLANGE
8-94279-518-0
02
1
1212-
288
STOPPER; LID,CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9>
1-72538-190-0
01
1
1212-
296
SEAL
EXC. MATTRESS SLEEPER CAB<E40> OD=25 BLACK
1-76798-019-0
04
1
1212-
307
COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> GRAY
8-97407-951-0
02
1
1212-
310
CUSHION; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9>
1-72538-187-0
02
1
1212-
311
HOLDER; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9>
1-72538-188-2
02
1
1212-
312
STOPPER; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9>
1-72538-186-1
02
1
1212-
313
ARM; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> (A)
1-72538-184-3
01
1
1212-
313
ARM; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> (B)
1-72538-185-3
01
1
1212-
316
BOX; COIN
8-94482-280-2
02
1
1212-
345
BRACKET; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> (A)
1-72538-232-1
01
1
1212-
345
BRACKET; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> (B)
1-72538-233-0
01
1
1212-
361
RING; SNAP
CENTER SEAT DELETE 2 CREWS<SP9> ID=5
9-09185-405-0
02
1
1212-
362
STUD; CONSOLE BOX
CENTER SEAT DELETE 2 CREWS<SP9>
1-72538-308-0
02
1
1212-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
