5-10 — CAB MOUNTING; FRAME SIDE (#11145) — 310 parça

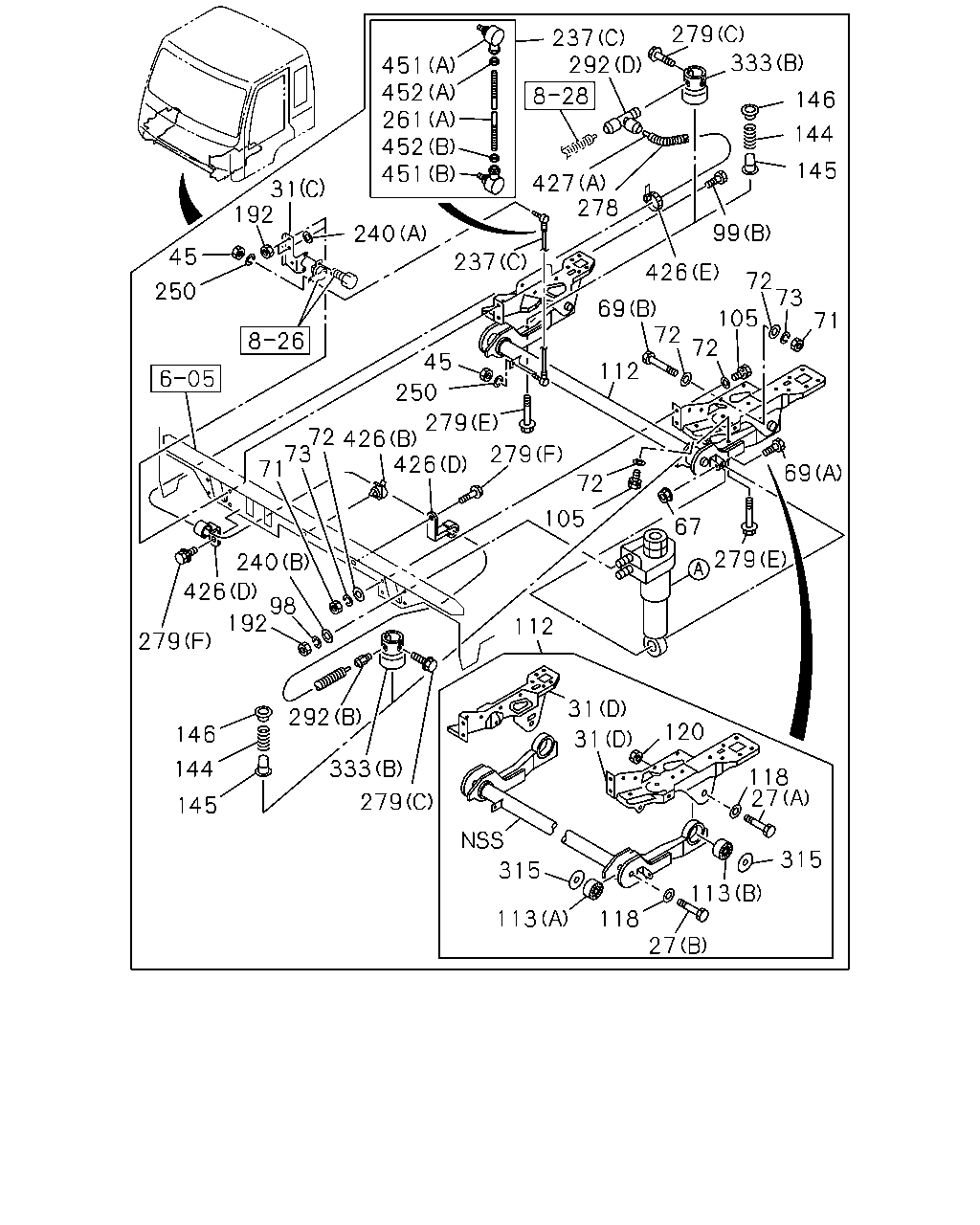

279 237 292 333 451 452 261 452 451 146 144 145 31 192 427 278 99 240 237 45 426 72 73 250 69 72 105 71 72 45 112 250 279 73 426 71 279 69 72 105 67 279 240 426 98 192 112 279 31 292 120 146 31 333 144 118 27 279 145 315 315 113 113 118 27 72 426

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	BOLT; BUSHING (B) M18X120	1-09000-442-1	02	1	0106-
27	BOLT; BUSHING FULL FLOATING CAB(W16) (A) M18X100	9-91066-800-0	02	1	0106-0106
27	BOLT; BUSHING EXC. FULL FLOATING CAB(W16) (A) M18X90	9-91066-890-0	02	1	0107-0107
27	BOLT; BUSHING (A) M18X90	9-91066-890-0	02	1	0108-
31	BRACKET; CAB (A)	1-44226-156-0	01	1	0106-
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-673-1	01	1	0106-
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	0106-0207
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-102-0	01	1	0208-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	0106-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-281-1	01	1	0106-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-274-1	01	1	0106-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-280-1	01	1	0106-
45	NUT FULL FLOATING CAB(W16) M5	9-99110-405-0	04	1	0106-
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91150-212-0	02	1	0106-
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	0106-
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X100	1-09980-547-0	08	1	0106-0301
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X105	1-79198-008-1	08	1	0302-
71	NUT; BRKT TO CAB FRAME M10	1-09984-142-0	06	1	0106-
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	28	1	0106-
73	WASHER; LK,BRKT TO CAB FRAME ID=10	1-09985-185-0	12	1	0106-
98	WASHER; LK,BRKT ID=10	1-09985-185-0	04	1	0106-
99	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	04	1	0106-
99	BOLT; BRKT (B) M10X30 FLANGE	0-28681-030-0	02	1	0106-
105	BOLT; BRKT TO CAB FRAME M10X30	1-09980-546-0	15	1	0106-
112	ARM ASM; LINK,CAB FRT SUSP FULL FLOATING CAB(W16)	1-53450-569-6	01	1	0106-
112	ARM ASM; LINK,CAB FRT SUSP EXC. FULL FLOATING CAB(W16)	1-53450-567-6	01	1	0106-
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI (A)	1-53458-333-3	02	1	0106-0111
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI (B)	1-53458-714-0	02	1	0106-0111
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI (A),(B)	1-53458-714-0	04	1	0112-
118	WASHER; PL,STOPPER RUBBER,LINK ARM ID=19 OD=30	1-09503-279-0	04	1	0106-
120	NUT; STOPPER RUBBER,LINK ARM M18	9-99110-518-0	02	1	0106-
144	SPRING; COIL,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-09580-537-0	02	1	0106-
145	RUBBER; CUSHION,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-53366-139-0	02	1	0106-
146	SEAT; SPRING,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-53366-138-0	02	1	0106-
192	NUT; BRKT FIX M10	1-09984-142-0	04	1	0106-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	0106-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	0106-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	0106-
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	0106-
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-
240	WASHER; PL,BRKT (C) ID=12.5	9-09160-512-0	02	1	0106-
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	9-09150-505-0	04	1	0106-
261	ROD; LINK FULL FLOATING CAB(W16) (A)	9-08410-507-0	01	1	0106-
261	ROD; LINK FULL FLOATING CAB(W16) (B)	9-08410-514-0	01	1	0106-
278	COVER FULL FLOATING CAB(W16) L=1200 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0106-
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	0106-
279	BOLT ANTI NOISE EQUIPMENT<SV9> (G) M8X25 FLANGE	0-28680-825-0	03	1	0106-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	0106-
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	0106-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	07	1	0106-
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0106-
279	BOLT 6WF1 TC-C(1B8) FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28680-820-0	02	1	0106-
279	BOLT FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28680-820-0	02	1	0106-
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	0106-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0106-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	0106-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0106-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	0106-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (F) PT1/8 ELBOW	8-94338-418-1	01	1	0106-
315	WASHER; CAB MTG ID=34.5	1-53458-281-1	04	1	0106-
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-1	02	1	0106-
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-1	02	1	0106-
426	CLIP ELECTRONIC GOV RED3(KG5) FULL FLOATING CAB(W16) (E) L=140	5-09707-031-1	01	1	0106-
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0106-
426	CLIP FULL FLOATING CAB(W16) (C) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0106-
426	CLIP FULL FLOATING CAB(W16) (D) ID=11 H=20 L=20	5-09700-351-0	02	1	0106-
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	0106-
426	CLIP 6WF1 TC-C(1B8) FULL FLOATING CAB(W16) (F) ID=7 L=20	9-09524-635-0	02	1	0106-
427	TUBE FULL FLOATING CAB(W16) (A) L=1300 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0106-
427	TUBE FULL FLOATING CAB(W16) (B) L=440 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0106-
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-103-1	02	1	0106-
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-104-1	02	1	0106-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	02	1	0106-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	9-99110-405-0	02	1	0106-

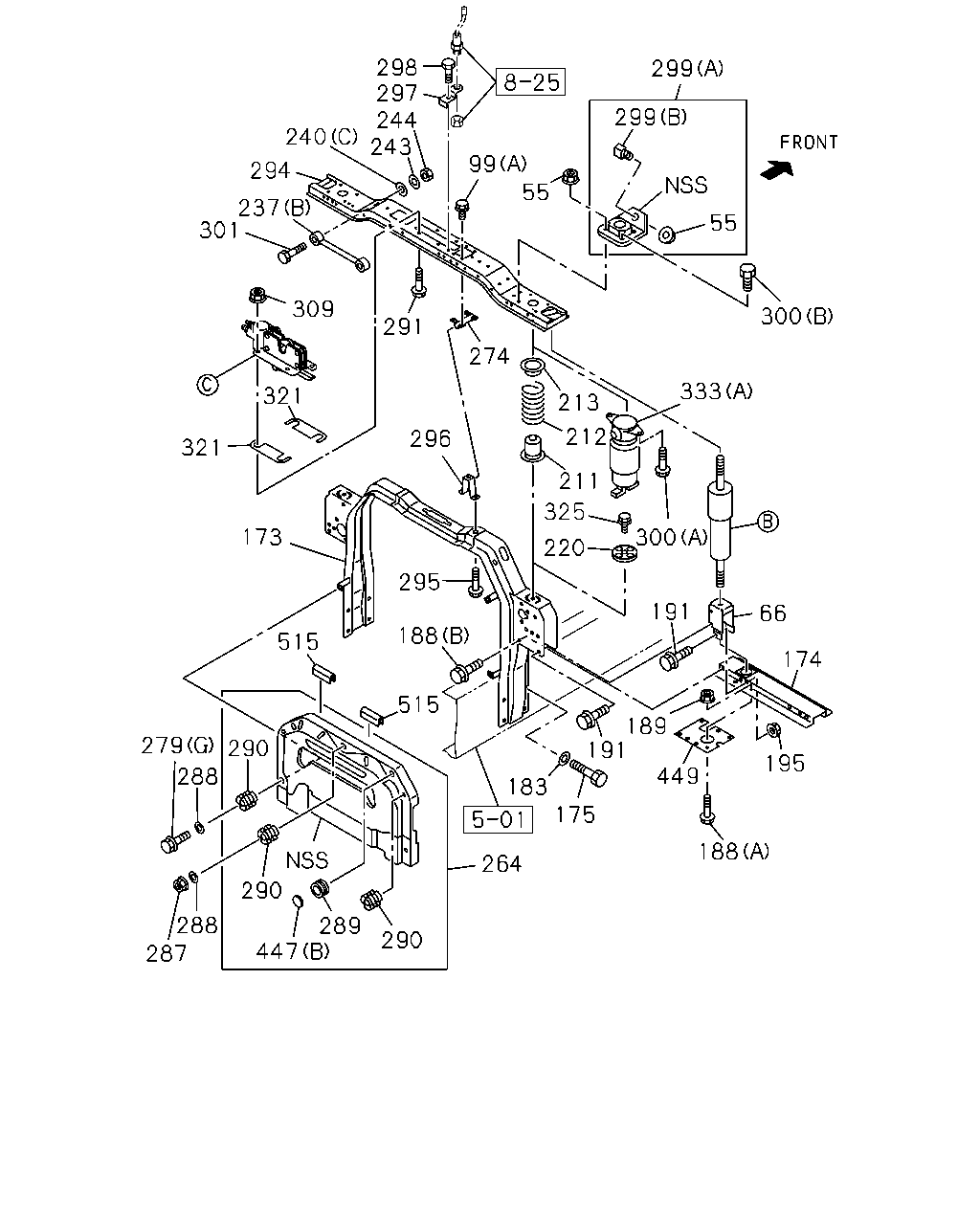

298 297 244 243 299 299 240 99 294 55 237 301 55 309 300 291 274 333 321 213 212 296 321 211 325 173 300 220 295 191 66 188 515 174 515 189 191 279 290 288 195 449 183 175 188 264 290 288 287 289 447 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
55	NUT; RUBBER M8 FLANGE	0-91150-108-0	06	1	0106-
66	BRACKET; S/ABS	1-53458-755-1	01	1	0106-
66	BRACKET; S/ABS	1-53458-786-0	01	1	0106-
99	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	04	1	0106-
99	BOLT; BRKT (B) M10X30 FLANGE	0-28681-030-0	02	1	0106-
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16)	1-53450-634-2	01	1	0106-
173	MEMBER; CAB MTG RR EXC. FULL FLOATING CAB(W16)	1-53450-637-2	01	1	0106-0406
173	MEMBER; CAB MTG RR EXC. FULL FLOATING CAB(W16)	1-53450-669-0	01	1	0407-
174	OUTRIGGER	1-53456-277-3	01	1	0106-
174	OUTRIGGER	1-53456-278-3	01	1	0106-
175	BOLT; MEMBER TO FRAME M14X35	9-92061-435-0	08	1	0106-
183	WASHER; PL,MEMBER ID=15	9-09651-069-0	08	1	0106-
188	BOLT; OUTRIGGER (B) M10X25 FLANGE	0-28681-025-0	08	1	0106-
188	BOLT; OUTRIGGER SILENCER SINGLE VERTICAL<N28> (A) M10X20 FLANGE	0-28681-020-0	08	1	0106-
188	BOLT; OUTRIGGER EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X20 FLANGE	0-28681-020-0	04	1	0106-
189	NUT; OUTRIGGER SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	08	1	0106-
189	NUT; OUTRIGGER EXC. SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	04	1	0106-
191	BOLT; BRKT FIX M10X25 FLANGE	0-28681-025-0	07	1	0106-
195	NUT; BRKT FIX M10 FLANGE	0-91150-210-0	04	1	0106-
211	RUBBER; CUSHION,S/ABS EXC. FULL FLOATING CAB(W16)	1-53366-128-0	02	1	0106-
212	SPRING; COIL EXC. FULL FLOATING CAB(W16)	1-09580-515-0	02	1	0106-
213	SEAT; SPR,S/ABS EXC. FULL FLOATING CAB(W16)	1-53366-132-1	02	1	0106-
220	GUIDE; SPR FULL FLOATING CAB(W16)	1-53458-648-1	02	1	0106-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	0106-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	0106-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	0106-
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	0106-
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-
240	WASHER; PL,BRKT (C) ID=12.5	9-09160-512-0	02	1	0106-
243	WASHER; LK,LATERAL ROD ID=12.2	9-09150-512-0	02	1	0106-
244	NUT; LATERAL ROD M12	9-99110-512-0	02	1	0106-
264	PANEL; BACK ANTI NOISE EQUIPMENT<SV9>	1-53193-618-1	01	1	0106-
274	PIN	1-53458-996-0	01	1	0106-
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	0106-
279	BOLT ANTI NOISE EQUIPMENT<SV9> (G) M8X25 FLANGE	0-28680-825-0	03	1	0106-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	0106-
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	0106-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	07	1	0106-
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0106-
279	BOLT 6WF1 TC-C(1B8) FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28680-820-0	02	1	0106-
279	BOLT FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28680-820-0	02	1	0106-
287	NUT ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	01	1	0106-
288	WASHER; PL ANTI NOISE EQUIPMENT<SV9> ID=8.4 OD=26	9-09164-808-0	04	1	0106-
289	GROMMET ANTI NOISE EQUIPMENT<SV9> OD=40 T=4.8	9-09576-198-0	01	1	0106-
290	RUBBER; MTG ANTI NOISE EQUIPMENT<SV9>	1-53459-702-1	04	1	0106-
291	BOLT; RATCH M10X25 FLANGE	0-28681-025-0	04	1	0106-
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-828-2	01	1	0106-0311
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-949-1	01	1	0312-
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-831-2	01	1	0106-0311
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-950-2	01	1	0312-
295	BOLT; STOPPER,UPR M10X20 FLANGE	0-28681-020-0	02	1	0106-
296	STOPPER; UPR	1-53458-973-0	01	1	0106-
297	BRACKET; LIMIT SW	1-53458-782-0	01	1	0106-
298	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0106-
299	RUBBER; MTG (B)	1-53366-155-0	02	1	0106-
299	RUBBER; MTG (A)	1-53366-156-0	02	1	0106-
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) (B) M8X16 FLANGE	0-28080-816-0	04	1	0106-
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) (A) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	0106-
300	BOLT; MTG RUBBER EXC. FULL FLOATING CAB(W16) (A),(B) M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	0106-
301	PIN; LATERAL ROD M12X57.5	1-53459-498-1	02	1	0106-
309	NUT M10 FLANGE	0-91150-210-0	04	1	0106-
321	SHIM; FRT CAB MTG	1-53458-629-1	04	1	0106-
325	BOLT; GUIDE NUT FULL FLOATING CAB(W16) M8X20 FLANGE	0-28680-820-0	02	1	0106-
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-1	02	1	0106-
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-1	02	1	0106-
447	SEAL ANTI NOISE EQUIPMENT<SV9> (B) OD=45 BLACK	1-76798-017-0	02	1	0401-
447	SEAL (A) OD=25 BLACK	1-76798-019-0	02	1	0106-0312
447	SEAL (A) OD=25 BLACK	1-76798-019-0	03	1	0401-
449	BRACKET; OUTRIGGER SILENCER SINGLE VERTICAL<N28>	1-53456-279-0	02	1	0106-0106
449	BRACKET; OUTRIGGER	1-53456-279-0	02	1	0107-
449	BRACKET; OUTRIGGER EXC. SILENCER SINGLE VERTICAL<N28>	1-53456-279-0	01	1	0106-0106
515	FINISHER; BACK PANEL ANTI NOISE EQUIPMENT<SV9> L=300	1-76710-006-0	01	1	0106-
515	FINISHER; BACK PANEL ANTI NOISE EQUIPMENT<SV9> L=150	1-76710-004-0	01	1	0106-

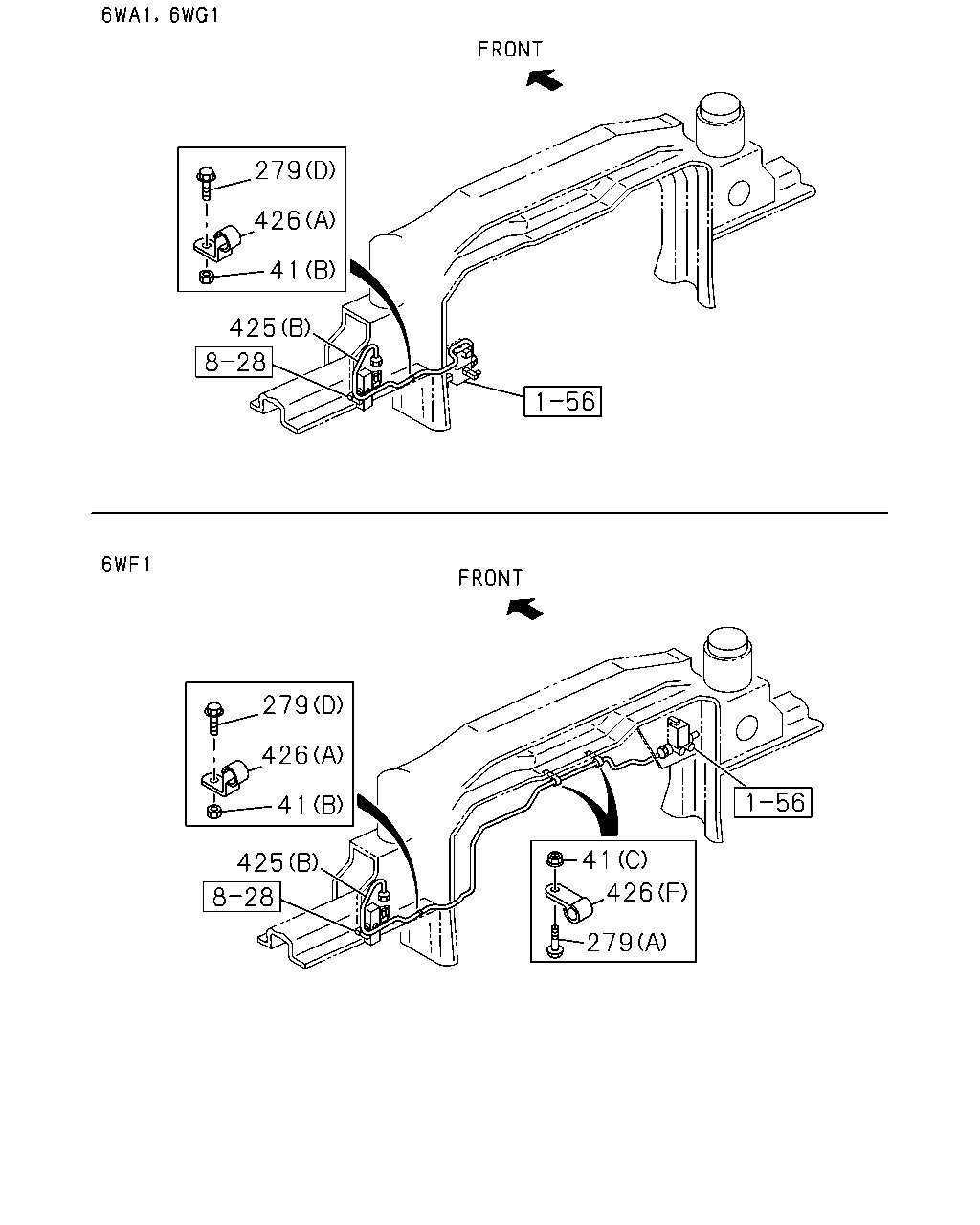

279 426 41 425 279 426 41 41 425 426 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	NUT FULL FLOATING CAB(W16) (B) M8 FLANGE	0-91150-108-0	01	1	0106-
41	NUT FULL FLOATING CAB(W16) (A) M12 FLANGE	0-91150-212-0	01	1	0106-
41	NUT 6WF1 TC-C(1B8) FULL FLOATING CAB(W16) (C) M8 FLANGE	0-91150-208-0	02	1	0106-
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	0106-
279	BOLT ANTI NOISE EQUIPMENT<SV9> (G) M8X25 FLANGE	0-28680-825-0	03	1	0106-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	0106-
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	0106-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	07	1	0106-
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0106-
279	BOLT 6WF1 TC-C(1B8) FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28680-820-0	02	1	0106-
279	BOLT FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28680-820-0	02	1	0106-
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (C) L=1376	1-49119-625-0	01	1	0106-
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (A) L=357	1-49121-862-0	01	1	0106-
425	PIPE ASM; AIR 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) FULL FLOATING CAB(W16) (B) L=831	1-49121-297-0	01	1	0106-0112
425	PIPE ASM; AIR 6WA1 TC-C(55L),6WG1 TC-N(71L) FULL FLOATING CAB(W16) (B) L=831	1-49121-297-0	01	1	0201-0302
425	PIPE ASM; AIR 6WA1 TC-C(55L),6WG1 TC-N(71L) FULL FLOATING CAB(W16) (B) L=825	1-49124-057-0	01	1	0303-
425	PIPE ASM; AIR 6WF1 TC-C(1B8) FULL FLOATING CAB(W16) (B)	1-49122-929-0	01	1	0106-
426	CLIP ELECTRONIC GOV RED3(KG5) FULL FLOATING CAB(W16) (E) L=140	5-09707-031-1	01	1	0106-
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0106-
426	CLIP FULL FLOATING CAB(W16) (C) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0106-
426	CLIP FULL FLOATING CAB(W16) (D) ID=11 H=20 L=20	5-09700-351-0	02	1	0106-
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	0106-
426	CLIP 6WF1 TC-C(1B8) FULL FLOATING CAB(W16) (F) ID=7 L=20	9-09524-635-0	02	1	0106-

202 202 203 69 72 204 205 70 65 204 203

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-603-0	02	1	0106-
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	0106-
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X100	1-09980-547-0	08	1	0106-0301
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X105	1-79198-008-1	08	1	0302-
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-493-1	01	1	0106-
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-492-1	01	1	0106-
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	28	1	0106-
202	NUT; S/ABS (A) M10 FLANGE	0-91150-110-0	02	1	0106-
202	NUT; S/ABS (B) M10	9-09110-410-0	04	1	0106-
202	NUT; S/ABS (C) M10	9-09111-410-0	06	1	0106-
203	WASHER; RUBBER,SHOCK (B)	1-51631-005-0	10	1	0106-
203	WASHER; RUBBER,SHOCK (A)	1-51631-104-0	02	1	0106-
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	0106-
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	0106-

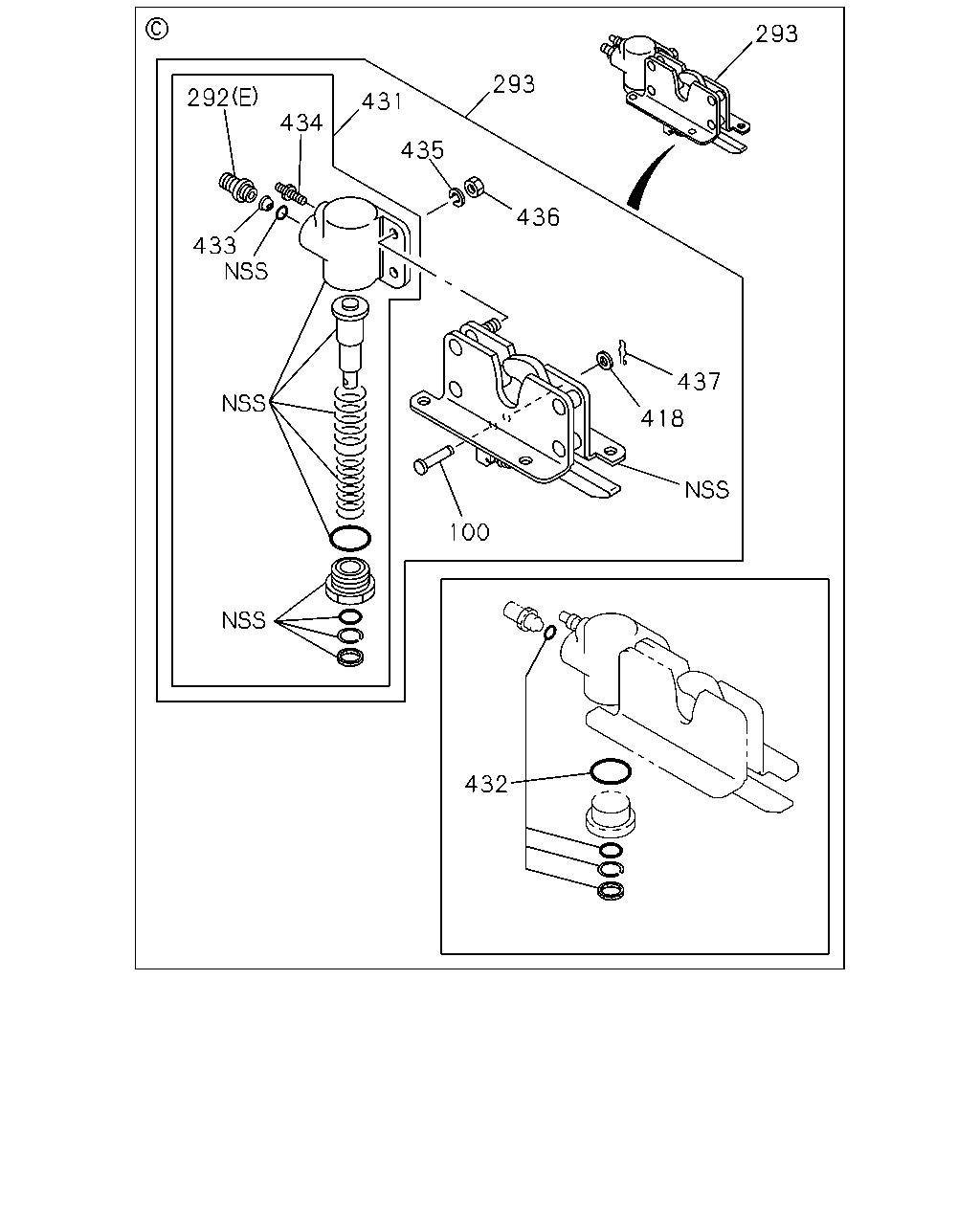

293 293 292 431 434 435 436 433 437 418 100 432

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	PIN; JOINT	1-53458-831-0	01	1	0106-
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	0106-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0106-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	0106-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0106-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	0106-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (F) PT1/8 ELBOW	8-94338-418-1	01	1	0106-
293	RATCH; CAB SUSP,RR	1-53458-918-0	01	1	0106-
418	WASHER; PL,PIN	1-53458-059-0	01	1	0106-
431	CYLINDER; AIR,RATCH	1-53457-013-0	01	1	0106-
432	REPAIR KIT; AIR CYL	1-85579-052-0	01	1	0106-
433	FILTER; AIR CYL	1-53458-048-0	01	1	0106-
434	SCREW; AIR BLEEDER	1-53458-529-0	01	1	0106-
435	WASHER; LK,AIR CYL ID=10.2	9-09150-510-0	02	1	0106-
436	NUT; AIR CYL	1-53458-528-0	02	1	0106-
437	PIN; SNAP	1-53458-526-0	01	1	0106-

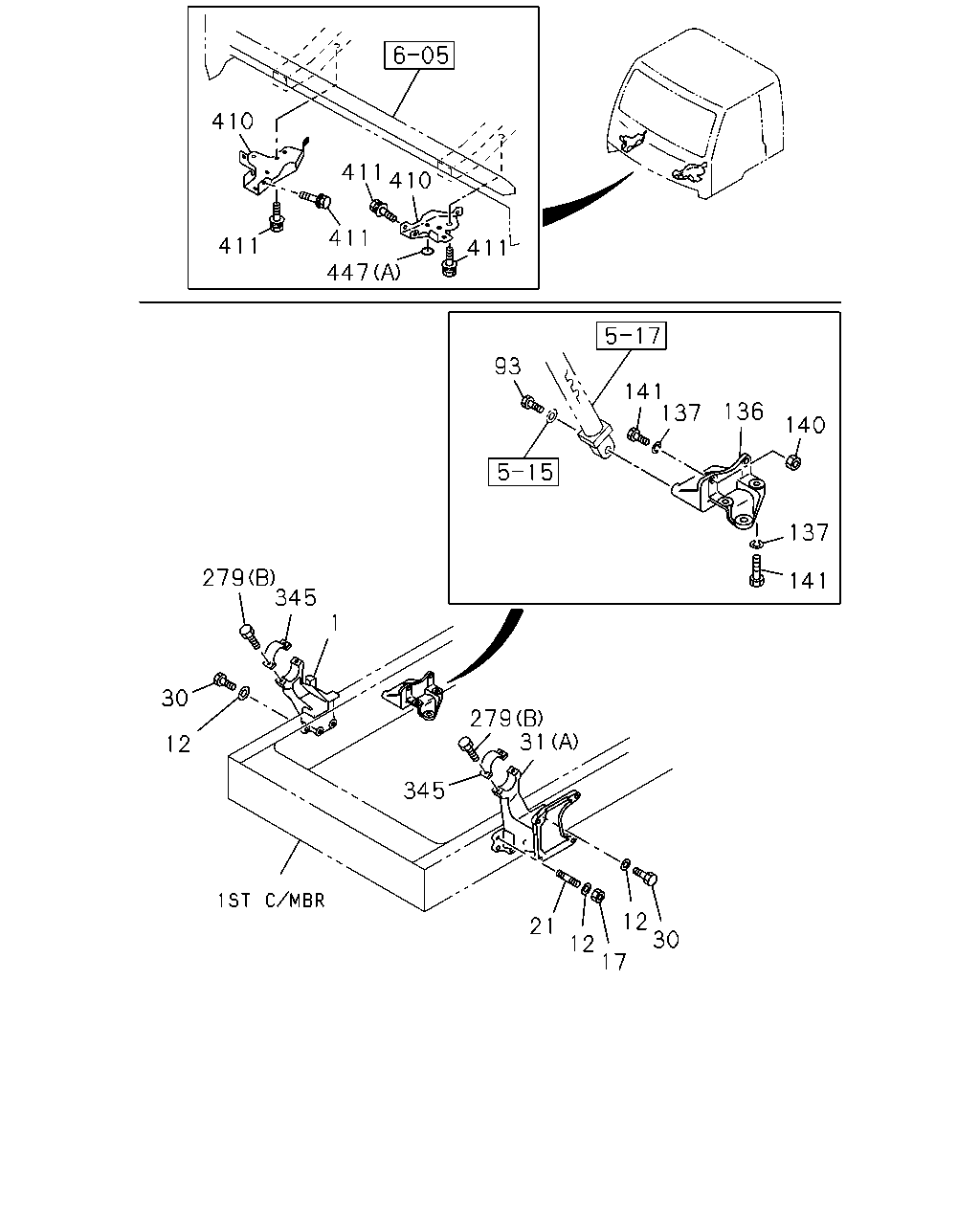

410 411 410 411 411 411 447 93 141 137 136 140 137 279 345 141 1 30 279 31 12 345 12 30 21 12 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG	1-53453-306-1	01	1	0106-
12	WASHER; LK,BRKT ID=16.2	1-09503-223-0	11	1	0106-
17	NUT; BRKT,CAB TILT M16	9-99110-516-0	01	1	0106-
21	STUD; BRKT,CAB TILT M16X50 L=74	1-09300-117-0	01	1	0106-
30	BOLT; CAB FRT FOOT M16X50	9-92061-650-0	05	1	0411-
30	BOLT; CAB FRT FOOT M16X45	9-92061-645-0	10	1	0106-0410
30	BOLT; CAB FRT FOOT M16X45	9-92061-645-0	05	1	0411-
31	BRACKET; CAB (A)	1-44226-156-0	01	1	0106-
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-673-1	01	1	0106-
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	0106-0207
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-102-0	01	1	0208-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	0106-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-281-1	01	1	0106-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-274-1	01	1	0106-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-280-1	01	1	0106-
93	BOLT; PIN M10X30	1-09000-283-0	01	1	0106-
136	BRACKET; OIL CYL	1-53458-903-0	01	1	0106-
137	WASHER; PL,BRKT ID=15	9-09651-069-0	04	1	0106-
140	NUT; BRKT M14	9-99110-514-0	02	1	0106-
141	BOLT; BRKT M14X50	9-92061-450-0	04	1	0106-
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	0106-
279	BOLT ANTI NOISE EQUIPMENT<SV9> (G) M8X25 FLANGE	0-28680-825-0	03	1	0106-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	0106-
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	0106-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	07	1	0106-
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0106-
279	BOLT 6WF1 TC-C(1B8) FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28680-820-0	02	1	0106-
279	BOLT FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28680-820-0	02	1	0106-
345	CAP; CAB	1-53458-336-3	02	1	0106-
410	REINFORCEMENT; CAB TILT	1-62570-864-0	01	1	0106-
410	REINFORCEMENT; CAB TILT	1-62570-939-0	01	1	0106-
411	BOLT; REINFORCEMENT M8X24.5 W/LK&PL WASHER	8-94279-208-0	06	1	0106-
411	BOLT; REINFORCEMENT M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0106-0312
411	BOLT; REINFORCEMENT M10X20 W/LK&PL WASHER	8-94279-211-0	01	1	0401-
447	SEAL ANTI NOISE EQUIPMENT<SV9> (B) OD=45 BLACK	1-76798-017-0	02	1	0401-
447	SEAL (A) OD=25 BLACK	1-76798-019-0	02	1	0106-0312
447	SEAL (A) OD=25 BLACK	1-76798-019-0	03	1	0401-

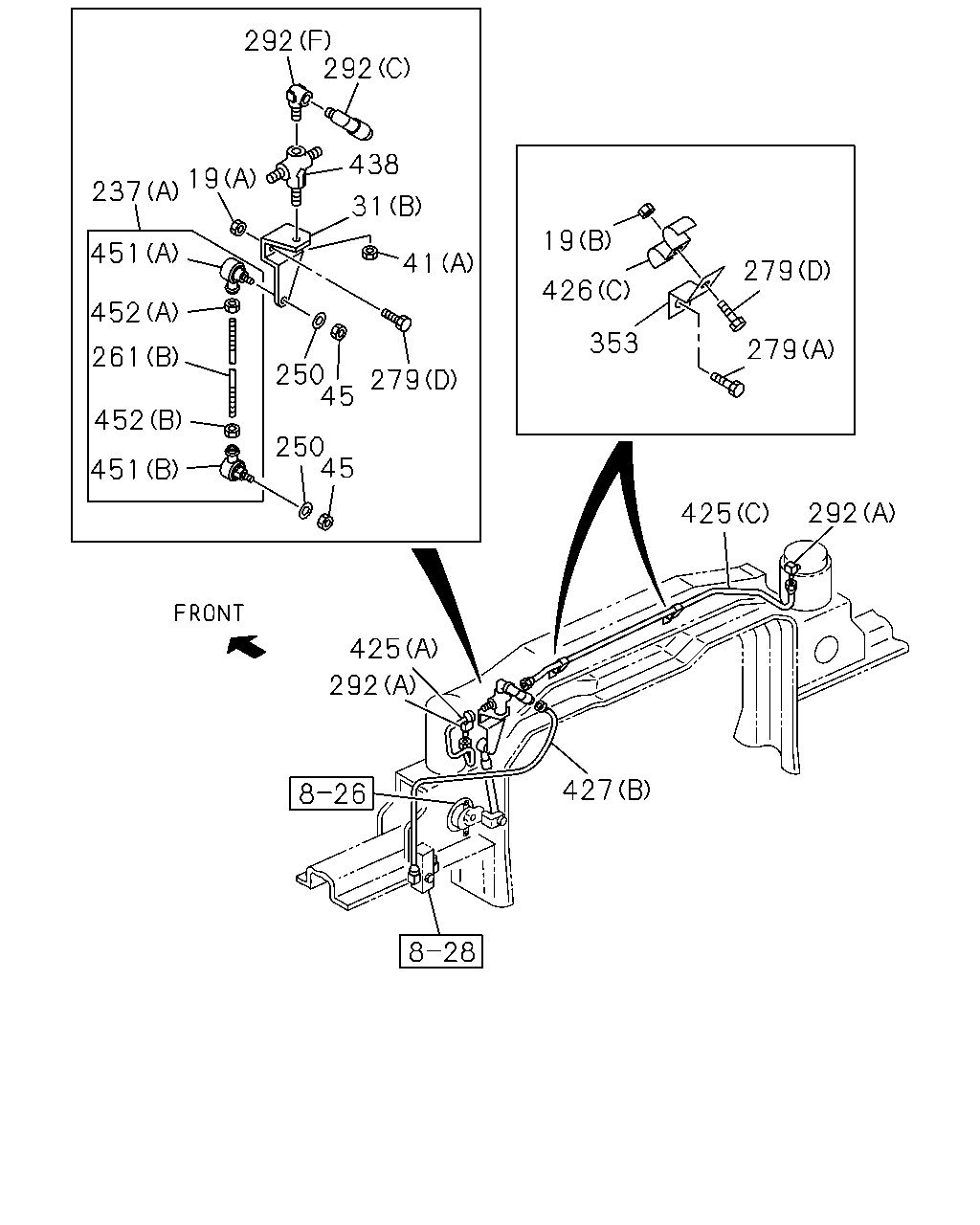

292 292 438 19 237 31 19 451 41 279 426 452 353 279 261 250 45 279 452 250 45 451 292 425 425 292 427

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	NUT FULL FLOATING CAB(W16) (A) M8 FLANGE	0-91150-108-0	02	1	0106-
19	NUT FULL FLOATING CAB(W16) (B) M8	9-09110-508-0	02	1	0106-
31	BRACKET; CAB (A)	1-44226-156-0	01	1	0106-
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-673-1	01	1	0106-
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	0106-0207
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-102-0	01	1	0208-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	0106-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-281-1	01	1	0106-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-274-1	01	1	0106-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-280-1	01	1	0106-
41	NUT FULL FLOATING CAB(W16) (B) M8 FLANGE	0-91150-108-0	01	1	0106-
41	NUT FULL FLOATING CAB(W16) (A) M12 FLANGE	0-91150-212-0	01	1	0106-
41	NUT 6WF1 TC-C(1B8) FULL FLOATING CAB(W16) (C) M8 FLANGE	0-91150-208-0	02	1	0106-
45	NUT FULL FLOATING CAB(W16) M5	9-99110-405-0	04	1	0106-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	0106-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	0106-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	0106-
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	9-09150-505-0	04	1	0106-
261	ROD; LINK FULL FLOATING CAB(W16) (A)	9-08410-507-0	01	1	0106-
261	ROD; LINK FULL FLOATING CAB(W16) (B)	9-08410-514-0	01	1	0106-
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	0106-
279	BOLT ANTI NOISE EQUIPMENT<SV9> (G) M8X25 FLANGE	0-28680-825-0	03	1	0106-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	0106-
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	0106-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	07	1	0106-
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0106-
279	BOLT 6WF1 TC-C(1B8) FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28680-820-0	02	1	0106-
279	BOLT FULL FLOATING CAB(W16) (A) M8X20 FLANGE	0-28680-820-0	02	1	0106-
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	0106-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0106-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	0106-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0106-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	0106-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (F) PT1/8 ELBOW	8-94338-418-1	01	1	0106-
353	BRACKET FULL FLOATING CAB(W16)	1-47478-232-0	02	1	0106-
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (C) L=1376	1-49119-625-0	01	1	0106-
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (A) L=357	1-49121-862-0	01	1	0106-
425	PIPE ASM; AIR 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) FULL FLOATING CAB(W16) (B) L=831	1-49121-297-0	01	1	0106-0112
425	PIPE ASM; AIR 6WA1 TC-C(55L),6WG1 TC-N(71L) FULL FLOATING CAB(W16) (B) L=831	1-49121-297-0	01	1	0201-0302
425	PIPE ASM; AIR 6WA1 TC-C(55L),6WG1 TC-N(71L) FULL FLOATING CAB(W16) (B) L=825	1-49124-057-0	01	1	0303-
425	PIPE ASM; AIR 6WF1 TC-C(1B8) FULL FLOATING CAB(W16) (B)	1-49122-929-0	01	1	0106-
426	CLIP ELECTRONIC GOV RED3(KG5) FULL FLOATING CAB(W16) (E) L=140	5-09707-031-1	01	1	0106-
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0106-
426	CLIP FULL FLOATING CAB(W16) (C) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0106-
426	CLIP FULL FLOATING CAB(W16) (D) ID=11 H=20 L=20	5-09700-351-0	02	1	0106-
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	0106-
426	CLIP 6WF1 TC-C(1B8) FULL FLOATING CAB(W16) (F) ID=7 L=20	9-09524-635-0	02	1	0106-
427	TUBE FULL FLOATING CAB(W16) (A) L=1300 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0106-
427	TUBE FULL FLOATING CAB(W16) (B) L=440 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0106-
438	UNION FULL FLOATING CAB(W16) M12X2 & PT1/8 3WAY	1-09656-655-0	01	1	0106-
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-103-1	02	1	0106-
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-104-1	02	1	0106-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	02	1	0106-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	9-99110-405-0	02	1	0106-

202 202 203 204 205 294 204 203 201 173 203 204 205 66 174 205 204 203 202 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
66	BRACKET; S/ABS	1-53458-755-1	01	1	0106-
66	BRACKET; S/ABS	1-53458-786-0	01	1	0106-
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16)	1-53450-634-2	01	1	0106-
173	MEMBER; CAB MTG RR EXC. FULL FLOATING CAB(W16)	1-53450-637-2	01	1	0106-0406
173	MEMBER; CAB MTG RR EXC. FULL FLOATING CAB(W16)	1-53450-669-0	01	1	0407-
174	OUTRIGGER	1-53456-277-3	01	1	0106-
174	OUTRIGGER	1-53456-278-3	01	1	0106-
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-607-0	02	1	0106-
202	NUT; S/ABS (A) M10 FLANGE	0-91150-110-0	02	1	0106-
202	NUT; S/ABS (B) M10	9-09110-410-0	04	1	0106-
202	NUT; S/ABS (C) M10	9-09111-410-0	06	1	0106-
203	WASHER; RUBBER,SHOCK (B)	1-51631-005-0	10	1	0106-
203	WASHER; RUBBER,SHOCK (A)	1-51631-104-0	02	1	0106-
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	0106-
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	0106-
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-828-2	01	1	0106-0311
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-949-1	01	1	0312-
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-831-2	01	1	0106-0311
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-950-2	01	1	0312-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
