7-40 — INSTRUMENT PANEL AND BOX (#111443) — 131 parça

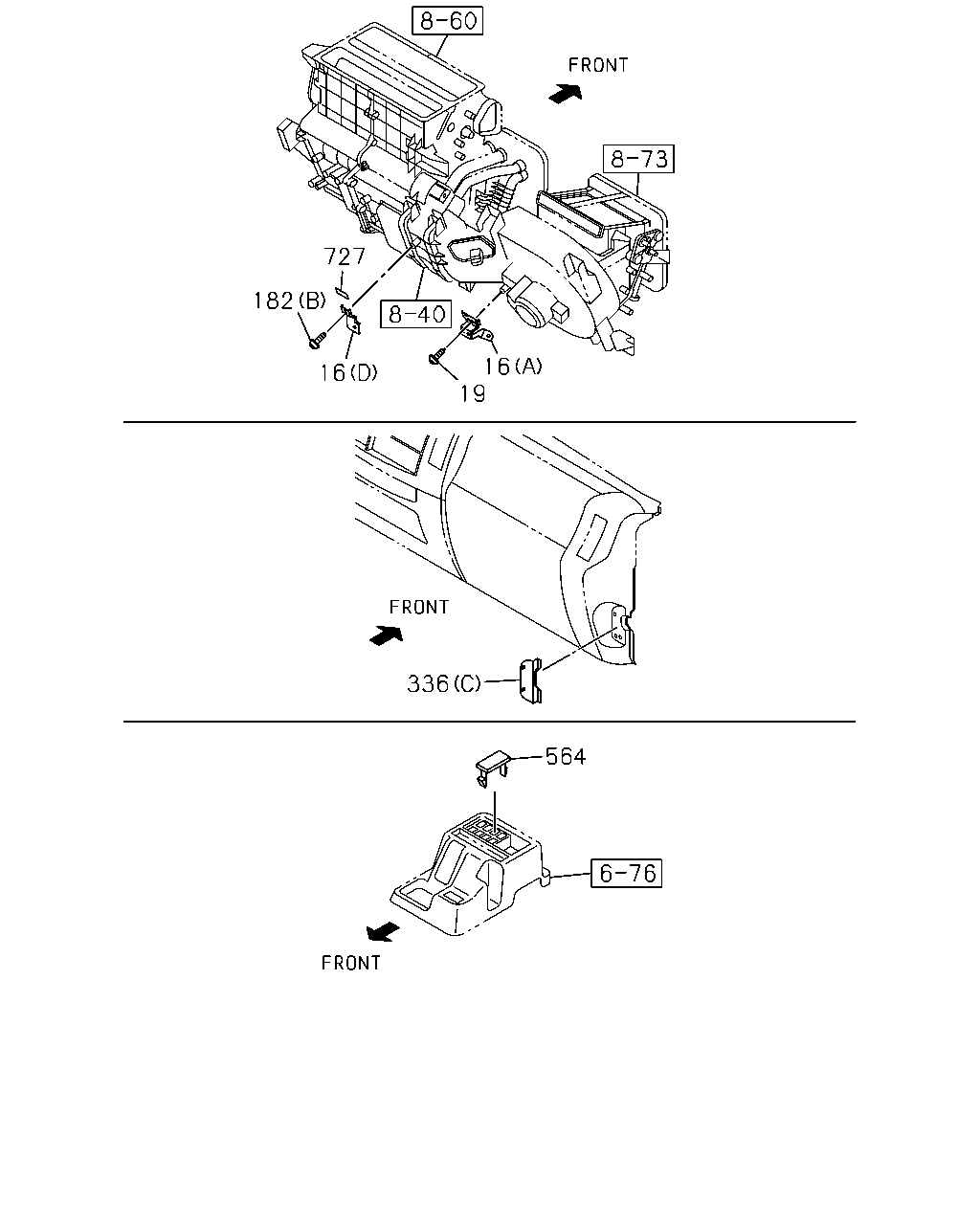

çizim 322625
727 182 16 19 336 564 16
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 1212-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1212-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1212-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97585-612-2 01 1 1212-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-98017-529-1 01 1 1212-
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1212-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1212-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1212-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1212-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1212-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 1212-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 1212-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 1212-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1212-
564 COVER; SW 8-97043-732-1 06 1 1212-
727 SEAL; BRACKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98186-934-0 01 1 1212-

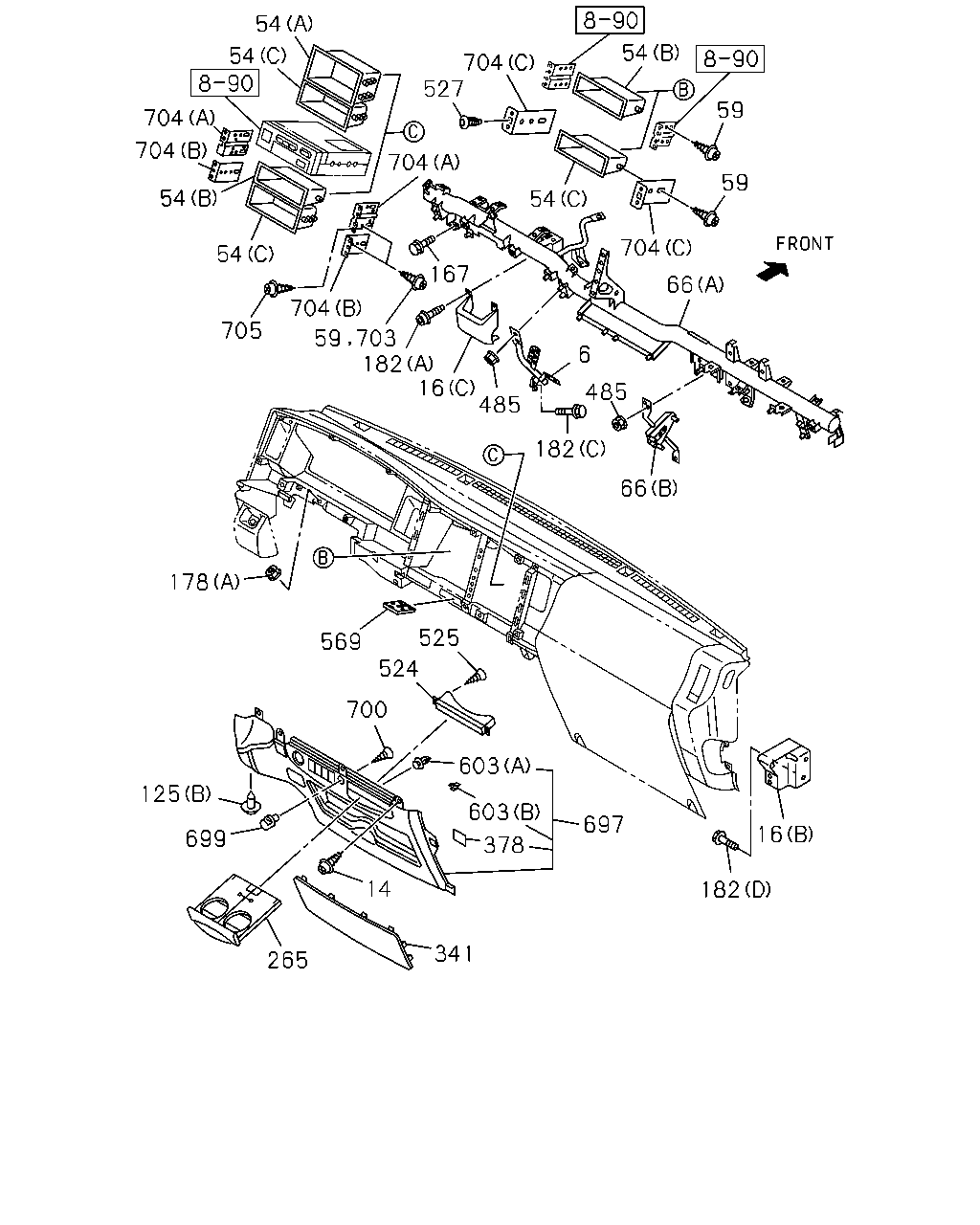

çizim 322638
54 54 704 704 54 54 704 705 59 703 182 16 485 182 66 485 6 167 704 527 704 54 9 59 54 704 66 16 182 697 603 378 603 700 524 525 569 178 125 699 265 14 341
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 8-98064-936-1 01 1 1212-
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1212-
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 1212-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1212-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1212-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97585-612-2 01 1 1212-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-98017-529-1 01 1 1212-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1212-
54 POCKET; CENTER CLUSTER
TACHOGRAPH 140KM/H<WC7> (B) H=58.4 BLACK 		8-97408-864-3 01 1 1212-
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1212-
54 POCKET; CENTER CLUSTER
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (C) H=69.8 BLACK 		8-97408-865-3 01 1 1212-
54 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH 140KM/H<WC7> (A) H=108.4 BLACK 		8-97407-129-3 01 1 1212-
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1212-
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1212-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1212-
59 SCREW; CLUSTER POCKET
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1212-
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-581-1 01 1 1212-
66 REINFORCEMENT; INST PANEL
(A) 		8-98069-419-7 01 1 1212-1406
66 REINFORCEMENT; INST PANEL
(A) 		8-98240-611-0 01 1 1407-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1212-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1212-1504
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1505-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1505-
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 1212-
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1212-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1212-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1212-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1212-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1212-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1212-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1212-
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1212-
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1212-
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1212-
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1212-
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1212-
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1212-
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) DARK GRAY 		8-97098-326-0 01 1 1212-
569 HOLDER; CARD 8-97410-276-1 01 1 1212-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1212-
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 1212-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1212-
697 PANEL; INST CENTER
GRAY 		8-97422-208-1 01 1 1212-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1212-
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1212-
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1212-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1212-
704 BRACKET; CENTER POCKET
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (B) 		8-97585-616-2 02 1 1212-
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (C) 		8-98107-549-0 02 1 1212-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1212-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1212-
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1212-

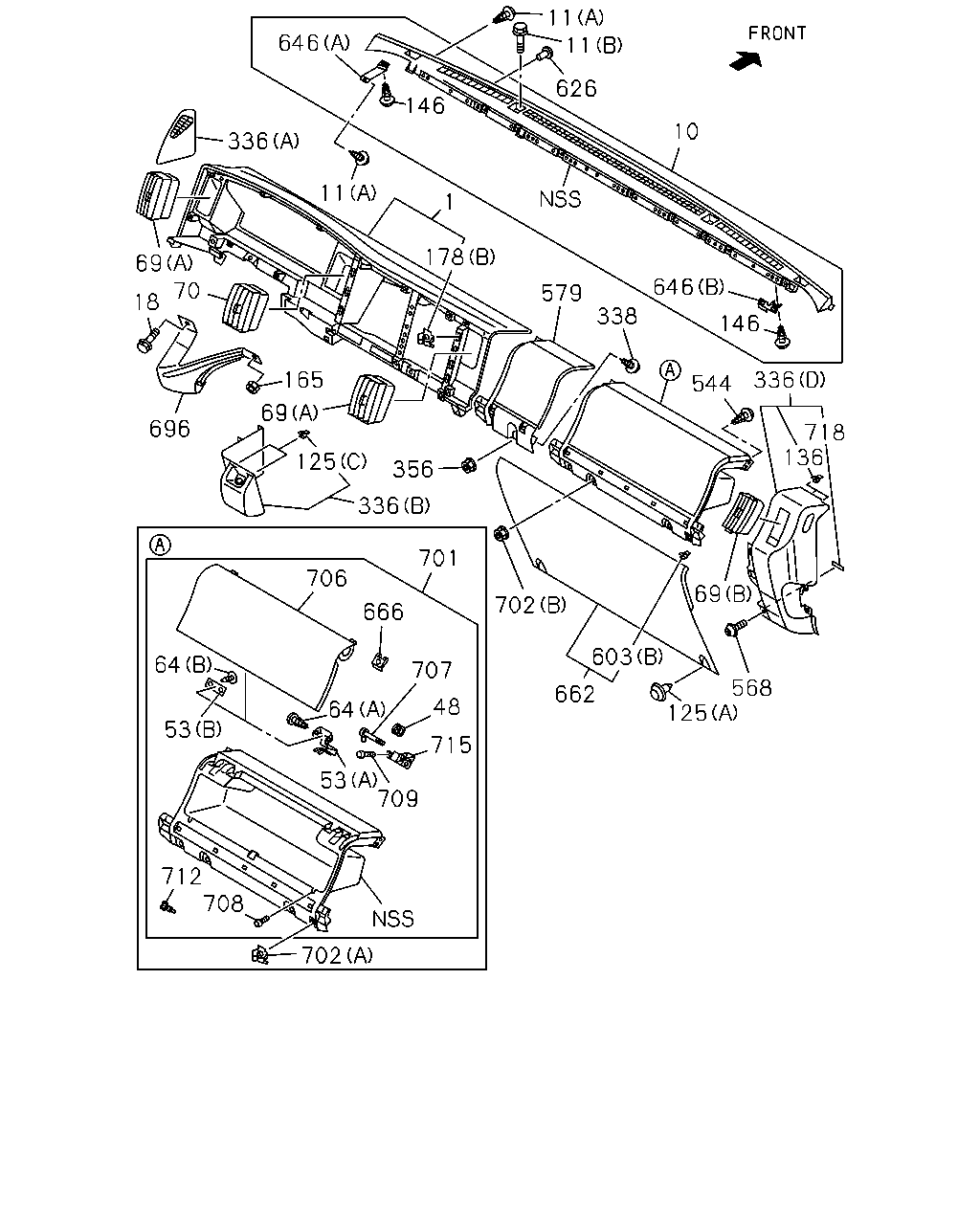

çizim 322639
646 146 1 336 11 178 579 646 338 10 626 11 11 544 146 336 718 136 69 568 125 603 662 702 701 336 356 706 666 707 48 715 64 53 709 712 708 702 696 125 69 165 18 70 69 64 53
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97409-777-3 01 1 1212-
10 PANEL ASM; GARNISH
GRAY 		8-97422-098-1 01 1 1212-
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1212-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1212-
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1212-
48 SPRING; GLOVE BOX LID 8-98034-986-0 01 1 1212-1311
48 SPRING; GLOVE BOX LID 8-97926-410-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID 8-98270-763-0 01 1 1406-
48 SPRING; GLOVE BOX LID 8-98034-987-0 01 1 1212-1311
48 SPRING; GLOVE BOX LID 8-97926-411-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID 8-98270-764-0 01 1 1406-
53 STRIKER; GLOVE BOX
(A) 		8-98108-913-0 01 1 1212-1405
53 STRIKER; GLOVE BOX
(B) 		8-98270-765-0 01 1 1406-
64 SCREW; STRIKER
(A) 		8-98108-915-0 01 1 1212-1405
64 SCREW; STRIKER
(B) M4X85 		8-97926-404-0 02 1 1406-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1212-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-563-2 02 1 1212-
70 GRILLE; CENTER,AIR OUTLET 8-98028-561-2 01 1 1212-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1212-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1212-1504
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1505-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1505-
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 1212-
136 CLIP; INST COVER 8-98076-254-0 02 1 1212-
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1212-
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1212-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1212-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1212-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 1212-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 1212-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 1212-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1212-
338 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1212-
356 NUT; COVER
M6 FLANGE 		0-91180-106-0 01 1 1212-
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1212-
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1212-
579 COVER; INST PNL
GRAY 		8-97411-560-2 01 1 1212-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1212-
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 1212-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1212-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1212-
646 BRACKET; GARNISH PANEL
(A) 		8-98066-952-1 01 1 1212-
646 BRACKET; GARNISH PANEL
(B) 		8-98066-953-1 01 1 1212-
662 COVER; LWR,INST PANEL
GRAY 		8-97407-429-3 01 1 1212-
666 INSERT; INST PANEL 8-98038-450-0 04 1 1212-1311
666 INSERT; INST PANEL
M5 		8-97926-400-0 04 1 1312-
696 BRACKET; KNEE 8-98098-126-1 01 1 1212-
701 TRAY; INST
GRAY 		8-97415-540-6 01 1 1212-1405
701 TRAY; INST
GRAY 		8-97429-703-1 01 1 1406-
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 1212-
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1212-
706 LID; TRAY INST
GRAY 		8-97415-541-0 01 1 1212-1405
706 LID; TRAY INST
GRAY 		8-97429-992-0 01 1 1406-
707 SHAFT; TRAY INST LID 8-98035-730-1 02 1 1212-1311
707 SHAFT; TRAY INST LID 8-97926-393-0 02 1 1312-
708 STOPPER; TRAY INST LID 8-98010-867-1 02 1 1212-
709 SCREW; TRAY INST
M5X16 TAPPING 		0-71040-516-0 04 1 1212-
712 LOCK; TRAY INST LID 8-98031-846-0 01 1 1212-
715 SUPPORT; TRAY,HINGE 8-98034-928-0 01 1 1212-1311
715 SUPPORT; TRAY,HINGE 8-97926-396-0 01 1 1312-
715 SUPPORT; TRAY,HINGE 8-98034-929-0 01 1 1212-1311
715 SUPPORT; TRAY,HINGE 8-97926-397-0 01 1 1312-
718 SEAL; COVER
4X35 		8-98185-153-0 01 1 1212-
