51238 - NPR LHD EURO5 BUS CHASSIS
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-30 - LOCK CYLINDER SET
▶

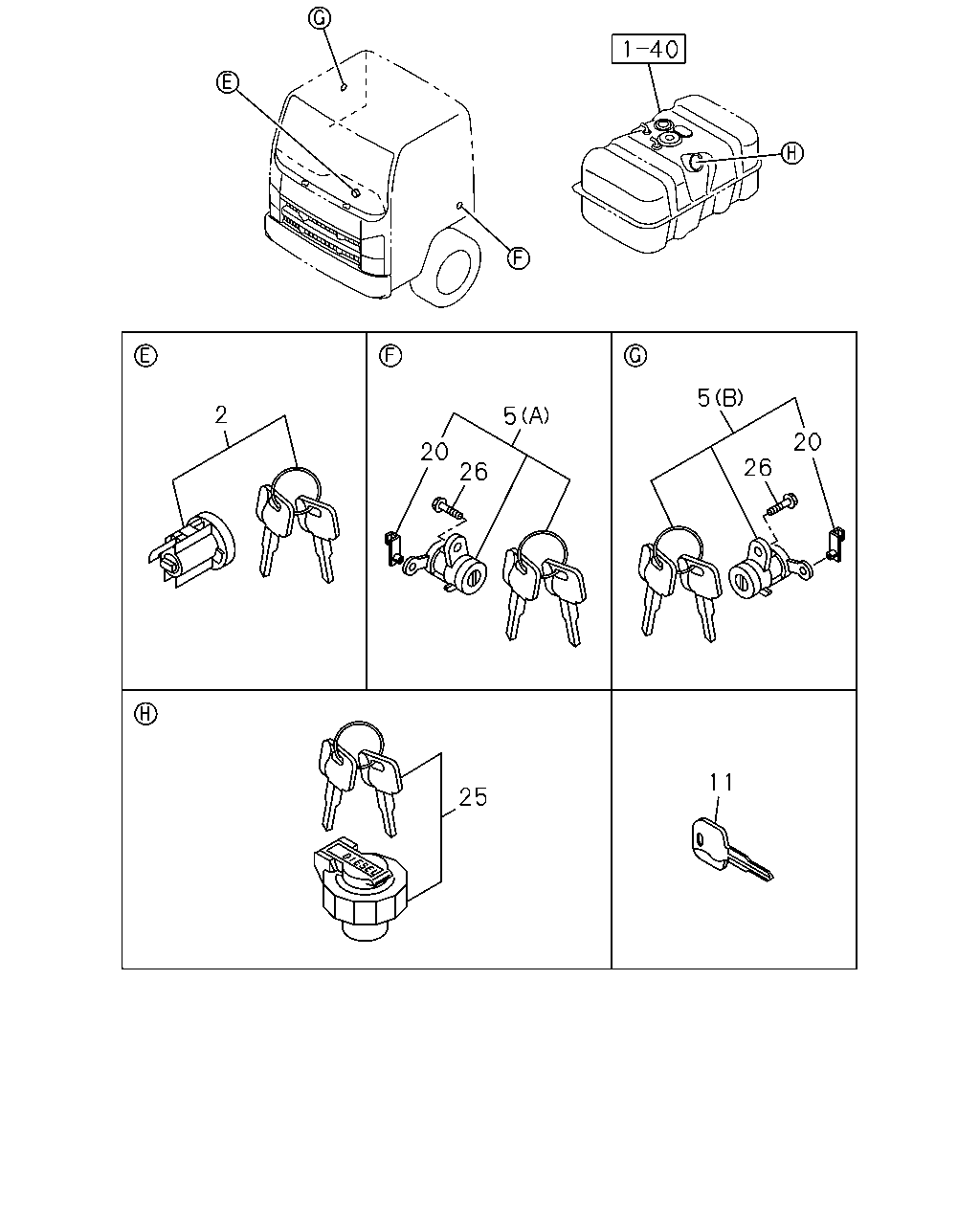

7-30 — LOCK CYLINDER SET
(#111441) — 12 parça
◀
[730A] NO.1 (4 parça)
[730A] NO.2 (8 parça)
▶
1
20
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05>
8-98201-216-0
01
1
1212-
1
02.188 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05>
8-98201-161-0
01
1
1212-
20
16.328 SNAP; DOOR LOCK CYL
8-98055-181-0
01
1
1212-
20
16.328 SNAP; DOOR LOCK CYL
8-98055-182-0
01
1
1212-
2
25
11
20
26
5
5
26
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
02.188 BARREL ASM; W/KEY,STRG LOCK
8-98201-342-0
01
1
1212-
5
16.328 CYLINDER ASM; DOOR LOCK
(B)
8-98055-149-0
01
1
1212-
5
16.328 CYLINDER ASM; DOOR LOCK
(A)
8-98055-150-0
01
1
1212-
11
02.187 KEY; BLANK
8-98055-170-0
AR
1
1212-
20
16.328 SNAP; DOOR LOCK CYL
8-98055-181-0
01
1
1212-
20
16.328 SNAP; DOOR LOCK CYL
8-98055-182-0
01
1
1212-
25
03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05>
8-98146-010-0
01
1
1212-
26
16.328 BOLT; KEY CYL,DOOR
M6X8 FLANGE
8-98031-839-0
02
1
1212-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
