Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10872 - EXZ LHD FUEL TANK 400L/400L+400L
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶
5-01 — FRAME AND OTHER PARTS
(#11144) — 49 parça
◀

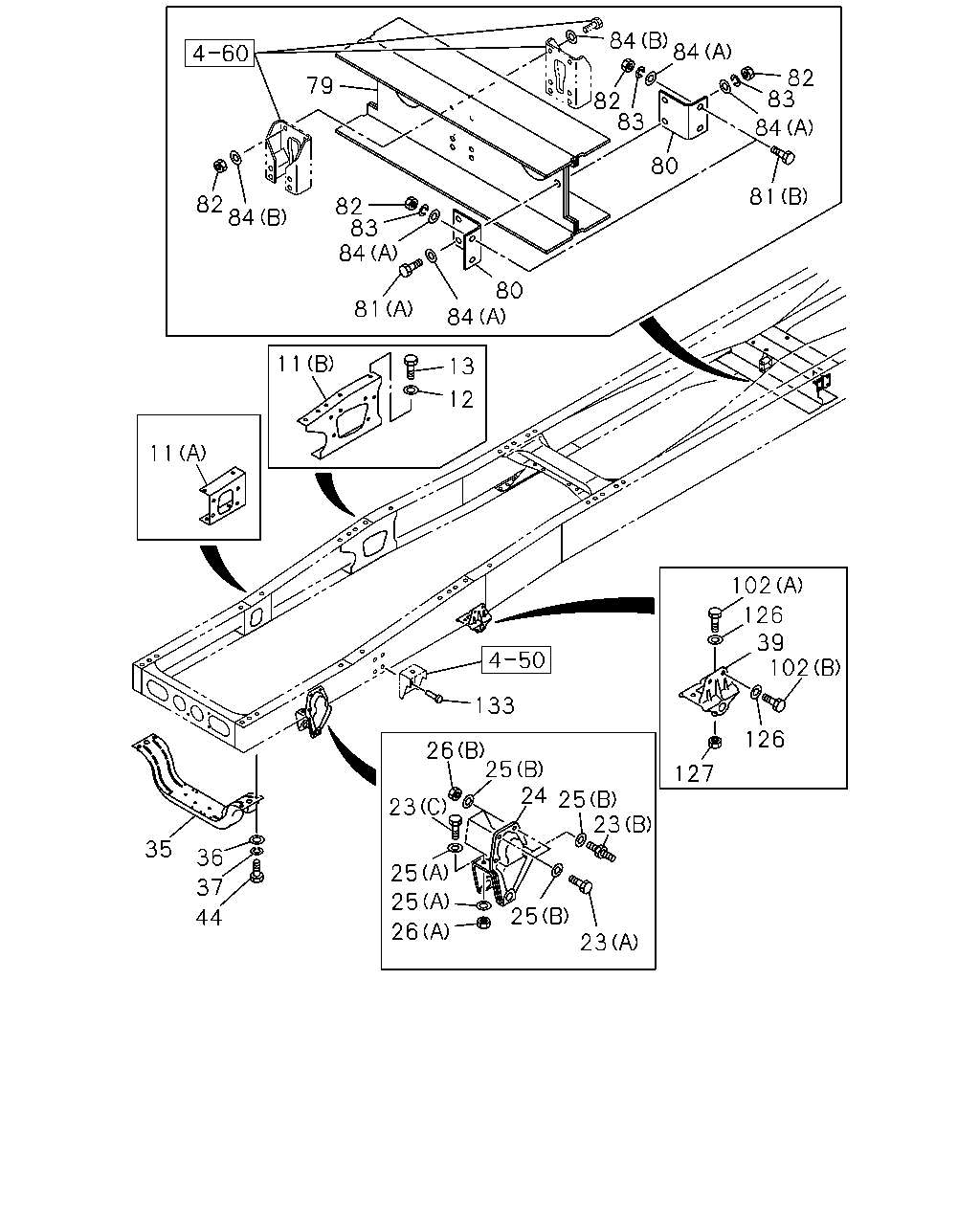

[501A] BRACKET AND UNDER MEMBER (35 parça)

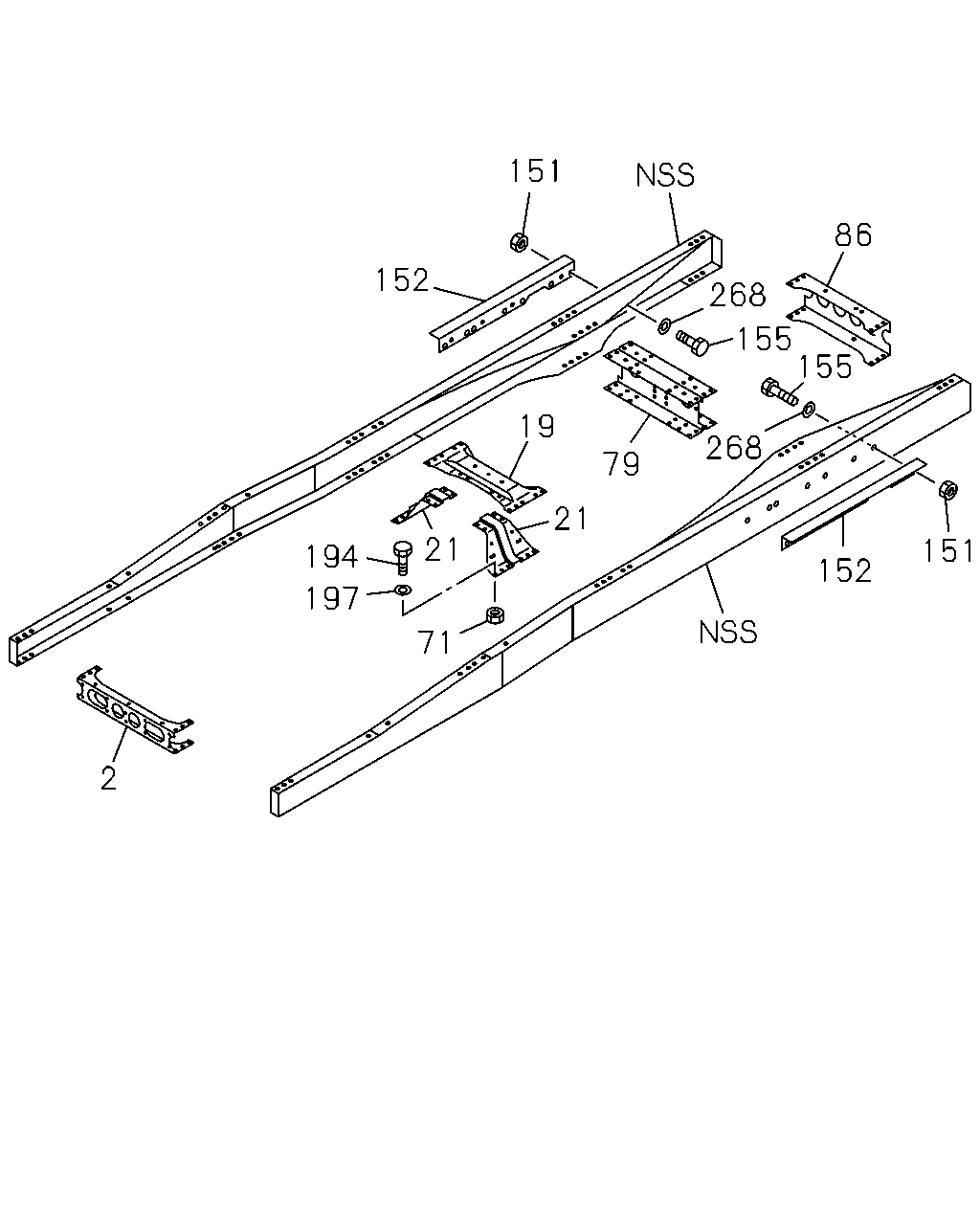

[501A] CROSS MEMBER AND OUTRIGGER (14 parça)
▶
84
84
82
83
79
82
83
84
80
81
82
84
82
83
84
80
81
84
11
13
12
11
102
126
39
102
133
126
26
25
24
127
25
23
23
35
36
25
37
25
25
44
26
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
(A)
1-53219-778-1
01
1
0106-
11
BRACKET; ENG MTG
(B)
1-53219-942-1
01
1
0106-
11
BRACKET; ENG MTG
(A)
1-53219-777-1
01
1
0106-
11
BRACKET; ENG MTG
(B)
1-53219-941-0
01
1
0106-
12
WASHER; PL,BRKT,ENG MTG
ID=15
9-09651-069-0
AR
1
0106-
13
BOLT; BRKT,ENG MTG
M14X40
9-92061-440-0
AR
1
0106-
23
BOLT; BRKT,SPR
(B) M12X35,M14X45 L=100
1-09029-075-0
AR
1
0106-
23
BOLT; BRKT,SPR
(A) M14X40
9-92061-440-0
AR
1
0106-
23
BOLT; BRKT,SPR
(C) M16X50
9-92061-650-0
AR
1
0106-
24
BRACKET; FRT SPR,FRT
1-53351-220-0
01
1
0106-
24
BRACKET; FRT SPR,FRT
1-53351-219-0
01
1
0106-
25
WASHER; PL,BRKT
(A) ID=16.2
1-09503-223-0
AR
1
0106-
25
WASHER; PL,BRKT
(B) ID=15
9-09651-069-0
AR
1
0106-
26
NUT; BRKT,SPR
(B) M14
9-99110-514-0
AR
1
0106-
26
NUT; BRKT,SPR
(A) M16
9-99110-516-0
AR
1
0106-
35
MEMBER; UNDER
1-53174-263-2
01
1
0106-
36
WASHER; PL,UNDER MBR
ID=17
9-09164-516-0
AR
1
0106-
37
WASHER; LK,UNDER MBR
ID=16.2
9-09150-816-0
AR
1
0106-
39
BRACKET; FRT SPR,RR
1-53352-147-0
01
1
0106-
39
BRACKET; FRT SPR,RR
1-53352-146-0
01
1
0106-
44
BOLT; UNDER MBR
M16X45
9-92061-645-0
AR
1
0106-
79
MEMBER; CROSS,TRUNNION ASM
1-53181-923-0
01
1
0106-
80
BRACKET; C/MBR
1-53167-610-0
04
1
0106-
81
BOLT; BRKT
(A) M14X55
9-91066-455-0
AR
1
0106-
81
BOLT; BRKT
(B) M14X38
9-92061-438-0
AR
1
0106-0312
81
BOLT; BRKT
(B) M14X40
9-92061-440-0
AR
1
0401-
82
NUT; BRKT
M14
9-99110-514-0
AR
1
0106-
83
WASHER; LK,BRKT
ID=14.2
9-09150-614-0
AR
1
0106-
84
WASHER; PL,BRKT
(A) ID=15 OD=26
9-09164-514-0
AR
1
0106-
84
WASHER; PL,BRKT
(B) ID=15
9-09651-069-0
AR
1
0106-
102
BOLT; BRKT,RR SPR
(B) M14X40
9-92061-440-0
AR
1
0106-
102
BOLT; BRKT,RR SPR
(A) M14X50
9-92061-450-0
AR
1
0106-
126
WASHER; PL,BRKT
ID=15
9-09651-069-0
AR
1
0106-
127
NUT; BRKT
M14
9-99110-514-0
AR
1
0106-
133
RIVET; BRKT
D13X36 PLATED TAPER END
9-06771-336-0
08
1
0106-
151
86
152
268
155
155
268
19
79
21
21
151
194
152
197
71
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
1-53181-526-4
01
1
0106-
19
MEMBER; CROSS,2ND
1-53174-231-1
01
1
0106-
21
GUSSET; 2ND CROSS
1-53164-227-0
01
1
0106-
21
GUSSET; 2ND CROSS
1-53164-226-0
01
1
0106-
71
NUT; 2ND C/MBR
M14
9-99110-514-0
AR
1
0106-
79
MEMBER; CROSS,TRUNNION ASM
1-53181-923-0
01
1
0106-
86
MEMBER; CROSS,RR SUSP RR
1-53171-651-5
01
1
0106-
151
NUT; OUTRIGGER
M16
9-99110-516-0
AR
1
0106-
152
OUTRIGGER
1-53456-356-0
01
1
0106-
152
OUTRIGGER
1-53456-355-0
01
1
0106-
155
BOLT; OUTRIGGER
M16X50
9-92061-650-0
AR
1
0106-
194
BOLT; 2ND C/MBR
M14X50
9-92061-450-0
AR
1
0106-
197
WASHER; PL,2ND C/MBR
ID=15
9-09651-069-0
AR
1
0106-
268
WASHER; PL,OUTRIGGER
ID=17 OD=30
9-09851-935-0
AR
1
0106-
