◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11499 - FYH(AUST)EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#111436) — 19 parça

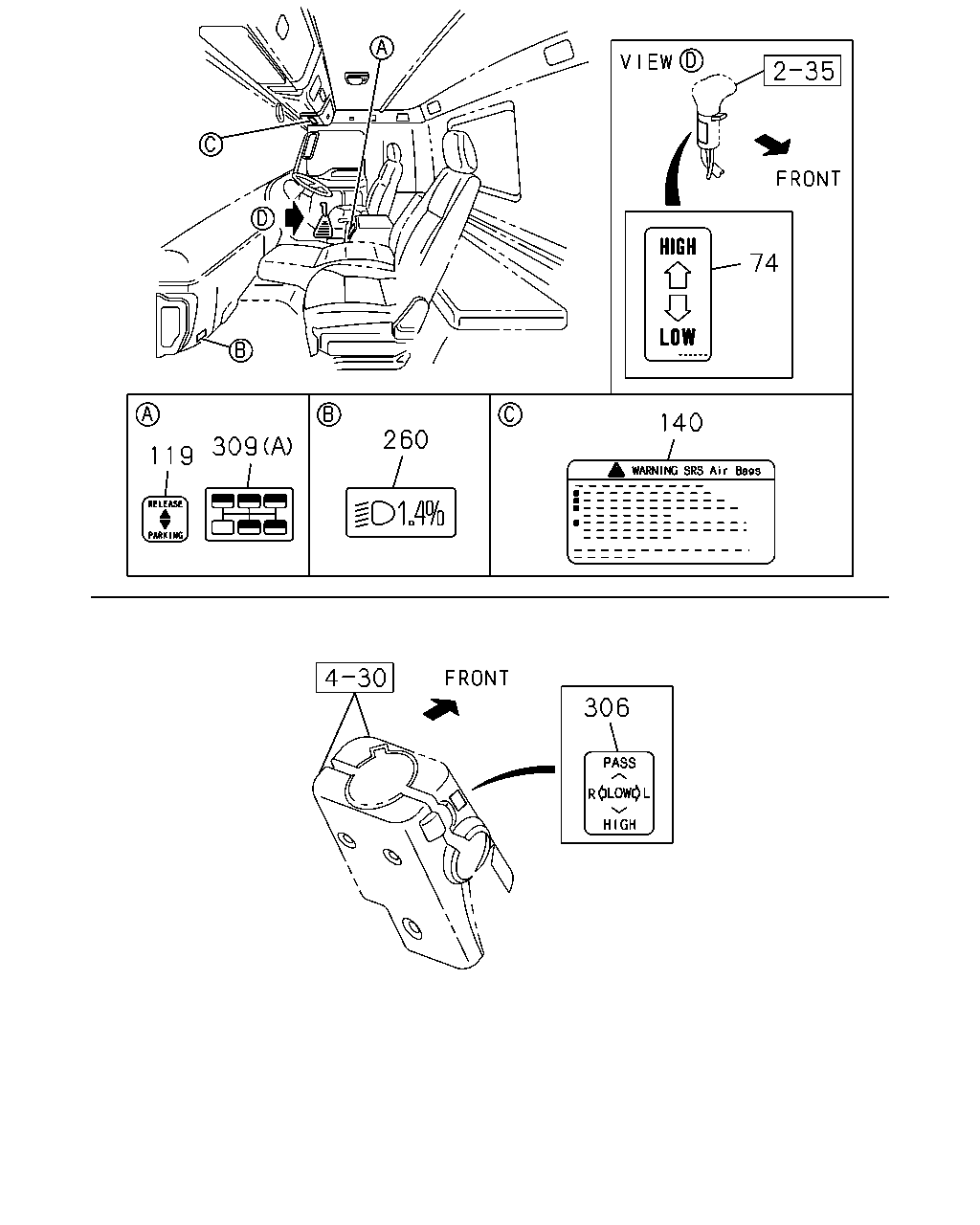

çizim 321812
119 309 260 74 140 306
BalonParca AdiParca NoAdetTipApplied Date A B
74 PLATE; CAUTION,CHANGE LEV
ZF9S1310 M/T(Y5K) 		8-98118-493-0 01 1 1212- ●
119 PLATE; CAUTION,HAND BRK LEVER
CAUTIONS ENGLISH<RR8> 		1-85881-759-0 01 1 1212- ● ●
140 PLATE; CAUTION,SRS
CAUTIONS ENGLISH<RR8> 		8-98139-964-0 01 1 1212- ● ●
260 PLATE; CAUTION,HEAD LAMP LEVELING 8-98008-779-0 01 1 1212- ● ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1212- ● ●
309 LABEL; M/T SHIFT
TRANSMISSION-FULLER RTO11909(Y5Y) (A) 		8-98254-533-0 01 1 1312- ● ●
309 LABEL; M/T SHIFT
TRANSMISSION-FULLER RTO11909(Y5Y) (B) 		8-98253-373-0 01 1 1312- ● ●
309 LABEL; M/T SHIFT
TRANSMISSION-FULLER RTO11908(Y5L) (A) 		1-85881-640-0 01 1 1212- ● ●
309 LABEL; M/T SHIFT
TRANSMISSION-FULLER RTO11908(Y5L) (B) 		8-98086-310-1 01 1 1212- ● ●
çizim 321871
4 4 181
BalonParca AdiParca NoAdetTipApplied Date A B
4 LABEL; ENG MAINTENANCE
(B) 		8-94391-524-0 01 1 1212- ● ●
4 LABEL; ENG MAINTENANCE
(A) 		8-98164-931-1 01 1 1212- ● ●
181 PLATE; CAUTION,AIR CLEANER 1-85886-796-1 01 1 1212- ● ●
çizim 322621
49 35 309 160
BalonParca AdiParca NoAdetTipApplied Date A B
35 PLATE; CAUTION,CAB
CAUTIONS ENGLISH<RR8> 		8-98017-667-1 01 1 1212- ● ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ENGLISH<RR8> 		8-98076-221-0 01 1 1212- ● ●
160 PLATE; CAUTION,TOWING
ZF9S1310 M/T(Y5K) CAUTIONS ENGLISH<RR8> 		1-85888-737-1 01 1 1212- ●
309 LABEL; M/T SHIFT
TRANSMISSION-FULLER RTO11909(Y5Y) (A) 		8-98254-533-0 01 1 1312- ● ●
309 LABEL; M/T SHIFT
TRANSMISSION-FULLER RTO11909(Y5Y) (B) 		8-98253-373-0 01 1 1312- ● ●
309 LABEL; M/T SHIFT
TRANSMISSION-FULLER RTO11908(Y5L) (A) 		1-85881-640-0 01 1 1212- ● ●
309 LABEL; M/T SHIFT
TRANSMISSION-FULLER RTO11908(Y5L) (B) 		8-98086-310-1 01 1 1212- ● ●
