◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51238 - NPR LHD EURO5 BUS CHASSIS ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶

1-10 — RADIATOR (#111409) — 36 parça

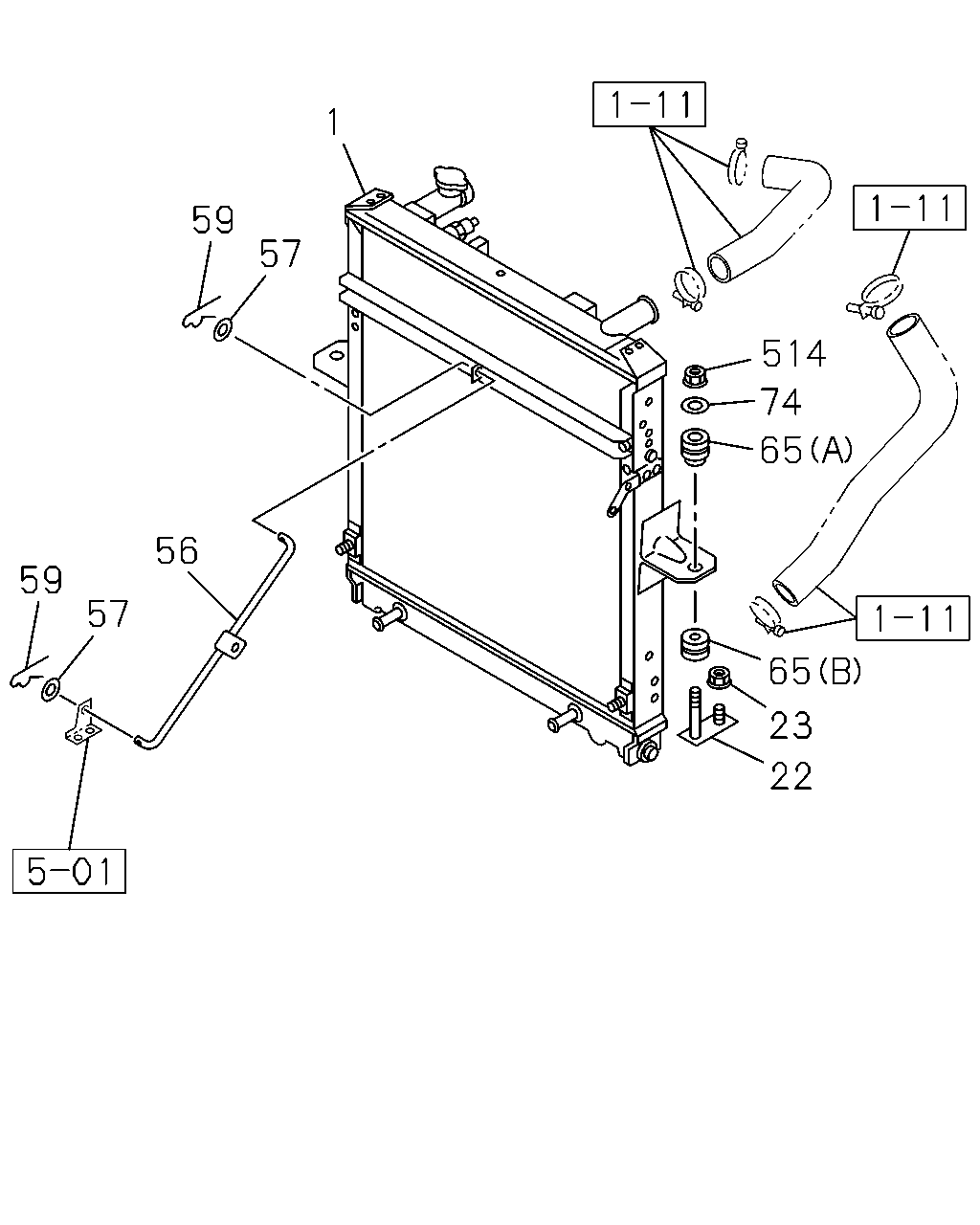

59 57 56 57 59 1 514 74 65 65 23 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	01.219 RADIATOR ASM TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98095-596-0	01	1	1212-
1	01.219 RADIATOR ASM EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98095-595-0	01	1	1212-1507
1	01.219 RADIATOR ASM TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98095-595-0	01	1	1508-
22	01.270 BRACKET; RAD MTG 01.277	8-97330-527-1	02	1	1212-
23	01.271 NUT; RAD MTG 01.062 M8 FLANGE	0-91180-108-0	02	1	1212-
56	01.270 STAY; RAD	8-98049-051-0	01	1	1212-
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	02	1	1212-
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	02	1	1212-
65	01.271 INSULATOR; RAD 01.270 (A)	8-94249-346-0	02	1	1212-
65	01.271 INSULATOR; RAD 01.270 (B)	8-94249-347-0	02	1	1212-
74	01.270 WASHER; PL,CUSHION RUBBER ID=8.5 OD=36	8-97359-049-1	02	1	1212-
514	01.276 NUT; RAD 01.062 M8 FLANGE	0-91180-108-0	02	1	1212-

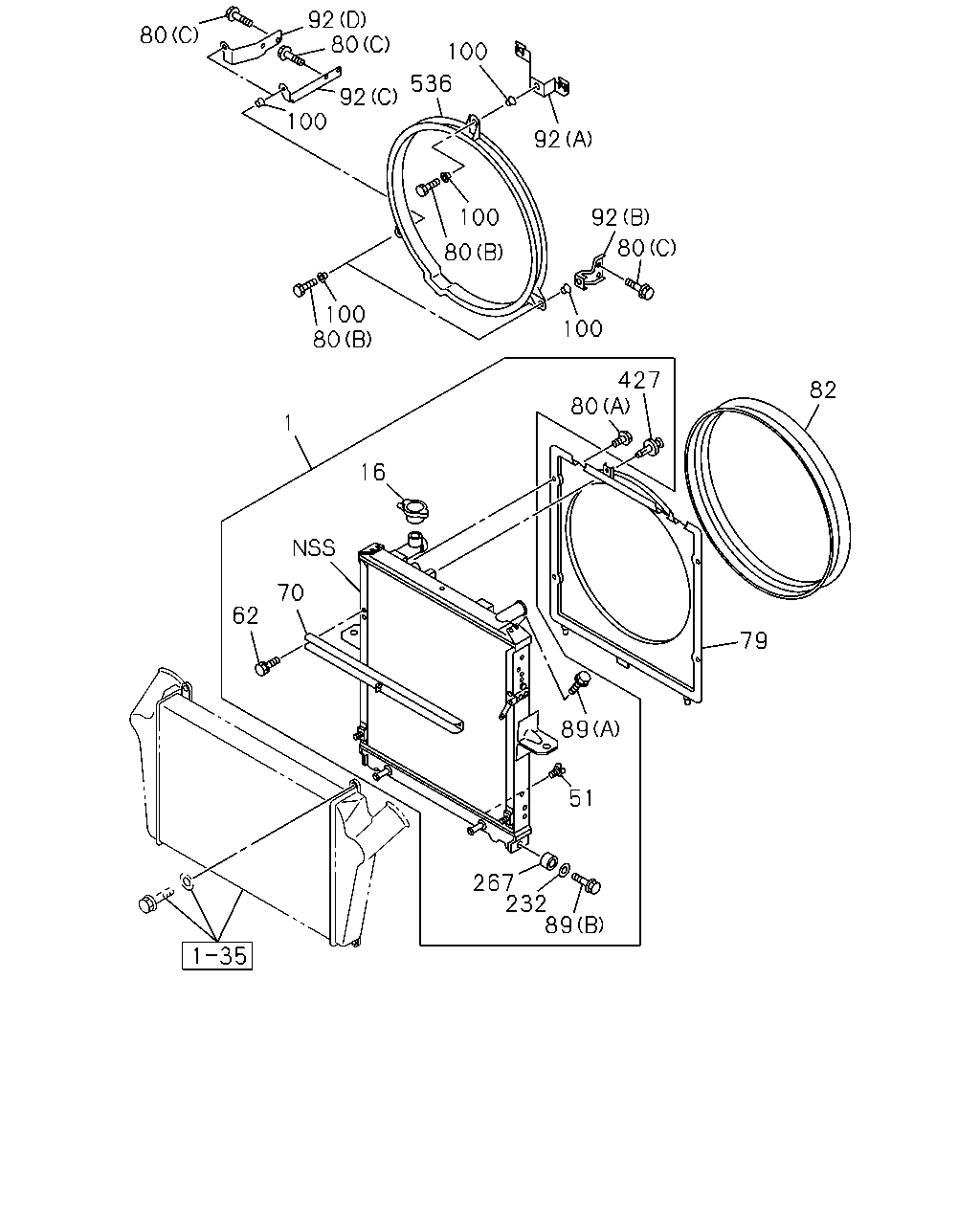

80 92 80 100 92 536 100 92 100 80 100 80 1 62 70 16 80 427 100 80 92 82 79 89 51 267 232 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	01.219 RADIATOR ASM TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98095-596-0	01	1	1212-
1	01.219 RADIATOR ASM EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98095-595-0	01	1	1212-1507
1	01.219 RADIATOR ASM TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98095-595-0	01	1	1508-
16	01.203 CAP; RAD	8-97239-187-0	01	1	1212-
51	08.951 PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	1212-
62	01.271 BOLT; STAY 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1212-
70	01.271 STAY; RAD	8-98018-941-0	01	1	1212-
79	01.277 GUIDE; FAN,RAD	8-98006-477-0	01	1	1212-
80	01.277 BOLT; FAN GUIDE GENERATOR 24V80A(7YN) 03.417 (C) M10X20 FLANGE	0-28151-020-0	04	1	1212-
80	01.277 BOLT; FAN GUIDE 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1212-
80	01.277 BOLT; FAN GUIDE (A) M6X16	1-21559-481-0	04	1	1212-
80	01.277 BOLT; FAN GUIDE EXC. GENERATOR 24V80A(7YN) 03.417 (C) M10X20 FLANGE	0-28151-020-0	02	1	1212-
82	01.277 COVER; FAN,RAD	8-98006-478-0	01	1	1212-
89	01.277 BOLT 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1212-
89	01.277 BOLT 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1212-
92	01.277 BRACKET; FAN GUIDE (A)	8-97382-827-2	01	1	1212-
92	01.277 BRACKET; FAN GUIDE GENERATOR 24V80A(7YN) (D)	8-98032-526-0	01	1	1212-
92	01.277 BRACKET; FAN GUIDE (B)	8-97386-233-0	01	1	1212-
92	01.277 BRACKET; FAN GUIDE EXC. GENERATOR 24V80A(7YN) (C)	8-97350-997-0	01	1	1212-
100	01.277 RUBBER; MTG	1-09337-027-0	06	1	1212-
232	01.540 COLLAR; DIST,CUSHION RUBBER	1-87410-723-0	02	1	1212-
267	01.277 RUBBER; CUSHION	1-21467-023-0	02	1	1212-
427	01.240 CLIP; FAN GUIDE 01.277	1-09470-009-0	01	1	1212-
536	01.020 SHROUD; FAN 01.277	8-97350-995-0	01	1	1212-
