5-10 — CAB MOUNTING; FRAME SIDE (#1114) — 133 parça

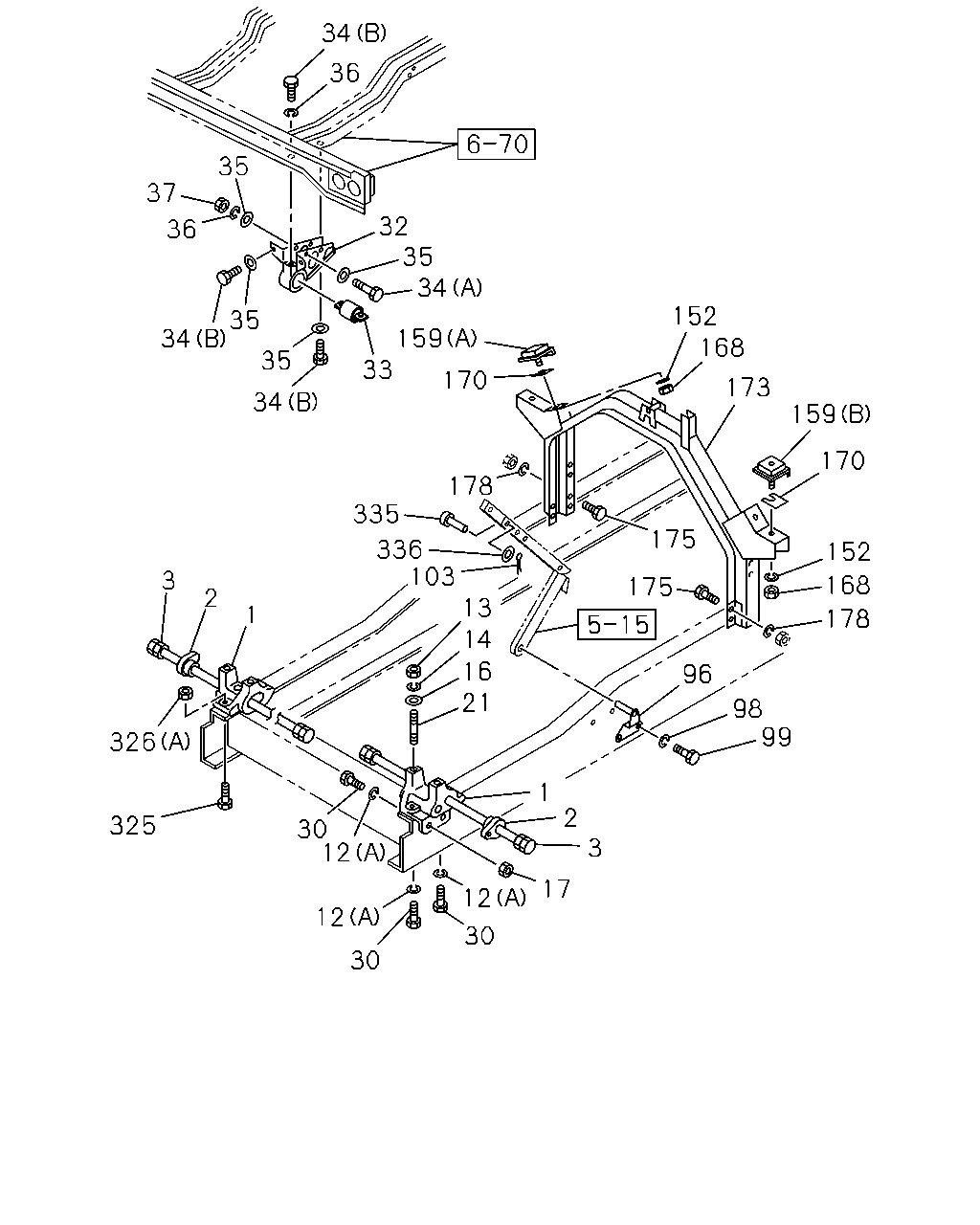

34 36 35 37 32 35 34 36 152 168 35 34 159 33 35 170 173 34 159 170 178 335 175 336 103 13 152 3 168 175 2 1 178 14 16 21 96 98 99 326 1 2 3 325 30 12 17 12 12 30 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK>	1-53453-164-2	01	1	9202-	●	●
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK>	1-53453-163-2	01	1	9202-	●	●
1	BRACKET; CAB MTG EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-53453-119-3	01	1	9202-	●	●
1	BRACKET; CAB MTG EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-53453-118-3	01	1	9202-	●	●
2	BUSHING; TORSION BAR	1-53459-783-0	02	1	9202-	●	●
3	TORSION BAR	1-09585-119-0	01	1	9202-	●	●
3	TORSION BAR	1-09585-118-0	01	1	9202-	●	●
12	WASHER; LK,BRKT (A) ID=15	9-09651-069-0	12	1	9202-	●	●
12	WASHER; LK,BRKT CAB SUSPENSION SEMI FLOATING<SDK> (B)	1-53459-929-0	04	1	9202-9506	●	●
12	WASHER; LK,BRKT CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=23	1-53458-693-0	04	1	9507-	●	●
13	NUT; BUSHING TO STUD EXC. CAB SUSPENSION SEMI FLOATING<SDK> M12	9-99110-512-0	04	1	9202-	●	●
14	WASHER; LK,STUD EXC. CAB SUSPENSION SEMI FLOATING<SDK> ID=12.2	9-09150-612-0	04	1	9202-	●	●
16	WASHER; PL,STUD EXC. CAB SUSPENSION SEMI FLOATING<SDK> ID=12.5	1-09503-171-0	04	1	9202-	●	●
17	NUT; BRKT,CAB TILT M14	9-99110-514-0	02	1	9202-	●	●
21	STUD; BRKT,CAB TILT EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-09302-101-0	04	1	9202-	●	●
30	BOLT; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK> M14X45	1-09000-573-0	08	1	9202-	●	●
30	BOLT; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK> M16X115	5-51361-002-1	02	1	9202-	●	●
30	BOLT; CAB FRT FOOT EXC. CAB SUSPENSION SEMI FLOATING<SDK> M14X45	9-92061-445-0	06	1	9202-	●	●
30	BOLT; CAB FRT FOOT EXC. CAB SUSPENSION SEMI FLOATING<SDK> M14X65	9-92061-465-0	02	1	9202-	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE CAB SUSPENSION SEMI FLOATING<SDK>	1-62580-208-4	01	1	9202-	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE CAB SUSPENSION SEMI FLOATING<SDK>	1-62580-207-4	01	1	9202-	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-62580-185-5	01	1	9202-	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-62580-184-5	01	1	9202-	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK>	1-53459-836-0	02	1	9202-	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-53459-635-3	02	1	9202-	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (B) M10X30	1-09980-546-0	08	1	9202-	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (A) M10X100	1-09980-547-0	04	1	9202-	●	●
35	WASHER; PL,CAB MTG BRKT ID=10.5 T=2.0	1-09985-183-0	02	1	9202-	●	●
35	WASHER; PL,CAB MTG BRKT ID=10.5 OD=26 T=2.6	1-09985-184-0	14	1	9202-	●	●
36	WASHER; LK,CAB MTG BRKT ID=10	1-09985-185-0	04	1	9202-	●	●
37	NUT; CAB MTG BRKT,CAB SIDE M10	1-09984-142-0	04	1	9202-	●	●
96	BRACKET; CAB STAY	1-62500-586-0	01	1	9202-	●	●
98	WASHER; LK,BRKT ID=10.2	9-09150-610-0	02	1	9202-9307	●	●
99	BOLT; BRKT M10X35	9-02061-035-0	02	1	9202-9307	●	●
99	BOLT; BRKT M10X30 FLANGE	0-28091-030-0	02	1	9308-	●	●
103	PIN; SPLIT,CAB STAY	1-09746-021-0	01	1	9202-	●	●
152	WASHER; LK,CUSHION RUBBER ID=12.2	9-09150-512-0	04	1	9202-9503	●	●
159	RUBBER; CUSHION,CAB MTG (A)	1-53459-619-3	02	1	9202-	●	●
159	RUBBER; CUSHION,CAB MTG (B)	1-53459-620-3	02	1	9202-	●	●
168	NUT; CUSHION RUBBER,BODY MTG M12	9-99110-512-0	04	1	9202-9503	●	●
168	NUT; CUSHION RUBBER,BODY MTG M12 FLANGE	0-91150-112-0	04	1	9504-	●	●
170	SHIM; CUSHION RUBBER T=1.6	1-53459-621-0	AR	1	9202-	●	●
173	MEMBER; CAB MTG RR 6SA1 STD ENG(06L),6HE1 STD ENG(46L) CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-491-9	01	1	9202-	●	●
173	MEMBER; CAB MTG RR 6SA1 STD ENG(06L),6HE1 STD ENG(46L) EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-490-5	01	1	9202-	●	●
173	MEMBER; CAB MTG RR 6SA1TC ENG(28L) CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-506-6	01	1	9202-	●	●
173	MEMBER; CAB MTG RR 6SA1TC ENG(28L) EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-514-5	01	1	9202-	●	●
175	BOLT; MEMBER TO FRAME HEAVY DUTY PACKAGE TRUCK<RD2> M12X40	9-92061-240-0	08	1	9202-	●	●
175	BOLT; MEMBER TO FRAME WHEEL BASE 3800MM(38W),WHEEL BASE 4200MM(42W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M12X40	9-92061-240-0	08	1	9202-	●
175	BOLT; MEMBER TO FRAME WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) HONG KONG EQUIPMENT(PQ1) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M12X40	9-92061-240-0	08	1	9202-		●
175	BOLT; MEMBER TO FRAME WHEEL BASE 3300MM(33W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M12X35	9-92061-235-0	08	1	9202-9506	●	●
175	BOLT; MEMBER TO FRAME WHEEL BASE 5500MM(55W) EXC. HONG KONG EQUIPMENT(PQ1),HEAVY DUTY PACKAGE TRUCK<RD2> M12X35	9-92061-235-0	08	1	9202-9506		●
175	BOLT; MEMBER TO FRAME WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M12X35	9-92061-235-0	08	1	9507-		●
175	BOLT; MEMBER TO FRAME WHEEL BASE 5500MM(55W) EXC. HONG KONG EQUIPMENT(PQ1),HEAVY DUTY PACKAGE TRUCK<RD2>,WEST MALAYSIA EQUIPMENT(SEQ) M12X35	9-92061-235-0	08	1	9507-		●
178	WASHER; LK,MEMBER ID=12.2	9-09150-612-0	08	1	9202-	●	●
325	BOLT; GUIDE NUT CAB SUSPENSION SEMI FLOATING<SDK> M12X40 W/LK&PL WASHER	0-50141-240-0	02	1	9202-	●	●
326	NUT; GUIDE NUT (A) M12	9-99110-512-0	02	1	9303-	●	●
326	NUT; GUIDE NUT CAB SUSPENSION SEMI FLOATING<SDK> (B) M12	1-53459-803-0	02	1	9202-	●	●
326	NUT; GUIDE NUT CAB SUSPENSION SEMI FLOATING<SDK> (A) M12	9-99110-412-0	02	1	9202-9302	●	●
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	9202-	●	●
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0	1-09985-183-0	01	1	9202-	●	●

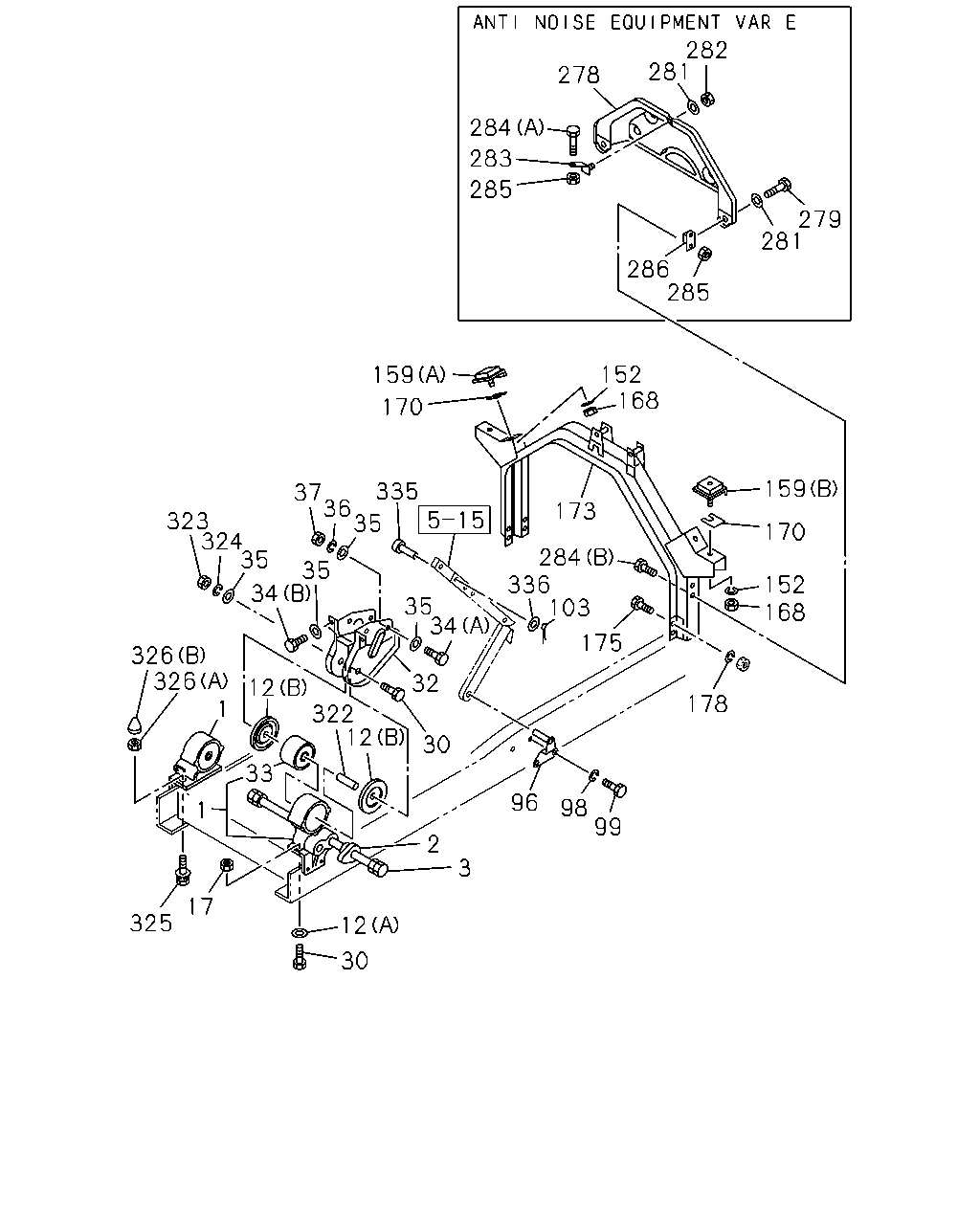

282 281 278 284 283 285 279 281 286 285 152 168 159 170 159 335 37 36 35 173 323 324 35 170 284 336 103 35 34 35 34 152 168 175 326 326 12 322 12 1 32 178 30 33 1 96 98 99 2 3 17 325 12 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK>	1-53453-164-2	01	1	9202-	●	●
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK>	1-53453-163-2	01	1	9202-	●	●
1	BRACKET; CAB MTG EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-53453-119-3	01	1	9202-	●	●
1	BRACKET; CAB MTG EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-53453-118-3	01	1	9202-	●	●
2	BUSHING; TORSION BAR	1-53459-783-0	02	1	9202-	●	●
3	TORSION BAR	1-09585-119-0	01	1	9202-	●	●
3	TORSION BAR	1-09585-118-0	01	1	9202-	●	●
12	WASHER; LK,BRKT (A) ID=15	9-09651-069-0	12	1	9202-	●	●
12	WASHER; LK,BRKT CAB SUSPENSION SEMI FLOATING<SDK> (B)	1-53459-929-0	04	1	9202-9506	●	●
12	WASHER; LK,BRKT CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=23	1-53458-693-0	04	1	9507-	●	●
17	NUT; BRKT,CAB TILT M14	9-99110-514-0	02	1	9202-	●	●
30	BOLT; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK> M14X45	1-09000-573-0	08	1	9202-	●	●
30	BOLT; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK> M16X115	5-51361-002-1	02	1	9202-	●	●
30	BOLT; CAB FRT FOOT EXC. CAB SUSPENSION SEMI FLOATING<SDK> M14X45	9-92061-445-0	06	1	9202-	●	●
30	BOLT; CAB FRT FOOT EXC. CAB SUSPENSION SEMI FLOATING<SDK> M14X65	9-92061-465-0	02	1	9202-	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE CAB SUSPENSION SEMI FLOATING<SDK>	1-62580-208-4	01	1	9202-	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE CAB SUSPENSION SEMI FLOATING<SDK>	1-62580-207-4	01	1	9202-	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-62580-185-5	01	1	9202-	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-62580-184-5	01	1	9202-	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK>	1-53459-836-0	02	1	9202-	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-53459-635-3	02	1	9202-	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (B) M10X30	1-09980-546-0	08	1	9202-	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (A) M10X100	1-09980-547-0	04	1	9202-	●	●
35	WASHER; PL,CAB MTG BRKT ID=10.5 T=2.0	1-09985-183-0	02	1	9202-	●	●
35	WASHER; PL,CAB MTG BRKT ID=10.5 OD=26 T=2.6	1-09985-184-0	14	1	9202-	●	●
36	WASHER; LK,CAB MTG BRKT ID=10	1-09985-185-0	04	1	9202-	●	●
37	NUT; CAB MTG BRKT,CAB SIDE M10	1-09984-142-0	04	1	9202-	●	●
96	BRACKET; CAB STAY	1-62500-586-0	01	1	9202-	●	●
98	WASHER; LK,BRKT ID=10.2	9-09150-610-0	02	1	9202-9307	●	●
99	BOLT; BRKT M10X35	9-02061-035-0	02	1	9202-9307	●	●
99	BOLT; BRKT M10X30 FLANGE	0-28091-030-0	02	1	9308-	●	●
103	PIN; SPLIT,CAB STAY	1-09746-021-0	01	1	9202-	●	●
152	WASHER; LK,CUSHION RUBBER ID=12.2	9-09150-512-0	04	1	9202-9503	●	●
159	RUBBER; CUSHION,CAB MTG (A)	1-53459-619-3	02	1	9202-	●	●
159	RUBBER; CUSHION,CAB MTG (B)	1-53459-620-3	02	1	9202-	●	●
168	NUT; CUSHION RUBBER,BODY MTG M12	9-99110-512-0	04	1	9202-9503	●	●
168	NUT; CUSHION RUBBER,BODY MTG M12 FLANGE	0-91150-112-0	04	1	9504-	●	●
170	SHIM; CUSHION RUBBER T=1.6	1-53459-621-0	AR	1	9202-	●	●
173	MEMBER; CAB MTG RR 6SA1 STD ENG(06L),6HE1 STD ENG(46L) CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-491-9	01	1	9202-	●	●
173	MEMBER; CAB MTG RR 6SA1 STD ENG(06L),6HE1 STD ENG(46L) EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-490-5	01	1	9202-	●	●
173	MEMBER; CAB MTG RR 6SA1TC ENG(28L) CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-506-6	01	1	9202-	●	●
173	MEMBER; CAB MTG RR 6SA1TC ENG(28L) EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-514-5	01	1	9202-	●	●
175	BOLT; MEMBER TO FRAME HEAVY DUTY PACKAGE TRUCK<RD2> M12X40	9-92061-240-0	08	1	9202-	●	●
175	BOLT; MEMBER TO FRAME WHEEL BASE 3800MM(38W),WHEEL BASE 4200MM(42W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M12X40	9-92061-240-0	08	1	9202-	●
175	BOLT; MEMBER TO FRAME WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) HONG KONG EQUIPMENT(PQ1) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M12X40	9-92061-240-0	08	1	9202-		●
175	BOLT; MEMBER TO FRAME WHEEL BASE 3300MM(33W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M12X35	9-92061-235-0	08	1	9202-9506	●	●
175	BOLT; MEMBER TO FRAME WHEEL BASE 5500MM(55W) EXC. HONG KONG EQUIPMENT(PQ1),HEAVY DUTY PACKAGE TRUCK<RD2> M12X35	9-92061-235-0	08	1	9202-9506		●
175	BOLT; MEMBER TO FRAME WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M12X35	9-92061-235-0	08	1	9507-		●
175	BOLT; MEMBER TO FRAME WHEEL BASE 5500MM(55W) EXC. HONG KONG EQUIPMENT(PQ1),HEAVY DUTY PACKAGE TRUCK<RD2>,WEST MALAYSIA EQUIPMENT(SEQ) M12X35	9-92061-235-0	08	1	9507-		●
178	WASHER; LK,MEMBER ID=12.2	9-09150-612-0	08	1	9202-	●	●
278	COVER ANTI NOISE EQUIPMENT VAR E<SLK>	1-53192-193-2	01	1	9202-	●	●
279	BOLT ANTI NOISE EQUIPMENT VAR E<SLK> M8X25	0-28210-825-0	02	1	9202-9204	●	●
279	BOLT ANTI NOISE EQUIPMENT VAR E<SLK> M8X25 FLANGE	0-28280-825-0	02	1	9205-	●	●
281	WASHER; PL,BACK COVER ANTI NOISE EQUIPMENT VAR E<SLK> ID=8.4 OD=26	9-09164-808-0	03	1	9202-	●	●
282	NUT; BACK COVER ANTI NOISE EQUIPMENT VAR E<SLK> M8 FLANGE	5-09440-005-0	01	1	9202-9312	●	●
282	NUT; BACK COVER ANTI NOISE EQUIPMENT VAR E<SLK> M8 FLANGE	0-91150-108-0	01	1	9401-	●	●
283	BRACKET; UPR ANTI NOISE EQUIPMENT VAR E<SLK>	1-53459-630-2	01	1	9202-	●	●
284	BOLT; BRKT UPR ANTI NOISE EQUIPMENT VAR E<SLK> (A) M8X20 FLANGE	0-28010-820-0	02	1	9202-9204	●	●
284	BOLT; BRKT UPR ANTI NOISE EQUIPMENT VAR E<SLK> (A) M8X20 FLANGE	0-28080-820-0	02	1	9205-	●	●
284	BOLT; BRKT UPR ANTI NOISE EQUIPMENT VAR E<SLK> (B) M8X20 FLANGE	0-28010-820-0	03	1	9202-9204	●	●
284	BOLT; BRKT UPR ANTI NOISE EQUIPMENT VAR E<SLK> (B) M8X20 FLANGE	0-28080-820-0	03	1	9205-	●	●
285	NUT; BRKT UPR ANTI NOISE EQUIPMENT VAR E<SLK> M8	9-09110-408-0	02	1	9202-	●	●
286	BRACKET; LOW ANTI NOISE EQUIPMENT VAR E<SLK>	1-53459-975-2	01	1	9202-	●	●
286	BRACKET; LOW ANTI NOISE EQUIPMENT VAR E<SLK>	1-53459-632-3	01	1	9202-	●	●
322	COLLAR; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK>	1-53459-941-0	02	1	9202-	●	●
323	NUT; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK> M16	9-99110-516-0	02	1	9202-	●	●
324	WASHER; LK CAB SUSPENSION SEMI FLOATING<SDK> ID=16.2	9-09150-816-0	02	1	9202-	●	●
325	BOLT; GUIDE NUT CAB SUSPENSION SEMI FLOATING<SDK> M12X40 W/LK&PL WASHER	0-50141-240-0	02	1	9202-	●	●
326	NUT; GUIDE NUT (A) M12	9-99110-512-0	02	1	9303-	●	●
326	NUT; GUIDE NUT CAB SUSPENSION SEMI FLOATING<SDK> (B) M12	1-53459-803-0	02	1	9202-	●	●
326	NUT; GUIDE NUT CAB SUSPENSION SEMI FLOATING<SDK> (A) M12	9-99110-412-0	02	1	9202-9302	●	●
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	9202-	●	●
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0	1-09985-183-0	01	1	9202-	●	●
