1 |

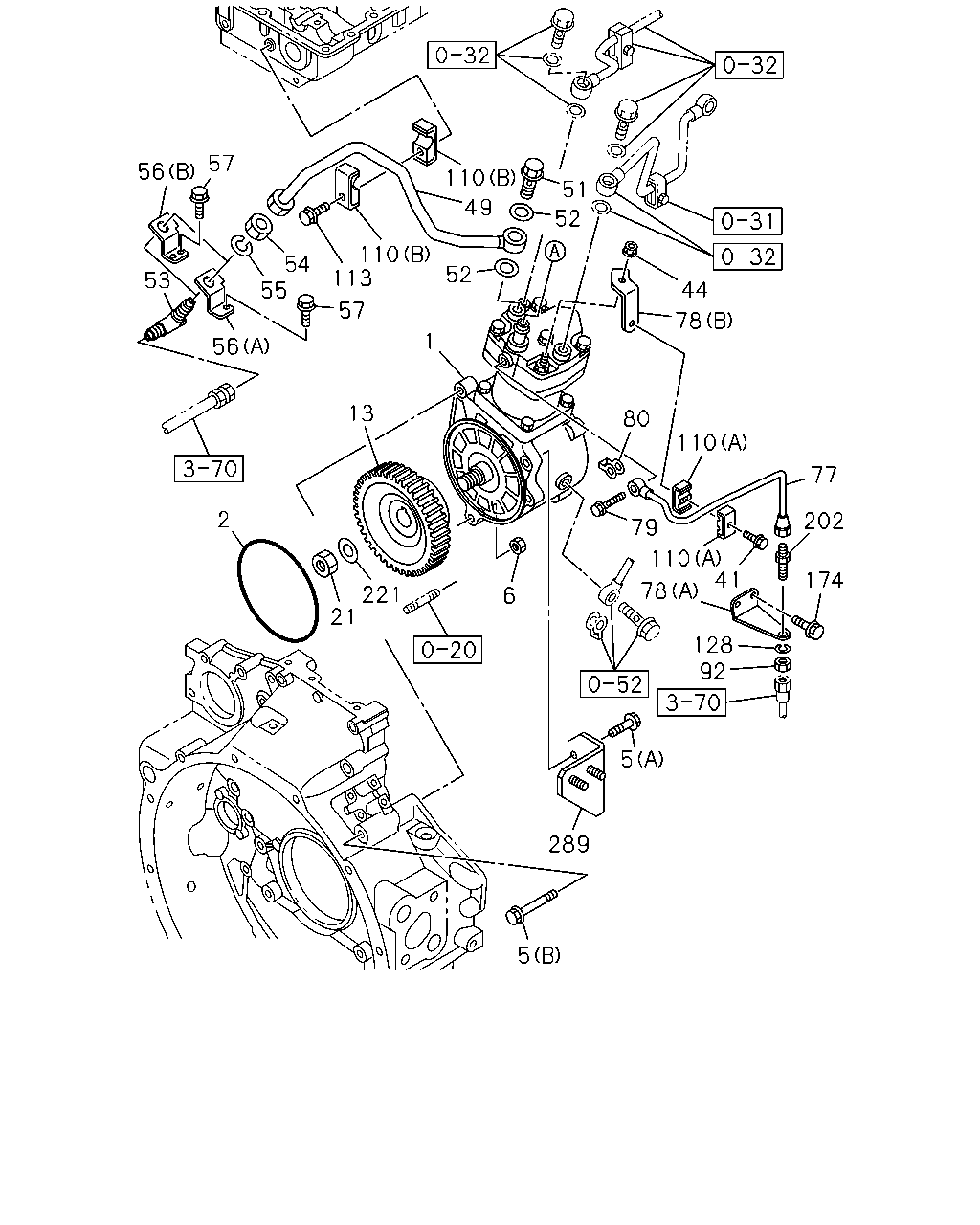

COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
|
8-98227-940-0 |
01 |
1 |
1212-1301 |
| |
1 |
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
|
8-98224-245-0 |
01 |
1 |
1302-1310 |
| |
1 |
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
|
8-98249-115-0 |
01 |
1 |
1311-1401 |
| |
1 |
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
|
8-98271-053-1 |
01 |
1 |
1402-1508 |
| |
1 |
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT.
|
8-98302-838-0 |
01 |
1 |
1509- |
| |
2 |
GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=159.6
|
1-09623-449-0 |
01 |
1 |
1212- |
| |
5 |
BOLT; AIR CMPR FIX
(B)
M12X140 FLANGE
|
0-28156-214-0 |
01 |
1 |
1212- |
| |
5 |
BOLT; AIR CMPR FIX
A/T ALLISON 4430(Y5V)
(A)
M12X40 FLANGE
|
0-28151-240-0 |
02 |
1 |
1212- |
| |
5 |
BOLT; AIR CMPR FIX
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP
DRIVE PULL TYPE(TBU)
(A)
M12X50 FLANGE
|
0-28151-250-0 |
02 |
1 |
1212- |
| |
6 |
NUT; AIR CMPR
M12 FLANGE
|
0-91180-112-0 |
01 |
1 |
1212- |
| |
13 |
GEAR; AIR CMPR DRIVE
Z=46
|
8-97603-053-2 |
01 |
1 |
1212- |
| |
21 |
NUT; PUMP GEAR
M24
|
0-91110-524-0 |
01 |
1 |
1212- |
| |
41 |
BOLT; CLIP
M6X30 FLANGE
|
0-28050-630-0 |
01 |
1 |
1212- |
| |
44 |
NUT
M10 FLANGE
|
0-91180-110-0 |
01 |
1 |
1212- |
| |
49 |
PIPE; AIR,CHARGE
ENGINE REAR PTO(SV1)
|
8-98216-698-0 |
01 |
1 |
1212- |
| |
49 |
PIPE; AIR,CHARGE
17INCH CLUTCH(RF3)
|
8-98216-696-0 |
01 |
1 |
1212- |
| |
49 |
PIPE; AIR,CHARGE
A/T ALLISON 4430(Y5V)
|
8-98216-696-0 |
01 |
1 |
1212- |
| |
51 |
BOLT; EYE,AIR PIPE TO CMPR
M24X39
|
1-09675-175-2 |
01 |
1 |
1212- |
| |
52 |
GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=24.5 OD=32
|
9-09571-424-0 |
02 |
1 |
1212- |
| |
53 |
UNION; CHARGE PIPE
M22 & M26 ELBOW
|
8-98008-887-2 |
01 |
1 |
1212- |
| |
54 |
NUT; PIPE UNION
M26
|
8-98049-390-0 |
01 |
1 |
1212- |
| |
55 |
WASHER; LK,PIPE UNION
ID=27.5
|
0-91510-527-0 |
01 |
1 |
1212- |
| |
56 |
BRACKET; AIR PIPE FIX
ENGINE REAR PTO(SV1)
(B)
|
8-97605-477-2 |
01 |
1 |
1212- |
| |
56 |
BRACKET; AIR PIPE FIX
17INCH CLUTCH(RF3)
(A)
|
8-97603-937-2 |
01 |
1 |
1212- |
| |
56 |
BRACKET; AIR PIPE FIX
A/T ALLISON 4430(Y5V)
(A)
|
8-97603-937-2 |
01 |
1 |
1212- |
| |
57 |
BOLT; BRKT,AIR PIPE
ENGINE REAR PTO(SV1)
M10X20 FLANGE
|
0-28151-020-0 |
02 |
1 |
1212- |
| |
57 |
BOLT; BRKT,AIR PIPE
17INCH CLUTCH(RF3)
M10X20 FLANGE
|
0-28151-020-0 |
01 |
1 |
1212- |
| |
57 |
BOLT; BRKT,AIR PIPE
A/T ALLISON 4430(Y5V)
M10X20 FLANGE
|
0-28151-020-0 |
01 |
1 |
1212- |
| |
77 |
PIPE; AIR,GOV
|
8-98145-567-0 |
01 |
1 |
1212- |
| |
78 |
BRACKET; PIPE,AIR GOV
(A)
|
8-97605-218-1 |
01 |
1 |
1212- |
| |
78 |
BRACKET; PIPE,AIR GOV
(B)
|
8-97613-275-1 |
01 |
1 |
1212- |
| |
79 |
BOLT; EYE,AIR PIPE TO CMPR
M10X25
|
9-09906-173-1 |
01 |
1 |
1212- |
| |
80 |
GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
ID=10.6
|
8-97240-975-0 |
01 |
1 |
1212-1301 |
| |
80 |
GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
ID=10.6
|
8-98231-393-0 |
01 |
1 |
1302- |
| |
92 |
NUT; UNION
M12
|
9-09840-280-0 |
01 |
1 |
1212- |
| |
110 |
CLIP; AIR PIPE
(B)
ID=17 L=17
|
1-09701-284-0 |
02 |
1 |
1212- |
| |
110 |
CLIP; AIR PIPE
(A)
ID=11 & 11 L=19
|
8-98039-293-0 |
02 |
1 |
1212-1405 |
| |
110 |
CLIP; AIR PIPE
(A)
ID=11 & 11 L=19
|
8-98148-996-2 |
02 |
1 |
1406- |
| |
113 |
BOLT; CLIP,AIR PIPE
M8X40 FLANGE
|
0-28050-840-0 |
01 |
1 |
1212- |
| |
128 |
WASHER; LK,UNION
ID=12.2
|
0-91510-512-0 |
01 |
1 |
1212- |
| |
174 |
BOLT; BRKT
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
1212- |
| |
202 |
UNION; AIR PIPE
M12 L=62.5
|
0-92113-206-0 |
01 |
1 |
1212- |
| |
221 |
WASHER; PL,GEAR
ID=25
|
0-91614-624-0 |
01 |
1 |
1212- |
| |
289 |
BRACKET; CABLE
17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP
DRIVE PULL TYPE(TBU)
|
8-98055-448-3 |
01 |
1 |
1212- |
