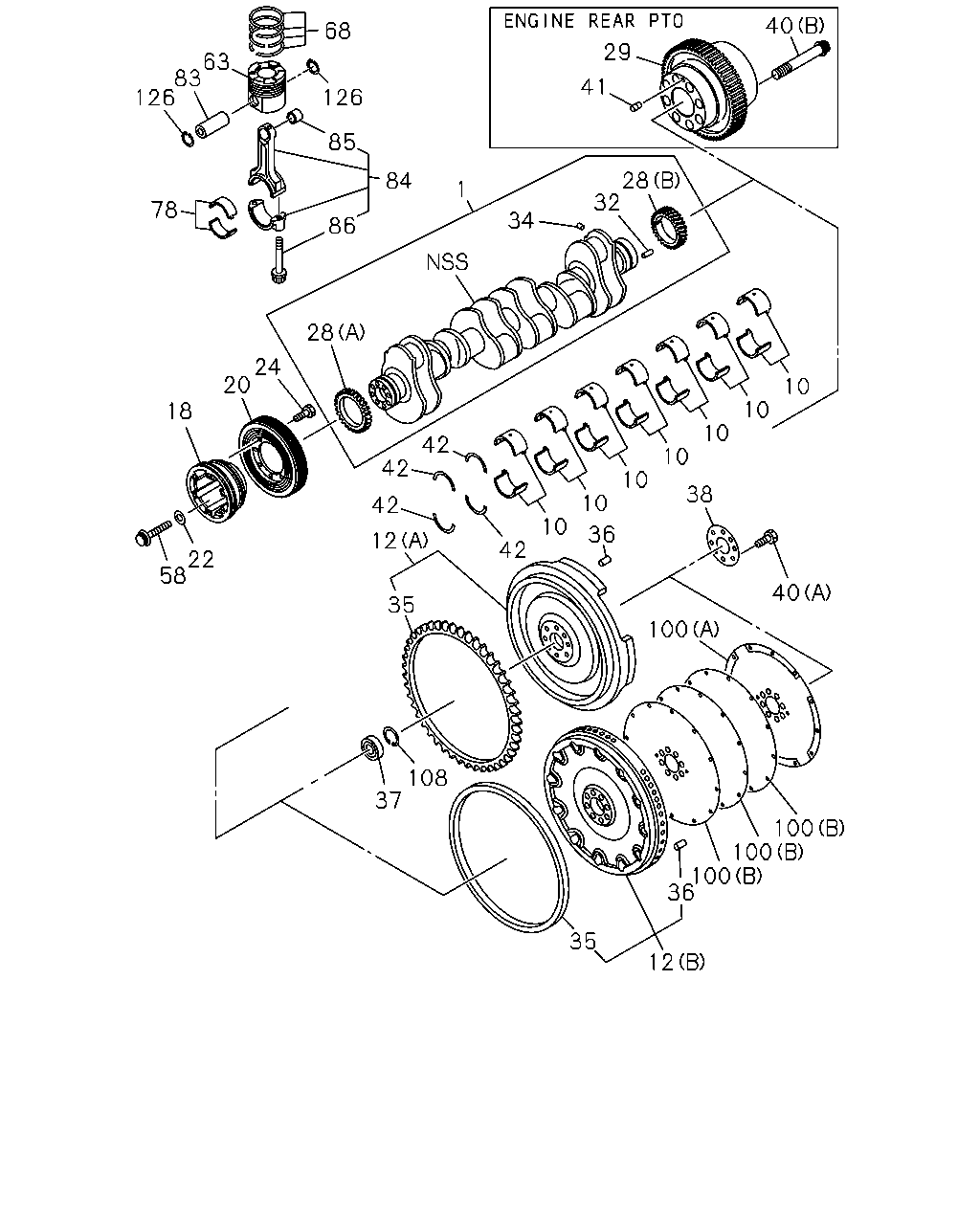

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#111356) — 41 parça

126 83 63 78 68 126 85 86 84 18 20 24 28 58 22 12 42 42 42 35 42 10 10 10 10 10 10 10 36 1 34 41 29 108 37 100 40 38 32 28 40 35 36 12 100 100 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CRANKSHAFT	8-97603-046-5	01	1	1212-
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97609-768-0	07	1	1212-
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97609-769-0	07	1	1212-
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97609-770-0	07	1	1212-
12	FLYWHEEL A/T ALLISON 4430(Y5V) (B)	8-98191-968-2	01	1	1212-
12	FLYWHEEL ENGINE REAR PTO(SV1) (A)	8-97625-495-1	01	1	1212-
12	FLYWHEEL 17INCH CLUTCH(RF3) (A)	1-12330-553-0	01	1	1212-
18	PULLEY; CR/SHF 1-GROOVE	8-97603-953-0	01	1	1212-
20	DAMPER; CR/SHF	1-12375-195-0	01	1	1212-
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	1212-
24	BOLT; DAMPER M12X25 FLANGE	0-28161-225-0	08	1	1212-
28	GEAR; CR/SHF (A) Z=59	8-97607-583-1	01	1	1212-
28	GEAR; CR/SHF (B) Z=46	8-98002-332-1	01	1	1212-
29	GEAR; CR/SHF,PTO ENGINE REAR PTO(SV1) Z=67	8-97603-913-0	01	1	1212-
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	01	1	1212-
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1212-
35	GEAR; RING Z=139	1-12333-013-1	01	1	1212-
36	PIN; FLYWHEEL A/T ALLISON 4430(Y5V) OD=6 L=12	9-08150-612-0	02	1	1212-
36	PIN; FLYWHEEL 17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) OD=10 L=22	9-08151-022-0	02	1	1212-
37	BEARING; PILOT,TOP GEAR SHAFT 17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-09800-257-0	01	1	1212-
37	BEARING; PILOT,TOP GEAR SHAFT 17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) BEST VALUE PARTS	1-87610-158-0	01	1	1212-
38	WASHER; FLYWHEEL A/T ALLISON 4430(Y5V) ID=58 OD=124	8-98192-267-0	01	1	1212-
38	WASHER; FLYWHEEL 17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ID=64 OD=123.5	1-12336-006-0	01	1	1212-
40	BOLT; FLYWHEEL A/T ALLISON 4430(Y5V) (A) M16X95	1-09070-147-1	08	1	1212-
40	BOLT; FLYWHEEL ENGINE REAR PTO(SV1) (B) M16X179	8-97605-238-1	08	1	1212-
40	BOLT; FLYWHEEL 17INCH CLUTCH(RF3) (A) M16X62	1-09070-146-1	08	1	1212-
41	PIN; GEAR,CR/SHF PTO ENGINE REAR PTO(SV1) OD=8 L=16	9-08150-816-0	01	1	1212-
42	WASHER; THRUST,CR/SHF	8-98106-007-0	04	1	1212-
58	BOLT; CR/SHF PULLEY M16X70 FLANGE	0-28861-670-0	04	1	1212-
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-98151-363-0	06	1	1212-
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-98151-364-0	06	1	1212-
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98056-464-1	06	1	1212-
78	METAL; CONNROD	8-97605-484-0	06	1	1212-
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-97603-263-0	06	1	1212-
84	ROD ASM; CONN	8-98044-950-0	06	1	1212-
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-051-0	06	1	1212-
86	BOLT; CONNROD M13X82 FLANGE	1-12235-046-0	12	1	1212-
100	PLATE; FLEX A/T ALLISON 4430(Y5V) (A)	8-98185-796-0	01	1	1212-
100	PLATE; FLEX A/T ALLISON 4430(Y5V) (B)	8-98185-797-0	03	1	1212-
108	RING; SNAP,BRG SET 17INCH CLUTCH(RF3),CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) OD=67.2	9-09180-163-0	01	1	1212-
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=56.2	1-09587-075-1	12	1	1212-
