Sayfa 6-66 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11499 - FYH(AUST)EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶

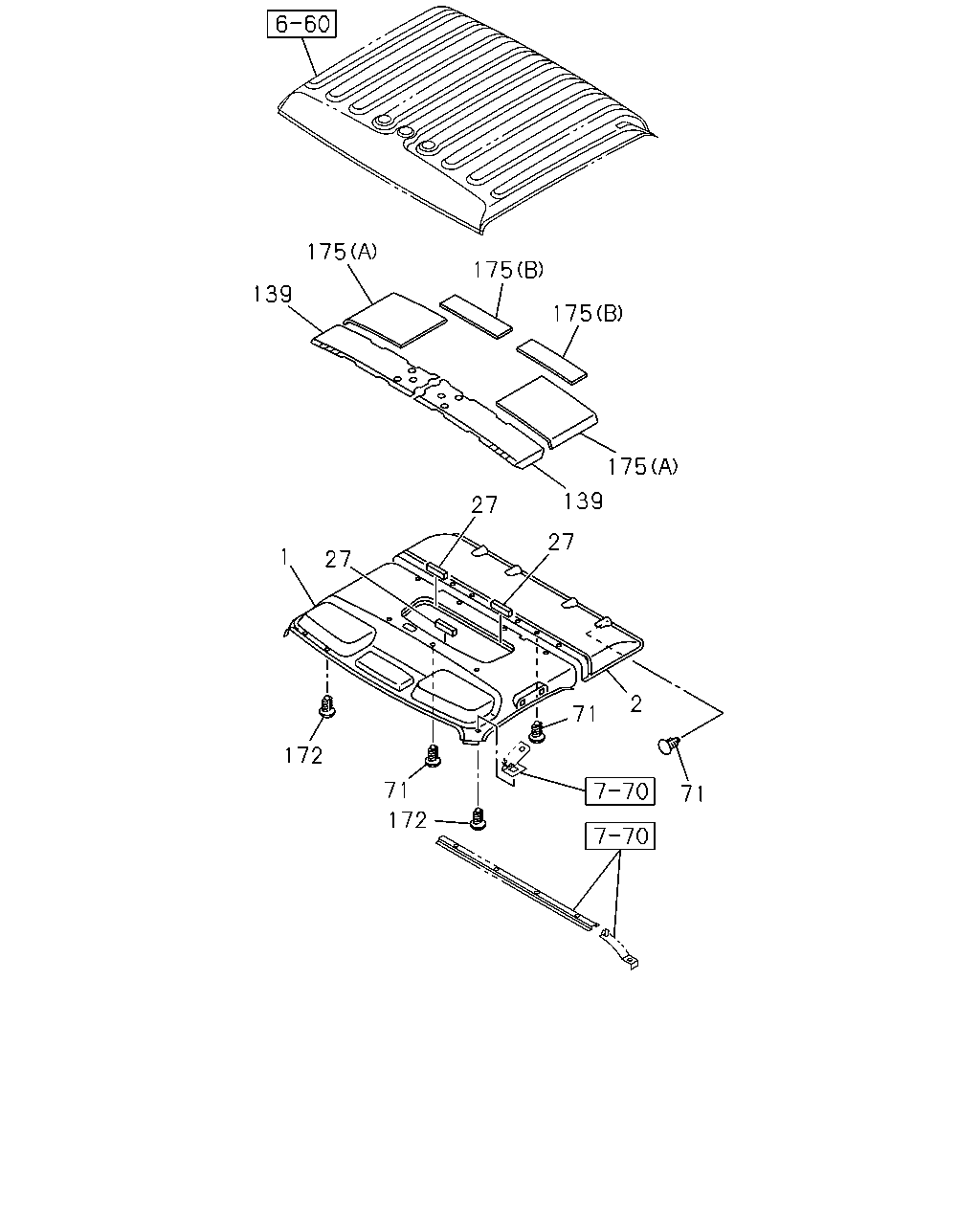

6-66 — HEAD LINING AND TRIM (#111349) — 11 parça

175 139 175 175 175 139 27 27 27 172 71 172 71 2 71 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY	8-97416-360-0	01	1	1212-1306	●	●
1	LINING; HD HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY	8-97426-741-0	01	1	1307-	●	●
1	LINING; HD EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY	8-97416-359-0	01	1	1212-1306	●	●
1	LINING; HD EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY	8-97426-740-0	01	1	1307-	●	●
2	LINING; HD,ROOF RR DARK GRAY	8-97407-455-5	01	1	1212-	●	●
27	INSULATION; ROOF	8-98046-638-2	03	1	1212-	●	●
71	FASTENER; HD LINING DARK GRAY	8-97405-282-0	07	1	1212-	●	●
139	SEAL; ROOF	8-98169-116-0	02	1	1212-	●	●
172	RETAINER; HEAD LINING DARK GRAY	8-97411-875-0	12	1	1212-	●	●
175	CUSHION; HEAD LINING (A)	8-98030-965-2	02	1	1212-	●	●
175	CUSHION; HEAD LINING (B)	8-98082-685-1	02	1	1212-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
