◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51238 - NPR LHD EURO5 BUS CHASSIS ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#111348) — 24 parça

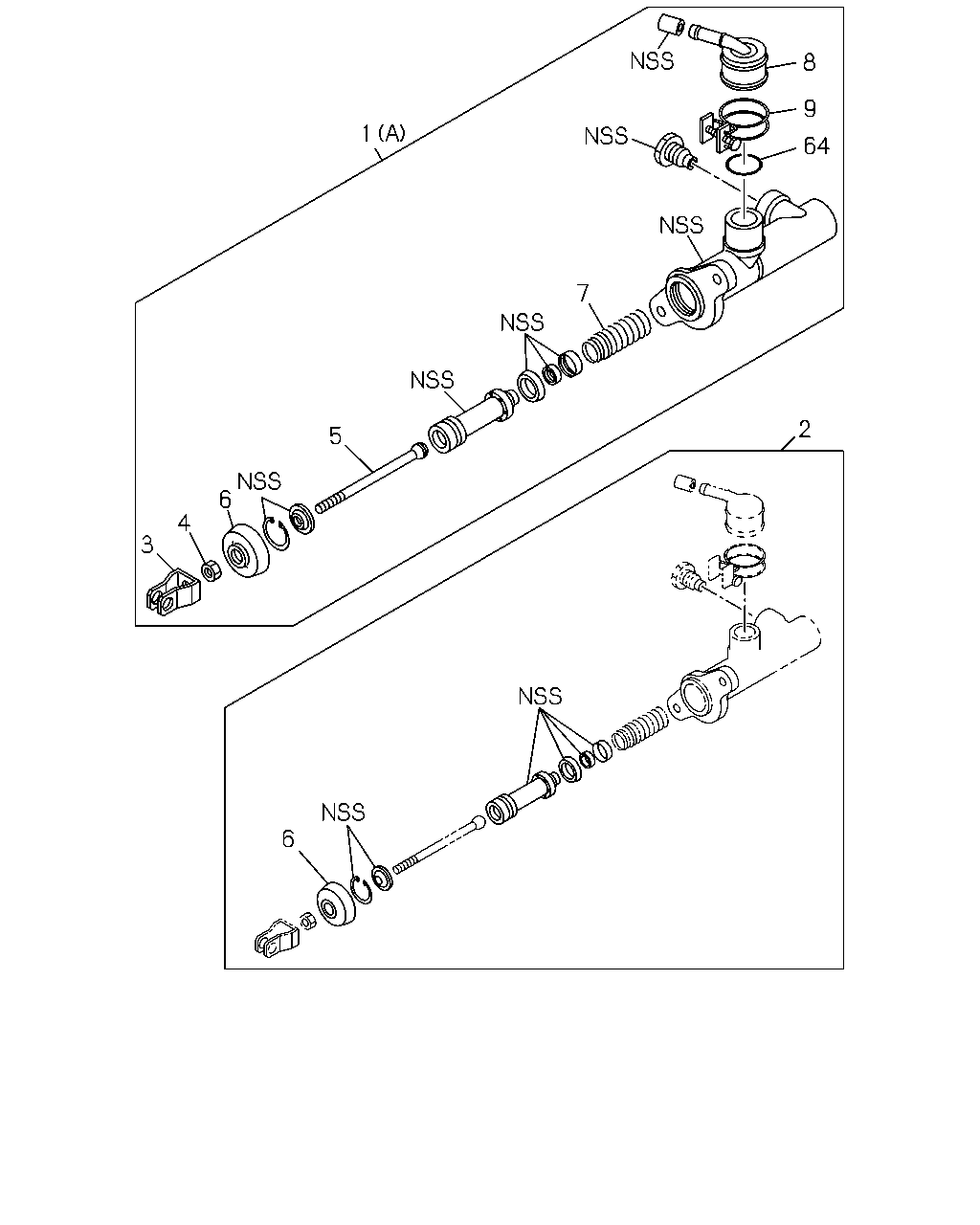

çizim 321277
1 3 4 6 5 7 8 9 64 2 6
BalonParca AdiParca NoAdetTipApplied Date
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98025-308-0 01 1 1212-
1 00.775 CYLINDER ASM; CLUTCH MASTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98117-642-0 01 1 1212-
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-221-0 01 1 1212-
2 00.775 REPAIR KIT; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 1212-
3 00.777 JOINT; JAW,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-770-0 01 1 1212-
4 00.777 NUT; JAW JOINT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) M8 		0-91111-508-0 01 1 1212-
5 00.775 ROD; PUSH,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-768-0 01 1 1212-
6 00.775 BOOT; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 1212-
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98077-784-0 01 1 1212-
7 00.775 SPRING ASM; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 1212-
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97163-191-0 01 1 1212-
8 00.777 CONNECTOR; PIPE,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-766-0 01 1 1212-
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97167-773-0 01 1 1212-
64 00.777 GASKET; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97167-767-0 01 1 1212-

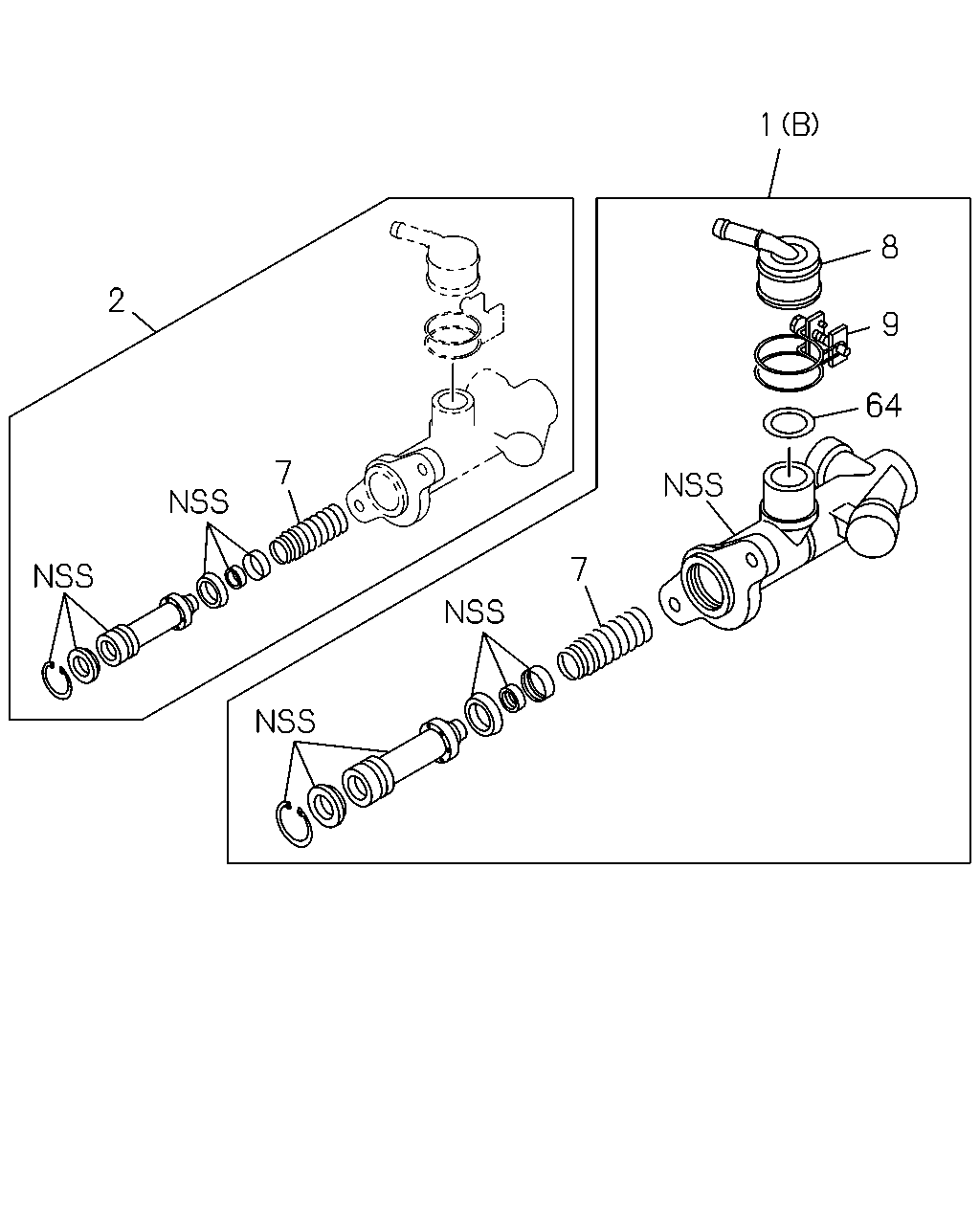

çizim 321278
2 7 7 64 9 8 1
BalonParca AdiParca NoAdetTipApplied Date
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98025-308-0 01 1 1212-
1 00.775 CYLINDER ASM; CLUTCH MASTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98117-642-0 01 1 1212-
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-221-0 01 1 1212-
2 00.775 REPAIR KIT; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 1212-
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98077-784-0 01 1 1212-
7 00.775 SPRING ASM; CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 1212-
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97163-191-0 01 1 1212-
8 00.777 CONNECTOR; PIPE,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-766-0 01 1 1212-
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97167-773-0 01 1 1212-
64 00.777 GASKET; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97167-767-0 01 1 1212-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
