◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11499 - FYH(AUST)EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶

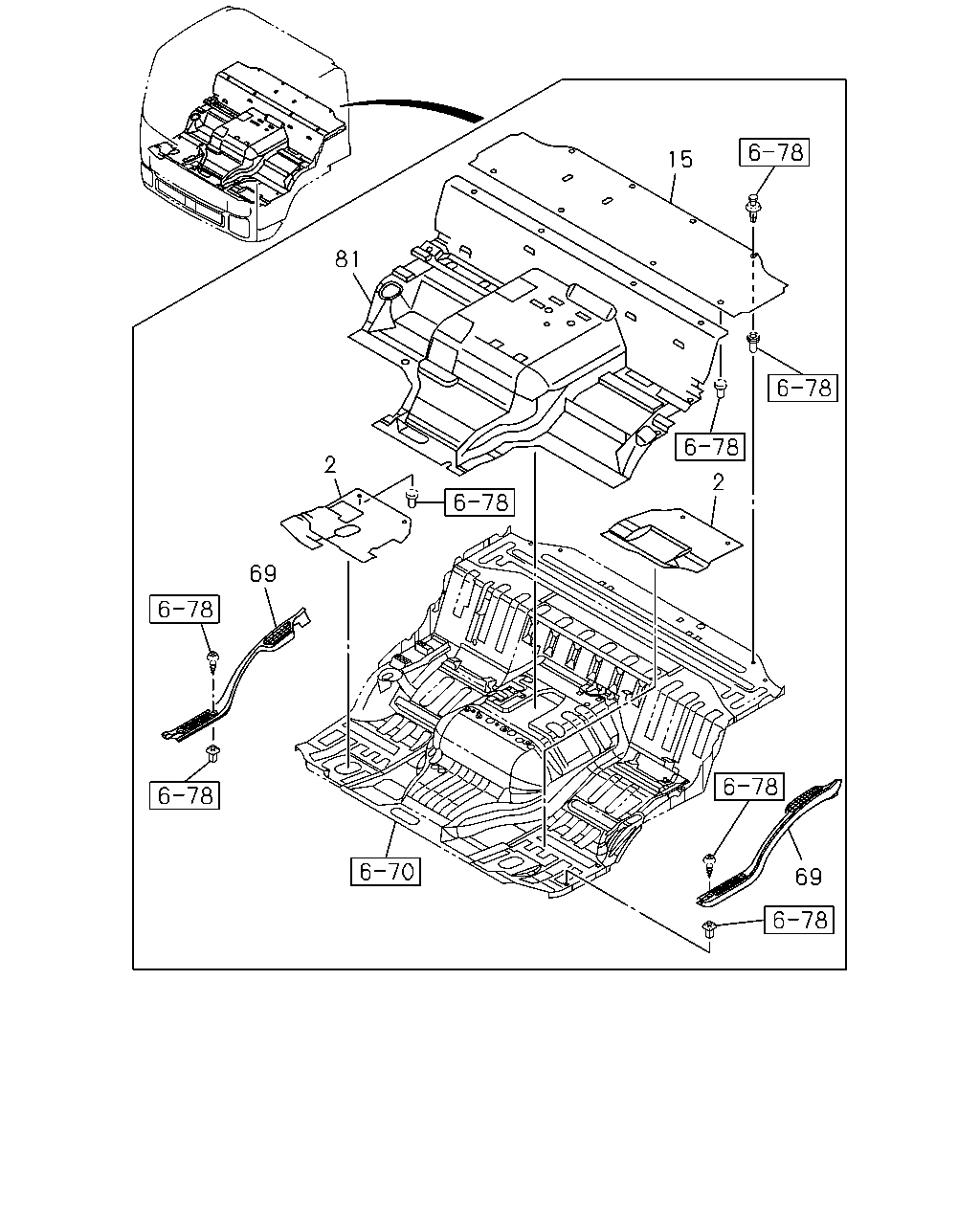

6-75 — MAT AND CARPET (#111346) — 13 parça

15 69 2 69 2 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MAT; FLOOR DELUXE CARPET<BF2> DARK GRAY	8-97421-808-0	01	1	1212-	●	●
2	MAT; FLOOR DELUXE CARPET<BF2> DARK GRAY	8-97421-810-0	01	1	1212-	●	●
2	MAT; FLOOR VINYL CARPET<B30> GRAY	8-97413-132-2	01	1	1212-	●	●
2	MAT; FLOOR VINYL CARPET<B30> GRAY	8-97413-133-1	01	1	1212-	●	●
15	MAT; FLOOR REAR EXC. MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97418-951-0	01	1	1212-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97407-413-1	01	1	1212-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97407-412-1	01	1	1212-	●	●
81	MAT; FLOOR,CENTER DELUXE CARPET<BF2> FULLER M/T<X9B> DARK GRAY	8-97421-806-0	01	1	1212-	●
81	MAT; FLOOR,CENTER DELUXE CARPET<BF2> FULLER M/T<X9B>,ZF M/T<X9E> DARK GRAY	8-97421-806-0	01	1	1212-		●
81	MAT; FLOOR,CENTER VINYL CARPET<B30> FULLER M/T<X9B> GRAY	8-97413-083-6	01	1	1212-	●
81	MAT; FLOOR,CENTER VINYL CARPET<B30> FULLER M/T<X9B>,ZF M/T<X9E> GRAY	8-97413-083-6	01	1	1212-		●
81	MAT; FLOOR,CENTER DELUXE CARPET<BF2> A/T<X9D> DARK GRAY	8-97423-758-0	01	1	1212-	●	●
81	MAT; FLOOR,CENTER VINYL CARPET<B30> A/T<X9D> GRAY	8-97423-759-0	01	1	1212-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
