Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#111338) — 280 parça

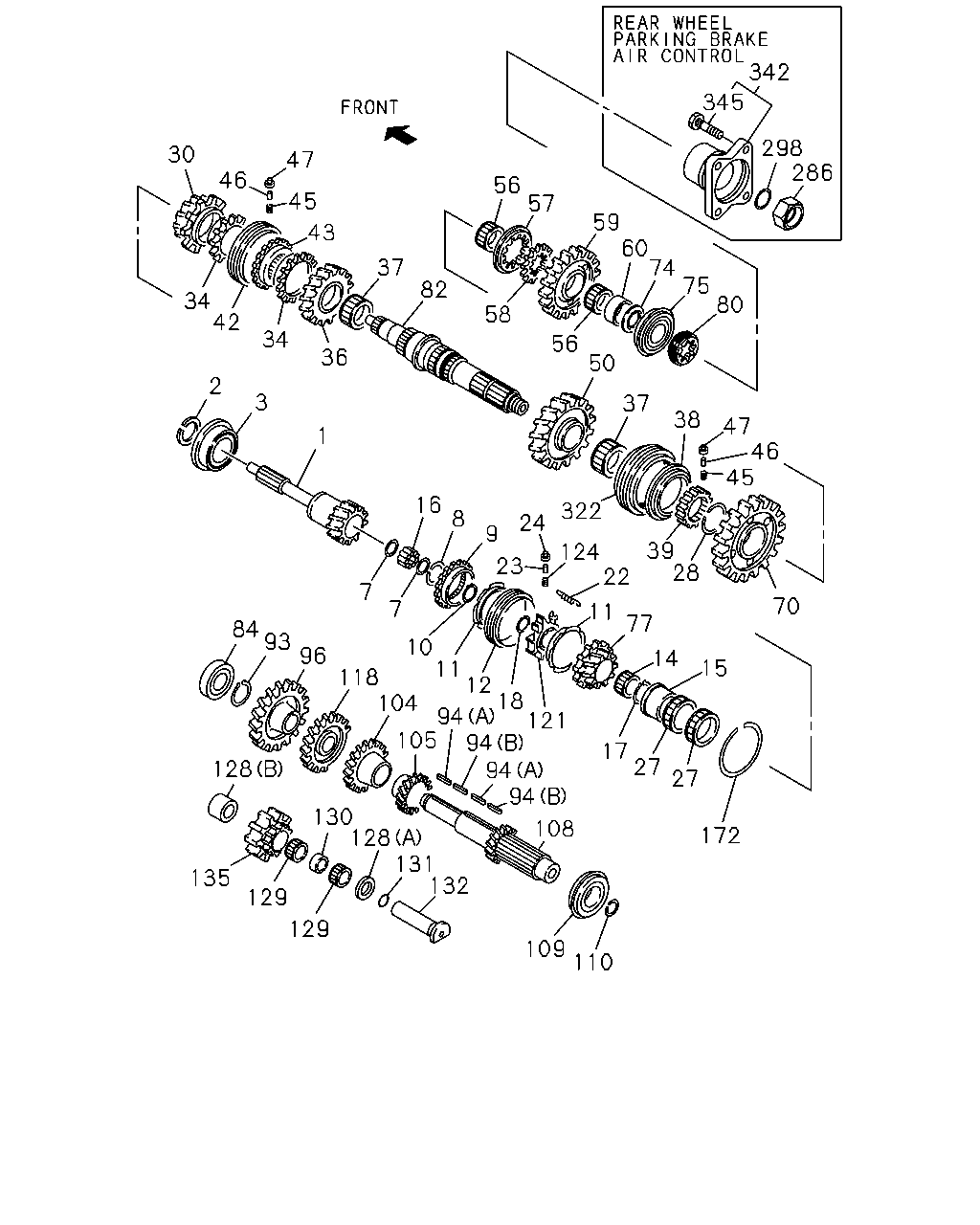

342 345 298 286 80 75 74 60 59 57 56 45 46 47 38 37 50 56 58 82 37 43 45 47 30 46 34 42 34 36 2 3 1 16 8 9 23 24 322 39 28 70 15 14 77 11 22 124 172 27 27 17 121 18 12 11 10 7 7 84 93 96 118 104 105 94 94 94 94 108 110 109 132 131 128 130 128 135 129 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=26	1-33211-789-0	01	1	1212-	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	1212-	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	1212-	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	1212-	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	1212-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	1212-	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	1212-	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	1212-	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	1212-	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	1212-	●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	1212-	●
11	RING; BLOCK,5TH & 6TH Z=45	8-97241-306-1	02	1	1212-		●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	1212-	●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	1212-	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	1212-	●
15	COLLAR; 4TH GEAR	8-98146-345-0	01	1	1212-		●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	1212-	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	1212-	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	1212-	●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	1212-		●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	1212-	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	1212-	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	1212-	●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1212-		●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	1212-	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	1212-	●
30	GEAR; 4TH,MAINSHAFT Z=33-54	1-33253-723-0	01	1	1212-	●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-619-0	02	1	1212-	●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	1212-	●
36	GEAR; 3RD,MAINSHAFT Z=29	8-98168-499-0	01	1	1212-		●
37	BEARING; NEEDLE,2ND & 3RD JTEKT	1-09811-277-0	02	1	1212-	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	1212-	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-619-0	01	1	1212-	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	1212-	●
39	HUB; CLU,LOW & 2ND Z=45	8-98075-732-0	01	1	1212-1501		●
39	HUB; CLU,LOW & 2ND Z=45	8-98303-646-0	01	1	1502-1507		●
39	HUB; CLU,LOW & 2ND Z=45	8-98309-852-0	01	1	1508-		●
42	SLEEVE Z=54	1-33262-154-0	01	1	1212-	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	1212-	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	1212-	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	1212-	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	1212-	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	1212-	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	1212-	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	1212-	●
57	SLEEVE; REV Z=45	8-94421-871-1	01	1	1212-		●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	1212-	●
58	HUB; CLU,REV Z=45-27	8-98005-296-0	01	1	1212-		●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	1212-	●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	1212-	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	1212-	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	1212-	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	1212-	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	1212-	●
77	GEAR; 6TH,MAINSHAFT Z=26	1-33253-518-0	01	1	1212-	●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98137-256-0	01	1	1212-		●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	1212-	●
80	GEAR; SPD DRIVE Z=5	8-97377-978-1	01	1	1212-		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	1212-	●
82	SHAFT; MAIN,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) Z=14-13-21-19-26	8-98140-881-0	01	1	1212-1308		●
82	SHAFT; MAIN,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) Z=14-13-21-19-26	8-98245-058-0	01	1	1309-1507		●
82	SHAFT; MAIN,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) Z=14-13-21-19-26	8-98292-396-0	01	1	1508-		●
82	SHAFT; MAIN,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=13-21-19-26	8-98140-880-0	01	1	1212-1308		●
82	SHAFT; MAIN,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=13-21-19-26	8-98245-057-0	01	1	1309-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	1212-	●
84	BEARING; COUNTER SHAFT,FRT	8-97377-957-1	01	1	1212-		●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	1212-	●
93	RING; SNAP,COUNTER FRT BRG	8-97377-958-0	01	1	1212-		●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	1212-	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	1212-	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-216-1	01	1	1212-	●
104	GEAR; 4TH,COUNTER Z=36	1-33332-133-0	01	1	1212-1311	●
104	GEAR; 4TH,COUNTER Z=36	8-98256-811-0	01	1	1312-	●
104	GEAR; 4TH,COUNTER Z=29	8-98198-297-0	01	1	1212-		●
105	GEAR; 3RD,COUNTER Z=28	1-33333-161-0	01	1	1212-1311	●
105	GEAR; 3RD,COUNTER Z=28	8-98256-803-0	01	1	1312-	●
105	GEAR; 3RD,COUNTER Z=35	8-98168-501-0	01	1	1212-		●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	1212-	●
108	SHAFT; COUNTER Z=27-42-26	8-98223-607-0	01	1	1212-1501		●
108	SHAFT; COUNTER Z=27-42-26	8-98303-643-0	01	1	1502-		●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	1212-	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	1212-	●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	1212-	●
118	GEAR; 6TH,COUNTER Z=54	1-33332-104-1	01	1	1212-	●
118	GEAR; 6TH,COUNTER Z=17	8-98005-292-1	01	1	1212-		●
121	HUB; CLU,6TH	1-33261-270-0	01	1	1212-	●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	1212-	●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=42	1-33239-079-1	01	1	1212-	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=2	1-33363-024-1	01	1	1212-	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	1212-	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	1212-	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	1212-	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	1212-	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0	9-09571-410-0	02	1	1212-		●
132	SHAFT; REV	1-33351-017-0	01	1	1212-	●
132	SHAFT; REV	8-98009-372-0	01	1	1212-		●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	1212-	●
135	GEAR; REV IDLER Z=27	8-98005-601-1	01	1	1212-		●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	1212-	●
286	NUT; LK,MAINSHAFT M36 FLANGE	8-98014-140-0	01	1	1212-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	1212-	●	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	1212-	●
342	FLANGE; OUTPUT	1-37243-307-1	01	1	1212-	●
342	FLANGE; OUTPUT	8-98155-334-0	01	1	1212-		●
345	BOLT; FLANGE TO YOKE M14X43 KNURL	8-98014-003-0	04	1	1212-	●

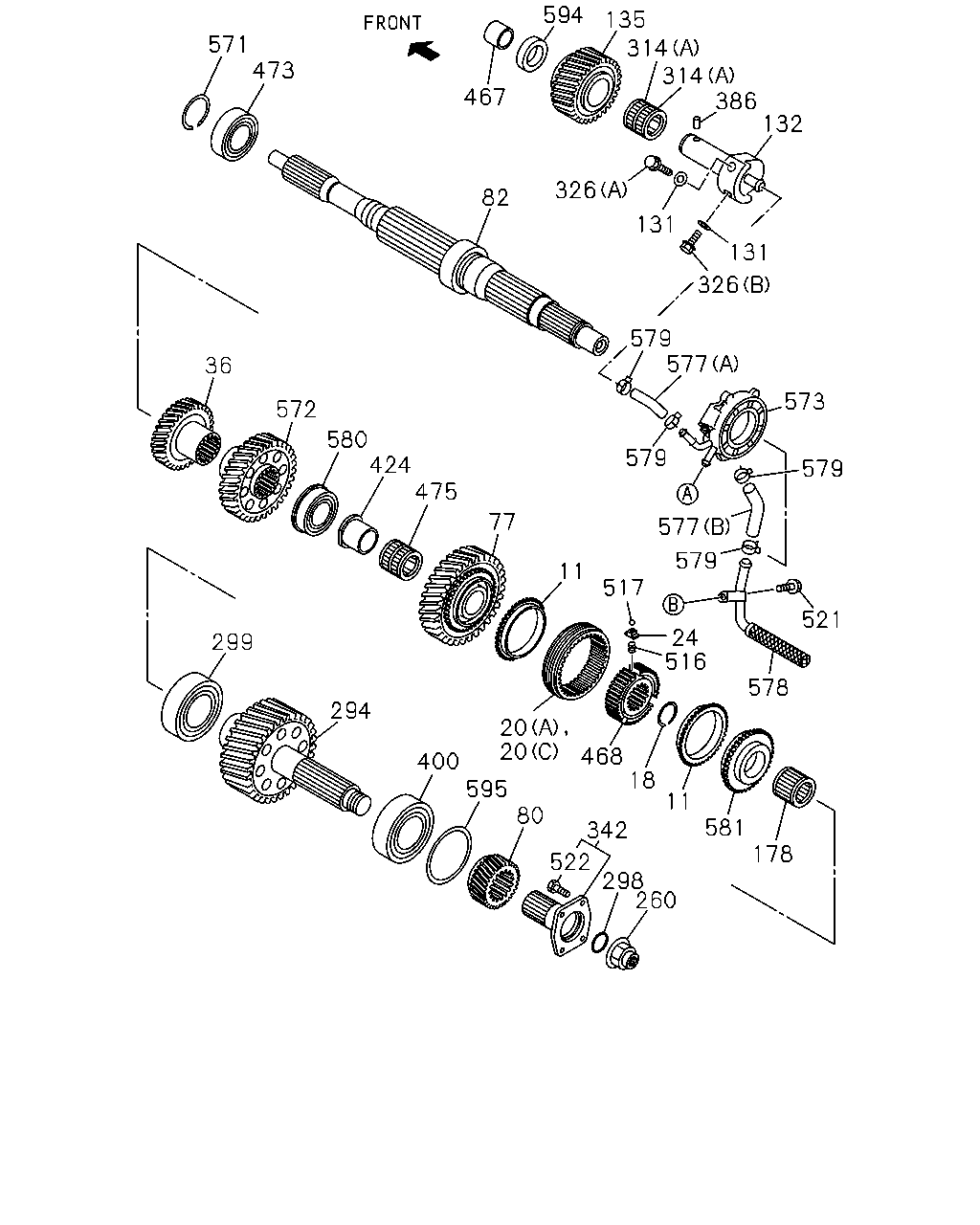

132 386 314 314 135 594 467 82 326 131 131 326 579 577 573 579 577 579 579 521 578 516 517 11 77 475 424 580 572 36 299 294 400 595 80 522 298 260 178 581 11 18 468 20 20 571 473 342 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	1212-	●
11	RING; BLOCK,5TH & 6TH Z=45	8-97241-306-1	02	1	1212-		●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	1212-	●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	1212-		●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=45	8-98258-279-0	02	1	1509-		●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=45	8-97241-296-1	02	1	1212-1308		●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=45	8-98034-769-0	01	1	1212-1308		●
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	1309-1508		●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=45	8-98034-769-0	01	1	1509-		●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) Z=45	8-97241-296-1	03	1	1212-1308		●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1309-1311		●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-1508		●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) Z=45	8-98258-279-0	03	1	1509-		●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	1212-	●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1212-		●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	1212-	●
36	GEAR; 3RD,MAINSHAFT Z=29	8-98168-499-0	01	1	1212-		●
77	GEAR; 6TH,MAINSHAFT Z=26	1-33253-518-0	01	1	1212-	●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98137-256-0	01	1	1212-		●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	1212-	●
80	GEAR; SPD DRIVE Z=5	8-97377-978-1	01	1	1212-		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	1212-	●
82	SHAFT; MAIN,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) Z=14-13-21-19-26	8-98140-881-0	01	1	1212-1308		●
82	SHAFT; MAIN,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) Z=14-13-21-19-26	8-98245-058-0	01	1	1309-1507		●
82	SHAFT; MAIN,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) Z=14-13-21-19-26	8-98292-396-0	01	1	1508-		●
82	SHAFT; MAIN,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=13-21-19-26	8-98140-880-0	01	1	1212-1308		●
82	SHAFT; MAIN,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=13-21-19-26	8-98245-057-0	01	1	1309-		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	1212-	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0	9-09571-410-0	02	1	1212-		●
132	SHAFT; REV	1-33351-017-0	01	1	1212-	●
132	SHAFT; REV	8-98009-372-0	01	1	1212-		●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	1212-	●
135	GEAR; REV IDLER Z=27	8-98005-601-1	01	1	1212-		●
178	BEARING; NEEDLE,MAINSHAFT	8-97253-099-1	01	1	1212-		●
260	NUT; MAINSHAFT END M36 FLANGE	8-98014-140-0	01	1	1212-		●
294	SHAFT; OUTPUT Z=43	8-97380-571-0	01	1	1212-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	1212-	●	●
299	BEARING; OUTPUT SHAFT FRT	8-97377-970-0	01	1	1212-		●
314	BEARING; NEEDLE,REV GEAR (A) JTEKT	1-09811-017-0	02	1	1212-		●
314	BEARING; NEEDLE,REV GEAR (B) NSK	8-97253-111-0	01	1	1212-		●
326	BOLT; REV SHAFT (A) M10X50 FLANGE	0-29261-050-0	01	1	1212-		●
326	BOLT; REV SHAFT (B) M10X50	8-98014-738-0	01	1	1212-		●
342	FLANGE; OUTPUT	1-37243-307-1	01	1	1212-	●
342	FLANGE; OUTPUT	8-98155-334-0	01	1	1212-		●
386	PIN; REV SHAFT OD=4 L=8	9-08150-408-0	01	1	1212-		●
400	BEARING; OUTPUT SHAFT RR	8-97377-977-0	01	1	1212-		●
424	COLLAR; 6TH GEAR	8-98125-318-0	01	1	1212-		●
467	COLLAR; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-183-1	01	1	1212-		●
468	HUB; CLU,5TH & 6TH Z=45	8-98075-734-0	01	1	1212-		●
473	BEARING; INPUT SHAFT	8-97377-950-0	01	1	1212-		●
475	BEARING; 6TH COLLAR OD=-49.999	8-98101-505-0	01	1	1212-		●
475	BEARING; 6TH COLLAR OD=50.000-	8-98142-265-0	01	1	1212-		●
516	SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98054-981-0	09	1	1212-		●
516	SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98032-197-0	09	1	1212-		●
517	BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-935-0	10	1	1212-		●
517	BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-935-0	09	1	1212-		●
521	BOLT M8X12 FLANGE	0-28050-812-0	01	1	1212-		●
522	BOLT; FLANGE M14X43 KNURL	8-98014-003-0	04	1	1212-		●
571	RING; SNAP,BRG	8-97377-951-0	01	1	1212-		●
572	GEAR; 4TH,INPUT Z=37	8-98168-500-0	01	1	1212-		●
573	PUMP ASM; OIL	8-98212-241-0	01	1	1212-		●
577	HOSE; OIL PUMP (A)	8-98033-981-0	02	1	1212-		●
577	HOSE; OIL PUMP (B)	8-98033-982-0	02	1	1212-		●
578	SCREEN; OIL PUMP	8-98009-345-0	02	1	1212-		●
579	CLAMP; HOSE ID=16	8-97329-628-0	07	1	1212-		●
580	BEARING; MAINSHAFT RR	8-97377-953-0	01	1	1212-		●
581	CLUTCH; DOG,5TH GEAR	8-97377-956-0	01	1	1212-		●
594	WASHER; THRUST,REV IDLE	8-98005-633-0	01	1	1212-		●
595	SHIM; OUTPUT SHAFT T=1.44	8-97377-984-0	01	1	1212-		●
595	SHIM; OUTPUT SHAFT T=1.50	8-97377-985-0	01	1	1212-		●
595	SHIM; OUTPUT SHAFT T=1.56	8-97377-986-0	01	1	1212-		●
595	SHIM; OUTPUT SHAFT T=1.62	8-97377-987-0	01	1	1212-		●
595	SHIM; OUTPUT SHAFT T=1.68	8-97377-988-0	01	1	1212-		●
595	SHIM; OUTPUT SHAFT T=1.74	8-97377-989-0	01	1	1212-		●
595	SHIM; OUTPUT SHAFT T=1.80	8-97377-990-0	01	1	1212-		●
595	SHIM; OUTPUT SHAFT T=1.86	8-97377-991-0	01	1	1212-		●
595	SHIM; OUTPUT SHAFT T=1.38	8-98009-379-0	01	1	1212-		●
595	SHIM; OUTPUT SHAFT T=1.26	8-98022-221-0	01	1	1212-		●
595	SHIM; OUTPUT SHAFT T=1.32	8-98022-222-0	01	1	1212-		●

241 93 20 20 39 517 516 58 584 585 586 106 582 241 95 314 57 563 561 579 577 587 517 174 579 588 589 590 108 582 105 24 516 592 320 596 223 398 506 325 593 15 174 582 104 20 20 118 582 84 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	1212-	●
15	COLLAR; 4TH GEAR	8-98146-345-0	01	1	1212-		●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=45	8-98258-279-0	02	1	1509-		●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=45	8-97241-296-1	02	1	1212-1308		●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=45	8-98034-769-0	01	1	1212-1308		●
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	1309-1508		●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=45	8-98034-769-0	01	1	1509-		●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) Z=45	8-97241-296-1	03	1	1212-1308		●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1309-1311		●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-1508		●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) Z=45	8-98258-279-0	03	1	1509-		●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	1212-	●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1212-		●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	1212-	●
39	HUB; CLU,LOW & 2ND Z=45	8-98075-732-0	01	1	1212-1501		●
39	HUB; CLU,LOW & 2ND Z=45	8-98303-646-0	01	1	1502-1507		●
39	HUB; CLU,LOW & 2ND Z=45	8-98309-852-0	01	1	1508-		●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	1212-	●
57	SLEEVE; REV Z=45	8-94421-871-1	01	1	1212-		●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	1212-	●
58	HUB; CLU,REV Z=45-27	8-98005-296-0	01	1	1212-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	1212-	●
84	BEARING; COUNTER SHAFT,FRT	8-97377-957-1	01	1	1212-		●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	1212-	●
93	RING; SNAP,COUNTER FRT BRG	8-97377-958-0	01	1	1212-		●
95	GEAR; REV,COUNTER Z=44	8-98005-229-0	01	1	1212-		●
104	GEAR; 4TH,COUNTER Z=36	1-33332-133-0	01	1	1212-1311	●
104	GEAR; 4TH,COUNTER Z=36	8-98256-811-0	01	1	1312-	●
104	GEAR; 4TH,COUNTER Z=29	8-98198-297-0	01	1	1212-		●
105	GEAR; 3RD,COUNTER Z=28	1-33333-161-0	01	1	1212-1311	●
105	GEAR; 3RD,COUNTER Z=28	8-98256-803-0	01	1	1312-	●
105	GEAR; 3RD,COUNTER Z=35	8-98168-501-0	01	1	1212-		●
106	GEAR; 2ND,COUNTER Z=44	8-98140-884-0	01	1	1212-		●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	1212-	●
108	SHAFT; COUNTER Z=27-42-26	8-98223-607-0	01	1	1212-1501		●
108	SHAFT; COUNTER Z=27-42-26	8-98303-643-0	01	1	1502-		●
118	GEAR; 6TH,COUNTER Z=54	1-33332-104-1	01	1	1212-	●
118	GEAR; 6TH,COUNTER Z=17	8-98005-292-1	01	1	1212-		●
174	SYNCHRONIZER ASM; 2ND-3RD TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98315-823-2	02	1	1509-		●
223	NUT; COUNTER SHAFT END M34 FLANGE	8-98005-894-0	01	1	1212-		●
241	RING; SNAP (A) ID=46.5 T=1.8	8-97254-743-0	01	1	1212-		●
241	RING; SNAP (B) ID=96 T=2.5	8-98009-391-0	01	1	1212-		●
314	BEARING; NEEDLE,REV GEAR (A) JTEKT	1-09811-017-0	02	1	1212-		●
314	BEARING; NEEDLE,REV GEAR (B) NSK	8-97253-111-0	01	1	1212-		●
320	HUB; CLU,4TH & 3RD Z=45	8-98075-733-0	01	1	1212-1501		●
320	HUB; CLU,4TH & 3RD Z=45	8-98303-649-0	01	1	1502-1507		●
320	HUB; CLU,4TH & 3RD Z=45	8-98309-859-0	01	1	1508-		●
325	SHIM; COUNTER SHAFT BRG T=1.56	8-97377-994-0	01	1	1212-		●
325	SHIM; COUNTER SHAFT BRG T=1.62	8-97377-995-0	01	1	1212-		●
325	SHIM; COUNTER SHAFT BRG T=1.68	8-97377-996-0	01	1	1212-		●
325	SHIM; COUNTER SHAFT BRG T=1.74	8-97377-997-0	01	1	1212-		●
325	SHIM; COUNTER SHAFT BRG T=1.80	8-97377-998-0	01	1	1212-		●
325	SHIM; COUNTER SHAFT BRG T=1.26	8-98009-373-0	01	1	1212-		●
325	SHIM; COUNTER SHAFT BRG T=1.32	8-98009-374-0	01	1	1212-		●
325	SHIM; COUNTER SHAFT BRG T=1.38	8-98009-375-0	01	1	1212-		●
325	SHIM; COUNTER SHAFT BRG T=1.44	8-98009-376-0	01	1	1212-		●
325	SHIM; COUNTER SHAFT BRG T=1.50	8-98009-377-0	01	1	1212-		●
325	SHIM; COUNTER SHAFT BRG T=1.14	8-98022-218-0	01	1	1212-		●
325	SHIM; COUNTER SHAFT BRG T=1.20	8-98022-219-0	01	1	1212-		●
398	GEAR; COUNTER Z=22	8-97380-568-0	01	1	1212-		●
506	COLLAR; 6TH,COUNTER	8-97377-965-0	01	1	1212-		●
516	SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98054-981-0	09	1	1212-		●
516	SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98032-197-0	09	1	1212-		●
517	BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-935-0	10	1	1212-		●
517	BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-935-0	09	1	1212-		●
561	GEAR; LOW,COUNTER Z=44	8-98000-330-0	01	1	1212-		●
563	COLLAR; 1ST GEAR	8-98146-345-0	01	1	1212-		●
577	HOSE; OIL PUMP (A)	8-98033-981-0	02	1	1212-		●
577	HOSE; OIL PUMP (B)	8-98033-982-0	02	1	1212-		●
579	CLAMP; HOSE ID=16	8-97329-628-0	07	1	1212-		●
582	BEARING; NEEDLE,COUNTER GEAR	8-97253-110-0	04	1	1212-		●
584	RING; BLOCK,2ND TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45	8-98034-770-0	01	1	1212-1308		●
584	RING; BLOCK,2ND Z=45	8-98034-770-0	01	1	1309-1508		●
584	RING; BLOCK,2ND TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45	8-98034-770-0	01	1	1509-		●
584	RING; BLOCK,2ND TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-98223-605-1	01	1	1212-1308		●
585	RING; OUTSIDE,2ND	8-97241-309-1	01	1	1212-1508		●
585	RING; OUTSIDE,2ND TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-309-1	01	1	1509-		●
586	RING; INSIDE,2ND TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-312-1	01	1	1212-1308		●
586	RING; INSIDE,2ND	8-97241-312-1	01	1	1309-1508		●
586	RING; INSIDE,2ND TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-312-1	01	1	1509-		●
586	RING; INSIDE,2ND TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98223-606-1	01	1	1212-1308		●
587	CASE; PUMP,COUNTER	8-98212-196-0	01	1	1212-1501		●
587	CASE; PUMP,COUNTER	8-98303-650-0	01	1	1502-		●
588	RING; BLOCK,3RD TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45	8-97241-306-1	01	1	1212-1308		●
588	RING; BLOCK,3RD Z=45	8-97241-306-1	01	1	1309-1508		●
588	RING; BLOCK,3RD TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45	8-97241-306-1	01	1	1509-		●
588	RING; BLOCK,3RD TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-98223-605-1	01	1	1212-1308		●
589	RING; OUTSIDE,3RD	8-97241-309-1	01	1	1212-1508		●
589	RING; OUTSIDE,3RD TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-309-1	01	1	1509-		●
590	RING; INSIDE,3RD TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-312-1	01	1	1212-1308		●
590	RING; INSIDE,3RD	8-97241-312-1	01	1	1309-1508		●
590	RING; INSIDE,3RD TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-312-1	01	1	1509-		●
590	RING; INSIDE,3RD TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98223-606-1	01	1	1212-1308		●
592	RING; BLOCK,4TH Z=45	8-97241-306-1	01	1	1212-		●
593	BEARING; COUNTER MIDDLE	8-97377-976-0	01	1	1212-		●
596	BEARING; ROOLER,COUNTER END	8-97377-968-0	01	1	1212-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
